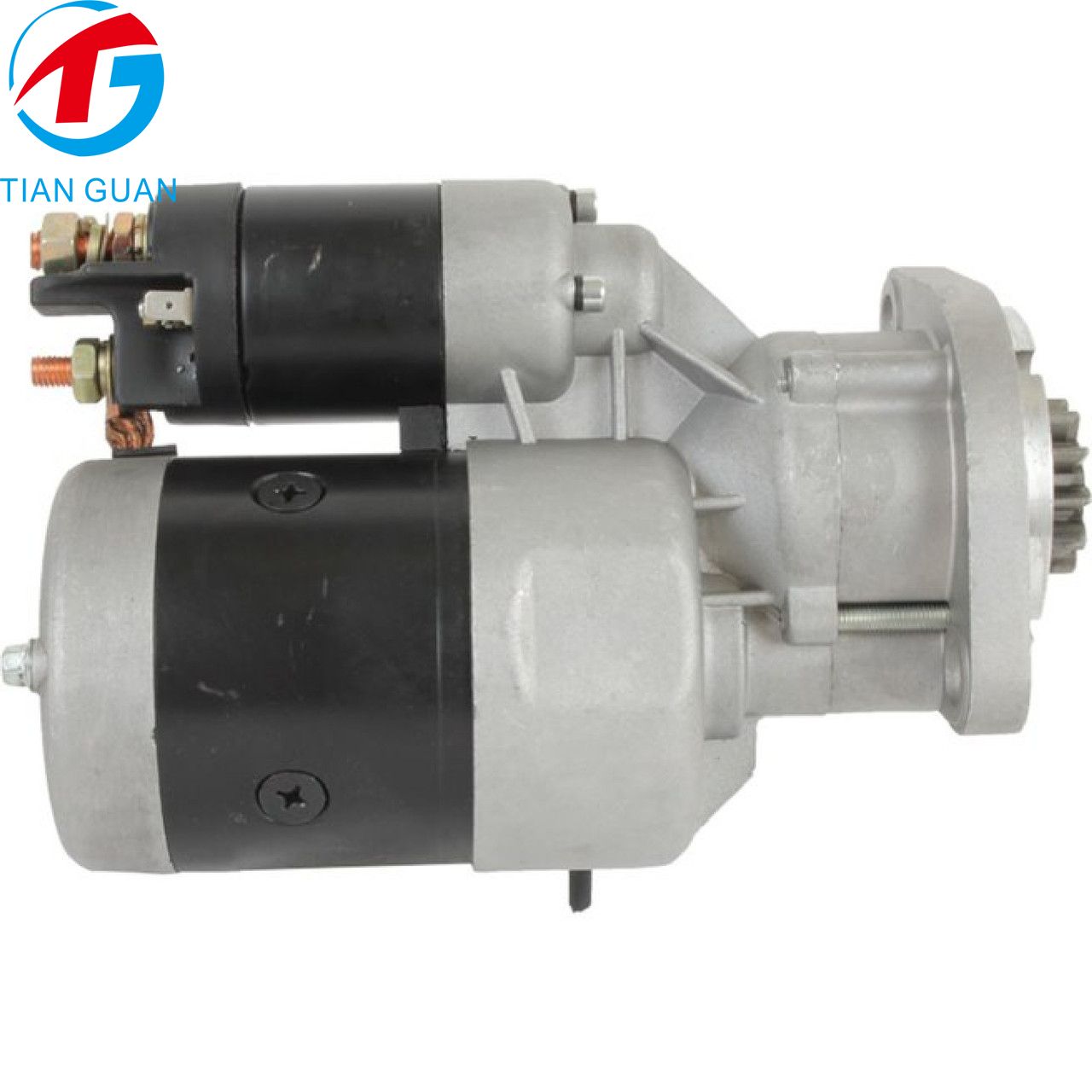

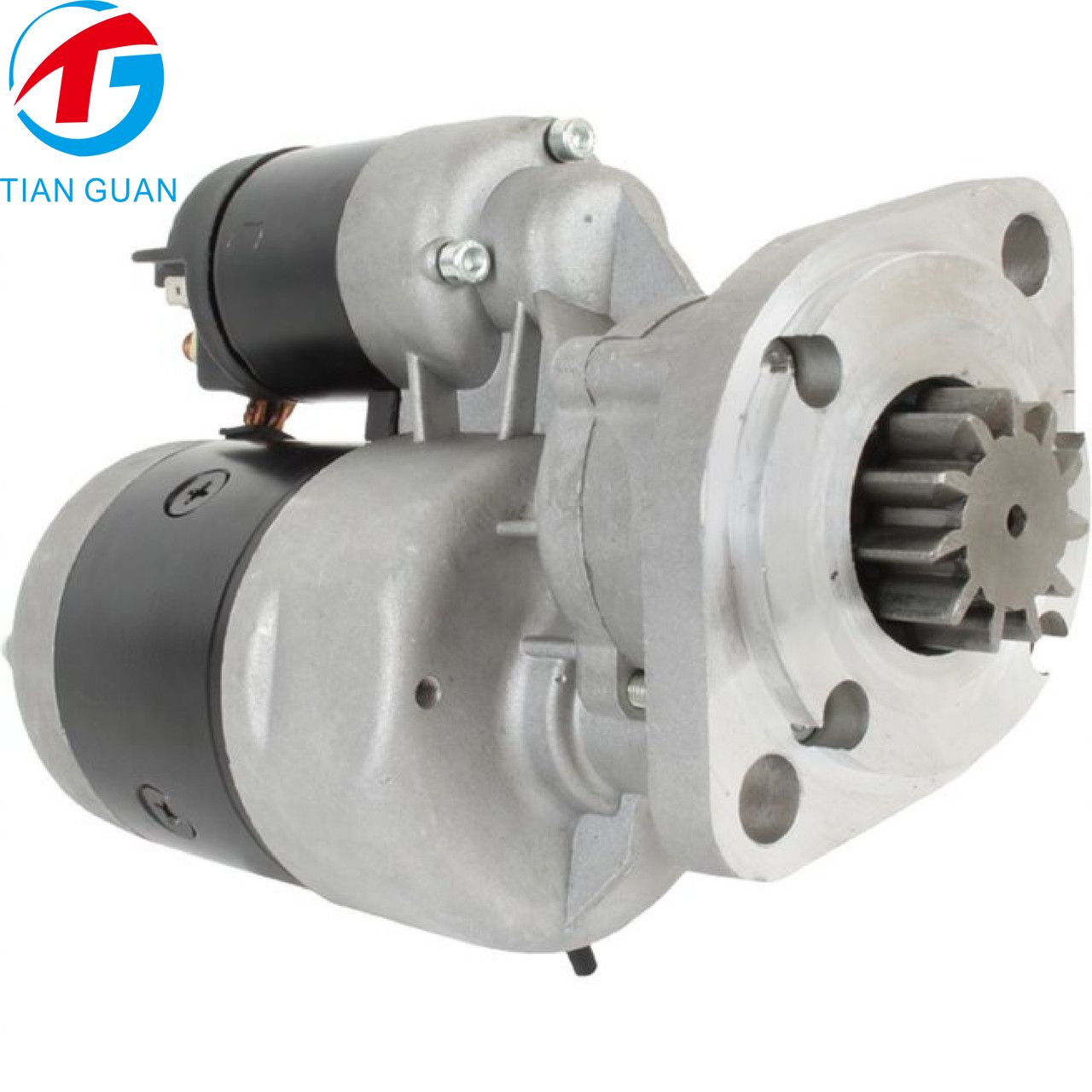

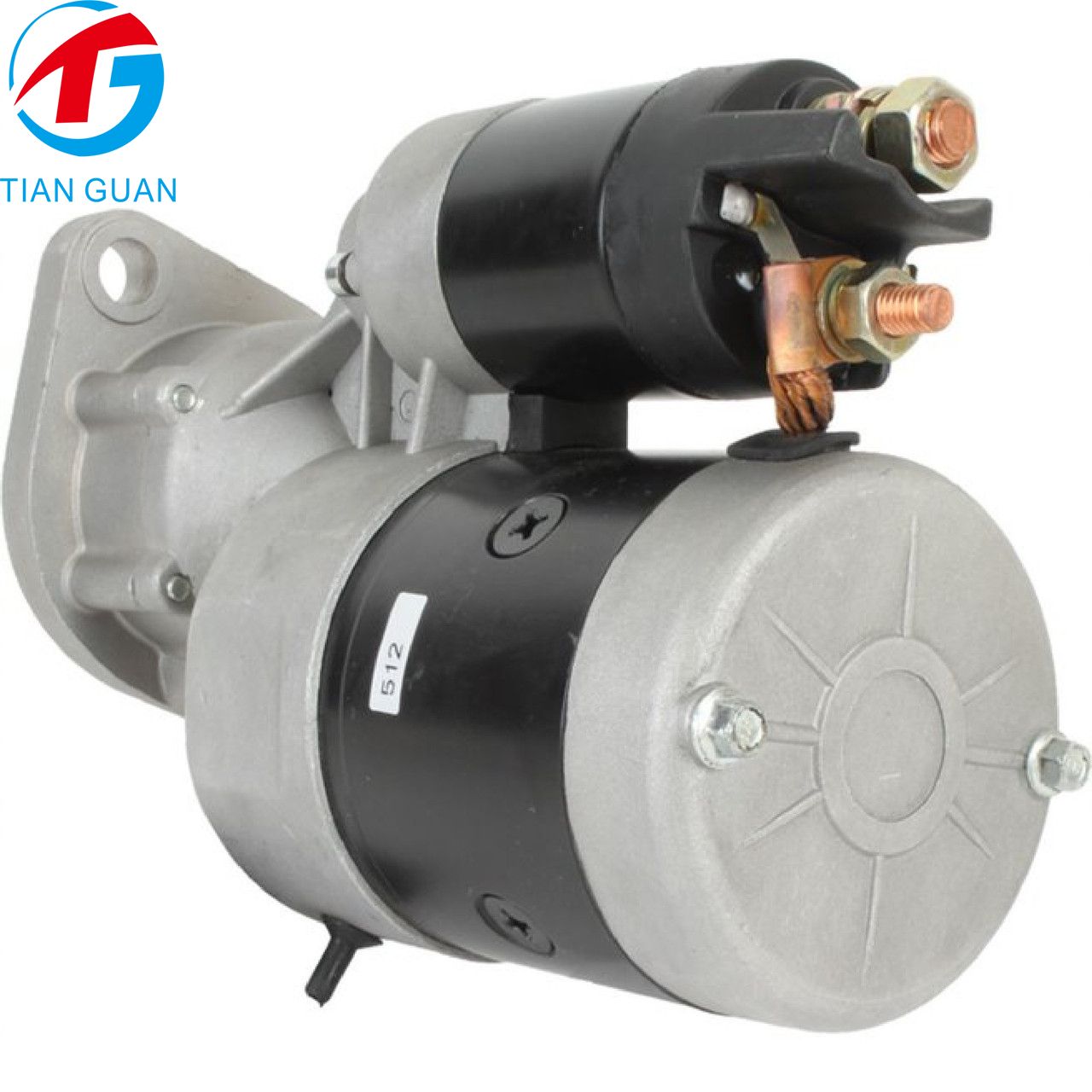

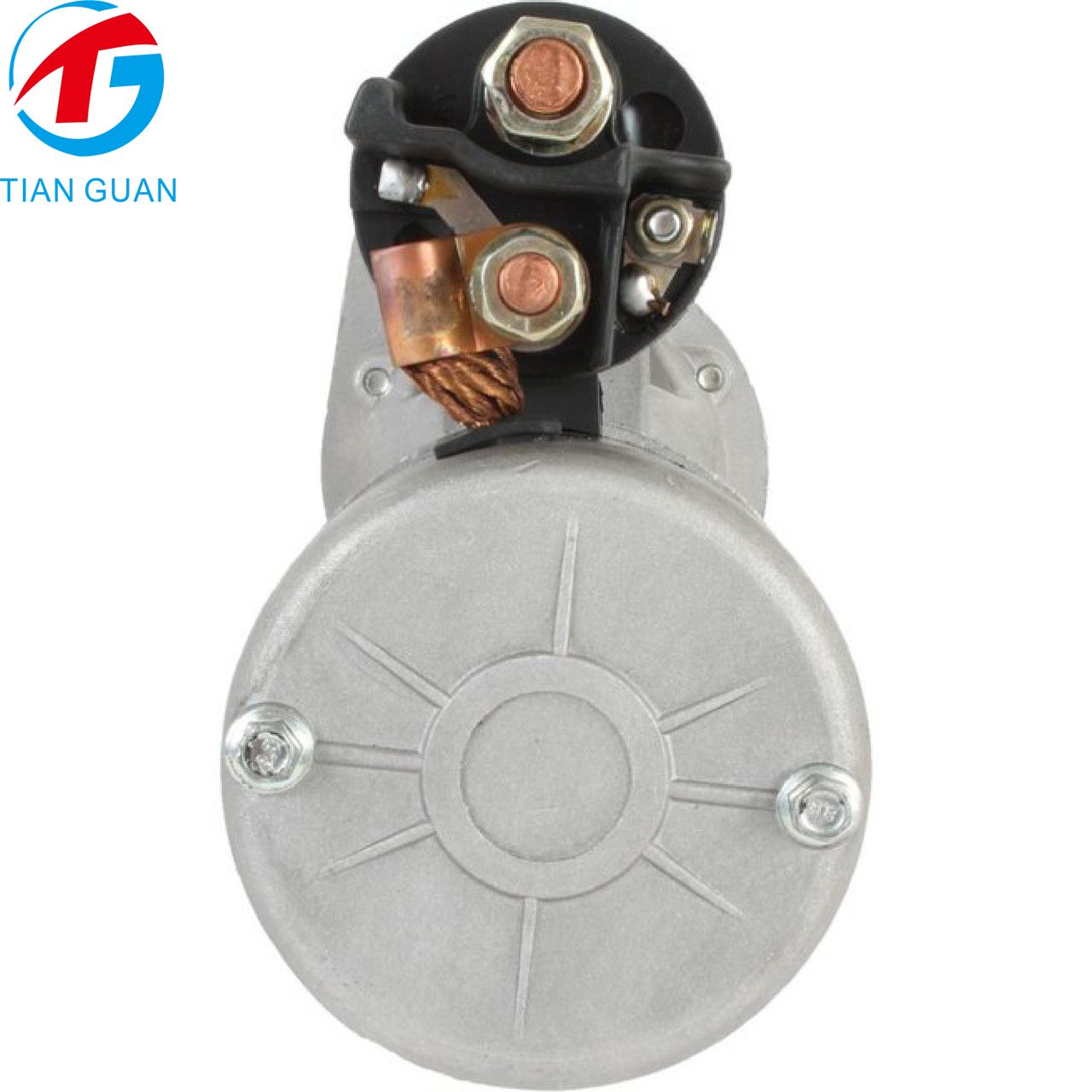

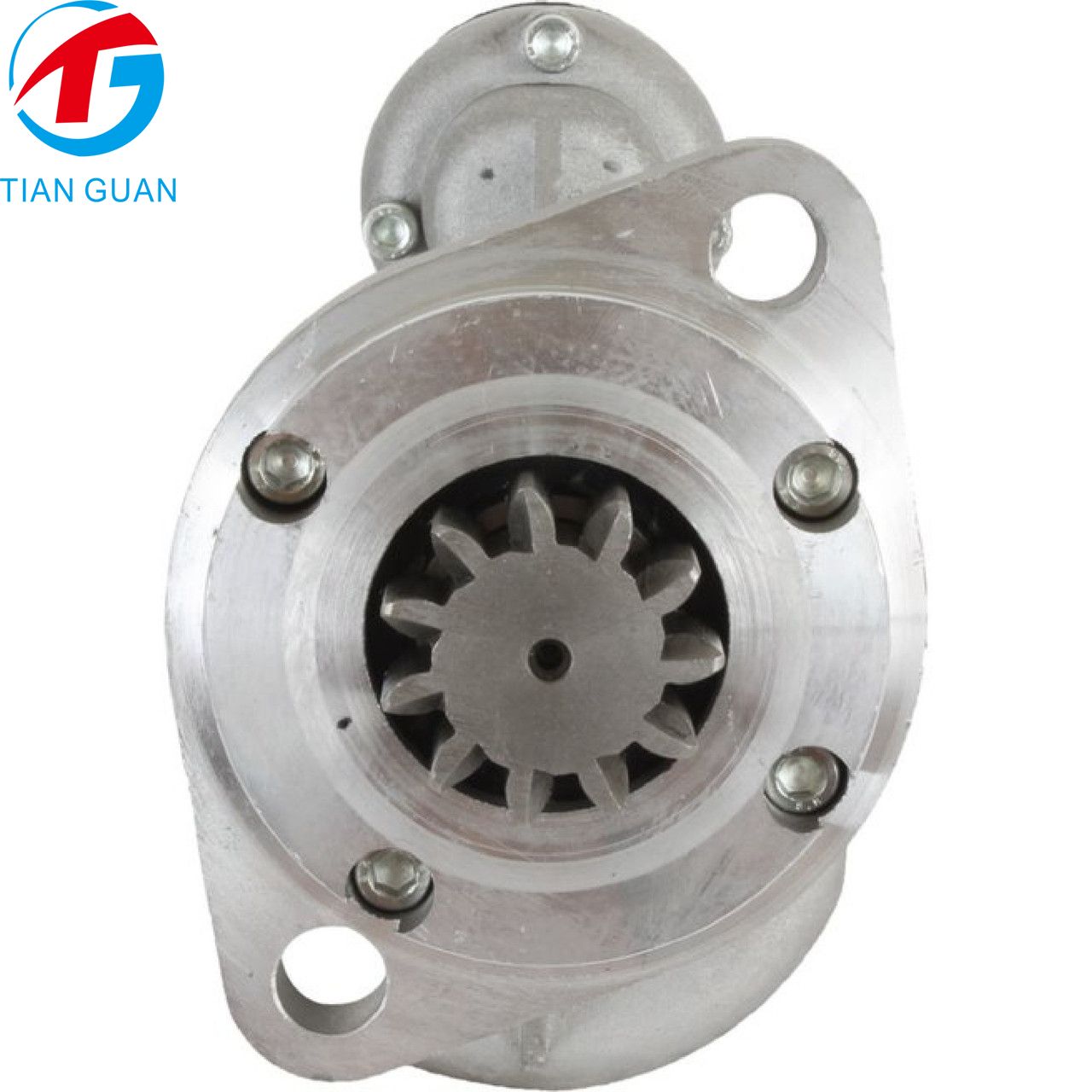

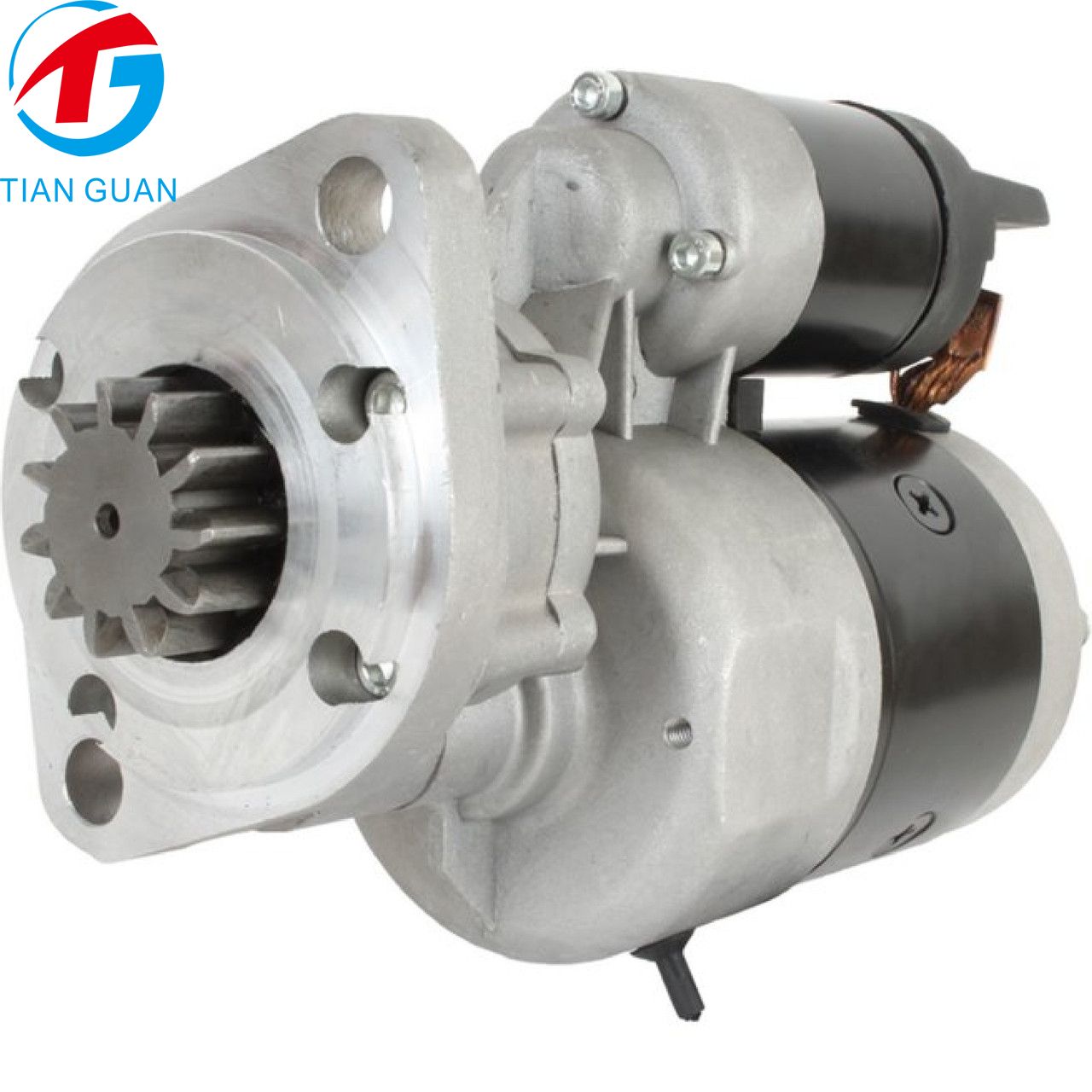

STG52264 Starter Motor 9-142-602 for SAME 105-2LP 982LP 983L 983P 984P Engines, AGCO Allis 4650 4660 5650 5660, AGCO GT45 GT55 Tractors | 12V 2.7kW 11T CW OSGR Replacement

3 Reviews

Add Your Review

US$132.00

ITEMNO： STG52264

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG52264 Starter Motor 9-142-602 for SAME 105-2LP 982LP 983L 983P 984P Engines, AGCO Allis 4650 4660 5650 5660, AGCO GT45 GT55 Tractors | 12V 2.7kW 11T CW OSGR Replacement

Part Numbers

Magneton: 9-142-602

Product Description

The STG52264 Starter Motor is an aftermarket replacement starter designed for compatible SAME diesel engines, AGCO and AGCO Allis tractors, and selected industrial or marine engine applications.

Featuring a 12V electrical system, 2.7kW output, an 11-tooth pinion, clockwise rotation, and offset gear reduction (OSGR) construction, this starter is designed to provide dependable cranking performance for agricultural and other compatible equipment.

The starter cross-references Magneton part number 9-142-602. Listed applications include selected SAME engine and tractor models, AGCO GT-series tractors, AGCO Allis 4650/4660/5650/5660 tractors, and Case IH 2120/2130 tractors.

Before ordering, compare the original starter part number, engine model, mounting arrangement, pinion specifications, and electrical connections to confirm compatibility.

Product Specifications

Specification	Details
SKU / Model	STG52264
Product Type	Starter Motor
Item Condition	Aftermarket Part
Unit Type	Starter
Voltage	12V
Power Output	2.7kW
Rotation Direction	Clockwise (CW)
Number of Pinion Teeth	11T
Starter Type	Offset Gear Reduction (OSGR)
Listed Engine Manufacturer	SAME / SDF
Estimated Net Weight	6.0 kg

OEM / Cross Reference Numbers

Brand / Category	Reference Part Numbers
Magneton	9-142-602

Compatible Applications

AGCO Allis Tractors

Model	Year	Engine
4650 4WD	1991–1998	3-190 SAME Diesel
4650	1991–1998	3-190 SAME Diesel
4660 4WD	1991–1998	3-190 SAME Diesel
4660	1991–1998	3-190 SAME Diesel
5650 4WD	1995–2001	3-183 SAME Diesel
5650	1995–2001	3-183 SAME Diesel
5660 4WD	1995–2001	3-183 SAME Diesel
5660	1995–2001	3-183 SAME Diesel

AGCO Tractors

Model	Year	Engine
GT45 4WD	2004	SDF 3-183 Diesel
GT45	2004	SDF 3-183 Diesel
GT45A 4WD	2004–2008	SDF 3-183 Diesel
GT45A	2004–2008	SDF 3-183 Diesel
GT55 4WD	2004	SDF 3-183 Diesel
GT55	2004	SDF 3-183 Diesel
GT55A 4WD	2004–2008	SDF 3-183 Diesel
GT55A	2004–2008	SDF 3-183 Diesel

Case IH Tractors

Model	Year	Engine
2120	1990–1992	3-183 Diesel
2130	1990–1992	3-183 Diesel

SAME Tractors

Model	Year / Range	Engine
Aurora 45	1973–1981	983L
Centauro 60	1969–1972	954V
Condor 55	1979–1988	100-3P
Corsaro 70	1976–1978	984
Corsaro Synchro 70	1978–1981	984P
Delfino 35	1972 onward, as listed	982 / 982L
Drago 120	1980–1986	1056P
Explorer 55	1983–1986	916-3A
Explorer 60	1986 onward, as listed	1000-3A
Falcon	1974–1988	983 / 983L
Frutteto 60	1987 onward, as listed	1000-3A
Jaguar 95	1979–1984	SAME 5-316 Diesel
Leopard 85	1980–1983	SAME 4-253 Diesel

SAME Crawler Equipment

Model	Year / Range	Engine
Condor C	1980–1986	983L
Fox 35	1981–1986	982L
Fox 45	1981–1986	983L
Fox 55	1981–1986	983L
Solar 55C	1987 onward, as listed	100-3P

SAME Engines

Engine Model	Year / Range
105-2LP	1973–1980
982LP	1970–1980
983L	1970–1980
983P	1978
984P	1978–1983

BPM Inboard Marine Engines

Model	Year / Range	Engine
Arctic 157	1962–1987	4.2L
Arctic 181	1962–1987	4.2L
Ionic 144	1962–1988	3.0L
Oceanic 235	1963–1987	5.7L
Oceanic 265S	1963–1992	5.7L

PRODUCT HIGHLIGHTS

Product Highlights

High-Power Starting Performance	OSGR Starter Design	Broad Equipment Applications
12V and 2.7kW output for compatible diesel engine applications.	11-tooth pinion with clockwise rotation and offset gear reduction.	Listed for selected AGCO, AGCO Allis, Case IH, SAME, and BPM applications.
