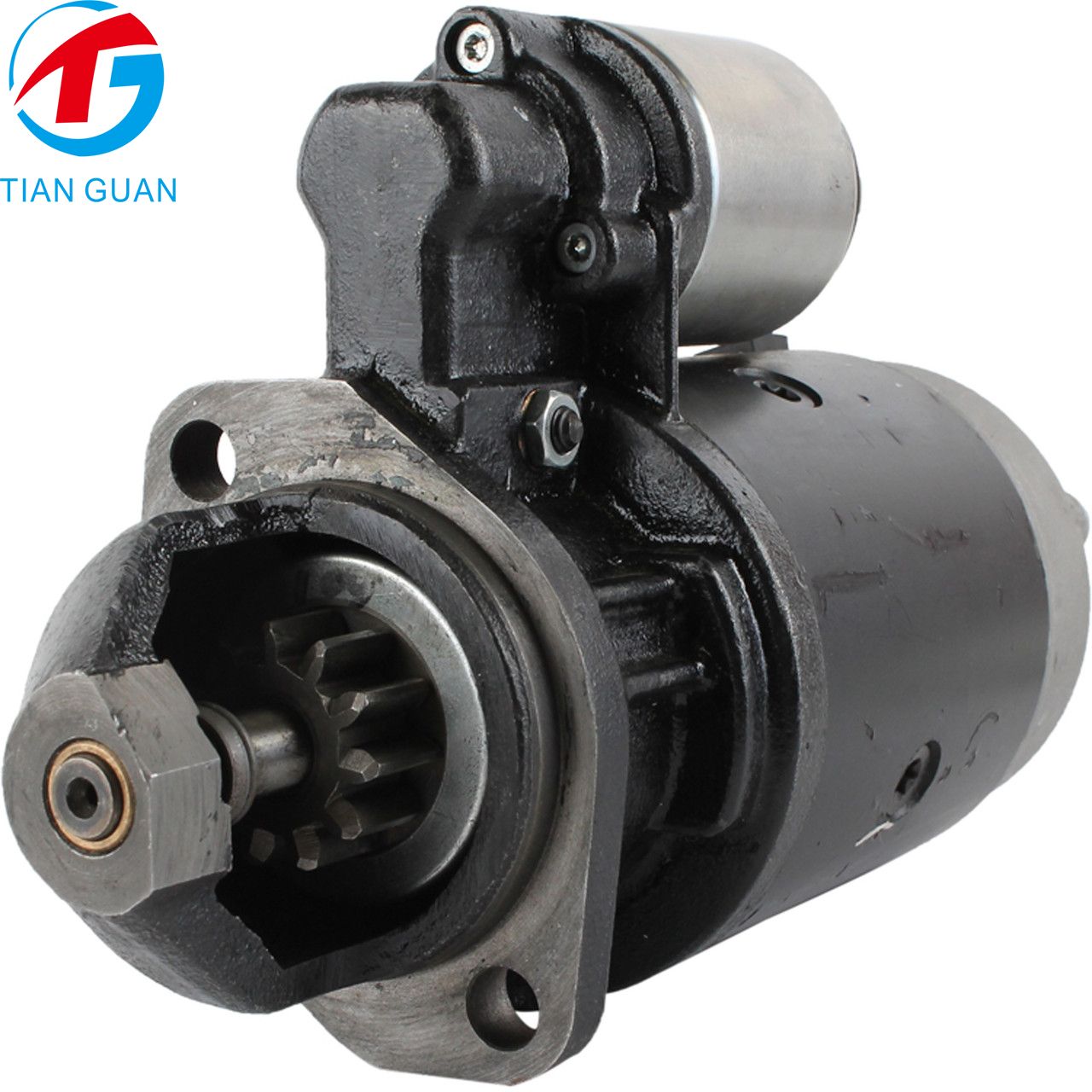

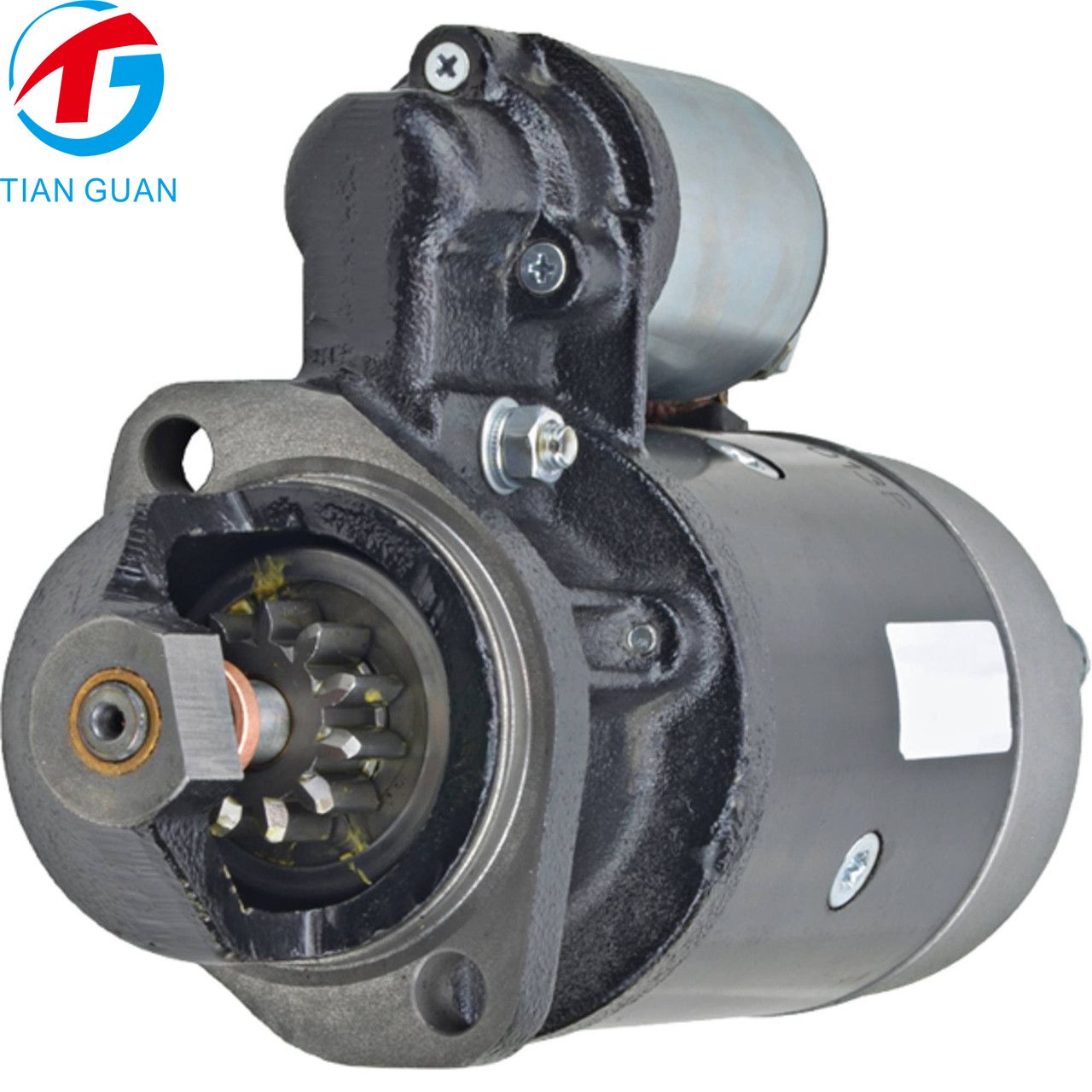

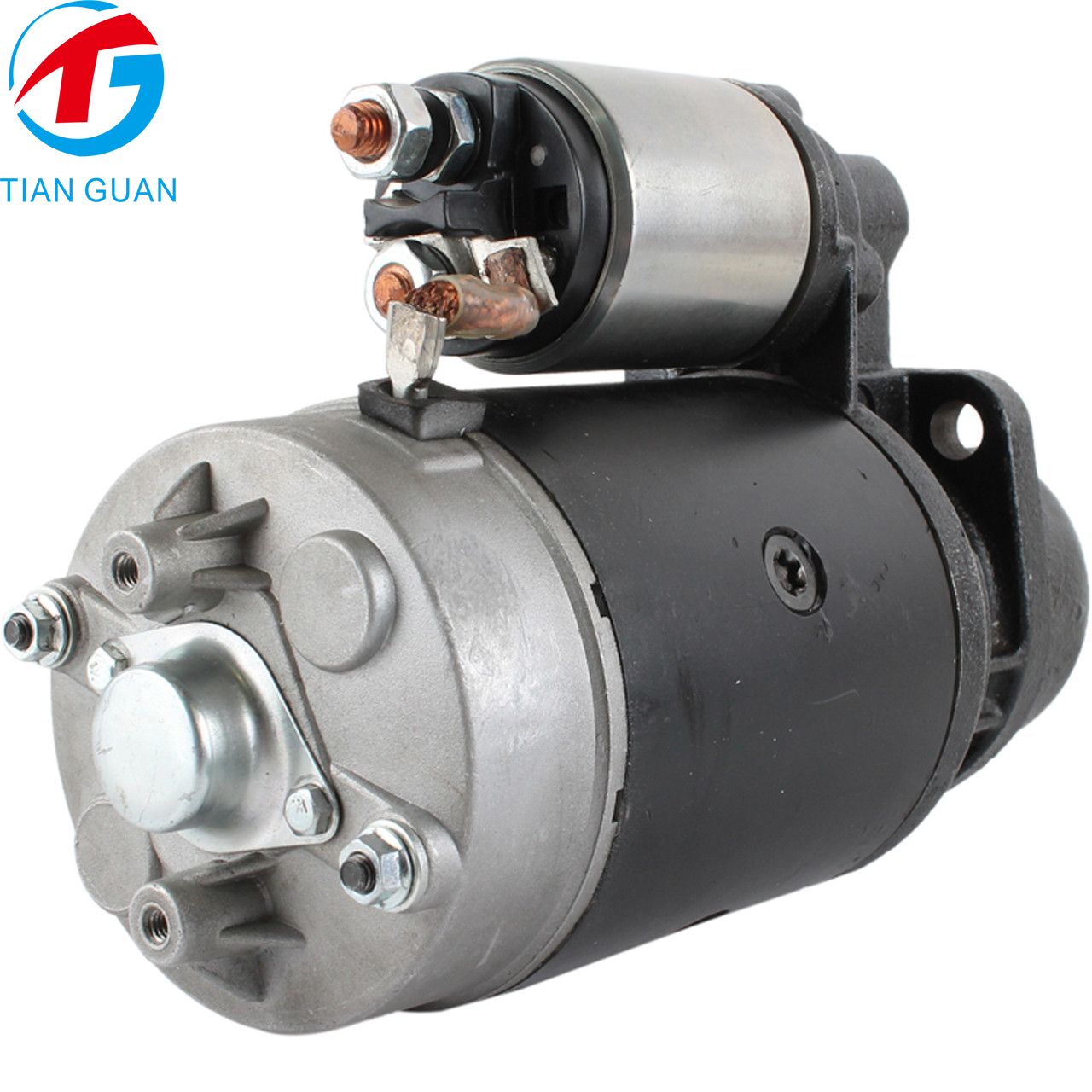

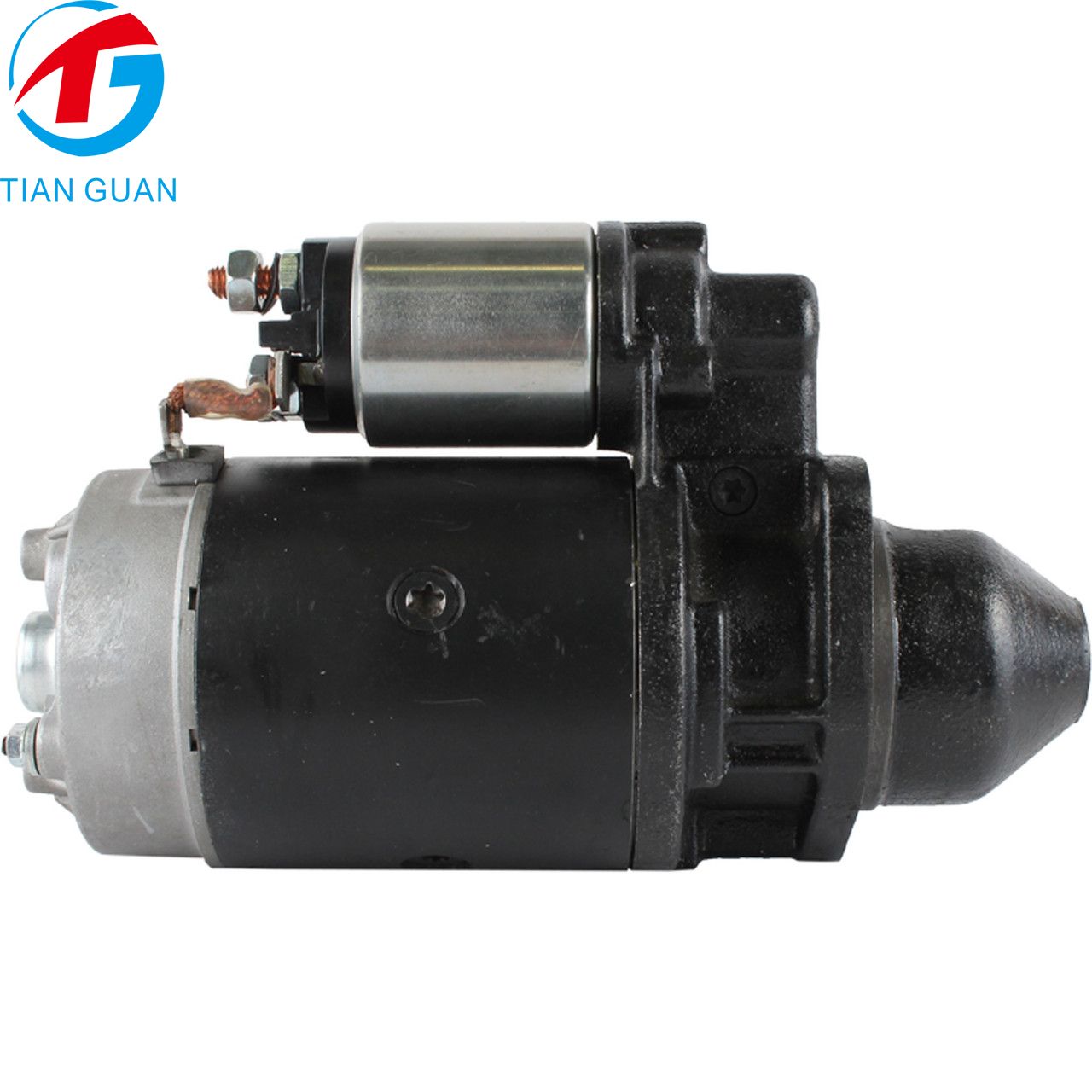

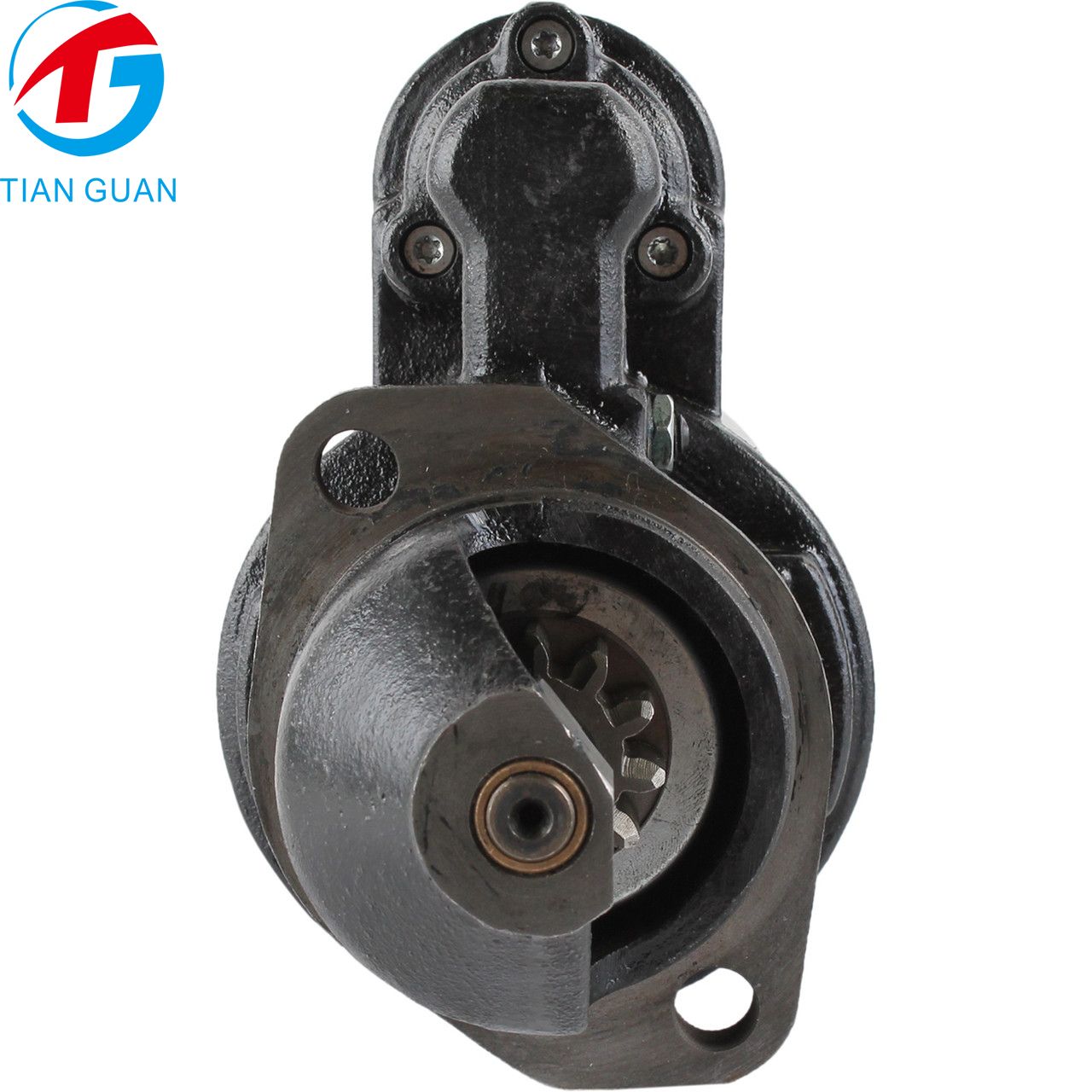

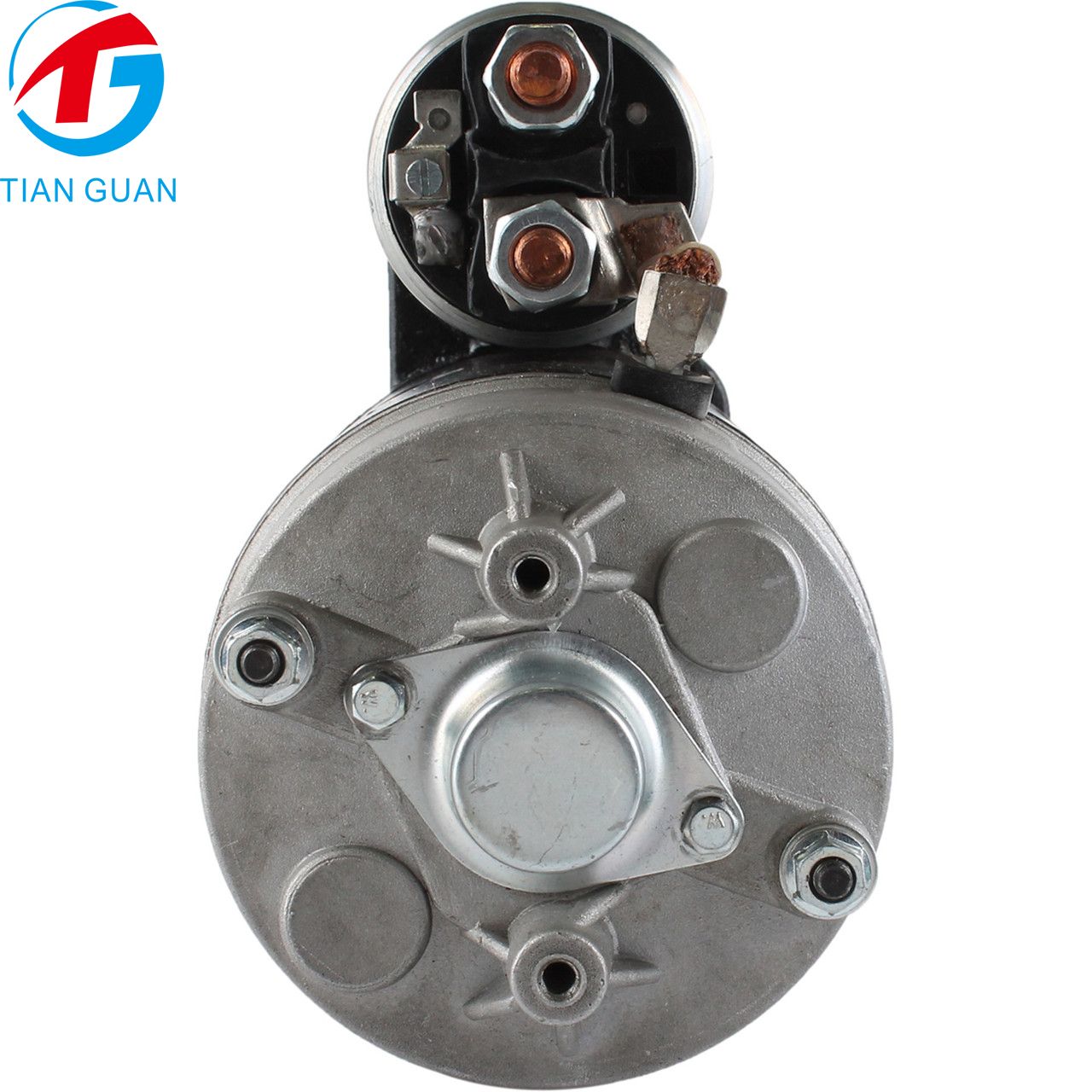

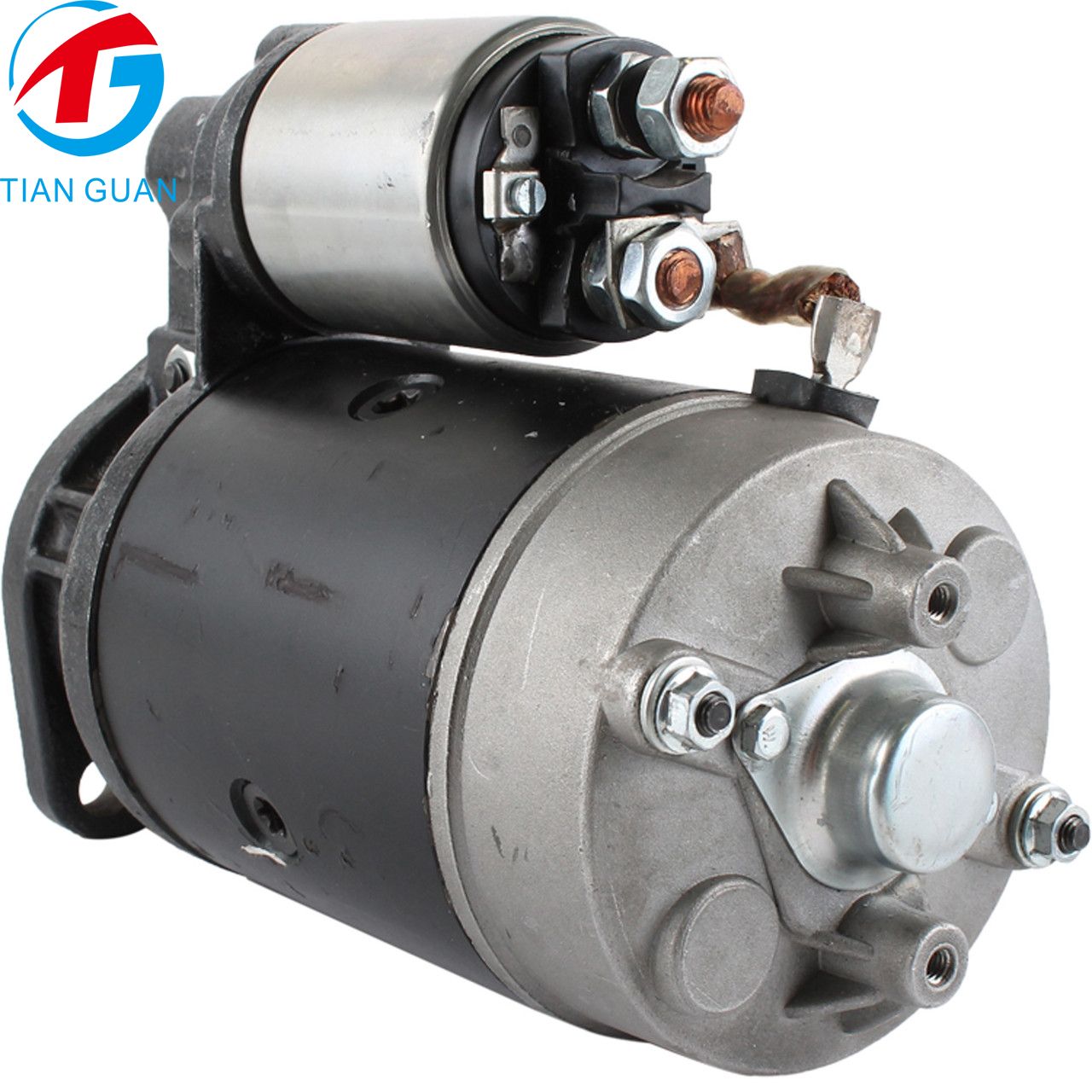

    STG52276 Starter Motor 0001354034 0001354075 0001354081 for KHD F2L812 D Series Tractors | 12V 1.8KW 11T CW DD Replacement

    Part Numbers

    Bosch: 0001354034 / 0001354037 / 0001354040 / 0001354075 / 0001354081 / 0001366024
    KHD: 1170050 / 1170387 / 1301832 / 1161386 / 1162510 / 1172683

    Product Description

    STG52276 Starter Motor is a new aftermarket replacement designed for KHD Deutz F2L812 1.7L 2-cylinder air-cooled diesel engines used in KHD/Deutz-Fahr and related agricultural and industrial equipment.

    This starter features a 12V, 1.8KW, 11-tooth, clockwise-rotation Direct Drive (DD) design. It is designed to replace multiple Bosch and KHD starter numbers used on F2L812-powered tractors and machinery. Public application data confirms the F2L812 engine and corresponding starter configuration, including 11-tooth CW Direct Drive construction.

    The F2L812 engine was used in KHD D-series tractors as well as related Fahr and KHD industrial equipment.

    Product Specifications

    PropertyValue
    Product ModelSTG52276
    Part Number0001354034 / 0001354075 / 0001354081
    Unit TypeStarter Motor
    Engine TypeKHD Deutz F2L812
    Engine Displacement1.7L
    Number of Cylinders2-Cylinder
    Engine CoolingAir-Cooled
    Voltage12V
    Power Output1.8KW
    Number of Teeth11T
    Starter TypeDD (Direct Drive)
    RotationCW
    Mounting2-Hole
    Mounting Diameter82.50 mm
    ConditionNew Aftermarket
    ApplicationTractor / Agricultural & Industrial Equipment
    Weight11.3 kg Estimated


    OEM / Cross Reference Table

    Brand / CategoryPart Number
    BOSCH0001354034 / 0001354037 / 0001354040 / 0001354075 / 0001354081 / 0001366024
    KHD1170050 / 1170387 / 1301832 / 1161386 / 1162510 / 1172683
    ISKRAEJD1,8/12R73 / EJD1,8/12R77 / 1206177
    MAHLEIS0709 / MS336
    LUCASCS707
    KHD Reference01301830 / 02919055 / 1301830


    Compatible Applications

    Compatible Model / EquipmentEngine / Application
    KHD Deutz D Series 63 / 64 / 65 / 66F2L812 Diesel
    KHD Deutz D25F2L812 1.7L 2-Cylinder Diesel
    KHD Deutz D25.2F2L812 1.7L Diesel
    KHD Deutz D25SF2L812 1.7L Diesel
    KHD Deutz D30F2L812 1.7L Diesel
    KHD Deutz D30SF2L812 1.7L Diesel
    KHD Deutz D2505F2L812S 1.7L Diesel
    KHD Deutz D3005F2L812 1.7L Diesel
    Fahr D66F2L812 / Güldner Diesel
    Fahr D130 / D130A / D130AH / D130HF2L812 / Güldner Diesel
    Fahr D131L / D133N / D133TF2L812 / Güldner Diesel
    KHD KL17 / KL180 / KL200 / KL220F2L812 Industrial Loader
    KHD KL250 / KL300 / KT200F2L812S Industrial Loader


  • PRODUCT HIGHLIGHTS

    Product Highlights

    12V 1.8KW 11T DD StarterKHD F2L812 Diesel ApplicationKHD / Fahr Tractor Replacement
    CW Rotation Design1.7L 2-Cylinder Air-Cooled EngineD-Series Tractor Applications
    Direct Drive ConstructionBosch & KHD Cross-Reference NumbersD66 / D130 Series Applications
