STG52378 Starter 11.131.697 11.131.711 11.131.848 11.132.113 AZF4301 32009452 AZF4576 IS1105 MS84 for Mecalac TA6 TA6S TA9 TA9S TA10P Titan IS26 TM05

Part Numbers

ARROWHEAD: IS1105, MS84, SIA0003
CASE IH: 32009452
DELCO: DRS0117
J & N: 410-29035
JCB: 320/09022, 320/09035, 320/09346, 320/09409, 320/09452, 32009022, 32009026, 32009032, 32009035, 32009144, 32009346, 32009409, 32009452, 32009454
LESTER: 30230
LETRIKA / ISKRA: 11.131.292, 11.131.697, 11.131.711, 11.131.848, AZF4181, AZF4186, AZF4224, AZF4576, IS 1105
LUCAS ELECTRIC: LRS02489
MAHLE: 11.131.292, 11.131.697, 11.131.711, 11.131.848, 11.132.113, AZF4181, AZF4186, AZF4224, AZF4301, AZF4576, IS1105, MS84

Product Description

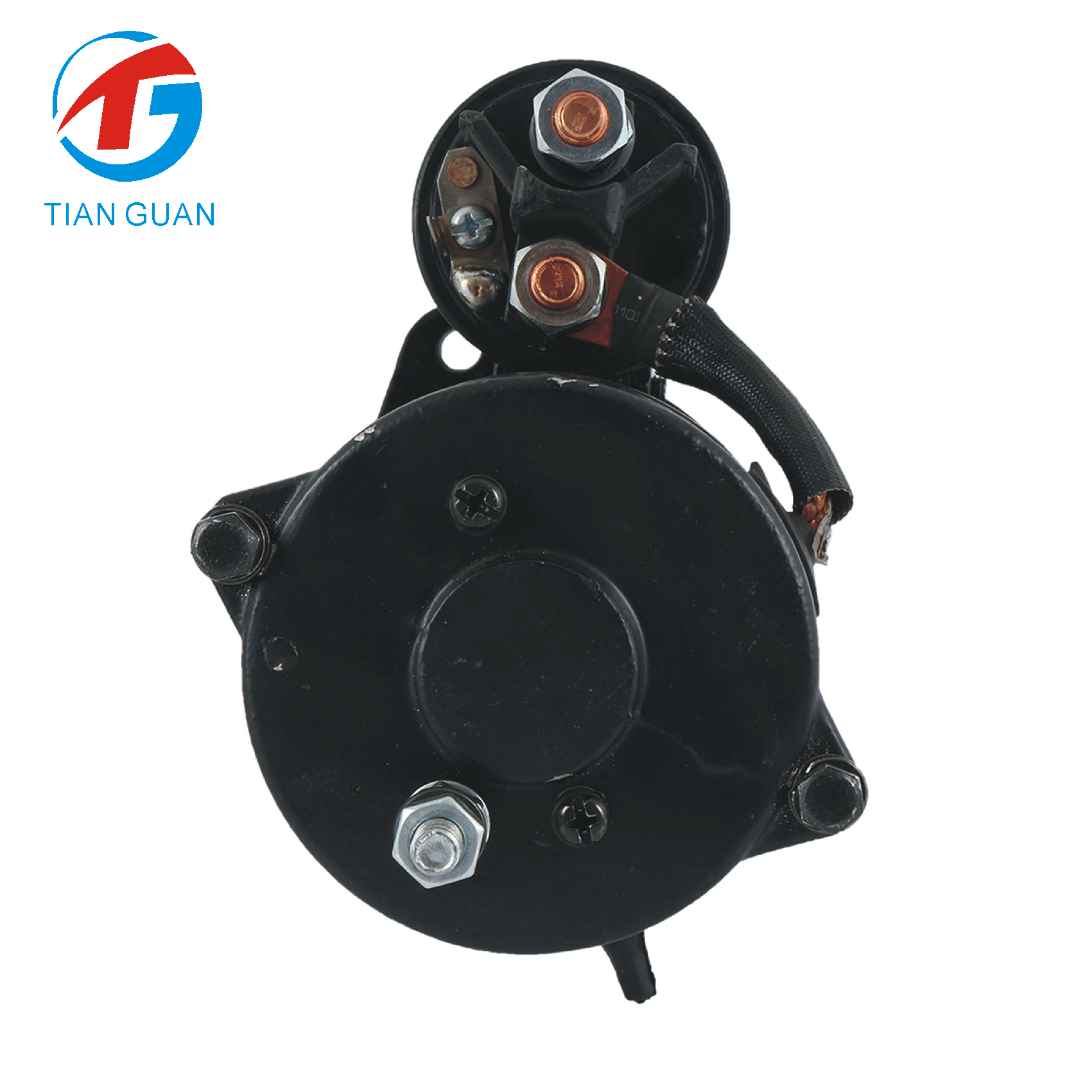

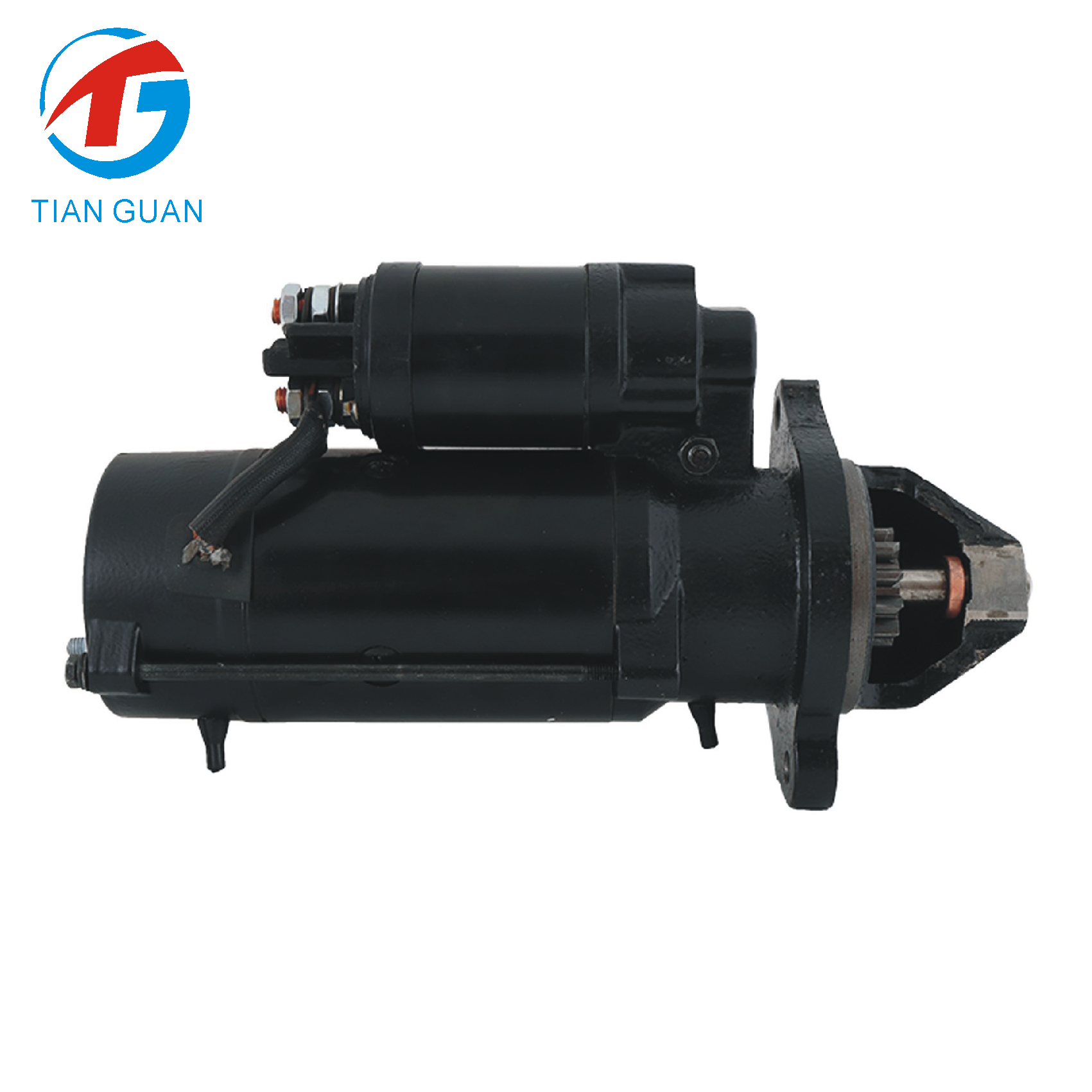

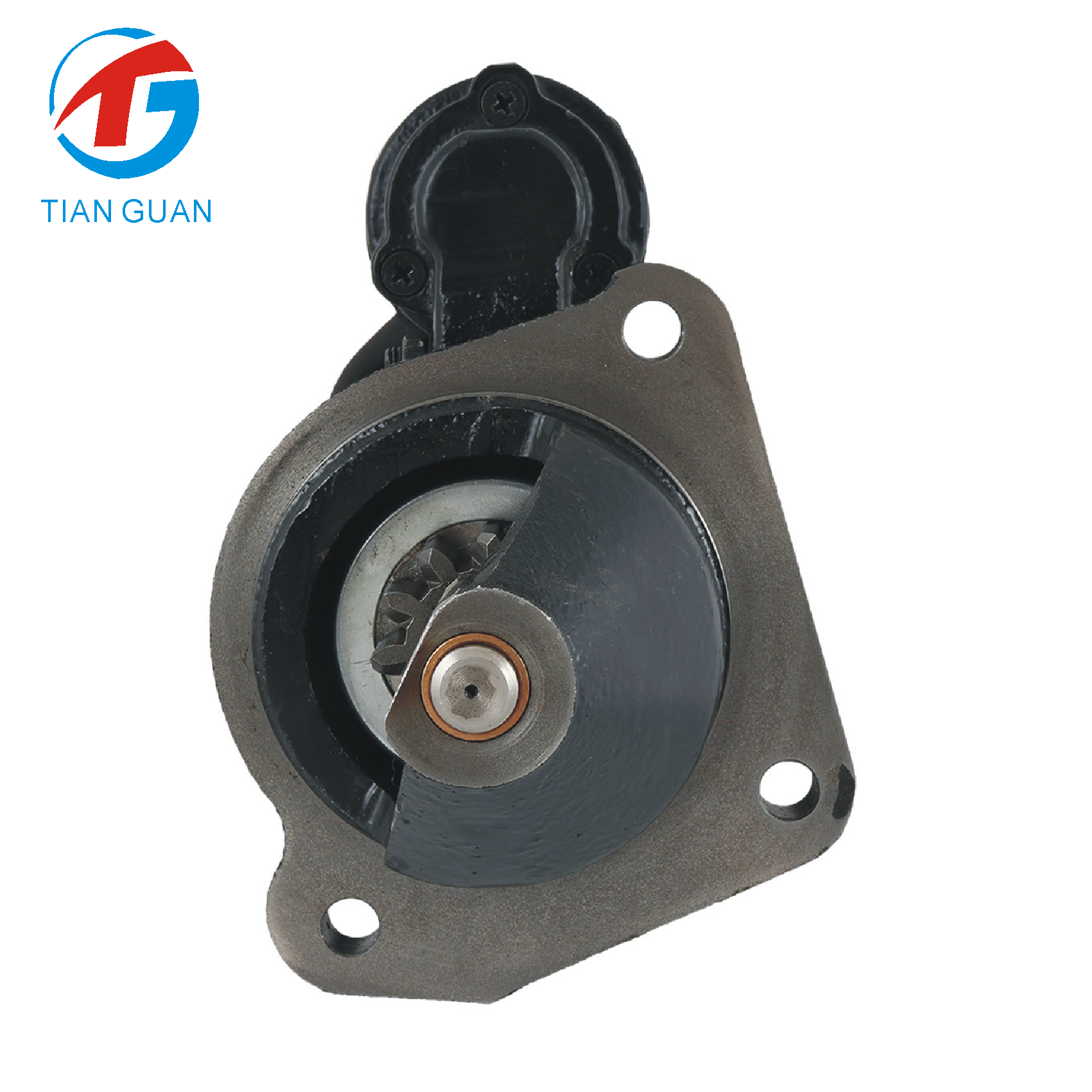

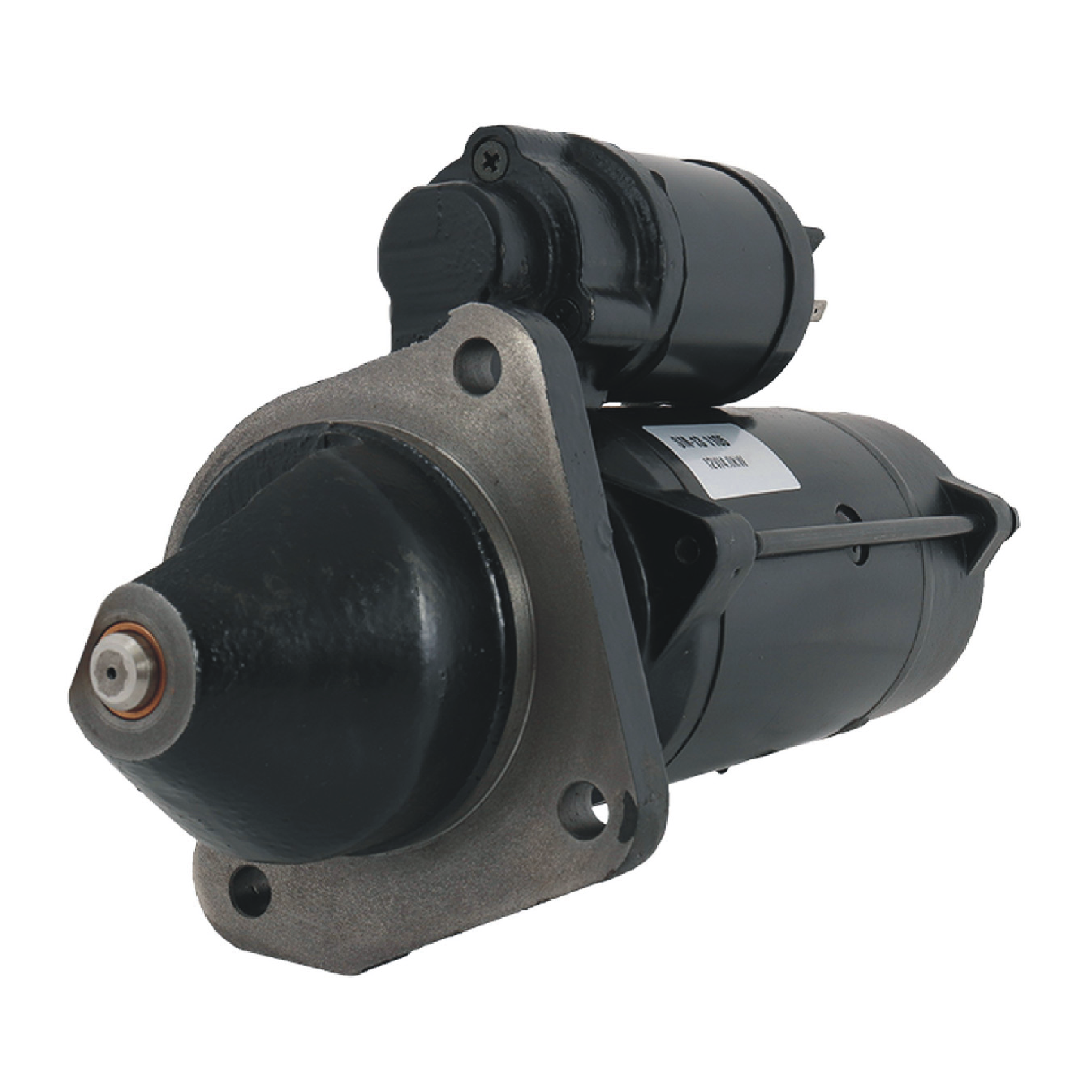

This premium aftermarket 12V 4.2KW Starter Motor is designed as a direct replacement for Mecalac, Titan, and JCB applications. Built on the Letrika / MAHLE AZF41 family with Planetary Gear Reduction (PLGR) design, 11-tooth pinion gear, and clockwise rotation, it delivers fast, reliable engine starting and dependable performance in demanding construction applications.

This starter replaces OE part numbers IS1105, MS84, SIA0003 (Arrowhead), 32009452 (Case IH), DRS0117 (Delco), 410-29035 (J & N), 320/09022, 320/09035, 320/09346, 320/09409, 320/09452, 32009022, 32009026, 32009032, 32009035, 32009144, 32009346, 32009409, 32009454 (JCB), 30230 (Lester), 11.131.292, 11.131.697, 11.131.711, 11.131.848, AZF4181, AZF4186, AZF4224, AZF4576, IS 1105 (Letrika / Iskra), LRS02489 (Lucas Electric), and 11.131.292, 11.131.697, 11.131.711, 11.131.848, 11.132.113, AZF4181, AZF4186, AZF4224, AZF4301, AZF4576, IS1105, MS84 (Mahle).

• 12V starter motor

• 4.2KW power output

• 11-tooth pinion gear

• Letrika / MAHLE AZF41 family

• Planetary Gear Reduction (PLGR)

• Clockwise rotation

• Fully insulated

• Gear OD: 1.622" / 41.200mm

• Mount hole ID: 10.900mm unthreaded (x2)

• Direct replacement for Mecalac / Titan / JCB

• Aftermarket replacement part

• Approx. 9.3 kg

Specifications

Item Condition: Aftermarket Part
Description: Starter
Critical Note: Fully Insulated
Family: Letrika / MAHLE AZF41
Volt: 12V
Power: 4.200 KW
HP: 5.632
Condition: New
Rotation Direction: Clockwise
Electric Starter Type: Planetary Gear Reduction (PLGR)
Number Of Teeth: 11
Gear OD: 1.622" / 41.200mm
Mount Hole ID 1: 10.900mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 10.900mm
Mount Hole 3 Type: Unthreaded
Weight: 9.3KG

Fitment

Mecalac – TA6
Mecalac – TA6S
Mecalac – TA9
Mecalac – TA9S
Mecalac – TA10P
Titan – IS26
Titan – TM05
JCB – Backhoe Loader / Engine Applications

Compatible with equipment using 11.131.697, 11.131.711, 11.131.848, 11.132.113, AZF4301, 32009452, AZF4576, IS1105, MS84, SIA0003, 320/09022, 320/09035, 320/09346, 30230, LRS02489, or DRS0117 starter motor part numbers.
