STG52520 Starter 12130369 26033211 31482N 661501123 BOS0001330014 LRS04412 LRS4412 RNL330014 STR50660 WOOSTR50660 for Liebherr L550 L556 L576 L580 L586 LH30C LH30M

Part Numbers

BOSCH: 0001330014, 0001330071, 0001330072
LIEBHERR: 10410932, 11386645
AES: 12130369
DIXIE: 26033211, 31482N
WAI: 661501123
PSH: BOS0001330014
WOOD AUTO: STR50660, WOOSTR50660
LUCAS: LRS04412, LRS4412
RNL: RNL330014

Product Description

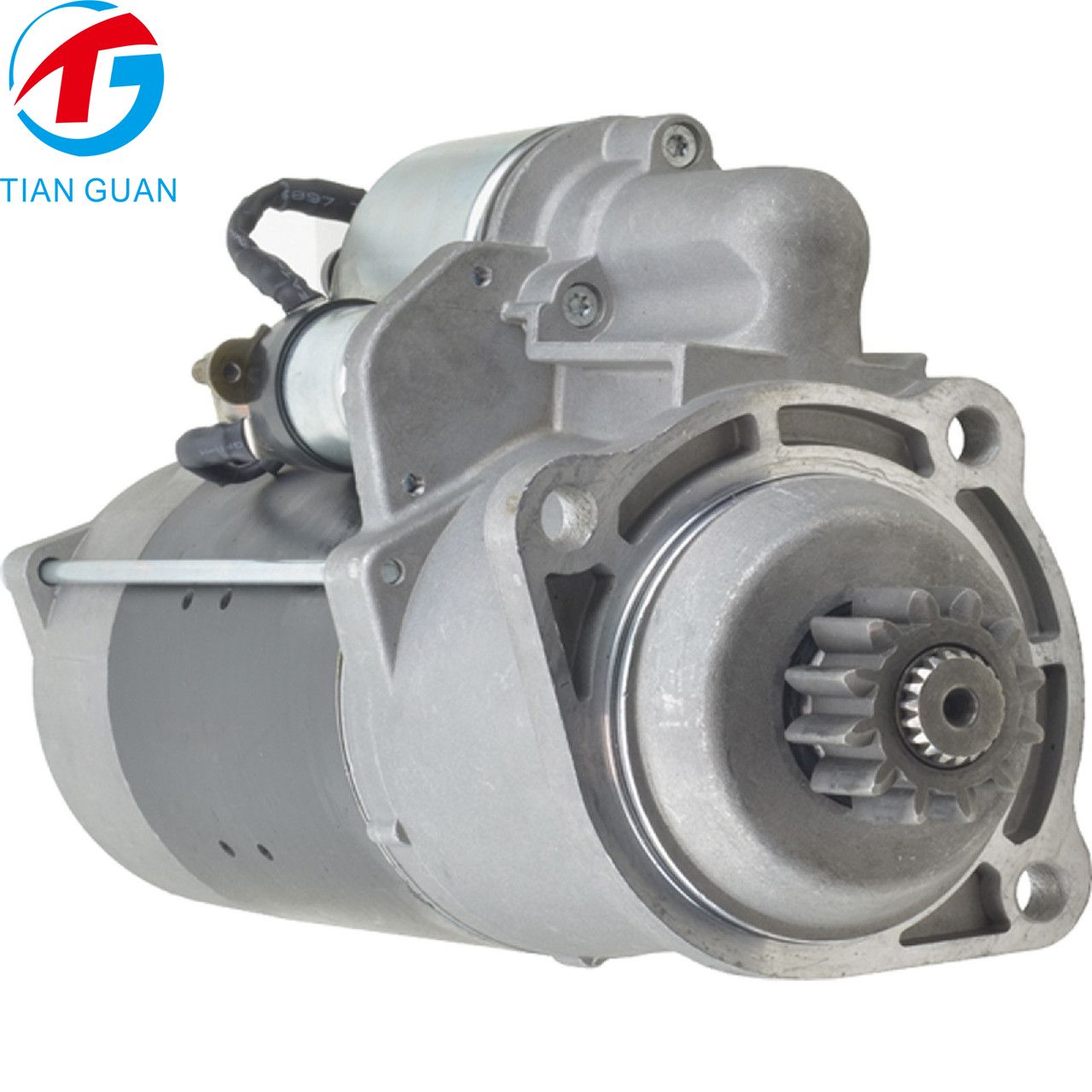

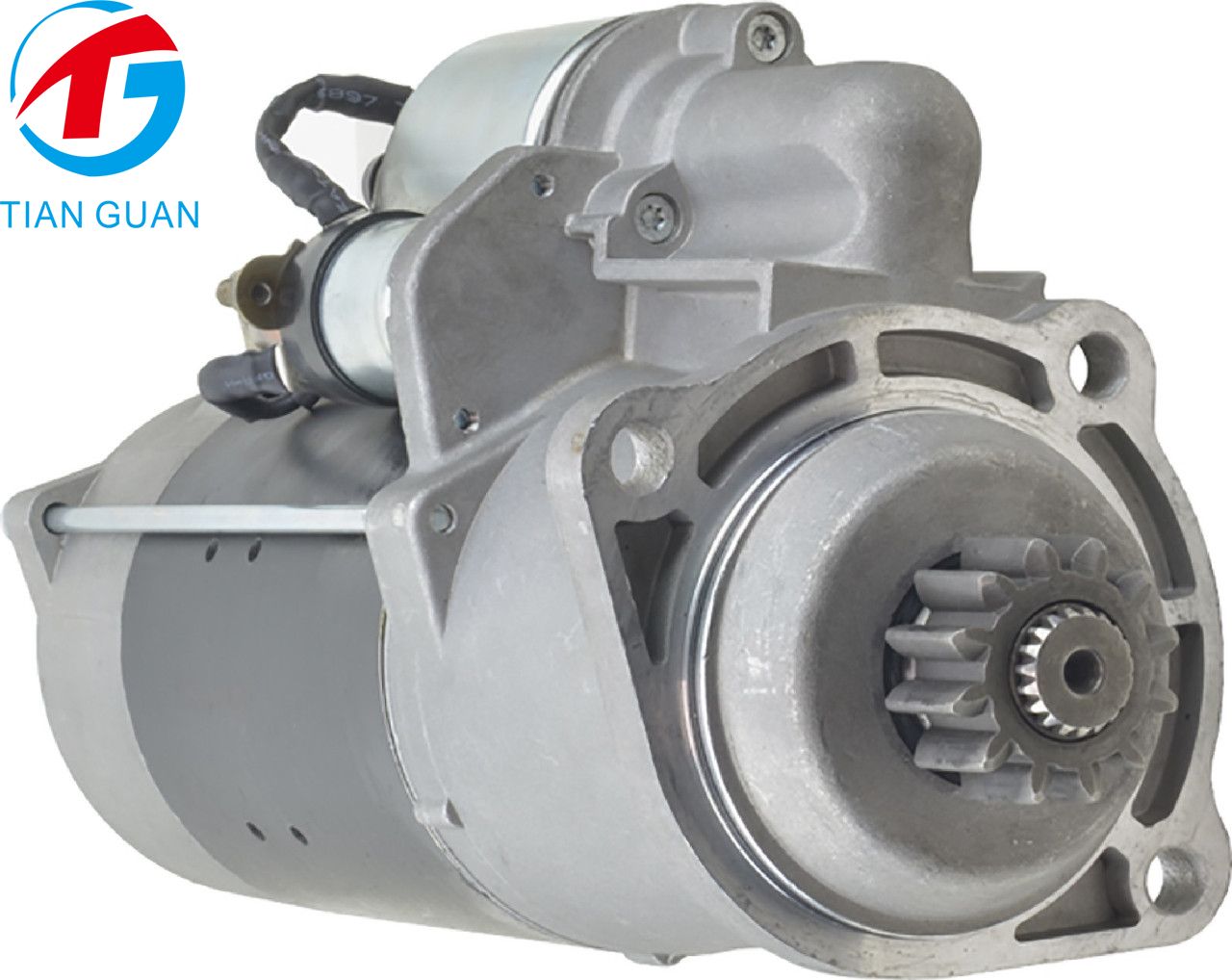

This premium aftermarket 24V 7.5KW Starter Motor is designed as a direct replacement for Liebherr L550, L556, L576, L580, L586, LH30C, and LH30M applications, as well as KHD equipment. Built with Planetary Gear Reduction (PLGR) design, 12-tooth pinion gear, and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding construction and industrial applications.

This starter replaces OE part numbers 0001330014, 0001330071, 0001330072 (Bosch), 10410932, 11386645 (Liebherr), 12130369 (AES), 26033211, 31482N (Dixie), 661501123 (WAI), BOS0001330014 (PSH), STR50660, WOOSTR50660 (Wood Auto), LRS04412, LRS4412 (Lucas), and RNL330014 (RNL).

• 24V starter motor

• 7.5KW power output

• 12-tooth pinion gear

• Planetary Gear Reduction (PLGR)

• Clockwise (CW) rotation

• Direct replacement for Liebherr L550 / L556 / L576 / L580 / L586 / LH30C / LH30M

• Fits KHD equipment

• Reliable starting performance

• Durable construction

• Aftermarket replacement part

• Approx. 14.3 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Starter
KW: 7.5
Rotation: CW
Starter Type: PLGR
Tooth Count: 12T
Voltage: 24V
Weight: 14.3KG

Fitment

Liebherr – L550
Liebherr – L556
Liebherr – L576
Liebherr – L580
Liebherr – L586
Liebherr – LH30C
Liebherr – LH30M
KHD – Various Applications

Compatible with equipment using 12130369, 26033211, 31482N, 661501123, BOS0001330014, LRS04412, LRS4412, RNL330014, STR50660, WOOSTR50660, 0001330014, 0001330071, 0001330072, 10410932, or 11386645 starter motor part numbers.
