STG52525 Starter 3904057 3909914 8200064 for Cummins Case 845 865 885 F140 EC160 – 24V 4.0KW 10T CW PLGR

Part Numbers

CUMMINS: 3604677RX, 3675204RX, 3904057, 3909914, 3918378, 3926932
DELCO REMY: 8200064, 820006412B1
LESTER: 6839
WAI: 21621N, 6839N
PSH: 701553103
PRESTOLITE: M29064

Product Description

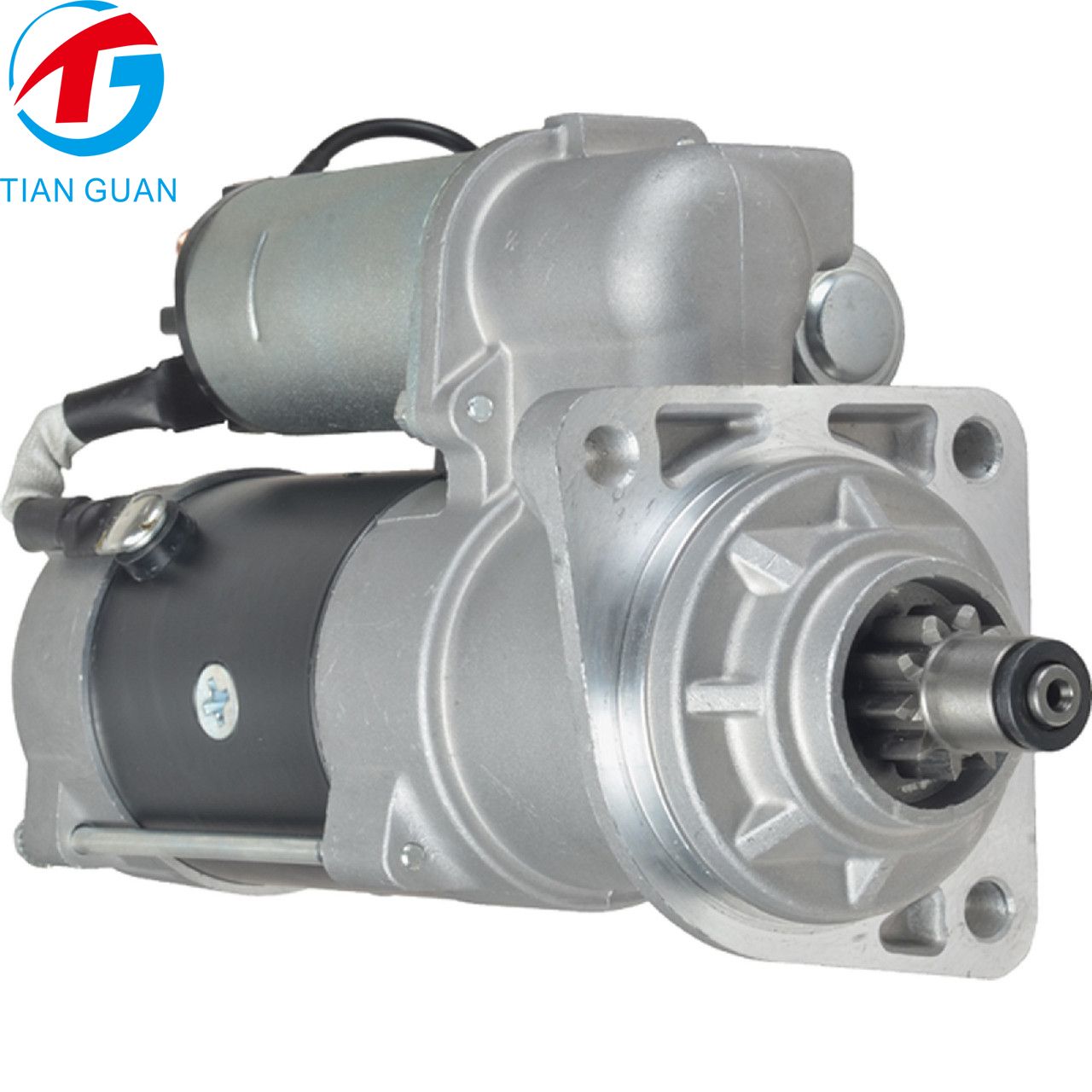

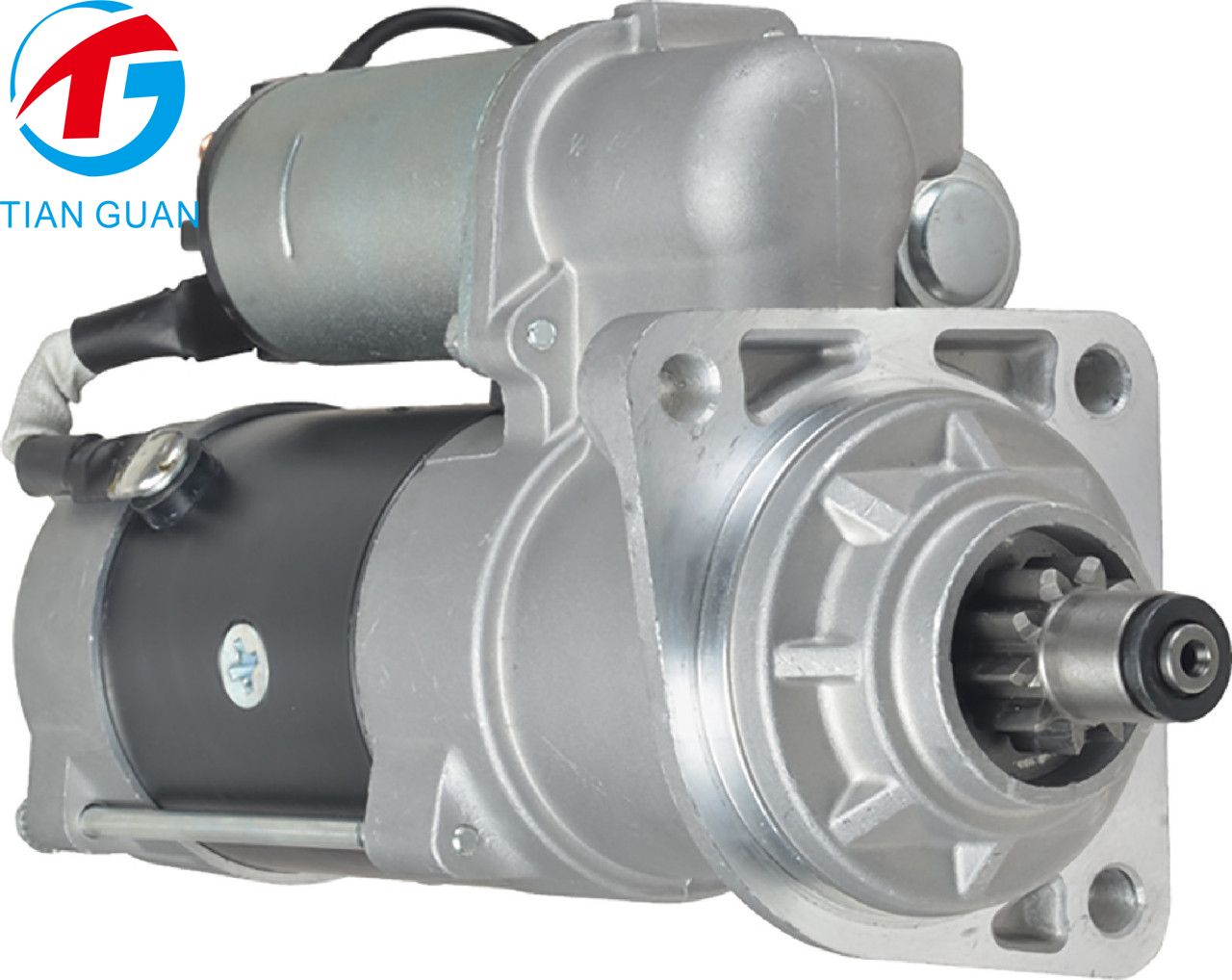

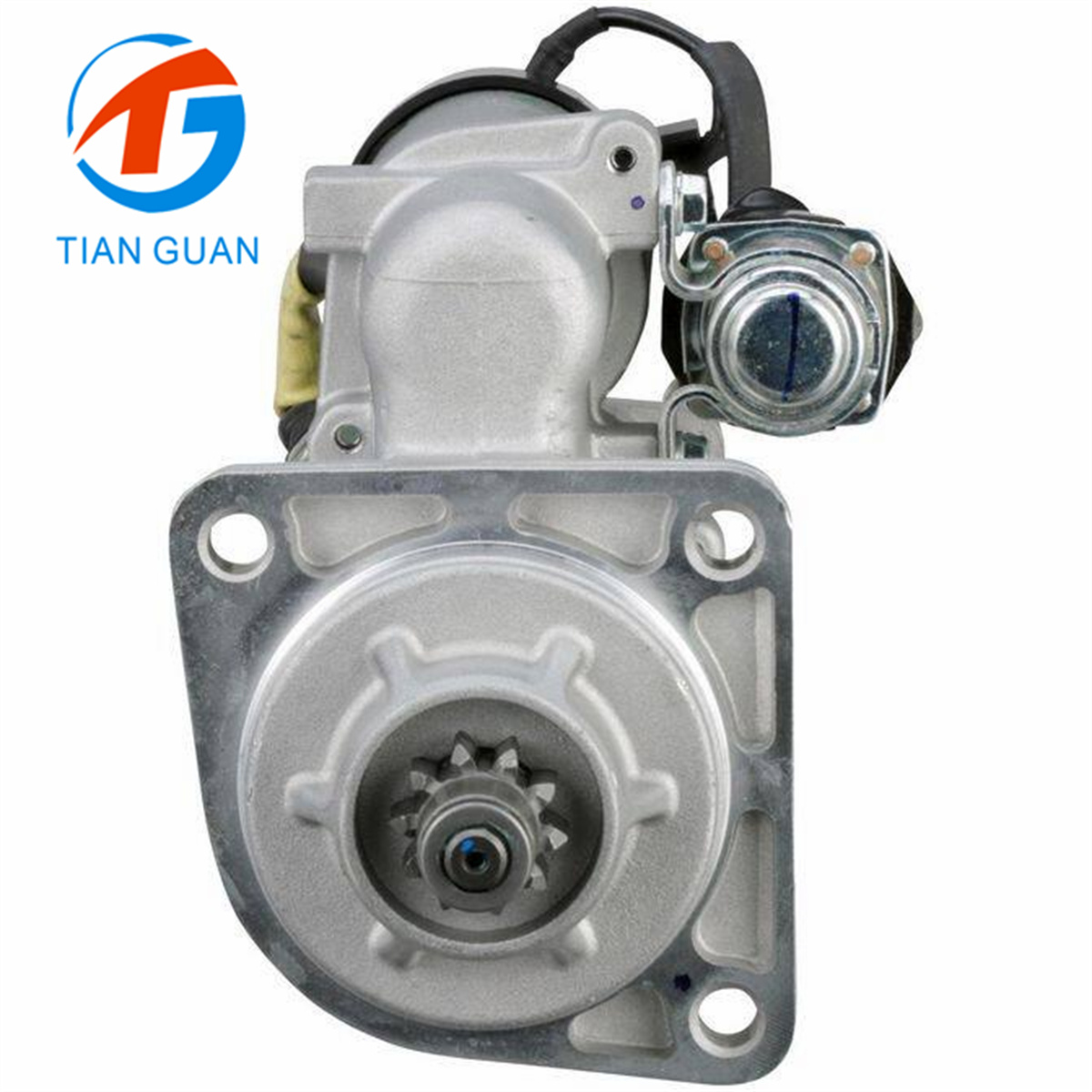

The STG52525 Starter Motor is a 24V, 4.0KW aftermarket replacement starter designed for Cummins diesel engines used in Case construction and compact equipment. Featuring a 10-tooth pinion, clockwise (CW) rotation, and PLGR starter design, it provides dependable cranking performance for heavy-duty construction and industrial applications.

This starter replaces major reference numbers including 3604677RX, 3675204RX, 3904057, 3909914, 3918378, 3926932 (Cummins), 8200064, 820006412B1 (Delco Remy), 6839 (Lester), 21621N, 6839N (WAI), 701553103 (PSH), and M29064 (Prestolite).

• 24V starter motor

• 4.0KW power output

• 10-tooth pinion gear

• PLGR design

• Clockwise (CW) rotation

• Strong starting power for Cummins diesel applications

• Reliable engagement and consistent cranking

• Direct replacement for Case construction equipment

• Aftermarket replacement part

• Approx. 8.7 kg

Specifications

Internal Part Number: STG52525
Unit Type: Starter Motor
Item Condition: Aftermarket Part
Voltage: 24V
Power: 4.0KW
Rotation: CW / Clockwise
Starter Type: PLGR
Tooth Count: 10T
Weight: 8.7KG

Fitment

Case – 845
Case – 845DHP
Case – 865AWD
Case – 865DHP
Case – 865VHP
Case – 885
Case – 885AWD
Case – EC160
Case – F140
Case – F140VP

Cummins Engines: Using starter references 3904057 / 3909914 / 3604677RX / 3675204RX / 3918378 / 3926932

Compatible with equipment using 3904057, 3909914, 8200064, 820006412B1, 6839, 21621N, 6839N, 701553103, M29064, 3604677RX, 3675204RX, 3918378, or 3926932 starter motor part numbers.
