STG52542 Starter 410-52329 SND0645 ND228000-6572 ND228000-7012 18458 18569 18458N for John Deere Excavator Logger 120 120C 120D 160CLC

Part Numbers

ARROWHEAD: SND0645, 410-52329, ND228000-6572, ND228000-7012
DENSO: 228000-6570, 228000-6571, 228000-6572, 228000-7010, 228000-7011, 228000-7012
J & N: 410-52193, 410-52329
JOHN DEERE: RE500199, RE500345, RE70475, RE70961, SE501407, SE501704, TY24444
LESTER: 18458, 18569
WAI: 18458N

Product Description

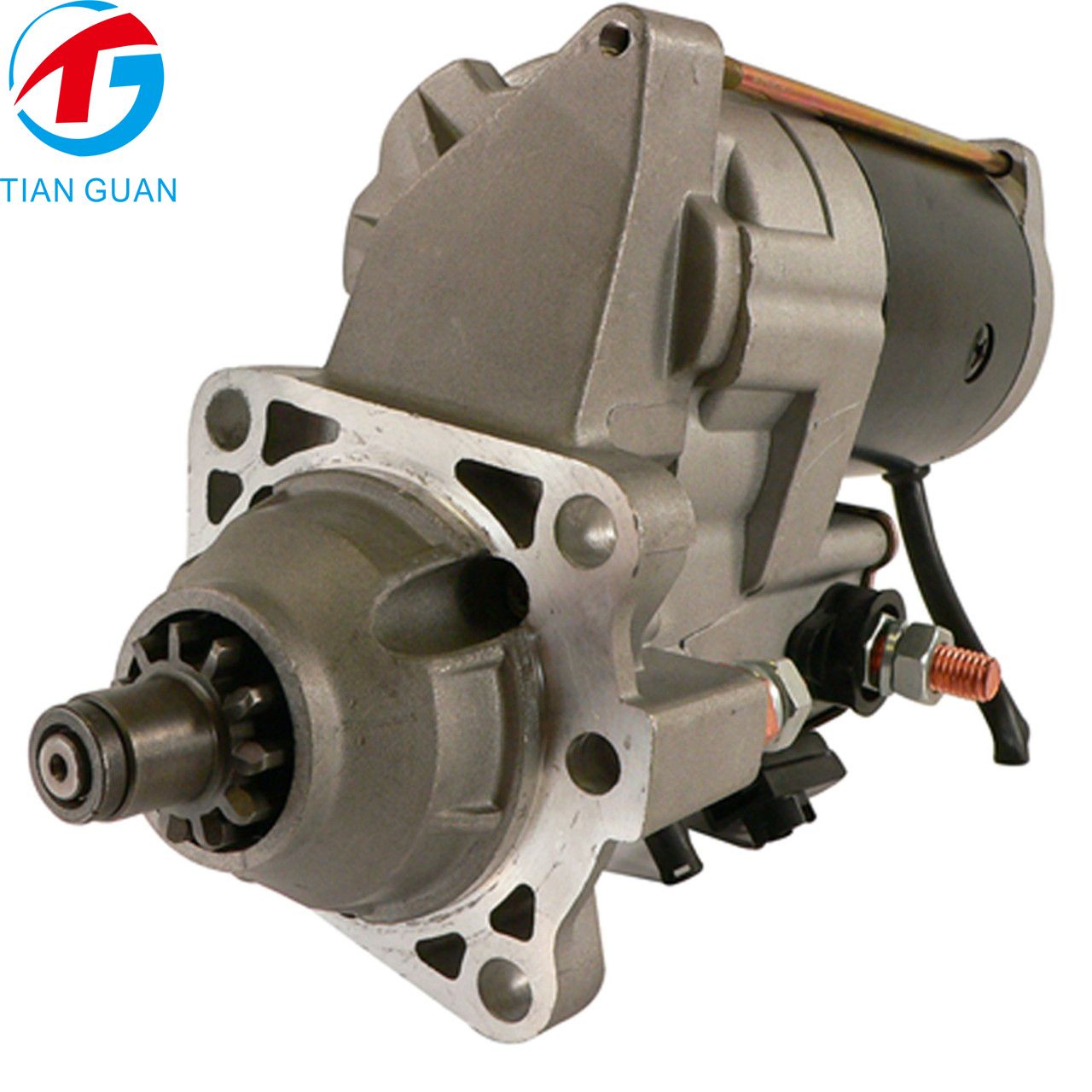

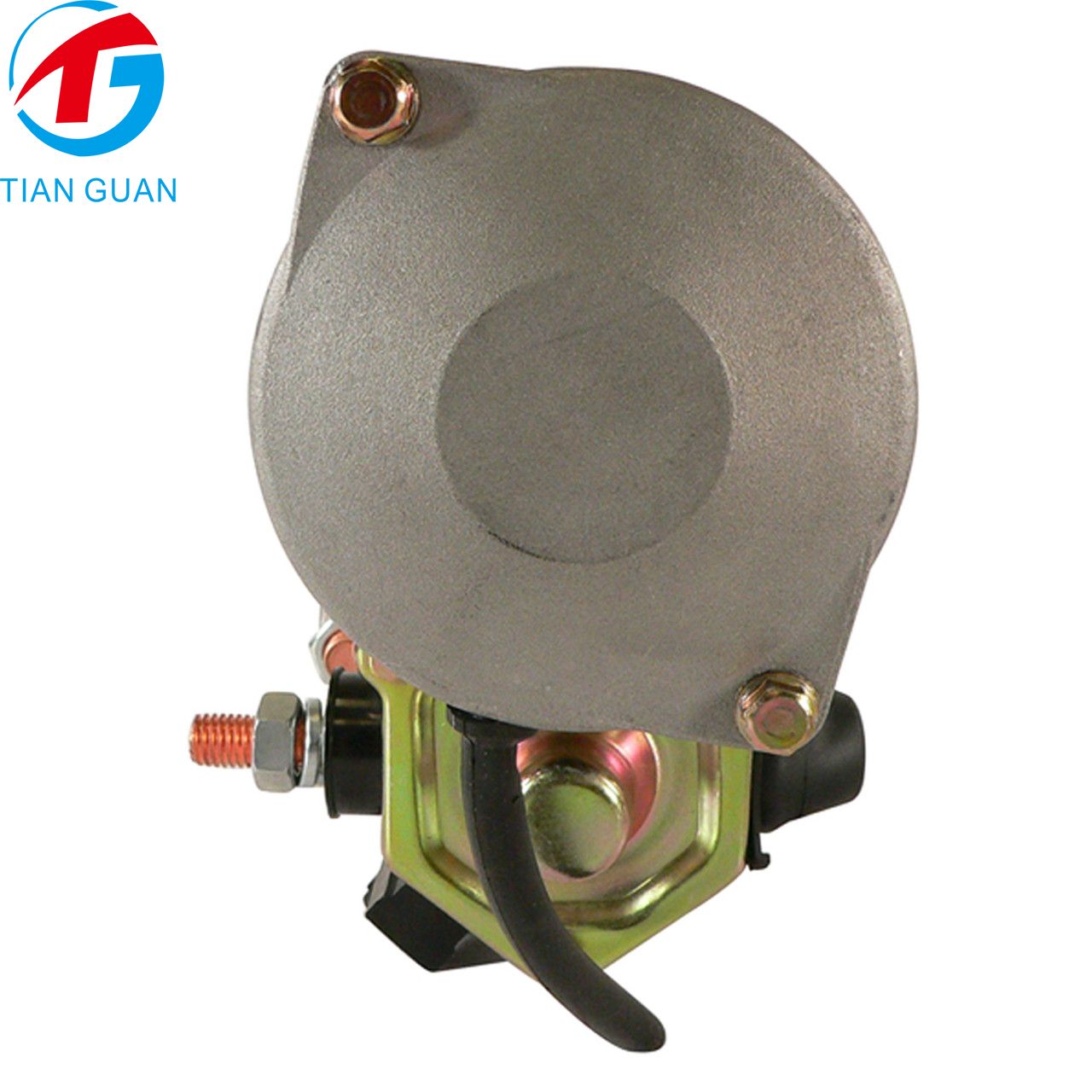

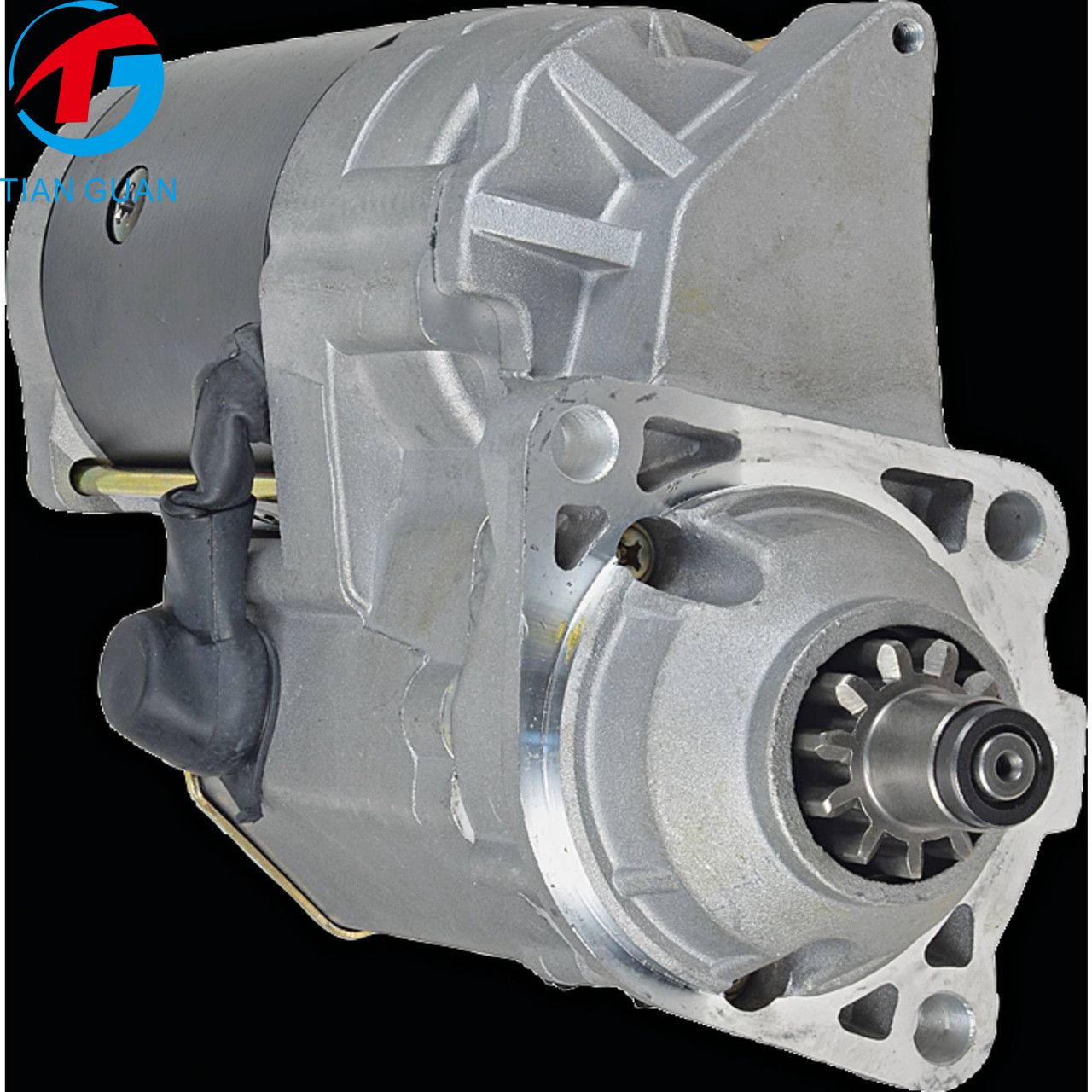

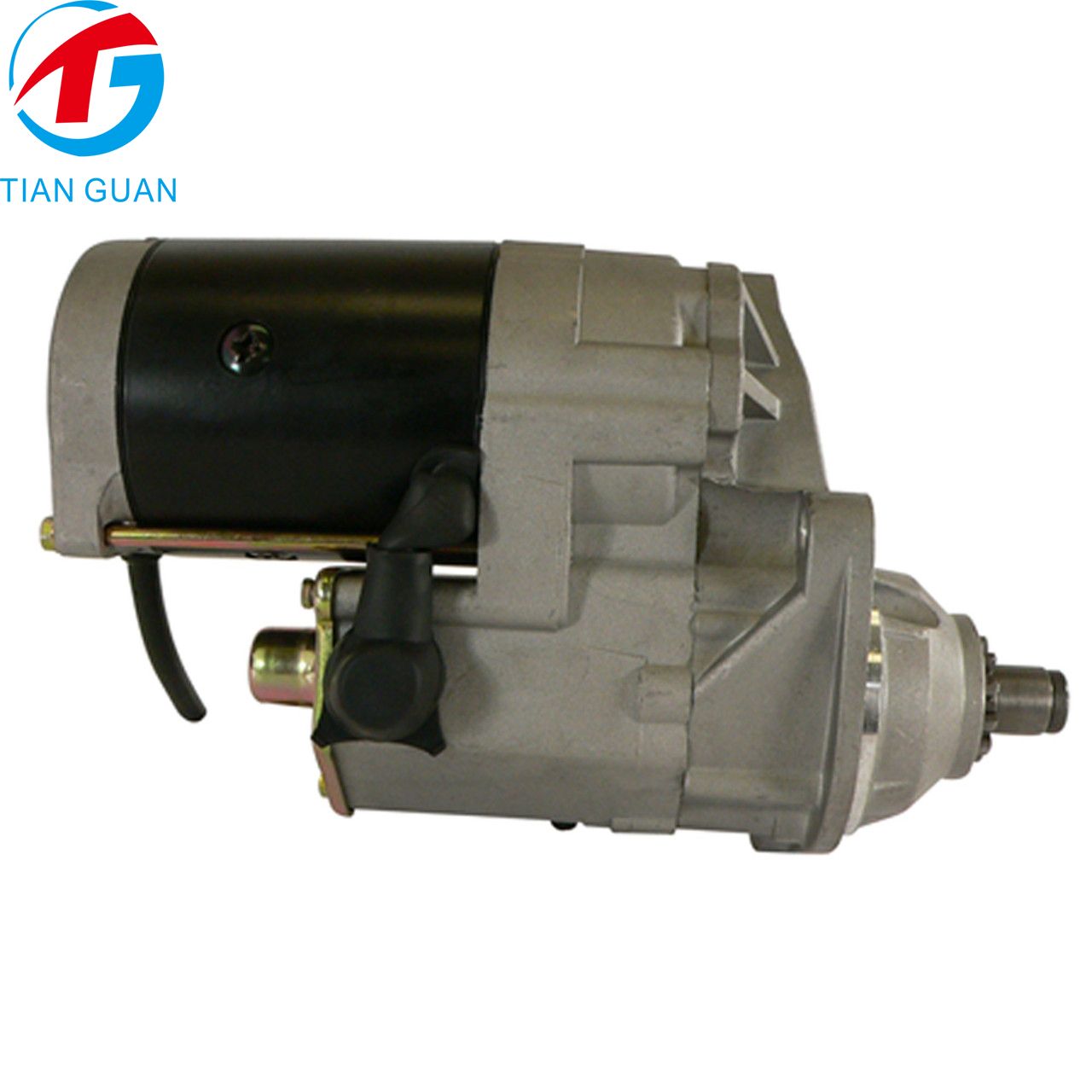

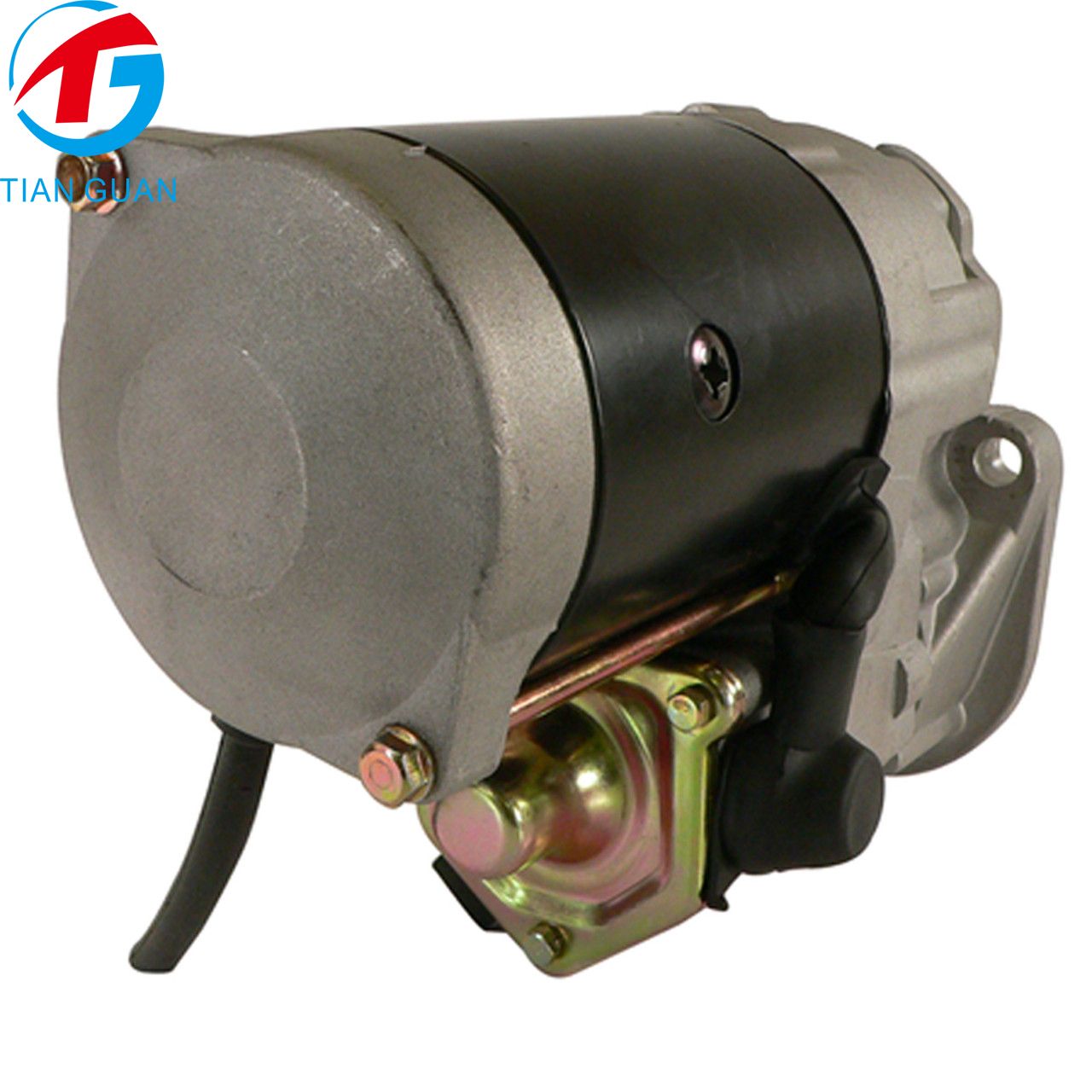

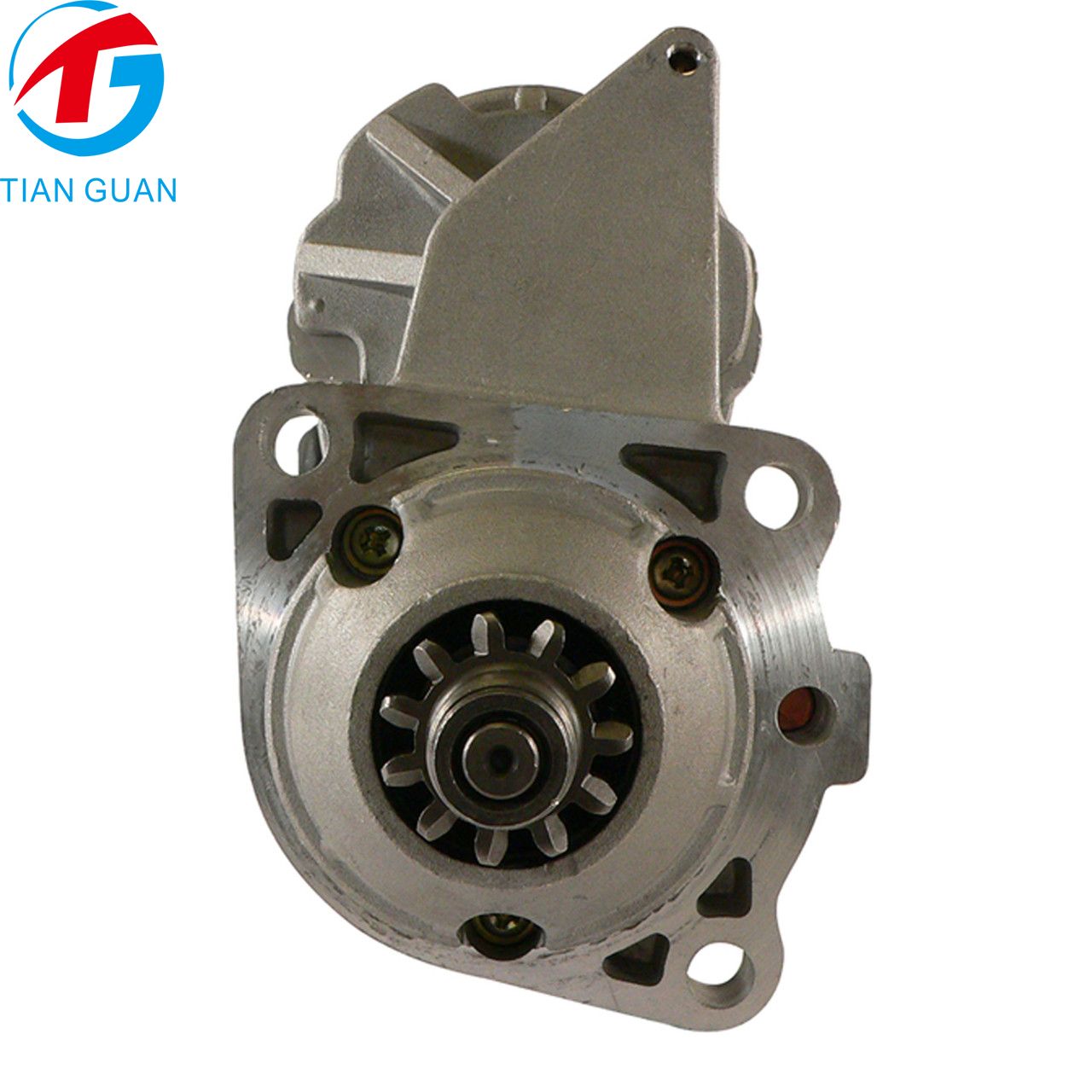

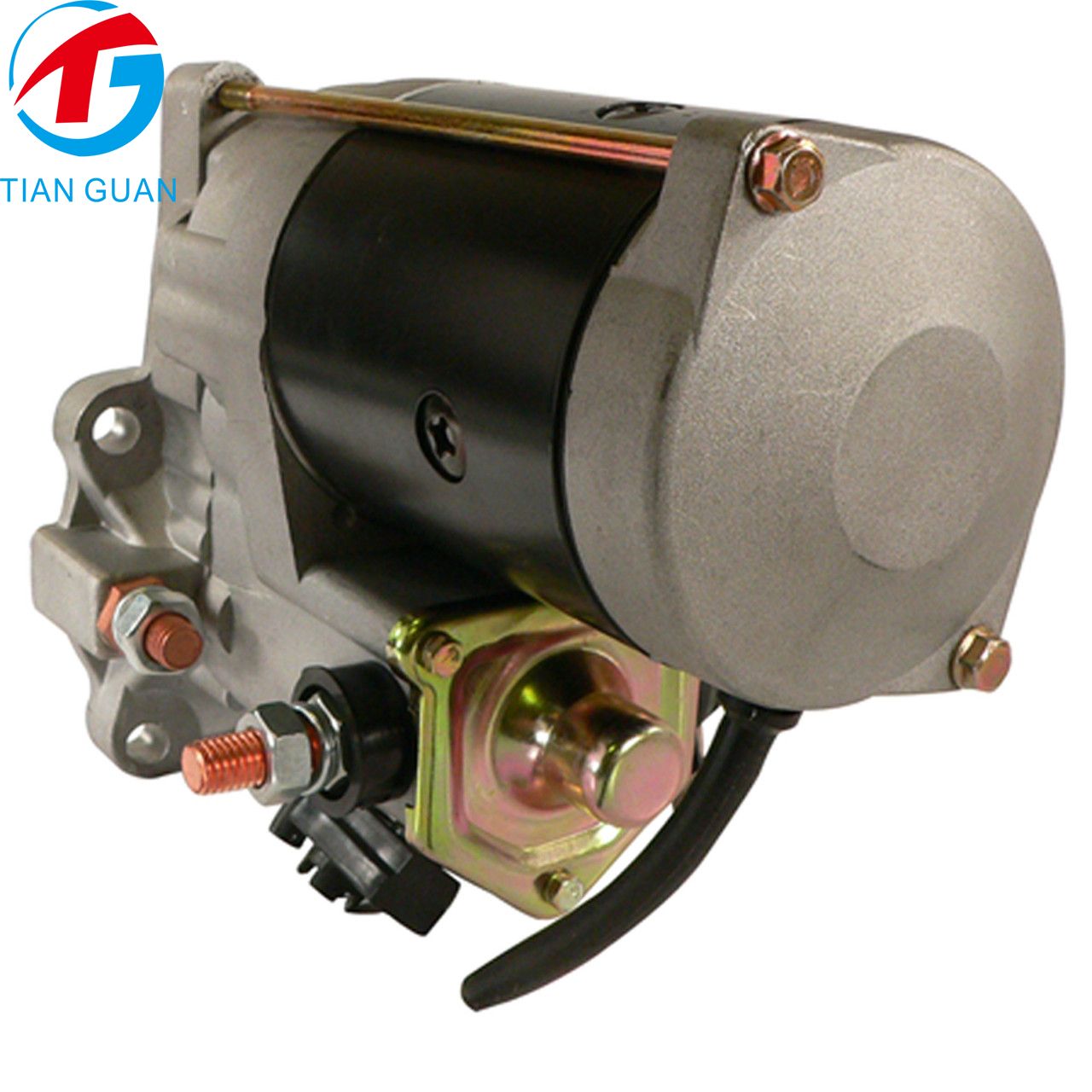

This premium aftermarket 24V 7.8KW Starter Motor is designed as a direct replacement for John Deere crawler, marine, excavator, and forestry applications. With OSGR design, 11-tooth pinion gear, and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding construction, marine, and forestry applications.

This starter replaces OE part numbers SND0645, 410-52329, ND228000-6572, ND228000-7012 (Arrowhead), 228000-6570, 228000-6571, 228000-6572, 228000-7010, 228000-7011, 228000-7012 (Denso), 410-52193, 410-52329 (J & N), RE500199, RE500345, RE70475, RE70961, SE501407, SE501704, TY24444 (John Deere), 18458, 18569 (Lester), and 18458N (WAI).

• 24V starter motor

• 7.8KW power output

• 11-tooth pinion gear

• OSGR design

• Clockwise (CW) rotation

• Direct replacement for John Deere 200LC Excavator

• Fits other John Deere engines and equipment

• Reliable starting performance

• Durable construction

• Aftermarket replacement part

• Approx. 10.8 kg

Specifications

Item Condition: Aftermarket Part
Unit Type: Starter
Part Type: UNIT
Voltage: 24V
Rotation: CW
Teeth: 11T
KW: 7.8
Starter Type: OSGR
Fits: John Deere 200LC Excavator / Also Other John Deere Engines & Equipment
Weight: 10.8KG

Fitment

John Deere – Crawler 755D – All – JD PT 6.8L 181HP Dsl
John Deere – Engine Marine 4039DFM (Code 3015) – All – 4cyl 239ci 3.9L
John Deere – Engine Marine 4045TFM (Code 3015) – All – 4cyl 276ci 4.5L
John Deere – Excavator 110 – All – JD 4.5L 80HP Dsl
John Deere – Excavator 120 – All – JD 4.5L 90HP Dsl
John Deere – Excavator 120C – All – JD 4.5L 89HP Dsl
John Deere – Excavator 120D – All – JD 4.5L 89HP Dsl
John Deere – Excavator 130G – All – JD PT 4.5L 97HP Dsl
John Deere – Excavator 160 LC – All – JD 4.5L 109HP Dsl
John Deere – Excavator 160C LC – All – JD 4.5L 109HP Dsl
John Deere – Excavator 160D LC – All – JD PT 4.5L 121HP Dsl
John Deere – Excavator 160G LC – All – JD PT 4.5L 121HP Dsl
John Deere – Excavator 180G LC – All – JD PT 4.5L 121HP Dsl
John Deere – Excavator 200 LC – All – JD 6.8L 140HP Dsl
John Deere – Excavator 200C LC – All – JD 6.8L 141HP Dsl
John Deere – Excavator 200D – All – JD 6.8L 159HP Dsl
John Deere – Excavator 200D LC – All – JD 6.8L 159HP Dsl
John Deere – Excavator 210G LC – All – JD PT 6.8L 159HP Dsl
John Deere – Excavator 230C LC – All – JD 6.8L 169HP Dsl
John Deere – Excavator 240D LC – All – JD 6.8L 177HP Dsl
John Deere – Excavator 250G LC – All – JD PT 6.8L 188HP Dsl
John Deere – Excavator 270C LC – All – JD 6.8L 177HP Dsl
John Deere – Excavator 270D LC – All – JD 6.8L 188HP Dsl
John Deere – Excavator 290G LC – All – JD PT 6.8L 188HP Dsl
John Deere – Forestry Swing Machine 2154D – All – JD 6.8L 164HP Diesel
John Deere – Forestry Swing Machine 2454D – All – JD 6.8L 182HP Diesel
John Deere – Forestry Swing Machine 2954D – All – JD 6.8L 188HP Diesel
John Deere – Loggers 2054 – All
John Deere – Loggers 2554 – All

Compatible with equipment using 410-52329, SND0645, 228000-6572, 228000-7012, 18458, 18569, or 18458N starter motor part numbers.
