STG52545 Starter Motor 1161422 1164995 1173241 0001368001 for Deutz Diesel Engines

Part Numbers

Product Overview

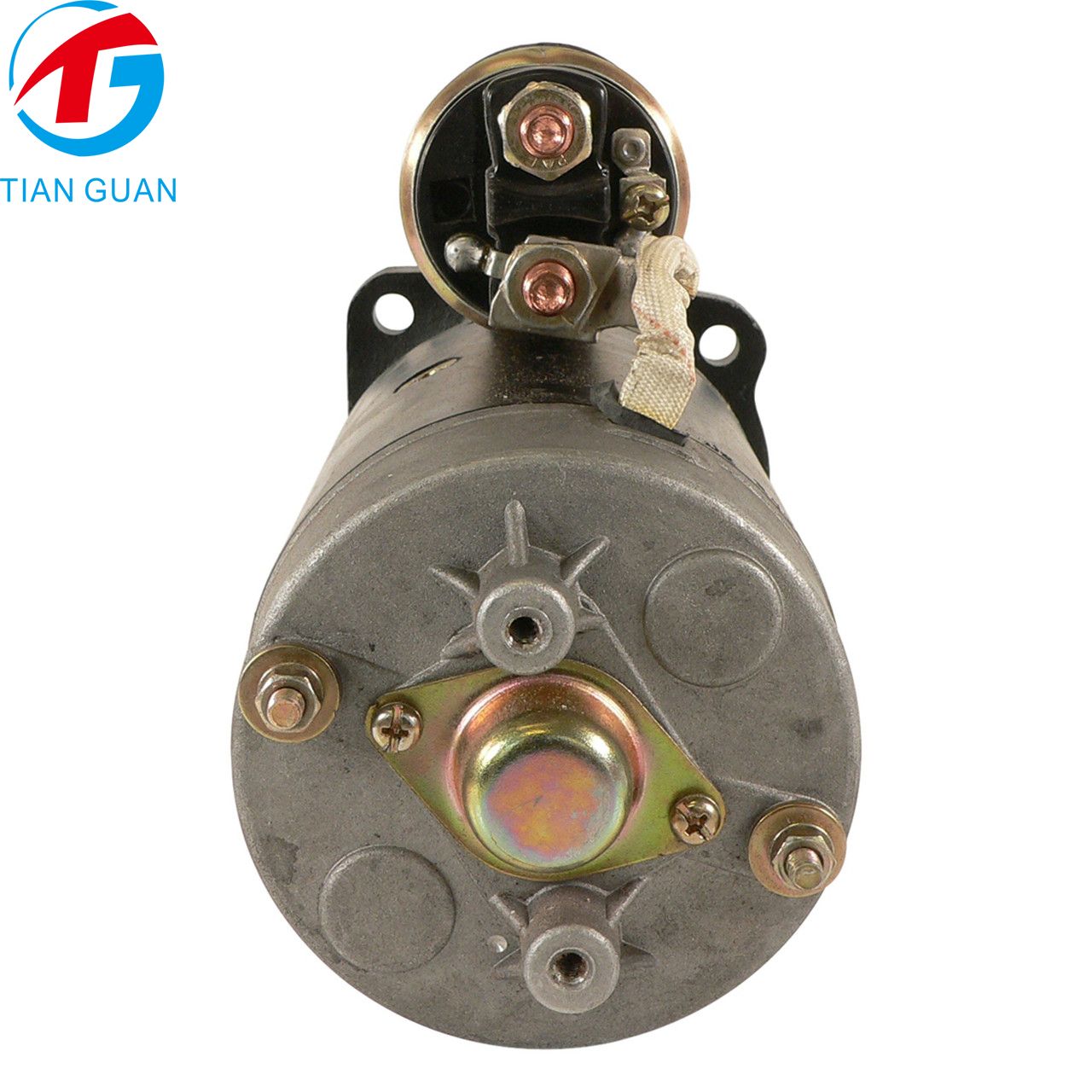

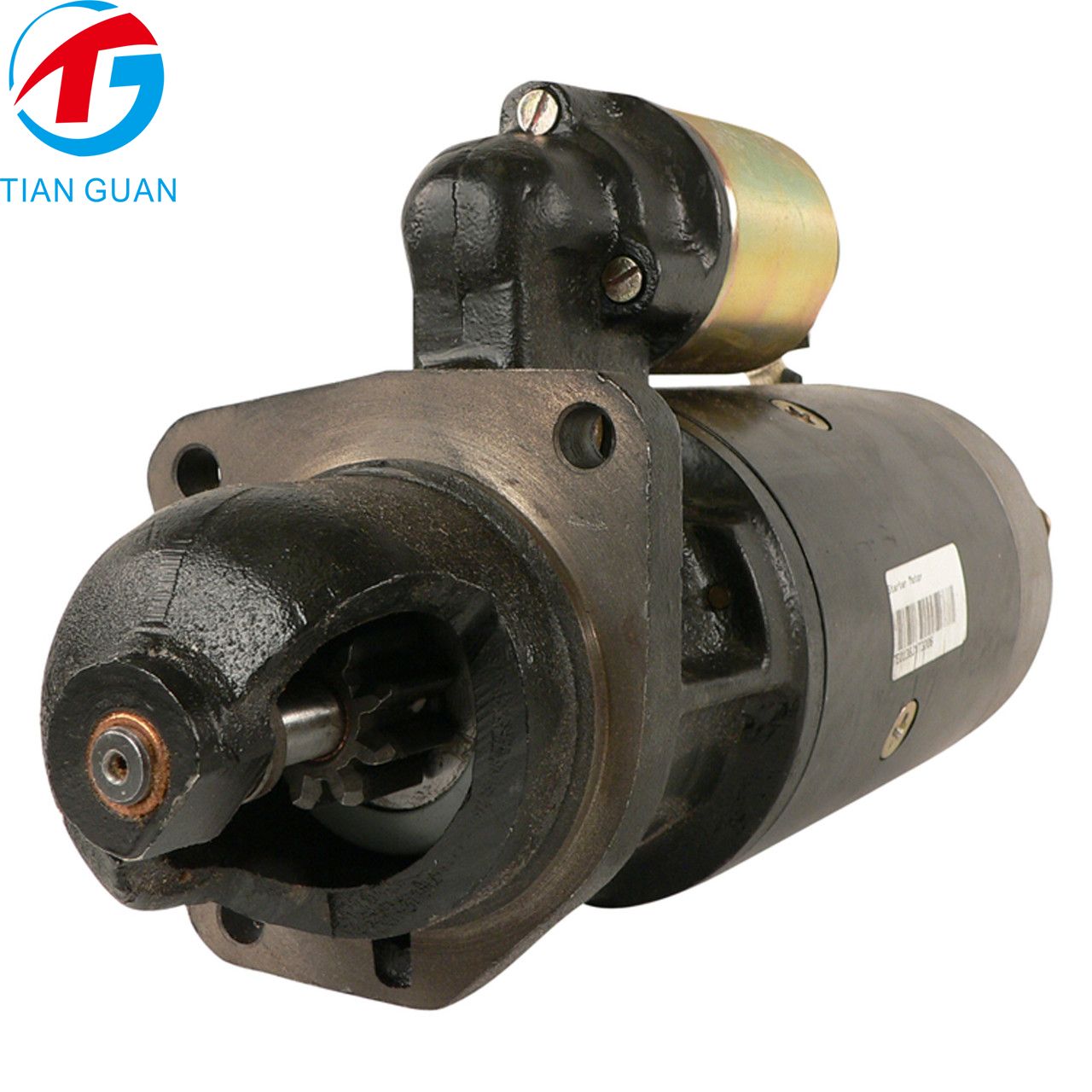

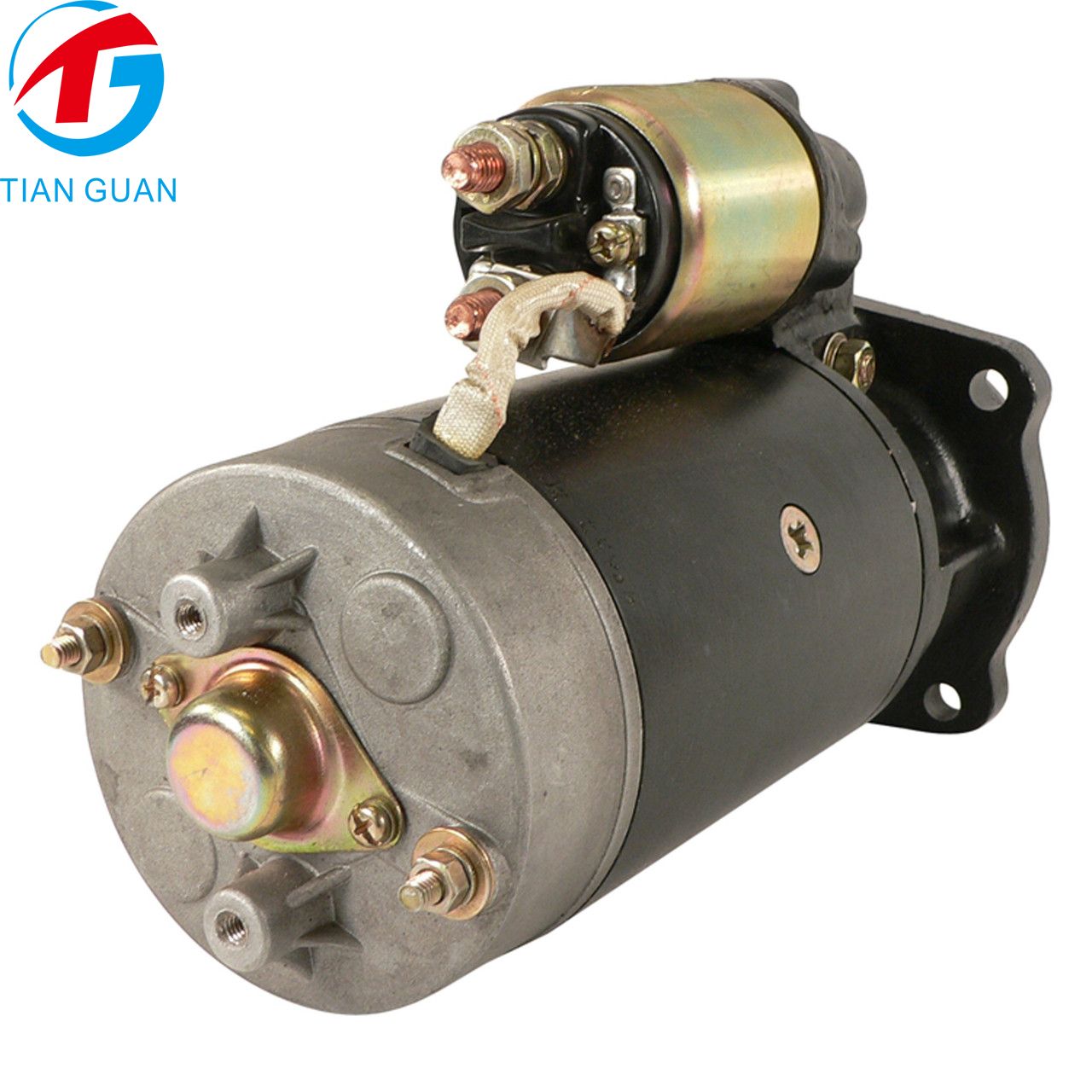

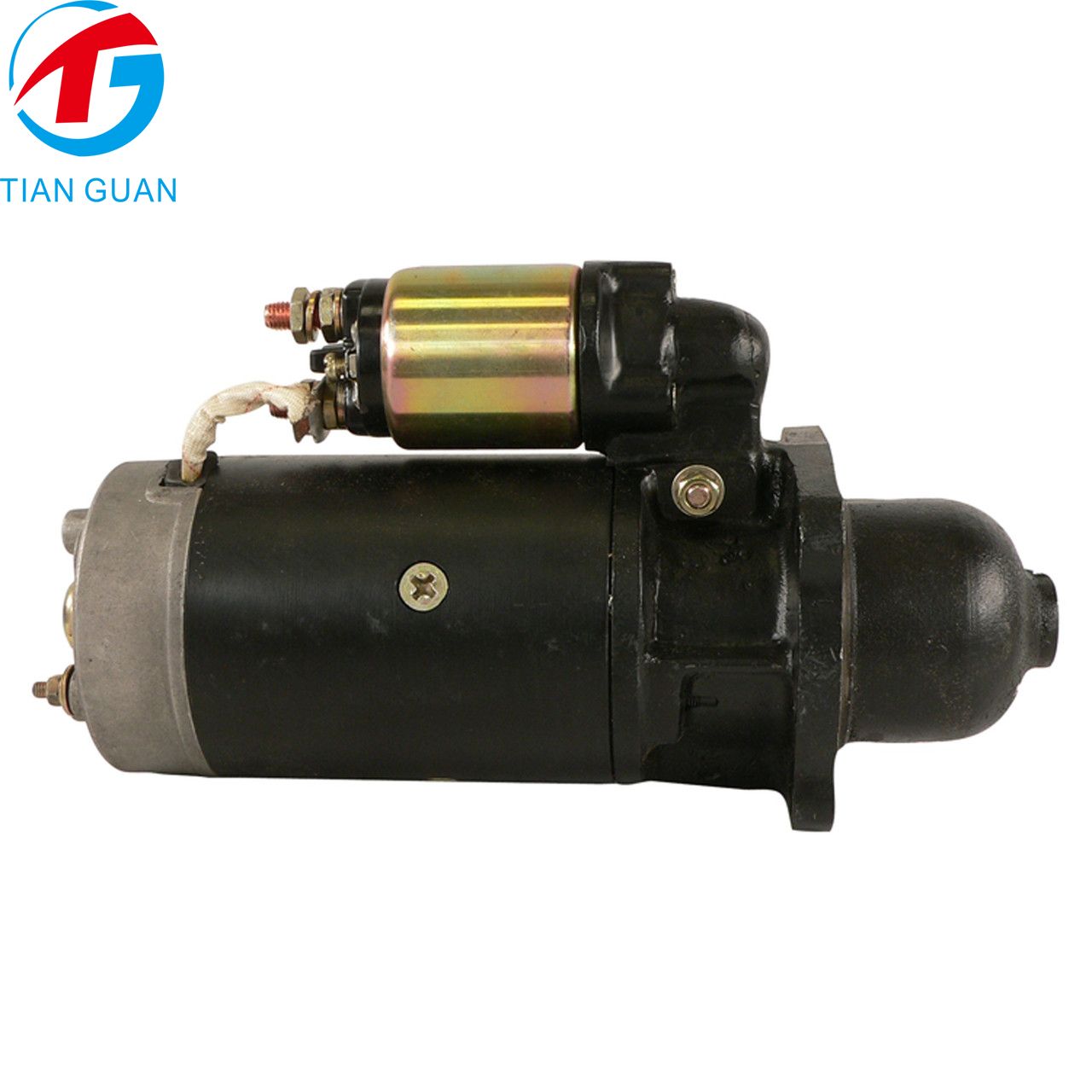

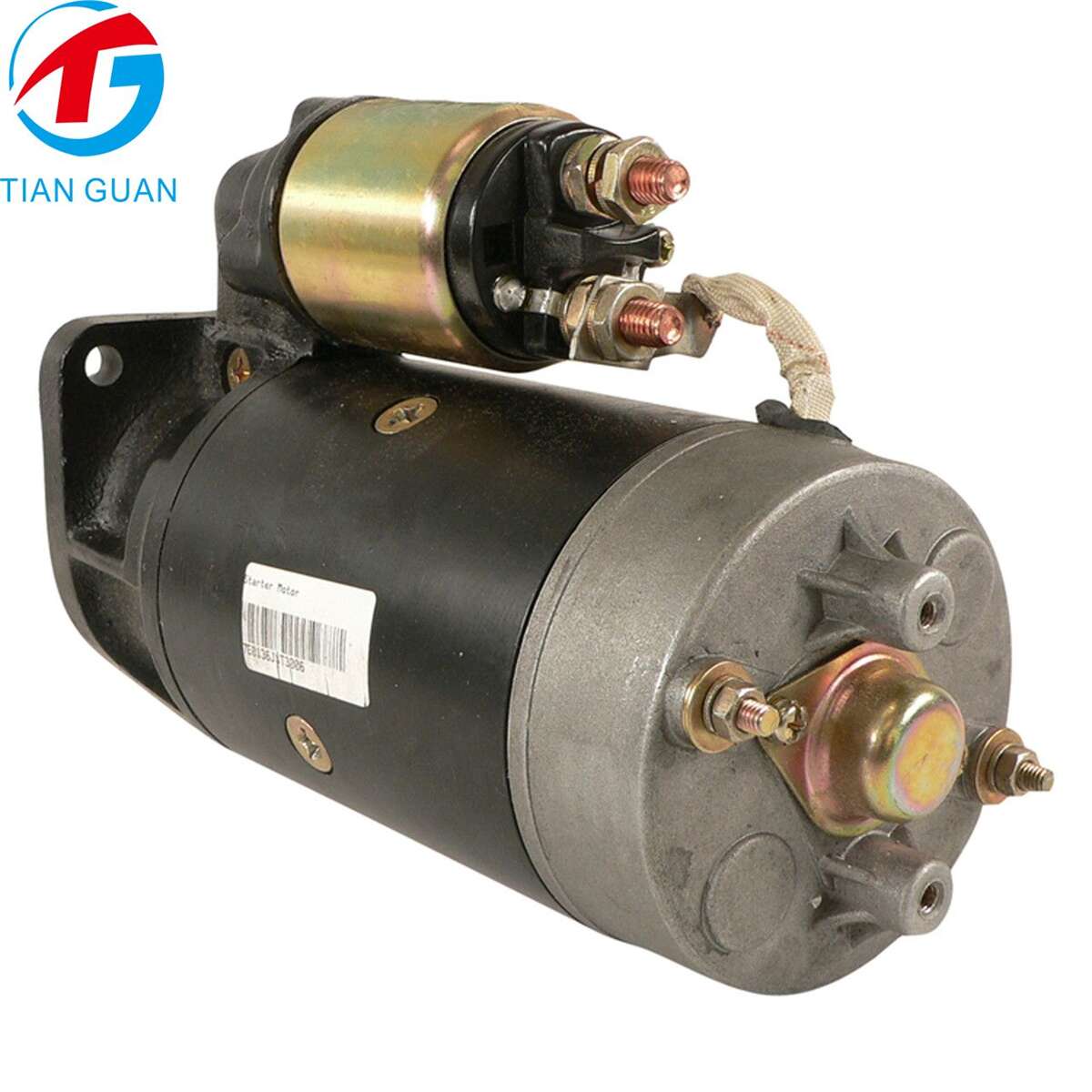

The STG52545 Starter Motor is a 24V direct-drive starter designed as a replacement unit for selected Deutz F-Series diesel engines, including F3L911, F3L912, F4L911, F4L912, F5L912, F6L911 and F6L912 applications.

With a 4.0 KW output, 9-tooth pinion and clockwise rotation, this starter is suitable for various industrial, marine and heavy-equipment applications using compatible Deutz engines.

It cross-references multiple OEM and aftermarket part numbers, including Deutz 1161422, 1164995, 1173241, 1302023 and Bosch 0-001-368-001.

Specifications

Fit for Deutz Engines

• Deutz F3L911 – 2.5L / 2460cc

• Deutz F3L912 – 2.8L / 2827cc

• Deutz F4L911 – 3.3L / 3280cc

• Deutz F4L912 – 3.8L / 3770cc

• Deutz F5L912 – 4.7L / 4712cc

• Deutz F6L911 – 4.9L / 4920cc

• Deutz F6L912 – 5.6L / 5655cc

Applications

This starter motor is listed for selected Deutz diesel engine applications, including marine and industrial equipment using compatible F-Series engines.

Listed applications cover model years from 1967 through 1991, depending on the specific engine and equipment configuration.

Product Highlights

Installation Notes

1. Confirm the original starter part number before ordering.

2. Verify 24V voltage, 4.0 KW power, 9-tooth pinion and clockwise rotation.

3. Check mounting dimensions and gear configuration against the original starter.

4. Disconnect the battery before removing or installing the starter motor.

5. Ensure all electrical terminals and mounting bolts are properly secured after installation.

Fitment Notice

This is an aftermarket replacement starter motor. Part numbers are provided for cross-reference purposes only. Please verify the original starter number, engine model, voltage, tooth count, rotation and mounting dimensions before purchase.
