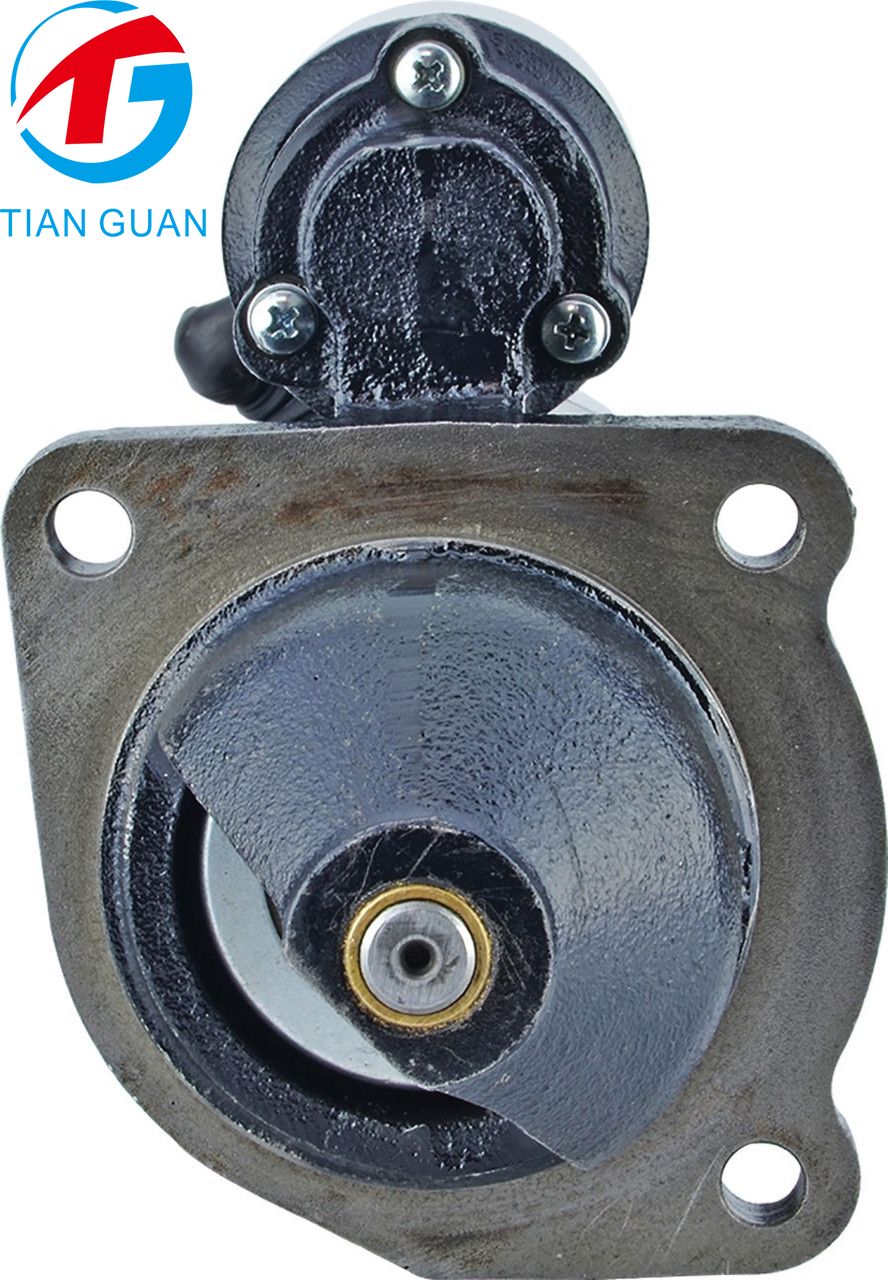

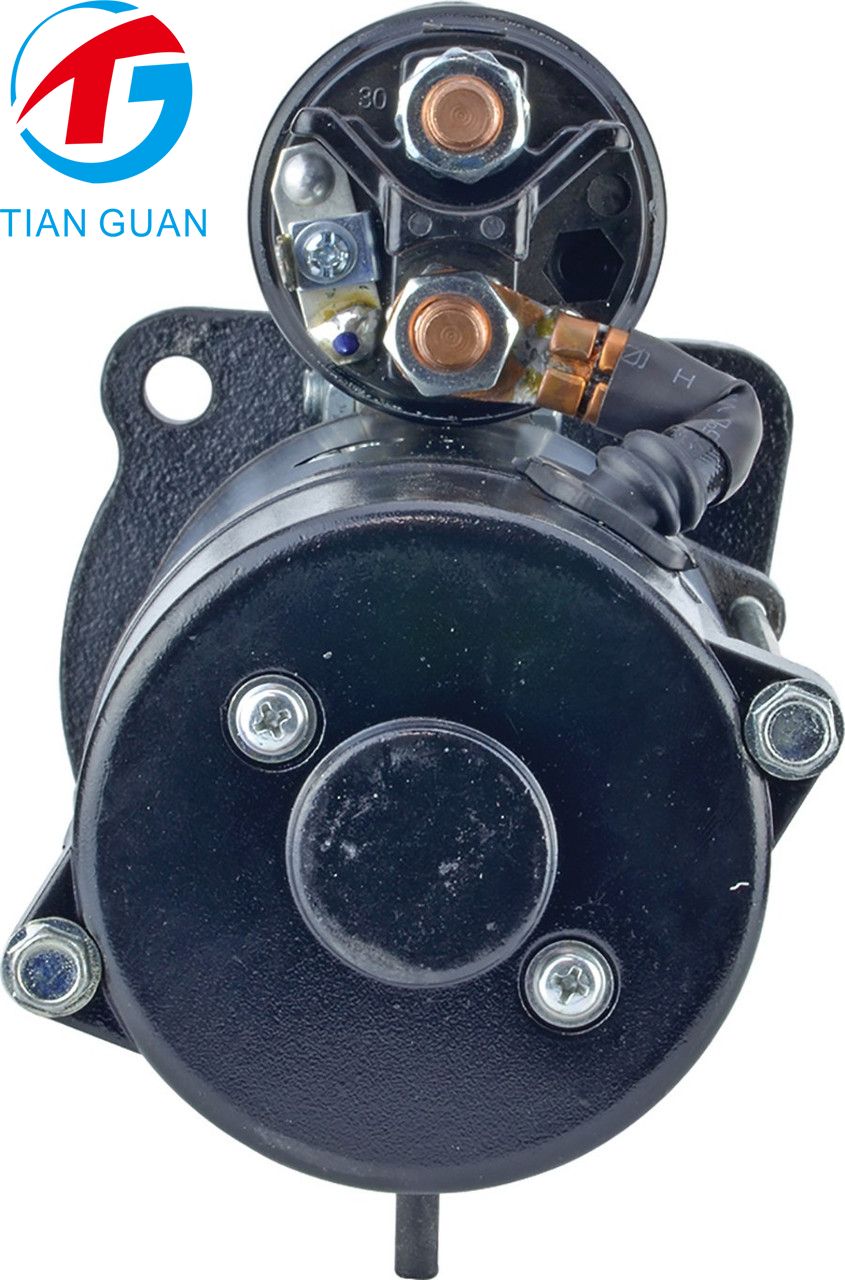

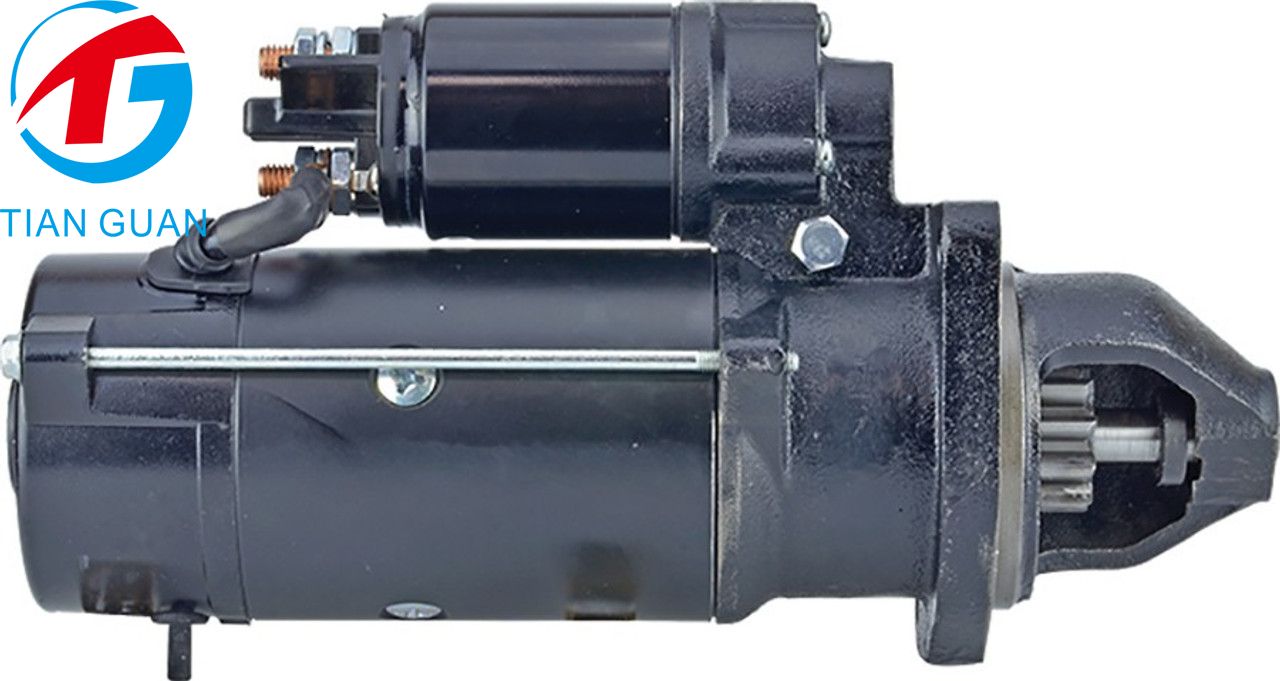

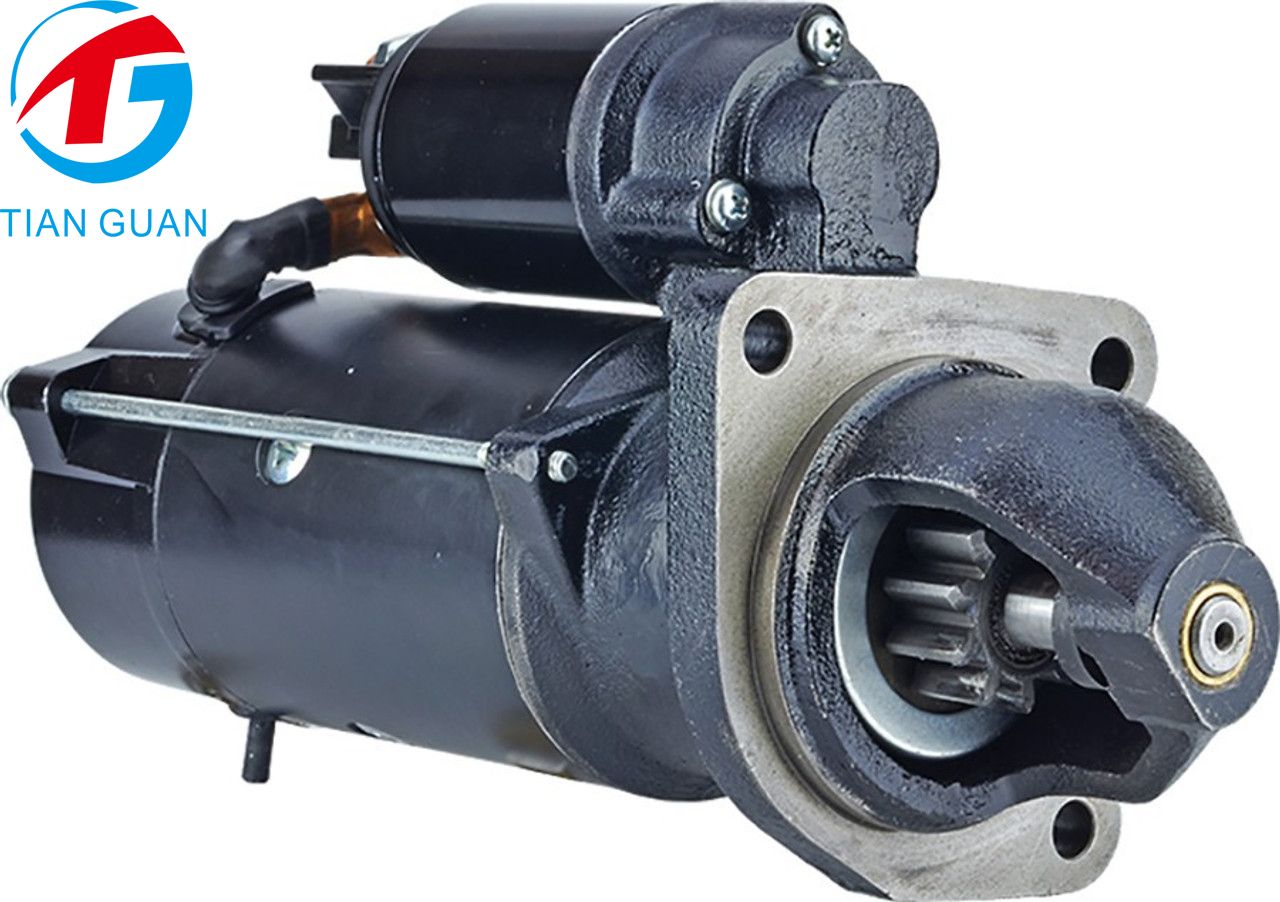

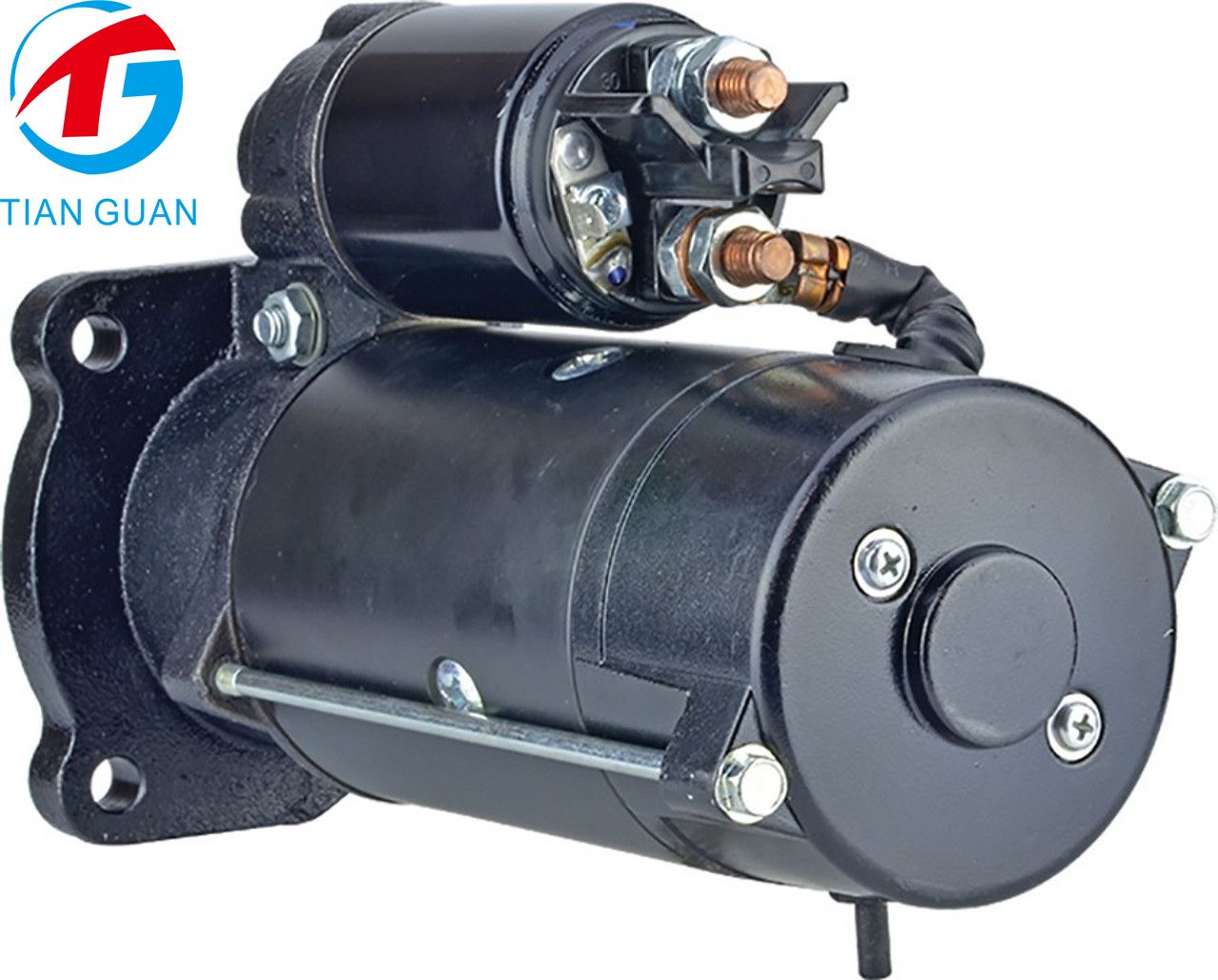

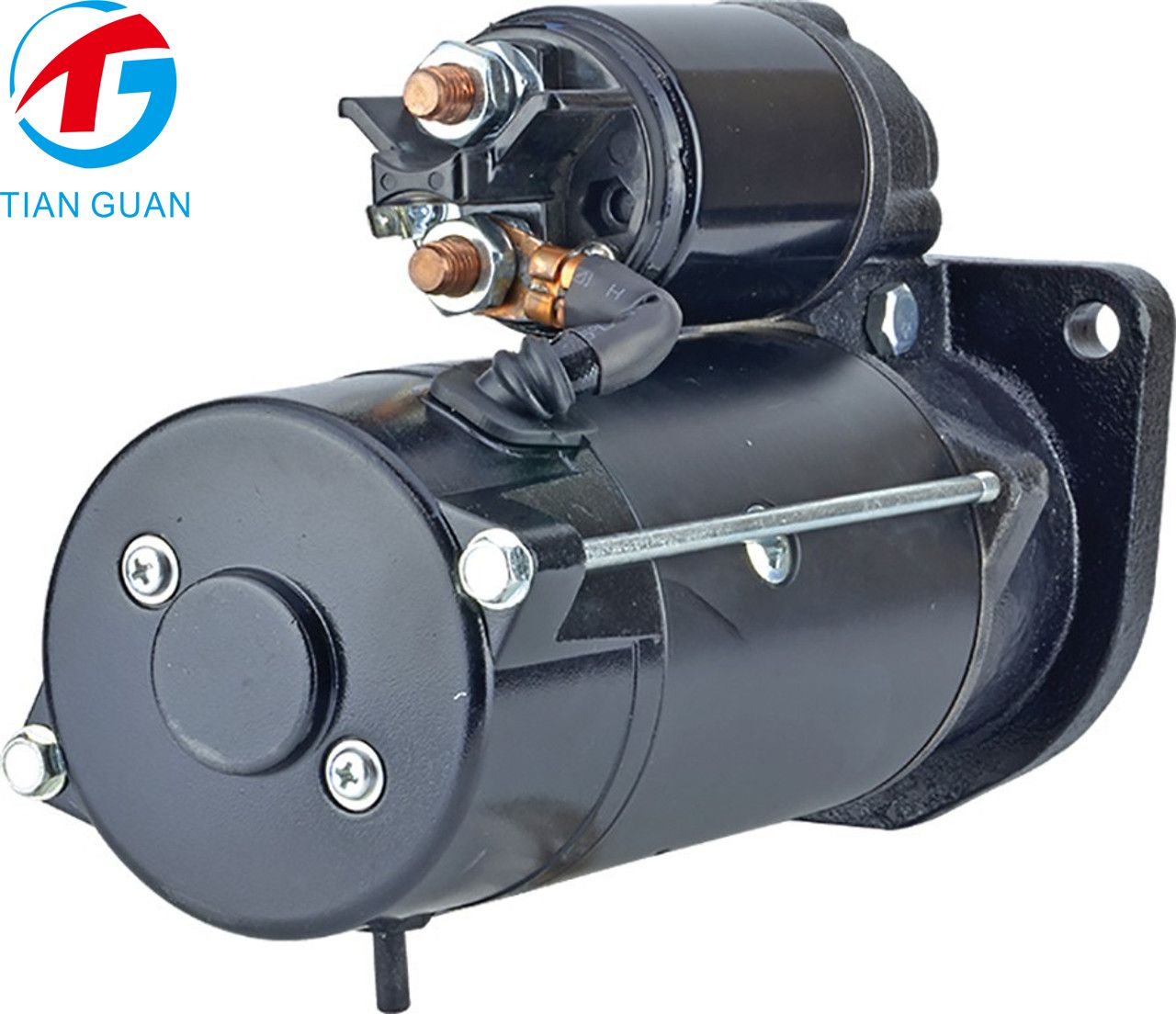

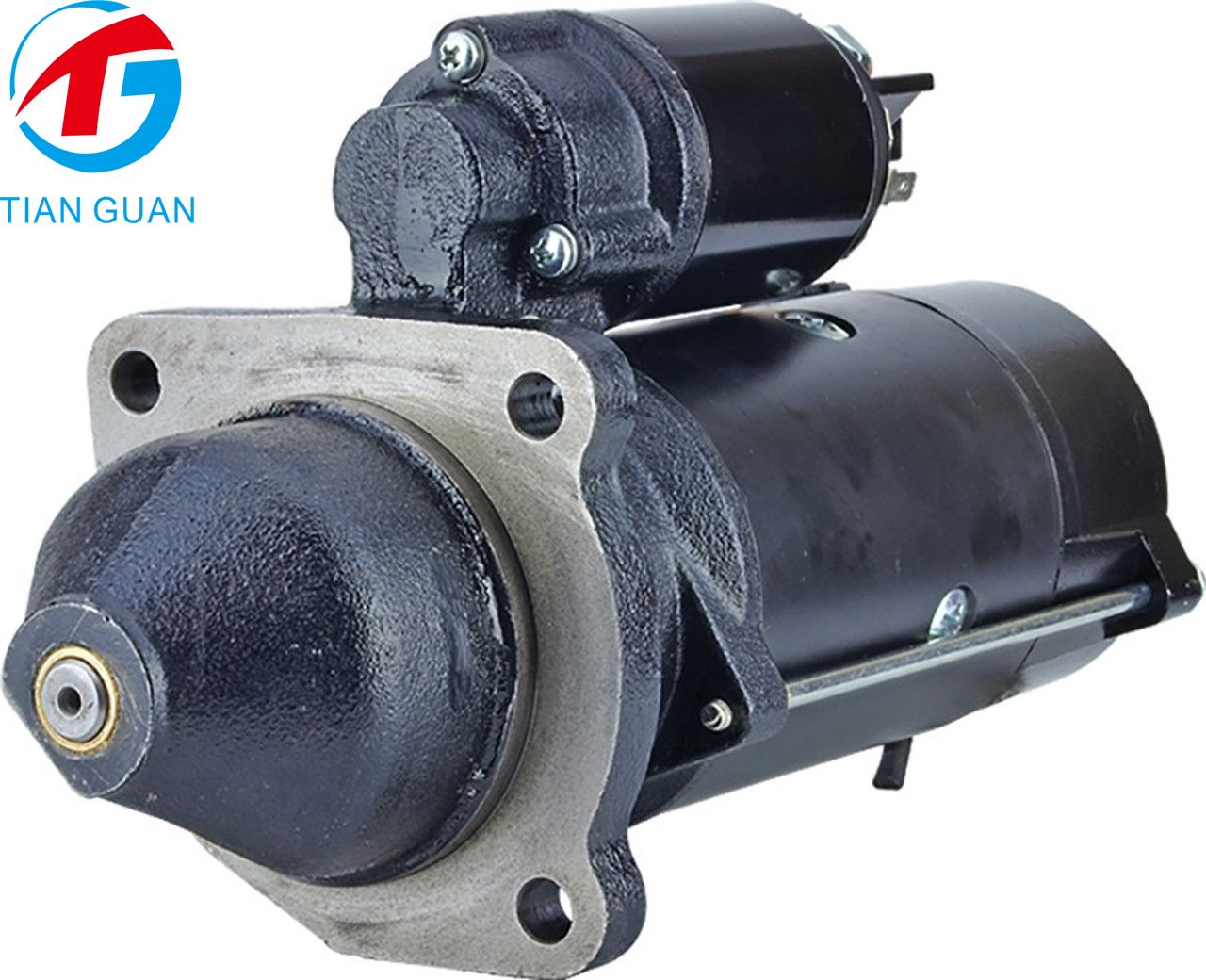

STG52766 Starter Motor 47715263 4897223 82032859 for Case IH New Holland Case 4.2kW Applications | 12V 4.2kW CW 10T PLGR Replacement

3 Reviews

Add Your Review

US$148.00

ITEMNO： STG52766

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    STG52766 Starter Motor 47715263 4897223 82032859 for Case IH New Holland Case 4.2kW Applications | 12V 4.2kW CW 10T PLGR Replacement

    Part Numbers

    AGCO: 3691576M91
    Case / New Holland: 47715263 / 4897223 / 82032859
    Delco Remy: DRS0365
    Fiat: 47715263 / 84151331 / 87318735 / 87583926 / 87653219
    Iveco: 504163666 / 5801394270 / 84151331 / 87524725

    Product Description

    The STG52766 Starter Motor is a new aftermarket replacement designed for a wide range of Case IH, New Holland, Fiat, Iveco, and other agricultural and industrial equipment applications.

    This 12V, 4.2kW starter features clockwise rotation, a 10-tooth pinion, and a PLGR (Planetary Gear Reduction) design. It is suitable for selected Case IH construction equipment, Farmall and Maxxum tractors, New Holland T-series tractors, and various Puma, MXU, and other equipment models.

    The starter cross-references multiple OEM and aftermarket part numbers, including Case / New Holland 47715263, 4897223, and 82032859, Delco Remy DRS0365, and Mahle IS0999 and MS138.

    Product Specifications

    PropertyValue
    SKUSTG52766
    Unit TypeStarter Motor
    Voltage12V
    Power4.2kW
    RotationClockwise (CW)
    Pinion Teeth10
    Starter TypePLGR (Planetary Gear Reduction)
    ConditionNew Aftermarket Part
    Weight10.8 kg

    OEM / Cross Reference Numbers

    Brand / CategoryPart Numbers
    AGCO3691576M91
    Case / New Holland47715263 / 4897223 / 82032859
    Delco RemyDRS0365
    Fiat47715263 / 84151331 / 87318735 / 87583926 / 87653219
    Iveco504163666 / 5801394270 / 84151331 / 87524725
    Lucas ElectricLRS02446
    MahleIS0999 / MS138
    Misc Vendor36210
    Renault7700068173

    Compatible Applications

    Make / SeriesCompatible Models
    Case IH121E / 21E / 321E / 7030 / 7040 / 7050 / 7060 / 7070 / SR200 / SR250
    De PietriTR100DTN / TR100DTS
    DoosanDT70
    Farmall95A / 105A / 115A
    JXU75 / 115
    Maxxum100 / 110 / 110 CVX / 115 / 120 / 120 CVX / 125 / 130 / 130 CVX / 135 / 140 / 150 / 180
    MXU100 / 110 / 125 / 130 / 135
    New HollandT6020 / T6030 / T6040 / T6050 / T6060 / T6070 / T6080 / T6090 / T7 / TK4050
    Puma125 / 130 / 130 CVT / 140 / 140 CVT / 145 / 145 CVX / 155 / 160 / 160 CVT / 160 CVX / 165 / 165 CVX / 170 / 170 CVX / 180 / 180 CVX / 185 / 185 CVX / 195 / 195 CVX / 200 / 200 CVX / 205 / 210 / 210 CVX / 215 / 215 CVX / 225 CVX / 230 CVX

  • PRODUCT HIGHLIGHTS

    Product Highlights

    High-Power PerformancePlanetary Gear ReductionWide Equipment Compatibility
    4.2kW output with a 12V electrical system for demanding starting applications.PLGR design with clockwise rotation and a 10-tooth pinion.Compatible with selected Case IH, New Holland, Farmall, Maxxum, MXU, Puma, and other equipment.
