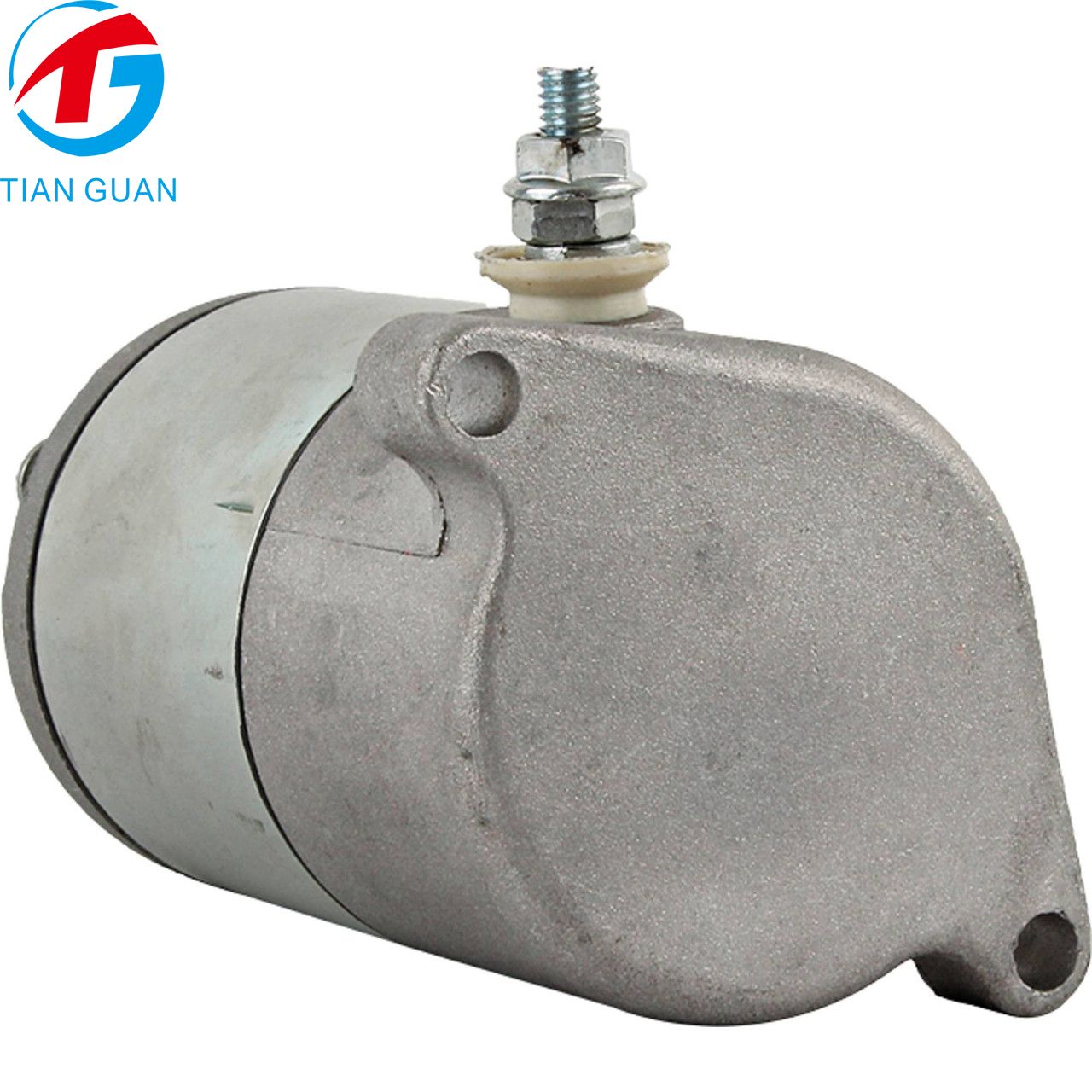

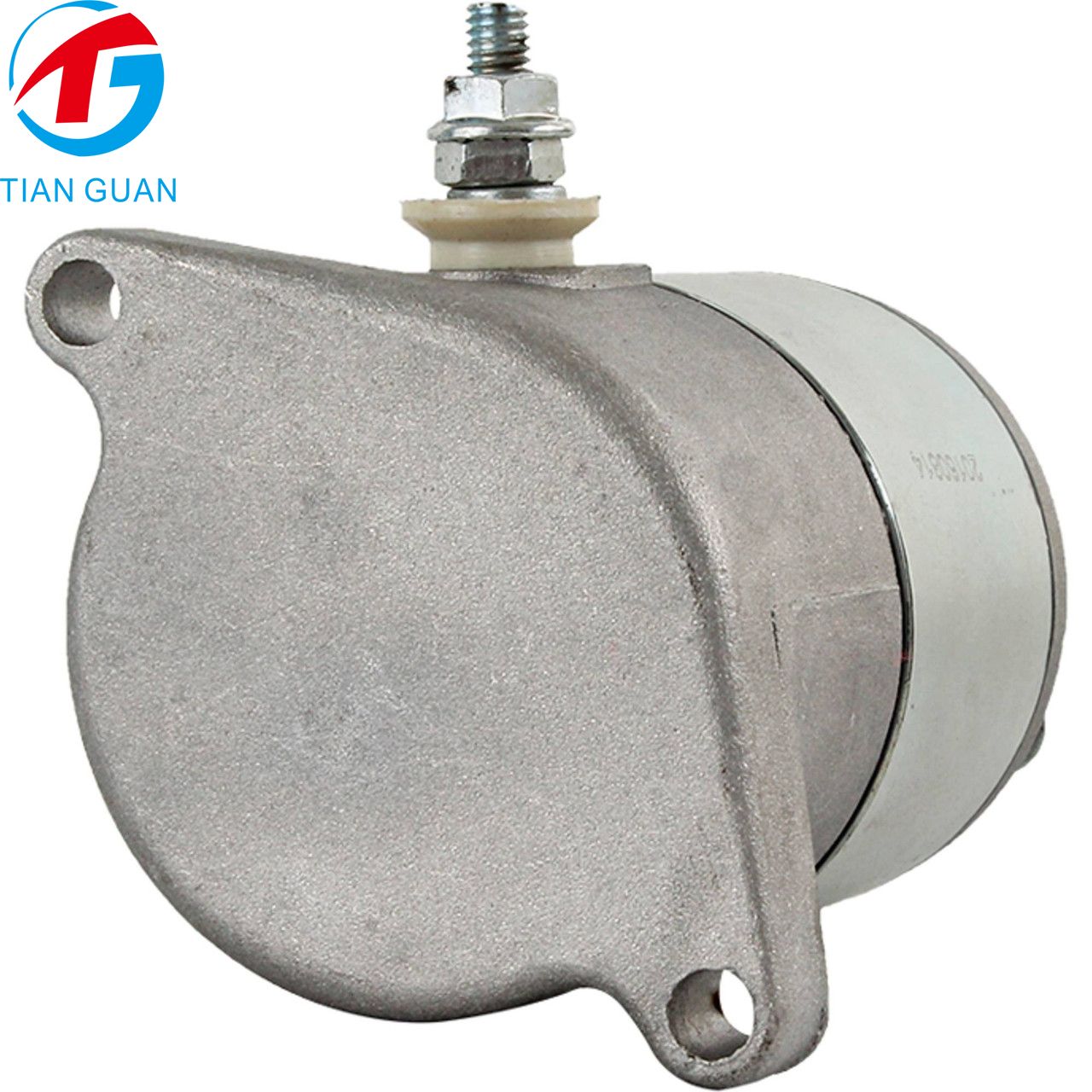

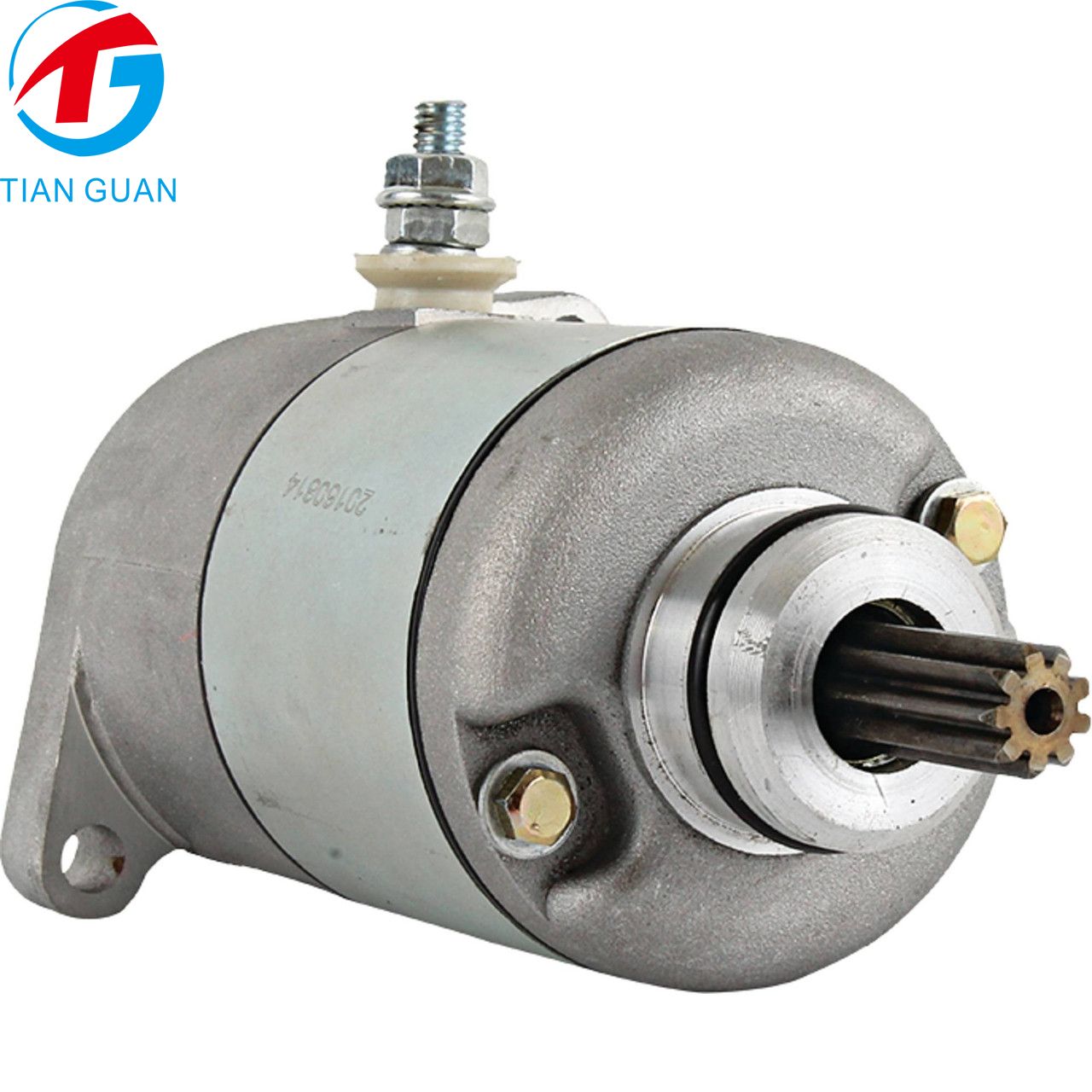

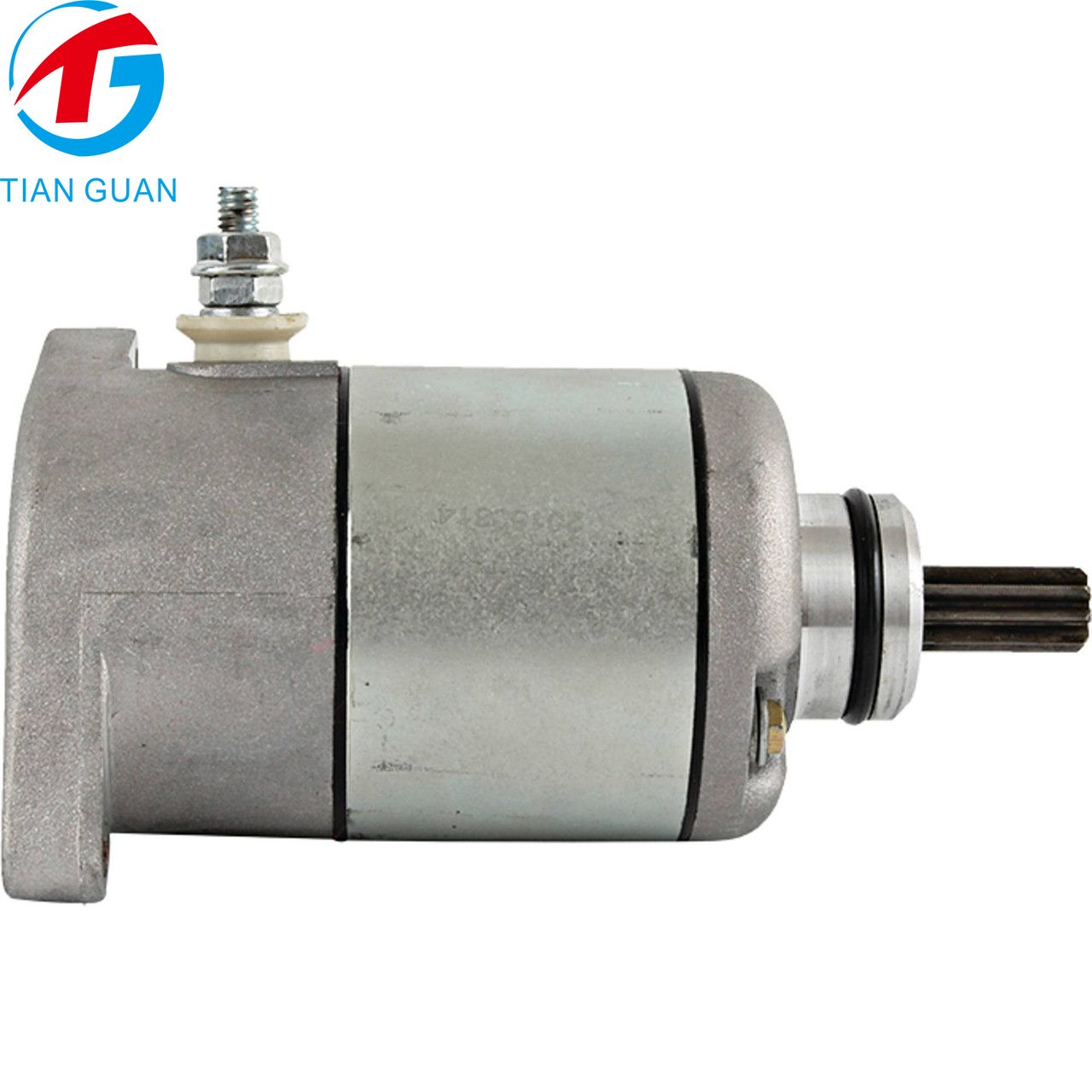

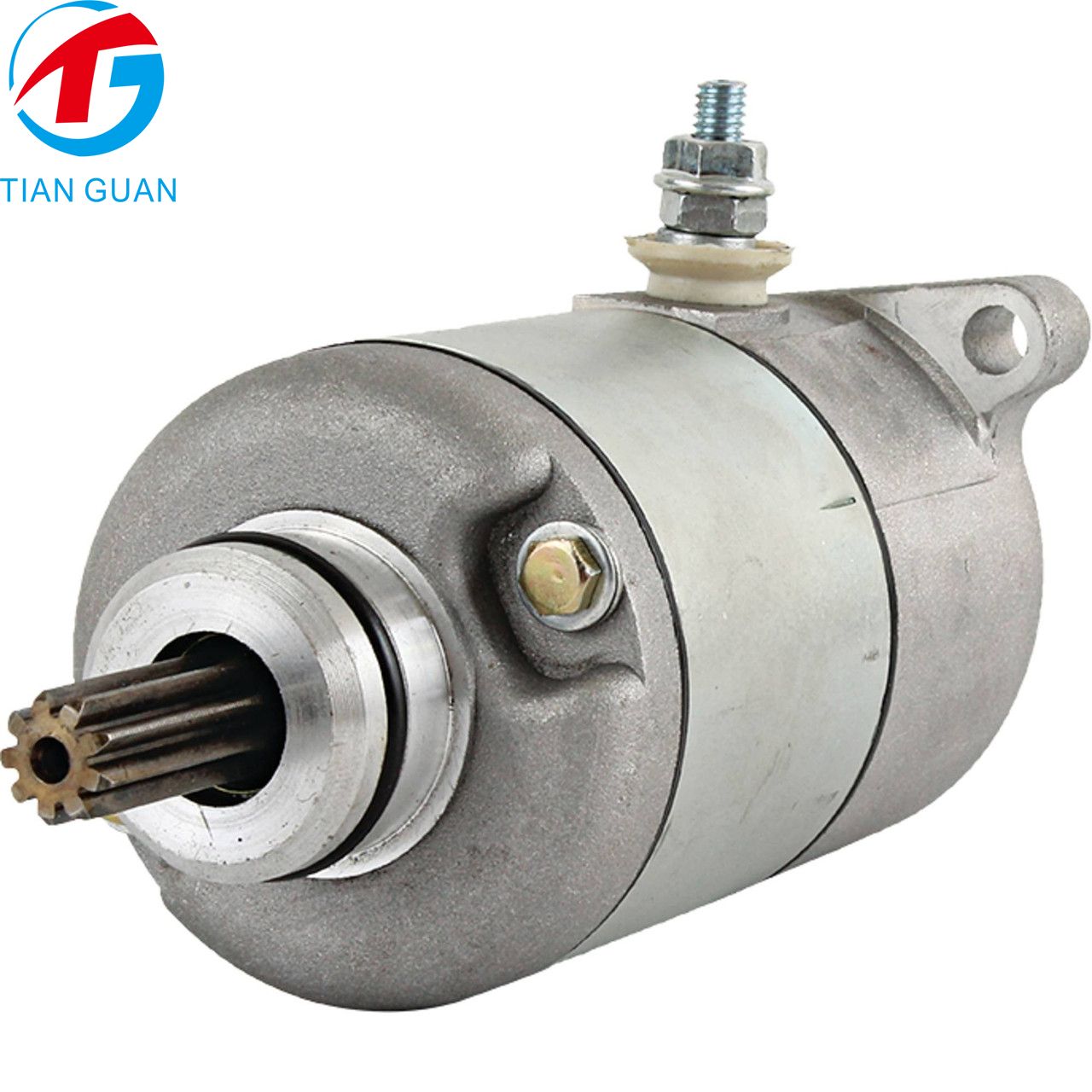

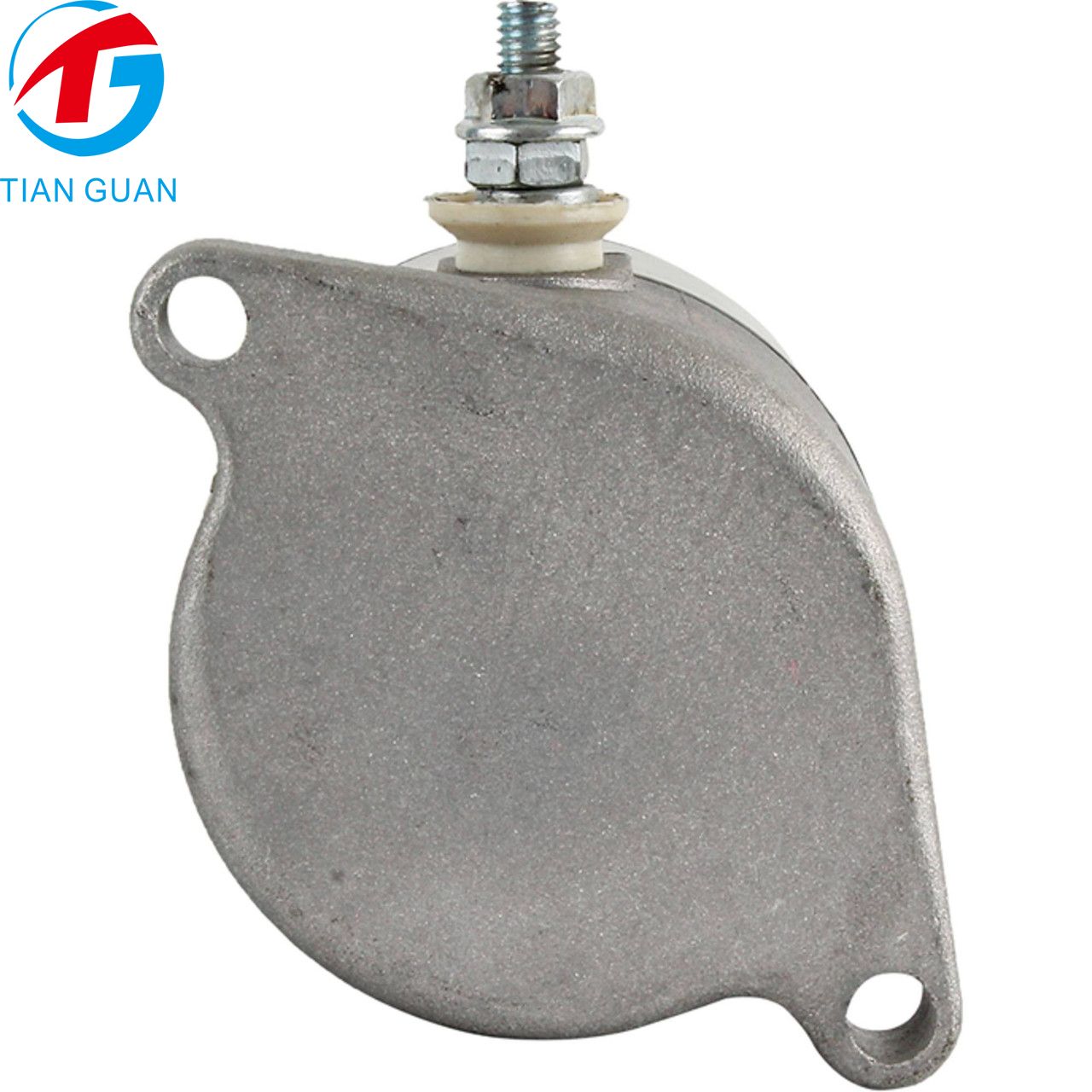

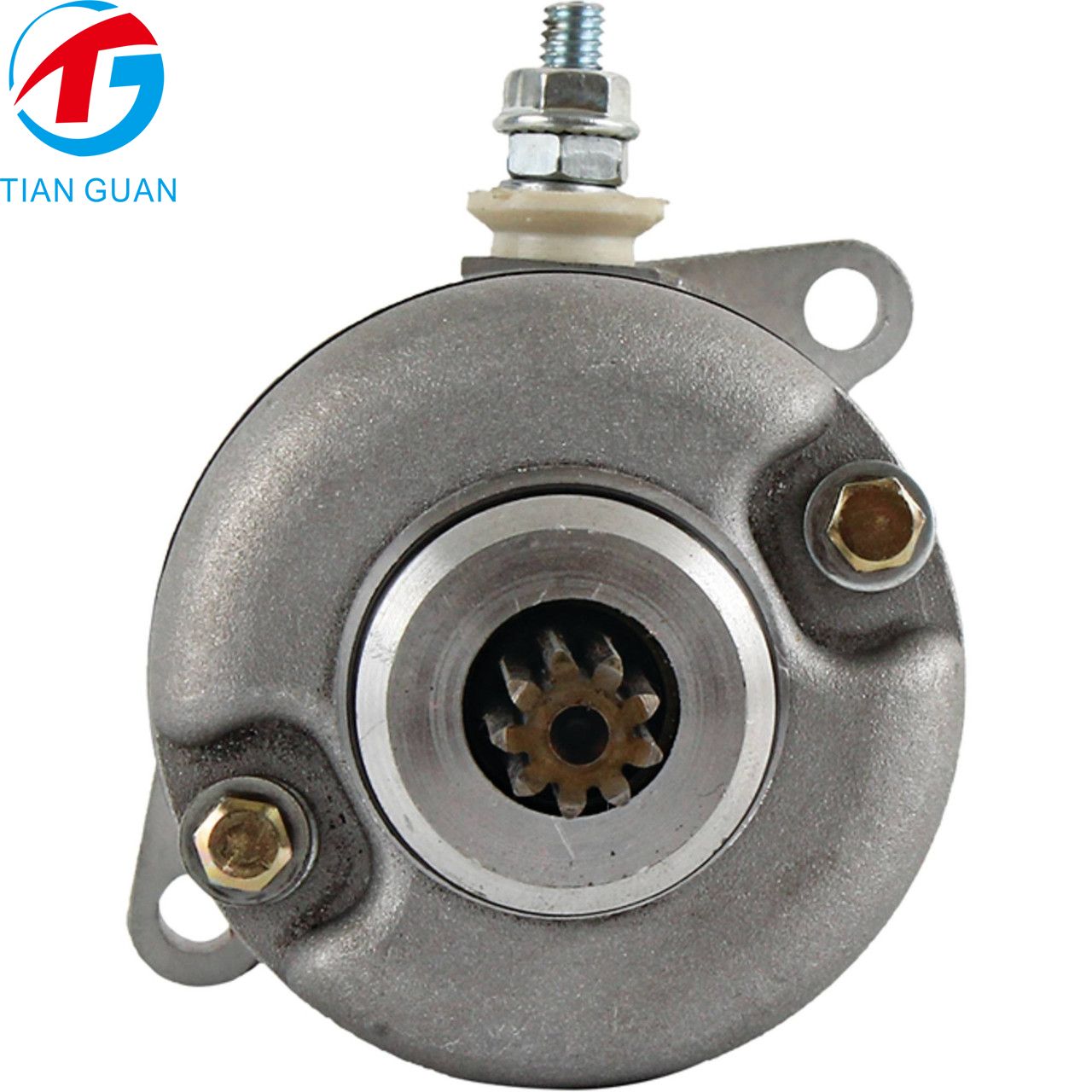

STG52785 Starter Motor 31200-KGF-901 31200-KGF-902 410-54242 for Honda Dylan 125 150 Pantheon 125 150 | 12V 0.45kW 9T CW PMDD Replacement

3 Reviews

Add Your Review

US$76.00

ITEMNO： STG52785

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG52785 Starter Motor 31200-KGF-901 31200-KGF-902 410-54242 for Honda Dylan 125 150 Pantheon 125 150 | 12V 0.45kW 9T CW PMDD Replacement

Part Numbers

Honda: 31200-KGF-901 / 31200-KGF-902

Arrowhead: 410-54242

J&N Electrical Products: 410-54242

Product Description

The STG52785 Starter Motor is a new aftermarket replacement starter designed for compatible Honda 125cc and 150cc scooters, including the Dylan and Pantheon models.

Featuring a 12V electrical system, 0.45kW power output, a 9-tooth pinion gear, clockwise (CW) rotation, and a permanent magnet direct drive (PMDD) design, this starter is engineered to provide reliable starting performance for compatible scooter applications.

It cross-references Honda OEM part numbers 31200-KGF-901 and 31200-KGF-902, as well as Arrowhead 410-54242, Mitsuba SM14-233, and other aftermarket references. Confirm the original starter number and scooter model before ordering.

Product Specifications

Specification	Details
Product SKU	STG52785
Product Type	Starter Motor
Condition	New Aftermarket Part
Voltage	12V
Power Output	0.45kW
Rotation Direction	Clockwise (CW)
Number of Pinion Teeth	9T
Starter Type	Permanent Magnet Direct Drive (PMDD)
Compatible Engine Displacement	125cc / 150cc
Estimated Net Weight	1.2kg

OEM / Cross Reference Numbers

Brand	Reference Part Numbers
Honda	31200-KGF-901, 31200-KGF-902
Arrowhead	410-54242
J&N Electrical Products	410-54242
Lester	37046
Mitsuba	SM14-233
Societa Generale Ricambi (SGR)	17.8182, 17.81827

Compatible Applications

Make	Equipment Type	Model	Year	Engine
Honda	Scooter	Dylan 125 (SES125)	2002–2006	125cc
Honda	Scooter	Dylan 150 (SES150)	Selected years	150cc
Honda	Scooter	Pantheon 125 (FES125)	2003–2006	125cc
Honda	Scooter	Pantheon 150 (FES150)	2003–2005	150cc
Honda	Scooter	SH125	2001–2004	125cc
Honda	Scooter	SH125i	2005–2008	125cc
Honda	Scooter	SH150	2001–2004	150cc
Honda	Scooter	SH150i	2005–2008	150cc
Honda	Scooter	@ 125 (NES125)	2000–2006	125cc
Honda	Scooter	@ 150 (NES150)	2000–2006	150cc
Honda	Scooter	PS125i	2006–2013	125cc
Honda	Scooter	PS150i	2006–2010	150cc

PRODUCT HIGHLIGHTS

Product Highlights

Reliable Starting Performance	Compact PMDD Design	Multiple Cross-References
12V operation with 0.45kW output	9-tooth pinion with clockwise rotation	Cross-references Honda, Arrowhead, Mitsuba, Lester, J&N, and SGR part numbers
Designed for compatible 125cc and 150cc scooters	Direct-drive construction for compatible applications	Verify the original part number and exact scooter model before purchase
