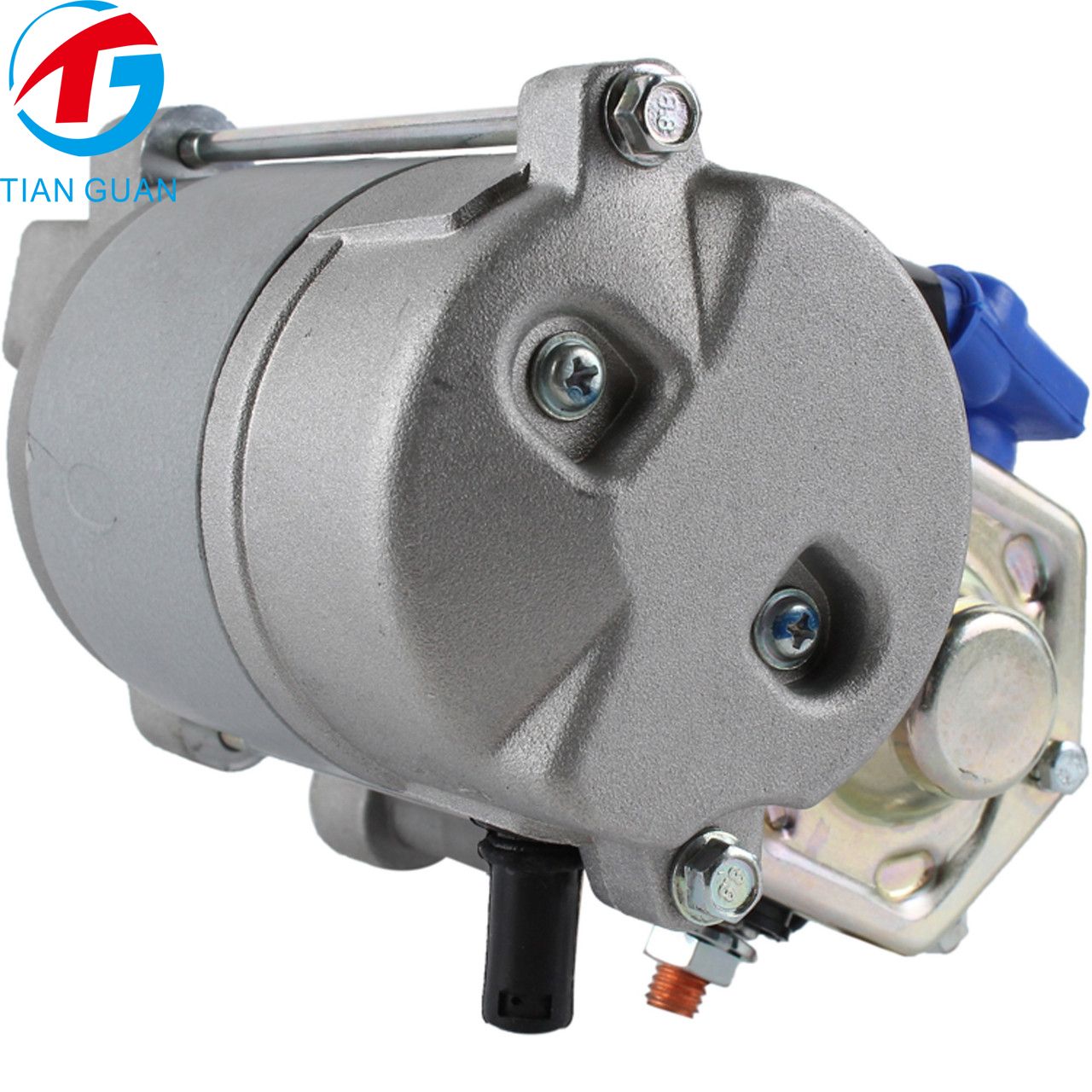

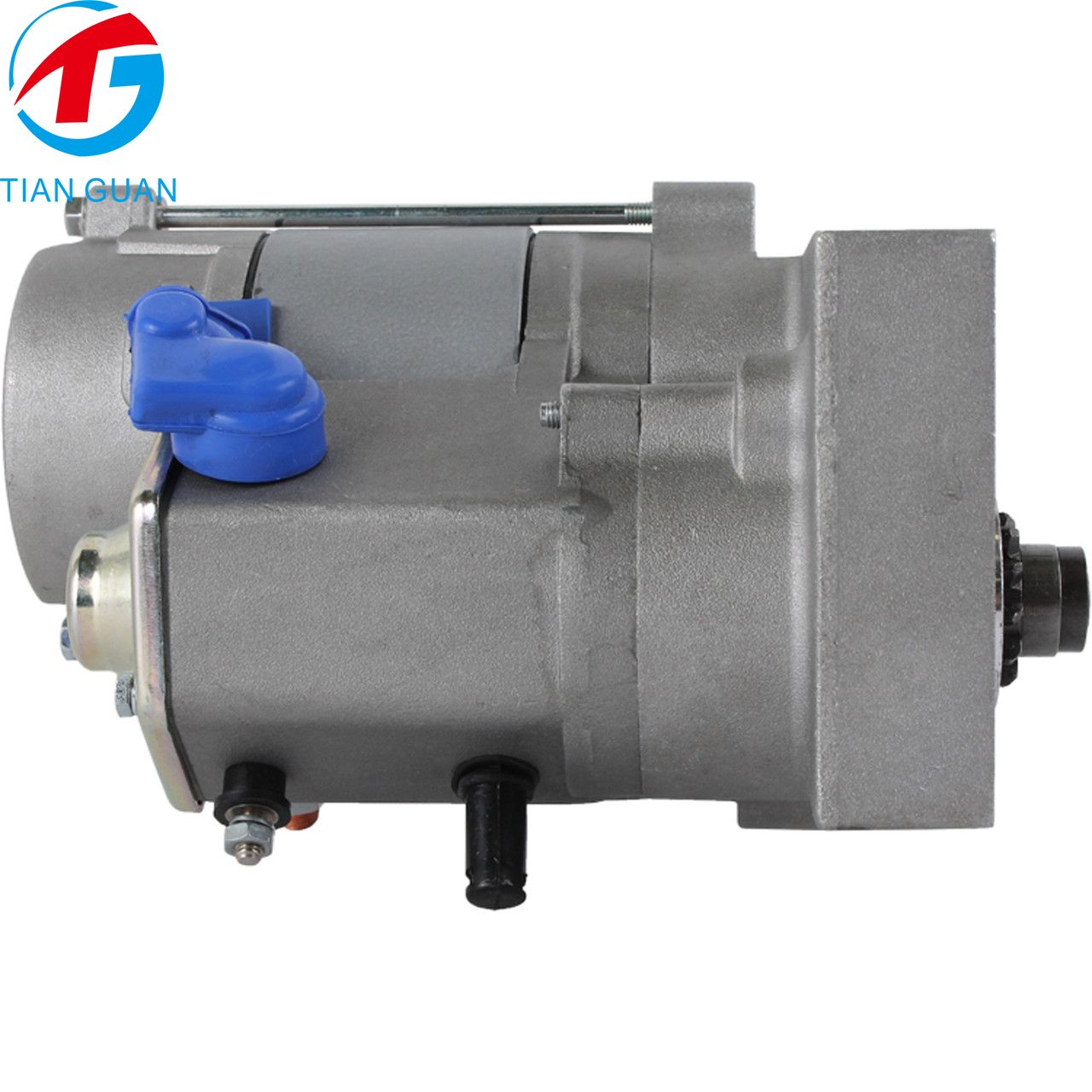

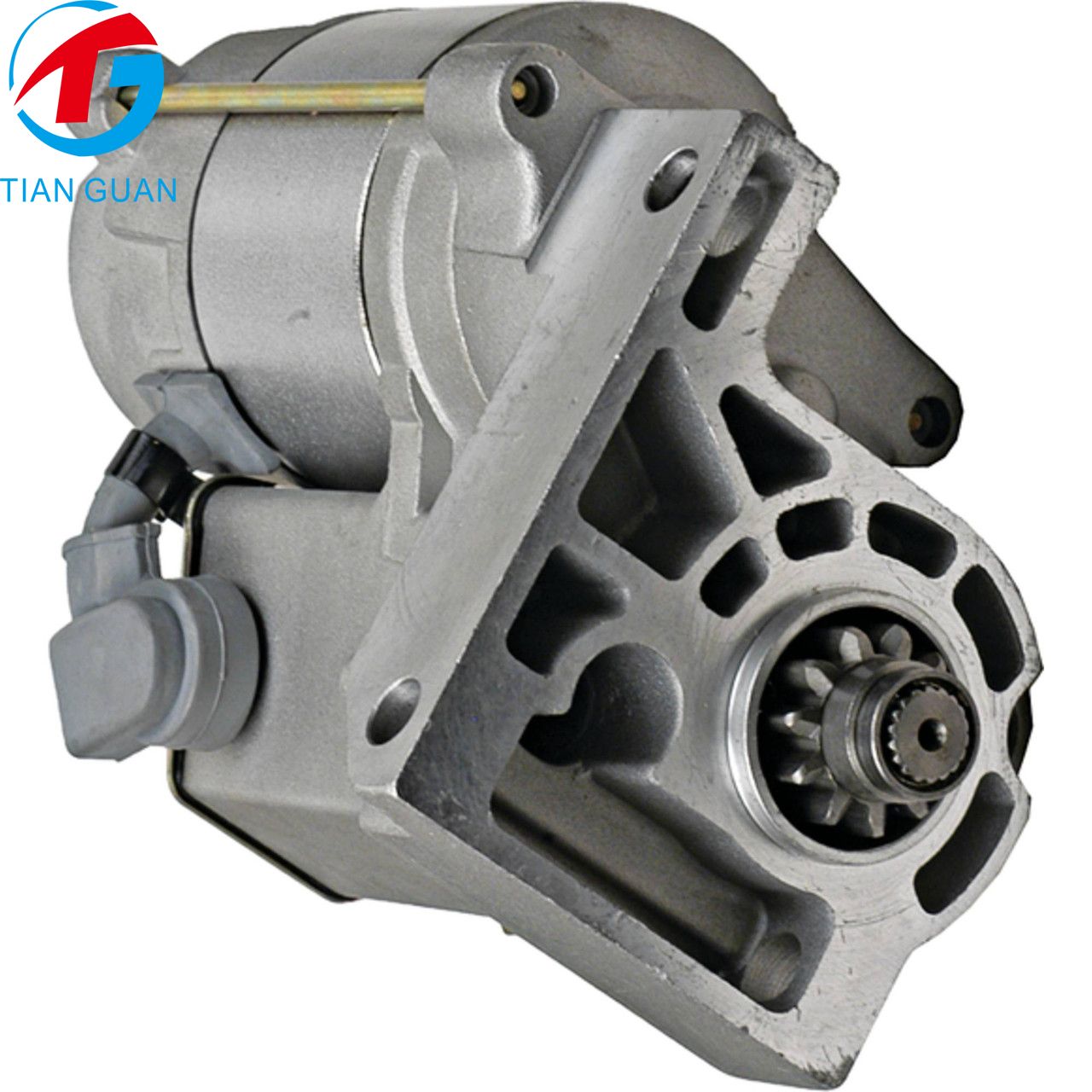

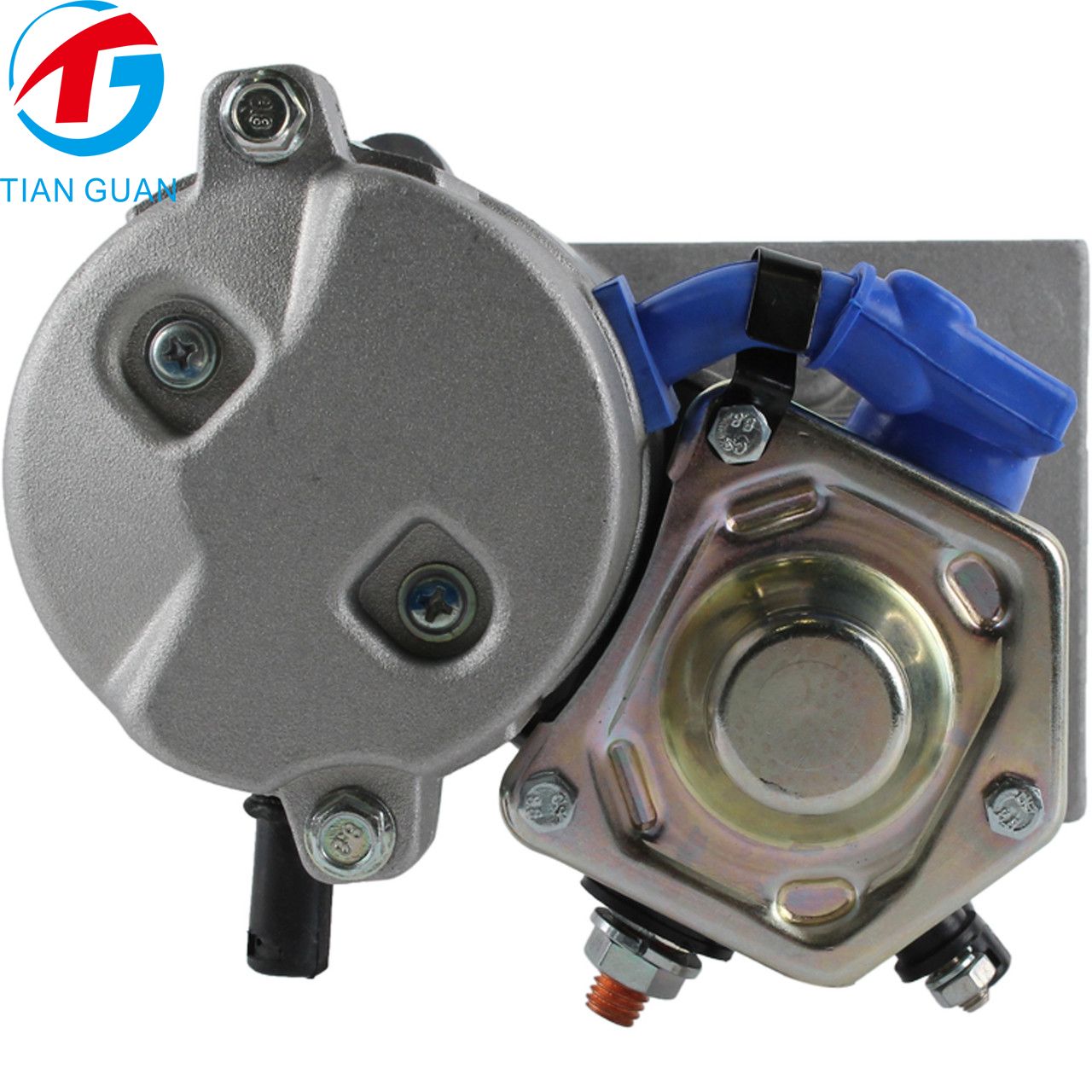

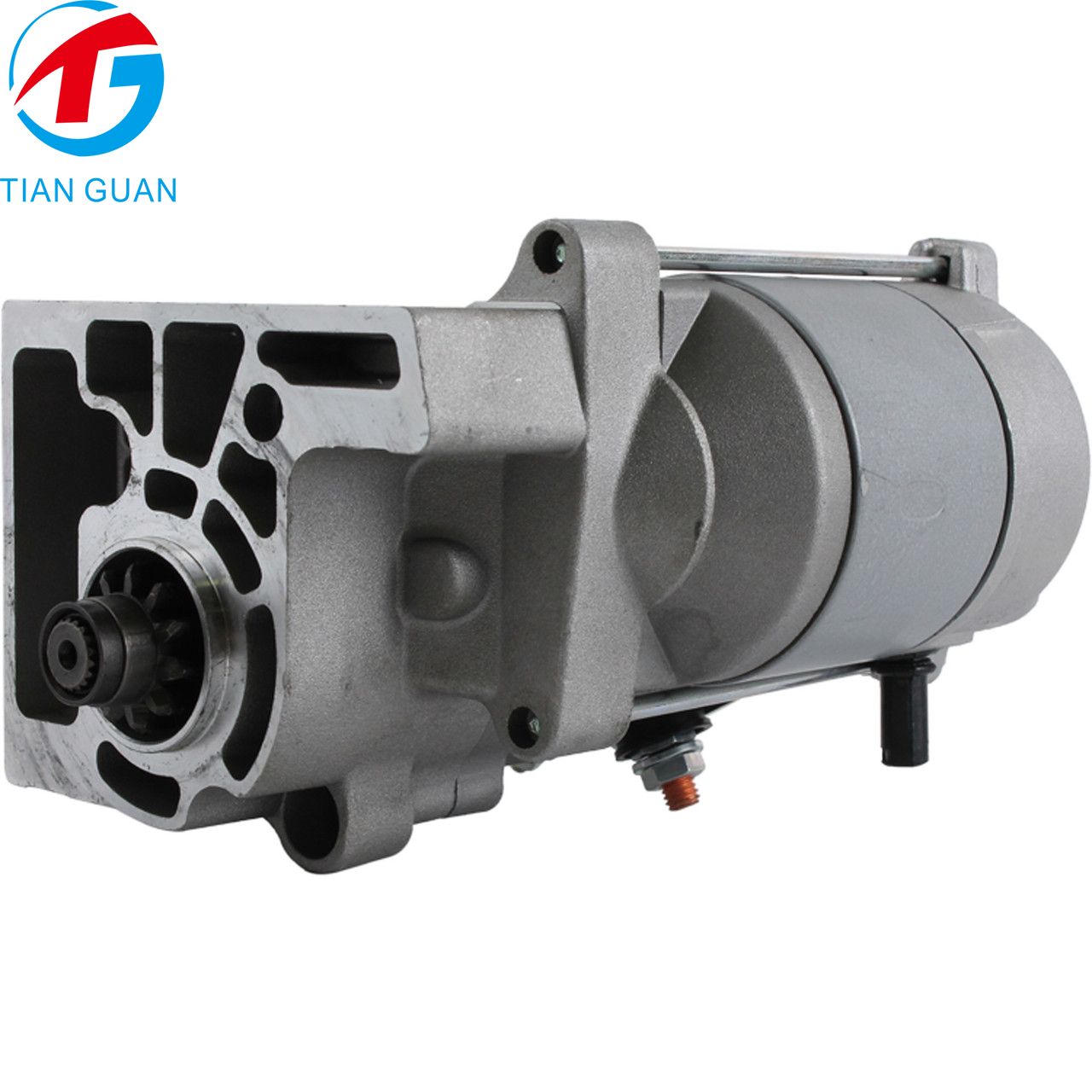

STG52797 Starter Motor 410-52231 88880400 SND0684 6330N-ND for Chevrolet LLV Postal Vehicle S10 Blazer GMC S15 Sonoma 2.5L 12V 1.4kW 11T CW OSGR Replacement

3 Reviews

Add Your Review

US$152.00

ITEMNO： STG52797

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG52797 Starter Motor 410-52231 88880400 SND0684 6330N-ND for Chevrolet LLV Postal Vehicle S10 Blazer GMC S15 Sonoma 2.5L 12V 1.4kW 11T CW OSGR Replacement

Part Numbers

General Motors: 88880400
Arrowhead: SND0684 / 410-52231
J&N Electrical Products: 410-12505 / 410-52231
Lester: 16000 / 6330-HI / 6330-ND
WAI: 6330N-ND

Product Description

The STG52797 Starter Motor is a brand-new aftermarket replacement designed for compatible General Motors vehicles equipped with a 2.5L four-cylinder gasoline engine, including the Chevrolet LLV postal vehicle and selected Chevrolet and GMC light trucks and SUVs.

This starter cross-references GM part number 88880400 and aftermarket references including Arrowhead SND0684 and J&N 410-52231. It features a 12V electrical system, 1.4kW output, an 11-tooth pinion, clockwise rotation, and an offset gear reduction (OSGR) design.

Before ordering, verify the original starter number, mounting configuration, pinion gear, and electrical connections to ensure compatibility.

Product Specifications

Specification	Details
Product SKU	STG52797
Product Type	Automotive Starter Motor
Condition	Brand New Aftermarket
Voltage	12V
Power Output	1.4kW
Number of Teeth	11T
Rotation	Clockwise (CW)
Starter Type	OSGR (Offset Gear Reduction)
Pinion Gear Outside Diameter	29.2mm
Engine Type	2.5L L4 Gasoline
Mounting	Two mounting holes; verify dimensions
Estimated Net Weight	4.5kg

OEM / Cross Reference Table

Brand	OEM / Cross Reference Numbers
General Motors	88880400
Arrowhead	SND0684, 410-52231
J&N Electrical Products	410-12505, 410-52231
Lester	16000, 6330-HI, 6330-ND
WAI	6330N-ND

Compatible Applications

Vehicle Model	Year	Engine
Chevrolet LLV Postal Vehicle	1987–1993	2.5L L4
Chevrolet S10 Pickup	1985–1993	2.5L L4
Chevrolet S10 Blazer	1985–1988	2.5L L4
GMC S15 Pickup	1985–1990	2.5L L4
GMC S15 Jimmy	1985–1988	2.5L L4
GMC Sonoma	1991–1993	2.5L L4
GMC Sonoma Base	1992	2.5L L4
GMC Sonoma SLE	1992	2.5L L4

PRODUCT HIGHLIGHTS

Product Highlights

Reliable Starting Performance	Gear Reduction Design	Broad Vehicle Coverage
12V, 1.4kW output for compatible 2.5L gasoline engines	11-tooth pinion with clockwise rotation and OSGR construction	Suitable for selected Chevrolet LLV, S10, Blazer, and GMC S15/Sonoma applications
