STG52834 Starter 65.26201-7088 8200334 for Daewoo Doosan Equipment – 24V 6.0KW 11T CW PLGR

Part Numbers

DAEWOO: 65.26201-7088
DOOSAN: 6526201-7088, 65.26201-7088, 65262017088, 300516-00057A, 30051600057, 6526201-7088A, 65.26201-7088A, 6526201-7088B, 65.26201-7088B
DELCO: 8200334, 8200349, 19080030
DELCO REMY: DRS0307, DRS0307N
ARROWHEAD: SDR0403, 410-12605

Product Description

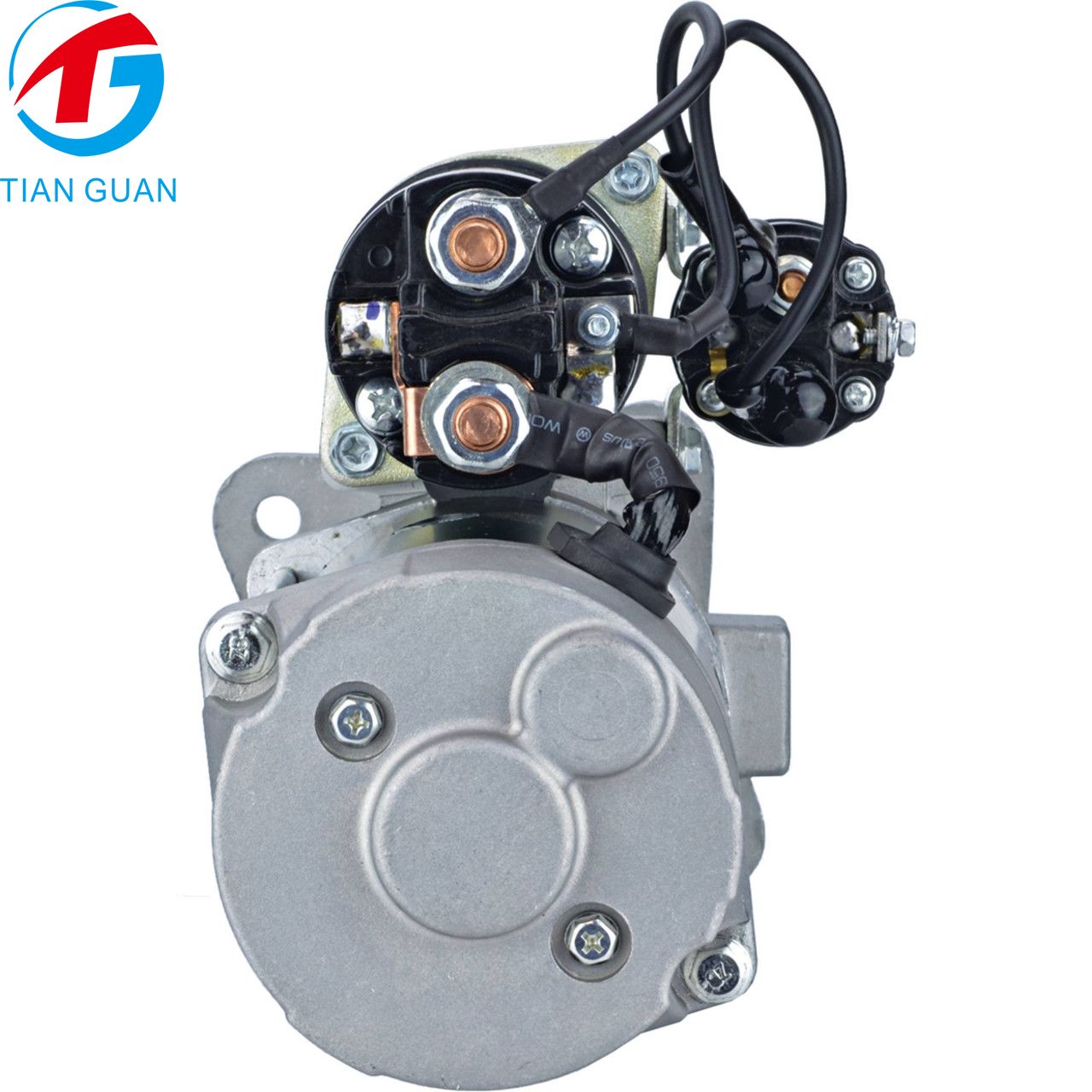

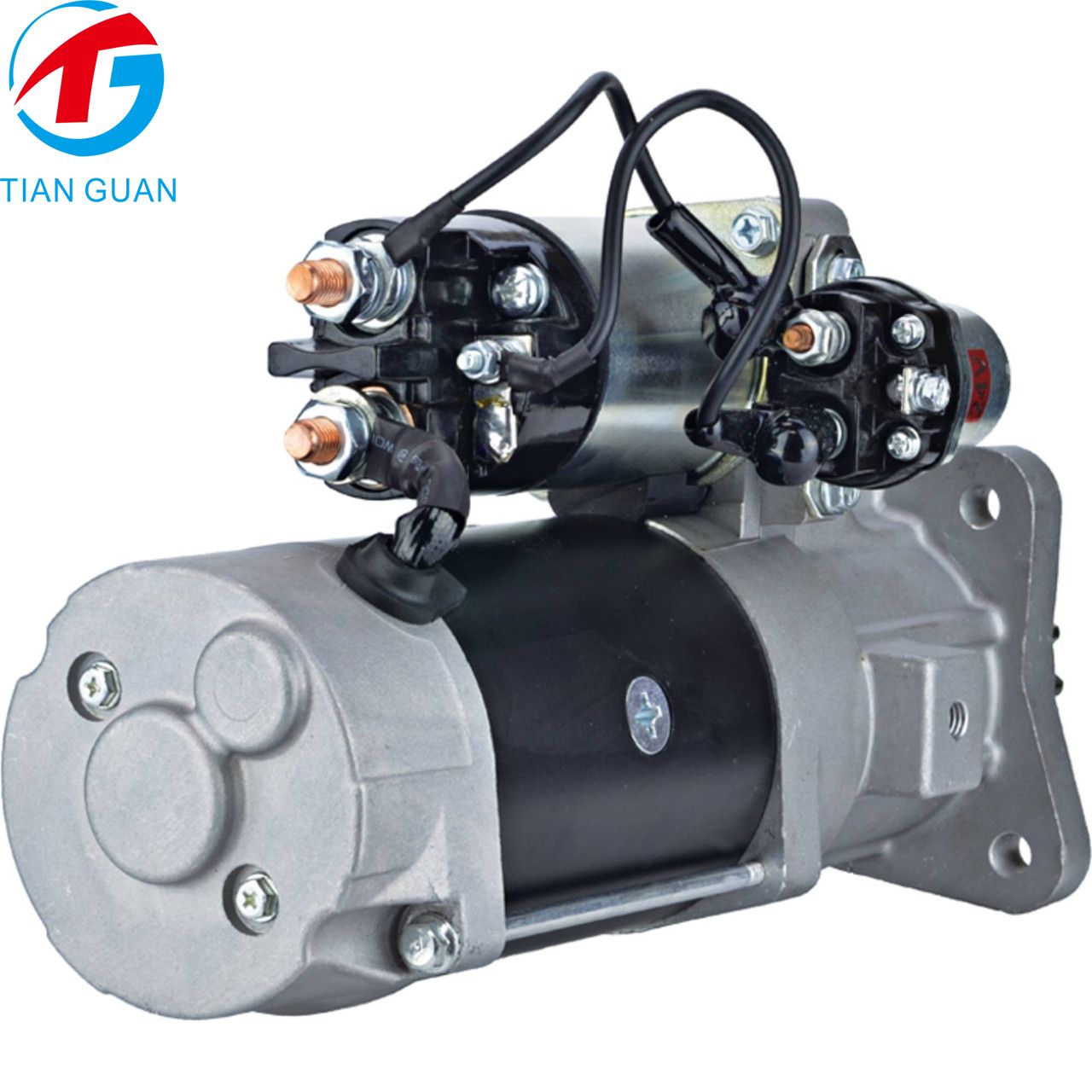

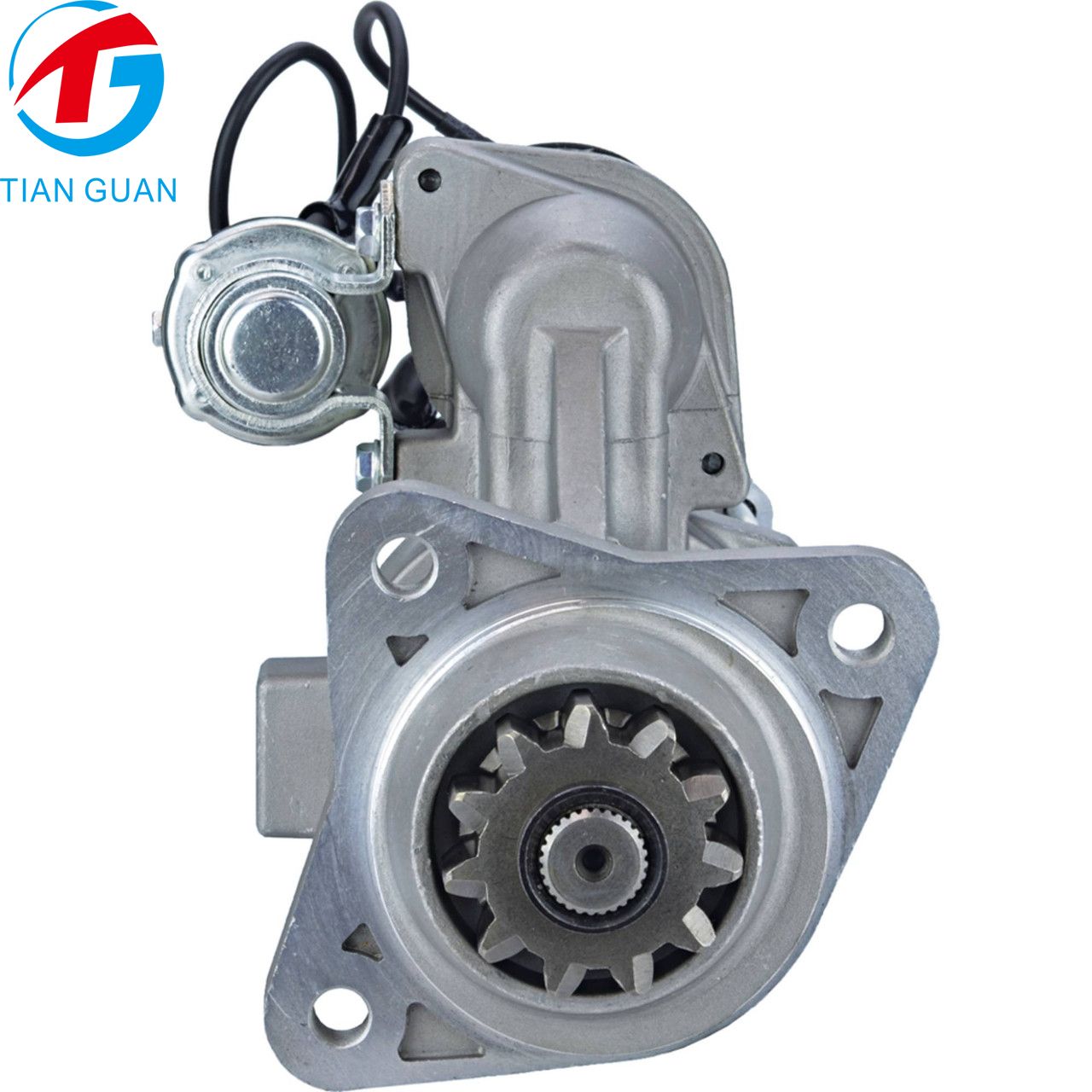

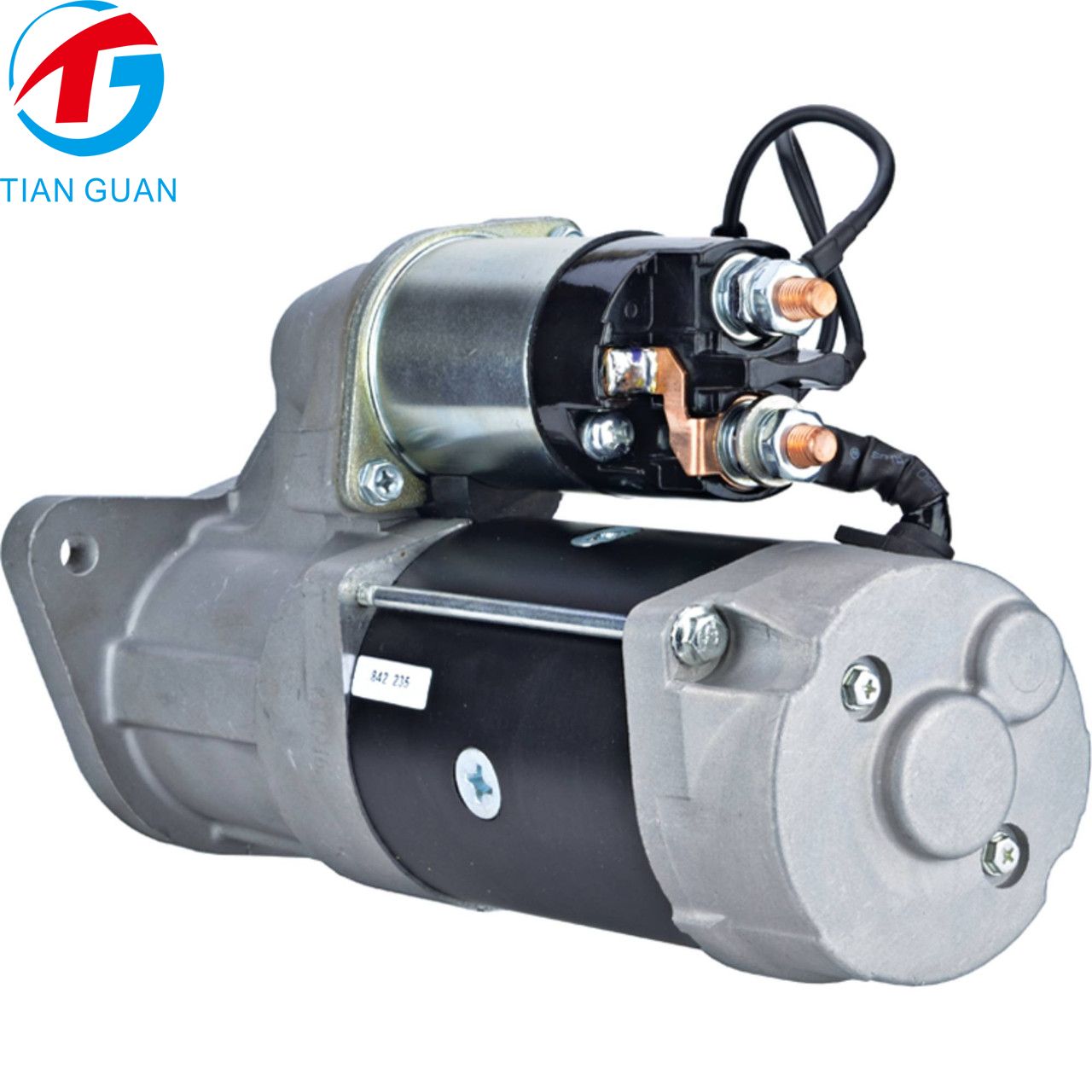

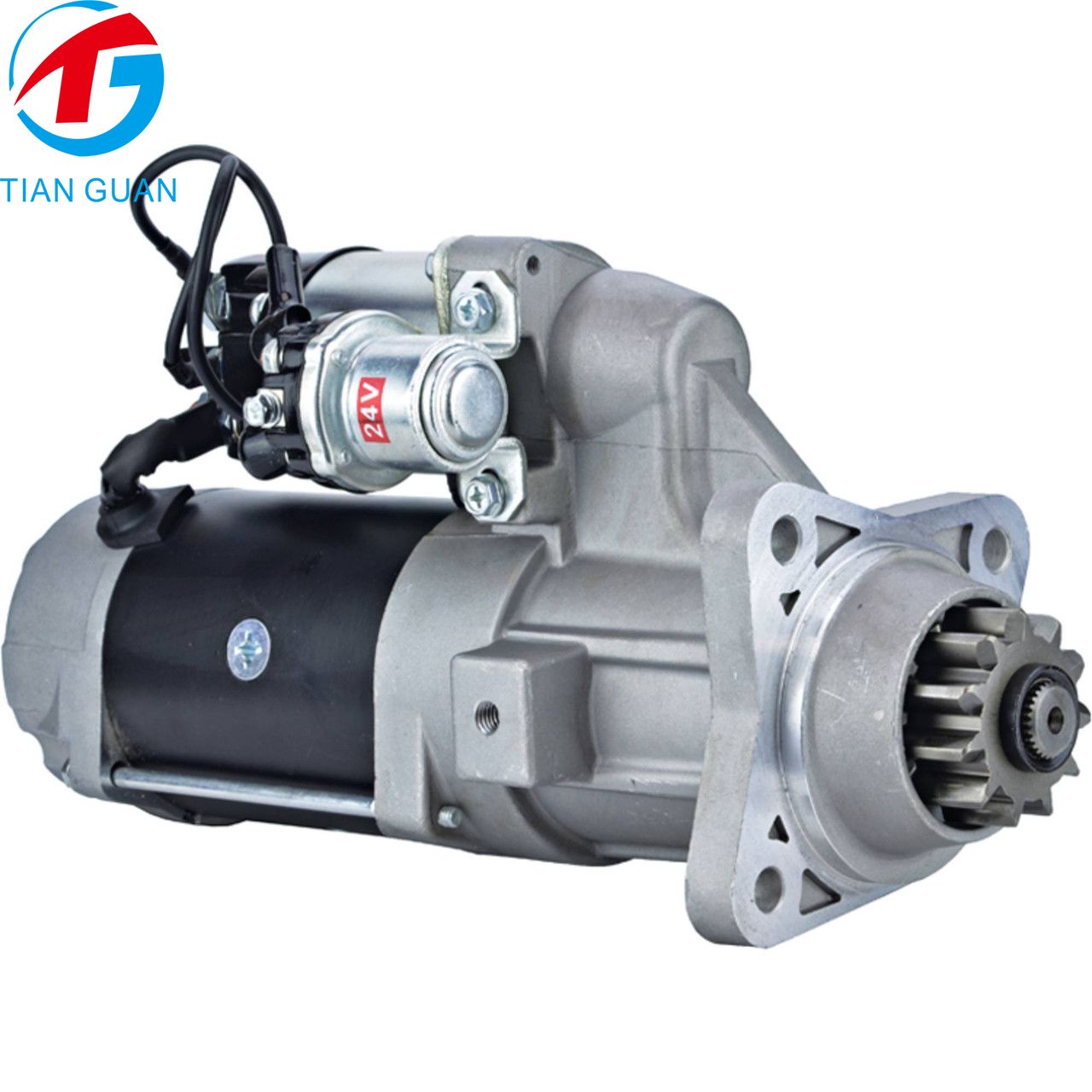

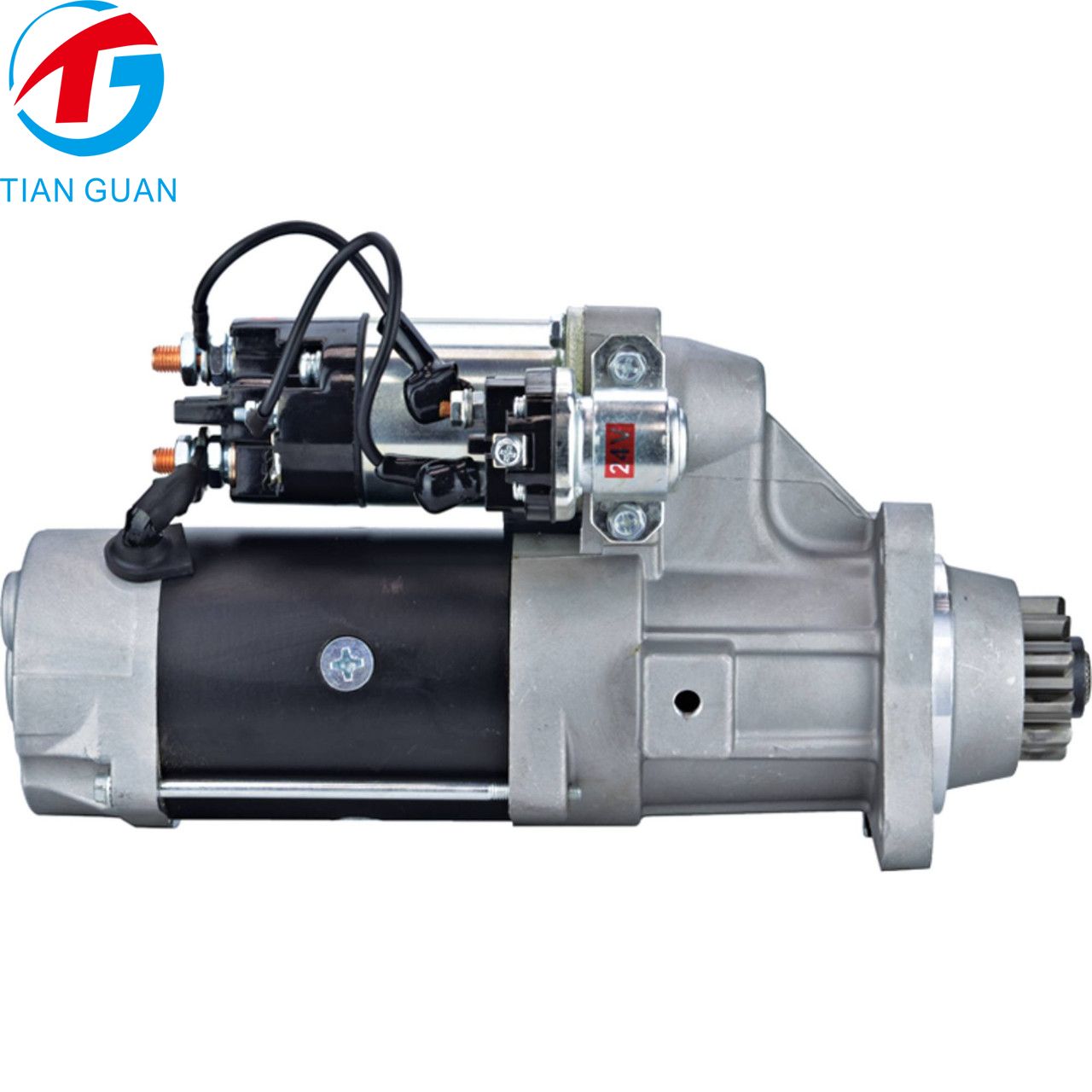

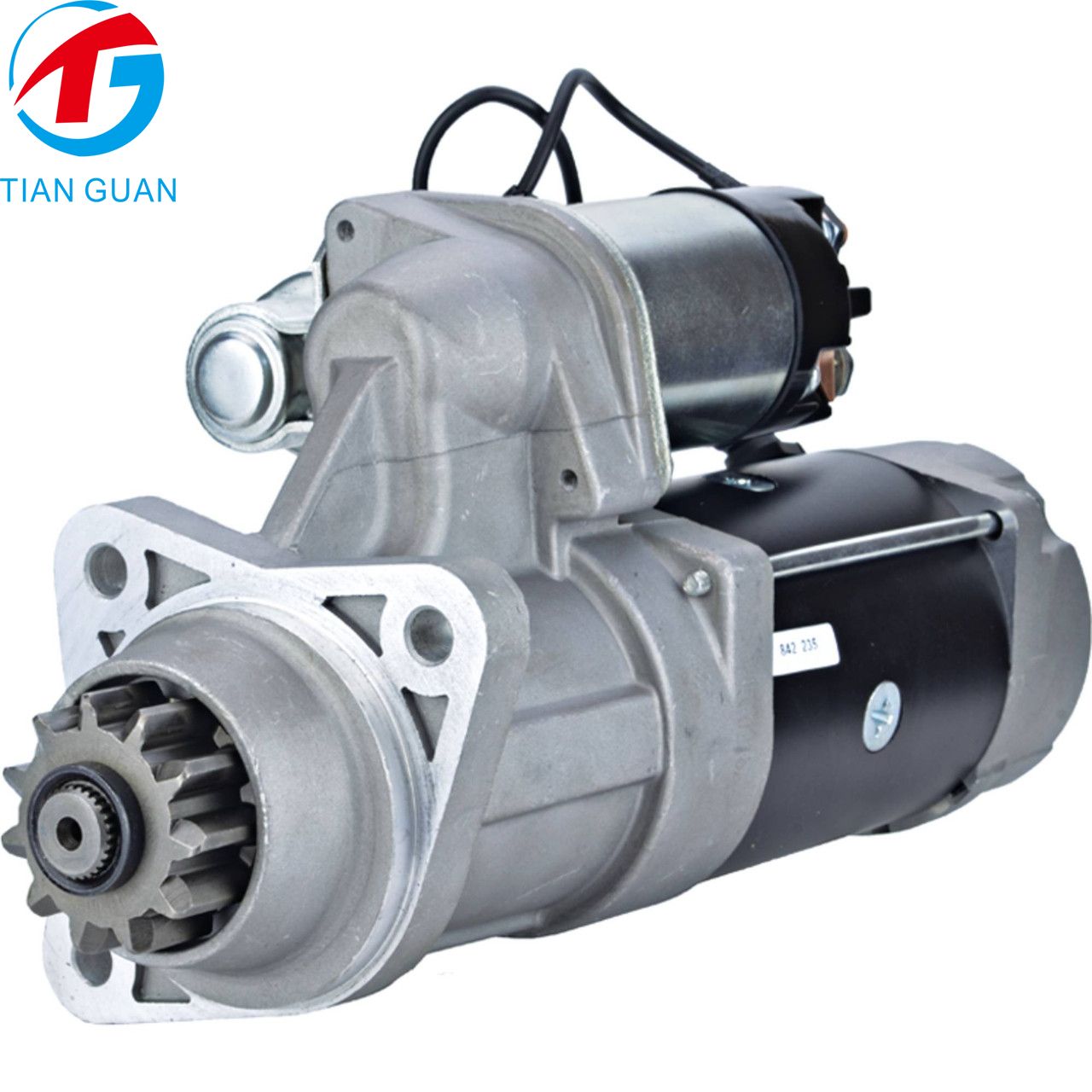

STG52834 Starter is a new aftermarket replacement for Daewoo / Doosan heavy-duty equipment, designed to replace Daewoo 65.26201-7088 and Delco 8200334.

This starter features a 24V, 6.0KW, 11-tooth, clockwise-rotation PLGR (Planetary Gear Reduction) configuration and belongs to the Delco 38MT starter family. It is designed for high-torque starting applications in construction and heavy equipment.

The 8200334 / 65.26201-7088 family is cataloged for Daewoo and Doosan excavator and equipment applications, including Daewoo 250, 225-7 and 225-9, as well as selected Doosan DH225-9, DH300-7 and DX250/DX225 applications.

This starter replaces OE part numbers 65.26201-7088 (Daewoo), 6526201-7088, 65262017088, 300516-00057A, 30051600057, 6526201-7088A, 6526201-7088B (Doosan), 8200334, 8200349, 19080030 (Delco), DRS0307, DRS0307N (Delco Remy), and SDR0403, 410-12605 (Arrowhead).

• 24V starter motor

• 6.0KW power output

• 11-tooth pinion gear

• PLGR (Planetary Gear Reduction) design

• Clockwise (CW) rotation

• Delco 38MT starter family

• Gear outside diameter: 55.6–56mm

• Direct replacement for Daewoo / Doosan equipment

• High-torque starting for construction and heavy equipment

• New aftermarket part

• Approx. 12.8 kg

Specifications

Product Model: STG52834
Part Number: 65.26201-7088 / 8200334
Unit Type: Starter Motor
Starter Family: Delco 38MT
Voltage: 24V
Power Output: 6.0KW
Number of Teeth: 11T
Starter Type: PLGR
Rotation: CW
Gear Outside Diameter: 55.6–56mm
Condition: New Aftermarket
Application: Heavy-Duty Construction Equipment
Compatible Equipment: Daewoo / Doosan Equipment
Weight: 12.8KG

Fitment

Daewoo – 250 – Heavy-Duty Construction Equipment
Daewoo – 225-7 – Excavator Application
Daewoo – 225-9 – Excavator Application
Doosan – DH225-9 – Excavator
Doosan – DH300-7 – Excavator
Doosan – DX225-7 – Excavator
Doosan – DX225-9 – Excavator
Doosan – DX250 – Excavator

Compatible with equipment using 65.26201-7088, 8200334, 6526201-7088, 300516-00057A, DRS0307, SDR0403, or 410-12605 starter motor part numbers.
