STG52946 Starter Motor S114-682 69W-81800-00-00 for Yamaha F50TLR F60TJR F60TLR T50TLR T60TLR Outboard 2002–2004

Part Numbers

Product Overview

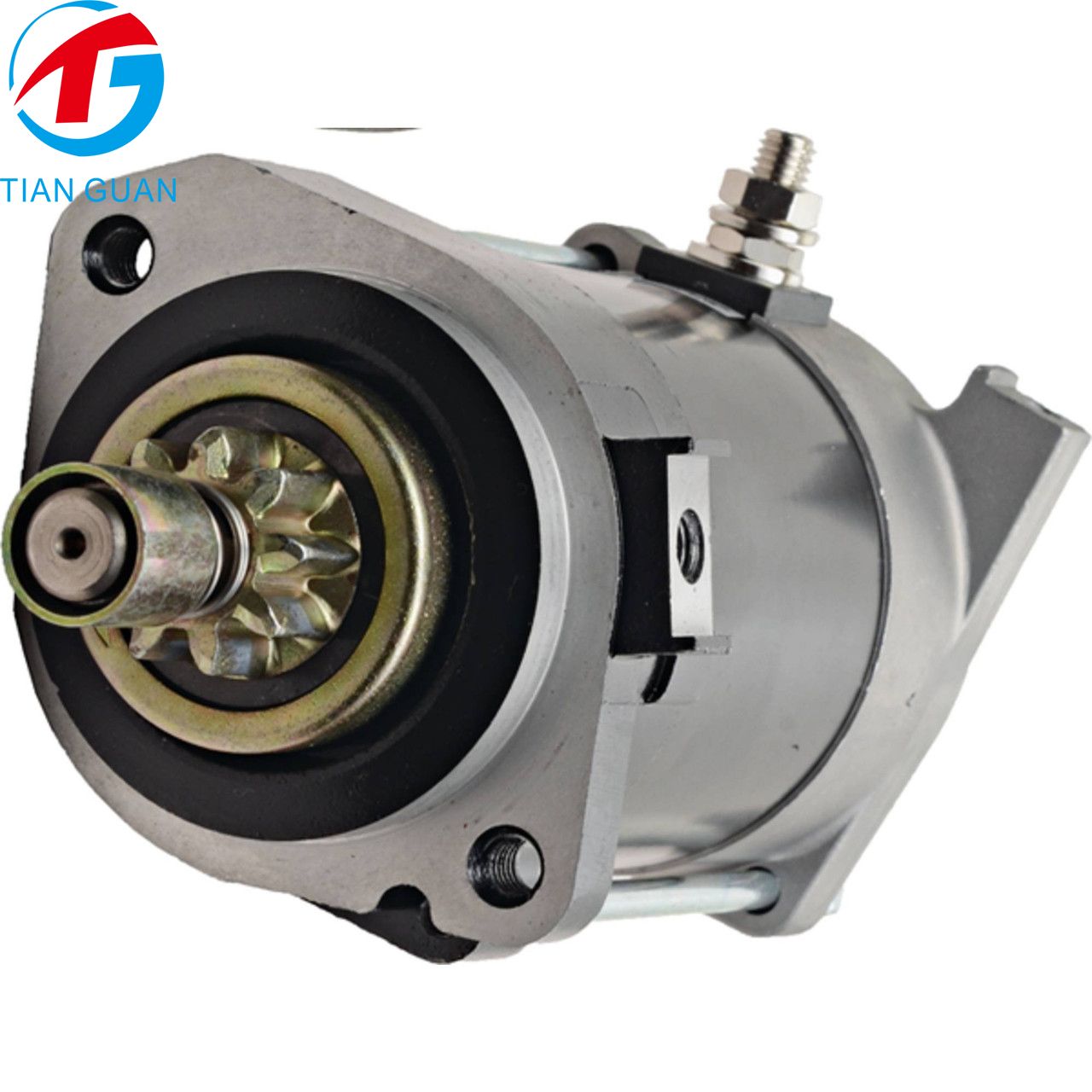

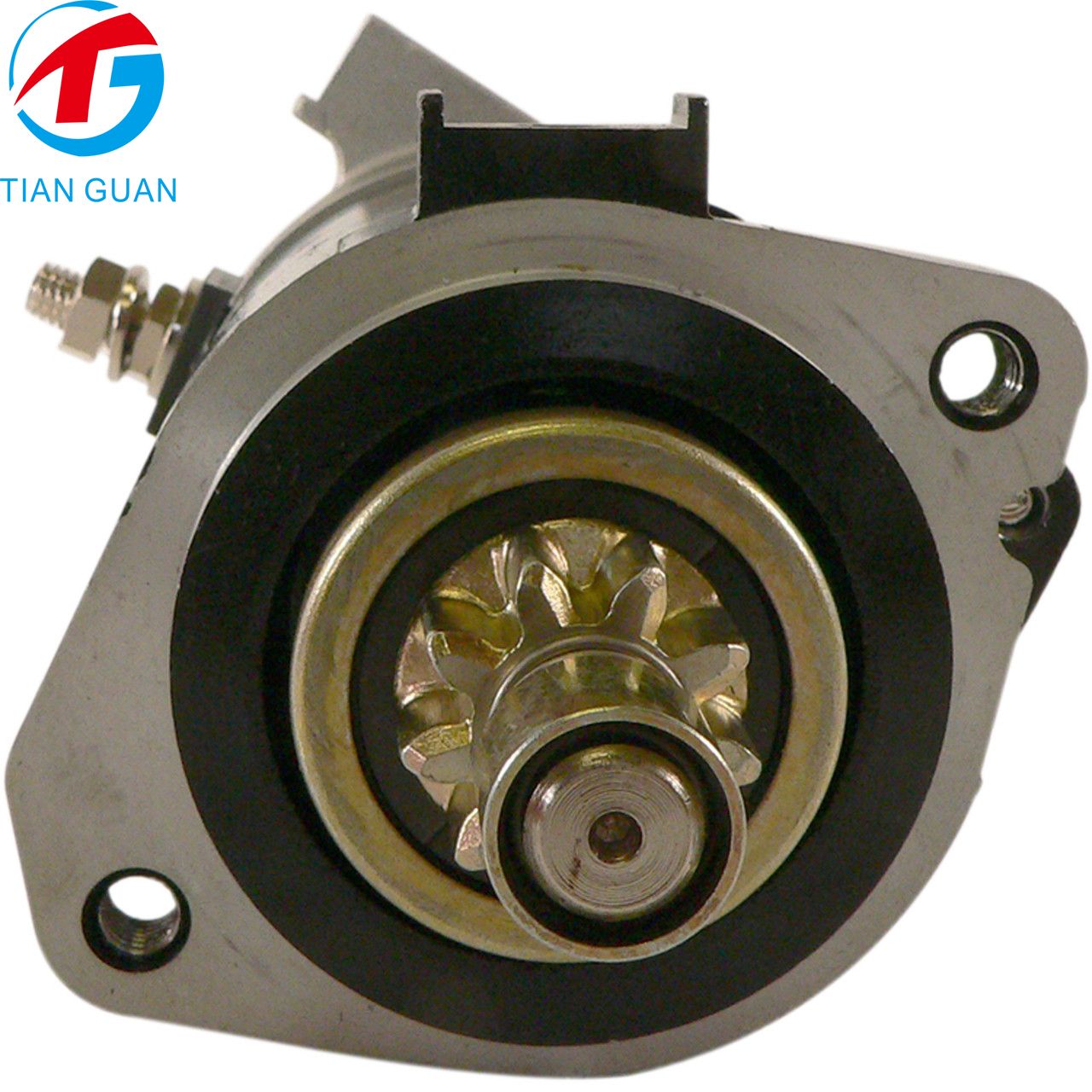

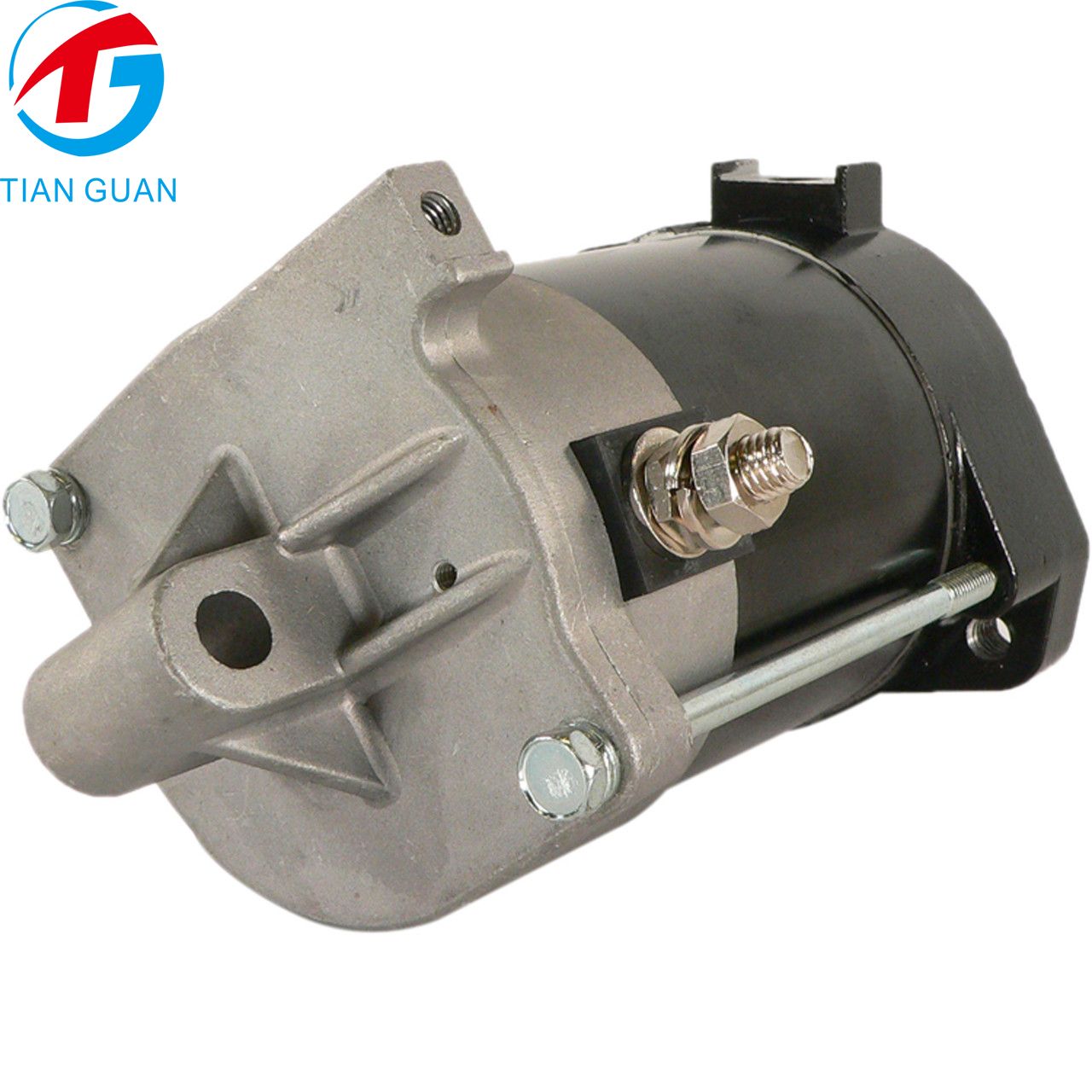

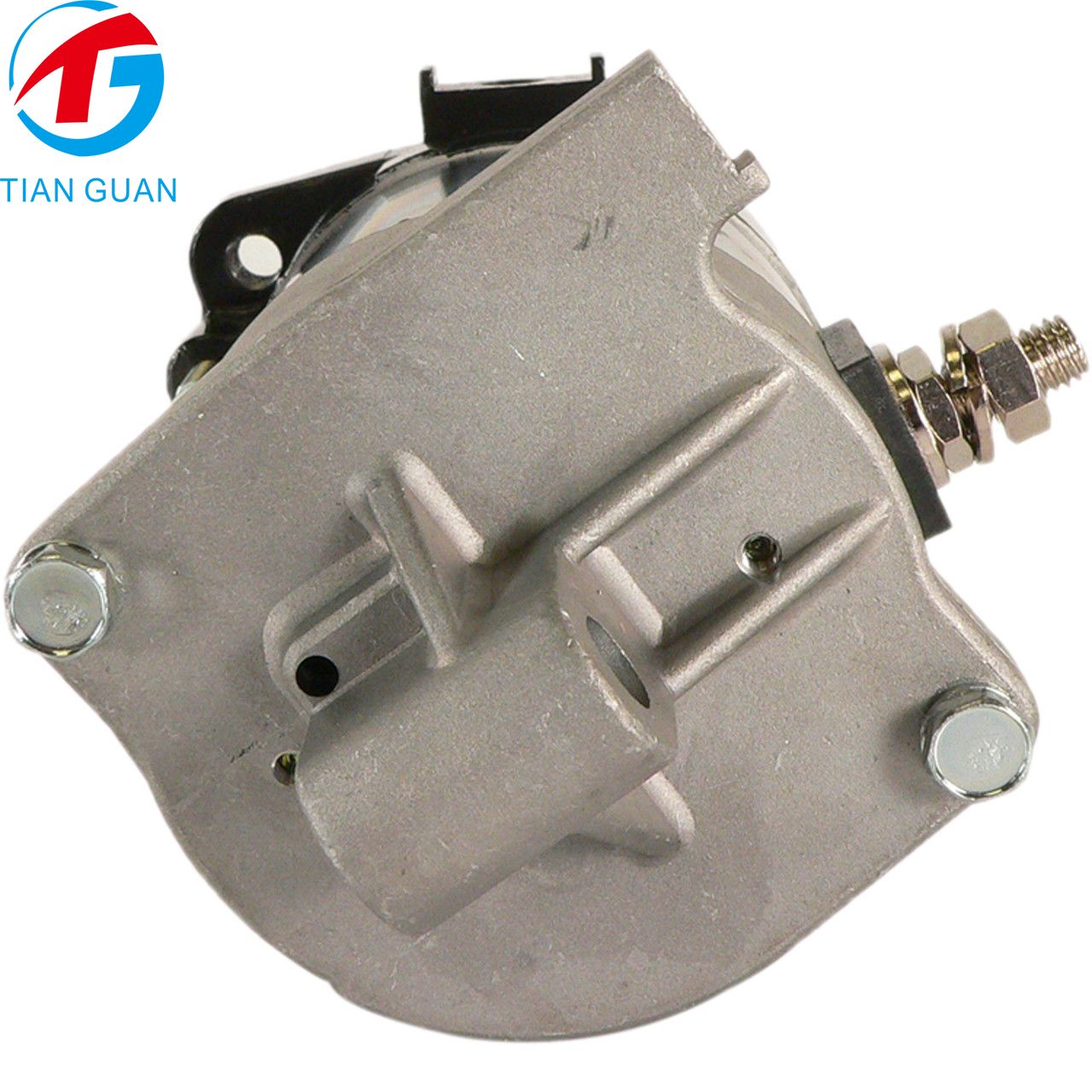

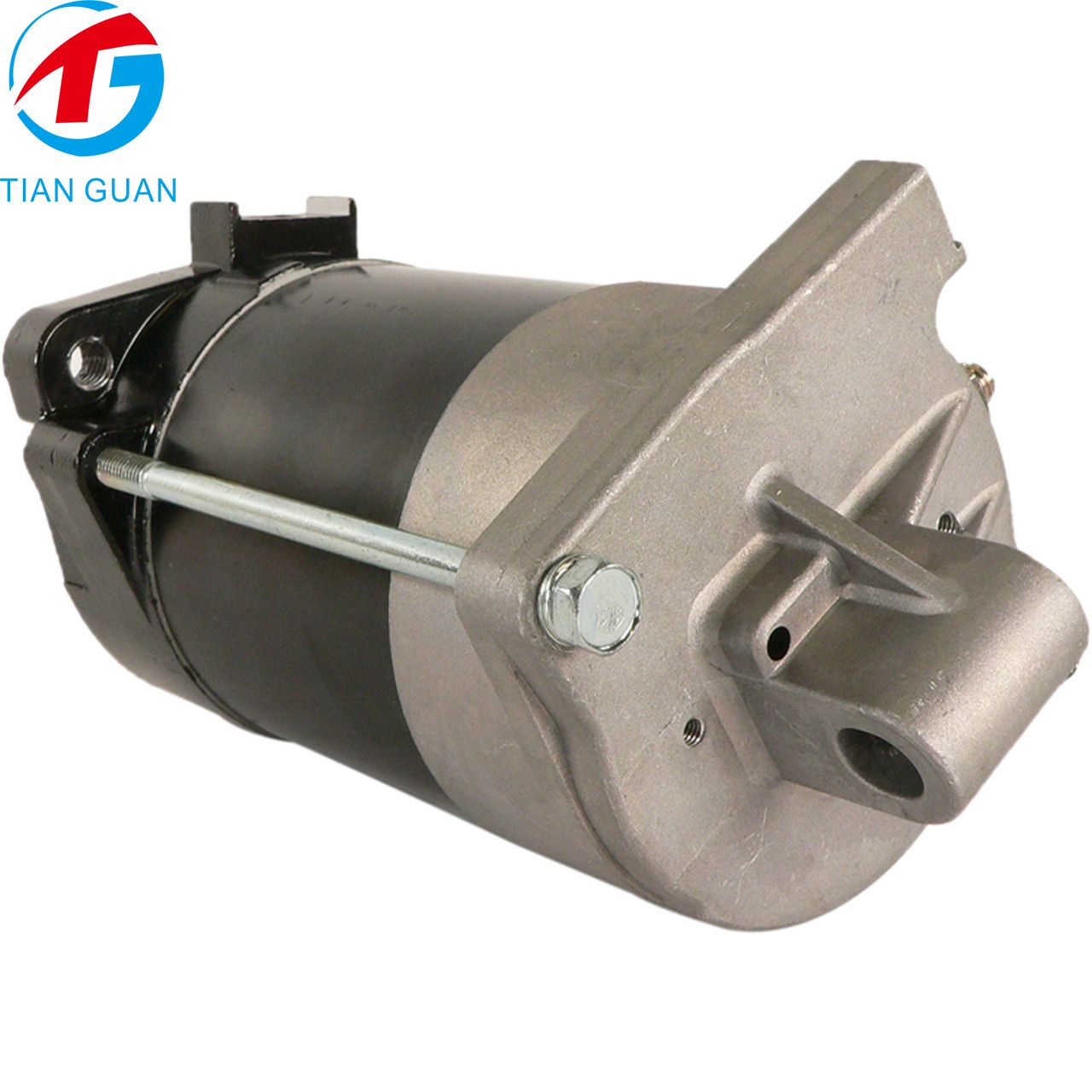

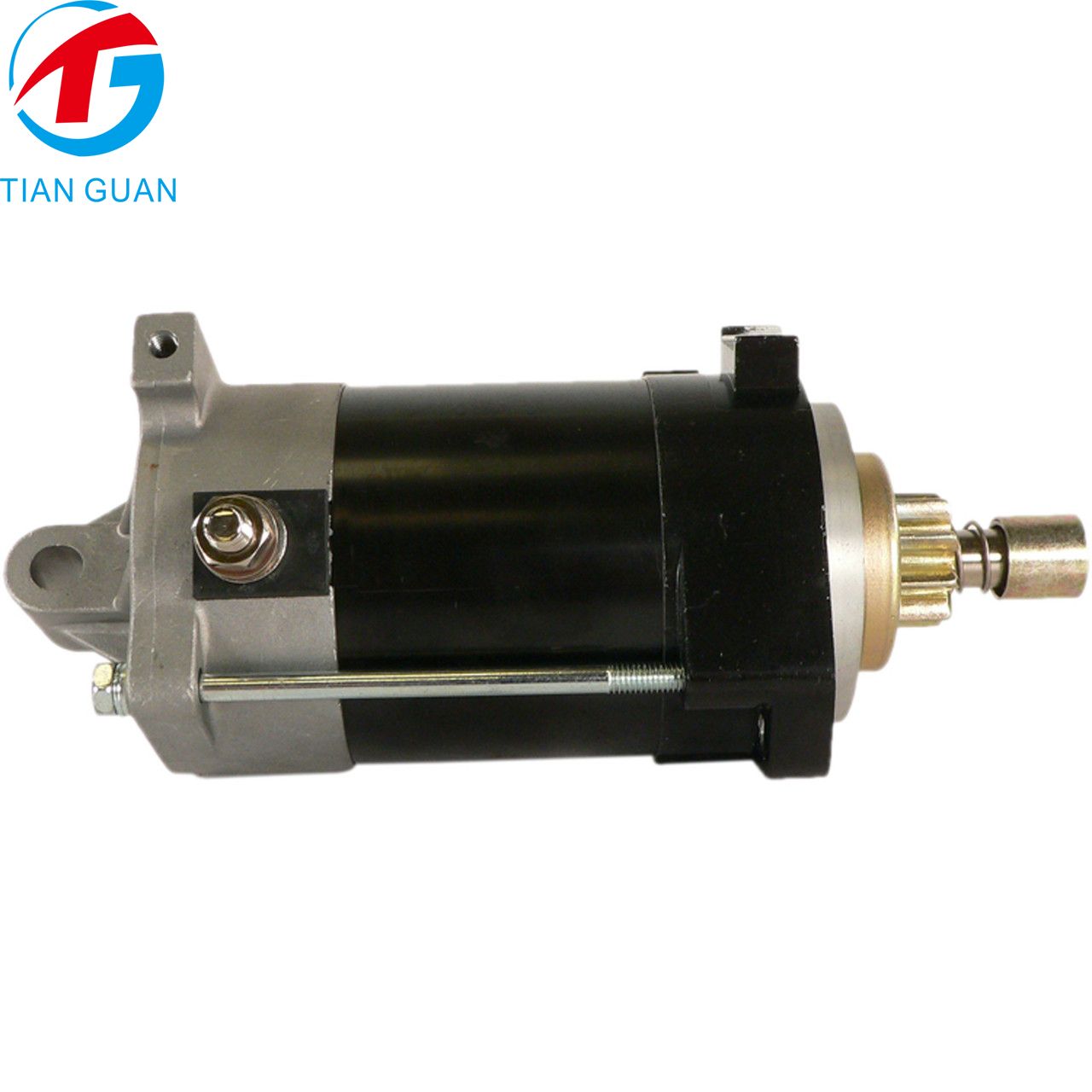

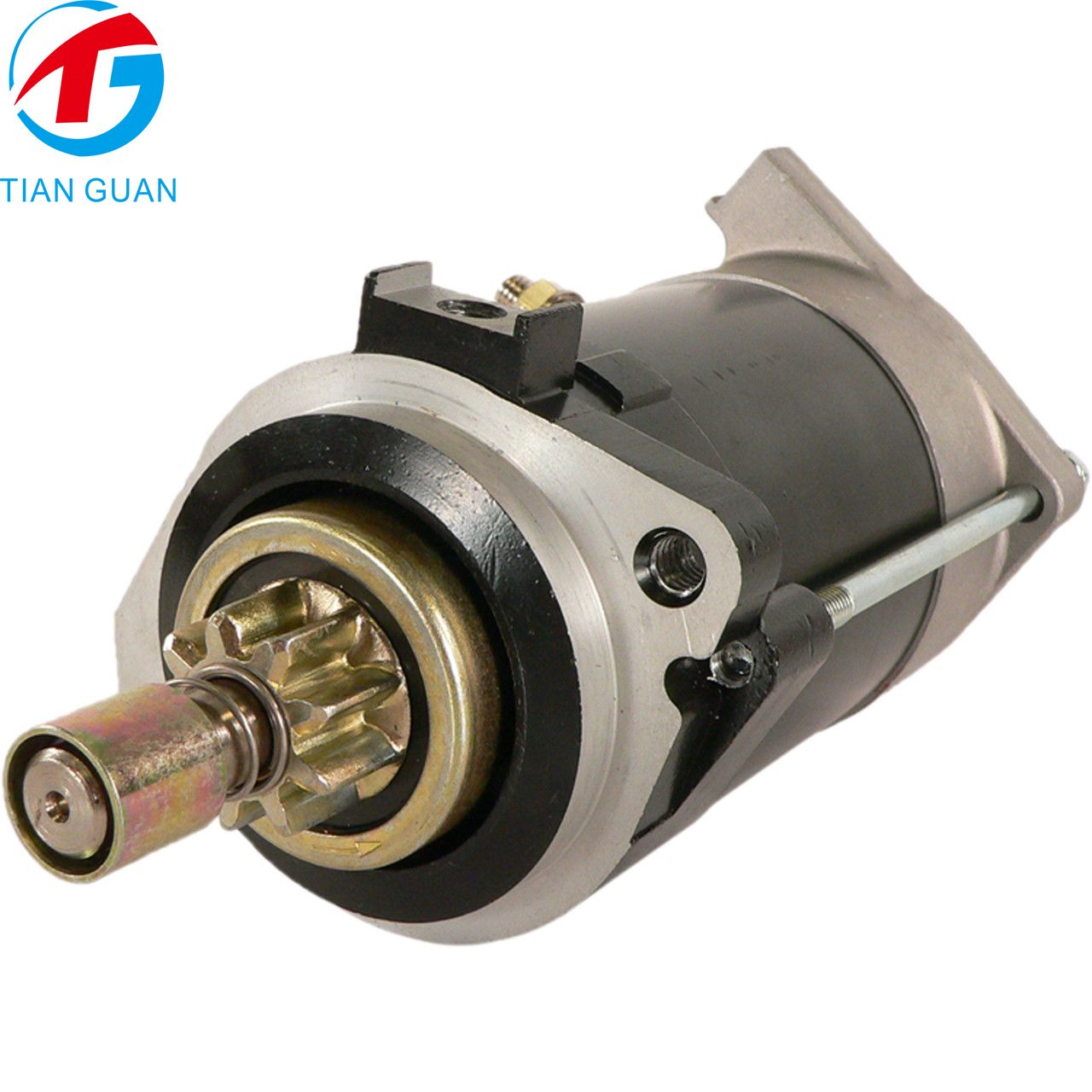

This 12V 9-Tooth Starter Motor is designed as a replacement starter for selected Yamaha outboard marine engines, including F50TLR, F60TJR, F60TLR, T50TLR and T60TLR applications from 2002–2004.

Featuring a Permanent Magnet Direct Drive (PMDD) design, counter-clockwise rotation and 9-tooth pinion gear, this starter provides reliable engine cranking performance for compatible Yamaha marine applications.

It is suitable for replacement and repair applications when the original starter matches the listed Yamaha, Hitachi, Arrowhead, EMP, J & N, Lester or Sierra Marine part numbers.

Specifications

Compatible Yamaha Outboard Models

Product Highlights

Applications

This starter motor is designed for selected:

• Yamaha F50TLR Outboard Engines

• Yamaha F60TJR Outboard Engines

• Yamaha F60TLR Outboard Engines

• Yamaha T50TLR Outboard Engines

• Yamaha T60TLR Outboard Engines

• Yamaha 50–60 HP outboard marine applications using the listed starter part numbers

Installation Notes

1. Disconnect the battery before removing the original starter.

2. Compare the replacement starter with the original unit before installation.

3. Confirm 12V voltage, CCW rotation and 9-tooth pinion.

4. Check the mounting pattern and electrical terminals.

5. Inspect the flywheel ring gear for damaged or excessively worn teeth.

6. Install the starter securely and ensure correct alignment.

7. Reconnect the battery and test the engine starting system.

Fitment Notice

Please verify the original Yamaha part number, engine model, year, voltage, rotation direction, pinion teeth and mounting configuration before ordering.

The model name alone may not be sufficient to confirm compatibility. If you are unsure, please provide your original starter part number and Yamaha outboard engine model for confirmation.
