STG53047 Starter Motor 410-42009 for Belarus 500 505 5111 5145 520 525 530 562 Tractor | 12V 3.0KW 10T CW DD Replacement

3 Reviews

Add Your Review

US$176.00

ITEMNO： STG53047

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS



    STG53047 Starter Motor 410-42009 for Belarus 500 505 5111 5145 520 525 530 562 Tractor | 12V 3.0KW 10T CW DD Replacement

    Part Numbers

    Arrowhead: 410-42009 / IMI25101-003 / IS0436 / IS1328 / MS185 / MS620

    Belarus: 24073708000 / 920001103 / CT212A

    Cargo: 111350

    J & N: 410-42009

    Lester: 18546

    Letrika (Iskra): IS0436 / AZJ3124 / 11.130.436

    Lucas Electrical Europe: LRS01368

    Mahle: MS185 / MS620

    Sparex: 36108

    Wilson HD: 91-23-6505

    Wood Auto: STR61400

    Product Description

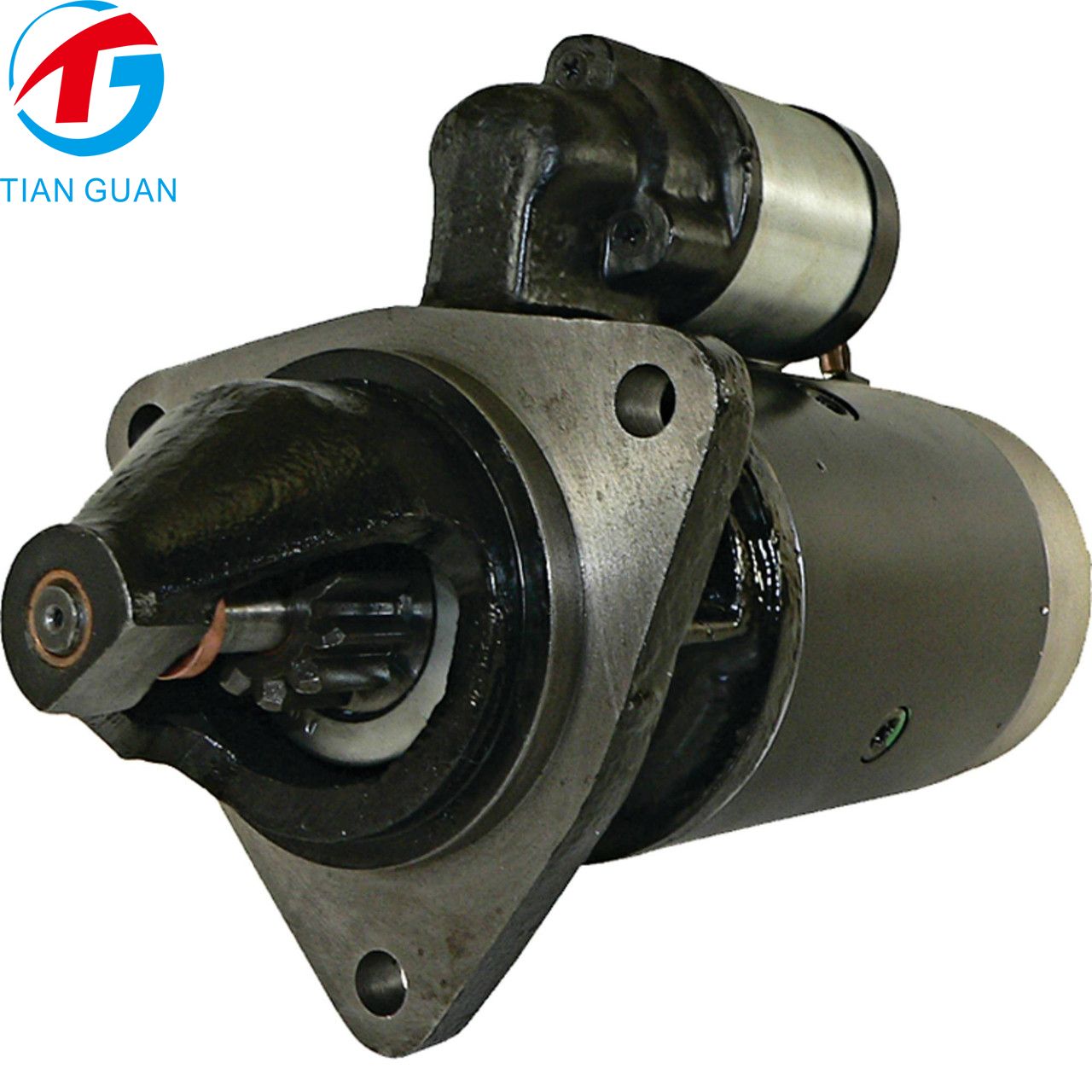

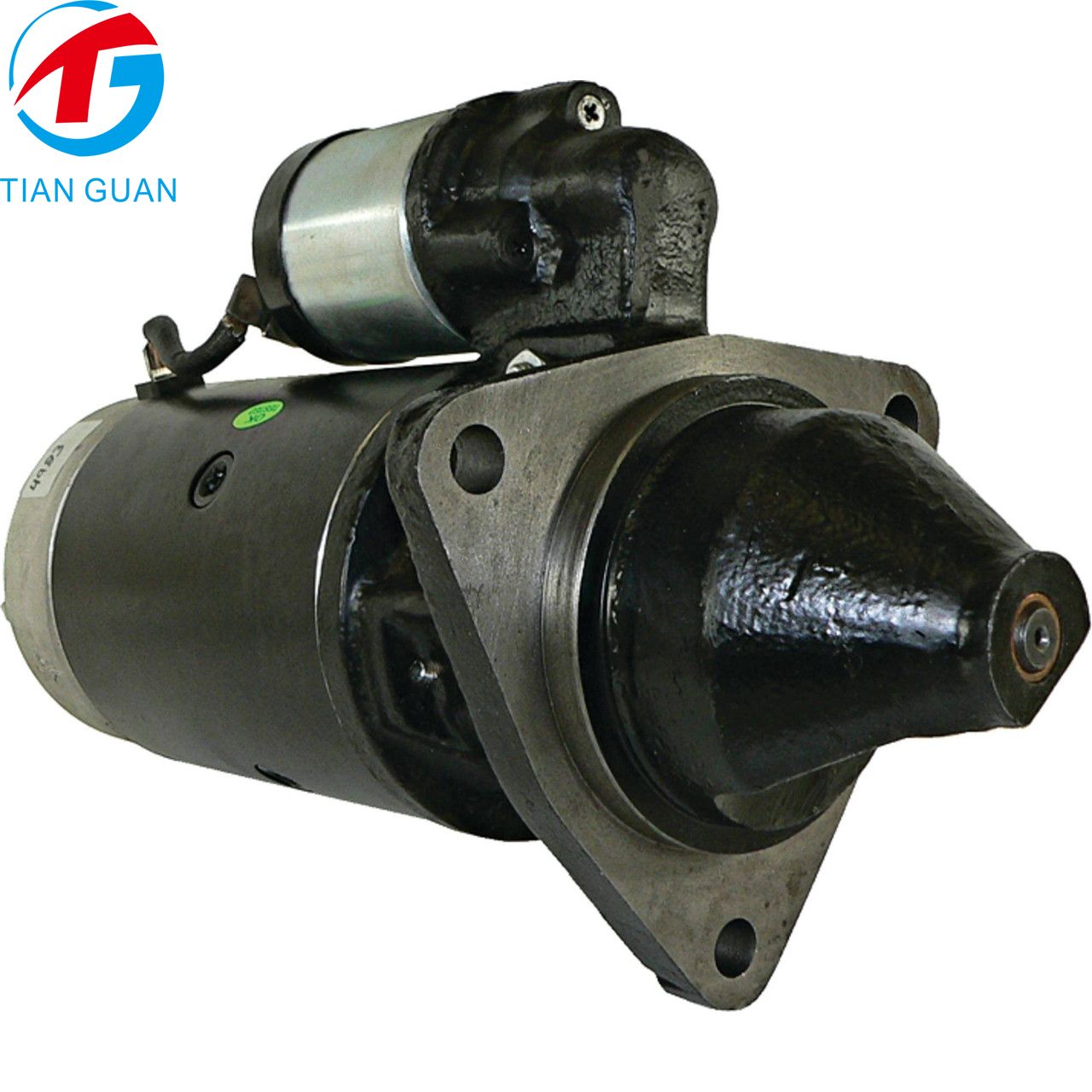

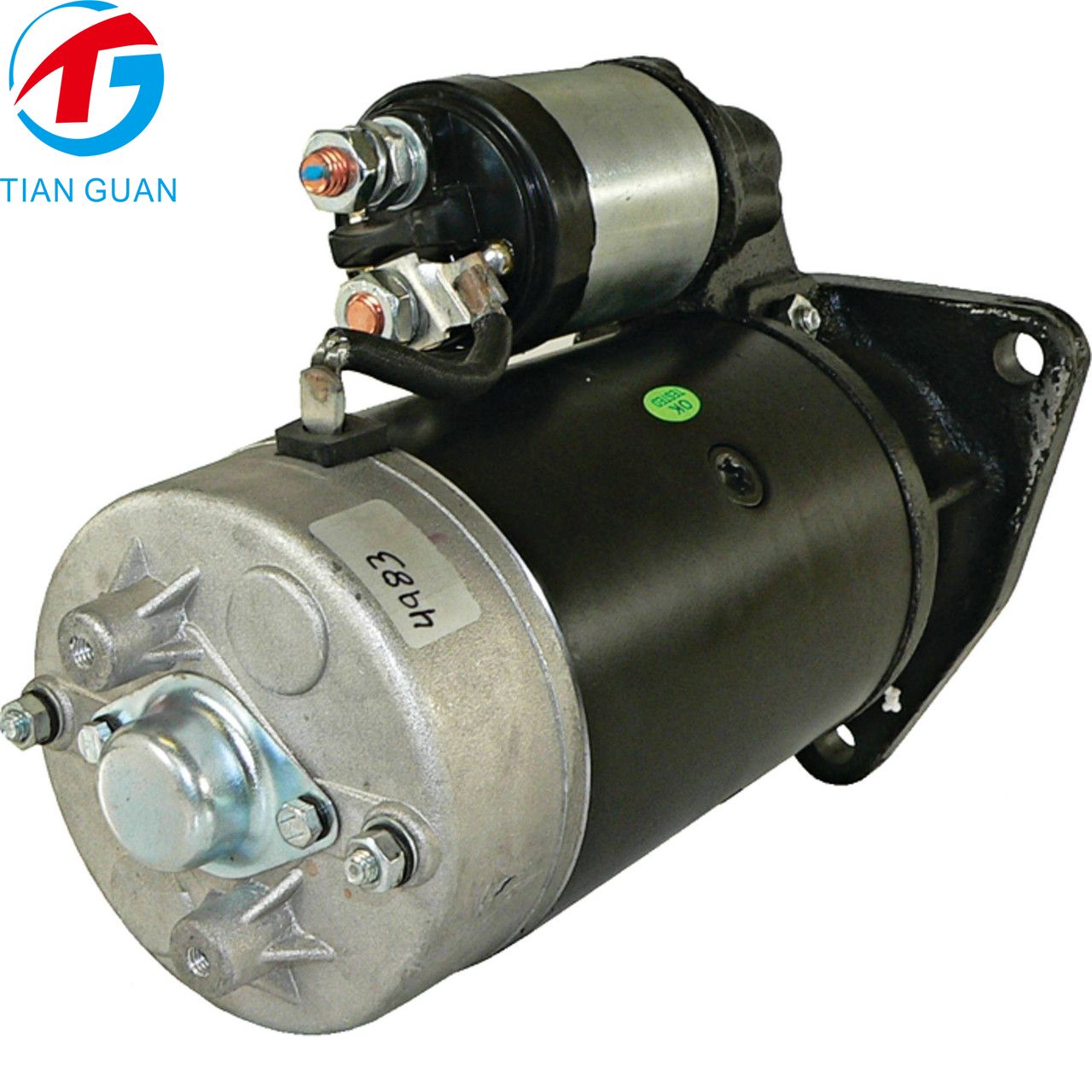

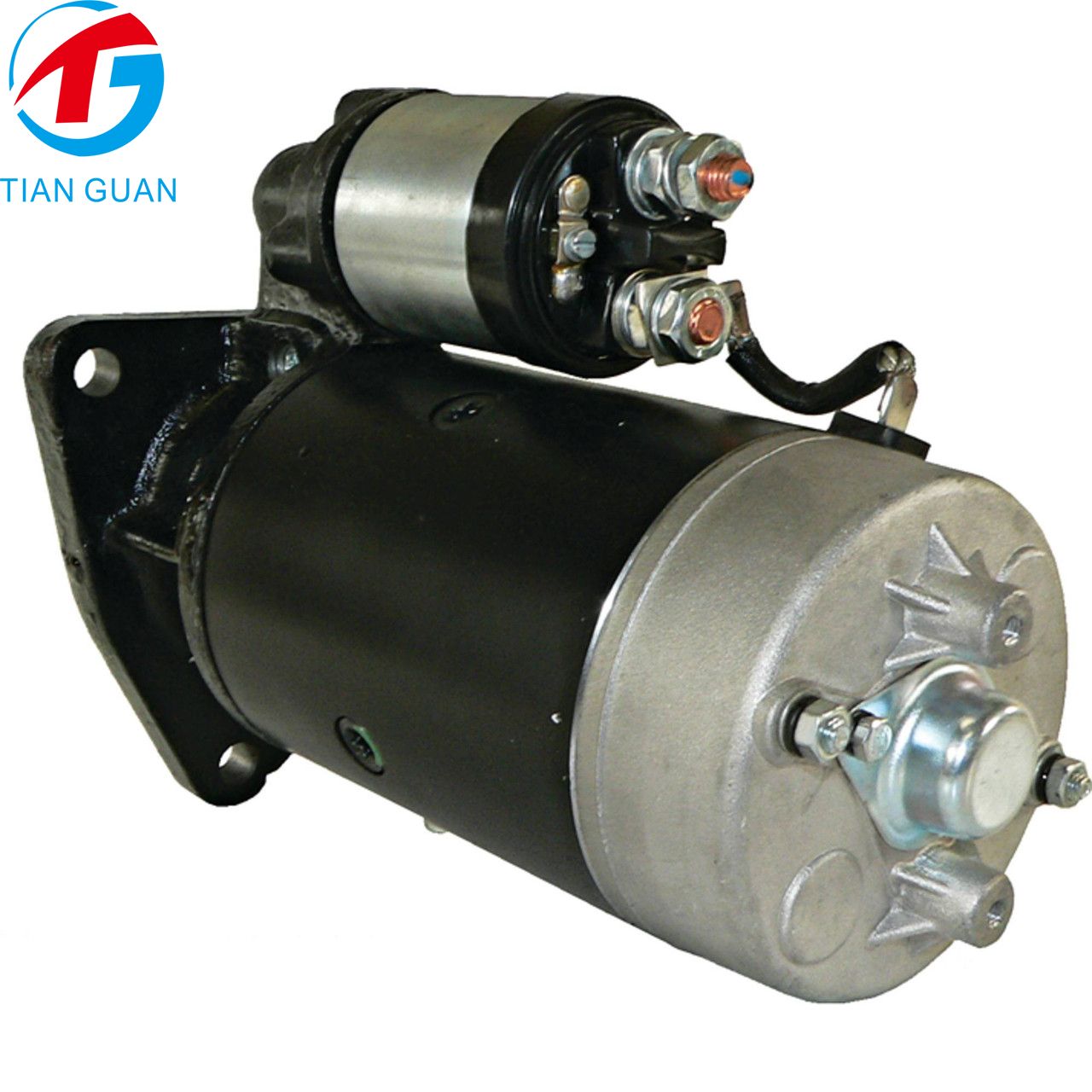

    The STG53047 Starter Motor is a new aftermarket replacement starter designed for selected Belarus tractors and compatible Minsk tractor applications. It is designed to replace Arrowhead 410-42009 and multiple Belarus, Letrika, Mahle, Cargo, Lester, and other aftermarket reference numbers.

    This starter features a 12V electrical system, 3.0KW output, 10-tooth pinion gear, clockwise rotation, and DD (Direct Drive) design. The 410-42009 specification and application data are supported by multiple aftermarket supplier listings.

    Product Specifications

    PropertyValue
    Product ModelSTG53047
    Product TypeTractor Starter Motor
    ConditionNew Aftermarket Part
    Voltage12V
    Power Output3.0KW
    Number of Teeth10T
    Starter TypeDD (Direct Drive)
    RotationClockwise (CW)
    ApplicationBelarus Tractors
    Compatible EngineSelected 4-Cylinder Diesel Engines
    Weight15.2 kg (Estimated)

    OEM / Cross Reference Numbers

    BrandPart Number
    Arrowhead410-42009 / IMI25101-003 / IS0436 / IS1328 / MS185 / MS620
    Belarus24073708000 / 920001103 / CT212A
    Cargo111350
    J & N410-42009
    Lester18546
    Letrika (Iskra)IS0436 / AZJ3124 / 11.130.436
    Lucas Electrical EuropeLRS01368
    MahleMS185 / MS620
    Sparex36108
    Wilson HD91-23-6505
    Wood AutoSTR61400

    Compatible Applications



    MAKETYPE MODEL YEAR ENGINE
    BELARUSTractor50019794cyl - 65HP
    BELARUSTractor50019804cyl - 65HP
    BELARUSTractor50019814cyl - 65HP
    BELARUSTractor50019824cyl - 65HP
    BELARUSTractor50019834cyl - 65HP
    BELARUSTractor50019844cyl - 65HP
    BELARUSTractor50019854cyl - 65HP
    BELARUSTractor50019864cyl - 65HP
    BELARUSTractor50019874cyl - 65HP
    BELARUSTractor50019884cyl - 65HP
    BELARUSTractor50019894cyl - 65HP
    BELARUSTractor50019904cyl - 65HP
    BELARUSTractor50019914cyl - 65HP
    BELARUSTractor50519794cyl - 65HP
    BELARUSTractor50519804cyl - 65HP
    BELARUSTractor50519814cyl - 65HP
    BELARUSTractor50519824cyl - 65HP
    BELARUSTractor50519834cyl - 65HP
    BELARUSTractor50519844cyl - 65HP
    BELARUSTractor50519854cyl - 65HP
    BELARUSTractor50519864cyl - 65HP
    BELARUSTractor50519874cyl - 65HP
    BELARUSTractor50519884cyl - 65HP
    BELARUSTractor50519894cyl - 65HP
    BELARUSTractor50519904cyl - 65HP
    BELARUSTractor50519914cyl - 65HP
    BELARUSTractor5111All4cyl - 55HP
    BELARUSTractor5145All4cyl - 55HP
    BELARUSTractor52019794cyl - 65HP
    BELARUSTractor52019804cyl - 65HP
    BELARUSTractor52019814cyl - 65HP
    BELARUSTractor52019824cyl - 65HP
    BELARUSTractor52019834cyl - 65HP
    BELARUSTractor52019844cyl - 65HP
    BELARUSTractor52019854cyl - 65HP
    BELARUSTractor52019864cyl - 65HP
    BELARUSTractor52019874cyl - 65HP
    BELARUSTractor52019884cyl - 65HP
    BELARUSTractor52019894cyl - 65HP
    BELARUSTractor52019904cyl - 65HP
    BELARUSTractor52019914cyl - 65HP
    BELARUSTractor52519794cyl - 65HP
    BELARUSTractor52519804cyl - 65HP
    BELARUSTractor52519814cyl - 65HP
    BELARUSTractor52519824cyl - 65HP
    BELARUSTractor52519834cyl - 65HP
    BELARUSTractor52519844cyl - 65HP
    BELARUSTractor52519854cyl - 65HP
    BELARUSTractor52519864cyl - 65HP
    BELARUSTractor52519874cyl - 65HP
    BELARUSTractor52519884cyl - 65HP
    BELARUSTractor52519894cyl - 65HP
    BELARUSTractor52519904cyl - 65HP
    BELARUSTractor52519914cyl - 65HP
    BELARUSTractor53019944cyl - 55HP
    BELARUSTractor53019954cyl - 55HP
    BELARUSTractor53019964cyl - 55HP
    BELARUSTractor53219944cyl - 55HP
    BELARUSTractor53219954cyl - 55HP
    BELARUSTractor53219964cyl - 55HP
    BELARUSTractor56019924cyl - 65HP
    BELARUSTractor56019934cyl - 65HP
    BELARUSTractor56019944cyl - 65HP
    BELARUSTractor56019954cyl - 65HP
    BELARUSTractor56019964cyl - 65HP
    BELARUSTractor56219924cyl - 65HP
    BELARUSTractor56219934cyl - 65HP
    BELARUSTractor56219944cyl - 65HP
    BELARUSTractor56219954cyl - 65HP
    BELARUSTractor56219964cyl - 65HP

  • PRODUCT HIGHLIGHTS

    Product Highlights

    12V 3.0KW Starter Motor10-Tooth DD Design with CW RotationReplacement for Belarus Tractor Applications
    Heavy-Duty Direct Drive ConstructionFits Selected 4-Cylinder Diesel TractorsCompatible with 500, 505, 5111, 5145, 520, 525, 530 and 562
