STG53059 Starter Motor 4WX-H1800-00-00 4WX-H1800-01-00 SMU0346 for Yamaha Zuma 50 YW50 49cc Scooter 2002–2011 | 12V 10T CW PMDD Replacement

Part Numbers

Product Description

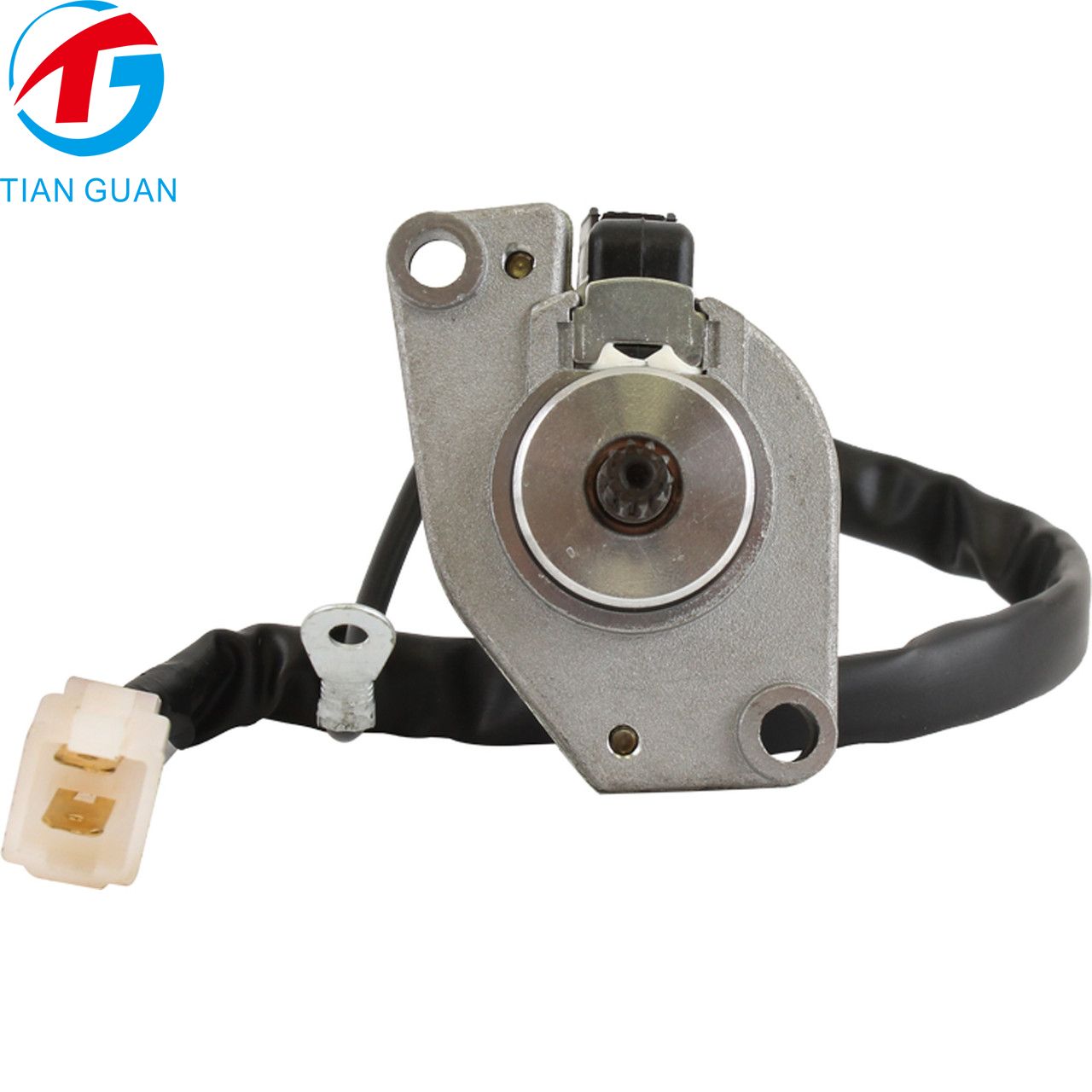

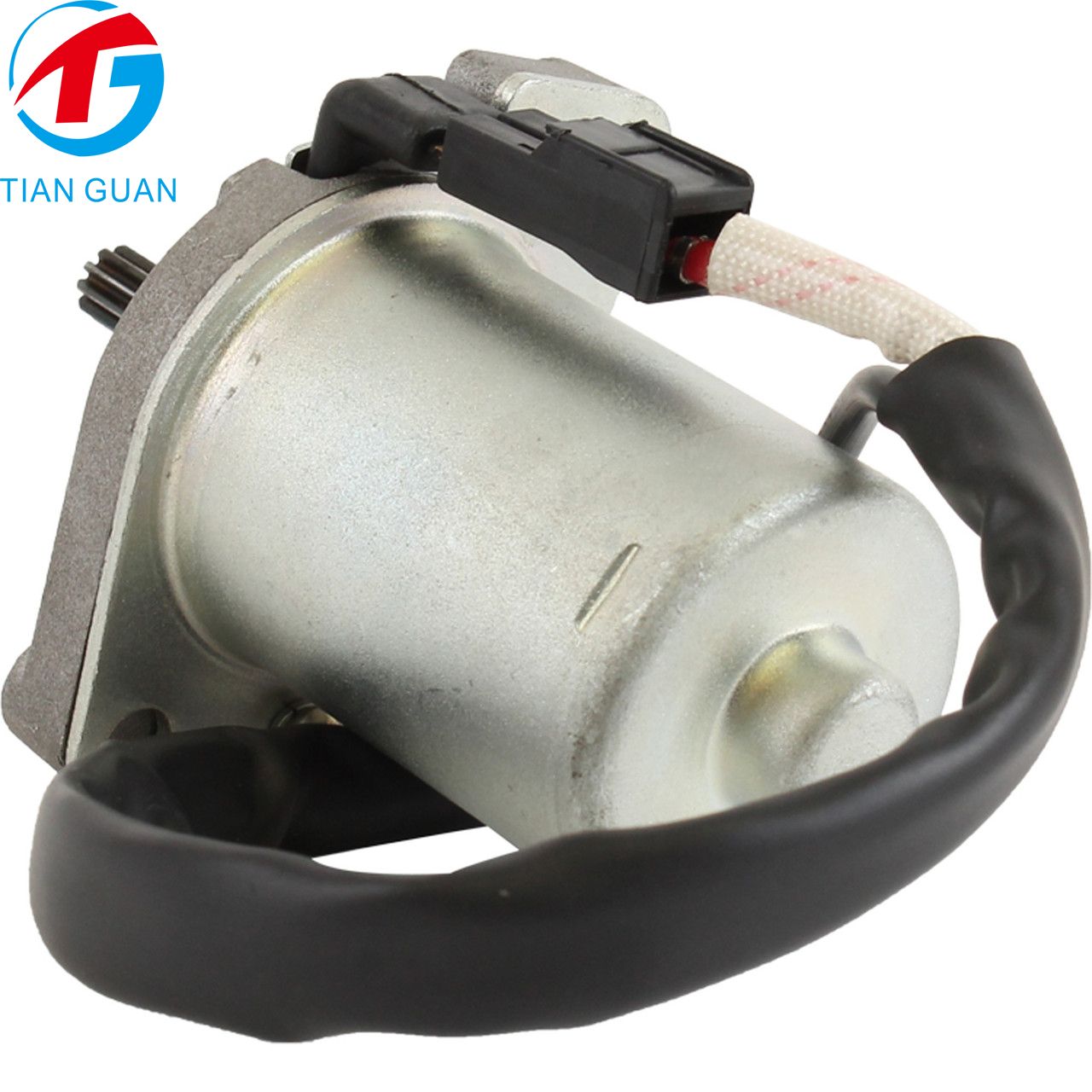

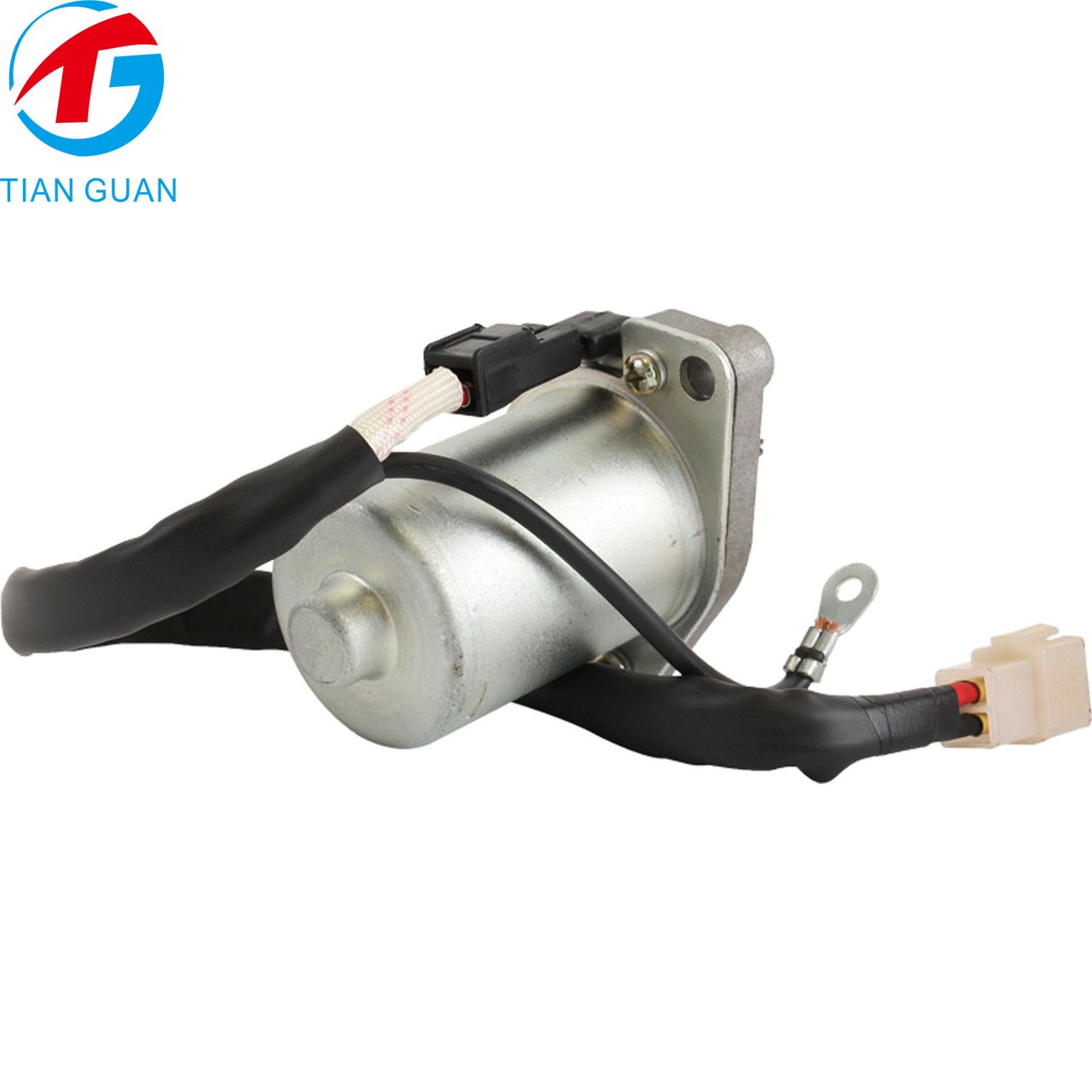

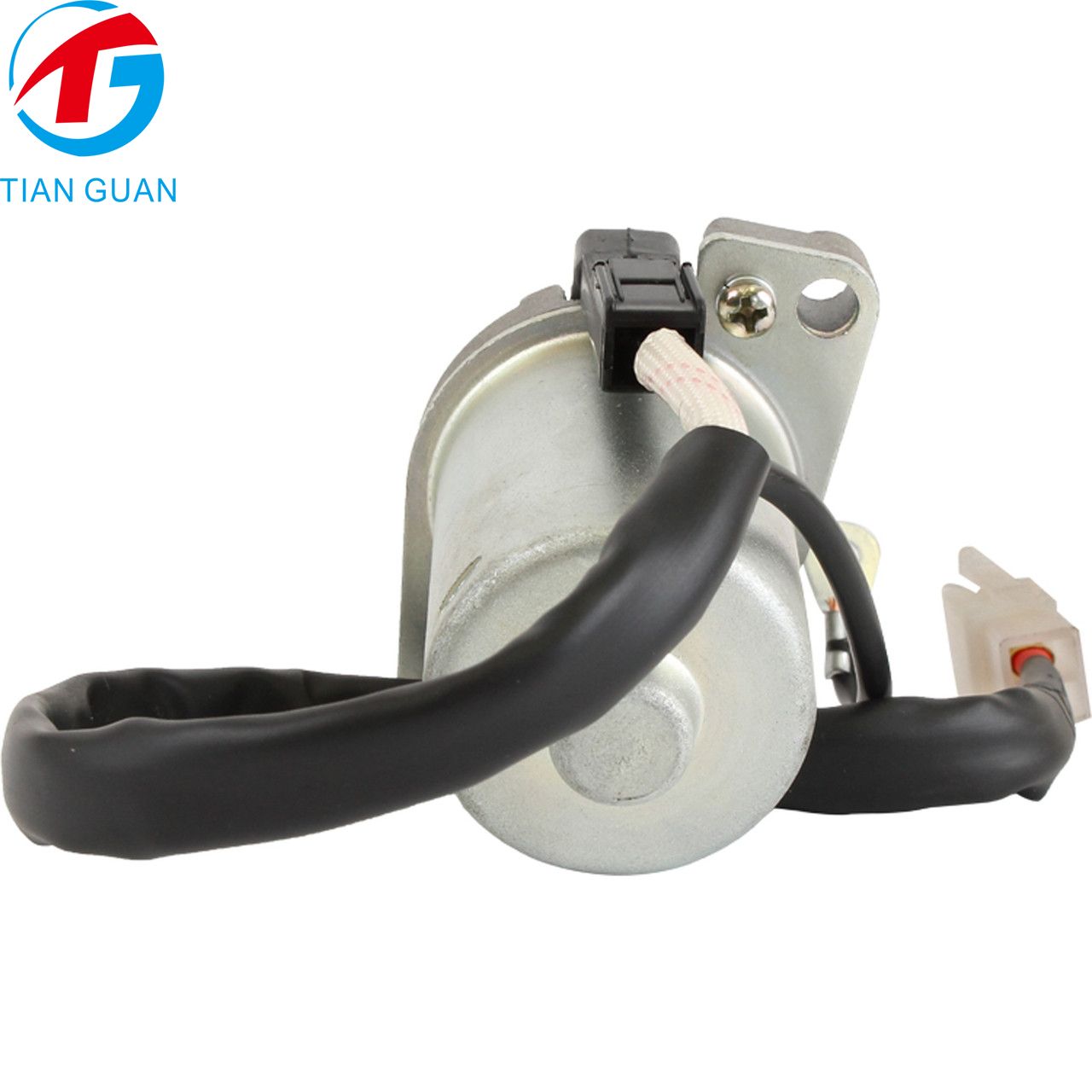

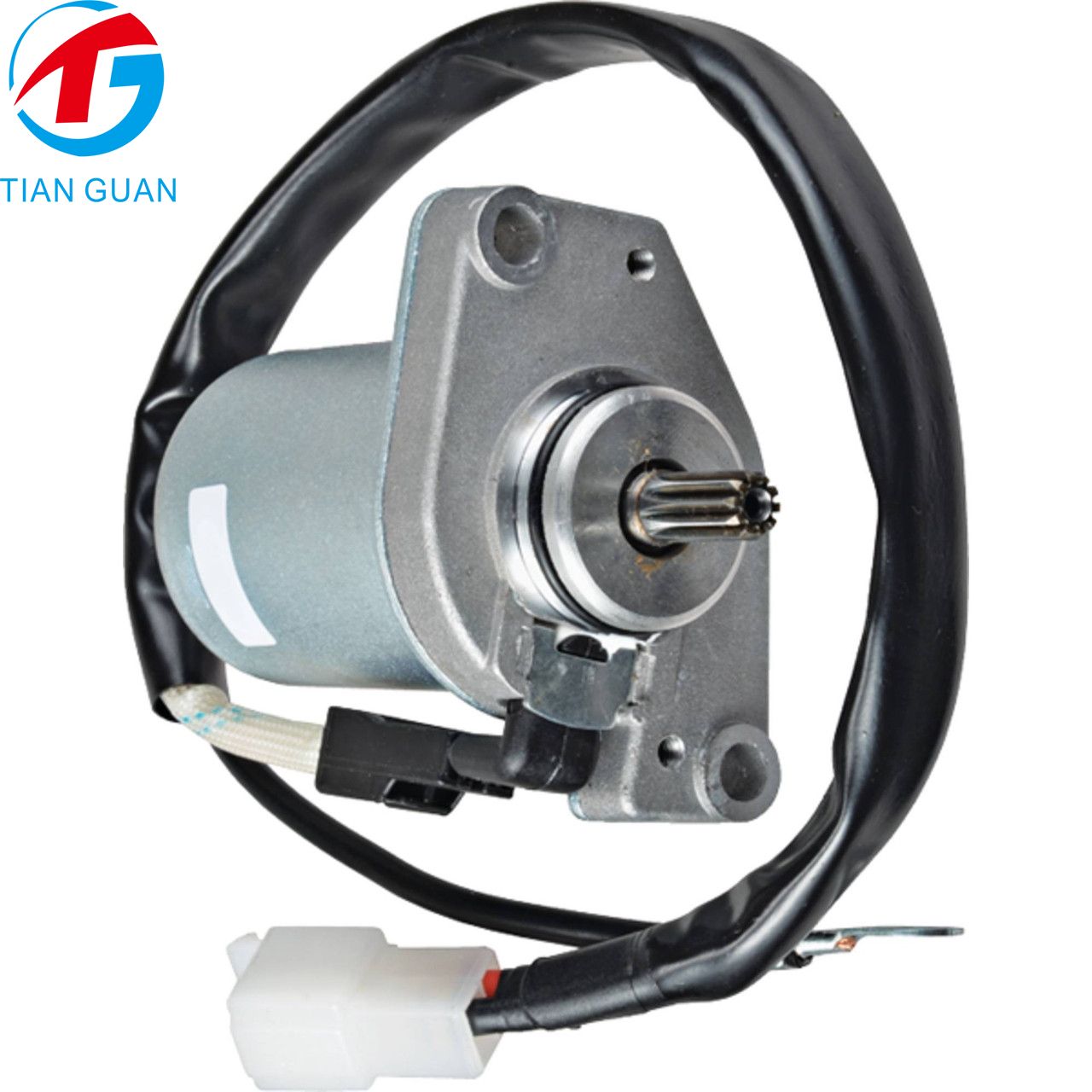

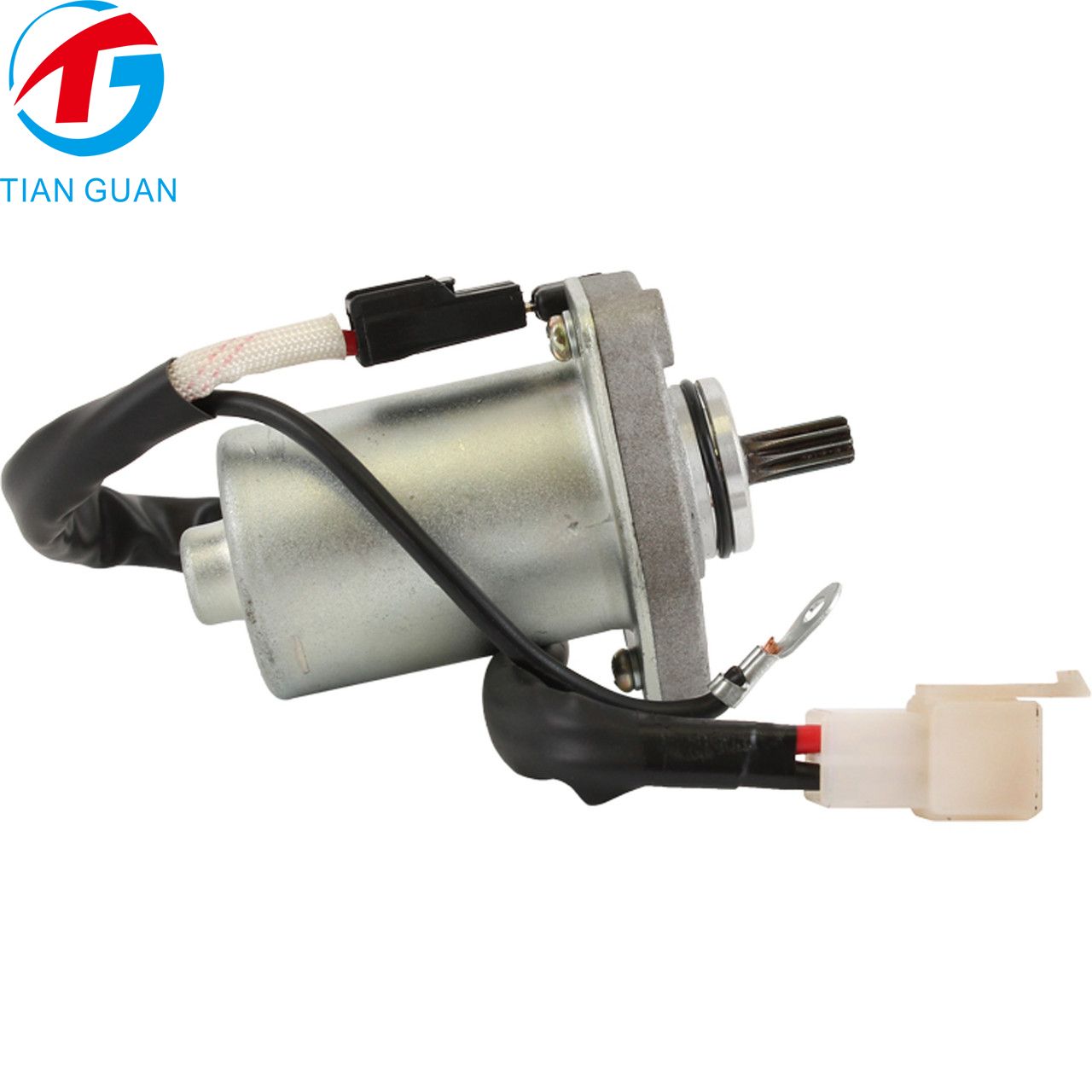

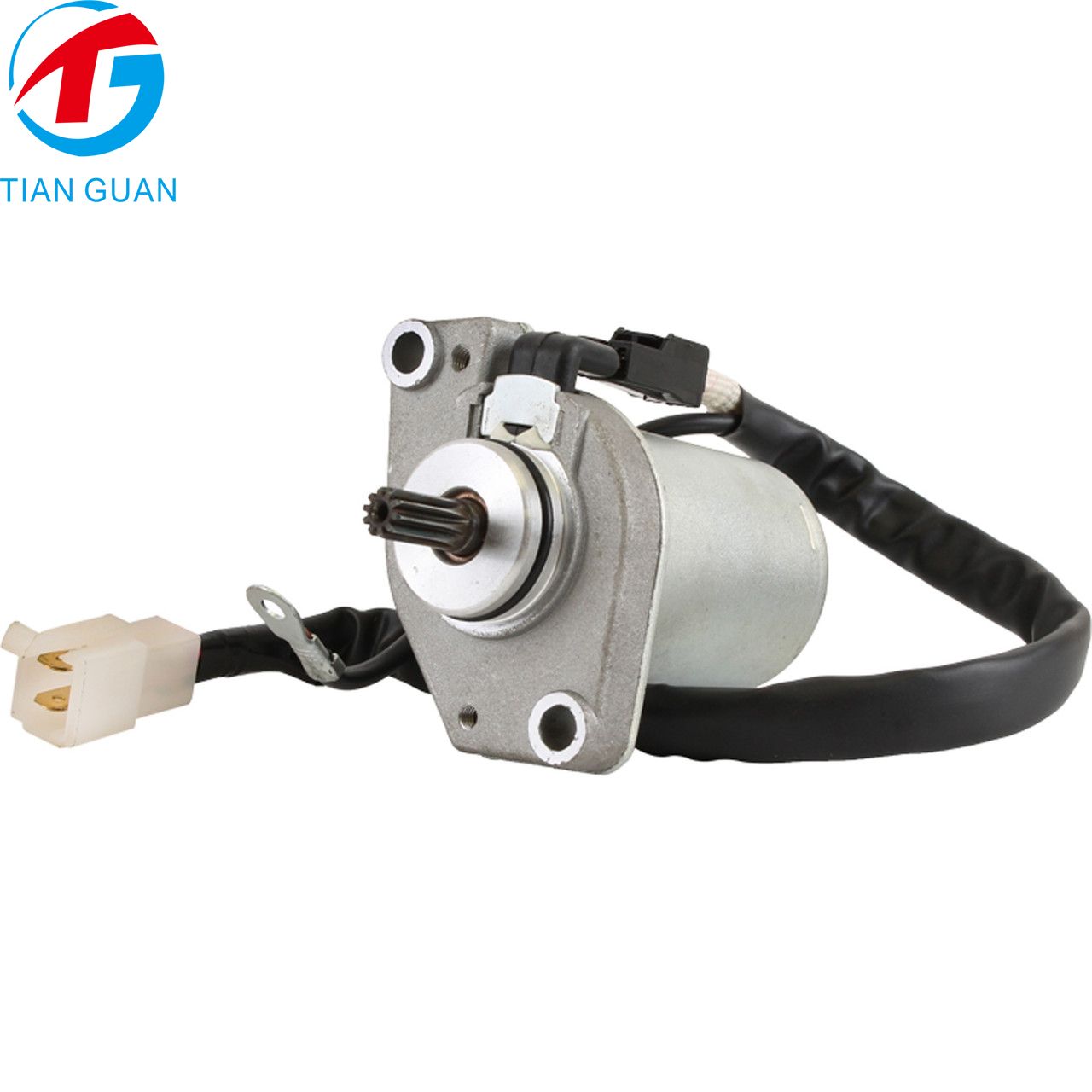

The STG53059 Starter Motor is a brand-new aftermarket replacement starter designed for the Yamaha Zuma 50 YW50 scooter with a 49cc engine, covering the supplied model years from 2002 through 2011. It operates on a 12V electrical system and is designed for compatible scooter starting applications.

Featuring a permanent magnet direct drive (PMDD) design, this starter has clockwise (CW) rotation and a 10-tooth pinion gear. It is cross-referenced to Yamaha part numbers 4WX-H1800-00-00 and 4WX-H1800-01-00, as well as Arrowhead SMU0346, helping buyers identify a potential replacement for the original starter assembly.

The STG53059 offers an aftermarket option for replacing a worn or failed starter on compatible Yamaha Zuma 50 YW50 scooters. Before ordering, verify the original part number, model year, engine displacement, mounting configuration, electrical connections, and pinion specifications to confirm compatibility.

Key Features

• 12V Electrical System: Designed for compatible Yamaha Zuma 50 YW50 scooters.

• PMDD Design: Features clockwise rotation and a 10-tooth pinion gear.

• OEM Cross-References: Matches the listed Yamaha starter numbers and Arrowhead SMU0346 reference.

Product Specifications

Compatible Applications
