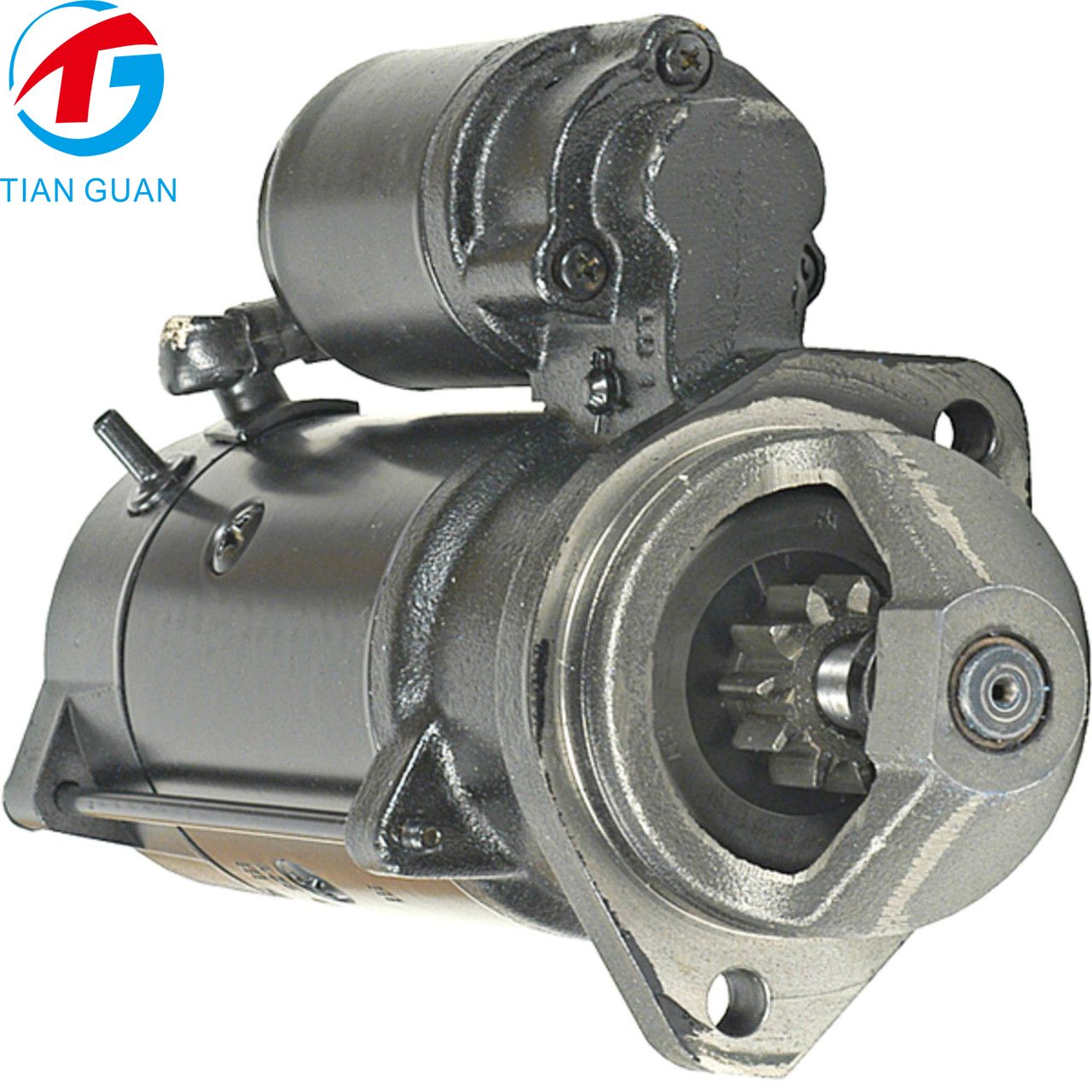

STG53114 Starter 11.131.109 AZE4535 IS1072 LRS01422 LRS01457 5990594 6905510 6905777 11.131.951 MS30 MS619 for Deutz BF4L1011 F2L1011 F3L1011 F4L1011

3 Reviews

Add Your Review

US$143.00

ITEMNO： STG53114

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    STG53114 Starter 11.131.109 AZE4535 IS1072 LRS01422 LRS01457 5990594 6905510 6905777 11.131.951 MS30 MS619 for Deutz BF4L1011 F2L1011 F3L1011 F4L1011

    Part Numbers:
    LETRIKA / ISKRA 11.131.109, AZE4535, IS1072
    LIEBHERR 5990594, 6905510, 6905777
    LUCAS ELECTRIC LRS01422, LRS01457
    MAHLE 11.131.951, AZE4535, IS1072, MS30, MS619
    ARROWHEAD 410-29060, B0001109370, B0001218772, B0001223002, IMI215-11, IS1072, MS30, SIA0017
    ATLANTIC QUALITY PARTS 1300-0102
    BOMAG 05710969R, 5712911, 5718062
    BOSCH 0001218172, 0-001-218-172, 0001218772, 0-001-218-772, 0001223002, 0-001-223-002, 0986017430, 0986018290, SR0803X, SR9972N, SR9972X
    DELCO DRS7430
    DEUTZ 0118-0180, 02934505, 1180180, 1180995, 2934505
    GEHL 132299, 133557
    GENIE 37950
    J & N 410-29060
    JANNCO 410-24013R
    JLG 7016332
    KHD 118-0180, 118-0995
    LESTER 18230
    MALAGUTI MS619
    OTHER OEMS 8EA737793-001, CS1185
    SCHAEFF INC 5411656441, 5999999774
    VOLKSWAGEN 069911023F, 069-911-023F
    VOLVO 9002904386
    WEIDEMANN 5030180181

    Compatible Models: Deutz BF4L1011, F2L1011, F3L1011, F4L1011 | Gehl 5635SX, 6635DXT, SL5635, SL6635 | Thomas Equipment T243 | Tug 660-14, M1A-14, MA-14, MH-14 | Vermeer LM42, SC672A, SC752, V3550, V3550A, V5750
    Compatible Engines: Deutz BF4L1011 (2.7L), F2L1011 (1.4L), F3L1011 (2.0L), F4L1011 (2.7L)
    Weight: 9.6 KG

    Product Overview

    STG53114 is a heavy-duty aftermarket starter motor designed for Deutz BF4L1011, F2L1011, F3L1011, and F4L1011 diesel engines, as well as Gehl, Thomas Equipment, Tug, and Vermeer applications. It directly replaces OEM part numbers 11.131.109, AZE4535, IS1072, LRS01422, LRS01457, 5990594, 6905510, 6905777, 11.131.951, MS30, and MS619, delivering reliable cranking performance for agricultural and industrial diesel applications.

    Key Specifications

    ParameterSpecification
    Item ConditionAftermarket Part
    DescriptionStarter
    FamilyLetrika/MAHLE AZE45
    Voltage12V
    Power Output2.800KW
    HP3.755
    RotationClockwise
    Starter TypePlanetary Gear Reduction (PLGR)
    Teeth Count11T
    Gear OD34.800mm / 1.370"
    Mount Hole ID 110.900mm, Unthreaded
    Mount Hole 2 TypeUnthreaded
    Weight9.6 KG

    Compatibility

    • Compatible Models:

      • Deutz BF4L1011 (2.7L), F2L1011 (1.4L), F3L1011 (2.0L), F4L1011 (2.7L)

      • KHD BF4L1011, F2L1011, F3L1011, F4L1011

      • Gehl 5635SX, 6635DXT, SL5635, SL6635

      • Thomas Equipment T243

      • Tug 660-14, M1A-14, MA-14, MH-14

      • Vermeer LM42, SC672A, SC752, V3550, V3550A, V5750

    • Compatible Engines: Deutz BF4L1011 (2.7L), F2L1011 (1.4L), F3L1011 (2.0L), F4L1011 (2.7L)
