STG53202 Starter 1044451A1 NIK-0-23000-1818 1998490 323-277 323-319 323-419 323-823 323-824 8200010 for Ford E-250 Econoline Club Wagon
Part Numbers
AC DELCO: 323-419, 323-823, 323-824, 336-1815
ARROWHEAD: IS1090, MS148, NK0-23000-1818, SMT0018, SMT0059
ATLANTIC QUALITY PARTS: 6800-0100
BOBCAT: 6633058, 6651636
BOSCH: SR597X, SR9938X, SR9973X
CASE IH: 1044451A1, 104451A1, 16930A1, 2508914C91, A47496, R39341
CUMMINS: 3604481RX, 3604482RX, 3604648RX, 3901365, 3901386, 3904445, 3905480, 3909913, 3916854
DELCO: 10461479, 10461630, 10461770, 10465026, 10465043, 10465149, 10465399, 10465403, 10465407, 10479621, 10479640, 10479643, 10486883, 10496882, 10496883, 1107589, 1108698, 1109144, 1113276, 1113593, 19011400, 19011921, 19136124, 1998408, 1998423, 1998456, 1998457, 1998490, 323-277, 323-319, 323-419, 323-823, 323-824, 8200010
DENSO: 028000-5881, 028000-5882, 028000-5883, 028000-5884, 228000-8410, 97022809-588
EMP: 4-6947
EUCLID: E-821104X
FORD: E3TF-11000-AA, E3TF-AA, E3TU11000AA, E3TZ-11002-B, E4TF11000AA, E4TF-11000-AA, E4TF-AA, E5TF11000AA, E5TZ11002B, E8TF11000AA, E8TZ11002A, F3TF11000AA, F3TU11000AA, F3TZ11002B, F4PU11000AA, F4PU11000AC, F4TZ11002B, SA739, SA739A, SA739B, SA819, SAE739B, SAE819
J & N: 410-12039R
JLG / GRADALL: 8033340
LEECE NEVILLE: 35258940
LESTER: 16658, 17037, 17577, 3300, 4285, 4391, 6450, 6573
LETRIKA / ISKRA: IS 1090
LUCAS: LRS01408, LRS706
MAHLE: 11.130.665, MS148, MS418
MERCURY MARINE: 50-805991
MITSUBISHI: M3T90071, M3T90072, M8T50171, M8T50172
NIKKO: 02-23-1001, 02-23-1026, 02-23-1037, 0-23000-1810, 0-23000-1818, 0-23000-2430, 0-23000-2434, 0-23000-2450, 0-23000-2458, 0-61000-0020, 0-61000-0230
Product Description

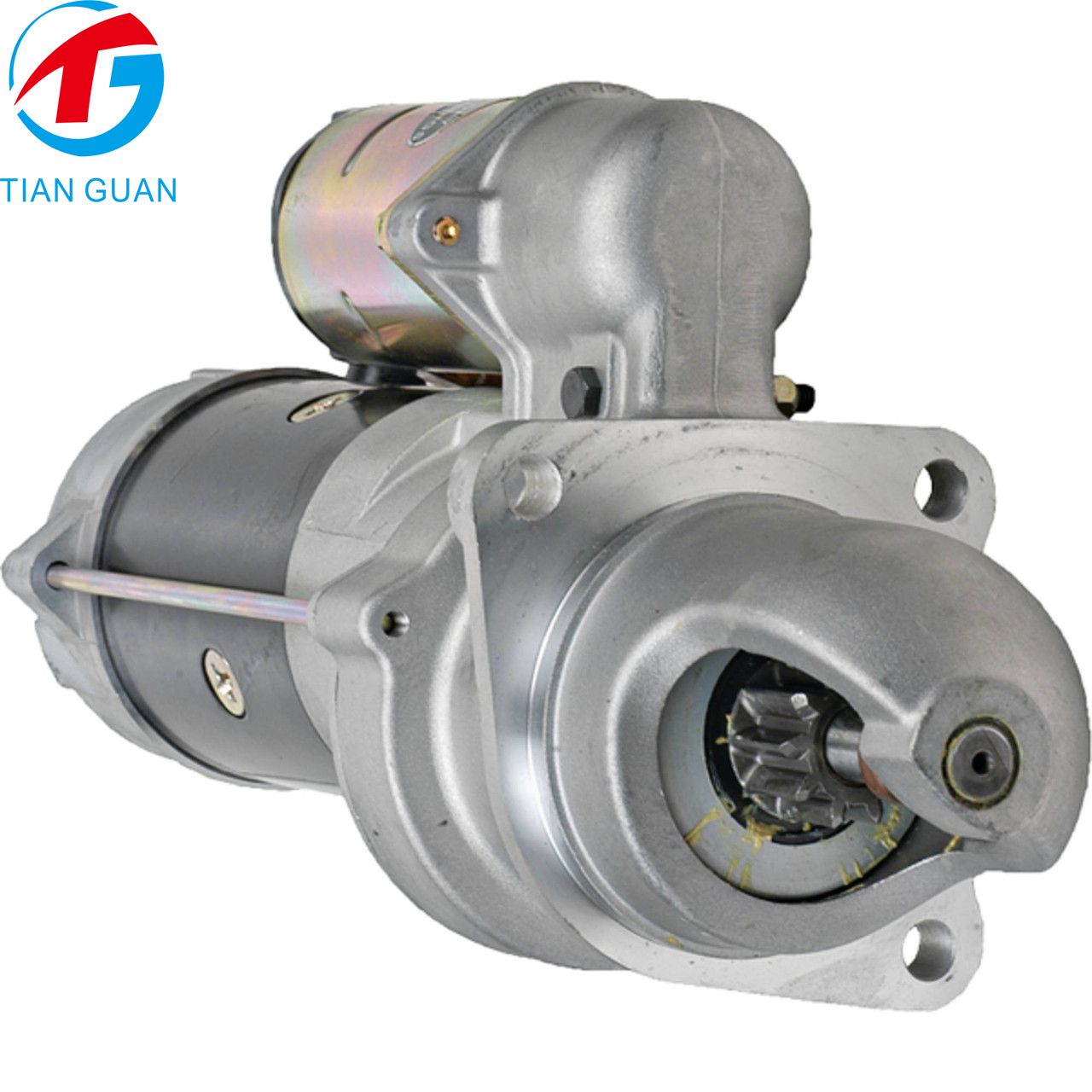

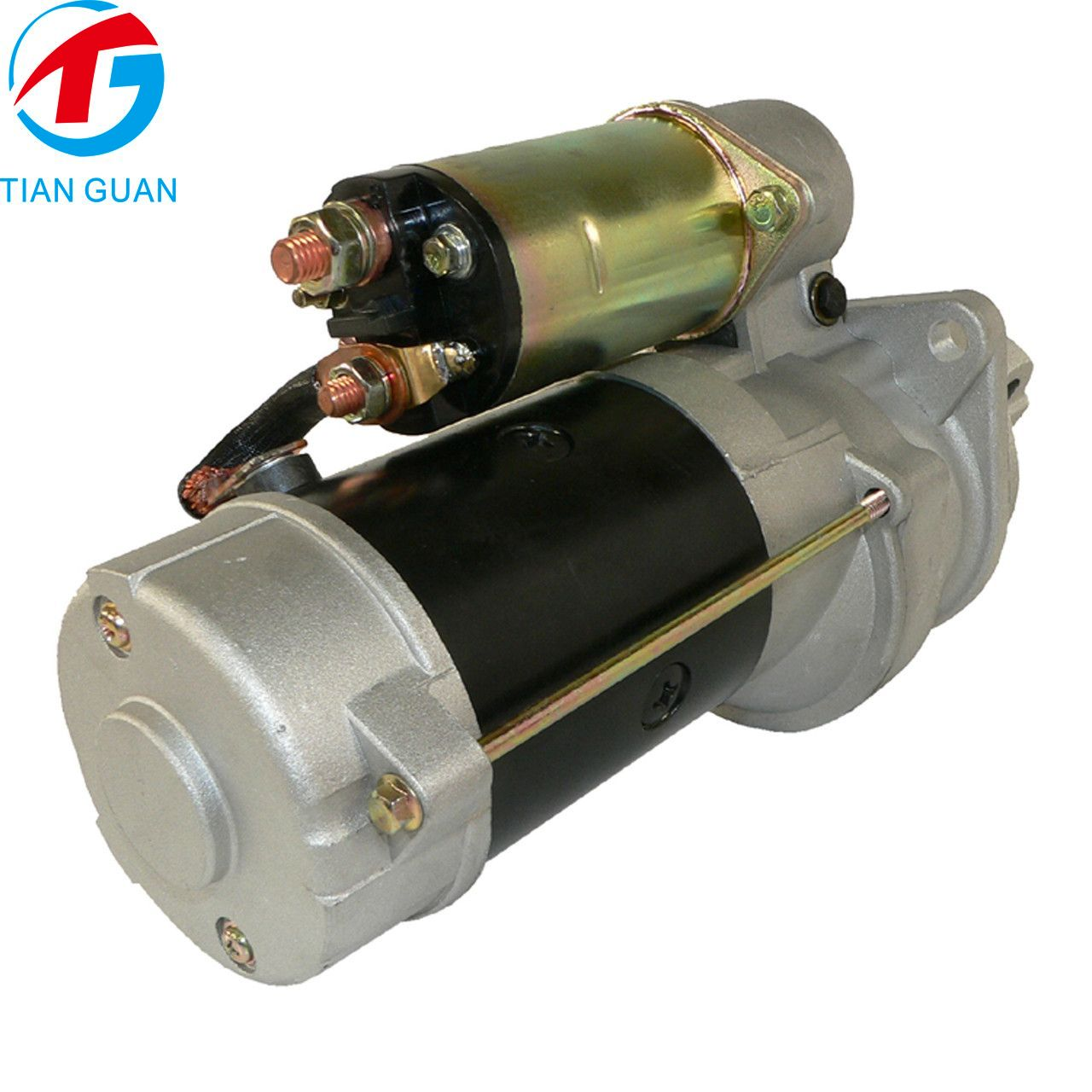

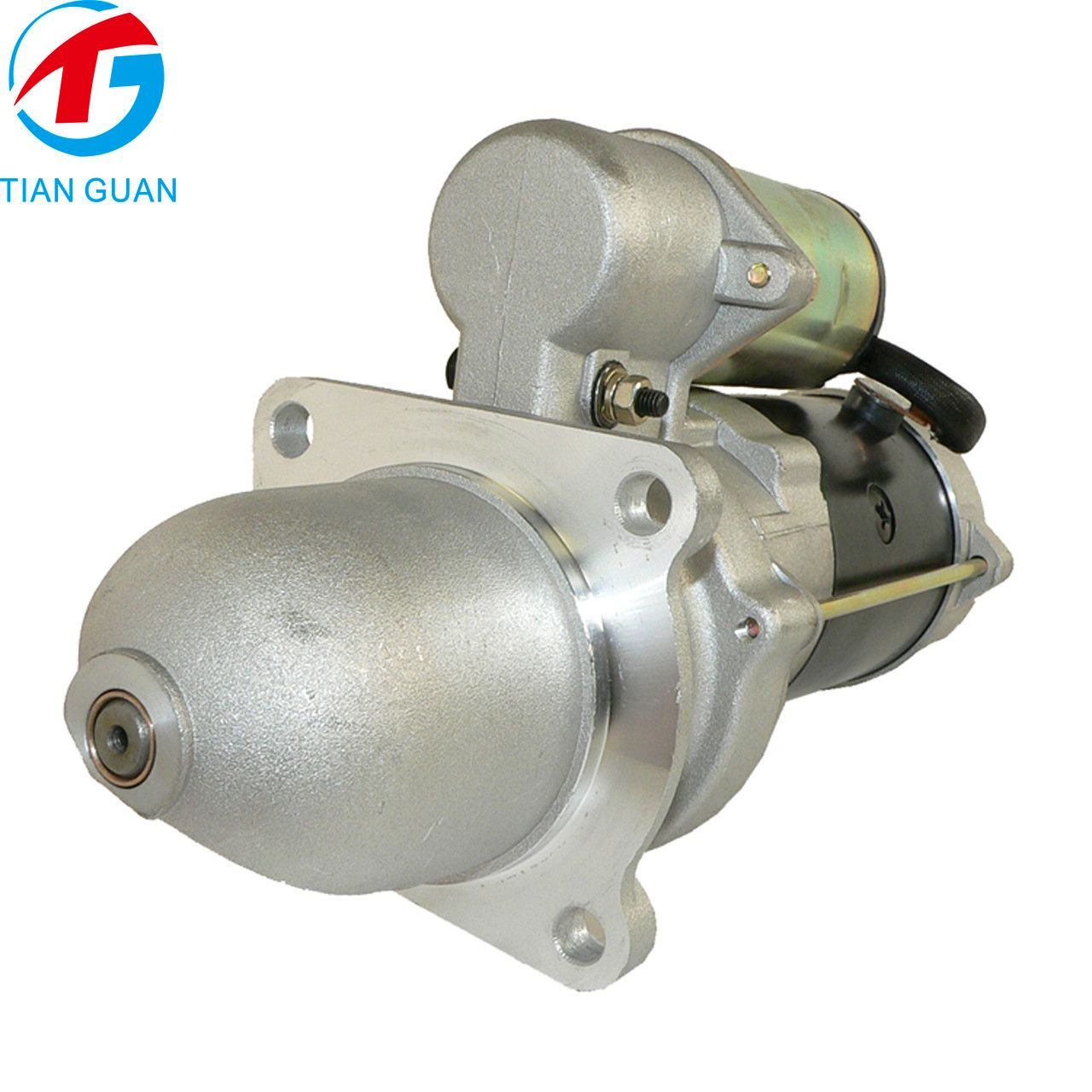

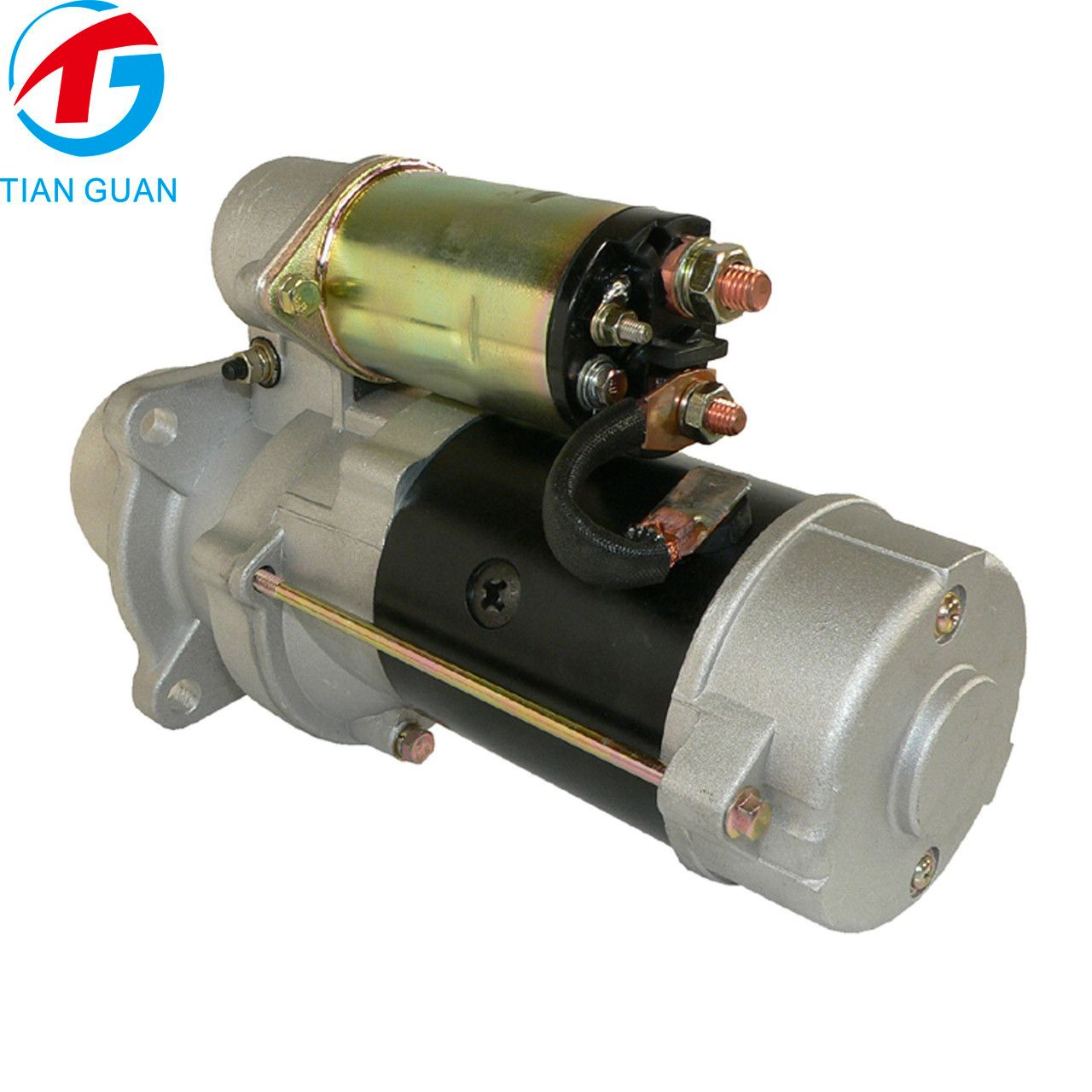

This premium aftermarket 12V 2.9KW Starter Motor is designed as a direct replacement for Delco 28MT starters used on Ford E-250 Econoline Club Wagon and a wide range of agricultural, construction, marine, and truck applications. Equipped with a 10-tooth pinion gear, OSGR design, and clockwise rotation, it delivers fast, reliable engine starting and dependable performance in demanding applications.
This starter replaces OE part numbers 323-419, 323-823, 323-824, 336-1815 (AC Delco), IS1090, MS148, NK0-23000-1818, SMT0018, SMT0059 (Arrowhead), 1044451A1, 104451A1, 16930A1, 2508914C91, A47496, R39341 (Case IH), 3604481RX, 3604482RX, 3604648RX, 3901365, 3901386, 3904445, 3905480, 3909913, 3916854 (Cummins), 10461479, 10461630, 10461770, 10465026, 10465043, 10465149, 10465399, 10465403, 10465407, 10479621, 10479640, 10479643, 10486883, 10496882, 10496883, 1107589, 1108698, 1109144, 1113276, 1113593, 19011400, 19011921, 19136124, 1998408, 1998423, 1998456, 1998457, 1998490, 323-277, 323-319, 8200010 (Delco), E3TF-11000-AA, E3TZ-11002-B, E4TF-11000-AA, E5TF11000AA, E5TZ11002B, SA739, SA739A, SA739B (Ford), and 0-23000-1818 (Nikko).
Specifications
Item Condition: Aftermarket Part
Description: Starter
Family: Delco 28MT
Volt: 12V
Power: 2.900 KW
HP: 3.889
Condition: New
Rotation Direction: Clockwise
Electric Starter Type: Offset Gear Reduction (OSGR)
Number Of Teeth: 10
Gear OD: 1.260" / 32mm
Length: 243.600 mm / 9.591"
Mount Hole ID 1: 11.900mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 11.900mm
Mount Hole 3 Type: Unthreaded
Wet Clutch Seal: TRUE
Weight: 8.6KG
Fitment
AGCO – 6124 – 1994-1997 – 6-35
AGCO – 6125 – 1993-1997 – 6-35
AGCO – 6144 – 1994-1997 – 6-35
AGCO – 6145 – 1993-1997 – 6-35
AGCO – 8310 – 1998-2000 – 6-35
AGCO – 8410 – 1998-2000 – 6-35
AGCO – RT130 4WD – 2002-2004 – Cummins 6-35
AGCO – RT130 – 2002-2004 – Cummins 6-35
AGCO – RT145 4WD – 2002-2004 – Cummins 6-35
AGCO – RT145 – 2002-2004 – Cummins 6-35
Allis Chalmers – 2200 – 1967-1974 – Diesel
Allis Chalmers – 650 – 1971-1974 – 2200 Engine
Allis Chalmers – 652 – 1971-1974 – 2200 Engine
Allis Chalmers – 653 – 1971-1974 – 2200 Engine
Allis Chalmers – HD-4 – 1965-1969 – 2200 Diesel
Allis Chalmers – TL 650 – 1970-1974 – AC-2200 Diesel
Bobcat – 980 – 1986-1993 – Cummins 4BT3.9L Diesel
Case IH – 1835B – 1982-1988 – 188 Diesel
Case IH – 1845B – 1982-1985 – 188 Diesel
Case IH – 350B – 1979-1984 – D-188 Diesel
Case IH – 450B – 1978-1983 – 207 Diesel
Case IH – 455B – 1983 – 207 Diesel
Case IH – 480C Construction King – 1979-1988 – 188 Diesel
Case IH – 480D Construction King – 1979-1988 – 188 Diesel
Case IH – 480LL Construction King – 1979-1988 – 188 Diesel
Case IH – 5120 – 1990-1991 – 4-239 Diesel
Case IH – 5220 – 1992-1997 – 4-239 Diesel
Case IH – 580C Construction King – 1975-1980 – 207 Diesel
Case IH – 580D Construction King – 1980-1984 – 207 Diesel
Case IH – 584D – 1975-1988 – 188 Diesel
Case IH – 585D – 1975-1988 – 188 Diesel
Case IH – 586D – 1975-1988 – 188 Diesel
Case IH – W11 – 1978-1983 – 207 Diesel
Champion – 710 – 1977-1991 – Cummins 5.9L
Champion – 710A – 1977-1998 – Cummins 5.9L
Champion – 716A – 1992-1998 – Cummins 5.9L
Clark – 980 – 1986-1988 – Cummins 3.9L
