STG53296 Starter Motor 01183235 0118-3235 11.131.754 11.131.769 for Deutz-Fahr M3570 M3580 M3610 M3630 M3640 and Deutz-Allis Equipment | 12V 4kW CW 9T PLGR Replacement

3 Reviews

Add Your Review

US$148.00

ITEMNO： STG53296

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53296 Starter Motor 01183235 0118-3235 11.131.754 11.131.769 for Deutz-Fahr M3570 M3580 M3610 M3630 M3640 and Deutz-Allis Equipment | 12V 4kW CW 9T PLGR Replacement

Part Numbers

Deutz: 0118-0928 / 0118-0928KZ / 01181976 / 01182925 / 01183235 / 0118-3235 / 01183677 / 01183712 / 0304-5396

KHD: 01182233 / 118-0928 / 118-1976 / 1182233 / 118-2233 / 118-3235 / 1183712

Mahle: 11.131.754 / 11.131.769 / 11.132.137 / 11.132.256 / AZF4194 / AZF4197 / AZF4309 / AZF4343 / IS1254 / MS446 / MS65

Letrika / Iskra: 11.131.620 / 11.131.754 / 11.131.769 / AZF4179 / AZF4194 / AZF4197 / IS 0841 / IS 1254

Product Description

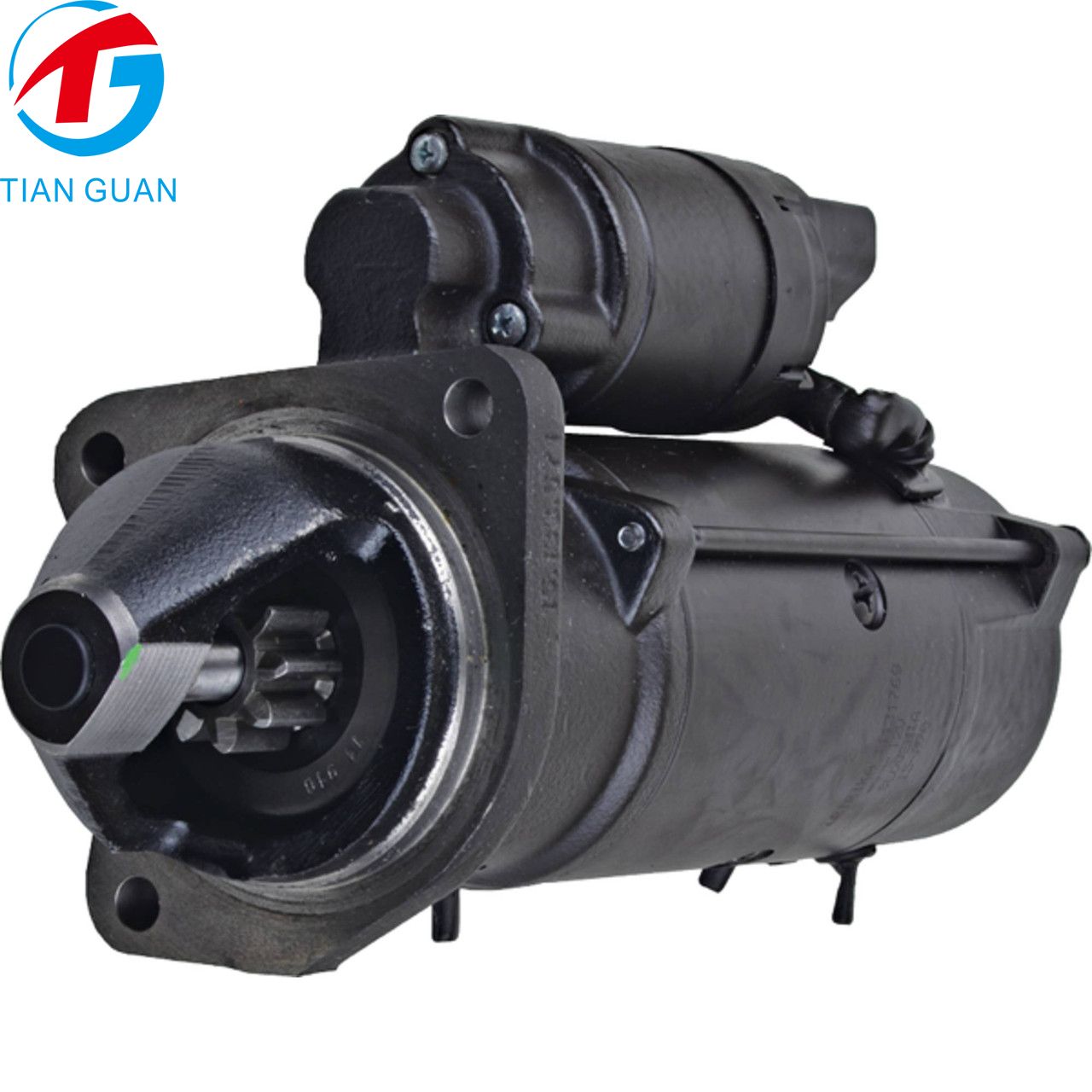

The STG53296 Starter Motor is a 12V, 4kW replacement starter designed for selected Deutz-Fahr tractors, Deutz-Allis agricultural equipment, AGCO machinery, and other industrial applications.

Featuring a Planetary Gear Reduction (PLGR) design, clockwise rotation, and a 9-tooth pinion, this aftermarket starter is engineered for dependable starting performance in heavy-duty diesel applications.

The unit features a 33.9mm gear outside diameter and three unthreaded mounting holes with 10.8mm mounting-hole diameters at the specified positions. It is cross-referenced to a wide range of Deutz, KHD, Mahle, Letrika/Iskra, Bosch, and other aftermarket part numbers.

Product Specifications

Property	Value
SKU	STG53296
Product Type	Starter Motor
Unit Type	Planetary Gear Reduction (PLGR)
Voltage	12V
Power Rating	4kW
Horsepower	5.364 HP
Rotation	Clockwise (CW)
Pinion Teeth	9T
Gear Outside Diameter	33.9mm (1.335")
Mounting Hole ID 1	10.8mm, unthreaded
Mounting Hole 2	Unthreaded
Mounting Hole ID 3	10.8mm, unthreaded
Condition	New Aftermarket Part
Weight	Approx. 7.0 kg

OEM / Cross Reference Numbers

Brand / Category	Part Numbers
Arrowhead	B0001230006 / B0001262002 / BSR9981N / IS0841 / IS1254 / MS446 / MS65 / SIA0026
Atlantic Quality Parts	1300-0103
BMW	12-41-7-754-661
Bosch	0-001-230-006 / 0-001-230-014 / SR9981N
Delco	DRS9020
Deutz	0118-0928 / 0118-0928KZ / 01181976 / 01182925 / 01183235 / 0118-3235 / 01183677 / 01183712 / 0304-5396
J&N Electrical Products	410-29073
JLG	7020413
JLG / Gradall Industries	0484242 / 7029392
KHD	01182233 / 118-0928 / 118-1976 / 1182233 / 118-2233 / 118-3235 / 1183712
Lester	18232
Letrika / Iskra	11.131.620 / 11.131.754 / 11.131.769 / AZF4179 / AZF4194 / AZF4197 / IS 0841 / IS 1254
Lucas Electric	LRS01603 / LRS02515
Mahle	11.131.754 / 11.131.769 / 11.132.137 / 11.132.256 / AZF4194 / AZF4197 / AZF4309 / AZF4343 / IS1254 / MS446 / MS65

Compatible Applications

Make	Equipment Type	Model	Engine	Year
Deutz-Fahr	Tractor	M3570	F6L913 Diesel	1987–1994
Deutz-Fahr	Tractor	M3580	BF6L913 Diesel	1987–1994
Deutz-Fahr	Tractor	M3610	BF6L913C Diesel	1987–1994
Deutz-Fahr	Tractor	M3630	BF6L913C Diesel	1987–1994
Deutz-Fahr	Tractor	M3640	F8L913F Diesel	1987–1994
AGCO	Tractor	9130 4WD	6-374 Deutz Diesel	1991–1993
AGCO	Tractor	9130	6-374 Deutz Diesel	1991–1993
AGCO	Tractor	9150 4WD	6-374 Deutz Diesel	1991–1993
AGCO	Tractor	9150	6-374 Deutz Diesel	1991–1993
Deutz-Allis	Tractor	6265	4-230 Diesel	1986–1992
Deutz-Allis	Tractor	6275	4-249 Diesel	1989–1992
Deutz-Allis	Tractor	7085	4-249 Diesel	1987–1992
Deutz-Allis	Tractor	9130	BF6L913C Engine	1989–1992
Deutz-Allis	Tractor	9150	BF6L913C Engine	1989–1992
Deutz-Allis	Equipment	R40	Not specified	1989–1993
Deutz-Allis	Equipment	R42	Not specified	1989–1993
Deutz-Allis	Equipment	R50	Not specified	1989–1993
Deutz-Allis	Equipment	R52	Not specified	1989–1993
Gleaner	Combine	R40	Deutz BF6L913	1986–1992
Gleaner	Combine	R50	Deutz BF6L913	1986–1992
Ingersoll Rand	Equipment	ZX125	94HP Diesel	2005–2007
TUG	Ground Support Equipment	GT-110	Deutz Tier I / I	Not specified
TUG	Ground Support Equipment	GT-110	Deutz Tier II	Not specified
TUG	Ground Support Equipment	GT-35	Deutz BF4M2012 Tier I	Not specified
TUG	Ground Support Equipment	GT-35	Deutz TD2012 Tier II	Not specified
TUG	Ground Support Equipment	GT-50DZ	Tier not specified	Not specified
TUG	Ground Support Equipment	GT-50DZ	Tier II	Not specified
TUG	Ground Support Equipment	MT-16	Deutz 101	Not specified
TUG	Ground Support Equipment	MT-26	Deutz 201

PRODUCT HIGHLIGHTS

Product Highlights

4kW Starting Performance	PLGR Gear Reduction Design	Broad Equipment Compatibility
12V output for selected agricultural and industrial diesel engines	Clockwise rotation, 9-tooth pinion, and 33.9mm gear OD	Cross-referenced with Deutz-Fahr, Deutz-Allis, AGCO, Gleaner, and other equipment
