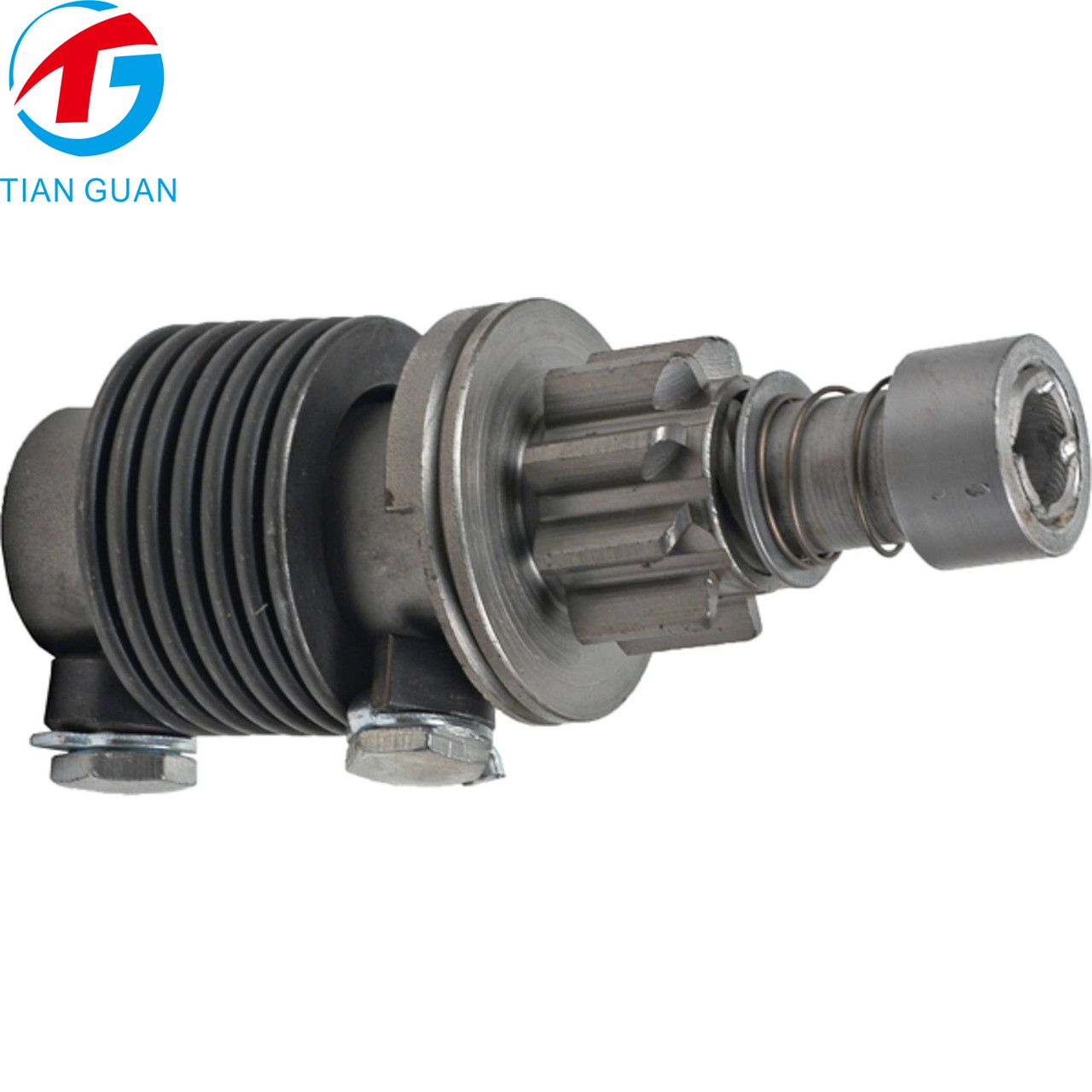

STG53305 Starter Drive Assembly GAW11350B GPW11350B 220-12167 for Ford and Compatible Starter Applications | 9T CW Spring Drive Replacement

Part Numbers

American Motors Corp: A-177002

Arrowhead: 11R-DE107C / 3-107C / PLS5005 / SPL5005 / SPL5006

CaseIH: A25636 / A25649

Product Description

The STG53305 Starter Drive Assembly is a new aftermarket replacement component designed for compatible starter motor applications. Featuring a 9-tooth pinion, clockwise rotation, and a spring-drive mechanism, it is specified for starter assemblies associated with Ford, Prestolite, Delco, and other listed manufacturers.

The drive has a 12.7mm internal diameter, a 36.2mm gear outside diameter, and a total length of 130.6mm. Its keyway and set-screw configuration helps secure the assembly in compatible installations.

This component cross-references Ford GAW11350B and GPW11350B, J&N 220-12167, and numerous other references listed above.

Important: This is a starter drive assembly, not a complete starter motor. Confirm the original drive part number, shaft dimensions, gear specifications, and retention method before ordering.

Product Specifications

Property	Value
SKU / Model	STG53305
Product Type	Starter Drive Assembly
Item Condition	New Aftermarket Part
Rotation Direction	Clockwise (CW)
Internal Diameter (ID)	12.7mm (0.500")
Gear Outside Diameter	36.2mm (1.425")
Overall Length	130.6mm (5.142")
Number of Teeth	9T
Drive Type	Spring Drive
Wet Clutch Seal	No
Retention / Mounting Feature	Keyway and set screw
Estimated Net Weight	0.5kg

OEM / Cross Reference Numbers

Brand / Category	Part Numbers
American Motors Corp	A-177002
Arrowhead	11R-DE107C / 3-107C / PLS5005 / SPL5005 / SPL5006
CaseIH	A25636 / A25649
Caterpillar	10045
Delco	1853598 / 1866095 / 5017082
Facet Drives	480398 / A-1378 / A-1573 / A-1583 / A-1590 / A-1593 / A-1616 / A-1666 / A-1702 / A-1895 / A-1930 / A-2233 / A-2375 / A-2418 / A-3140 / A-3393 / A-996
Ford	GAW11350B / GPW11350B / GRW11350B / K3682 / K3682B / SDX200 / SDX209
J&N Electrical Products	220-12043 / 220-12043R / 220-12167 / 220-12167R / 220-12354
Leece Neville	MO290-4107 / MO290-4114
Massey Ferguson	1024-578-M91 / 1505-855-M91
Prestolite	59-19 / 59-26 / 59-59 / 59-69 / 63-4 / 63-9 / EB-38 / EB-44 / EB-75 / EB-87 / EB-87A / EB-88 / EB-97 / EBA-1 / EBA-19 / EBA-19A / EBA-25 / EBA-46 / EBA-78
Towmotor	A10045

Compatible Applications

Brand / Manufacturer	Application / Reference	Fitment Notes
Ford	Starter applications using GAW11350B / GPW11350B / GRW11350B	Verify original drive and shaft dimensions
CaseIH	Compatible starter assemblies referencing A25636 / A25649	Confirm starter model
Caterpillar	Compatible starter assemblies referencing 10045	Confirm drive specifications
Massey Ferguson	Compatible starter assemblies referencing 1024-578-M91 / 1505-855-M91	Confirm original part number
Towmotor	Compatible starter assemblies referencing A10045	Confirm starter configuration
Other listed manufacturers	Compatible assemblies matching the supplied cross-reference numbers	Verify fitment before purchase

PRODUCT HIGHLIGHTS

Product Highlights

Precision Fit Dimensions	Spring-Drive Construction	Broad Cross-Reference Coverage
9-tooth gear, 12.7mm ID, 36.2mm gear OD, and 130.6mm overall length	Clockwise rotation with keyway and set-screw retention	Cross-references Ford, Prestolite, Delco, CaseIH, Caterpillar, Massey Ferguson, and other listed brands
