PRODUCT DETAILS

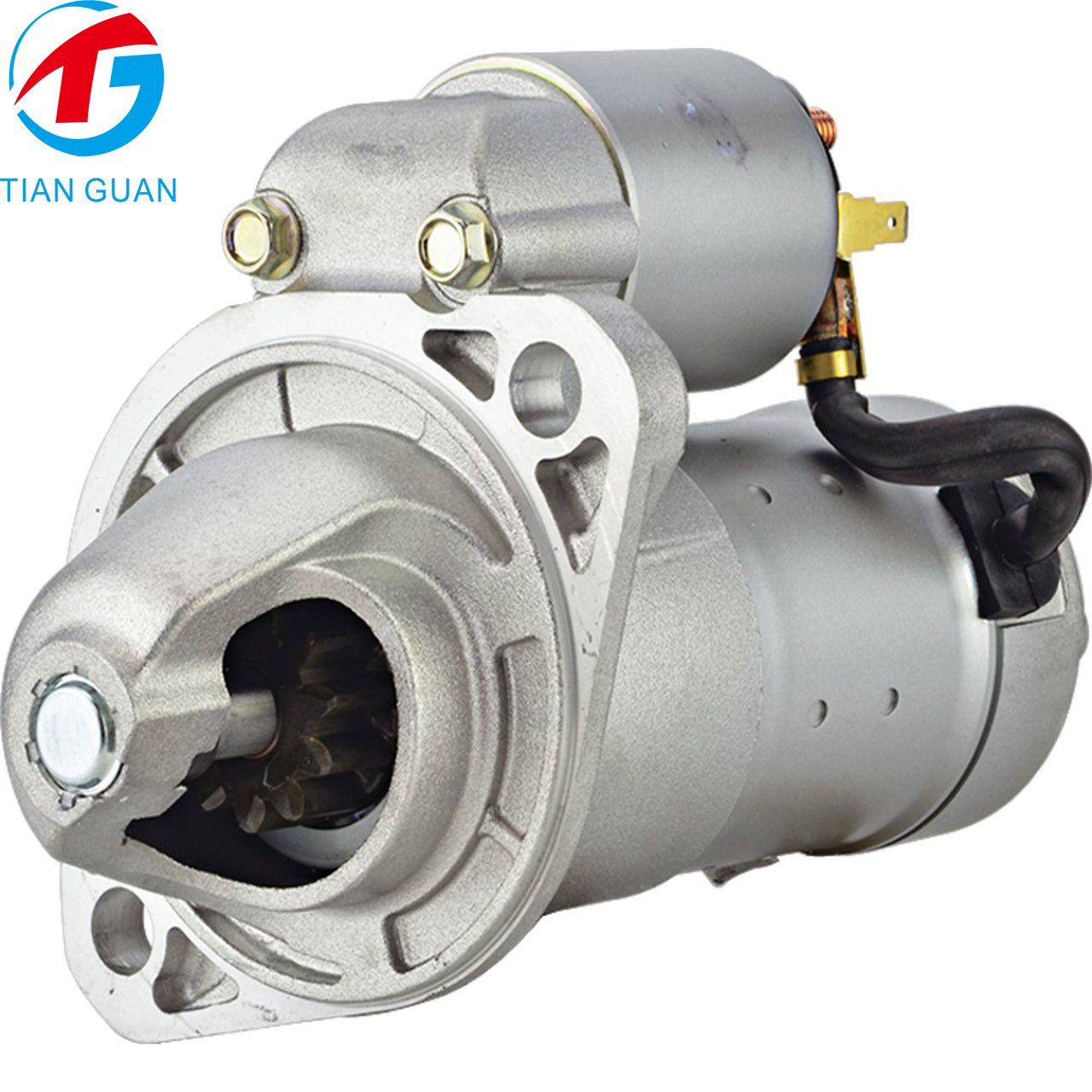

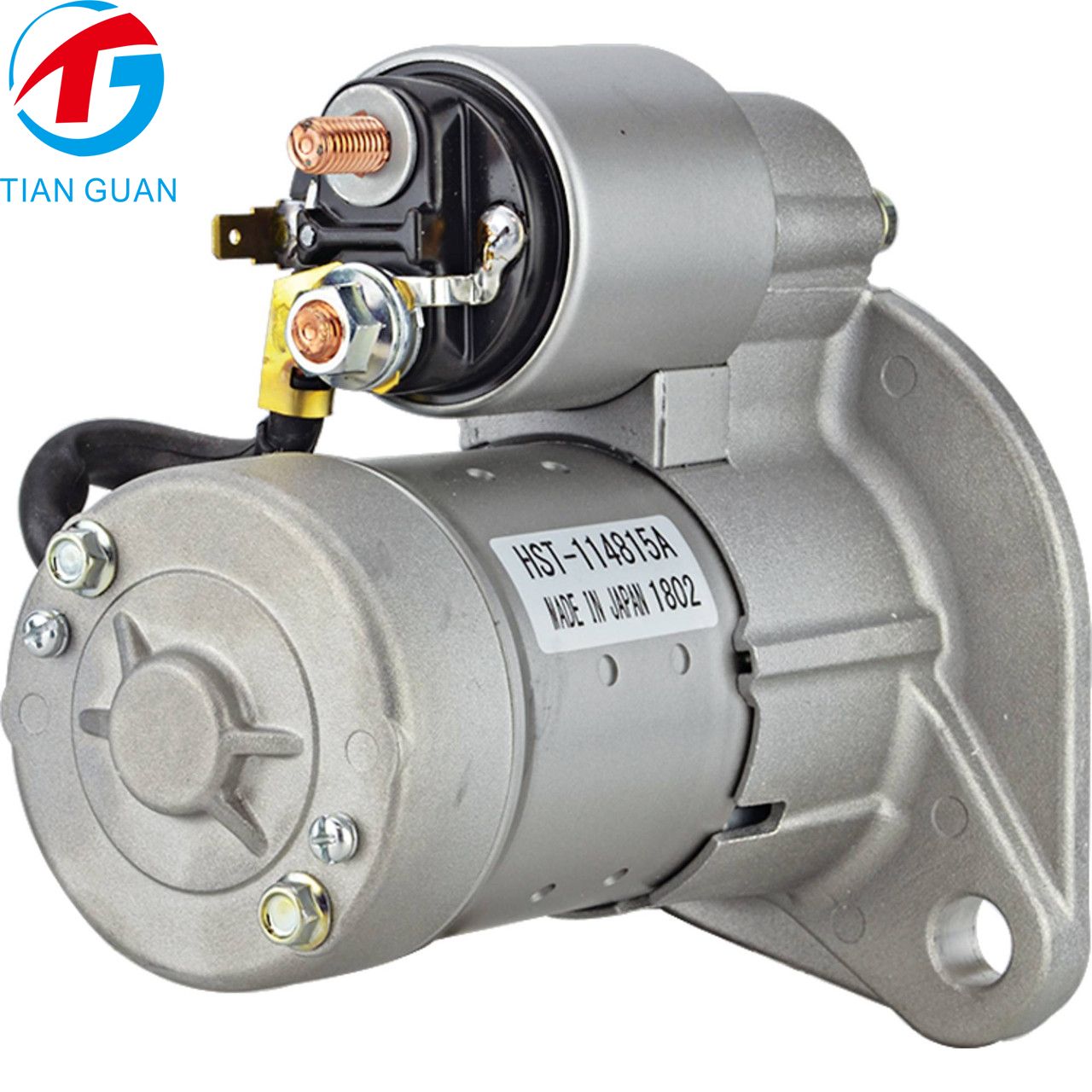

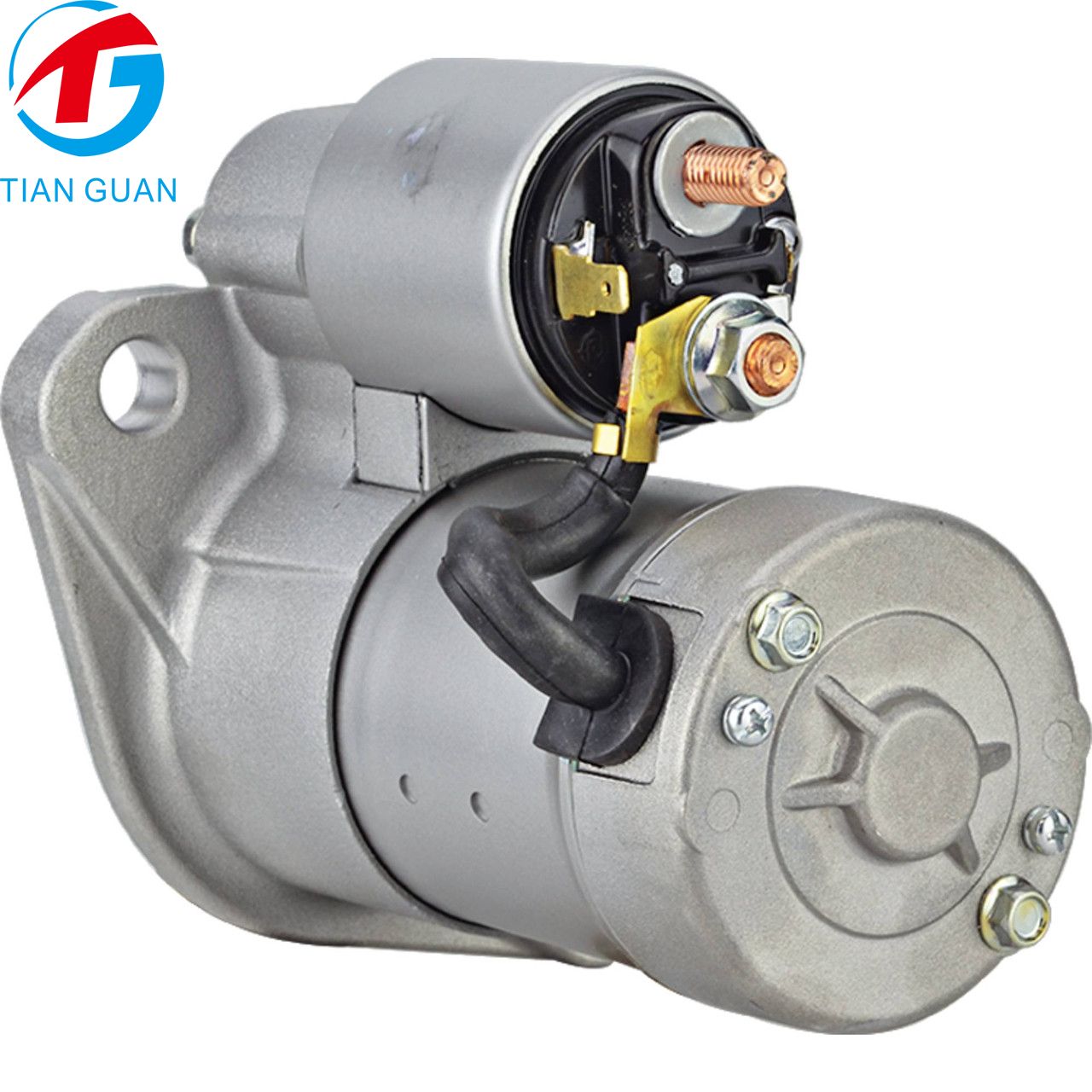

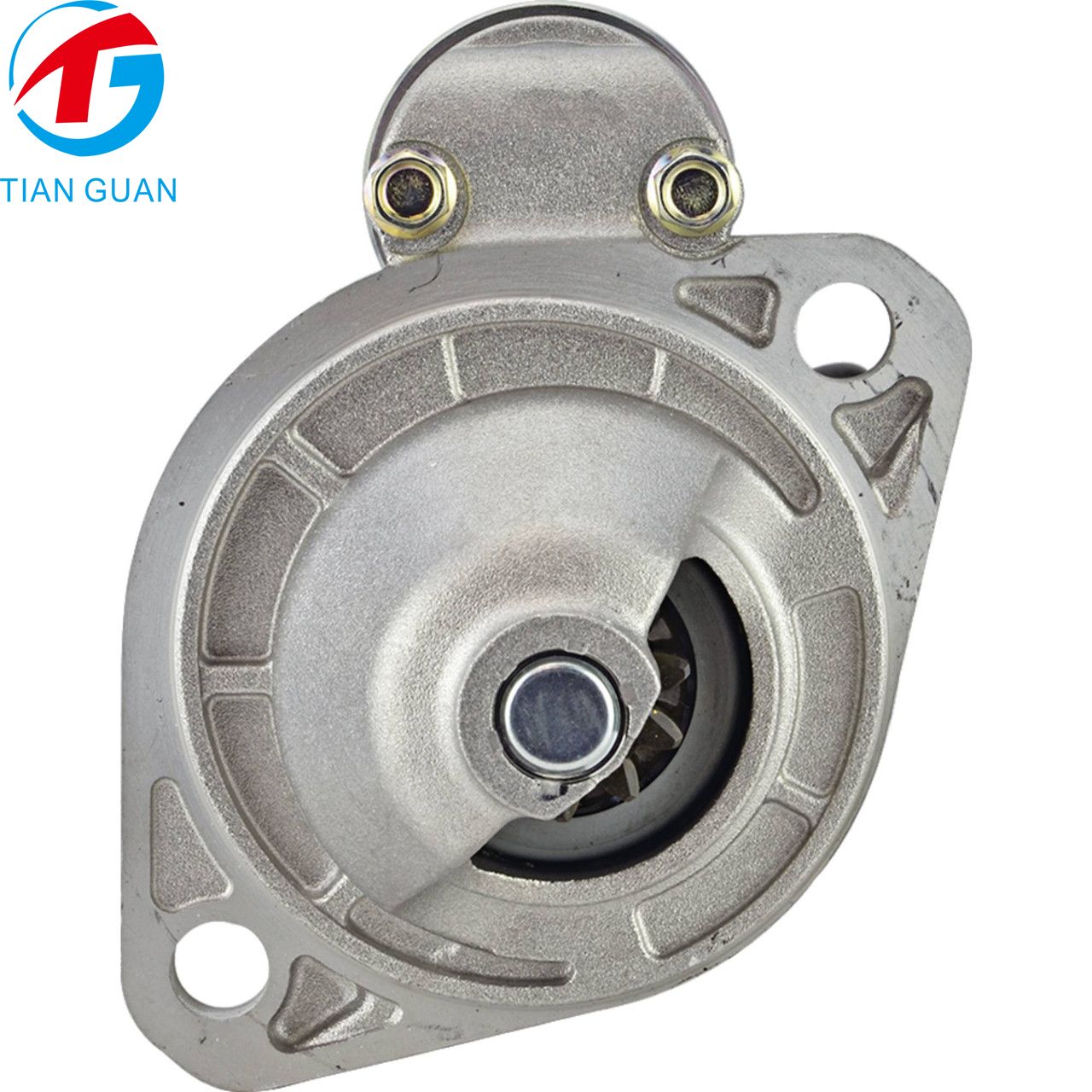

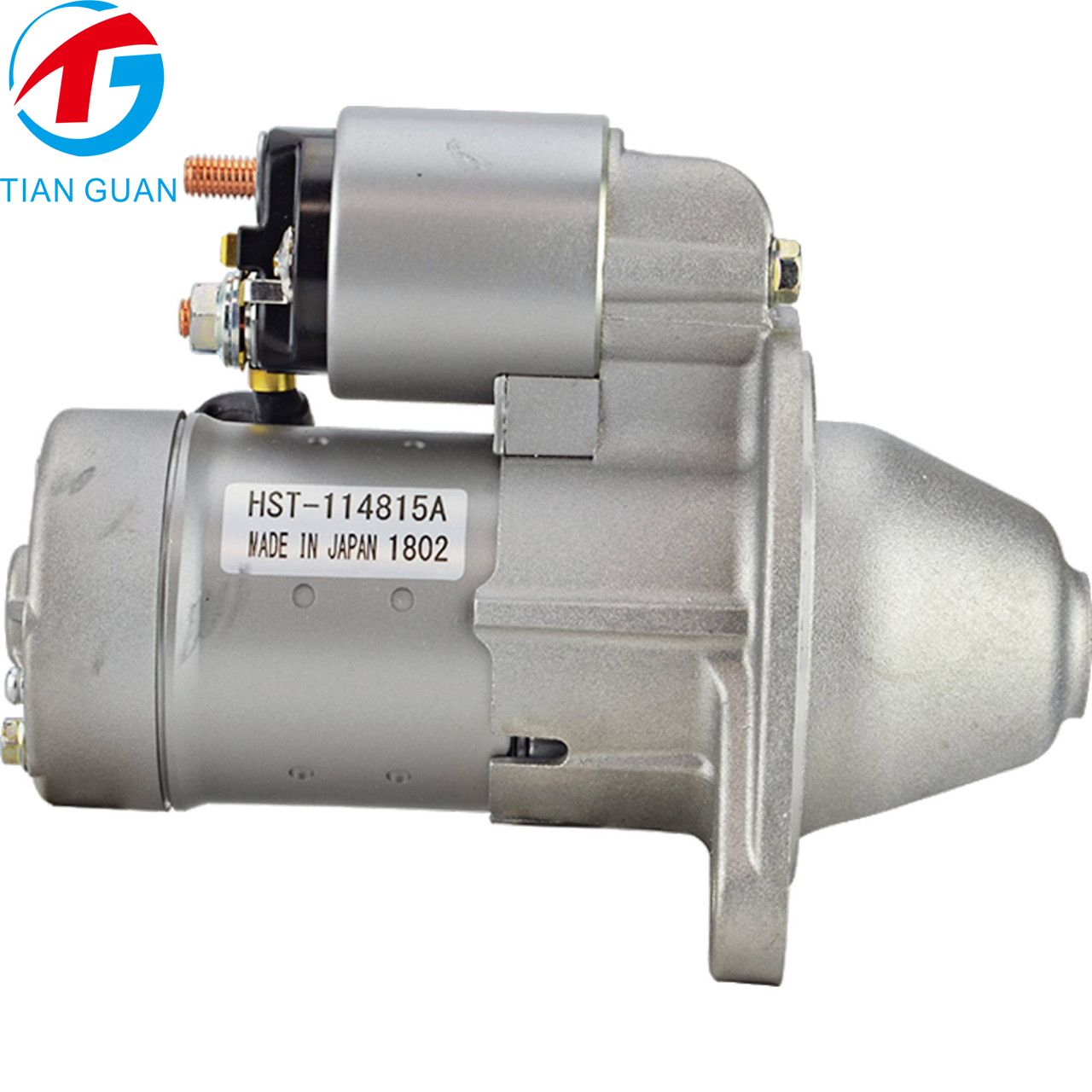

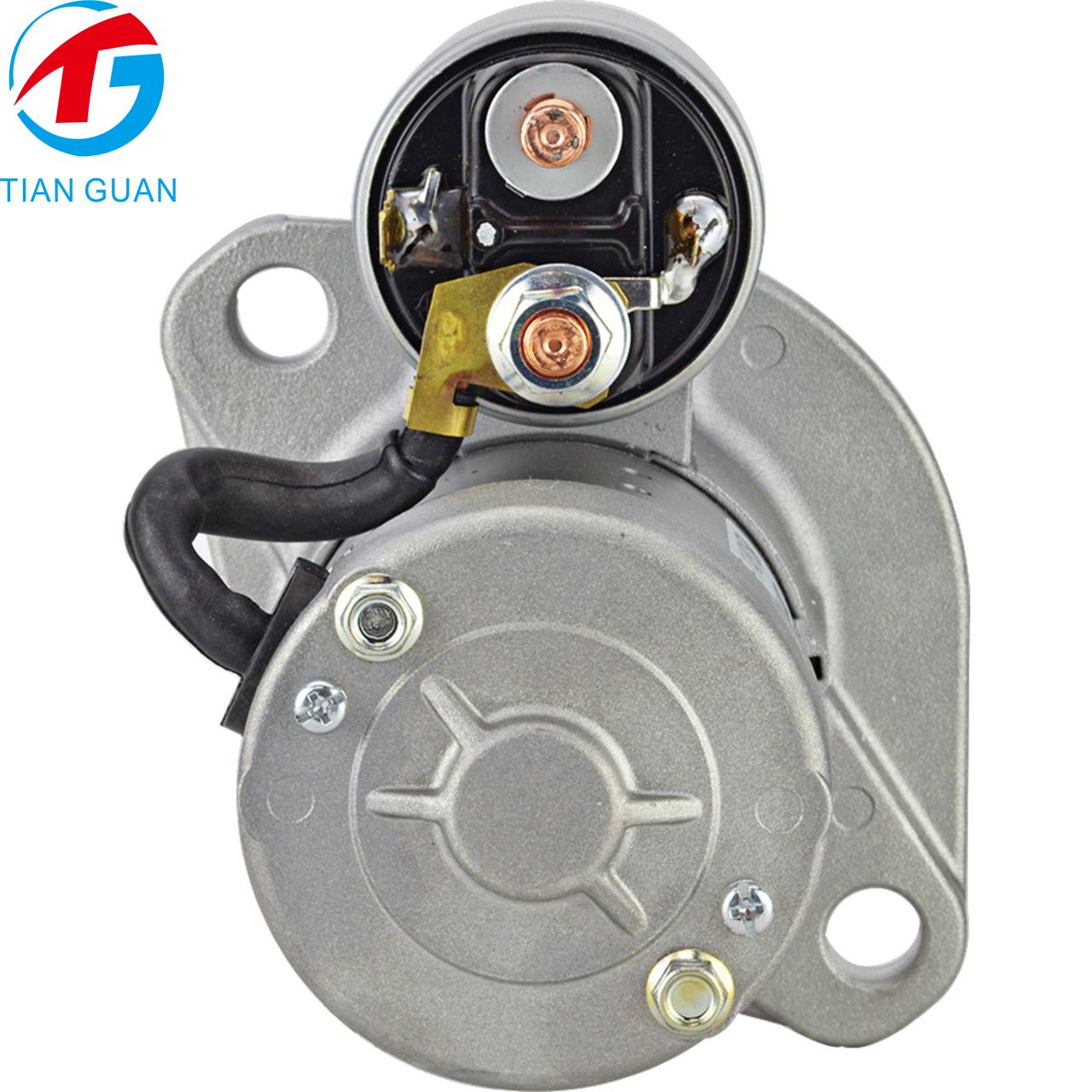

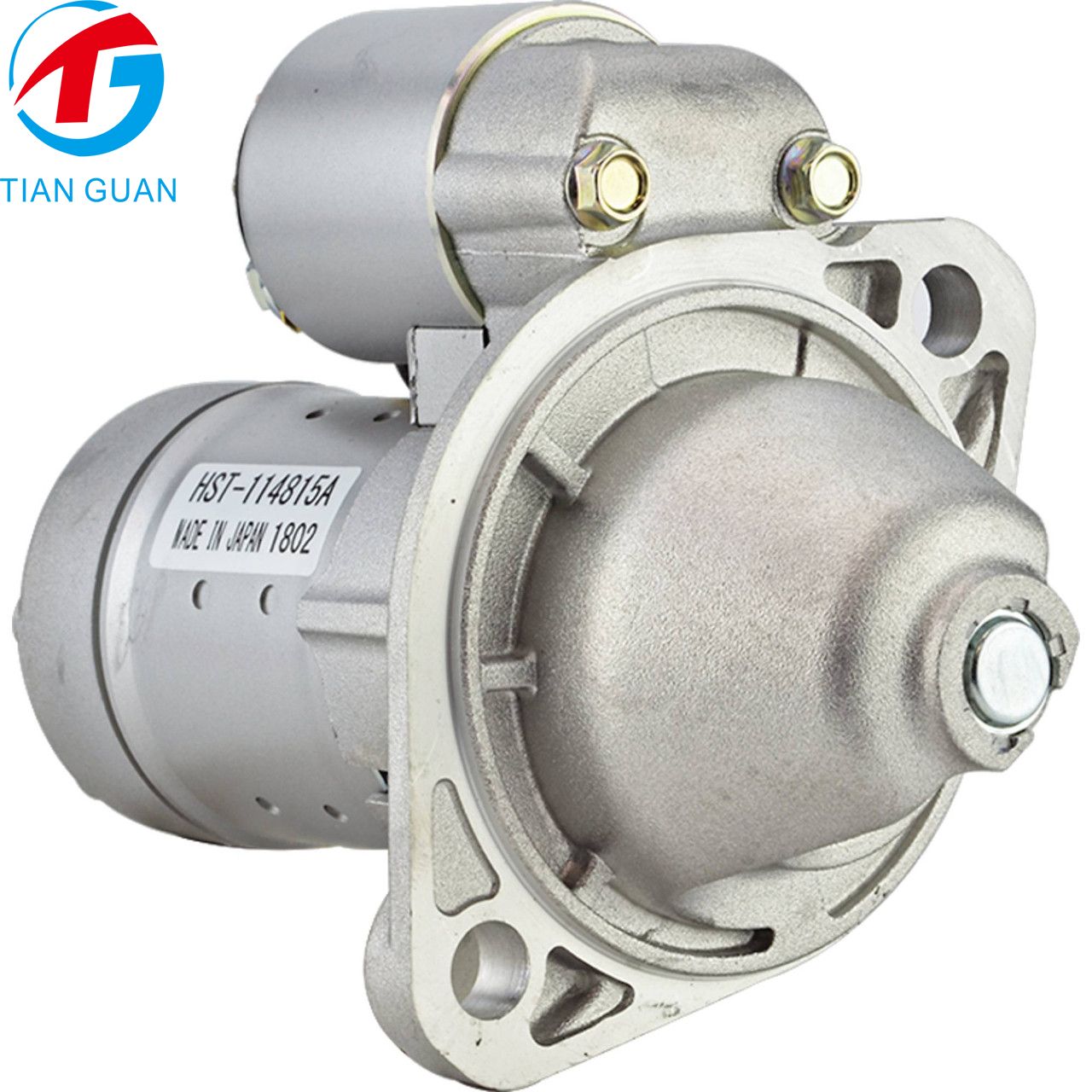

Starter Motor – 12V PMGR | 1.4 kW | 11 Teeth
Replacement starter for Yanmar diesel engines, Case CX series mini excavators, John Deere compact tractors, Carrier Transicold refrigeration units, Thermo King units, New Holland excavators, and more.
Designed as a high-quality aftermarket solution with OEM-level performance and durability.

⭐ Product Features

Voltage: 12V
Power Output: 1.4 kW / 1.877 HP
Rotation: Clockwise
Starter Type: Permanent Magnet Gear Reduction (PMGR)
Number of Teeth: 11
Gear OD: 34 mm / 1.339"
Length: 192 mm / 7.559"
Mounting Holes: Unthreaded
Mount Ear Distance: 120 mm / 4.724"
Condition: 100% New Aftermarket, High Durability

This unit provides reliable starting performance in all environments and is built to meet or exceed OEM specifications.

? Fits Engine Models

This starter fits a wide range of Yanmar diesel engines including:

2QM20 / 2QM20H / 2QM20Y
2YM15
3JH2 / 3JH2BE / 3JH2E
3JH3 / 3JH3E / 3JH3Z
3YM20 / 3YM30
3T84C / 3TN84 / 3TNE84 / 3TNE88
4JH / 4JH2 series / 4JH3 series
4T95
4TNE84 / 4TNE88
Additional Yanmar industrial and marine engines

? Fits Equipment

Case / Case IH

CX27B
CX31B
CX36B

Cub Cadet

EX2900, EX3200
EX450
LX410, LX450
SX3100

John Deere (wide compatibility list)

Compact tractors, mowers & grounds care units including:
1203, 1505, 1515, 1565
1570 / 1575 / 1580 / 1585 TerrainCut
1600 / 1620
1905
2027R / 2032R
2520 / 2720
3005
3011-3015 Series
3032E / 3033R / 3038E / 3038R / 3039R
3045R / 3046R
3120 / 3320 / 3520 / 3720
4200 / 4210 / 4300 / 4310 / 4400 / 4410
650 / 670 / 750 / 770 / 790 / 8000 Series
850 / 855 / 856 / 870 / 900 / 900HC / 955
F1145
Z997R
And additional John Deere diesel models powered by Yanmar engines.

Carrier Transicold

MD / KD / RD / TD / TS / Various units with Yanmar 37–39 engines

Thermo King

HK-30 / HK-60 / HK-100
KD-II Series
MD-II Series
RD-II Series
TD-II Series
SS-IV
And many units using TK/Yanmar diesel engines

New Holland

E27B
E30B
E35B

? Cross Reference Part Numbers

This starter replaces the following OEM & aftermarket numbers:

Arrowhead

HST114815A, IMI214-007, SHI0081

Doosan

5864002200

EMP

11780

Hitachi

HST114815A, S114-815, S114-815A

Isuzu

5864002200

J&N

410-44021

Komatsu

YM129698-77010

Lester

18219

Lucas Electric

LRS01531

Yanmar

129698-77010

MAKE	TYPE	MODEL	YEAR	ENGINE
Carrier Transicold		JD	Yanmar 374 / 39
Carrier Transicold		KD	Yanmar 374 / 39
Carrier Transicold		MD	Yanmar 374 / 39
Carrier Transicold		RD	Yanmar 374 / 39
Carrier Transicold		TD	Yanmar 374 / 39
Carrier Transicold		TS	Yanmar 374 / 39
Carrier Transicold		Various Models	Yanmar 37
Carrier Transicold		Various Models	Yanmar 39
Case IH		CX27B	V8 3TNV8	2005
Case IH		CX27B	Yanmar 3TNV8
Case IH		CX31B	V8 3TNV8	2005
Case IH		CX31B	Yanmar 3TNV8
Case IH		CX36B	V8 3TNV8	2005
Case IH		CX36B	Yanmar 3TNV8
Cub Cadet		EX2900	Yanmar 1.6L Ds
Cub Cadet		EX3200	Yanmar 1.6L Ds
Cub Cadet		EX450	Yanmar 2.2L Ds
Cub Cadet		LX410	Yanmar 2.2L Ds
Cub Cadet		LX450	Yanmar 2.2L Ds
Cub Cadet		SX3100	Yanmar 1.6L Ds
John Deere		1203	Al
John Deere		1505	Yanmar 41.5HP Diese
John Deere		1515	Yanmar 41.5HP Diese
John Deere		1565	Yanmar 36HP Diese
John Deere		1570 TerrainCut	Yanmar 37.4HP Diese
John Deere		1570 TerrainCut	Yanmar 37.4HP Diese
John Deere		1575 TerrainCut	Yanmar 37.4HP Diese
John Deere		1575 TerrainCut	Yanmar 37.4HP Diese
John Deere		1580 TerrainCut	Yanmar 37.4HP Diese
John Deere		1580 TerrainCut	Yanmar 37.4HP Diese
John Deere		1585 TerrainCut	Yanmar 37.4HP Diese
John Deere		1585 TerrainCut	Yanmar 37.4HP Diese
John Deere		1600 Turbo	Yanmar 64HP Ds
John Deere		1600	Yanmar 51HP Ds
John Deere		1620	Yanmar 51HP Ds
John Deere		1905	Yanmar 47HP Diese
John Deere		2027R	Yanmar 27HP Ds
John Deere		2032R	Yanmar 3TNV88 Ds
John Deere		2520	Yanmar 26.4HP Ds
John Deere		2720	Yanmar 31.4HP Ds
John Deere		3005	Yanmar 27.5HP Ds
John Deere		3011	Al
John Deere		3012	Al
John Deere		3014	Al
John Deere		3014	Al
John Deere		3015	Al
John Deere		3015	Al
John Deere		3032E	Yanmar 31.4HP Ds
John Deere		3033R	Yanmar 32.2HP Ds
John Deere		3038E	Yanmar 37.1HP Ds
John Deere		3038R	Yanmar 37.1HP Ds
John Deere		3039R	Yanmar 38.7HP Ds
John Deere		3045R	Yanmar 44.6HP Ds
John Deere		3046R	Yanmar 45.3HP Ds
John Deere		3120	Yanmar 29.5HP Ds
John Deere		3215B	JD Series 220 26HP Ds
John Deere		3225B	JD Series 220 32HP Ds
John Deere		3225C	JD Series 220 38.5HP Ds
John Deere		3235B	JD Series 220 39HP Ds
John Deere		3235C	JD Series 220 48HP Ds
John Deere		3245C	JD Series 220 48HP Ds
John Deere		3320	Yanmar 32.8HP Ds
John Deere		3520	Yanmar 37.1HP Ds
John Deere		3720	Yanmar 44.0HP Ds
John Deere		4019	Al
John Deere		4019	Al
John Deere		4020	Al
John Deere		4105	Yanmar 40.5HP Ds
John Deere		4115	Yanmar 24HP Ds
John Deere		4200	Yanmar 26HP Ds
John Deere		4210	Yanmar 28HP Ds
John Deere		4300	Yanmar 32HP Ds
John Deere		4310	Yanmar 32HP Ds
John Deere		4400	Yanmar 35HP Ds
John Deere		4410	Yanmar 35HP Ds
John Deere		4475	Yanmar 31HP Diese	1994, 1995, 1996, 1997, 1998
John Deere		5575	Yanmar 36HP Diese	1995, 1996, 1997, 1998
John Deere		650	Yanmar 3T90 Ds	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
John Deere		670	Yanmar 3TNA72 Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
John Deere		7200 Trim & Surrounds Mower	Yanmar 26.4HP Ds
John Deere		7400 TerrainCut & Surrounds Mower	Yanmar 37.1HP Ds
John Deere		7400 TerrainCut	Yanmar 37.1HP Ds
John Deere		7400A TerrainCut	Yanmar 41.6HP Ds
John Deere		7400A TerrainCut	Yanmar 41.6HP Ds
John Deere		750	Yanmar 3T80 Ds	1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
John Deere		7500 E-Cut Hybrid	Yanmar 37.1HP Ds
John Deere		7500 PrecisionCut	Yanmar 37.1HP Ds
John Deere		7500A E-Cut Hybrid	Yanmar 41.6HP Ds
John Deere		7500A E-Cut Hybrid	Yanmar 41.6HP Ds
John Deere		7500A PrecisionCut	Yanmar 41.6HP Ds
John Deere		7500A PrecisionCut	Yanmar 41.6HP Ds
John Deere		770	Yanmar 3TN82 Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
John Deere		7700 PrecisionCut	Yanmar 37.1HP Ds
John Deere		7700A PrecisionCut	Yanmar 41.6HP Ds
John Deere		7700A PrecisionCut	Yanmar 41.6HP Ds
John Deere		790	Yanmar 27HP Ds
John Deere		790	Yanmar 30HP Ds
John Deere		8000 E-Cut Hybrid	Yanmar 37.1HP Ds
John Deere		8000A E-Cut Hybrid	Yanmar 41.6HP Ds
John Deere		8000A E-Cut Hybrid	Yanmar 41.6HP Ds
John Deere		8400 Triple Mower	Yanmar 35HP Ds
John Deere		850	Yanmar 3T80 Ds	1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
John Deere		8500 E-Cut Hybrid	Yanmar 43.1HP Ds
John Deere		8500 PrecisionCut	Yanmar 43.1HP Ds
John Deere		855	Yanmar 3T72 Ds	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
John Deere		856	Yanmar 3T72 Ds	1986, 1987, 1988, 1989, 1990
John Deere		870	Yanmar 3TN84 Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
John Deere		8700 PrecisionCut	Yanmar 43.1HP Ds
John Deere		8700A PrecisionCut	Yanmar 55.1HP Ds
John Deere		8800 TerrainCut Rough Mower	Yanmar 43.1HP Ds
John Deere		8800 TerrainCut	Yanmar 43.1HP Ds
John Deere		8800A TerrainCut	Yanmar 55.1HP Ds
John Deere		900	Al
John Deere		900HC	JD 3-79 Ds	1986, 1987, 1988, 1989
John Deere		955	Yanmar 3TN84RJ Ds	1990, 1991, 1992, 1993, 1994, 1995
John Deere		970	Yanmar 4TN82 Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
John Deere		997	Yanmar 30HP Ds
John Deere		F1145	Yanmar 3TN7
John Deere		F1145	Yanmar 3TN7
John Deere		F1145	Yanmar 3TNE78
John Deere		Z997R	Yanmar 37.4HP Diese
John Deere		Z997R	Yanmar 37.4HP Diese
New Holland	E27B	Yanmar 3TNV82A 21.6HP Ds
New Holland	E30B
New Holland	E35B	Yanmar 3TNV88 28.43HP Ds
Thermo King	Heat King
Thermo King	HK-100	TK 2.44 Diese
Thermo King	HK-30	TK 2.44 Diese
Thermo King	HK-60	TK 2.44 Diese
Thermo King	KDII 30 MAX	TK 3.66 Diese
Thermo King	KDII 50 MAX	TK 3.66 Diese
Thermo King	KD-II MAX	Yanmar 366 (TK 3.66) Diese
Thermo King	KD-II	Yanmar 366 (TK 3.66) Diese
Thermo King	LND II 50	Yanmar 388 (TK 3.88) Diese
Thermo King	MD-II TCI	Yanmar 366 (TK 3.66) Diese
Thermo King	MD-II	Yanmar 366 (TK 3.66) Diese
Thermo King	RD-II MAX SR	Yanmar 388 (TK 3.88) Diese
Thermo King	RD-II MAX	Yanmar 388 (TK 3.88) Diese
Thermo King	RD-II TCI	Yanmar 388 (TK 3.88) Diese
Thermo King	RD-II TCI-Z
Thermo King	RD-II	Yanmar 388 (TK 3.88) Diese
Thermo King	SSIV	Yanmar 3T8
Thermo King	TD-II 30 MAX
Thermo King	TD-II 50 MAX
Thermo King	TD-II	Yanmar 388 (TK 3.88) Diese
Yanmar	2QM20	2cyl 1.094L Diese	1975, 1976, 1977, 1978, 1979, 1980
Yanmar	2QM20H	2cyl 1.094L Diese	1975, 1976, 1977, 1978, 1979, 1980
Yanmar	2QM20Y	2cyl 1.094L Diese	1975, 1976, 1977, 1978, 1979, 1980
Yanmar	2T80
Yanmar	2YM15	2cyl Diese
Yanmar	2YM15	2-Cyl Diesel , Diese	2004
Yanmar	3JH2	3cyl Diese	1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar	3JH2BE	3cyl Diese	1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar	3JH2E	3cyl Diese	1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yanmar	3JH3	3cyl Diese	1999, 2000, 2001, 2002, 2003
Yanmar	3JH3	3-Cyl Diesel , Diese	1999, 2000, 2001, 2002, 2003
Yanmar	3JH3E	3cyl Diese
Yanmar	3JH3E	3-Cyl Diesel , Diese
Yanmar	3JH3E-YEU	3cyl Diese
Yanmar	3JH3E-YEU	3-Cyl Diesel , Diese
Yanmar	3JH3Z	3cyl Diese
Yanmar	3JH4E	3cyl Diese
Yanmar	3JH4E	3-Cyl Diesel , Diese	2003
Yanmar	3T84C	3cyl Diese
Yanmar	3TN84
Yanmar	3TNE84	3cyl Diese
Yanmar	3TNE88	3cyl Diese
Yanmar	3TNE88
Yanmar	3TNE88		1997
Yanmar	3YM20	3cyl Diese
Yanmar	3YM20	3-Cyl Diesel , Diese	2004
Yanmar	3YM30	3cyl 68ci 1.116
Yanmar	3YM30	1100cc, 1.1L/68CI 3-Cyl Diesel , Diesel	2004
Yanmar	4JH	4cyl Diese
Yanmar	4JH2-CE	4cyl Diese
Yanmar	4JH2-DTE	4cyl Diese
Yanmar	4JH2-E	4cyl Diese
Yanmar	4JH2-HTE	4cyl Diese
Yanmar	4JH2L-HTNE	4cyl Diese
Yanmar	4JH2L-TNE	4cyl Diese
Yanmar	4JH2-TE	4cyl Diese
Yanmar	4JH2-UTE	4cyl Diese
Yanmar	4JH3	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3-CE	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3-DTE	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3E	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3E	4-Cyl Diesel , Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3-HTE	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3-TCE	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3-TE	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3-TE-YEU	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH3ZA	4cyl Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Yanmar	4JH-HT-Z	4cyl Diese
Yanmar	4JH-T	4cyl Diese
Yanmar	4JH-TZ	4cyl Diese
Yanmar	4JHZ	4cyl Diese
Yanmar	4T95	4cyl Diese	1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Yanmar	4TNE84	4cyl 1.995L Diese
Yanmar	4TNE88	4cyl 2.190L Diese
Yanmar	4TNE88	4cyl 2.190L Diese
Yanmar	4TNE88
Yanmar	4TNE88		1997
Yanmar	KH18-A
Yanmar	KM3A
Yanmar	TC3000	3T84C Engin
Yanmar	UJH2E
Yanmar	Y-5M
Yanmar	YM1700	2TR17 Engin	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990
Yanmar	YM2000	2TR20 Engin	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990

PRODUCT HIGHLIGHTS
SHIPPING

Item Details

Processing Time Orders are processed within 1-3 business days after payment confirmation

Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight

Estimated Delivery Time Express shipping: 3-7 business days, depending on destination

Packaging Export-standard cartons with protective inner packing

Tracking Tracking number will be provided once the order is shipped

Shipping Cost Calculated based on weight, dimensions, and destination

Need Help?

Our product experts will respond to your email within 24 business hours.

Question *

Name *

Email *

Verification code *

WARRANTY POLICY

All new aftermarket parts come with a 1-Year warranty. Quality is the first thing we consider. Check out our Warranty Assistance for more details.

SHIPPING POLICY

We offer express and standard shipping options to ensure your off-road machine gets back in action—fast and reliably. For more details, please visit our Shipping Policy .

EASY RETURN POLICY

We prioritize your satisfaction. If your order doesn't meet your expectations within 90 days, you may be eligible for a refund. See our Easy Return Policy for details.

PRODUCT RECOMMENDATION
