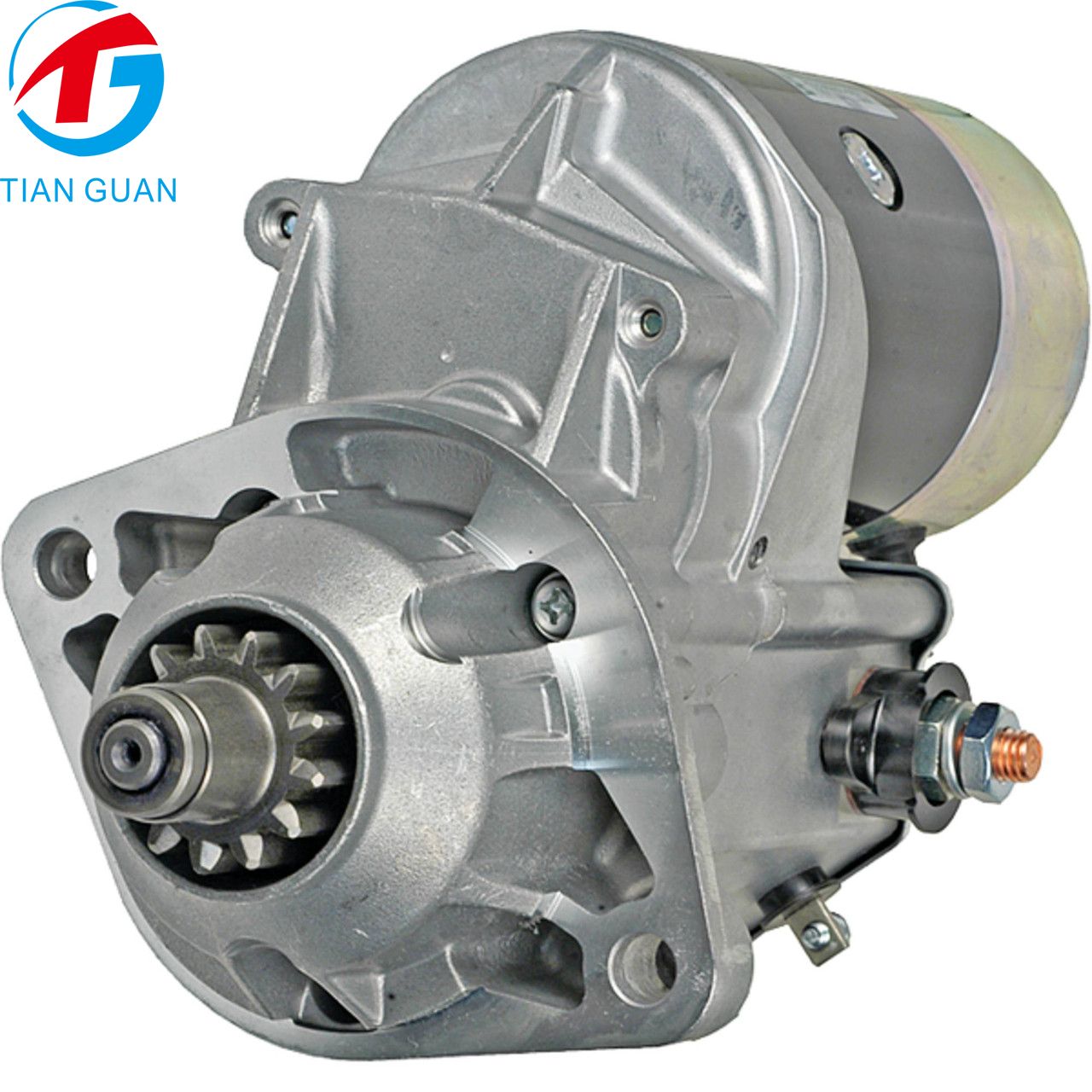

STG53313 Starter Motor AS228000-4671 228000-4671 16990 for Case International Harvester 1840 | 12V 2.7KW 13T CW OSGR Replacement

3 Reviews

Add Your Review

US$148.00

ITEMNO： STG53313

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53313 Starter Motor AS228000-4671 228000-4671 16990 for Case International Harvester 1840 | 12V 2.7KW 13T CW OSGR Replacement

Part Numbers

Denso: AS228000-4671 / 228000-4671 / 228000-4670 / 280-8001 / 9722809-467
Arrowhead: ND228000-4671 / ND9722809-467 / NDAS228000-4671
Bosch: SR9948X
J & N: 410-52099
Lester: 16990
Atlantic Quality Parts: 1700-0104
Bluebird: 1769512

Product Description

STG53313 Starter Motor is a new aftermarket replacement designed for Case and International Harvester 1840 equipment, using the Denso-style offset gear reduction starter configuration.

Featuring a 12V, 2.7KW, 13-tooth, clockwise-rotation OSGR (Offset Gear Reduction) design, this starter provides high cranking torque for agricultural and construction equipment applications. The exact product listing for the Case/International Harvester 1840 confirms these specifications.

The starter is cross-referenced with Denso AS228000-4671 / 228000-4671, Bosch SR9948X, Lester 16990 and J&N 410-52099. Denso/Delco Remy catalog data also identifies 228000-4671 as a 12V, CW 29MT starter.

Product Specifications

Property	Value
Product Model	STG53313
Part Number	AS228000-4671 / 228000-4671
Unit Type	Starter Motor
Voltage	12V
Power Output	2.7KW
Number of Teeth	13T
Starter Type	OSGR
Rotation	CW
Starter Family	Denso 29MT
Gear Outside Diameter	39.1 mm
Mounting	2-Hole
Mounting Hole Size	10.5 mm
Battery Stud	M10-1.5 Threaded
Application	Heavy-Duty Equipment Starter
Compatible Model	Case / International Harvester 1840
Condition	New Aftermarket
Weight	8.5kg

OEM / Cross Reference Table

Brand / Category	Part Number
DENSO	AS228000-4671 / 228000-4671 / 228000-4670 / 280-8001 / 9722809-467
ARROWHEAD	ND228000-4671 / ND9722809-467 / NDAS228000-4671
BOSCH	SR9948X
J & N	410-52099
LESTER	16990
ATLANTIC QUALITY PARTS	1700-0104
BLUEBIRD	1769512

Compatible Applications

MAKE	TYPE	MODEL	YEAR	ENGINE
Blue Bird Bus		All Models (By Engine)	Cummins 5.9L Ds
Case IH		1840	390 Diese	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		1840	390 Diesel , Diese	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		1845C	390 Diese	1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		1845C	390 Diesel , Diese	1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		40XT	390 Diese
Case IH		450C	4-390 Diese	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Case IH		450C	4-390 Diesel , Diese	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Case IH		455C	4-390 Diese	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Case IH		455C	4-390 Diesel , Diese	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Case IH		480E Construction King	4-390 Diese	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Case IH		480E Construction King	4-390 Diesel , Diese	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Case IH		480E LL Construction King	4-390 Diese	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Case IH		480E LL Construction King	4-390 Diesel , Diese	1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Case IH		480F Construction King	4-390 Diese	1989, 1990, 1991, 1992, 1993, 1994
Case IH		480F Construction King	4-390 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994
Case IH		480F LL Construction King	4-390 Diese	1989, 1990, 1991, 1992, 1993, 1994
Case IH		480F LL Construction King	4-390 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994
Case IH		550	4-390 Diese	1989, 1990, 1991
Case IH		550	4-390 Diesel , Diese	1989, 1990, 1991
Case IH		550E	4-390 Diese	1992, 1993, 1994, 1995
Case IH		550E	4-390 Diesel , Diese	1992, 1993, 1994, 1995
Case IH		550G	4-390 Diese	1995, 1996, 1997, 1998, 1999, 2000
Case IH		550G	4-390 Diesel , Diese	1995, 1996, 1997, 1998, 1999, 2000
Case IH		550H	4-390 Diese
Case IH		550H	4-390 Diese
Case IH		550H	4-390 Diesel , Diese	1999
Case IH		550H	4-390 Diesel , Diese	1999
Case IH		570LXT Series II	390 Diese
Case IH		570LXT Series II	390 Diesel , Diese	1998
Case IH		570LXT	390 Diese	1995, 1996, 1997, 1998, 1999
Case IH		570LXT	390 Diesel , Diese	1995, 1996, 1997, 1998, 1999
Case IH		570MXT	390 Diese
Case IH		570MXT	390 Diesel , Diese	1998
Case IH		580K	4-390 Diese	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Case IH		580K	4-390 Diesel , Diese	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Case IH		580L Series II	4-390 Diese
Case IH		580L Series II	4-390 Diesel , Diese	1998
Case IH		580L	4-390 Diese	1995, 1996, 1997, 1998, 1999
Case IH		580L	4-390 Diesel , Diese	1995, 1996, 1997, 1998, 1999
Case IH		580M	445/M
Case IH		580M	Case 445/M
Case IH		580SE
Case IH		580SE
Case IH		580SK
Case IH		580SK
Case IH		580SL Series II
Case IH		580SL Series II
Case IH		580SL
Case IH		580SL
Case IH		580SM	445T/M
Case IH		580SM	Case 445T/M
Case IH		584E	390 Diese	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		584E	390 Diesel , Diese	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		585E	390 Diese	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		585E	390 Diesel , Diese	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		585G	390 Diese	1999, 2000
Case IH		585G	390 Diesel , Diese	1999, 2000
Case IH		586E	390 Diese	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		586E	390 Diesel , Diese	1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Case IH		586G	390 Diese	1999, 2000
Case IH		586G	390 Diesel , Diese	1999, 2000
Case IH		590 Turbo
Case IH		590 Turbo
Case IH		590CK
Case IH		590CK		1992
Case IH		590SL Series II
Case IH		590SL Series II		1998
Case IH		590SL
Case IH		590SL		1995
Case IH		590SM	445T/M
Case IH		590SM	Case 445T/M
Case IH		6000	390 Diese	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Case IH		6000	390 Diesel , Diese	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Case IH		60XT	390 Diese
Case IH		650	4-390 Diese	1989, 1990, 1991
Case IH		650	4-390 Diesel , Diese	1989, 1990, 1991
Case IH		6500	390 Diese	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Case IH		6500	390 Diesel , Diese	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Case IH		650G	4-390 Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000
Case IH		650G	4-390 Diesel , Diese	1994, 1995, 1996, 1997, 1998, 1999, 2000
Case IH		650H	4-390 Diese	2000, 2001, 2002, 2003
Case IH		650H	4-390 Diesel , Diese	2000, 2001, 2002, 2003
Case IH		650K	4-390 Diese	2003, 2004, 2005, 2006, 2007
Case IH		650K	4-390 Diesel , Diese	2003, 2004, 2005, 2006, 2007
Case IH		650K	4T-39	2003
Case IH		650K	Case 4T-39
Case IH		660	390 Diese	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Case IH		70XT	390 Diese
Case IH		750H	4-39	2000, 2001, 2002, 2003
Case IH		750H	4-39	2000, 2001, 2002, 2003
Case IH		750H	Case 4-39	2000, 2001, 2002, 2003
Case IH		750H	Case 4-39	2000, 2001, 2002, 2003
Case IH		750K	4T-39	2002
Case IH		750K	4T-39	2002
Case IH		750K	Case 4T-39
Case IH		750K	Case 4T-39
Case IH		75XT	390 Diese	1998, 1999, 2000, 2001
Case IH		760	390 Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Case IH		760	390 Diesel , Diese	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Case IH		85XT	390 Diese	1998, 1999, 2000, 2001
Case IH		860	390 Diese	1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Case IH		8830	Diesel , Diese	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Case IH		8830	Diesel Engine	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Case IH		8840	Diesel , Diese	1987, 1988, 1989, 1990, 1991, 1992, 1993
Case IH		8840	Diesel Engine	1987, 1988, 1989, 1990, 1991, 1992, 1993
Case IH		90XT	390 Diese	1998, 1999, 2000, 2001
Case IH		95XT	390 Diese	1998, 1999, 2000, 2001
Case IH		W11B	390 Diese	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Case IH		W11B	390 Diesel , Diese	1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Cummins	B Series	3.9
Cummins	B Series	5.9
Cummins	B Series	3900cc, 3.9L	1994
Cummins	B Series	5900cc, 5.9L	1994
Ford	276	4-239 Diese	1986, 1987, 1988, 1989, 1990, 1991, 1992
Ford	296C	Cummins 3.9	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
Freightliner	FC 80	Cummins 5.9L IS	1998, 1999, 2000, 2001
Freightliner	FC80	5882cc, 5.9L/359CI L6 ISB	1998, 1999, 2000, 2001
Freightliner	FL 50	Cummins 5.9L IS	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Freightliner	FL 50	Cummins 5.9L IS	2002, 2003, 2004
Freightliner	FL 60	Cummins 5.9L IS	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Freightliner	FL 60	Cummins 5.9L IS	2002, 2003, 2004
Freightliner	FL 70	Cummins 5.9L IS	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Freightliner	FL 70	Cummins 5.9L IS	2002, 2003, 2004, 2005
Freightliner	FL 80	Cummins 5.9L IS	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Freightliner	FL 80	Cummins 5.9L IS	2002, 2003, 2004
Freightliner	FL50	5882cc, 5.9L/359CI L6 ISB	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Freightliner	FL60	5882cc, 5.9L/359CI L6 ISB	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Freightliner	FL70	5882cc, 5.9L/359CI L6 ISB	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Freightliner	FL80	5882cc, 5.9L/359CI L6 ISB	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Kenworth	K300	Cummins 5.9L IS	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Kenworth	K300	Cummins 5.9L IS	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Kenworth	K300	5900cc, 5.9L/359CI L6 ISB	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Kenworth	T300	Caterpillar 312	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Kenworth	T300	Cummins 5.9L IS	2004, 2005, 2006, 2007
Sterling	Acterra 5500	5900cc, 5.9L/359CI L6 ISB	2001
Sterling	Acterra 6500	5900cc, 5.9L/359CI L6 ISB	2001
Sterling	Acterra 7500	5900cc, 5.9L/359CI L6 ISB	2001
Sterling	Acterra M5500 / 6500 / 7500 / 8500	Cummins 5.9L IS	2001
Sterling	Acterra M5500 / 6500 / 7500 / 8500	Cummins 5.9L IS	2002, 2003, 2004, 2005, 2006, 2007
Sterling	Acterra M8500	5900cc, 5.9L Cummins ISB	2001
Sterling	Cargo SC7000 / SC8000	Cummins 5.9L IS	1999, 2000, 2001
Sterling	Cargo SC7000 / SC8000	Cummins 5.9L IS	2002, 2003
Sterling	Cargo SC8000	5900cc, 5.9L Cummins ISB	1999, 2000, 2001
Sterling	SC7000 / SC8000	Cummins 5.9L IS	1999, 2000
Sterling	SC7000 Cargo	5900cc, 5.9L/359CI L6 ISB	1999, 2000, 2001
Sterling	SC8000	5900cc, 5.9L Cummins ISB	1999, 2000
Tug	GPU 400-100	Cummins QSB 6.7 Tier I, I
Tug	GPU 400-120	Cummins QSB 6.7 Tier I, I
Tug	GPU 400-90	Cummins B5.
Versatile	256
Versatile	276
Versatile	4700	Diesel , Diese

PRODUCT HIGHLIGHTS

Product Highlights

12V 2.7KW 13T OSGR Starter	Case / International Harvester Application	Denso 29MT Replacement
CW Rotation Design	Case 1840 Skid Steer Loader	AS228000-4671
39.1 mm Gear OD	Heavy-Duty Equipment Starting	228000-4671 / Lester 16990
