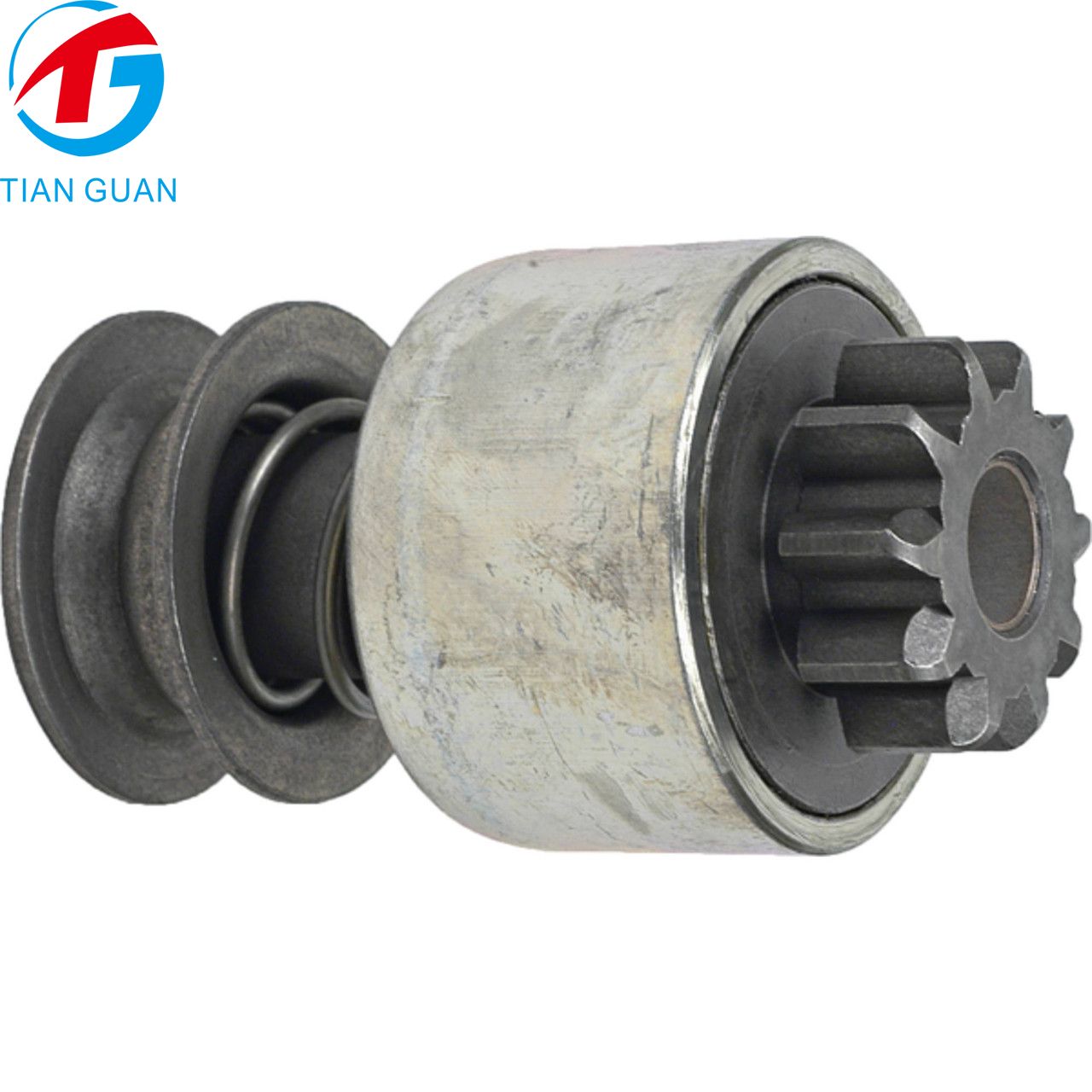

STG53317 Starter Drive Assembly 146484C1 220-12246 220-12028 for CaseIH Starter Motors | 10T 3-Spline Counterclockwise Heavy-Duty Ratchet Drive Replacement

3 Reviews

Add Your Review

US$49.00

ITEMNO： STG53317

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53317 Starter Drive Assembly 146484C1 220-12246 220-12028 for CaseIH Starter Motors | 10T 3-Spline Counterclockwise Heavy-Duty Ratchet Drive Replacement

Part Numbers

Brand	OEM / Cross-Reference Numbers
Arrowhead	220-12246
CaseIH	146484C1
J&N Electrical Products	220-12028, 220-12028R, 220-12104, 220-12104R, 220-12109, 220-12109R, 220-12311, 220-12409, 220-12410

Product Description

The STG53317 Drive Assembly is a new, heavy-duty aftermarket starter drive designed as a replacement component for compatible starter motors. Referencing CaseIH part number 146484C1 and Arrowhead 220-12246, this drive assembly is also cross-referenced with multiple J&N Electrical Products part numbers.

Featuring a 10-tooth gear, three spiral splines, counterclockwise rotation, and a ratchet-type drive mechanism, this assembly is designed to support proper engagement within compatible starter systems. Its specified dimensions help facilitate accurate replacement when matched with the original component.

Before ordering, verify the OEM reference number, gear dimensions, spline configuration, rotation direction, and starter compatibility to ensure proper fitment.

Product Specifications

Specification	Details
Product SKU	STG53317
Product Name	Starter Drive Assembly
Description	Drive Assembly
Condition	New Aftermarket
Rotation Direction	Counterclockwise (CCW)
Inner Diameter (ID)	0.563 in (14.300 mm)
Gear Outer Diameter (OD)	1.555 in (39.500 mm)
Length	3.799 in (96.500 mm)
Number of Teeth	10
Number of Splines	3
Spline Type	Spiral
Drive Type	Ratchet
Wet Clutch Seal	No
Construction	Heavy-Duty
Primary OEM Reference	CaseIH 146484C1
Cross-Reference Numbers	220-12246, 220-12028, 220-12028R, 220-12104, 220-12104R, 220-12109, 220-12109R, 220-12311, 220-12409, 220-12410
Estimated Net Weight	0.45 kg (450 g)

Manufacturer	Model / Reference	Component Type
CaseIH	146484C1	Starter Drive Assembly
Arrowhead	220-12246	Starter Drive Assembly
J&N Electrical Products	220-12028, 220-12028R	Starter Drive Assembly
J&N Electrical Products	220-12104, 220-12104R	Starter Drive Assembly
J&N Electrical Products	220-12109, 220-12109R	Starter Drive Assembly
J&N Electrical Products	220-12311, 220-12409, 220-12410	Starter Drive Assembly

PRODUCT HIGHLIGHTS

Feature	Description	Benefit
Heavy-Duty Design	Built for compatible starter drive applications	Supports dependable replacement performance
10-Tooth Gear	Precisely specified gear configuration	Helps ensure proper engagement when matched to the original
Three Spiral Splines	Counterclockwise ratchet-style drive assembly	Supports compatible starter drive operation
