STG53319 Starter 410-12752 61003201 8200031 8200037 SDR0476 SDR0477 for Ford L6000 L7000 L8000 L9000 Trucks Caterpillar 3176
Part Numbers
ARROWHEAD: 410-12752, SDR0476, SDR0477
DELCO: 61003201, 8200031, 8200037, 8200038, 8200088, 8200090, 8200091, 8200104, 8200288, 8200289, 8200290, 8200308, 8200319, 8200411, 8200647, 8201078, 8300009, 8300017, 8300019, 8300020
J & N: 410-12233, 410-12235, 410-12236, 410-12254, 410-12284, 410-12303, 410-12347, 410-12467, 410-12686, 410-12688, 410-12693, 410-12707, 410-12712
JANNCO: 410-12752N
LESTER: 6812, 6817, 6827, 6924
MITSUBISHI: M9T70579
Product Description

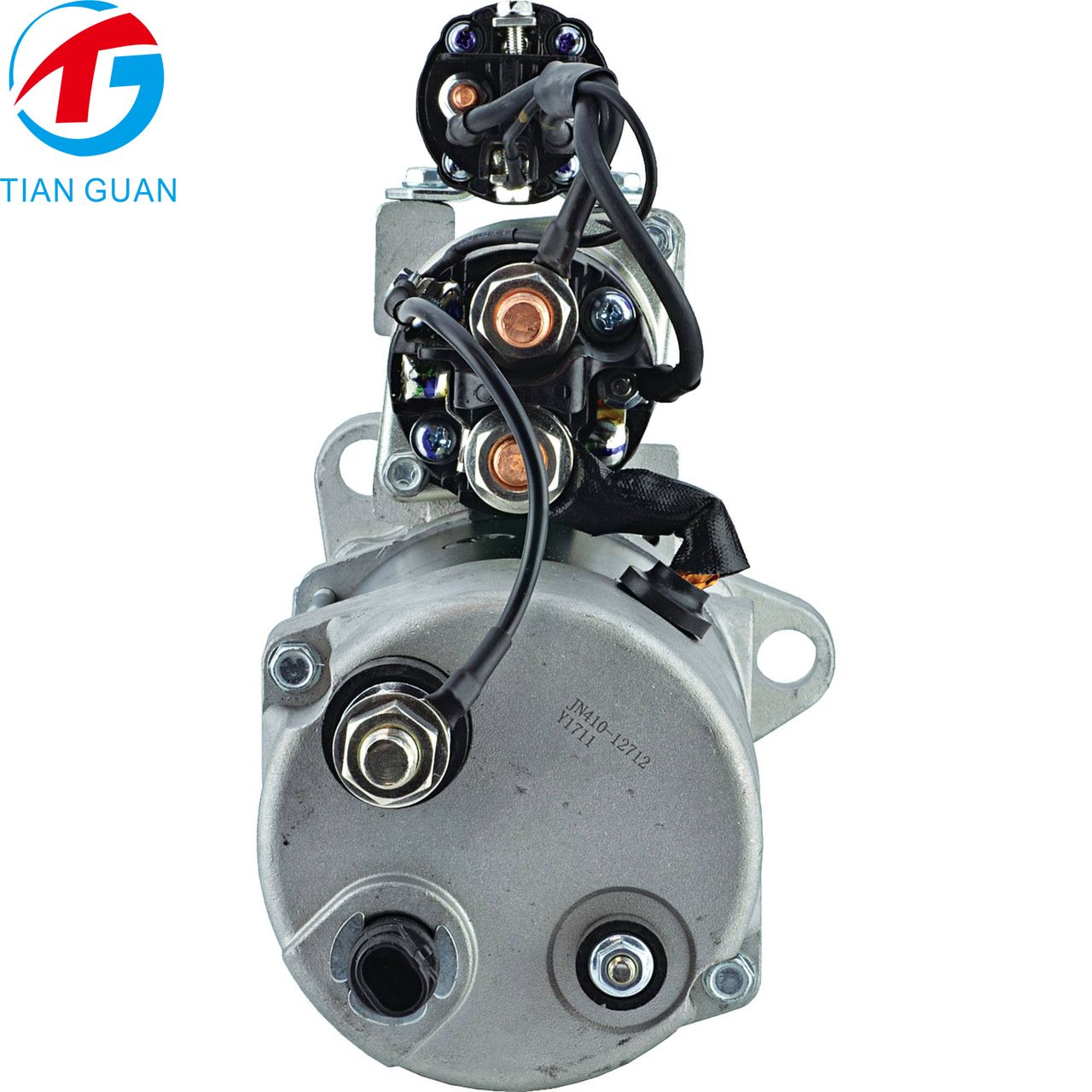

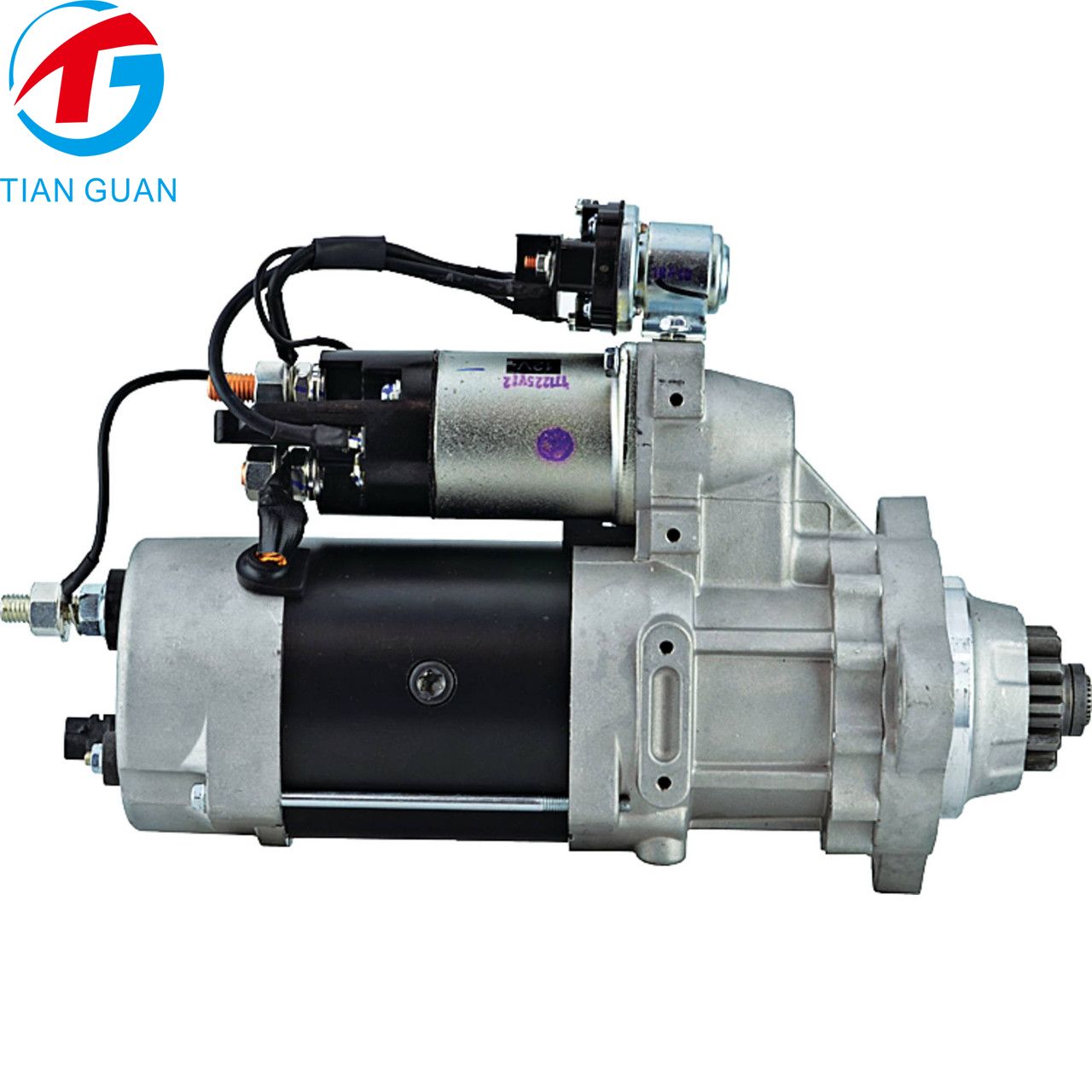

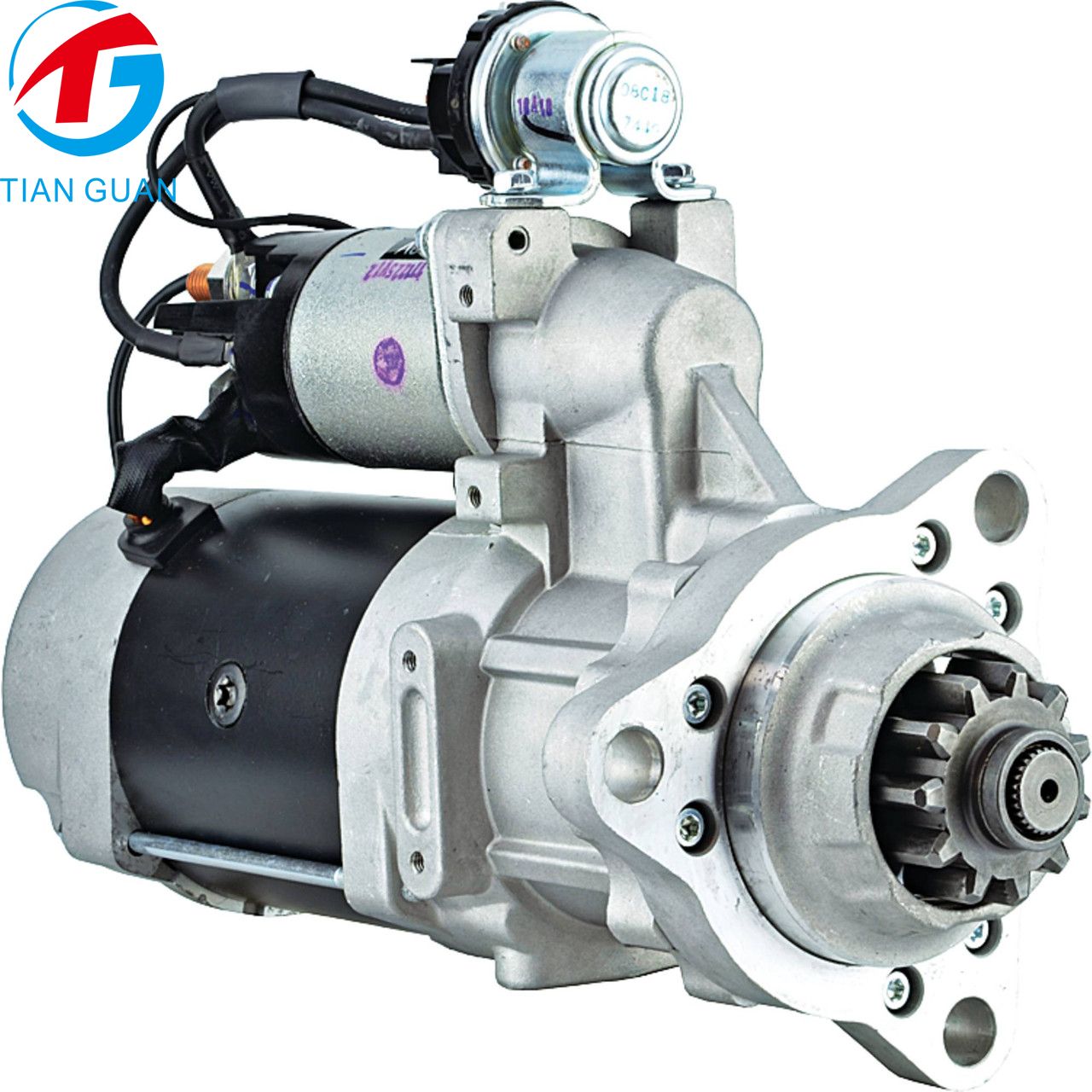

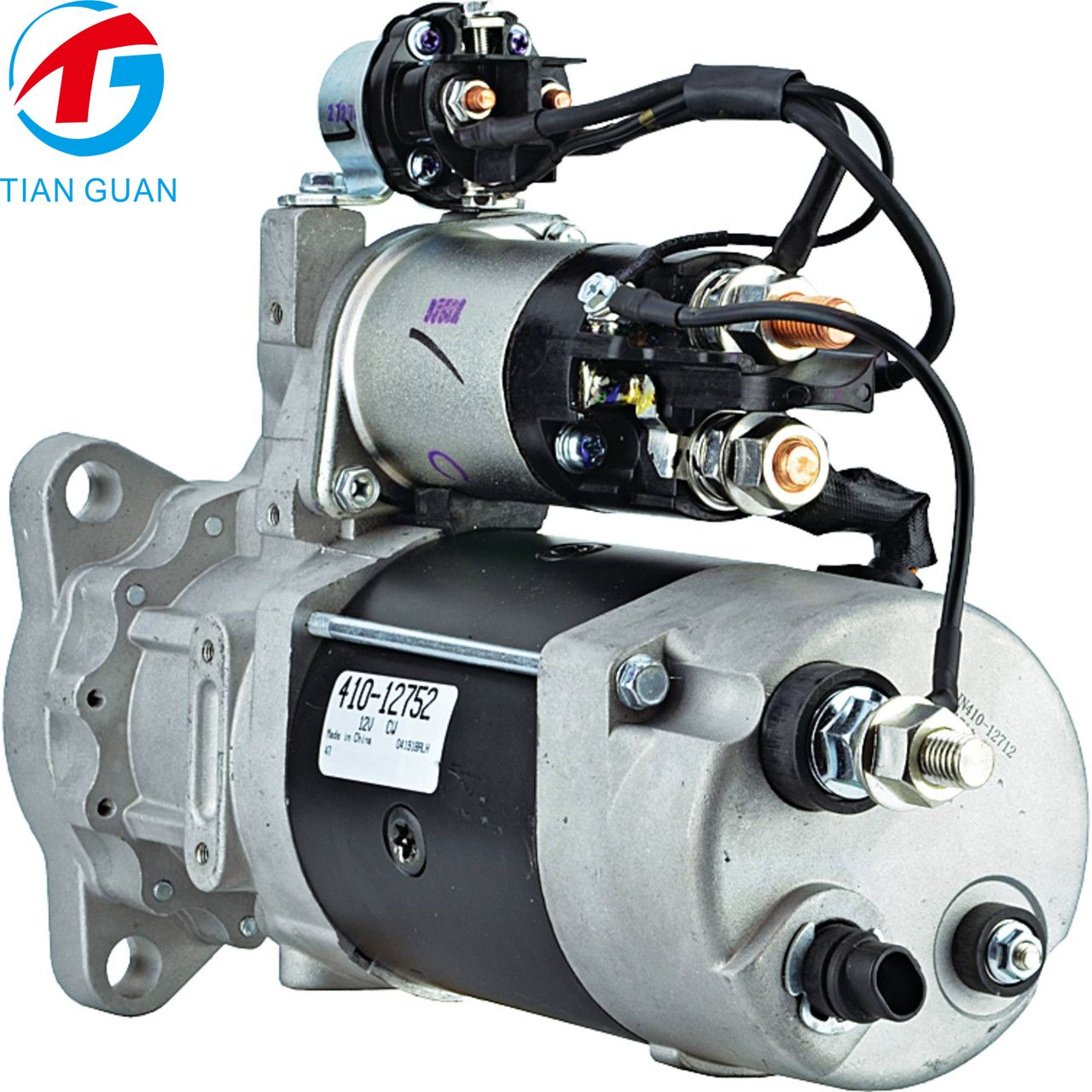

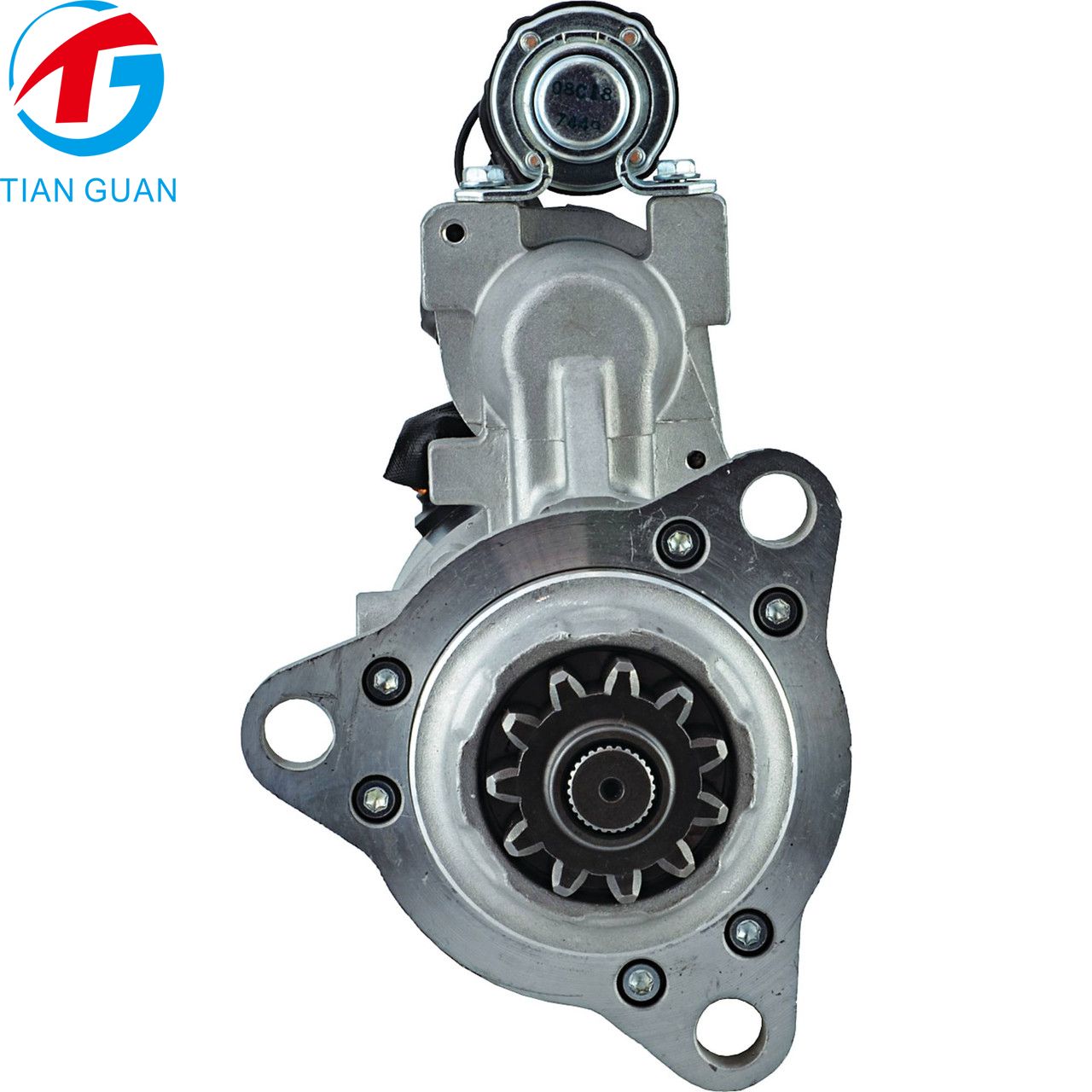

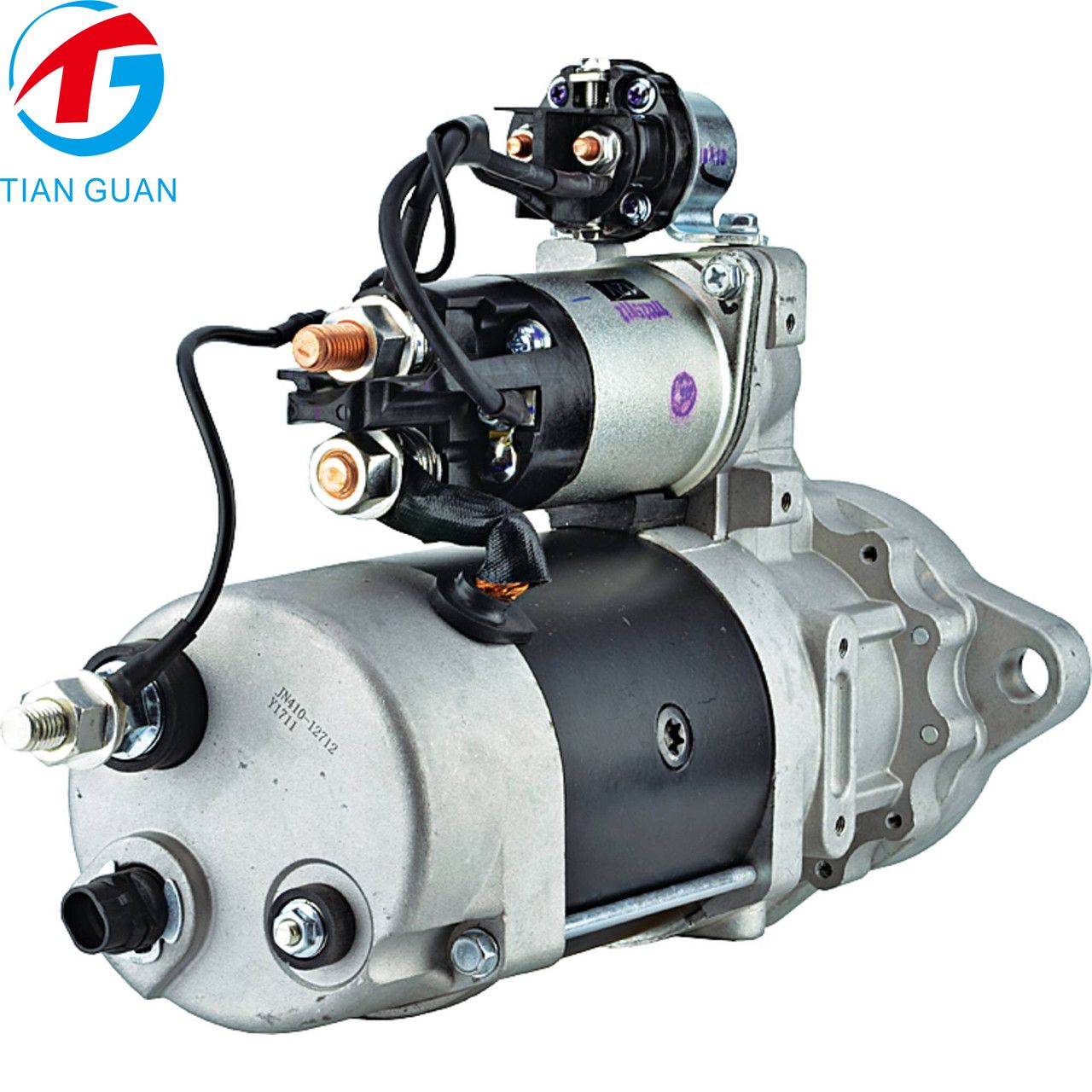

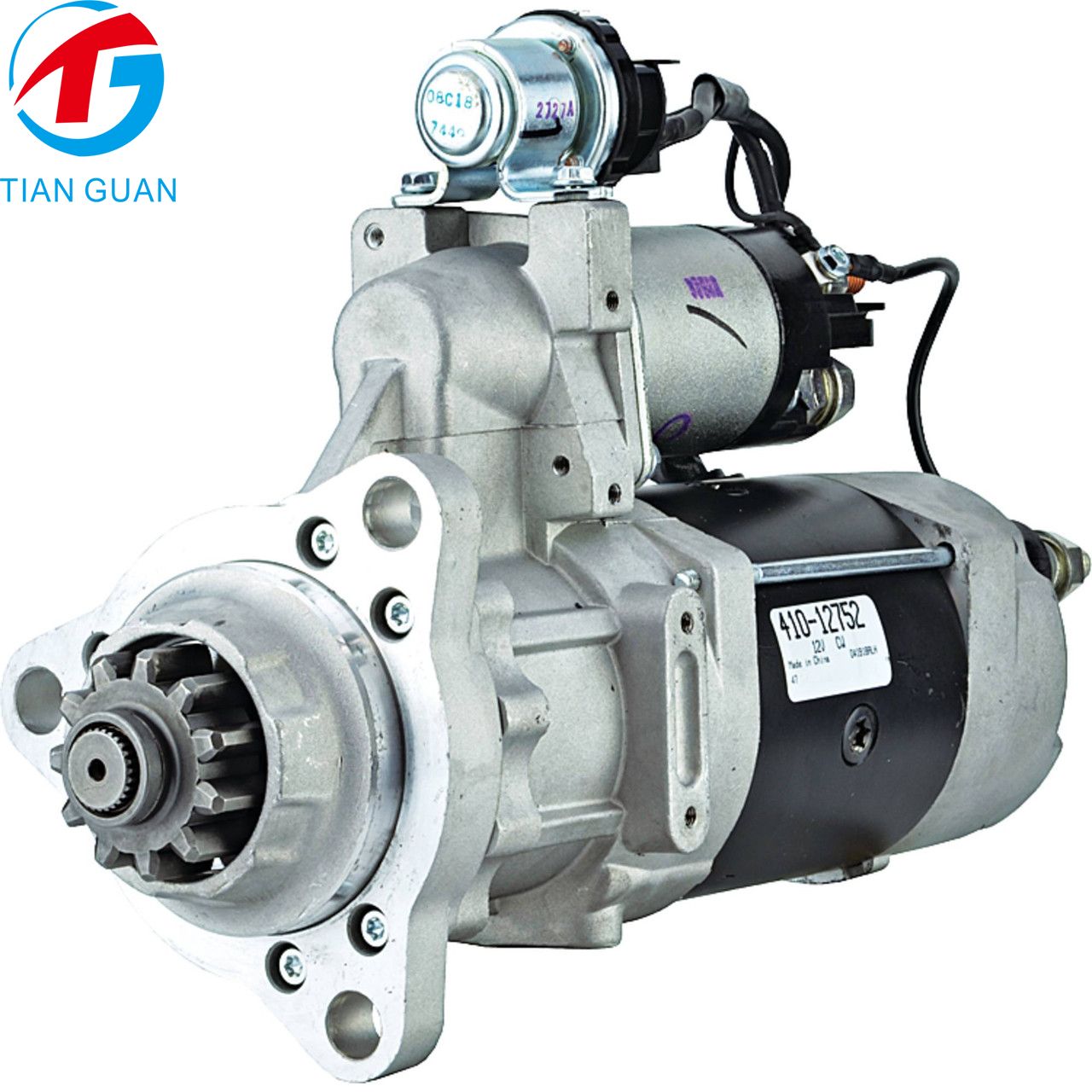

This premium aftermarket 12V 7.3KW Starter Motor is designed as a direct replacement for Ford L6000 / L7000 / L8000 / L9000 trucks and Freightliner applications with Caterpillar, Cummins, and Detroit Diesel engines. Built on the Delco 39MT family with Planetary Gear Reduction (PLGR) design, 11-tooth pinion gear, and clockwise rotation, it delivers fast, reliable engine starting and dependable performance in demanding heavy-duty truck applications.
This starter replaces OE part numbers 410-12752, SDR0476, SDR0477 (Arrowhead), 61003201, 8200031, 8200037, 8200038, 8200088, 8200090, 8200091, 8200104, 8200288, 8200289, 8200290, 8200308, 8200319, 8200411, 8200647, 8201078, 8300009, 8300017, 8300019, 8300020 (Delco), 410-12233, 410-12235, 410-12236, 410-12254, 410-12284, 410-12303, 410-12347, 410-12467, 410-12686, 410-12688, 410-12693, 410-12707, 410-12712 (J & N), 410-12752N (Jannco), 6812, 6817, 6827, 6924 (Lester), and M9T70579 (Mitsubishi).
12V starter motor
7.3KW power output
Delco 39MT family
Planetary Gear Reduction (PLGR) design
11-tooth pinion gear
Clockwise rotation
Gear OD: 2.193" / 55.700mm
Length: 14.323" / 363.800mm
Mount hole ID: 17mm, unthreaded (x3)
Registry OD: 3.622" / 92mm
Housing rotatable
Overcrank protection
Semi solid link
Wet clutch seal
Mounting ear distance: 128mm (x3)
Heavy duty quality
1 year warranty
Approx. 14.3 kg
Specifications
Item Condition: Aftermarket Part
Description: Starter
Family: Delco 39MT
Volt: 12V
Power: 7.300 KW
HP: 9.789
Condition: New
Quality Type: Heavy Duty
Rotation Direction: Clockwise
Electric Starter Type: Planetary Gear Reduction (PLGR)
Number of Teeth: 11
Gear OD: 2.193" / 55.700mm
Length: 14.323" / 363.800 mm
Mount Hole ID 1: 17mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 17mm
Mount Hole 3 Type: Unthreaded
Registry OD: 3.622" / 92mm
Housing Rotatable: TRUE
Overcrank Protection: TRUE
Semi Solid Link: TRUE
Wet Clutch Seal: TRUE
Warranty: 1 Year
Mounting Ear Distance 1: 128mm / 5.039"
Mounting Ear Distance 2: 128mm / 5.039"
Mounting Ear Distance 3: 128mm / 5.039"
Weight: 14.3KG
Fitment
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1990-1998 – Caterpillar 3176
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1993-1999 – Caterpillar 3406
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1997-1999 – Caterpillar C-10
Ford – L6000 / 7000 / 8000 / 9000 Trucks – 1985-1992 – Cummins 855 (NHC, NTC)
Ford – L-Series – 1990-1998 – Caterpillar 3176
Ford – L-Series – 1993-1999 – Caterpillar 3406
Ford – L-Series – 1997-1999 – Caterpillar C10
Ford – L-Series – 1985-1992 – Cummins 855 (NHC, NTC)
Ford – L-Series – 1990-1999 – Cummins N14
Ford – L-Series – 1990-1999 – Detroit Diesel 60 Series
Freightliner – Argosy – 2000-2003 – Caterpillar 3406 / C-10 / Cummins IS / DD 60 Series
Freightliner – C112 Century Class – 1996-2007 – Caterpillar 3176 / 3406 / C-10 / Cummins IS / L10 / M11 / N14 / DD 60 Series
Freightliner – C120 Century Class – 1996-2007 – Caterpillar 3176 / 3406 / C-10 / Cummins IS / L10 / M11 / N14 / DD 60 Series
Freightliner – Classic – 1993-2007 – Caterpillar 3176 / 3406 / C-10 / Cummins IS / L10 / M11 / N14 / DD 60 Series
Freightliner – Columbia – 1999-2007 – Caterpillar C-10 / Cummins IS / N14 / DD 60 Series
Freightliner – Coronado – 2003-2007 – Caterpillar C-10 / DD 60 Series
Freightliner – FL / FLC 112 / 120 – 1994-2003 – Caterpillar C-10 / Cummins IS / L10 / M11 / N14 / DD 60 Series
Freightliner – FL 106 – 1999-2003 – DD 50 Series
Freightliner – FL 112 – 1979-2003 – Caterpillar 3176 / 3406 / C10 / Cummins 855 / BC II / K Series / L10 / N14
Compatible with equipment using 410-12752, 61003201, 8200031, 8200037, SDR0476, SDR0477, 410-12752N, or M9T70579 starter motor part numbers.
