STG53343 Starter Drive Assembly 1CM11001B 220-14044 for Ford 2000 2030 4000 601 801 Series Tractors | 9T CCW Replacement

3 Reviews

Add Your Review

US$55.00

ITEMNO： STG53343

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    STG53343 Starter Drive Assembly 1CM11001B 220-14044 for Ford 2000 2030 4000 601 801 Series Tractors | 9T CCW Replacement

    Part Numbers

    Ford: 1CM11001A / 1CM11001B / 1CM11001C / 1CM11002 / 1CM11002A / 2900434 / 2900726 / 2900803 / 2900804 / 7EH11001B / 7EH11002B / 8EL11001 / 8EL11001B / B5C11002 / B6A11001A / B9NF11002 / B9NF11002A / B9SF11002A / C3NF11001D / C3NF11002H / FAC11001E / FAC11001F / FAC11001J / FAC11001K / FAC11001L / FAC11001N / FAC11001S / FAC11002A / FAE11001A / FAF11002B / FAG11001A / FAG11001B / FAG11001D / FAG11002A / FAG11002B / FAG11002D / FAG11002M / FAJ11001D / FAJ11002A / FAM11001 / FAU11001A / FAY11001B / FM10655 / FM10660 / ICM11350B / PB6M11002 / PB6M11002A / SA48 / SA520 / SA525 / SA547 / SD141 / SD3

    Arrowhead: 11R-BR553 / SPL5004

    Delco: 1960178

    Facet Drives: 10072 / 480179 / 480367 / A3257 / A3435

    J&N Electrical Products: 220-14009 / 220-14009R / 220-14024 / 220-14024R / 220-14039

    Prestolite: 59-146 / 59-195 / 59-248 / EBB174

    Product Description

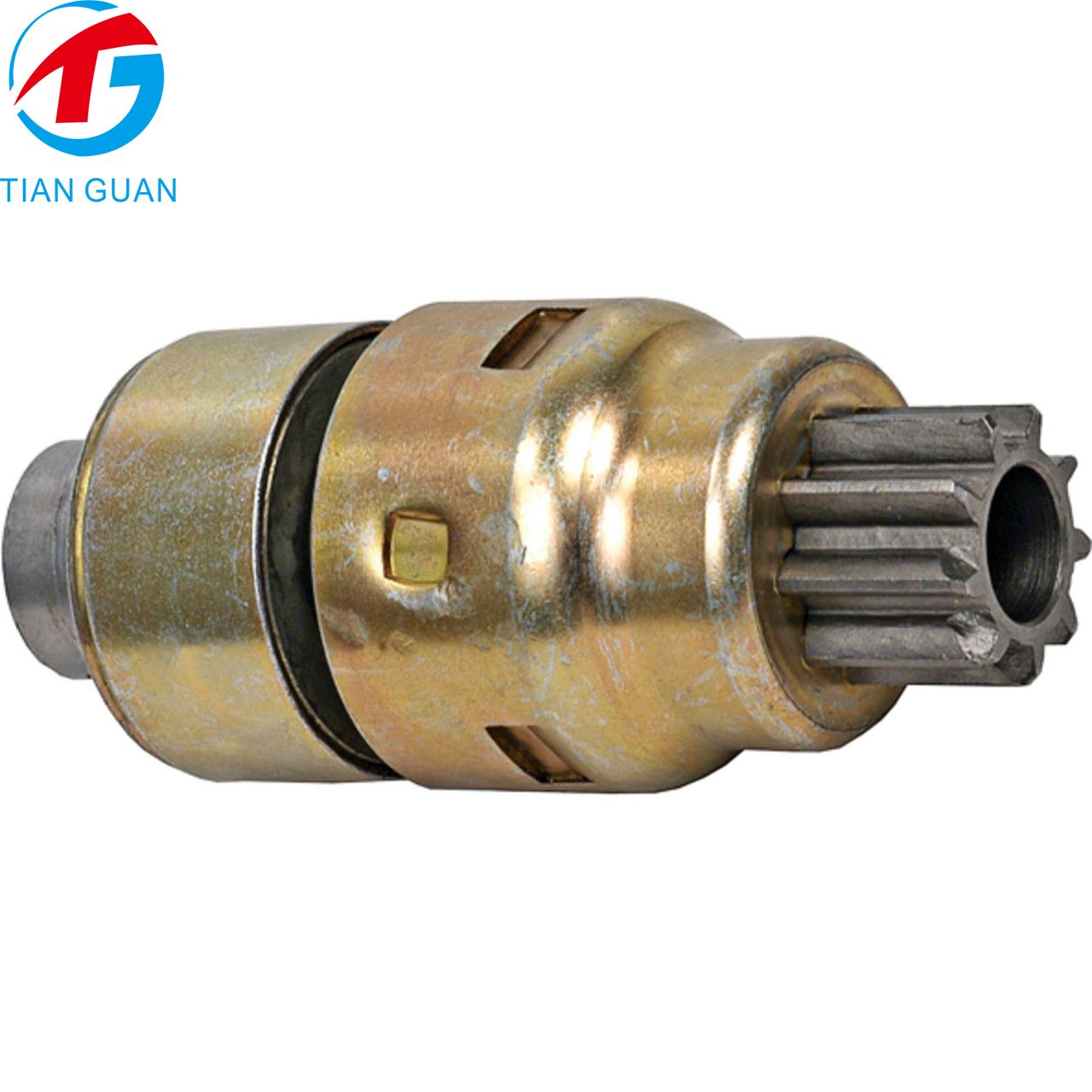

    The STG53343 Starter Drive Assembly is an aftermarket replacement drive component designed for compatible starter motors used in selected Ford tractors and New Holland agricultural equipment.

    This premium-quality drive assembly features a 9-tooth pinion, counterclockwise rotation, a rubber Folo-Thru drive design, and a straight pin at the large barrel end. Its specified dimensions include a 15.9mm internal diameter, 29.4mm gear outside diameter, and 121.9mm overall length.

    The assembly cross-references numerous Ford, Delco, Arrowhead, Facet Drives, J&N Electrical Products, and Prestolite part numbers. Confirm the original drive part number, tooth count, dimensions, and drive-end configuration before ordering.

    Product Specifications

    SpecificationDetails
    Product SKUSTG53343
    Product TypeStarter Drive Assembly
    ConditionNew Aftermarket Part
    Quality TypePremium
    Rotation DirectionCounterclockwise (CCW)
    Number of Pinion Teeth9T
    Drive TypeRubber Folo-Thru
    Internal Diameter15.9mm (0.626")
    Gear Outside Diameter29.4mm (1.157")
    Overall Length121.9mm (4.799")
    Drive-End ConfigurationStraight pin at large barrel end
    Wet Clutch SealNo
    Primary ApplicationsSelected Ford tractors and New Holland equipment
    Estimated Net WeightApprox. 0.5kg

    OEM / Cross Reference Numbers

    Brand / CategoryReference Part Numbers
    Ford1CM11001A, 1CM11001B, 1CM11001C, 1CM11002, 1CM11002A, 2900434, 2900726, 2900803, 2900804, 7EH11001B, 7EH11002B, 8EL11001, 8EL11001B, B5C11002, B6A11001A, B9NF11002, B9NF11002A, B9SF11002A, C3NF11001D, C3NF11002H, FAC11001E, FAC11001F, FAC11001J, FAC11001K, FAC11001L, FAC11001N, FAC11001S, FAC11002A, FAE11001A, FAF11002B, FAG11001A, FAG11001B, FAG11001D, FAG11002A, FAG11002B, FAG11002D, FAG11002M, FAJ11001D, FAJ11002A, FAM11001, FAU11001A, FAY11001B, FM10655, FM10660, ICM11350B, PB6M11002, PB6M11002A, SA48, SA520, SA525, SA547, SD141, SD3
    Arrowhead11R-BR553, SPL5004
    Delco1960178
    Facet Drives10072, 480179, 480367, A3257, A3435
    J&N Electrical Products220-14009, 220-14009R, 220-14024, 220-14024R, 220-14039
    Prestolite59-146, 59-195, 59-248, EBB174

    Compatible Applications

    MakeEquipment TypeModelYearEngine
    FordTractor20001961–1964144ci, 4-cylinder diesel
    FordTractor20301963–1964172ci, 4-cylinder diesel
    FordTractor20311960–1962172ci, 4-cylinder diesel
    FordTractor21201963–1964172ci, 4-cylinder diesel
    FordTractor40001962–1964172ci, 4-cylinder diesel
    FordTractor40001965–1974192ci or 201ci, 3-cylinder gasoline
    FordTractor40301961–1962201ci, 3-cylinder diesel
    FordTractor40311960–1962201ci, 3-cylinder diesel
    FordTractor40401961–1962201ci, 3-cylinder diesel
    FordTractor4130 / 4131 / 41401963–1964Diesel
    FordTractor501 Series1957–1968144ci, 4-cylinder diesel
    FordTractor5411958–1962144ci, 4-cylinder diesel
    FordTractor6000 / Commander1961–1967223ci, 6-cylinder gasoline
    FordTractor601 Series1957–1968144ci, 4-cylinder diesel
    FordTractor6111957–1961144ci, 4-cylinder diesel
    FordTractor6211957–1962144ci, 4-cylinder diesel
    FordTractor6311957–1961144ci, 4-cylinder diesel
    FordTractor6411957–1962144ci, 4-cylinder diesel
    FordTractor6511957–1961144ci, 4-cylinder diesel
    FordTractor6611957–1961144ci, 4-cylinder diesel
    FordTractor6711957–1961144ci, 4-cylinder diesel
    FordTractor6811957–1961144ci, 4-cylinder diesel
    FordTractor701 Series1958–1962144ci, 4-cylinder diesel
    FordTractor7411958–1962144ci, 4-cylinder diesel
    FordTractor7711958–1962144ci, 4-cylinder diesel
    FordTractor801 Series1957–1962172ci, 4-cylinder diesel
    FordTractor8111958–1962172ci, 4-cylinder diesel
    FordTractor8211958–1962172ci, 4-cylinder diesel
    FordTractor8411957–1962172ci, 4-cylinder diesel
    FordTractor8511957–1962172ci, 4-cylinder diesel
    FordTractor8611958–1962172ci, 4-cylinder diesel
    FordTractor8711957–1962172ci, 4-cylinder diesel
    FordTractor8811957–1962172ci, 4-cylinder diesel
    FordTractor901 Series1957–1962172ci, 4-cylinder diesel
    FordTractor9411957–1962172ci, 4-cylinder diesel
    FordTractor9511957–1962172ci, 4-cylinder diesel
    FordTractor9611957–1962172ci, 4-cylinder diesel
    FordTractor9711957–1962172ci, 4-cylinder diesel
    FordTractor9811957–1962172ci, 4-cylinder diesel
    New HollandTractor18011958–19604-cylinder engine
    New HollandTractor18111959–19604-cylinder engine
    New HollandTractor18211958–19604-cylinder engine
    New HollandTractor18411959–19604-cylinder engine
    New HollandTractor18711959–19604-cylinder engine
    New HollandTractor18811959–19604-cylinder engine
    New HollandTractor40301961–1962Ford 3-cylinder, 201ci diesel
    New HollandTractor40311960–1962Ford 3-cylinder, 201ci diesel
    New HollandTractor40401961–1962Ford 3-cylinder, 201ci diesel
    New HollandTractor4130 / 41311963–1964Diesel
    New HollandTractor41401963–1964Ford 3-cylinder, 201ci diesel
