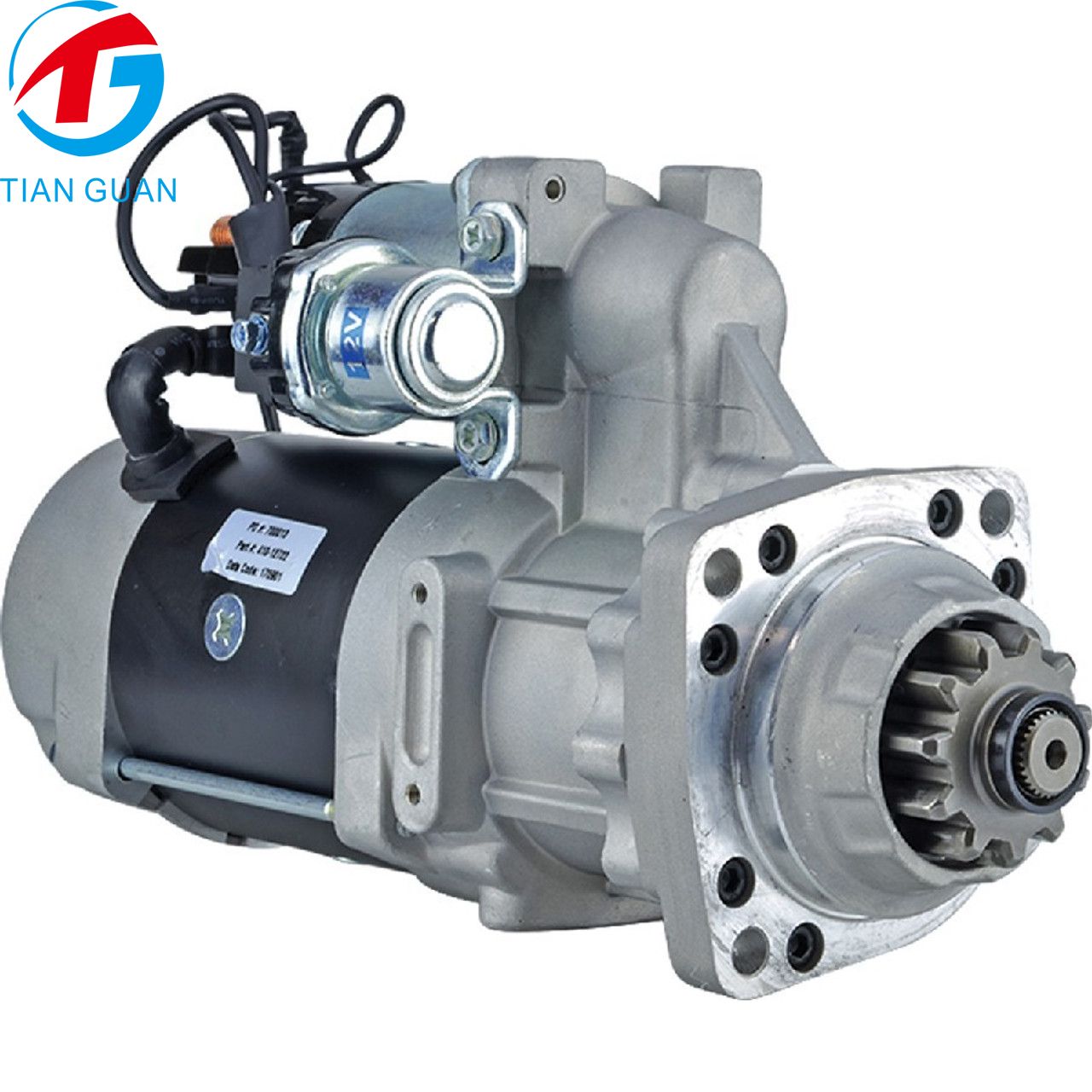

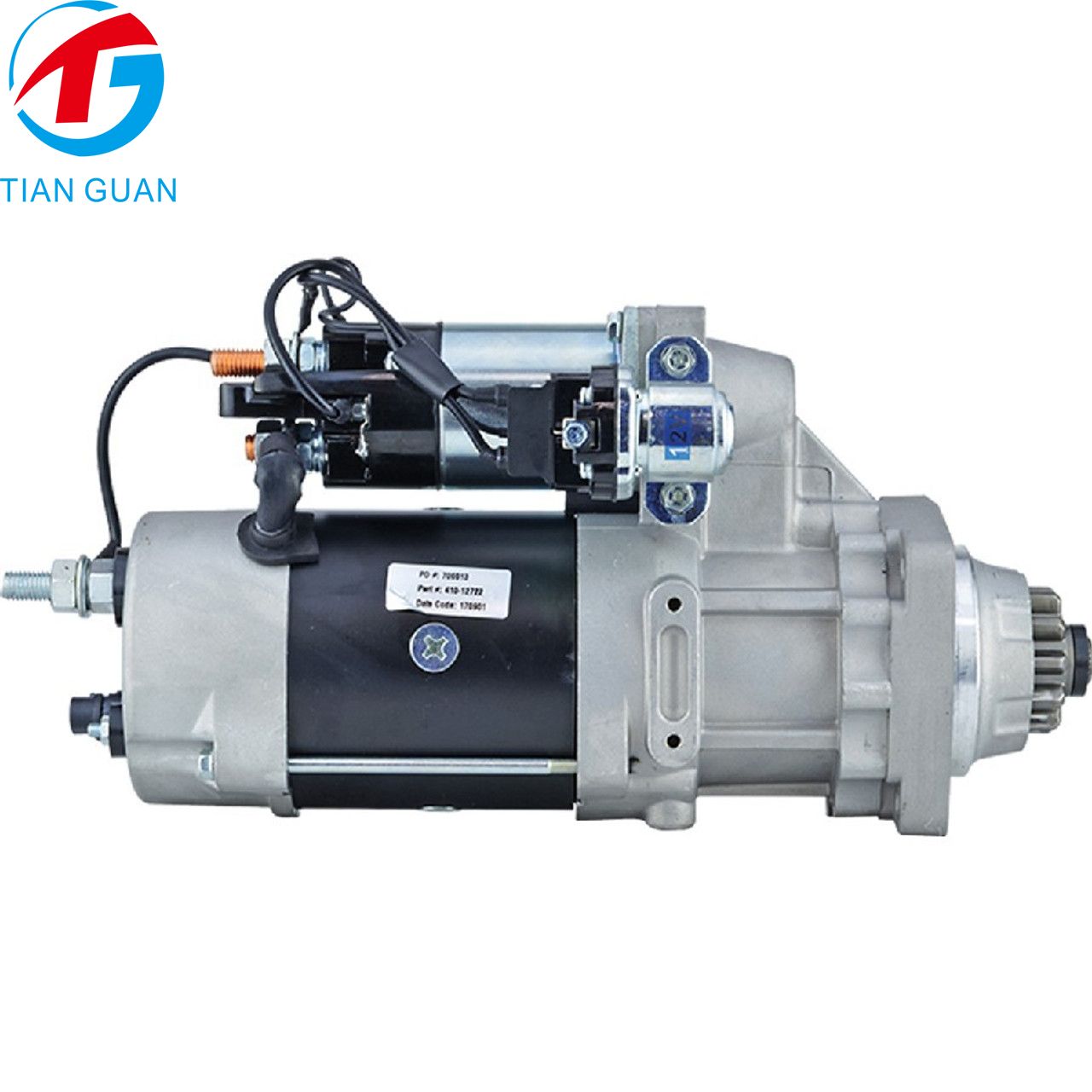

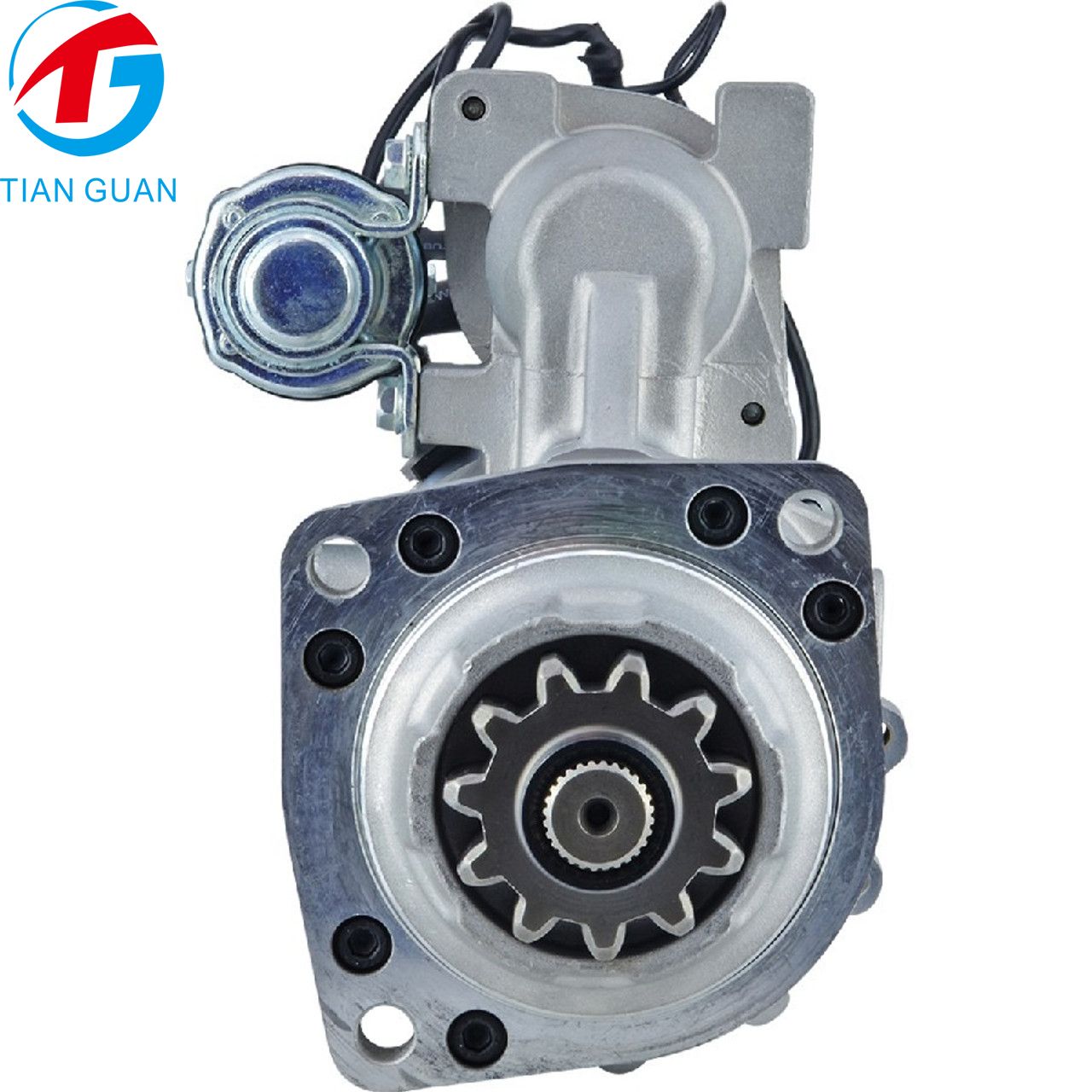

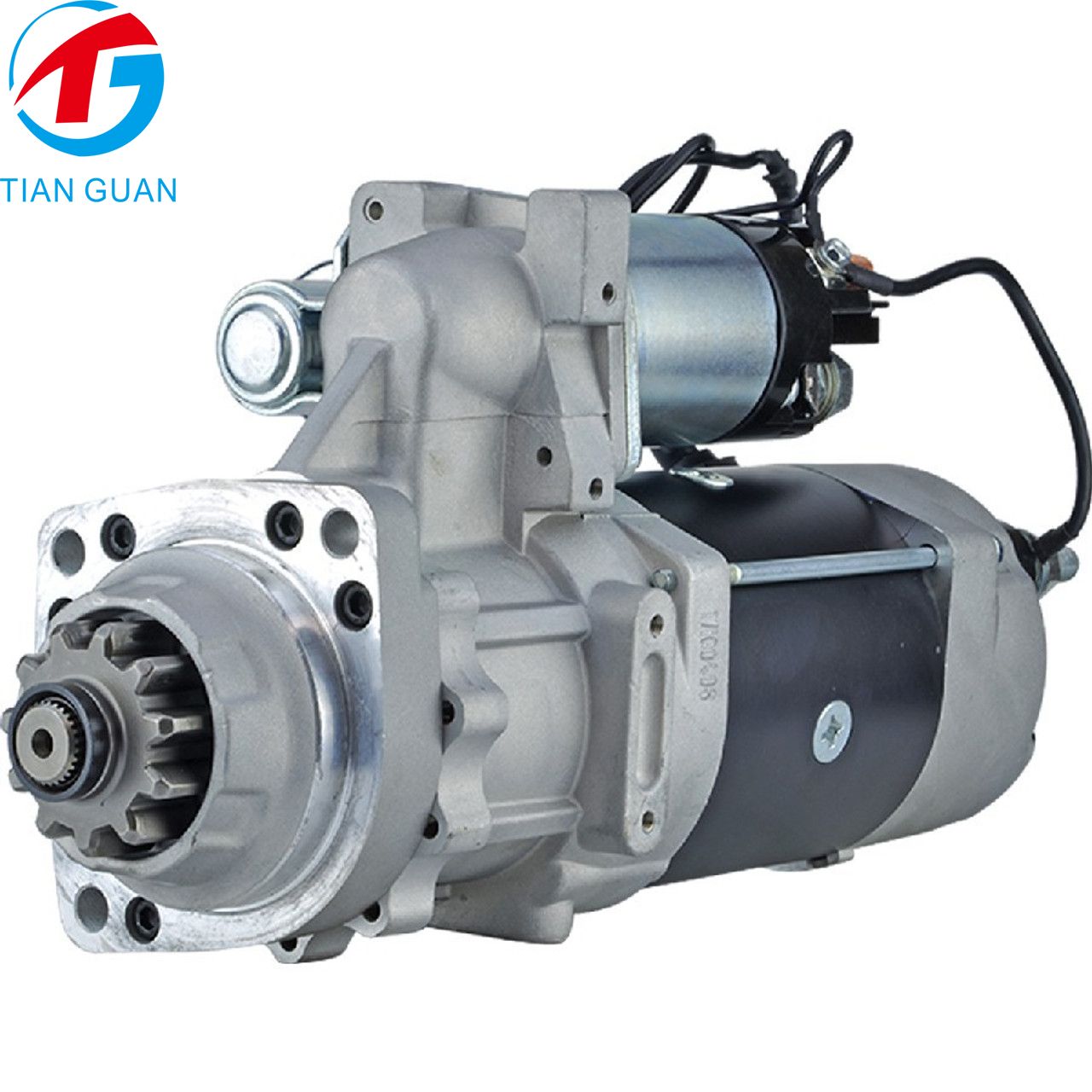

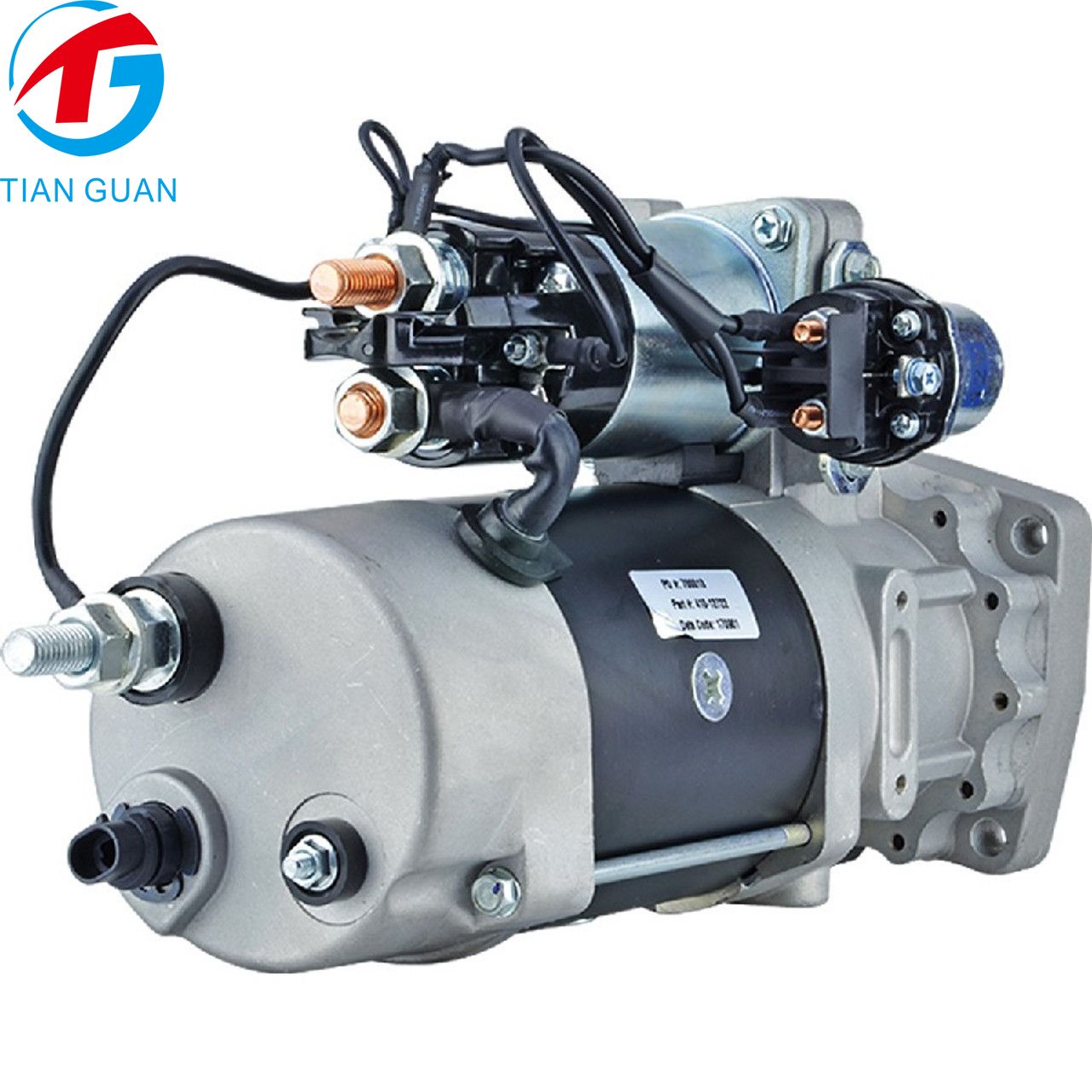

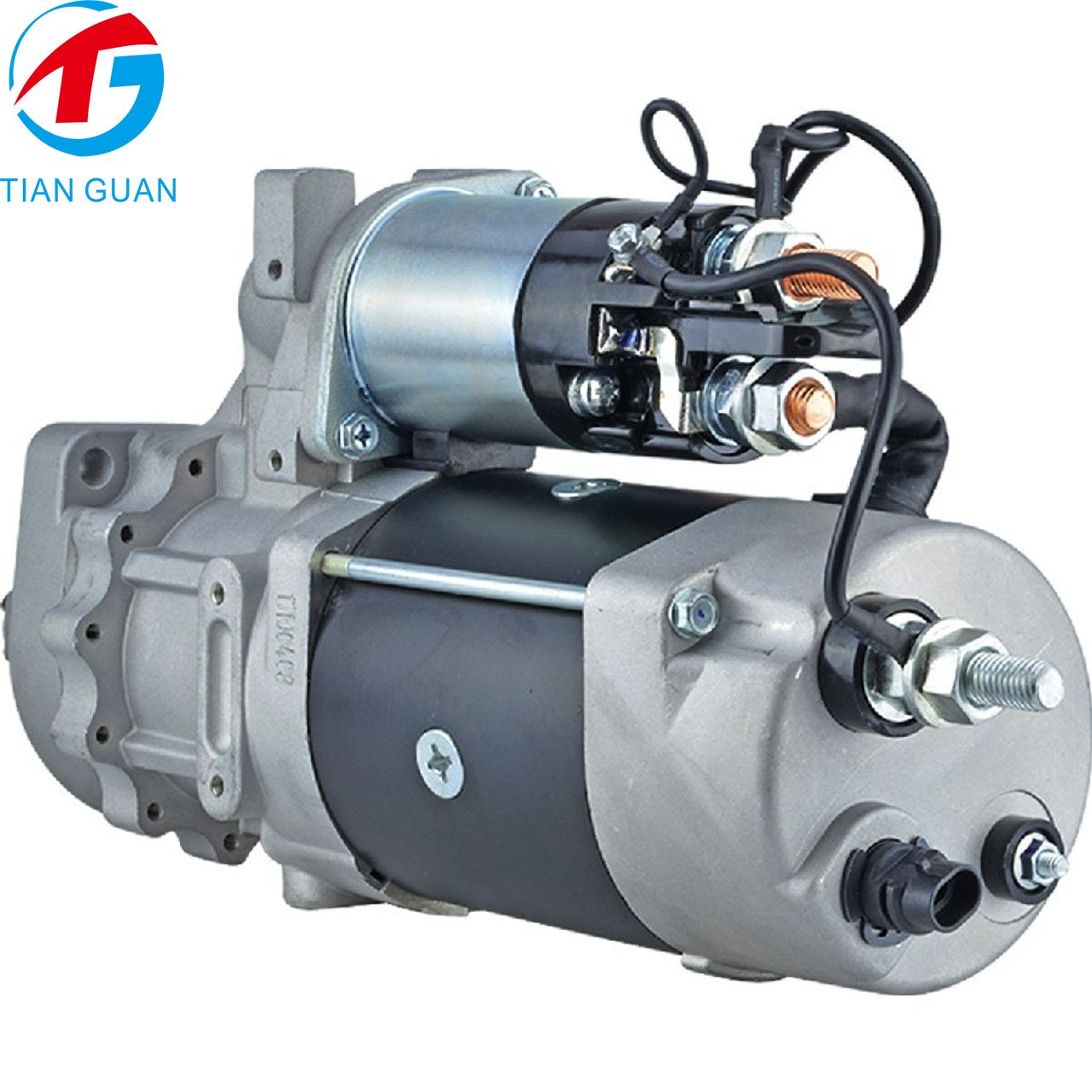

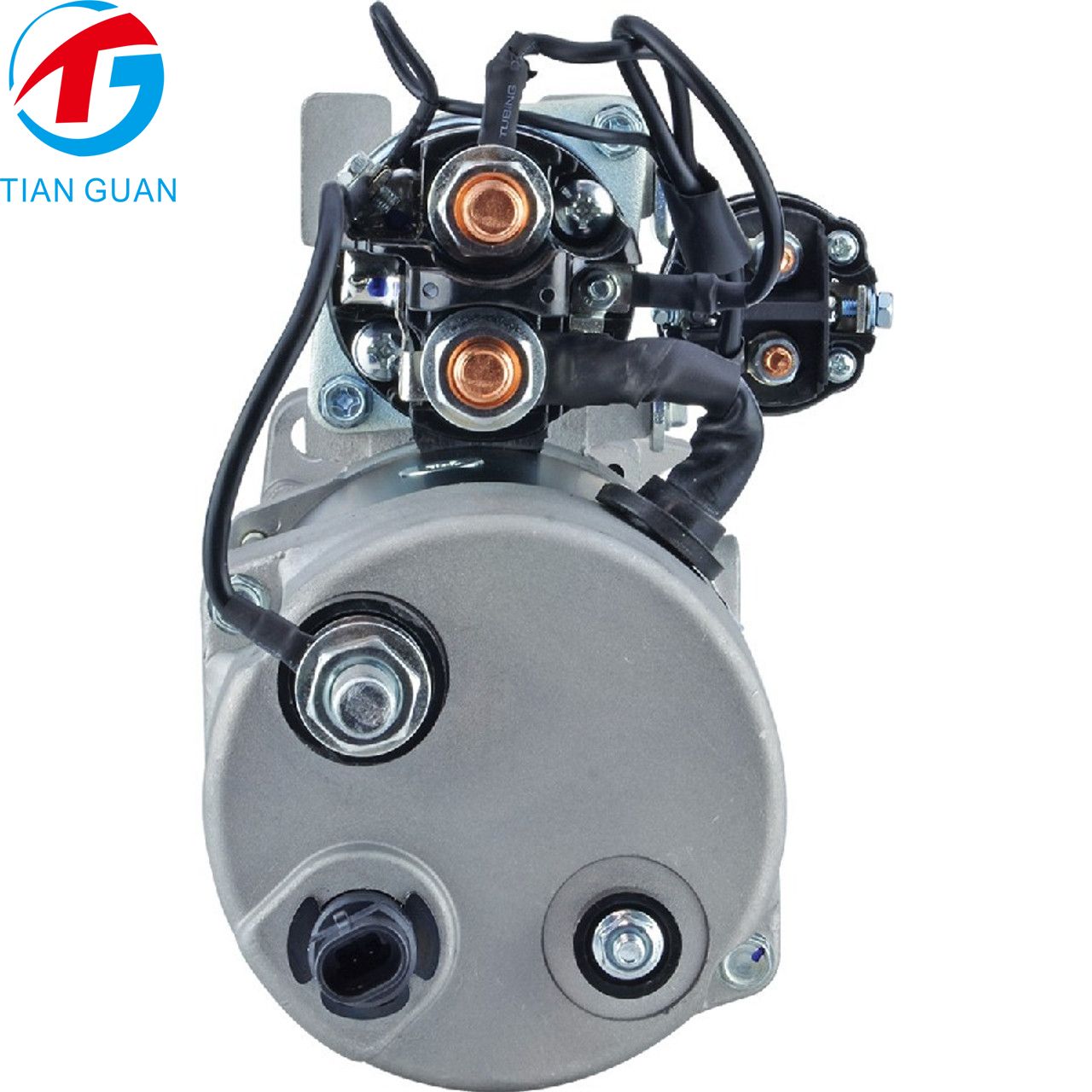

STG53556 Starter Motor 8200793 8200971 D61-6005-007 for Cummins ISX 11.9L Engine | 12V 7.3kW CW 11T PLGR Replacement

3 Reviews

Add Your Review

US$163.00

ITEMNO： STG53556

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53556 Starter Motor 8200793 8200971 D61-6005-007 for Cummins ISX 11.9L Engine | 12V 7.3kW CW 11T PLGR Replacement

Part Numbers

Cummins: 8200793 / 8200971

D61: D61-6005-007

Product Description

The STG53556 starter motor is a 12V, 7.3kW aftermarket replacement designed for Cummins ISX 11.9L diesel engines. Featuring clockwise rotation, an 11-tooth pinion, and a PLGR (Planetary Gear Reduction) design, this starter delivers high-power cranking performance for heavy-duty engine applications.

It is designed to replace compatible original starter units. Please verify the OEM part number and starter specifications before ordering.

Product Specifications

Property	Value
SKU	STG53556
Product Type	Starter Motor
Compatible Engine	Cummins ISX
Engine Displacement	11.9L
Voltage	12V
Power	7.3kW
Rotation	Clockwise (CW)
Starter Type	PLGR (Planetary Gear Reduction)
Pinion Teeth	11
Condition	Aftermarket Replacement
Weight	14.5kg

OEM / Cross Reference Numbers

Brand / Category	Part Numbers
Cummins	8200793 / 8200971
D61	D61-6005-007

Compatible Applications

Make	Model	Engine
Autocar	Xpeditor	Cummins ISX 11.9L
Autocar	Xpeditor	Cummins ISX12G 11.9L
Freightliner	114SD	Cummins ISX12G 11.9L
Freightliner	Cascadia	Cummins ISX12G 11.9L
Kenworth	T660	Cummins ISX 11.9L / ISX12G 11.9L
Kenworth	T680	Cummins ISX 11.9L / ISX12G 11.9L
Kenworth	T800	Cummins ISX 11.9L / ISX12G 11.9L
Kenworth	T880	Cummins ISX 11.9L / ISX12G 11.9L
Kenworth	W900	Cummins ISX 11.9L
Mack	CXU Series	Cummins ISX12G 11.9L
Peterbilt	320	Cummins ISX 11.9L / ISX12G 11.9L
Peterbilt	365	Cummins ISX 11.9L / ISX12G 11.9L
Peterbilt	367	Cummins ISX 11.9L
Peterbilt	384	Cummins ISX 11.9L / ISX12G 11.9L
Peterbilt	386	Cummins ISX 11.9L
Peterbilt	388	Cummins ISX 11.9L
Peterbilt	389	Cummins ISX 11.9L
Peterbilt	520	Cummins ISX 11.9L / ISX12G 11.9L
Peterbilt	579	Cummins ISX 11.9L / ISX12G 11.9L
Pierce Manufacturing	Arrow XT	Cummins ISX 11.9L
Pierce Manufacturing	Custom	Cummins ISX 11.9L
Van Hool	C2045	Cummins ISX12 11.9L
Van Hool	T2100	Cummins ISX12 11.9L
Van Hool	T2140	Cummins ISX12 11.9L
Van Hool	T2145	Cummins ISX12 11.9L
Van Hool	TD925	Cummins ISX12 11.9L
Van Hool	TDX	Cummins ISX12 11.9L
Van Hool	TX	Cummins ISX12 11.9L
Van Hool	TX40	Cummins ISX12 11.9L
Van Hool	TX45	Cummins ISX12 11.9L
Volvo	VNL Series	Cummins ISX12G 11.9L
Volvo	VNM Series	Cummins ISX12G 11.9L

PRODUCT HIGHLIGHTS

Product Highlights
High Power Output Reliable Cranking Direct Replacement
7.3kW output with 12V operation PLGR design, clockwise rotation, and 11-tooth pinion Aftermarket replacement for compatible Cummins ISX starter assemblies

SHIPPING

Item Details

Processing Time Orders are processed within 1-3 business days after payment confirmation

Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight

Estimated Delivery Time Express shipping: 3-7 business days, depending on destination

Packaging Export-standard cartons with protective inner packing

Tracking Tracking number will be provided once the order is shipped

Shipping Cost Calculated based on weight, dimensions, and destination

High Power Output	Reliable Cranking	Direct Replacement
7.3kW output with 12V operation	PLGR design, clockwise rotation, and 11-tooth pinion	Aftermarket replacement for compatible Cummins ISX starter assemblies
