STG53564 Starter Motor 3784889M2 3784890M1 3823621M91 for AGCO Challenger MT565 MT635 MT645 MT655 MT665, Bobcat, Massey Ferguson | 12V 3.2kW 10T CW PLGR Replacement

3 Reviews

Add Your Review

US$148.00

ITEMNO： STG53564

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53564 Starter Motor 3784889M2 3784890M1 3823621M91 for AGCO Challenger MT565 MT635 MT645 MT655 MT665, Bobcat, Massey Ferguson | 12V 3.2kW 10T CW PLGR Replacement

Part Numbers

AGCO: 3784889M2 / 3784890M1 / 3823621M91
Arrowhead: SIA0005 / IS1195

Product Description

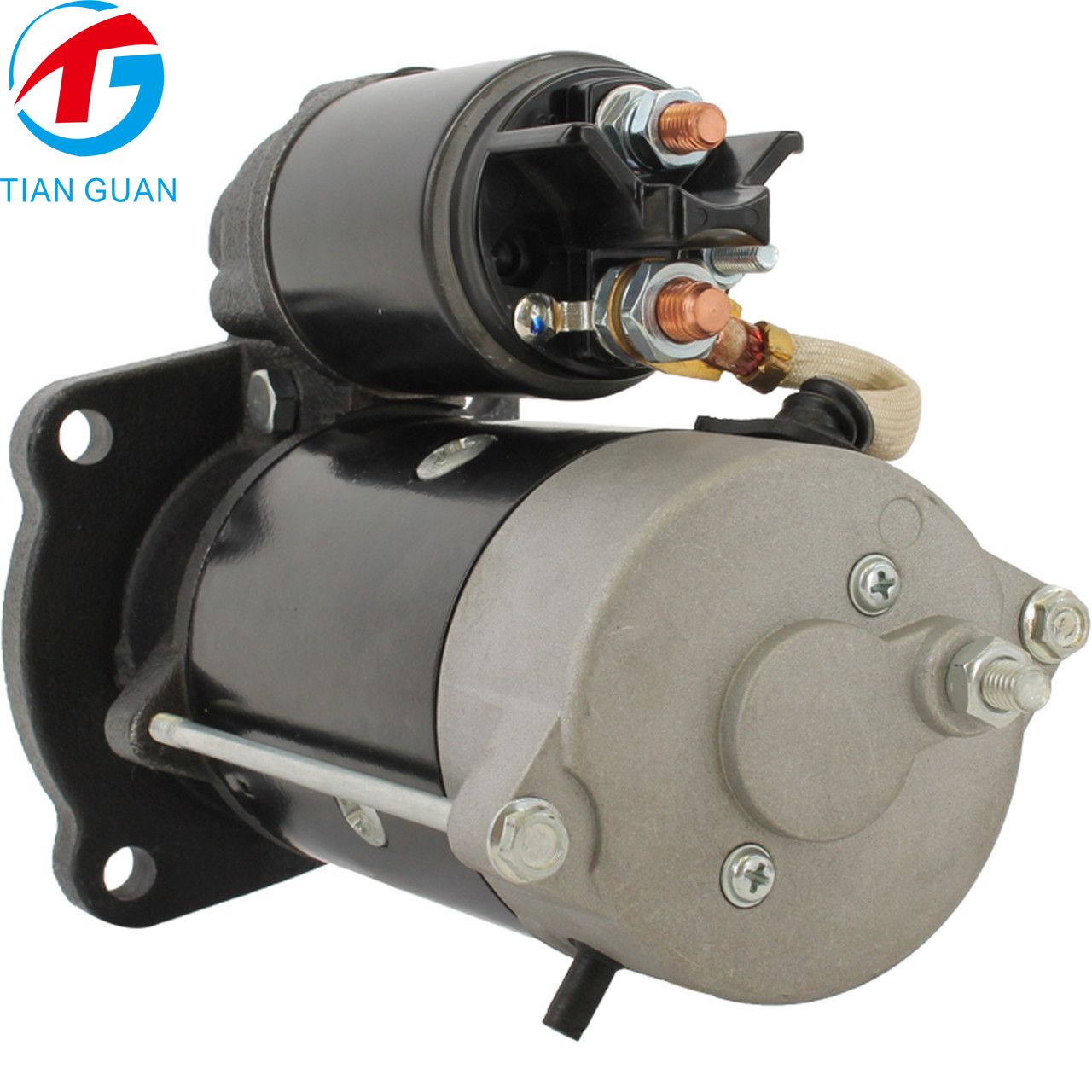

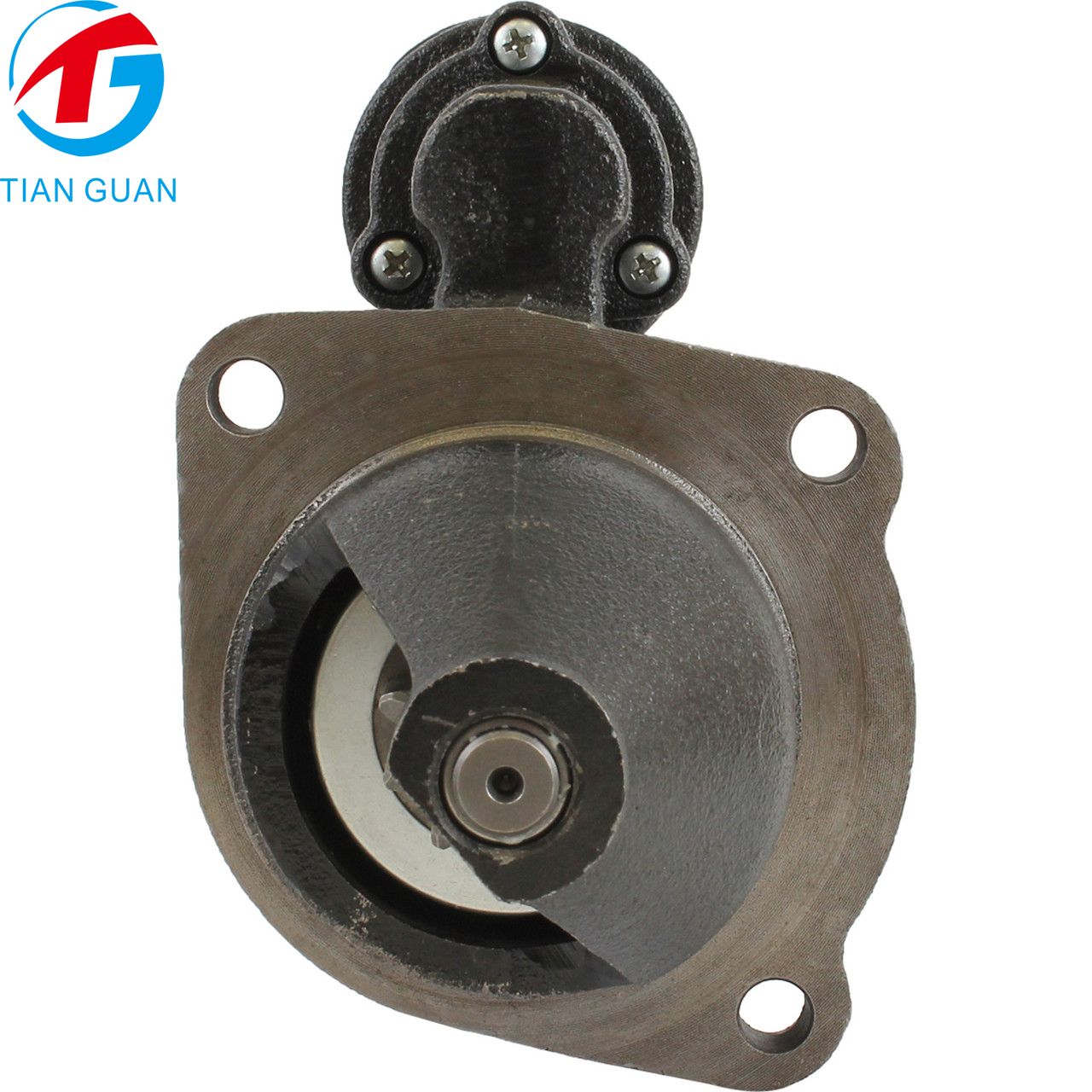

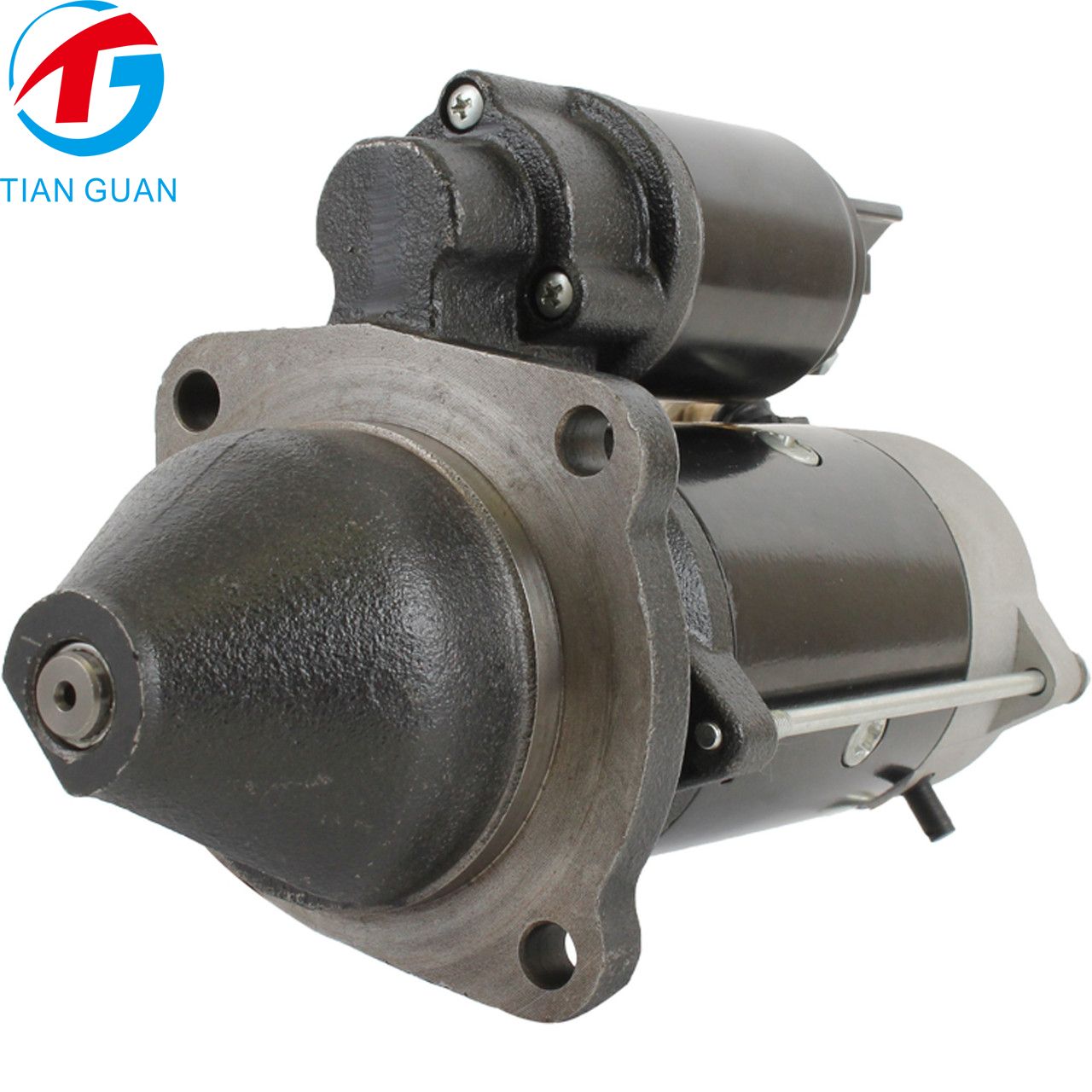

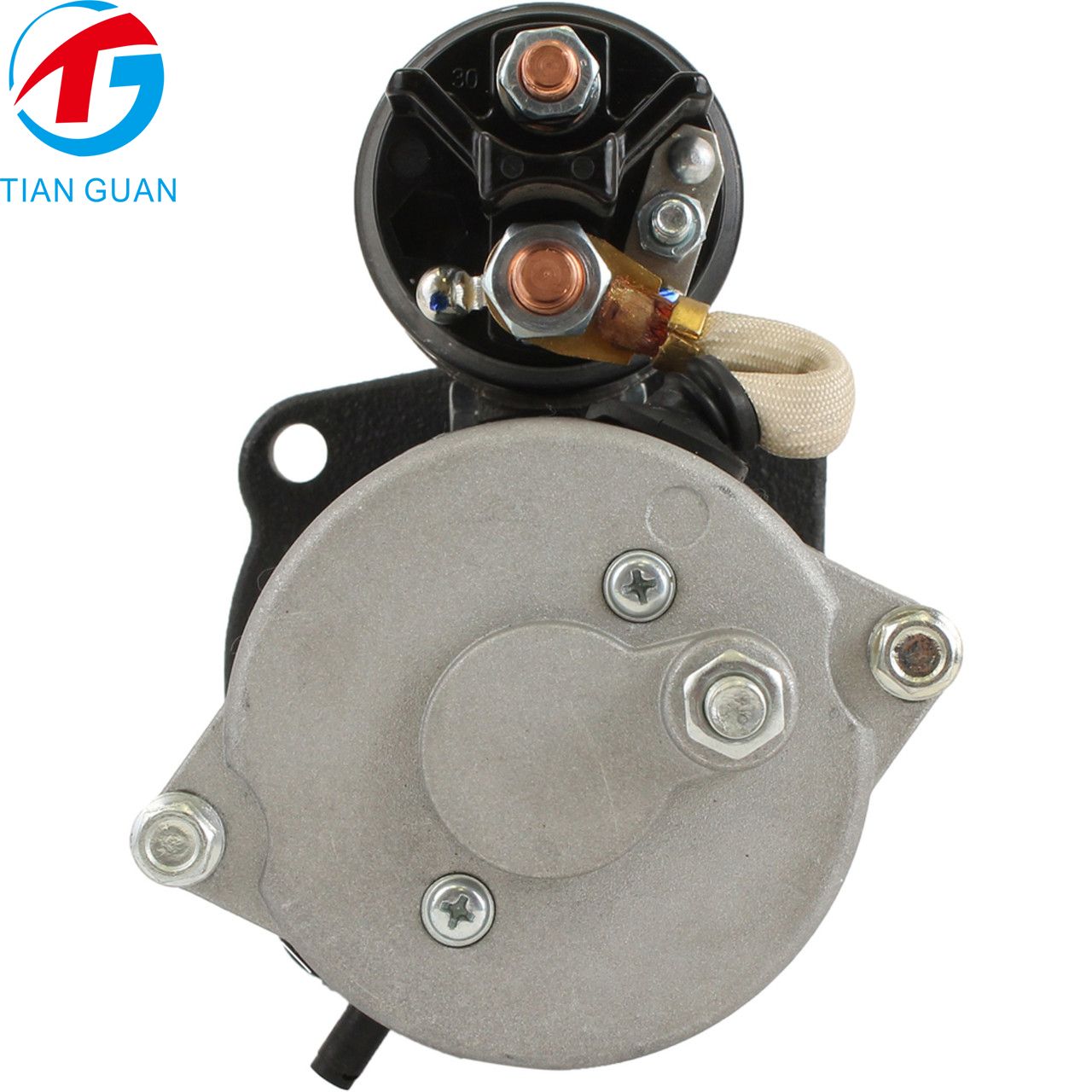

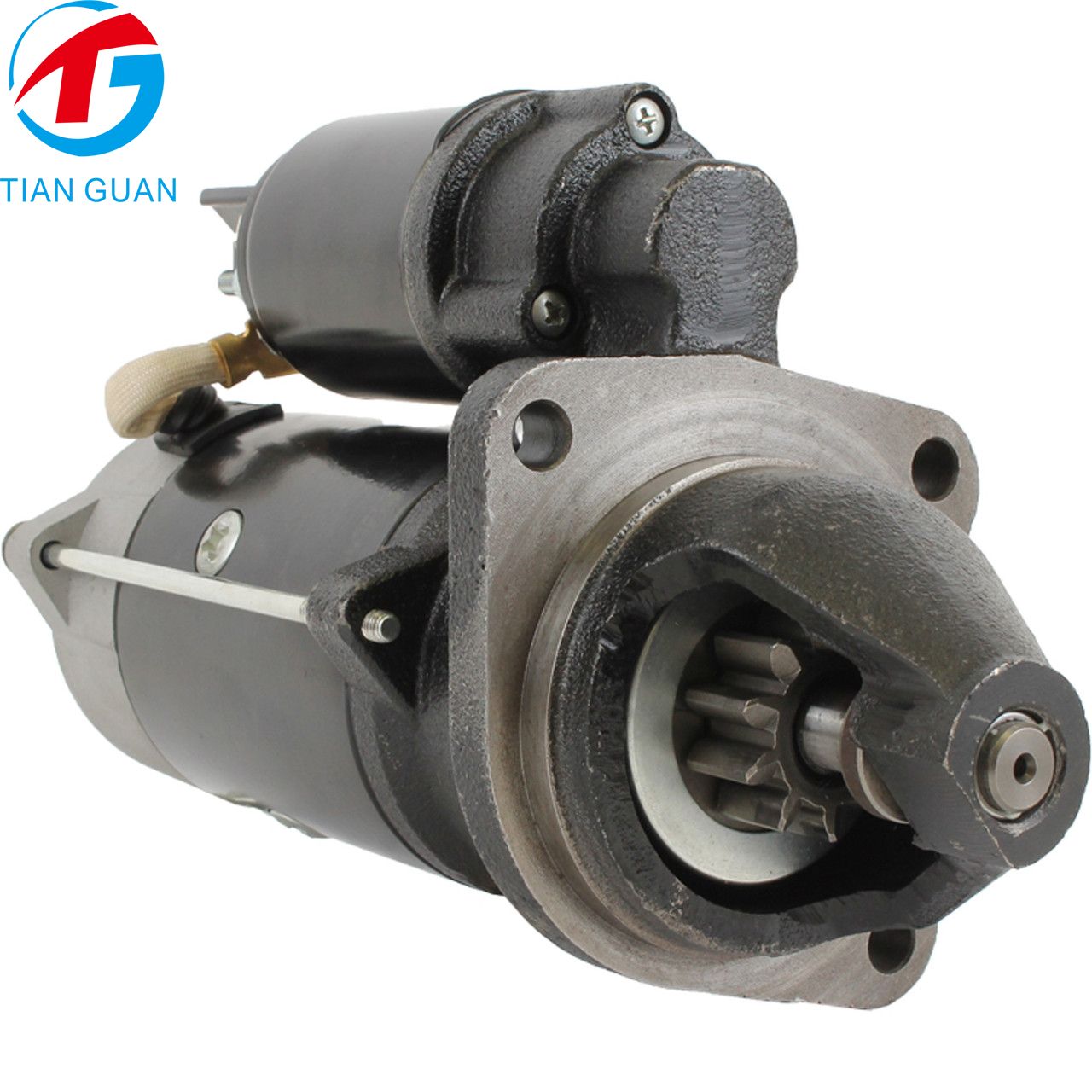

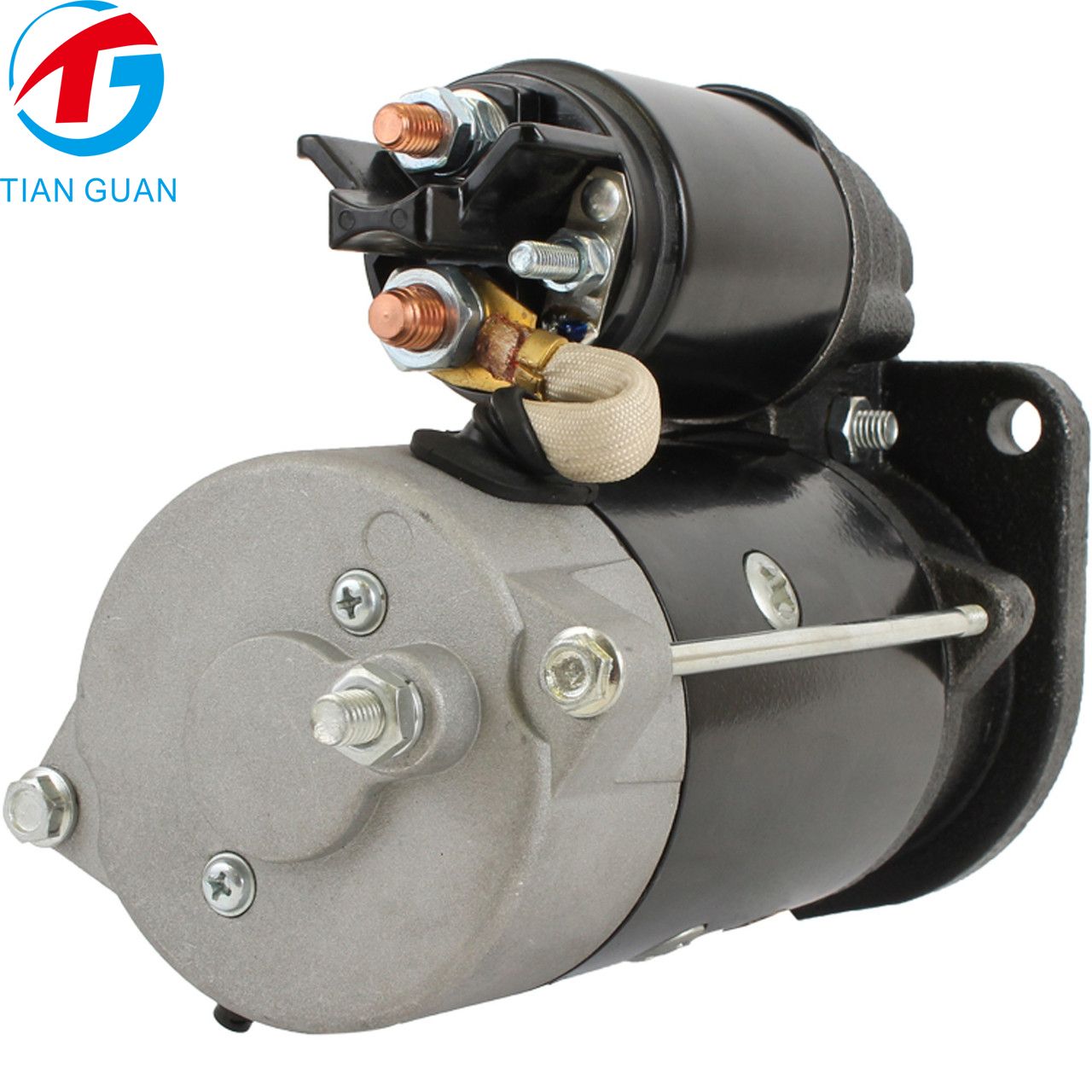

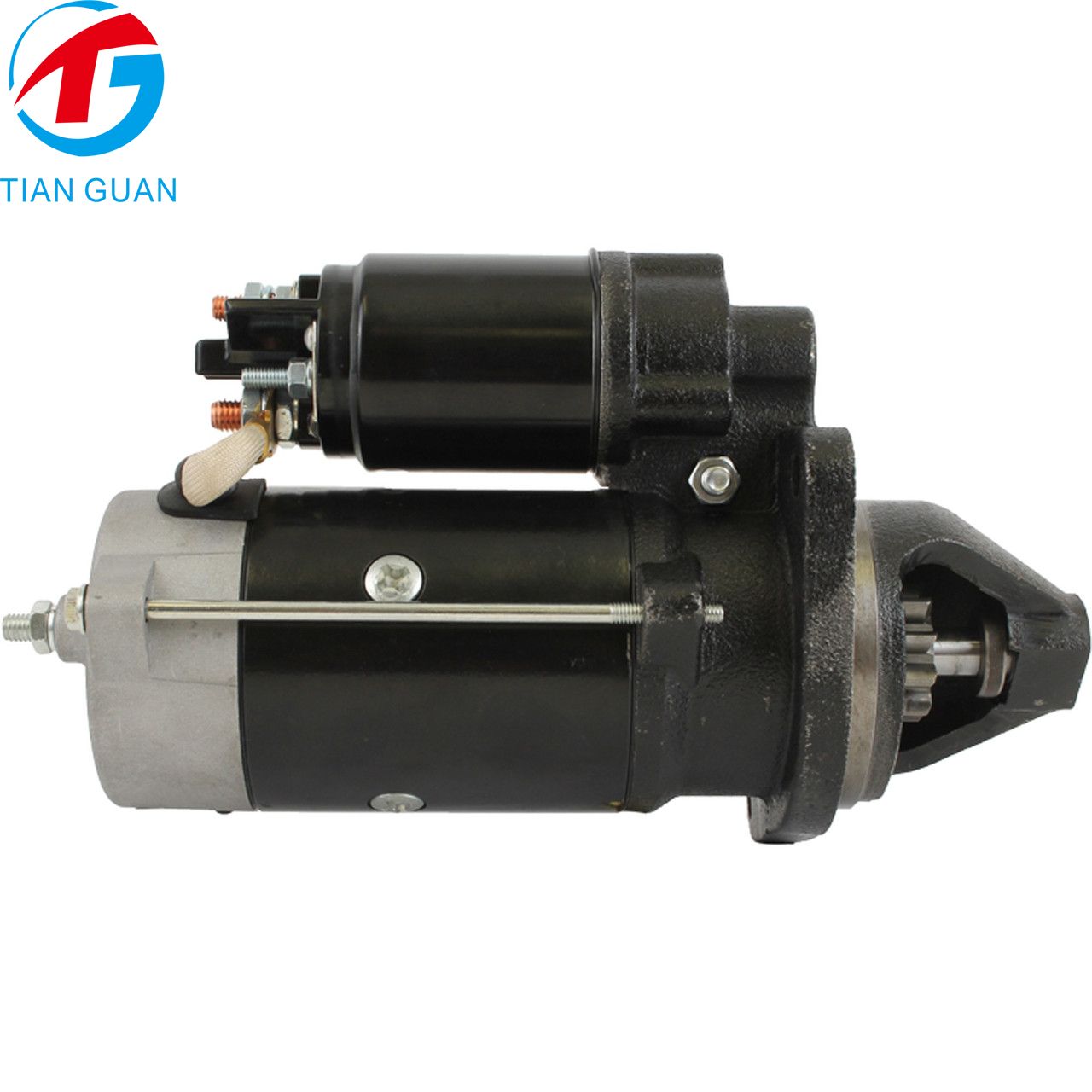

The STG53564 starter motor is an aftermarket replacement for selected agricultural tractors, telescopic handlers, and other equipment using compatible diesel engines. It features a 12V electrical system, 3.2kW output, a 10-tooth drive gear, clockwise rotation, and planetary gear reduction (PLGR) construction.

This starter cross-references AGCO, Arrowhead, Letrika (Iskra), Lester, and WAI part numbers. Listed applications include AGCO Challenger MT-series tractors, Bobcat telescopic equipment, Ingersoll Rand telescopic handlers, and Massey Ferguson tractors.

Before ordering, compare the original starter part number, engine model, and mounting configuration to confirm compatibility.

Product Specifications

Specification	Details
SKU / Model	STG53564
Unit Type	Starter
Part Type	UNIT
Item Condition	Aftermarket Part
Voltage	12V
Power Output	3.2kW
Rotation	Clockwise (CW)
Number of Teeth	10T
Starter Type	Planetary Gear Reduction (PLGR)
Listed Perkins Engine Families	1106, 1106D, 1106E, 66TA 6-cylinder 6.6L, 1106C, 60TA 4-cylinder 6.0L
Estimated Net Weight	7.5kg

OEM / Cross Reference Table

Brand	Reference Part Numbers
AGCO	3784889M2, 3784890M1, 3823621M91
Arrowhead	SIA0005, IS1195
Lester	18941
Letrika (Iskra) Aftermarket	IS 1195
Letrika (Iskra) Description	AZE4151, AZE4172, AZE4199, AZE4207, AZE4219
Letrika (Iskra) OEM	11.131.606, 11.131.780, 11.131.946, 11.131.964, 11.132.035
WAI	18941N-IK

Compatible Applications

Make	Equipment Type	Model	Year / Range	Engine
AGCO Challenger	Tractor	MT565	2002–2004	SISU 6-402 Diesel
AGCO Challenger	Tractor	MT635	2002–2004	SISU 6-451 Diesel
AGCO Challenger	Tractor	MT645	2002–2004	SISU 6-451 Diesel
AGCO Challenger	Tractor	MT655	2002–2004	SISU 6-513 Diesel
AGCO Challenger	Tractor	MT665	2002–2004	SISU 6-513 Diesel
Bobcat	Telescopic Handler	T2556	2000–2004	Perkins 1004.40T
Bobcat	Telescopic Handler	T2556	2005–2009	Perkins 1104.44T
Bobcat	Telescopic Handler	T2566	2000–2004	Perkins 1004.40T
Bobcat	Telescopic Handler	T2566	2005–2009	Perkins 1104.44T
Bobcat	Telescopic Handler	T35100	All listed years	Perkins 1104 Diesel
Bobcat	Telescopic Handler	T35100L	All listed years	Perkins 1104 Diesel
Bobcat	Telescopic Handler	T35100SL	All listed years	Perkins 1104 Diesel
Bobcat	Telescopic Handler	T35120L	All listed years	Perkins 1104 Diesel
Bobcat	Telescopic Handler	T35120SL	All listed years	Perkins 1104 Diesel
Bobcat	Telescopic Handler	T3571	All listed years	Perkins Diesel
Bobcat	Telescopic Handler	T3571L	All listed years	Perkins Diesel
Bobcat	Telescopic Handler	T40140	All listed years	Perkins 1004 Diesel
Bobcat	Telescopic Handler	T40170	All listed years	Perkins 1004 Diesel
Bobcat	Telescopic Handler	TR40250	2010–2013	Perkins 1104D-ETA
Bobcat	Telescopic Handler	TR45190	2010–2013	Perkins 1104D-ETA
Bobcat	Telescopic Handler	TR50210	2010–2013	Perkins 1104D-ETA
Bobcat	Telescopic Tool Carrier	V518	2001–2009	Perkins 1104C-44T
Bobcat	Telescopic Tool Carrier	V638	2006–2013	Perkins 1104C-44T
Bobcat	Telescopic Tool Carrier	V723	2004–2010	Perkins 1104C-44T
Ingersoll Rand	Telescopic Tool Handler	VR518	2003–2008	Perkins 1004-40T Diesel
Ingersoll Rand	Telescopic Tool Handler	VR530	2001–2007	Perkins 1004-44T Diesel
Ingersoll Rand	Telescopic Tool Handler	VR530C	2001–2007	Perkins 1004-44T Diesel
Ingersoll Rand	Telescopic Tool Handler	VR638	2004–2007	Perkins 1104C-44 Diesel
Ingersoll Rand	Telescopic Tool Handler	VR723	2004–2007	Perkins 1104C-44T Diesel
Massey Ferguson	Tractor	MF-6270	1999–2000	Perkins 1006.6 Diesel
Massey Ferguson	Tractor	MF-6280	1999–2000	Perkins 1006.6 Diesel
Massey Ferguson	Tractor	MF-6290	1999–2000	Perkins 1006.6 Diesel
Massey Ferguson	Tractor	MF-8140	1995–1998	Valmet 6-403 Diesel
Massey Ferguson	Tractor	MF-8150	1995–1998	Valmet 6-403 Diesel
Massey Ferguson	Tractor	MF-8250	1999–2000	Valmet 6-451 Diesel
Massey Ferguson	Tractor	MF-8260	1999–2000	Valmet 6-451 Diesel
Massey Ferguson	Tractor	MF-8270	1999–2000	Valmet 6-513 Diesel
Massey Ferguson	Tractor	MF-8280	1999–2000	Valmet 6-513 Diesel

PRODUCT HIGHLIGHTS

Product Highlights

High-Power Starting	Planetary Gear Reduction	Multi-Equipment Compatibility
12V, 3.2kW output for listed compatible diesel applications	10-tooth drive gear with clockwise rotation	Listed for selected AGCO Challenger, Bobcat, Ingersoll Rand, and Massey Ferguson equipment
