STG53565 Chrome Starter Motor 410-44117 SHI0032-C for Chevrolet Chevy 305 350 454 Small Block Big Block V8 Engines 12V 3HP 9T 2.0kW CW OSGR High Torque

3 Reviews

Add Your Review

US$238.00

ITEMNO： STG53565

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53565 Chrome Starter Motor 410-44117 SHI0032-C for Chevrolet Chevy 305 350 454 Small Block Big Block V8 Engines 12V 3HP 9T 2.0kW CW OSGR High Torque Replacement

Part Numbers

Chevrolet / GM Applications: Chevy 305 / 350 / 454 V8 Engines
Arrowhead: SHI0032-C / SHI0032 / SHI0032C
DB Electrical: 410-44117
J&N Electrical Products: 410-44117 / 410-44033 / 410-44119 / 410-44138 / 410-44139
EMP Parts: 4-6834
Hitachi: PP106 / S114-254S1BX / S114-823SBX / SD114-254S1
Lester: 18492 / 18493 / 18493C

Product Description

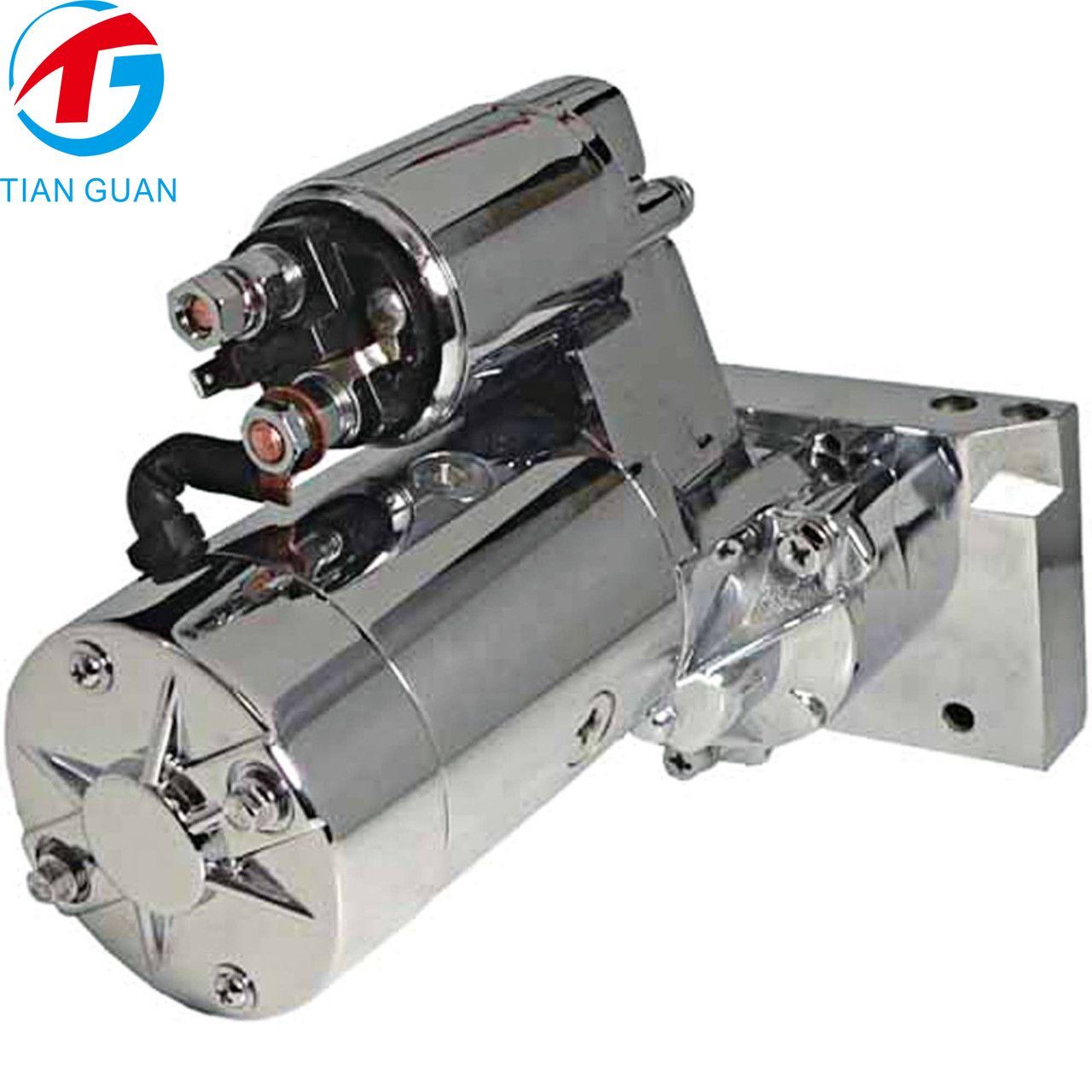

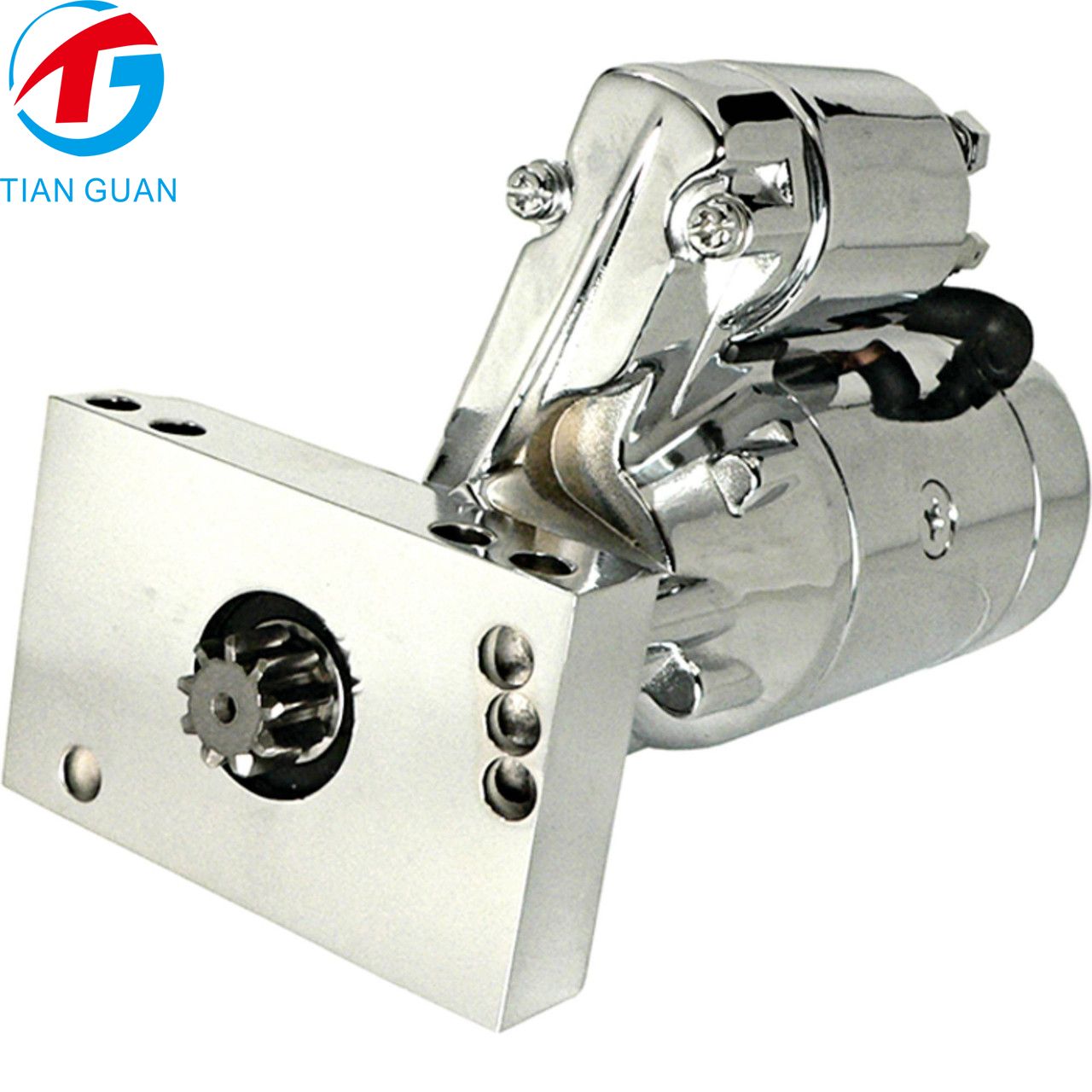

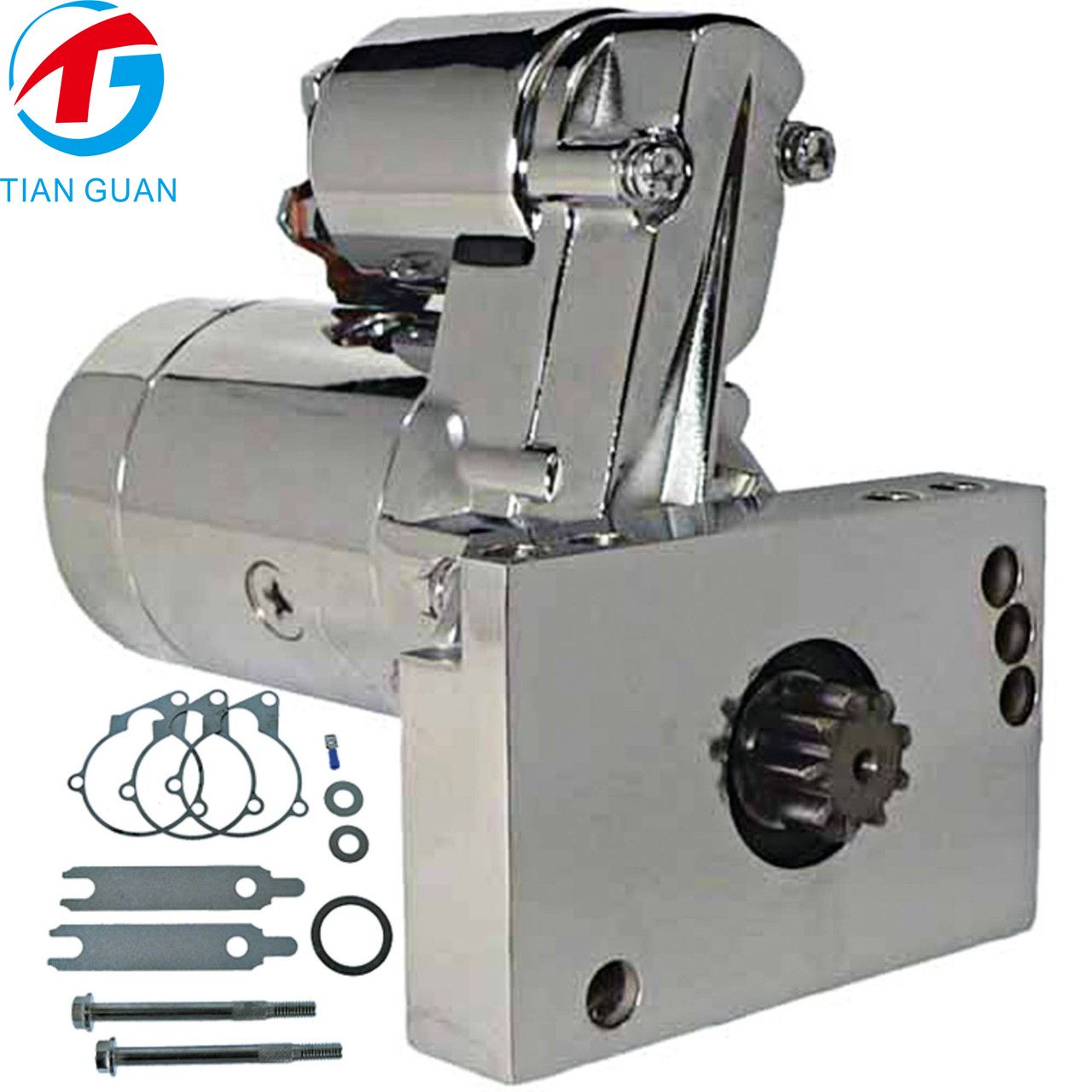

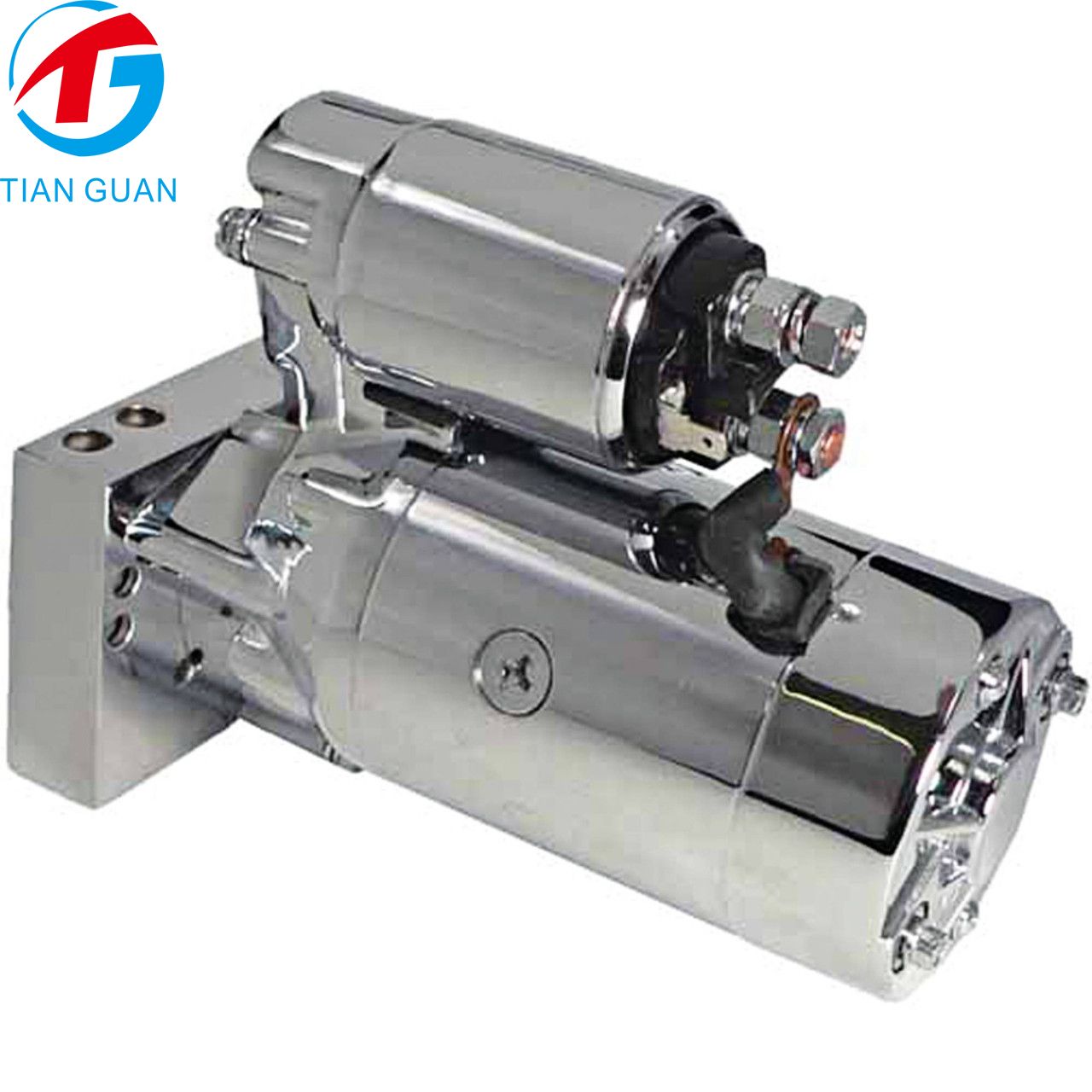

The STG53565 Chrome Starter Motor is a high-torque aftermarket mini starter designed for compatible Chevrolet small-block and big-block V8 engines, including 305, 350, and 454 cubic-inch applications.

Featuring a chrome finish, 12V operation, 3HP rated output, and a 4:1 gear reduction ratio, this compact starter is engineered to provide strong cranking performance for street, performance, racing, and selected marine applications. The 9-tooth pinion, clockwise rotation, and offset gear reduction (OSGR) design support compatible engine configurations.

The rotatable housing provides three clocking positions to help accommodate different installation clearances. Verify the engine mounting pattern, ring gear, and starter-to-flywheel clearance before installation.

Product Specifications

Specification	Details
Product SKU	STG53565
Product Type	High-Torque Mini Starter Motor
Condition	Brand New Aftermarket
Finish	Chrome
Voltage	12V
Rated Output	3HP / 2.0kW
Gear Reduction Ratio	4:1
Number of Pinion Teeth	9T
Rotation	Clockwise (CW)
Starter Type	OSGR (Offset Gear Reduction)
Pinion Gear Outside Diameter	25.1mm
Mounting Hole Diameter	10mm
Housing Adjustment	Rotatable housing with 3 clocking positions
Flywheel / Flexplate Compatibility	153-tooth or 168-tooth ring gear, subject to application
Compatible Engine Type	Chevrolet Small-Block and Big-Block V8; selected V6 applications
Estimated Net Weight	4.5kg

OEM / Cross Reference Table

Brand	Part Numbers
Arrowhead	SHI0032-C, SHI0032, SHI0032C
DB Electrical	410-44117
J&N Electrical Products	410-44117, 410-44033, 410-44119, 410-44138, 410-44139
EMP Parts	4-6834
Hitachi	PP106, S114-254S1BX, S114-823SBX, SD114-254S1
Lester	18492, 18493, 18493C

Compatible Applications

MAKE	TYPE	MODEL	YEAR
Buick	Century Base	4300cc, 4.3L/265CI V8	1980
Buick	Century Base	5000cc, 5.0L/305CI V8	1977, 1980
Buick	Century Custom	5000cc, 5.0L/305CI V8	1977, 1979
Buick	Century Estate	4300cc, 4.3L/265CI V8	1980
Buick	Century Estate	5000cc, 5.0L/305CI V8	1980
Buick	Century Limited	4300cc, 4.3L/265CI V8	1980
Buick	Century Limited	5000cc, 5.0L/305CI V8	1979, 1980
Buick	Century Special	5000cc, 5.0L/305CI V8	1979
Buick	Century	4300cc, 4.3L/265CI V8	1981
Buick	Century	4400cc, 4.4L/267CI V8	1981
Buick	Century	5000cc, 5.0L/305CI V8	1978, 1981
Buick	Commercial Chassis		1991, 1992, 1993
Buick	LeSabre Base	5000cc, 5.0L/305CI V8	1978
Buick	LeSabre Custom	4400cc, 4.4L/267CI V8	1982
Buick	LeSabre Custom	5000cc, 5.0L/305CI V8	1978
Buick	LeSabre Limited	4400cc, 4.4L/267CI V8	1982
Buick	Regal Base	4300cc, 4.3L/265CI V8	1980, 1981
Buick	Regal Base	4400cc, 4.4L/267CI V8	1981, 1982
Buick	Regal Base	5000cc, 5.0L/305CI V8	1978, 1979, 1980, 1983, 1984, 1985, 1986, 1987
Buick	Regal Estate Wagon	5000cc, 5.0L/305CI V8	1982, 1983
Buick	Regal Limited	4300cc, 4.3L/265CI V8	1980, 1981
Buick	Regal Limited	4400cc, 4.4L/267CI V8	1981, 1982
Buick	Regal Limited	5000cc, 5.0L/305CI V8	1978, 1979, 1980, 1983, 1985, 1986, 1987
Buick	Regal	5000cc, 5.0L/305CI V8	1977
Buick	Roadmaster		1991, 1992, 1993
Buick	Skylark	5000cc, 5.0L/305CI V8	1977, 1978, 1979
Chevrolet	3A	4638cc, 4.6L/283CI V8	1959
Chevrolet	3B	4638cc, 4.6L/283CI V8	1959
Chevrolet	3C	4638cc, 4.6L/283CI V8	1959
Chevrolet	3D	4638cc, 4.6L/283CI V8	1959
Chevrolet	3E	4638cc, 4.6L/283CI V8	1959
Chevrolet	3F	4638cc, 4.6L/283CI V8	1959
Chevrolet	3G	4638cc, 4.6L/283CI V8	1959
Chevrolet	Astro Base	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985
Chevrolet	Astro Base	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Chevrolet	Astro Base	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1990, 1991
Chevrolet	Astro Base	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Chevrolet	Astro Base	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	2002
Chevrolet	Astro CL	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985
Chevrolet	Astro CL	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Chevrolet	Astro CL	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1990, 1991
Chevrolet	Astro CL	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1992, 1993, 1994, 1995
Chevrolet	Astro CS	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985
Chevrolet	Astro CS	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Chevrolet	Astro CS	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1990, 1991
Chevrolet	Astro CS	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1992, 1993, 1994
Chevrolet	Astro LS	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1995, 1996, 1997, 1998, 1999, 2000, 2001
Chevrolet	Astro LS	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	2002
Chevrolet	Astro LT	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Chevrolet	Astro LT	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1990, 1991
Chevrolet	Astro LT	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Chevrolet	Astro LT	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	2002
Chevrolet	Bel Air Base	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1975
Chevrolet	Bel Air Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1970, 1971
Chevrolet	Bel Air Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1972
Chevrolet	Bel Air Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1972
Chevrolet	Bel Air Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	Bel Air Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	Bel Air Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1970, 1971
Chevrolet	Bel Air Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1972
Chevrolet	Bel Air Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1973
Chevrolet	Bel Air Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1974
Chevrolet	Bel Air		1975, 1981
Chevrolet	Bel Air	4300cc, 4.3L/265CI V8	1955, 1956, 1957
Chevrolet	Bel Air	4343cc, 4.3L/265CI V8	1955, 1956, 1957
Chevrolet	Bel Air	4600cc, 4.6L/283CI V8	1957
Chevrolet	Bel Air	4638cc, 4.6L/283CI V8	1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967
Chevrolet	Bel Air	5000cc, 5.0L/307CI V8	1968
Chevrolet	Bel Air	5031cc, 5.0L/307CI V8	1968
Chevrolet	Bel Air	5272cc, 5.3L/322CI V8	1959
Chevrolet	Bel Air	5358cc, 5.3L/327CI V8	1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969
Chevrolet	Bel Air	5400cc, 5.4L/327CI V8	1968, 1969
Chevrolet	Bel Air	5700cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974
Chevrolet	Bel Air	5736cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974
Chevrolet	Bel Air	5737cc, 5.7L/350CI V8	1972, 1973, 1974
Chevrolet	Bel Air	6489cc, 6.5L/396CI V8	1965, 1966, 1967, 1968, 1969
Chevrolet	Bel Air	6500cc, 6.5L/396CI V8	1968, 1969
Chevrolet	Bel Air	6555cc, 6.6L/400CI V8	1970, 1971, 1972, 1973, 1974
Chevrolet	Bel Air	6556cc, 6.6L/400CI V8	1970, 1971, 1972, 1973, 1974
Chevrolet	Bel Air	6588cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	Bel Air	6600cc, 6.6L/400CI V8	1970, 1971, 1972, 1973, 1974
Chevrolet	Bel Air	6600cc, 6.6L/402CI V8	1971, 1972
Chevrolet	Bel Air	6997cc, 7.0L/427CI V8	1963
Chevrolet	Bel Air	6998cc, 7.0L/427CI V8	1966, 1967, 1968, 1969
Chevrolet	Bel Air	7000cc, 7.0L/427CI V8	1968, 1969
Chevrolet	Bel Air	7400cc, 7.4L/454CI V8	1970, 1971, 1972, 1973, 1974
Chevrolet	Bel Air	7439cc, 7.4L/454CI V8	1970, 1971, 1972, 1973, 1974
Chevrolet	Bel Air	7441cc, 7.4L/454CI V8	1970, 1971, 1972, 1973, 1974
Chevrolet	Biscayne Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1970, 1971
Chevrolet	Biscayne Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1972
Chevrolet	Biscayne Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1972
Chevrolet	Biscayne Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1970, 1971
Chevrolet	Biscayne Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1972
Chevrolet	Biscayne	4600cc, 4.6L/283CI V8	1960
Chevrolet	Biscayne	4638cc, 4.6L/283CI V8	1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967
Chevrolet	Biscayne	5000cc, 5.0L/307CI V8	1968
Chevrolet	Biscayne	5031cc, 5.0L/307CI V8	1968
Chevrolet	Biscayne	5358cc, 5.3L/327CI V8	1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969
Chevrolet	Biscayne	5400cc, 5.4L/327CI V8	1968, 1969
Chevrolet	Biscayne	5700cc, 5.7L/350CI V8	1969, 1970, 1971, 1972
Chevrolet	Biscayne	5736cc, 5.7L/350CI V8	1969, 1970, 1971, 1972
Chevrolet	Biscayne	5737cc, 5.7L/350CI V8	1972
Chevrolet	Biscayne	6489cc, 6.5L/396CI V8	1965, 1966, 1967, 1968, 1969
Chevrolet	Biscayne	6500cc, 6.5L/396CI V8	1968, 1969
Chevrolet	Biscayne	6555cc, 6.6L/400CI V8	1970, 1971, 1972
Chevrolet	Biscayne	6556cc, 6.6L/400CI V8	1970, 1971, 1972
Chevrolet	Biscayne	6588cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	Biscayne	6600cc, 6.6L/400CI V8	1970, 1971, 1972
Chevrolet	Biscayne	6600cc, 6.6L/402CI V8	1971, 1972
Chevrolet	Biscayne	6997cc, 7.0L/427CI V8	1963
Chevrolet	Biscayne	6998cc, 7.0L/427CI V8	1966, 1967, 1968, 1969
Chevrolet	Biscayne	7000cc, 7.0L/427CI V8	1968, 1969
Chevrolet	Biscayne	7400cc, 7.4L/454CI V8	1970, 1971, 1972
Chevrolet	Biscayne	7439cc, 7.4L/454CI V8	1970, 1971, 1972
Chevrolet	Biscayne	7441cc, 7.4L/454CI V8	1970, 1971, 1972
Chevrolet	Blazer Base	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1995, 1996, 1997, 1998, 1999
Chevrolet	Blazer Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	Blazer Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	Blazer Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1973
Chevrolet	Blazer LS	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998, 1999, 2000, 2001, 2002
Chevrolet	Blazer LT	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1995, 1996, 1997, 1998, 1999, 2000, 2001
Chevrolet	Blazer Trailblazer	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1999, 2000, 2001
Chevrolet	Blazer Xtreme	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	2001, 2002
Chevrolet	Blazer	5000cc, 5.0L/307CI V8	1969, 1970, 1971, 1972, 1973
Chevrolet	Blazer	5031cc, 5.0L/307CI V8	1969, 1970, 1971, 1972, 1973
Chevrolet	Blazer	5700cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974
Chevrolet	Blazer	5736cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974
Chevrolet	Blazer	5737cc, 5.7L/350CI V8	1973, 1974
Chevrolet	Blazer	7400cc, 7.4L/454CI V8	1973
Chevrolet	Blazer	7439cc, 7.4L/454CI V8	1973, 1974
Chevrolet	Blazer	7441cc, 7.4L/454CI V8	1973
Chevrolet	Brookwood Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1970, 1971
Chevrolet	Brookwood Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1972
Chevrolet	Brookwood Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1972
Chevrolet	Brookwood	4600cc, 4.6L/283CI V8	1958
Chevrolet	Brookwood	4638cc, 4.6L/283CI V8	1959, 1960, 1961
Chevrolet	Brookwood	5031cc, 5.0L/307CI V8	1969, 1971, 1972
Chevrolet	Brookwood	5358cc, 5.3L/327CI V8	1969
Chevrolet	Brookwood	5700cc, 5.7L/350CI V8	1969, 1970, 1971, 1972
Chevrolet	Brookwood	5736cc, 5.7L/350CI V8	1969, 1970, 1971, 1972
Chevrolet	Brookwood	5737cc, 5.7L/350CI V8	1972
Chevrolet	Brookwood	6489cc, 6.5L/396CI V8	1969
Chevrolet	Brookwood	6555cc, 6.6L/400CI V8	1970, 1971, 1972
Chevrolet	Brookwood	6556cc, 6.6L/400CI V8	1970, 1972
Chevrolet	Brookwood	6588cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	Brookwood	6600cc, 6.6L/400CI V8	1970, 1972
Chevrolet	Brookwood	6600cc, 6.6L/402CI V8	1972
Chevrolet	Brookwood	6998cc, 7.0L/427CI V8	1969
Chevrolet	Brookwood	7439cc, 7.4L/454CI V8	1970, 1971, 1972
Chevrolet	C Series 454 SS	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1990, 1991, 1992, 1993
Chevrolet	C Series Base	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1994, 1995
Chevrolet	C Series Base	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1996, 1997
Chevrolet	C Series Base	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1992, 1993, 1994, 1995
Chevrolet	C Series Base	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998, 1999, 2000
Chevrolet	C Series Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	C Series Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	C Series Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1973, 1974
Chevrolet	C Series Big Ten	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1978, 1979
Chevrolet	C Series Big Ten	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C Series Cheyenne	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Chevrolet	C Series Cheyenne	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998
Chevrolet	C Series Cheyenne	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1978, 1979, 1980
Chevrolet	C Series Cheyenne	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C Series Cheyenne	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C Series Cheyenne	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Chevrolet	C Series Cheyenne	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998
Chevrolet	C Series Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1978, 1979, 1980
Chevrolet	C Series Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C Series Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C Series Custom	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985, 1986
Chevrolet	C Series Custom	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1981, 1982, 1983, 1984, 1985, 1986
Chevrolet	C Series Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1981
Chevrolet	C Series LS	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1995
Chevrolet	C Series LS	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998, 1999, 2000
Chevrolet	C Series LT	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1995
Chevrolet	C Series LT	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Vortec, GAS	1996, 1997
Chevrolet	C Series Scottsdale	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985, 1986
Chevrolet	C Series Scottsdale	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1988, 1989, 1990
Chevrolet	C Series Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1978, 1979, 1980
Chevrolet	C Series Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C Series Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980, 1982, 1984, 1985, 1986
Chevrolet	C Series Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1988, 1989, 1990
Chevrolet	C Series Silverado	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985, 1986
Chevrolet	C Series Silverado	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Chevrolet	C Series Silverado	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998
Chevrolet	C Series Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1979, 1980
Chevrolet	C Series Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C Series Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980, 1982, 1983, 1984, 1985, 1986
Chevrolet	C Series Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Chevrolet	C Series Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998
Chevrolet	C Series WT	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1990, 1991, 1992, 1993, 1994, 1995
Chevrolet	C Series WT	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998
Chevrolet	C Series WT	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1990, 1991, 1992, 1993, 1994, 1995
Chevrolet	C Series WT	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Vortec, GAS	1996, 1997, 1998
Chevrolet	C Series	4638cc, 4.6L/283CI V8	1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967
Chevrolet	C Series	5000cc, 5.0L/305CI V8	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Chevrolet	C Series	5000cc, 5.0L/307CI V8	1968, 1969, 1970, 1971, 1972, 1973
Chevrolet	C Series	5031cc, 5.0L/307CI V8	1968, 1969, 1970, 1971, 1972, 1973
Chevrolet	C Series	5358cc, 5.3L/327CI V8	1966, 1967, 1968, 1969
Chevrolet	C Series	5400cc, 5.4L/327CI V8	1968
Chevrolet	C Series	5700cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Chevrolet	C Series	5736cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974
Chevrolet	C Series	5737cc, 5.7L/350CI V8	1972, 1974
Chevrolet	C Series	6489cc, 6.5L/396CI V8	1968, 1969
Chevrolet	C Series	6500cc, 6.5L/396CI V8	1968, 1969
Chevrolet	C Series	6588cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	C Series	6600cc, 6.6L/400CI V8	1976, 1977, 1978, 1979, 1980
Chevrolet	C Series	6600cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	C Series	7400cc, 7.4L/454CI V8	1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Chevrolet	C Series	7439cc, 7.4L/454CI V8	1973, 1974
Chevrolet	C Series	7441cc, 7.4L/454CI V8	1973, 1974
Chevrolet	C10 Big Ten	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1978, 1979
Chevrolet	C10 Big Ten	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C10 Cheyenne	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1978, 1979, 1980
Chevrolet	C10 Cheyenne	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C10 Cheyenne	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C10 Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1978, 1979, 1980
Chevrolet	C10 Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C10 Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C10 Custom	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985, 1986
Chevrolet	C10 Pickup Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	C10 Pickup Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	C10 Pickup Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1973, 1974
Chevrolet	C10 Pickup	4638cc, 4.6L/283CI V8	1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967
Chevrolet	C10 Pickup	5000cc, 5.0L/307CI V8	1968, 1969, 1970, 1971, 1972, 1973
Chevrolet	C10 Pickup	5031cc, 5.0L/307CI V8	1968, 1969, 1970, 1971, 1972, 1973
Chevrolet	C10 Pickup	5358cc, 5.3L/327CI V8	1966, 1967, 1968, 1969
Chevrolet	C10 Pickup	5400cc, 5.4L/327CI V8	1968
Chevrolet	C10 Pickup	5700cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974
Chevrolet	C10 Pickup	5736cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974
Chevrolet	C10 Pickup	5737cc, 5.7L/350CI V8	1972, 1974
Chevrolet	C10 Pickup	6489cc, 6.5L/396CI V8	1968, 1969
Chevrolet	C10 Pickup	6500cc, 6.5L/396CI V8	1968, 1969
Chevrolet	C10 Pickup	6588cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	C10 Pickup	6600cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	C10 Pickup	7400cc, 7.4L/454CI V8	1973, 1974
Chevrolet	C10 Pickup	7439cc, 7.4L/454CI V8	1973, 1974
Chevrolet	C10 Pickup	7441cc, 7.4L/454CI V8	1973, 1974
Chevrolet	C10 Scottsdale	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985, 1986
Chevrolet	C10 Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1978, 1979, 1980
Chevrolet	C10 Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C10 Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C10 Silverado	4300cc, 4.3L/262CI V6 OHV Naturally Aspirated - Chevrolet, GAS	1985, 1986
Chevrolet	C10 Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1979, 1980
Chevrolet	C10 Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C10 Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C10 Suburban Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	C10 Suburban Base	7439cc, 7.4L/454CI V8 OHV Naturally Aspirated - U/K, GAS	1973, 1974
Chevrolet	C10 Suburban Base	7441cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1973, 1974
Chevrolet	C10 Suburban Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1978, 1979, 1980
Chevrolet	C10 Suburban Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C10 Suburban Custom Deluxe	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C10 Suburban Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1978, 1979, 1980
Chevrolet	C10 Suburban Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C10 Suburban Scottsdale	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C10 Suburban Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - Chevrolet, GAS	1976, 1977, 1979, 1980
Chevrolet	C10 Suburban Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1975
Chevrolet	C10 Suburban Silverado	7400cc, 7.4L/454CI V8 OHV Naturally Aspirated - N/R, GAS	1980
Chevrolet	C10 Suburban	4638cc, 4.6L/283CI V8	1967
Chevrolet	C10 Suburban	5000cc, 5.0L/305CI V8	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Chevrolet	C10 Suburban	5000cc, 5.0L/307CI V8	1968, 1969, 1970, 1971, 1972, 1973
Chevrolet	C10 Suburban	5031cc, 5.0L/307CI V8	1968, 1969, 1970, 1971, 1972, 1973
Chevrolet	C10 Suburban	5358cc, 5.3L/327CI V8	1967, 1968, 1969
Chevrolet	C10 Suburban	5400cc, 5.4L/327CI V8	1968
Chevrolet	C10 Suburban	5700cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Chevrolet	C10 Suburban	5736cc, 5.7L/350CI V8	1969, 1970, 1971, 1972, 1973, 1974
Chevrolet	C10 Suburban	5737cc, 5.7L/350CI V8	1974
Chevrolet	C10 Suburban	6489cc, 6.5L/396CI V8	1968, 1969
Chevrolet	C10 Suburban	6500cc, 6.5L/396CI V8	1968, 1969
Chevrolet	C10 Suburban	6588cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	C10 Suburban	6600cc, 6.6L/402CI V8	1970, 1971, 1972
Chevrolet	C10 Suburban	7400cc, 7.4L/454CI V8	1973, 1974, 1975,

PRODUCT HIGHLIGHTS

Product Highlights

High-Torque Performance	Compact Chrome Design	Flexible Installation
3HP / 2.0kW output with a 4:1 gear reduction ratio	Compact mini starter with a chrome finish	Rotatable housing with three clocking positions for selected engine configurations

SHIPPING

Item Details

Processing Time Orders are processed within 1-3 business days after payment confirmation

Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight

Estimated Delivery Time Express shipping: 3-7 business days, depending on destination

Packaging Export-standard cartons with protective inner packing

Tracking Tracking number will be provided once the order is shipped

Shipping Cost Calculated based on weight, dimensions, and destination

Need Help?

Our product experts will respond to your email within 24 business hours.

Question *

Name *

Email *

Verification code *

WARRANTY POLICY

All new aftermarket parts come with a 1-Year warranty. Quality is the first thing we consider. Check out our Warranty Assistance for more details.

SHIPPING POLICY

We offer express and standard shipping options to ensure your off-road machine gets back in action—fast and reliably. For more details, please visit our Shipping Policy .

EASY RETURN POLICY

We prioritize your satisfaction. If your order doesn't meet your expectations within 90 days, you may be eligible for a refund. See our Easy Return Policy for details.

PRODUCT RECOMMENDATION
