STG53566 Starter Motor 1C24-11000-AA 1C2Z-11002-AA 1C3U-11000-AA SFD0086 6669 for Ford F-250 F-350 F-450 F-550 E-Series Excursion 7.3L Power Stroke Diesel 2001-2003 12V 3.6kW 12T OSGR Replacement

3 Reviews

Add Your Review

US$116.00

ITEMNO： STG53566

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG53566 Starter Motor 1C24-11000-AA 1C2Z-11002-AA 1C3U-11000-AA SFD0086 6669 for Ford F-250 F-350 F-450 F-550 E-Series Excursion 7.3L Power Stroke Diesel 2001-2003 12V 3.6kW 12T OSGR Replacement

Part Numbers

Ford: 1C24-11000-AA / 1C2Z-11002-AA / 1C3U-11000-AA / 1C3U-11000-AB / 1C3U-11000-AC / 1C3U-11000-AD / 1C3U-11000-AE / 1C3Z-11002-AA / 2C24-11000-AA / 2C3T-11000-AA / 2C3Z-11002-AA

Motorcraft: SA-900 / SA-902 / SA-903

Arrowhead: SFD0086

J&N Electrical Products: 410-14049 / 410-14049R

Lester: 6669

Cargo: 112276 / 113762

Lucas Electrical: LRS02512

Remy: 28716

WAI: 2-2197-FD

Wilson: 91-02-5901 / 91-02-5901N

Product Description

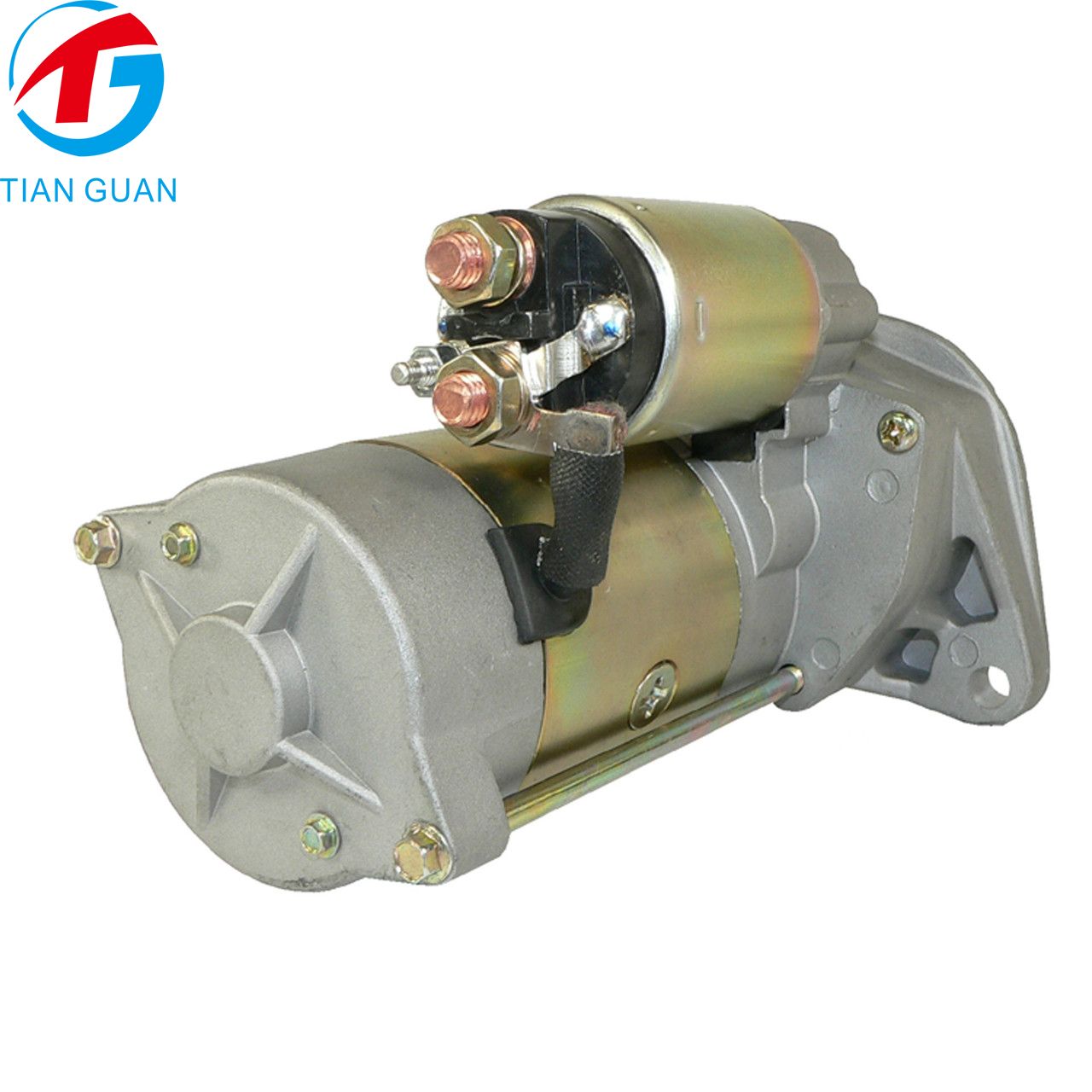

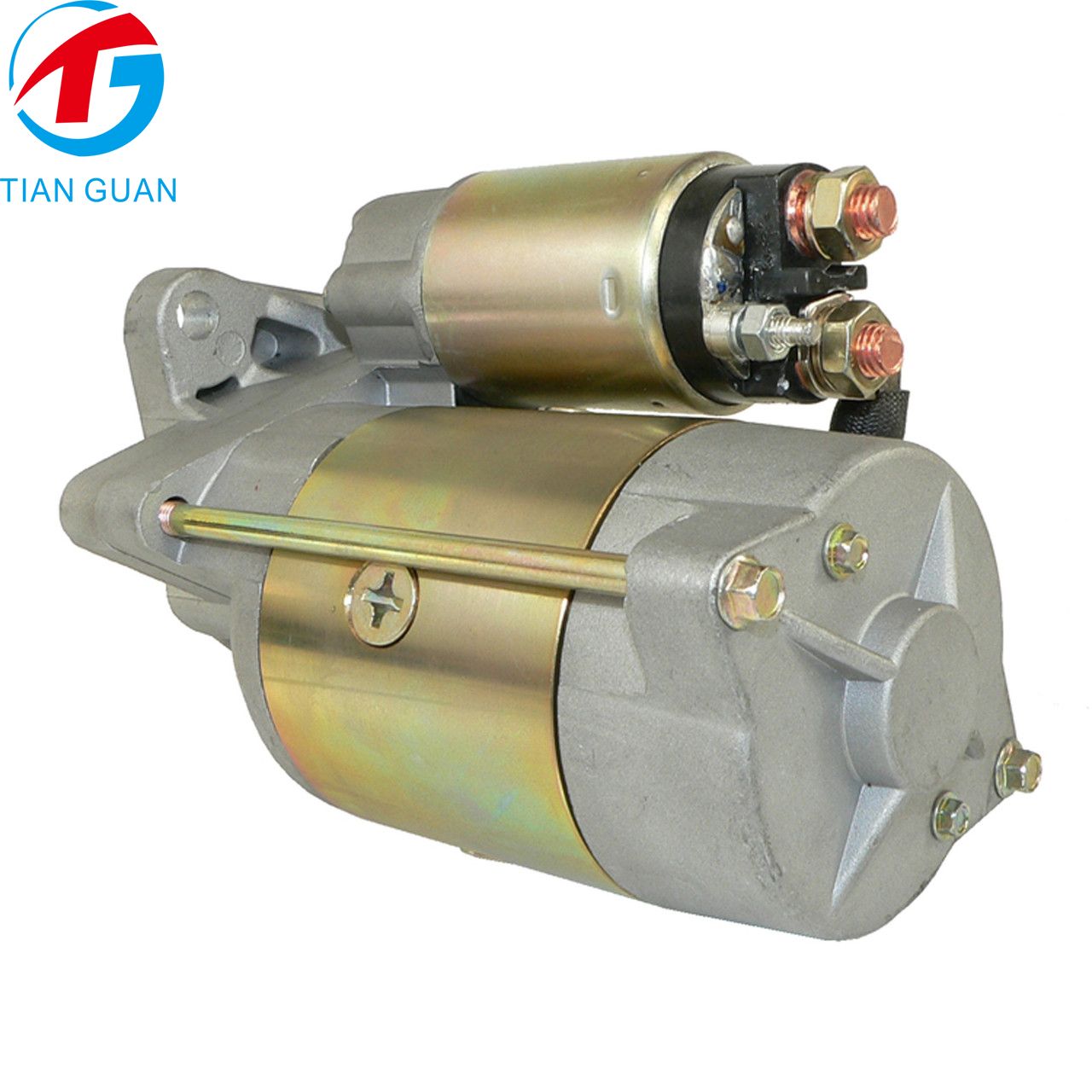

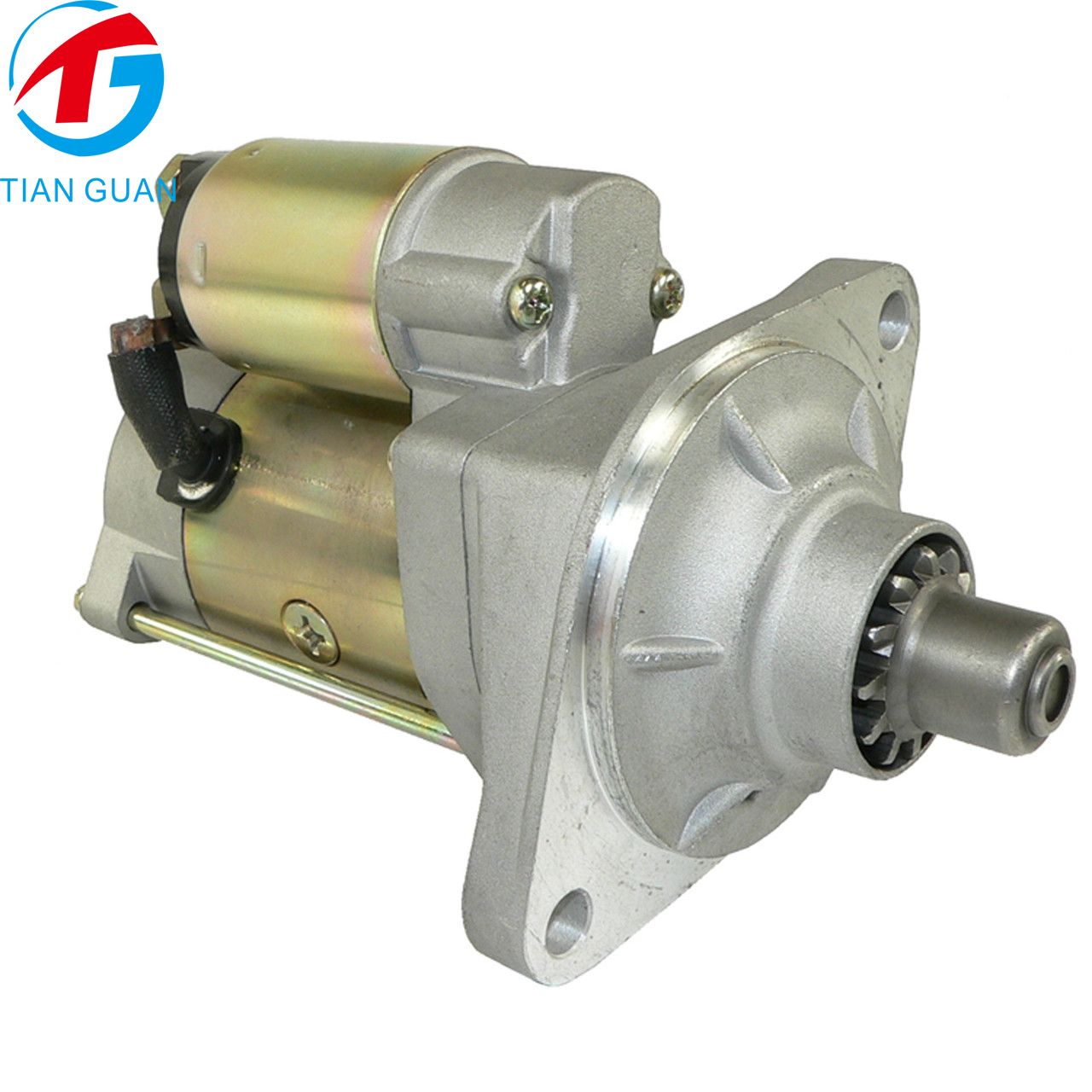

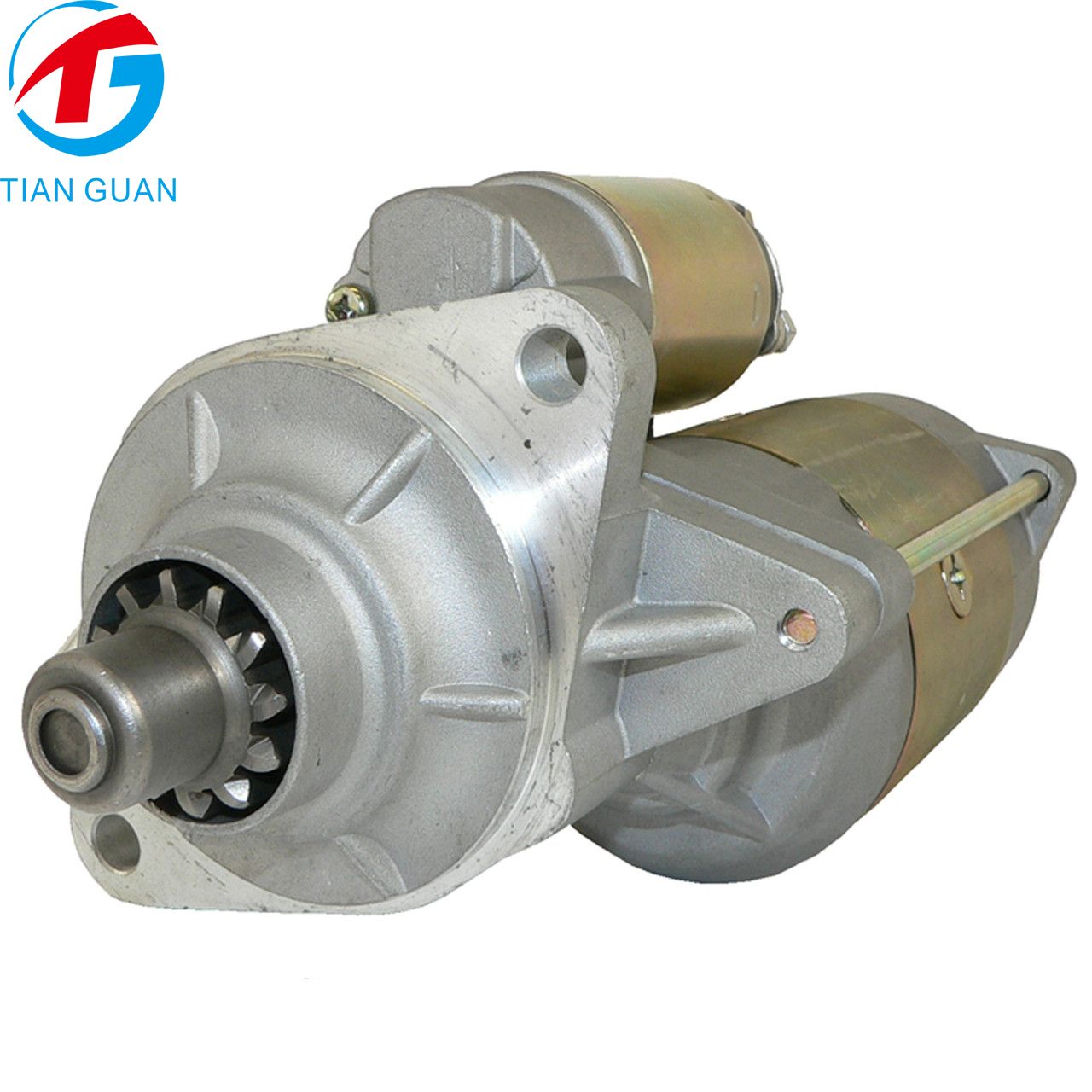

STG53566 Starter Motor is a new aftermarket replacement starter designed for Ford trucks, vans and sport utility vehicles equipped with the 7.3L Power Stroke V8 diesel engine. It replaces Ford OE starter numbers including 1C24-11000-AA, 1C2Z-11002-AA and the 1C3U-11000-A series.

Featuring a 12V, 3.6kW Offset Gear Reduction (OSGR) design with a 12-tooth pinion and clockwise rotation, this starter provides strong cranking performance for heavy-duty Ford 7.3L diesel applications.

Product Specifications

Specification	Details
Product Type	Starter Motor
Item Condition	Aftermarket Part
Condition	New
Voltage	12V
Power	3.6 kW
Power	Approx. 4.83 HP
Starter Type	OSGR
Rotation	Clockwise (CW)
Number of Teeth	12T
Pinion / Spline OD	Approx. 36 mm
Mounting Holes	2
Mounting Hole 1	10.0 mm ID, Unthreaded
Mounting Hole 2	10.0 mm ID, Unthreaded
Engine	7.3L / 445 cu. in. V8 Power Stroke Diesel
Estimated Net Weight	Approx. 6.1 kg

OEM / Cross Reference Table

Brand	Part Number
Ford	1C24-11000-AA / 1C2Z-11002-AA / 1C3U-11000-AA / 1C3U-11000-AB / 1C3U-11000-AC / 1C3U-11000-AD / 1C3U-11000-AE / 1C3Z-11002-AA / 2C24-11000-AA / 2C3T-11000-AA / 2C3Z-11002-AA
Motorcraft	SA-900 / SA-902 / SA-903
Arrowhead	SFD0086
J&N Electrical Products	410-14049 / 410-14049R
Lester	6669
Cargo	112276 / 113762
Lucas Electrical	LRS02512
Remy	28716
WAI	2-2197-FD
Wilson	91-02-5901 / 91-02-5901N

Compatible Applications

Compatible Application	Model	Year	Engine
Ford F-250 Super Duty	F-250	2001–2003	7.3L V8 Diesel
Ford F-350 Super Duty	F-350	2001–2003	7.3L V8 Diesel
Ford F-450 Super Duty	F-450	2001–2003	7.3L V8 Diesel
Ford F-550 Super Duty	F-550	2001–2003	7.3L V8 Diesel
Ford E-Series Van	E-250 / E-Series	2001–2003	7.3L V8 Diesel
Ford E-450 Super Duty	E-450	2002–2003	7.3L V8 Diesel
Ford Excursion	Excursion	2001–2003	7.3L V8 Diesel

PRODUCT HIGHLIGHTS

Product Highlights

Heavy-Duty Starting Power	Wide Ford Application Coverage	Durable OSGR Design
3.6kW output provides strong cranking performance for the 7.3L Power Stroke diesel engine.	Fits multiple Ford Super Duty trucks, E-Series vans and Excursion models from 2001–2003.	12V OSGR construction with 12-tooth pinion and clockwise rotation for dependable starting.
