STG53576 Starter Motor 0001177006 0001177007 02M911-021HX for Volkswagen Beetle 2014–2017 | 12V 1.4kW 13T CCW PMGR Start-Stop Replacement

Part Numbers

Product Description

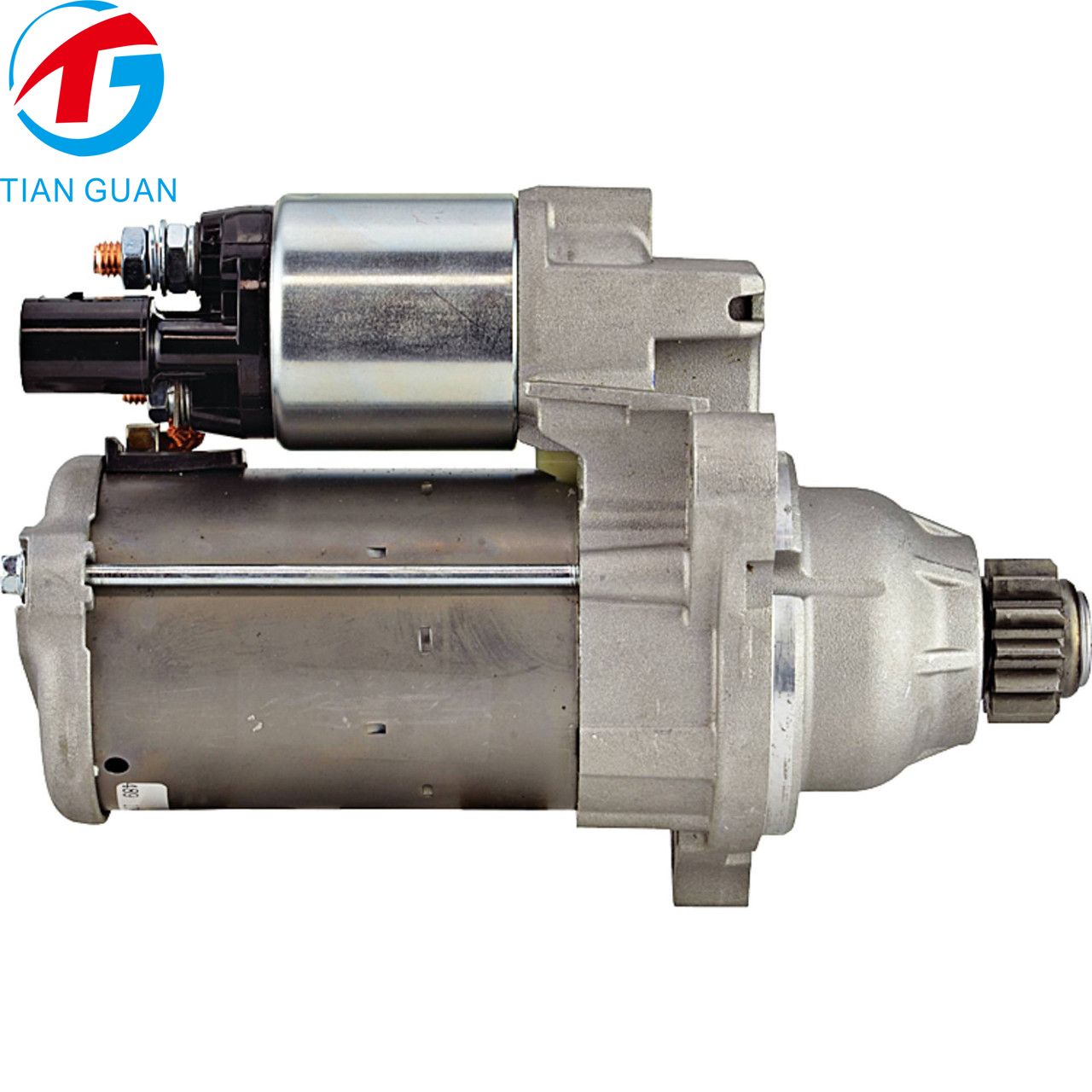

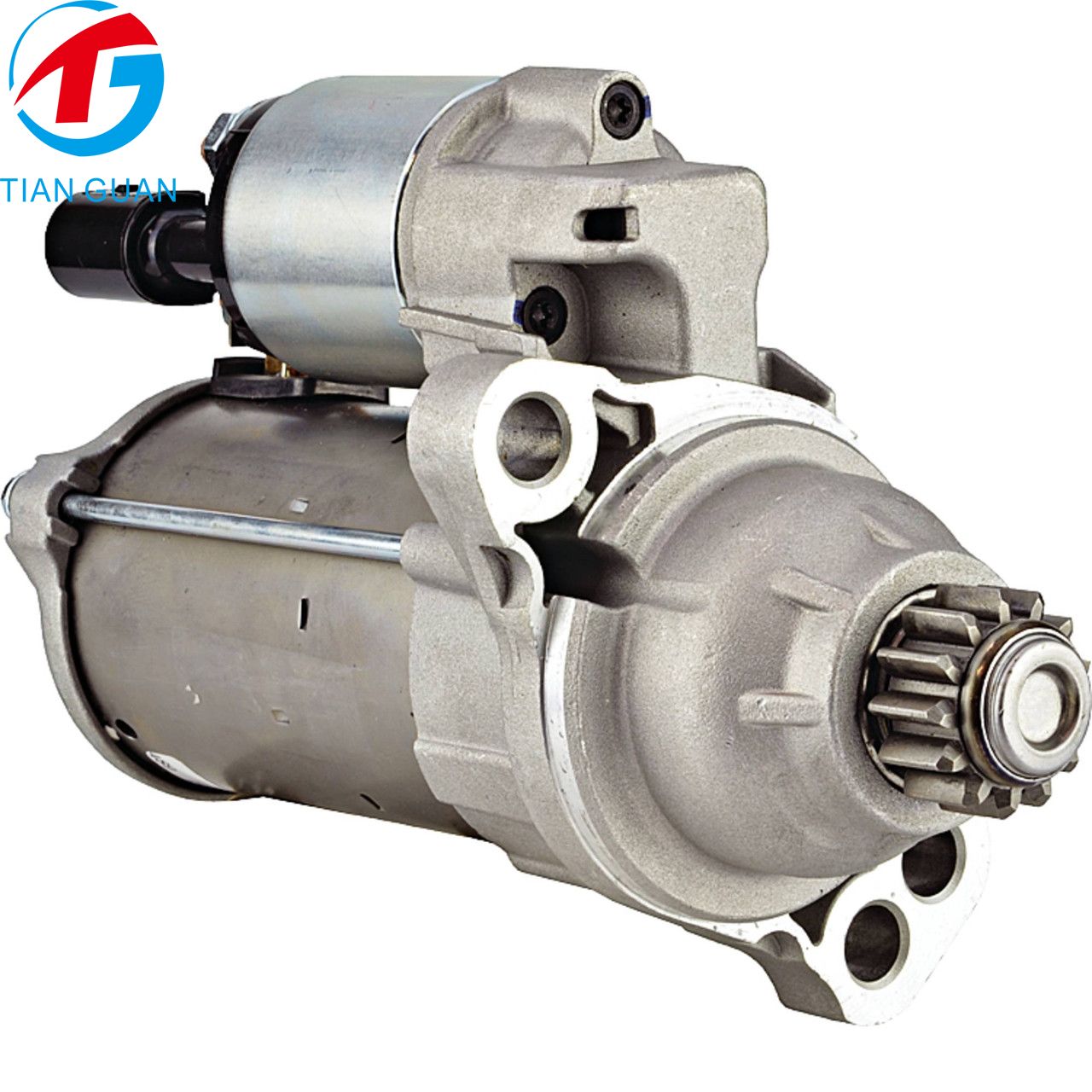

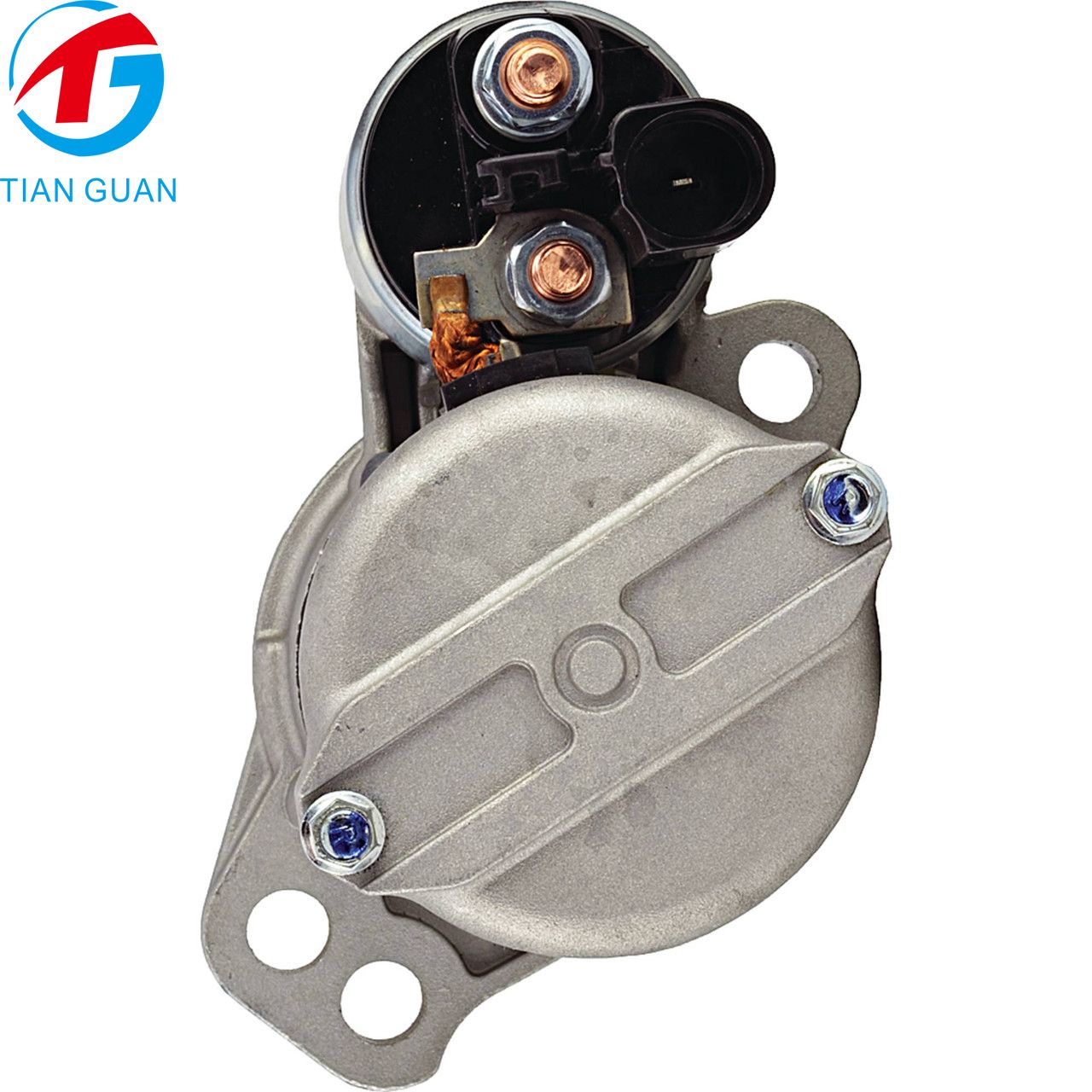

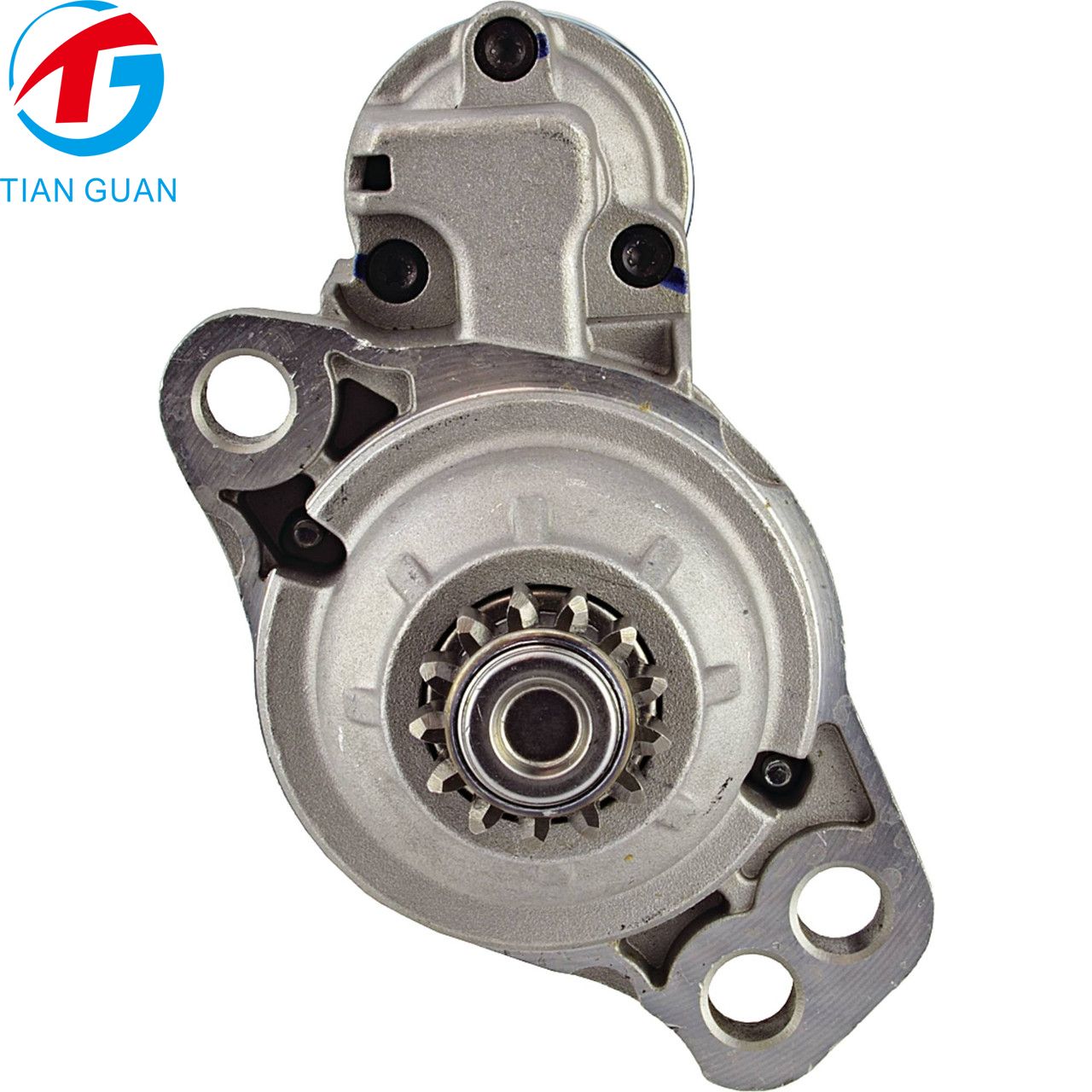

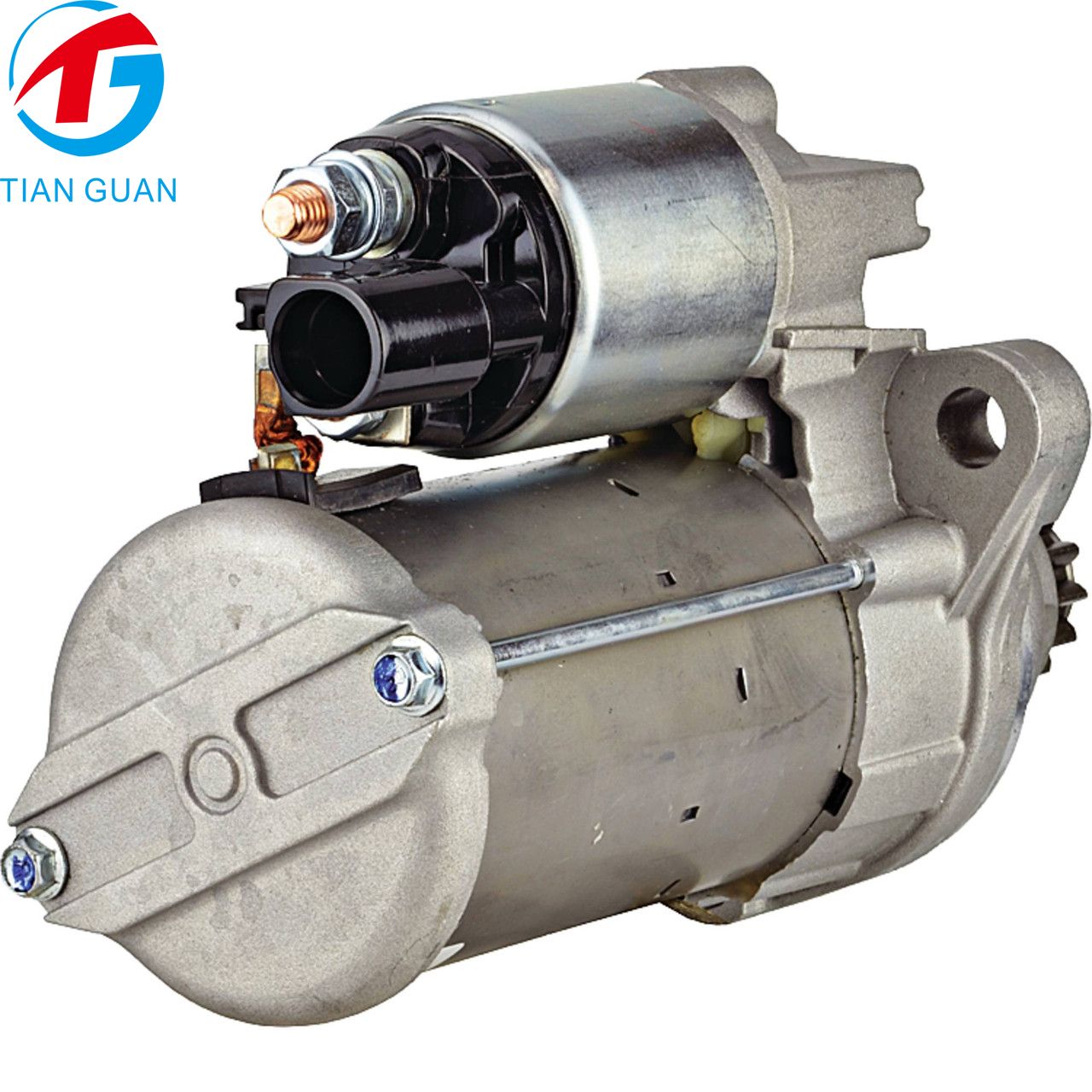

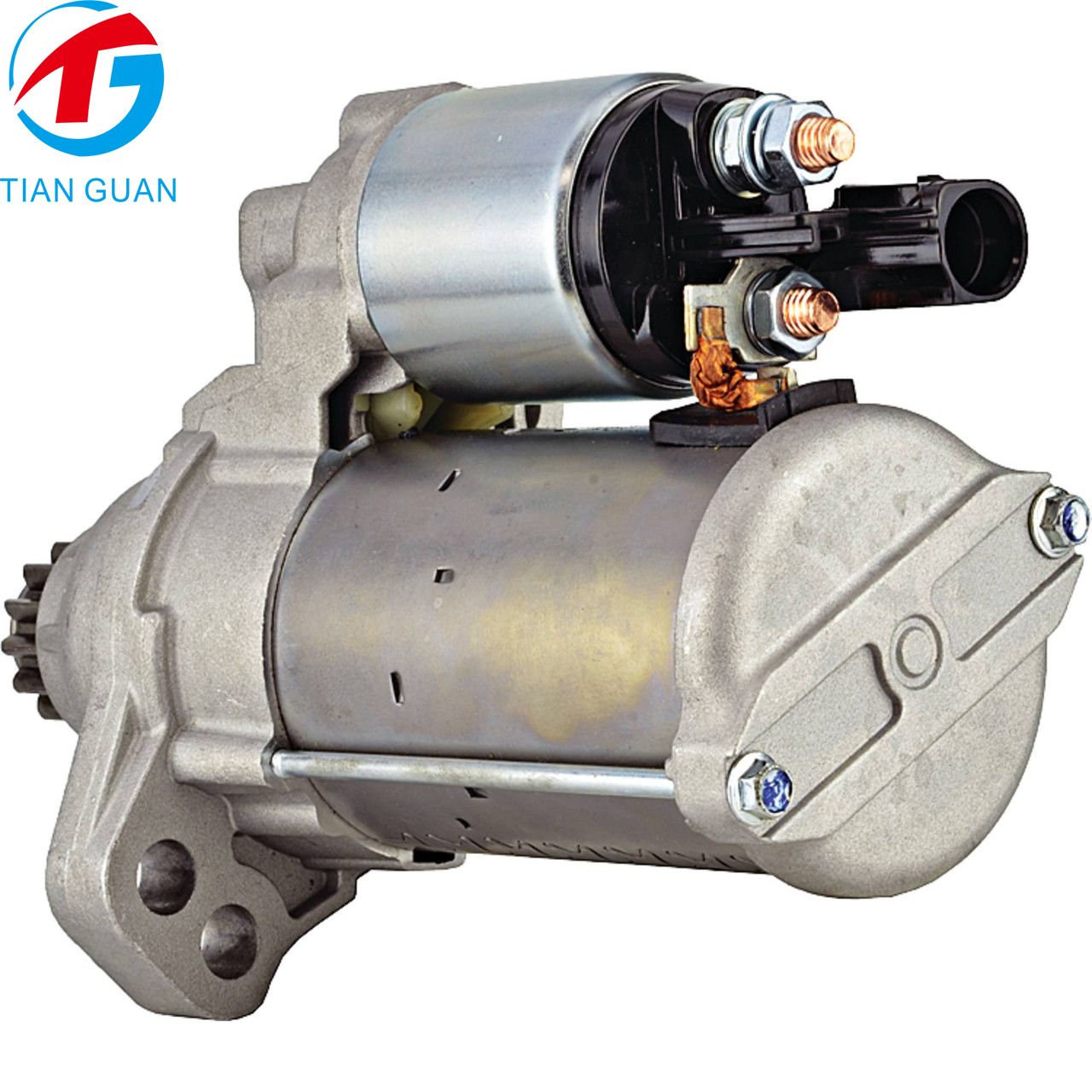

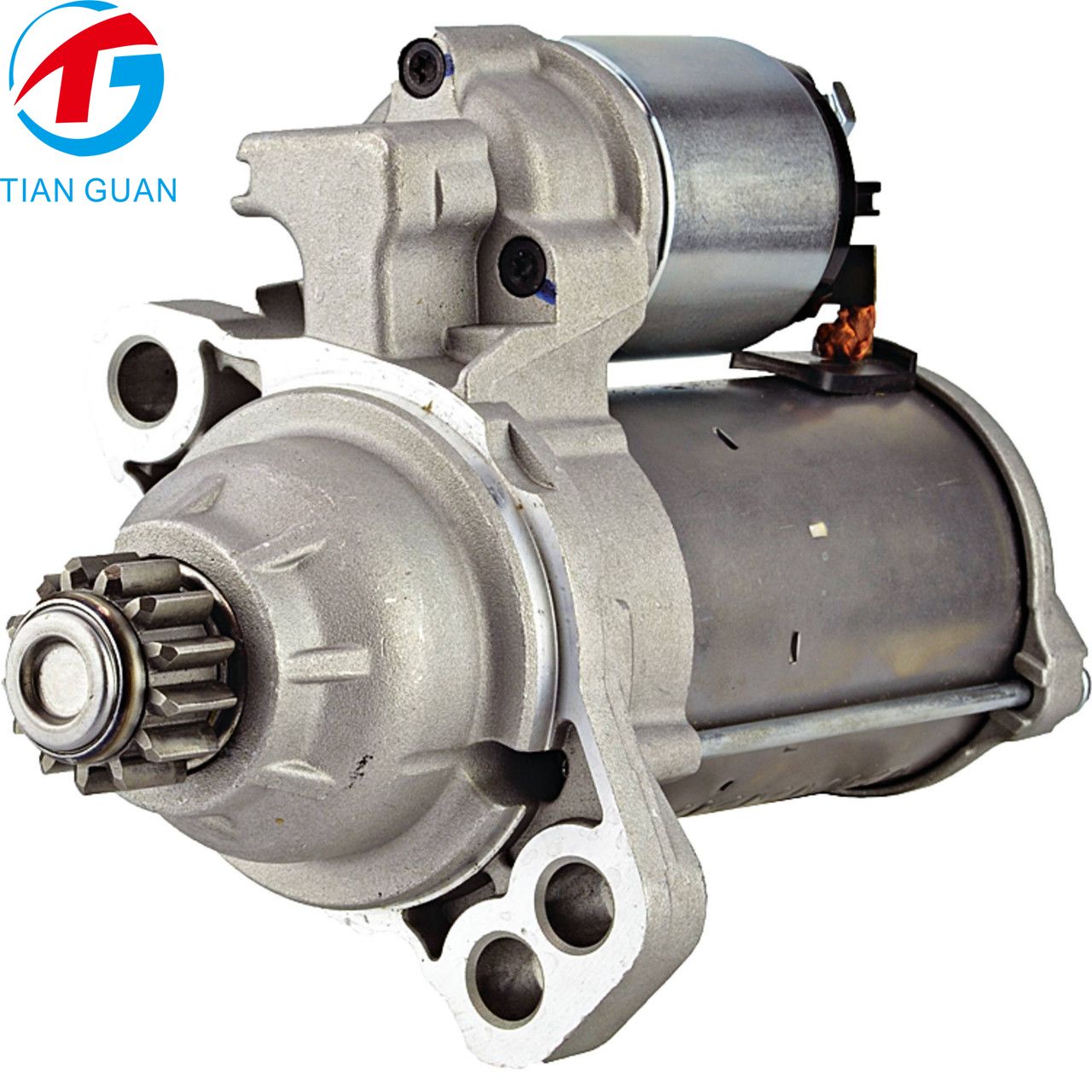

The STG53576 Starter Motor is an aftermarket replacement starter listed for Volkswagen Beetle models from 2014 through 2017. Designed for 12V electrical systems, it delivers a rated output of 1.4kW and features a Permanent Magnet Gear Reduction (PMGR) design for engine cranking applications. Its specifications include a 13-tooth pinion gear and counterclockwise rotation.

This starter features a 34.6mm pinion gear outside diameter, a 215.5mm overall length, and a 78.8mm registry outside diameter. The mounting holes are specified as unthreaded, and the electrical connections include M8-1.25 B+ and motor studs, plus a spade-style S terminal housed in plastic. These details can help with dimensional and electrical comparisons against the original starter.

Cross-referencing Bosch 0001177006 and 0001177007, Arrowhead 410-24359, Lester 19311, and Volkswagen 02M911-021HX can help identify the appropriate replacement. The supplied specifications indicate start-stop system compatibility and a one-year warranty. Confirm the original part number, engine configuration, mounting dimensions, and start-stop requirements before ordering.

Key Features

• 12V, 1.4kW Output: Designed for compatible Volkswagen Beetle starting systems.

• PMGR Design: Features a 13-tooth pinion gear and counterclockwise rotation.

• Start-Stop Compatibility: Listed as compatible with start-stop systems, with a stated one-year warranty.

Product Specifications

Vehicle Fitment
