ATG19686 Alternator 0120400614 0120400615 1204314 for Opel Astra Classic Astra Van Combo Corsa 1991-2002 Replacement

3 Reviews

Add Your Review

US$116.00

ITEMNO： ATG19686

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

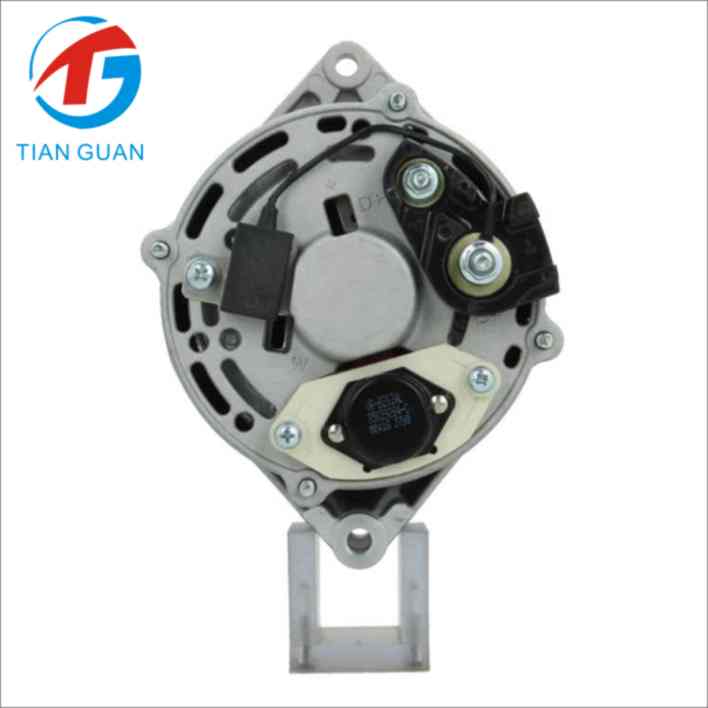

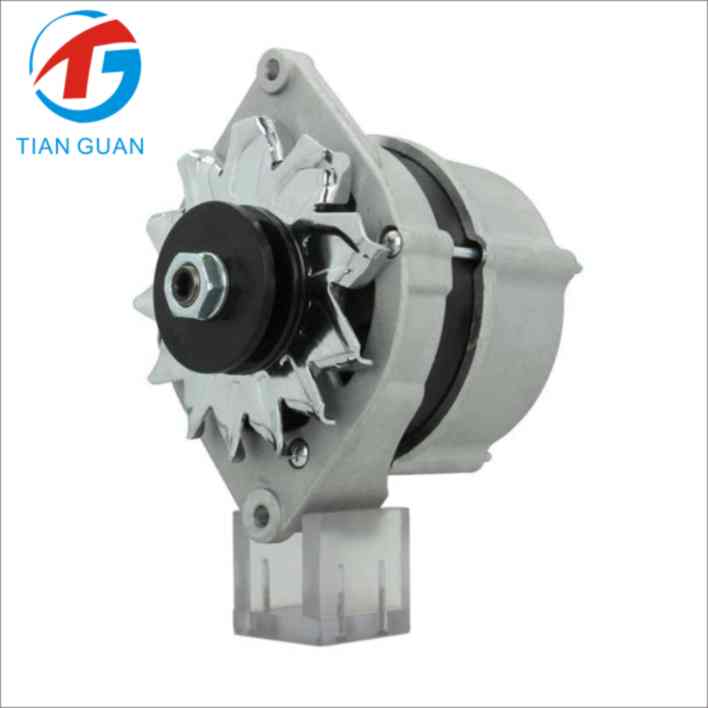

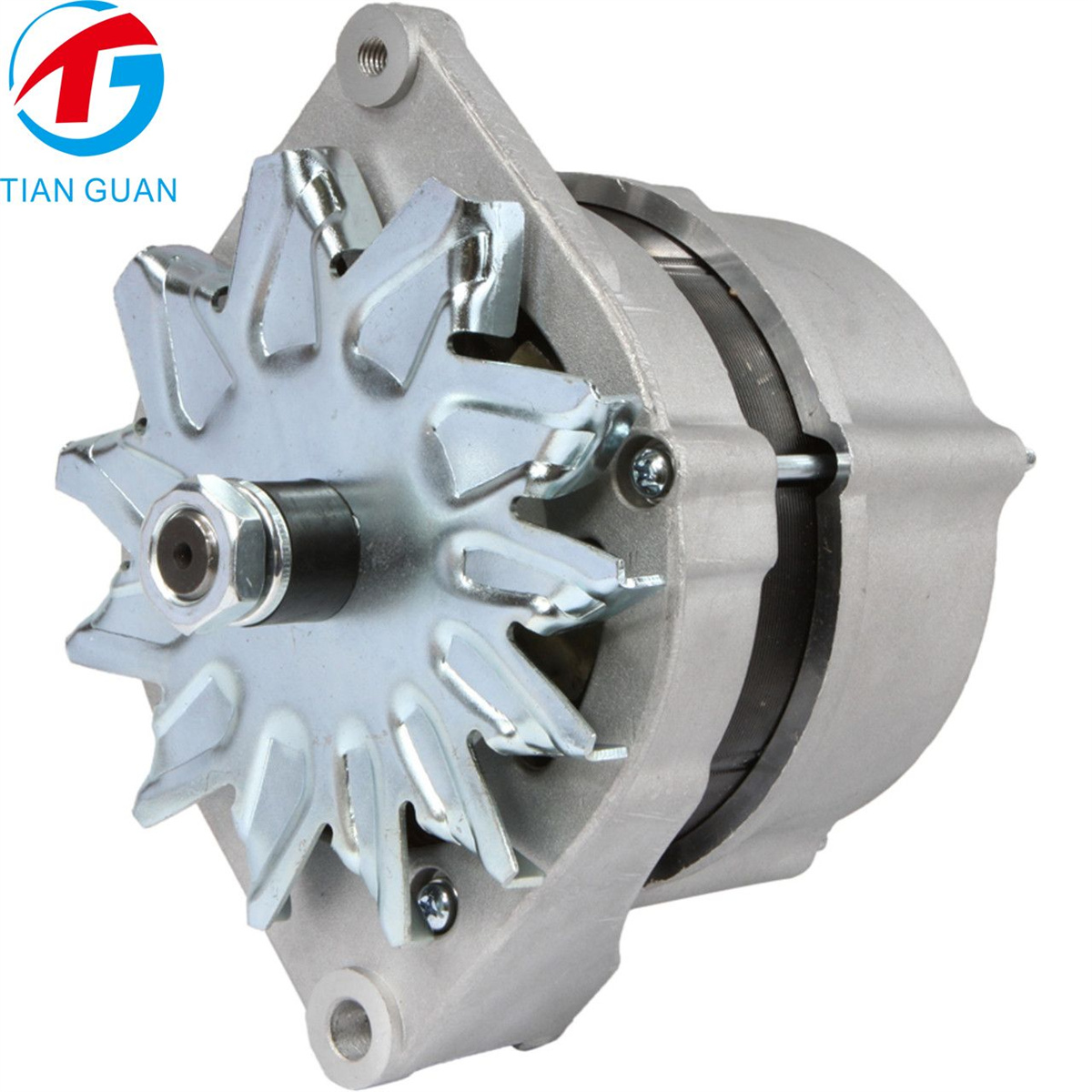

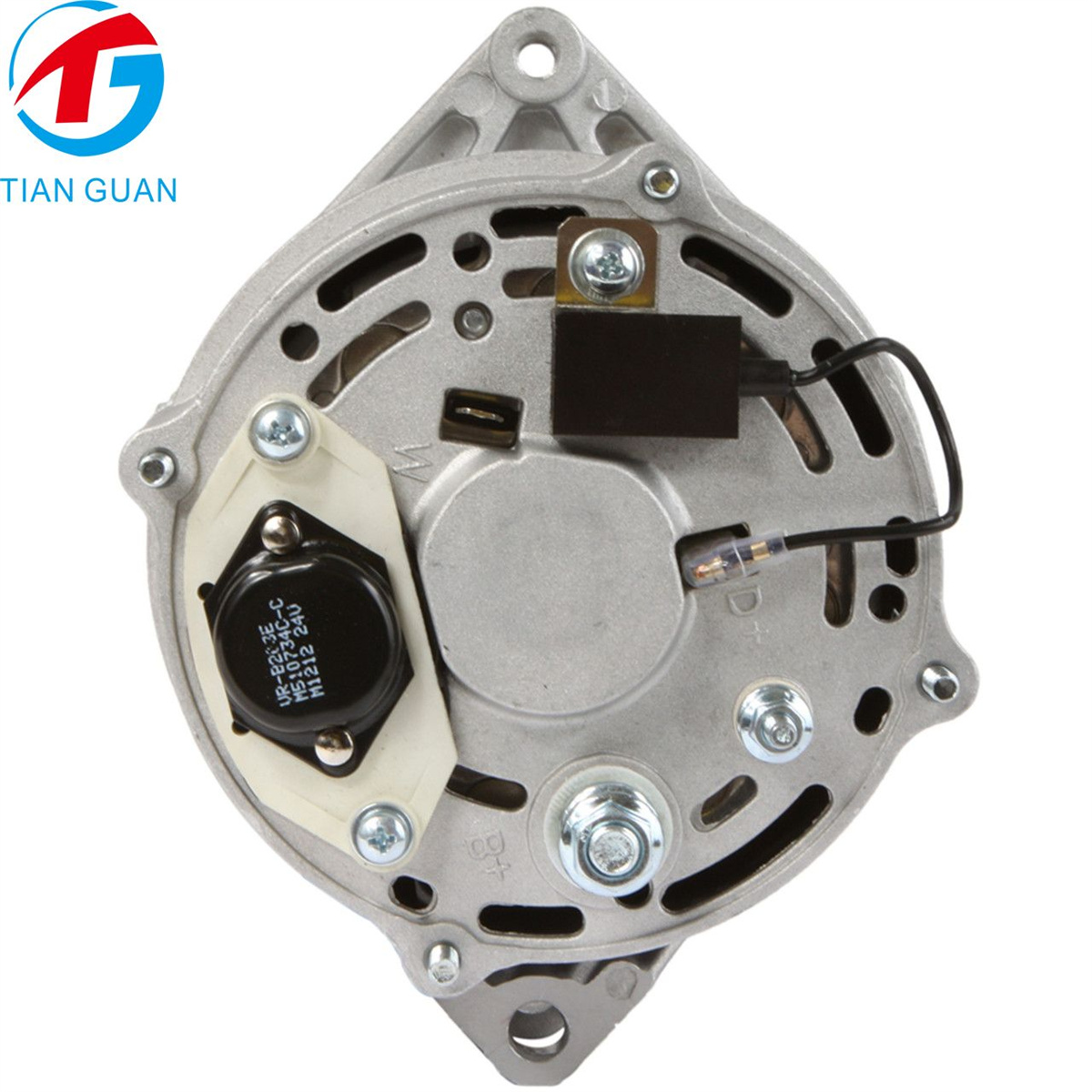

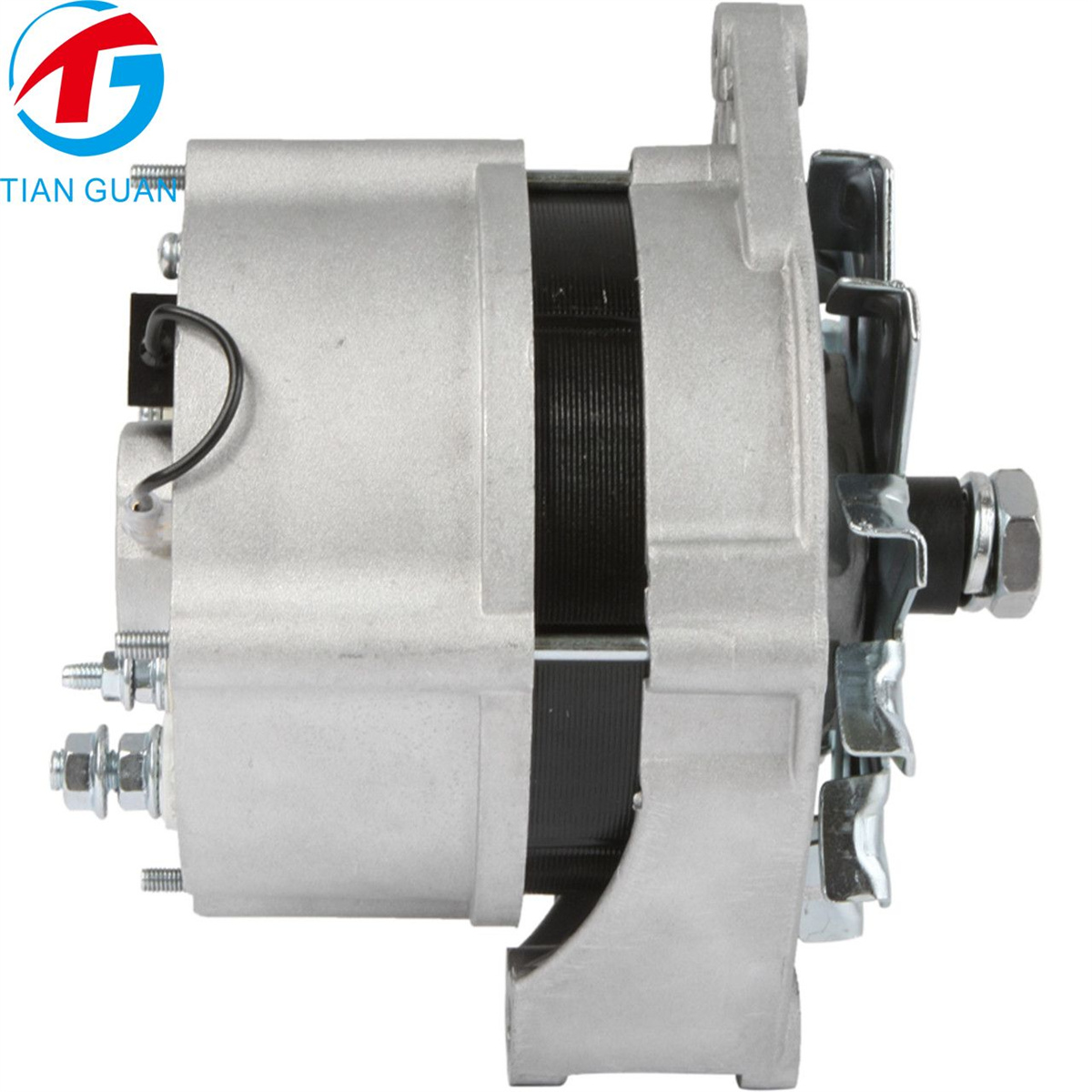

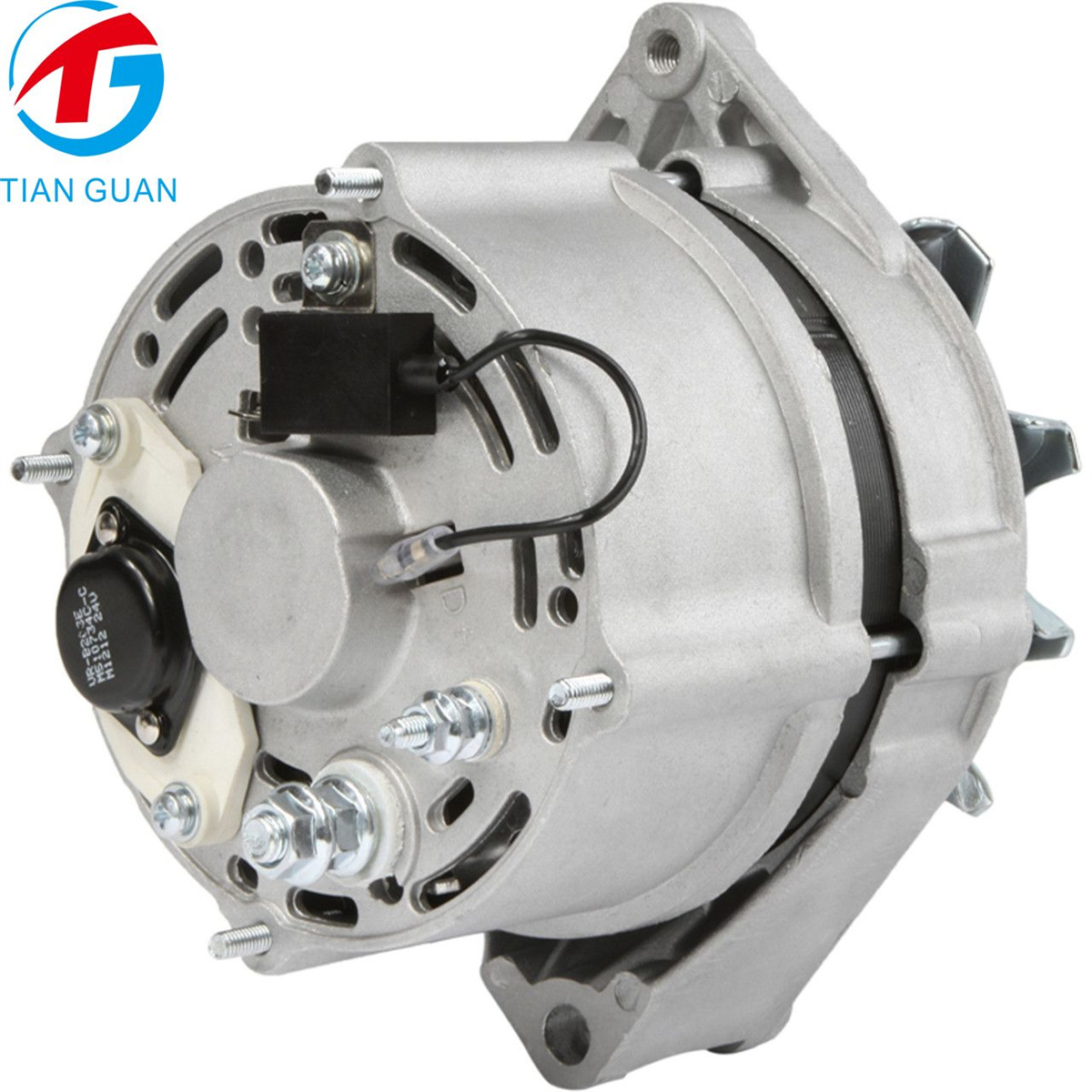

ATG19686 Alternator 0120400614 0120400615 1204314 55A 12V for Opel Astra Corsa Combo Kadett Astra Classic

Product Details

ATG19686 Alternator is a 12V 55A replacement alternator designed for a wide range of Opel/Vauxhall passenger cars and commercial vehicles. It is compatible with Opel Astra, Astra Classic, Astra Van, Corsa, Corsa Van, Combo and Kadett models. This alternator features a 65 mm single-groove pulley, 2 mounting holes and 180° mounting position, making it a reliable replacement for the original charging system.

Specifications

Item	Specification
Product Type	Alternator
Internal Part Number	ATG19686
Voltage	12V
Amperage	55A
Pulley Diameter	65 mm
Pulley Grooves	1 Groove
Freewheel Pulley	No
B+ Terminal	M6
Mounting Holes	2
Mounting Position	180°
PSH Number	135.004.055.010
GTIN	8720264033225
Condition	100% New Aftermarket
Weight	4.5 KG

Replacement Part Numbers

Brand	Part Numbers
Bosch	0120400614, 0120400615, 0120400643, 0120400658, 0120400659, 0120400714, 0120400730, 0120400731, 0120400764, 0120400765, 0120400833, 0120400834, 0120488158, 0120488159, 0120488281, 0120489118, 0120489119, 0120489585, 0120489586, 0120489625, 0120489626, 0120489635, 0120489636, 0120489768, 0120489769, 9120080213
Opel	1204015, 1204031, 1204069, 1204095, 1204109, 1204149, 1204153, 1204154, 1204174, 1204175, 1204191, 1204314, 1204336, 1204337, 1204343, 90337043
Bosch Exchange	0986030880, 0986030881, 0986030883, 0986030890
Mahle	11201098, 11201214, 11201309, 11201928, 72735395, AAK1131, AAK1181, AAK4143, IA0214, IA0309, MG396
Valeo	2940976, 432858, 436150, 436151, 746063, 746863, 9AR2904, SG9MA267, VA114, VA163, VA298, VA375
Delco Remy	31256, 3472022, 3472024, 3472038, 3472049, 3472061, 3472139, 3472224, 3493304, DRA0880, DRA0882
Lucas	22800, LEA0073, LRA00207, LRA00313, LRA00324, LRA00417, LRA02569, LRA207, LRA2569, LRA313, LRA324, LRA417
Magneti Marelli	63730099010, 943356502, 943356502010, 944390308800, MAN2012, MAR1502, MAR485, MAR785
HC-Parts	CA99, CA99IR, HCA99IR
Wood Auto	ALT10149, ALT7710, MAHMG396, WOOALT10149
AES	12201010, 16201037
PSH	135004055
Ford	1510642
DAF	692057
Fiat Group	82378025
Saab	8802720
Vauxhall	R1030031, R1030034
Optimum	OAN10977
Unipoint	ALTH245

Compatible Applications

Make	Model	Application Years
Opel	Astra	08/1991–12/1997
Opel	Astra	08/1991–08/1998
Opel	Astra	08/1991–08/1993
Opel	Astra	08/1991–07/1994
Opel	Astra Classic	02/1998–07/2002
Opel	Astra Van	08/1991–01/1998
Opel	Combo	10/1992–06/2001
Opel	Combo	06/1994–09/2001
Opel	Corsa	02/1993–08/2000
Opel	Corsa	03/1993–08/2000
Opel	Corsa	03/1993–04/1997
Opel	Corsa	02/1993–07/1998
Opel	Corsa Van	08/1994–11/2001
Opel	Corsa Van	07/1994–11/2001
Opel	Kadett	08/1984–07/1991
Opel	Kadett	08/1984–07/1990
Opel	Kadett	08/1988–04/1992
Opel	Kadett	08/1986–07/1991
Opel	Kadett	08/1989–04/1992
