ATG19689 Alternator 202360T91 87645566 91448C2 9705428 MG490 for Case 1420 1440 1460 D358 D436 D466

Part Numbers

CASE: 1117965, 125849A1R, 1983221C1, 1987560C1, 202360T91, 202 360 T91, 20-2360T91, 47389932, 84136137, 87418225, 87645566, 91448C1, 91448C2, 914 48 C2, 9705428, 9824834, A130672Z
CATERPILLAR: 9X6796
CUMMINS: 3604474-6RX, 3604667RX, 3909982, 3920615
DELCO: 10459037, 10459047, 10459547, 10479924, 10479925, 10479926, 1101194, 1105538, 1117891, 1117898, 1117906, 1117909, 1117910, 1117911, 1117914, 1117918, 1117923, 1117929, 1117932, 1117941, 1117943, 1117946, 1117947, 1117949, 1117951, 1117957, 1117958, 1117959, 1117961, 1117962, 1117963, 1117965, 1117966, 19010104, 19010115, 19010120, 19010124, 19010129, 19010134, 19010137, 19010145, 19010147, 19010153, 19010155, 19010161, 19010162, 19010163, 19010166, 19010171, 19010173, 19010174, 19010176, 19010178, 19010191, 19010196, 19010210, 19010212
FIAT: 60557646, 605576460
FORD: F3HT-10300-JB, F3HZ-10346-E, F3HZ-10346-J, F4HT-10300-LA, F5HZ-10346-B, F5HZ-10346-BRM, F6HZ-10346-A, F6HZ-10346-B
FORD ENGINEERING: F3HT-JB
IHC / NAVISTAR: 146487C91, 1677975C91, 91448C1
JOHN DEERE: AT142246, F123188, RE36268, TY6753, TY6773, TY6795
LETRIKA (ISKRA): 11.204.159, 11.204.361, AAN5138, AAN5155, AAN5318, AAN5701, AAN5819, AAN8151, 11.203.124, 11.203.198, 11.203.719, 11.204.239
NEW HOLLAND: 120468055, 125849A1, 86994128, 9824834
BOSCH: 0120468028, 0986043480
CNH / FIAT AGRI: 1117965, 47389932, 87418225, 87645566, 9705428, 9824834
DELCO REMY: 10459037, 10459367, 10459498, 10459547, 1105538, 1117898, 19010147, DRA0919
HELLA: 8EL737080001, 8EL737561001, CA1381IR, UA1108IR
LESTER: 12131, 7564, 7565, 7659, 7667, 7668, 7670, 7673, 7681, 7683, 78536, 8015, 8016, 8017, 8018, 8019, 8025, 8026, 8027, 8029, 8031
LUCAS: LRA01667
MAHLE: IA1058, 11204361, AAN5819, MG490, 11204239, AAN8151, 11203719, AAN5701, 11203198, AAN5155, 11203124, AAN5138
SPAREX: 360980
VALEO: 458343
WILSON: 90156169

Product Description

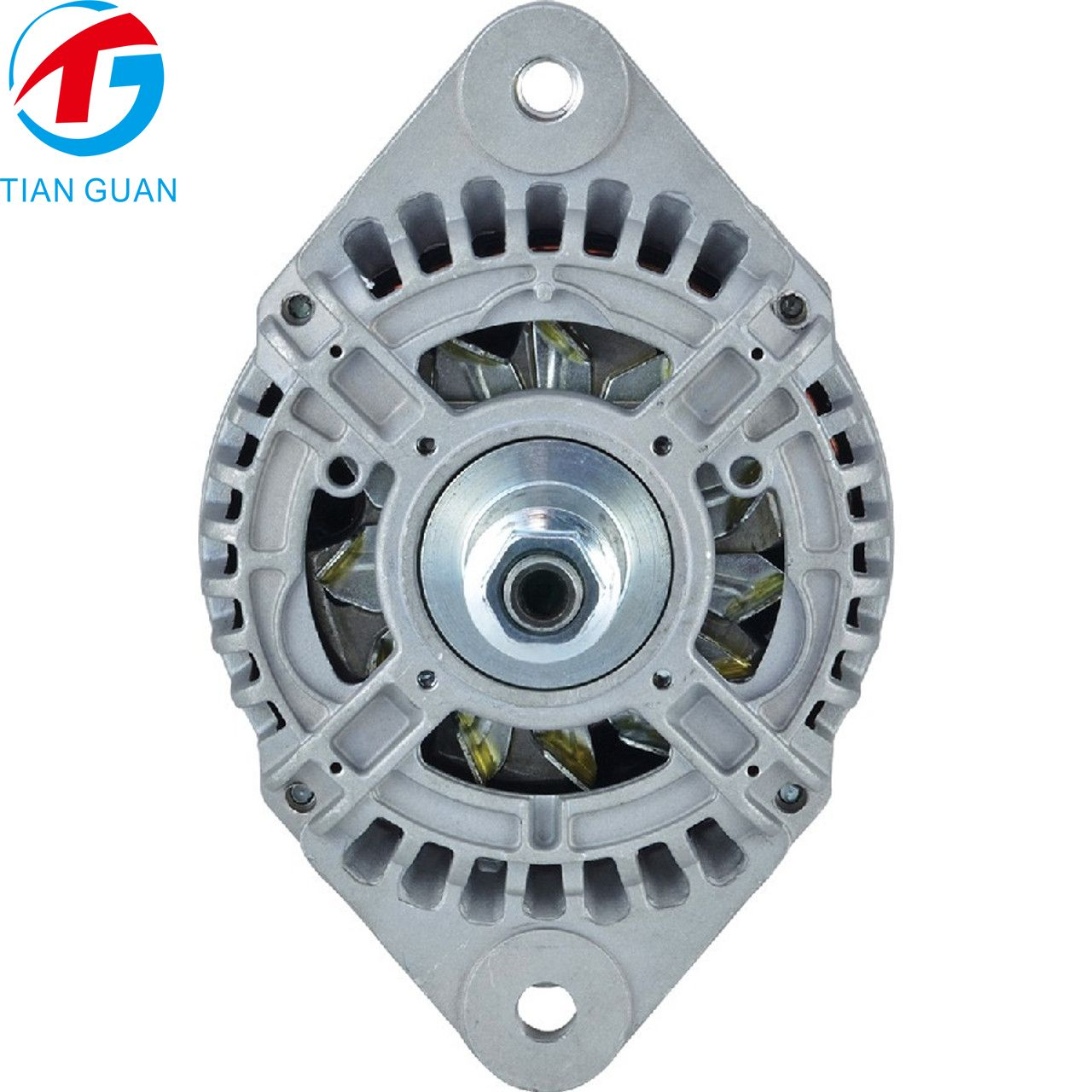

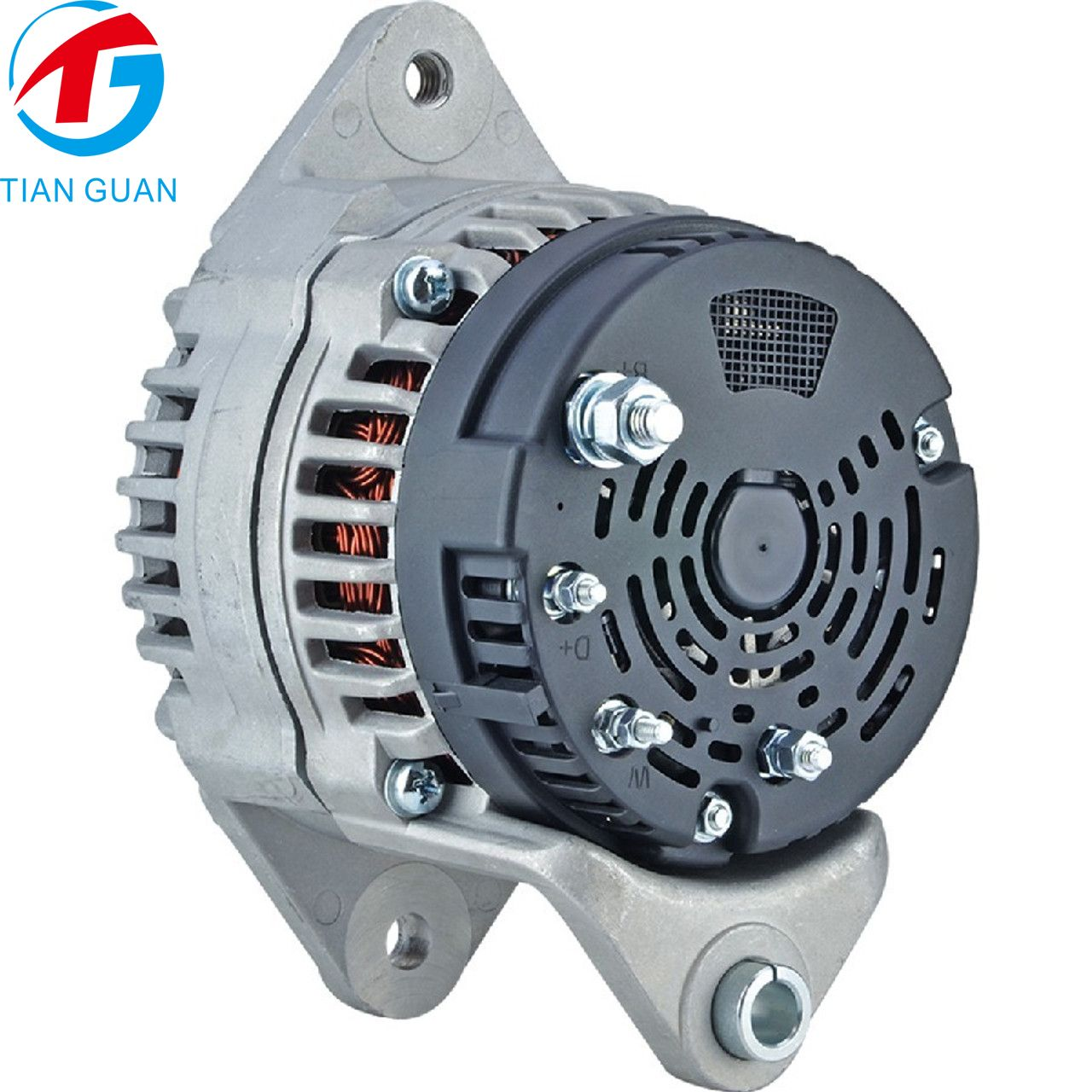

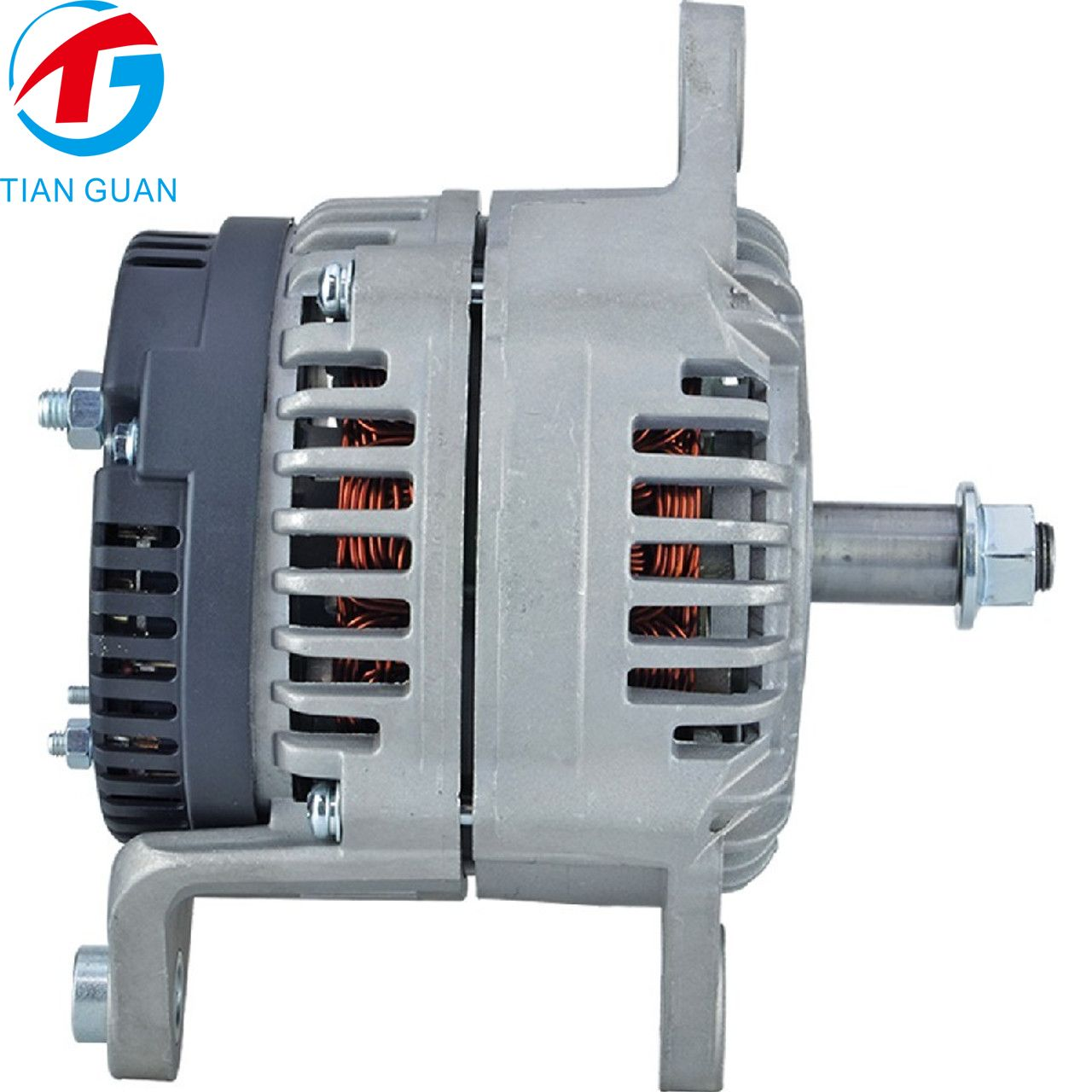

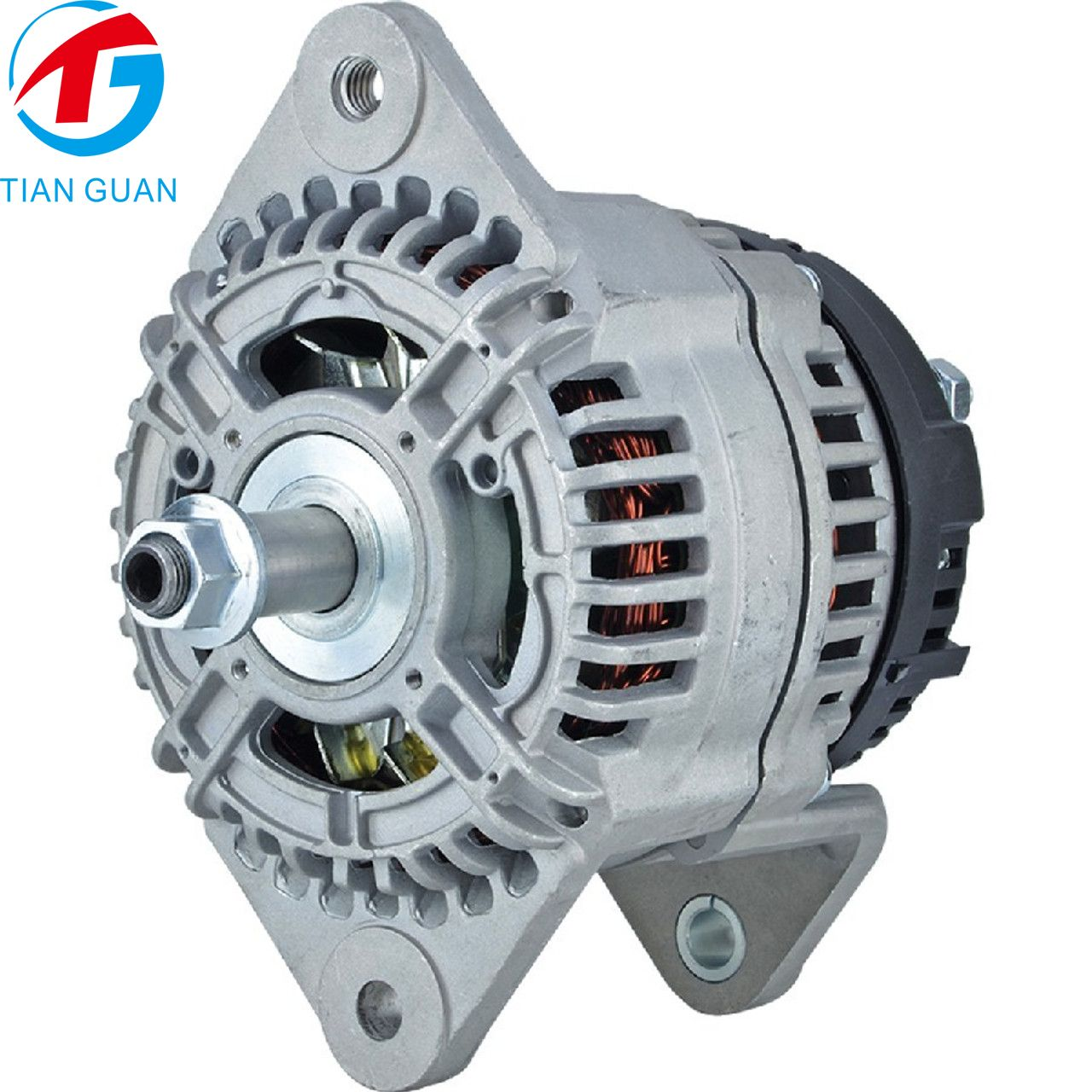

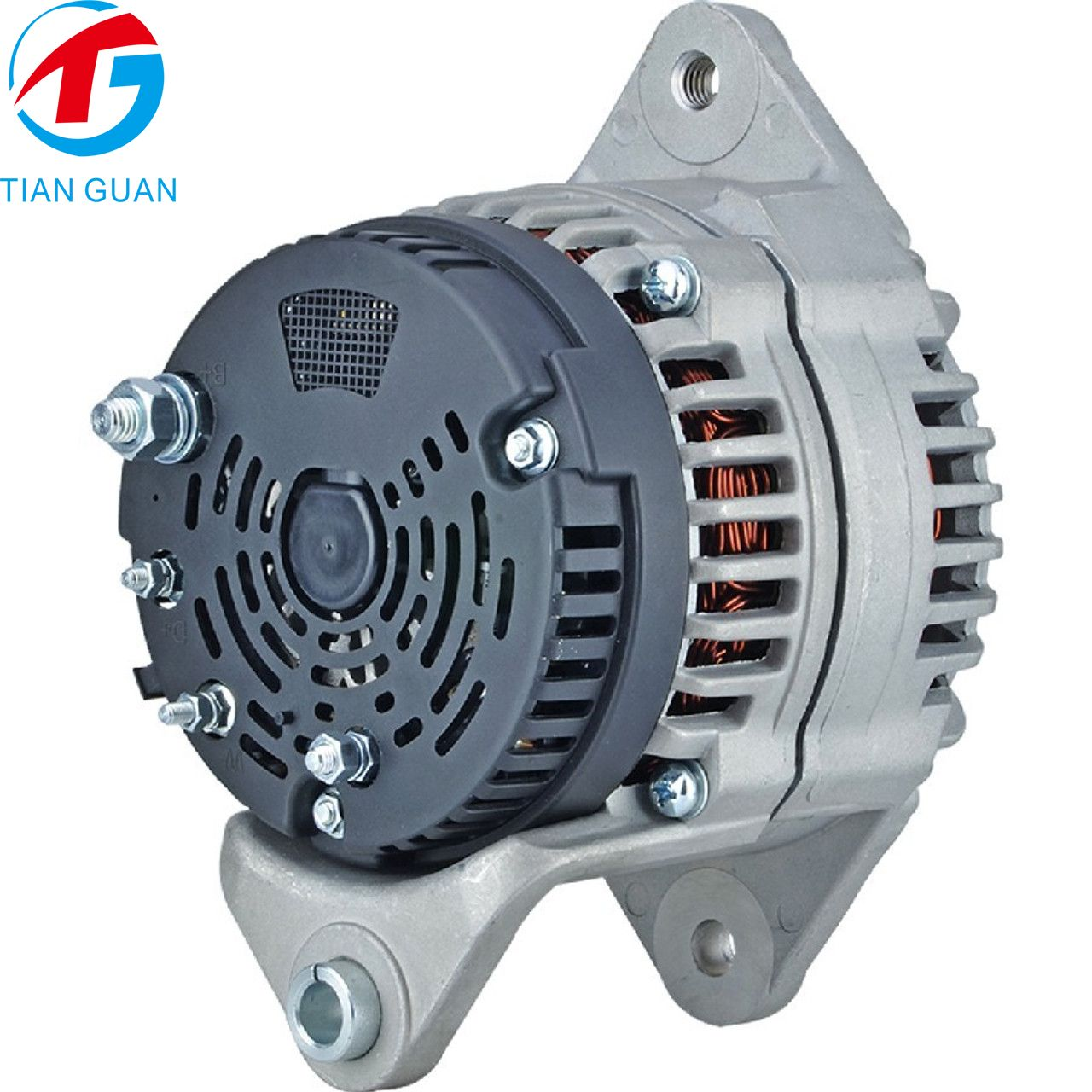

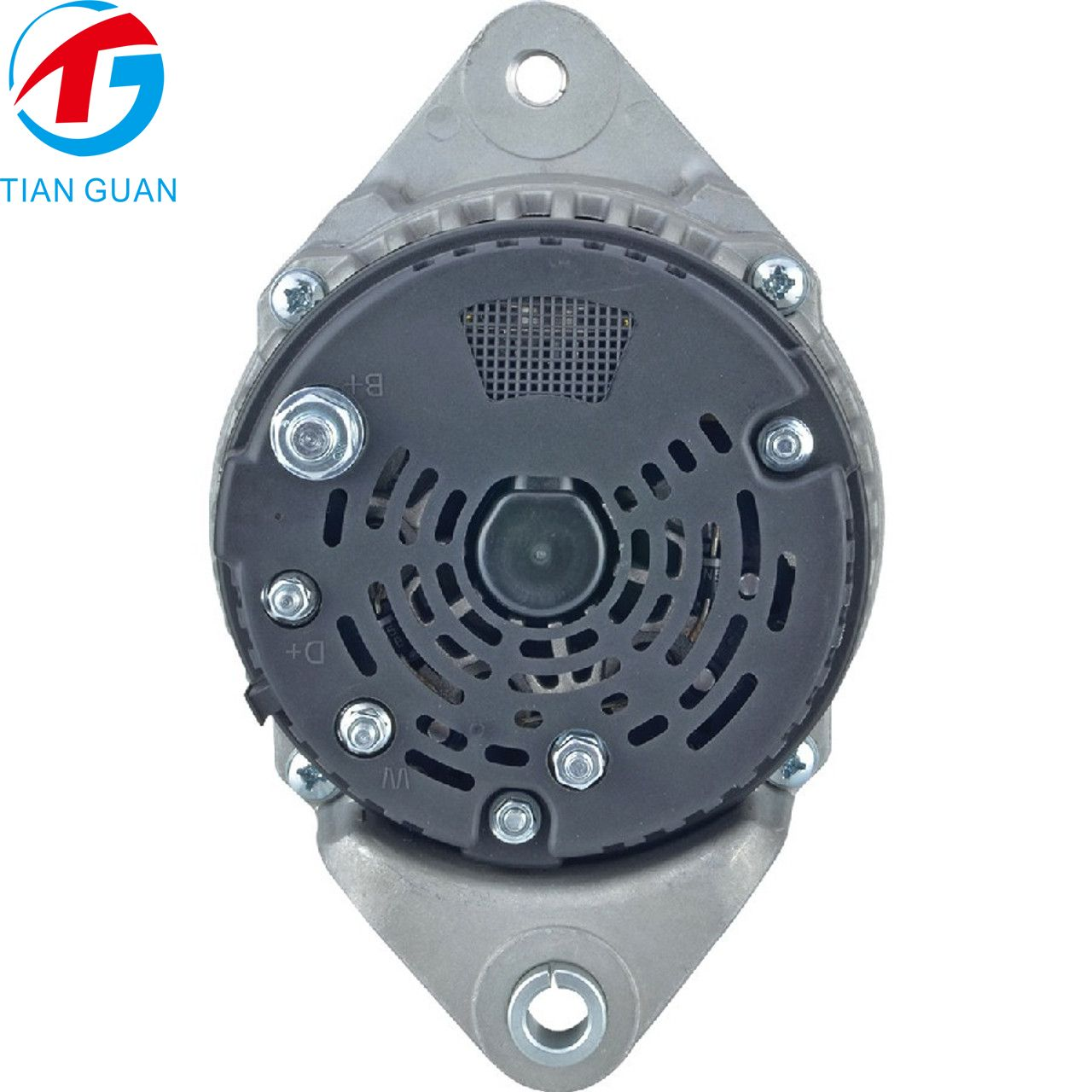

This high-quality ATG19689 alternator is specifically designed for CASE combine harvester models 1420, 1440, and 1460, ensuring reliable performance in agricultural operations. It is compatible with CASE engines D358, D436, and D466, making it a perfect fit for keeping your equipment running smoothly.

This alternator replaces OE part numbers 202360T91, 87645566, 91448C2, 9705428, MG490, 11204239 and extensive cross-reference coverage listed above for Case, Caterpillar, Cummins, Delco, Fiat, Ford, IHC/Navistar, John Deere, Letrika/Iskra, New Holland, Bosch, CNH/Fiat Agri, Delco Remy, Hella, Lester, Lucas, Mahle, Sparex, Valeo, and Wilson.

• 12V alternator

• 150A amperage

• Mahle unit type

• Direct replacement for Case 1420 / 1440 / 1460 Combines

• Fits D358 / D436 / D466 engines

• Durable construction for demanding field conditions

• Precision fit for hassle-free installation

• Consistent power generation

• Aftermarket replacement part

• Approx. 8.6 kg

Specifications

Item Description: Alternator
Unit Type: Mahle
Voltage: 12V
Amperage: 150A
Pulley: 0PK
Condition: Aftermarket Part
Weight: 8.6KG

Fitment

Case – Combine 1420
Case – Combine 1440
Case – Combine 1460
Case – Engines D358 / D436 / D466

Compatible with equipment using 202360T91, 87645566, 91448C2, 9705428, MG490, 11204239, 1117965, 1983221C1, 47389932, 87418225, 9824834, 10459037, 1105538, 1117898, 19010147, AT142246, TY6753, 11.204.361, AAN5819, LRA01667, 458343, or 90156169 alternator part numbers.
