STG93022 Starter Motor 8941333380 8941333381 8941514091 S114-429 S114-429A for Isuzu 3KC1 3KR1 Industrial Engines Airman AX12 AX25 Hitachi EX40UR EX40UR-2

Part Numbers

Isuzu: 8941333380, 8941333381, 8941514090, 8941514091
HC-Cargo: 111276
PSH: 130554092
WAI: 17079N, 17079R
Wilson: 91251100
Delco Remy: DRS3578, DS4688
Wood Auto: HITS114429, STR23013, WOOSTR23013
HC-Parts: JS1008
Lucas: LRS01553, LRS1553
Hitachi: S11442, S114429, S114429A, S114449, S114449A

Product Description

• Voltage: 12V

• Power: 1.4 kW

• Rotation: CW

• Tooth Count: 9T

• Starter Type: Starter

• Spigot: 80 mm

• Pinion Home Position: 48

• B+ Terminal: M8

• Mounting Holes: 2

• Position: +45°

• PSH Number: 130.554.092.080

• GTIN: 8720264376261

• Condition: Aftermarket Replacement

• Weight: 4.0 kg

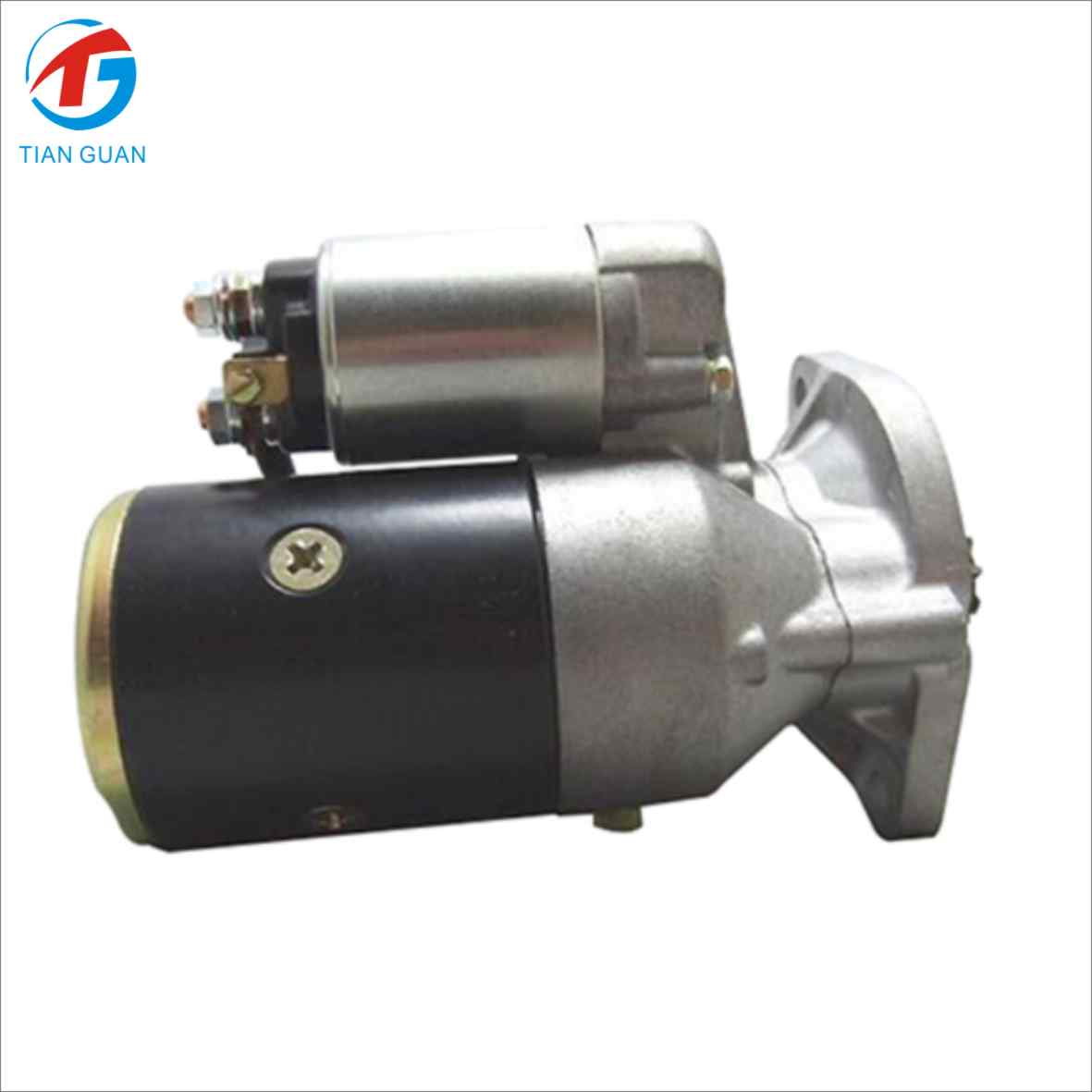

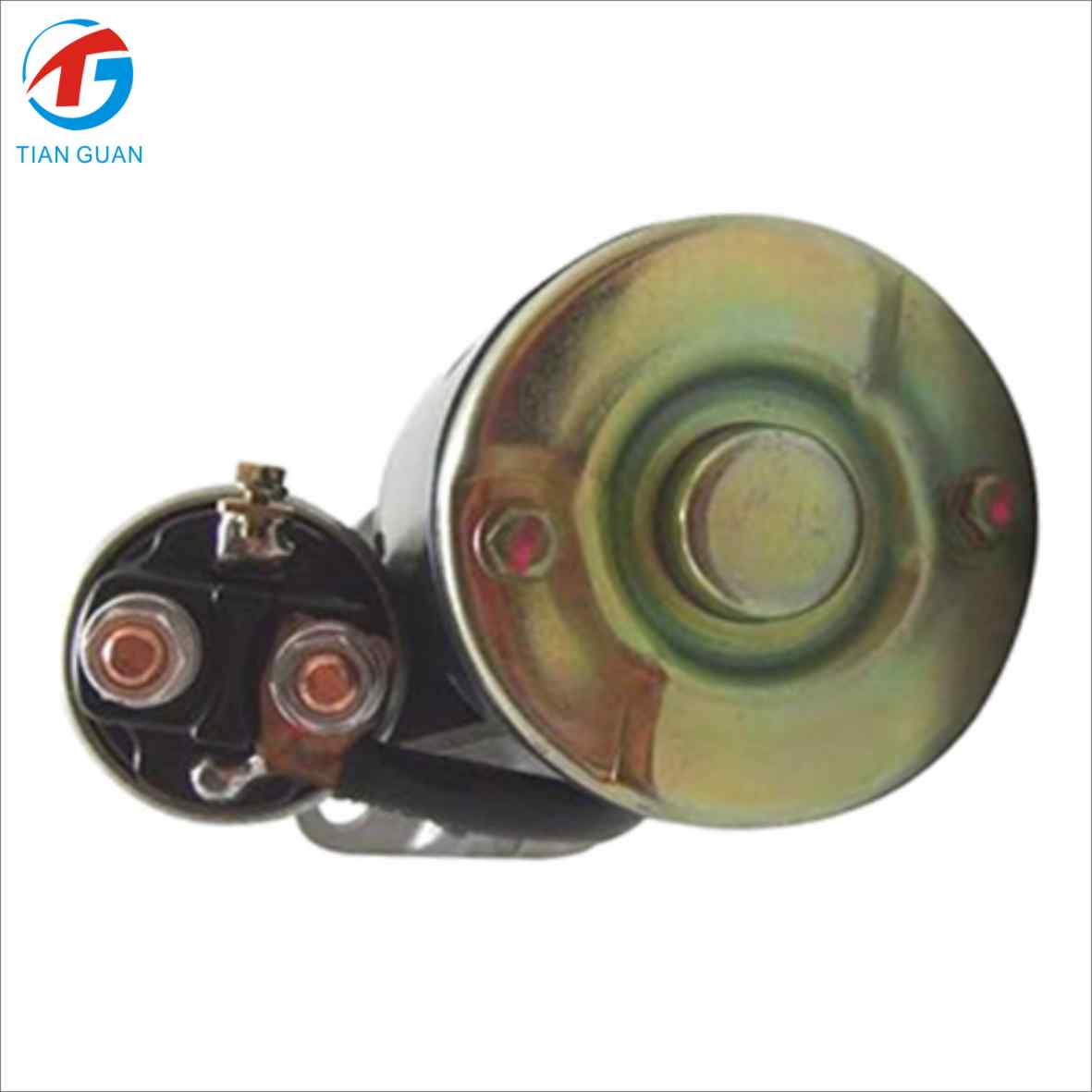

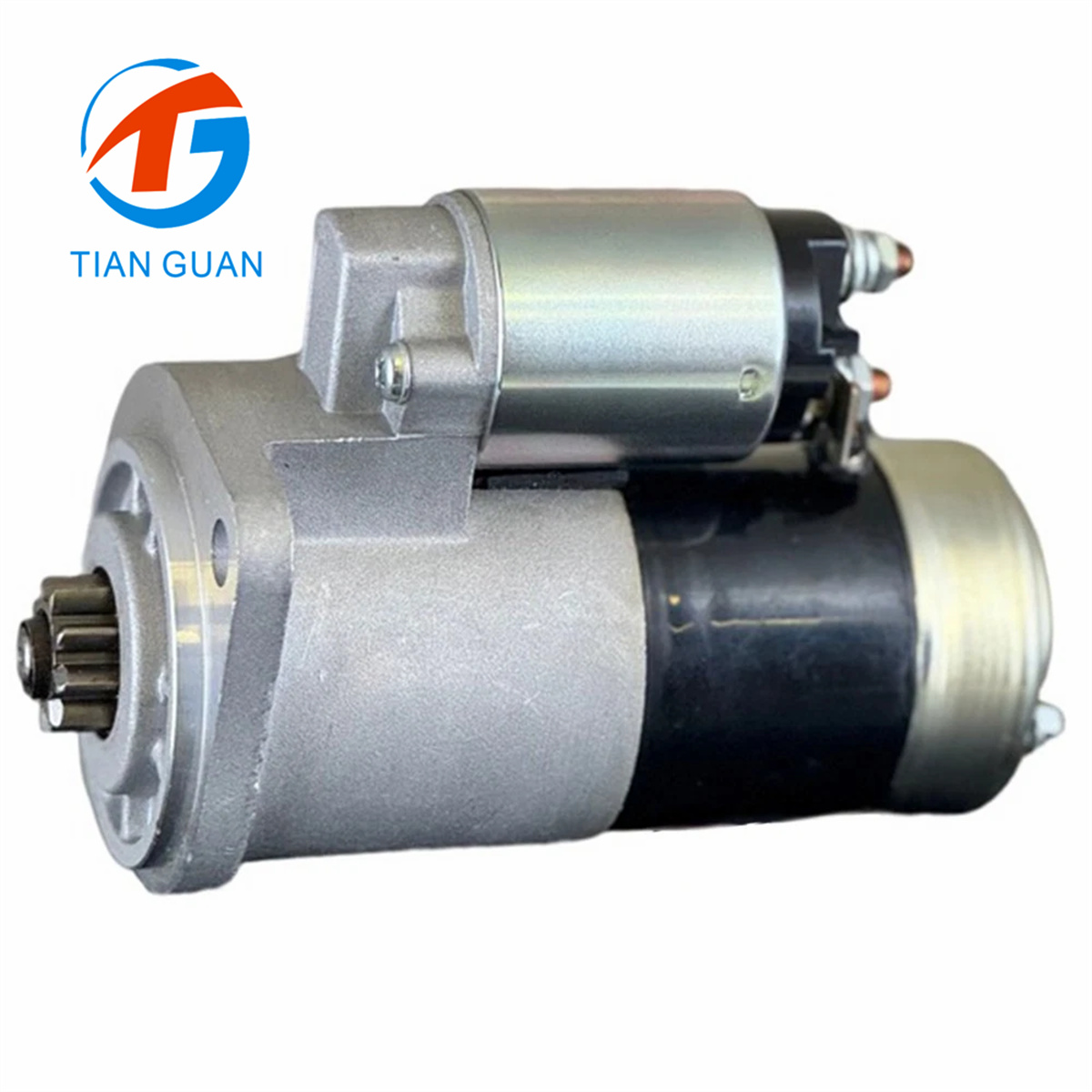

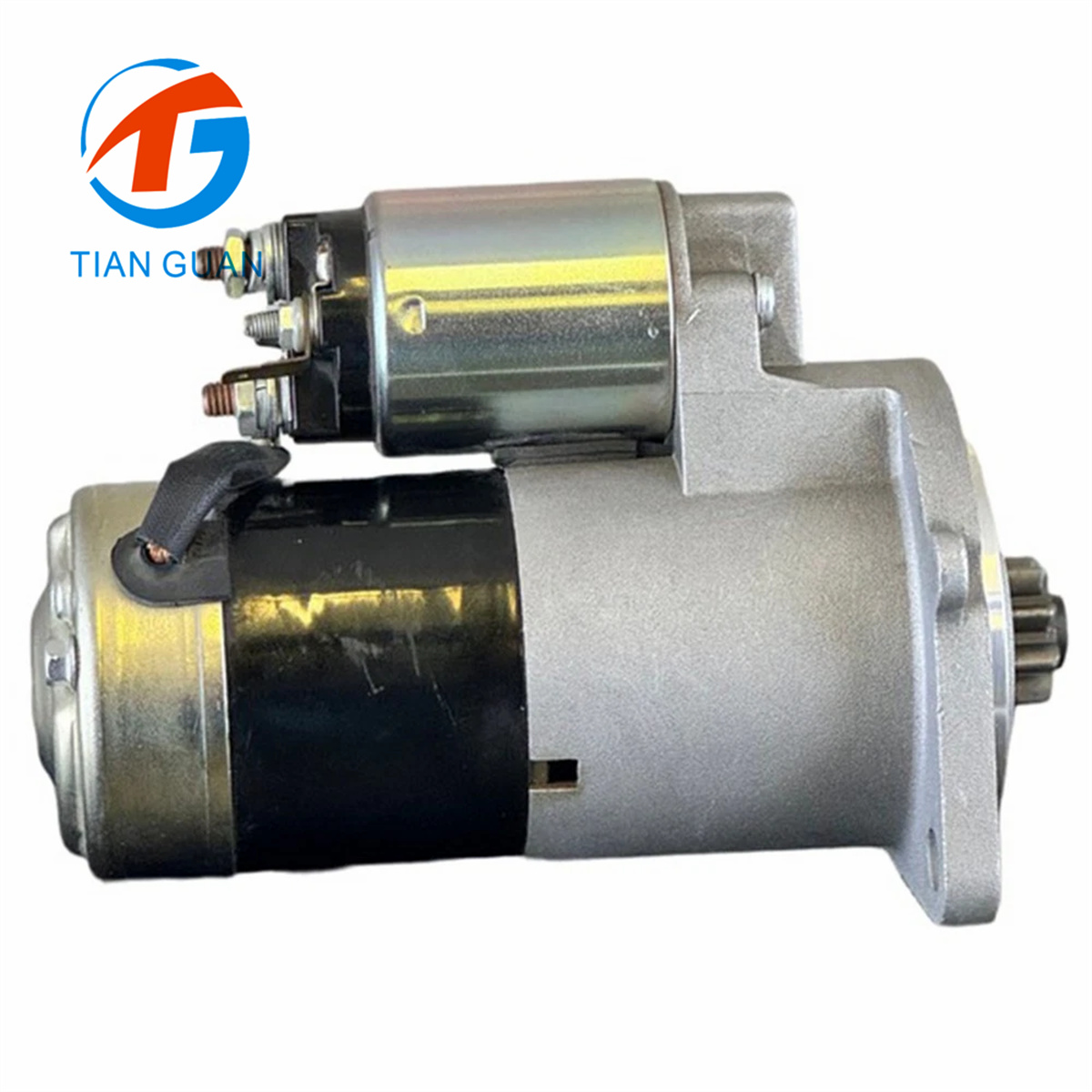

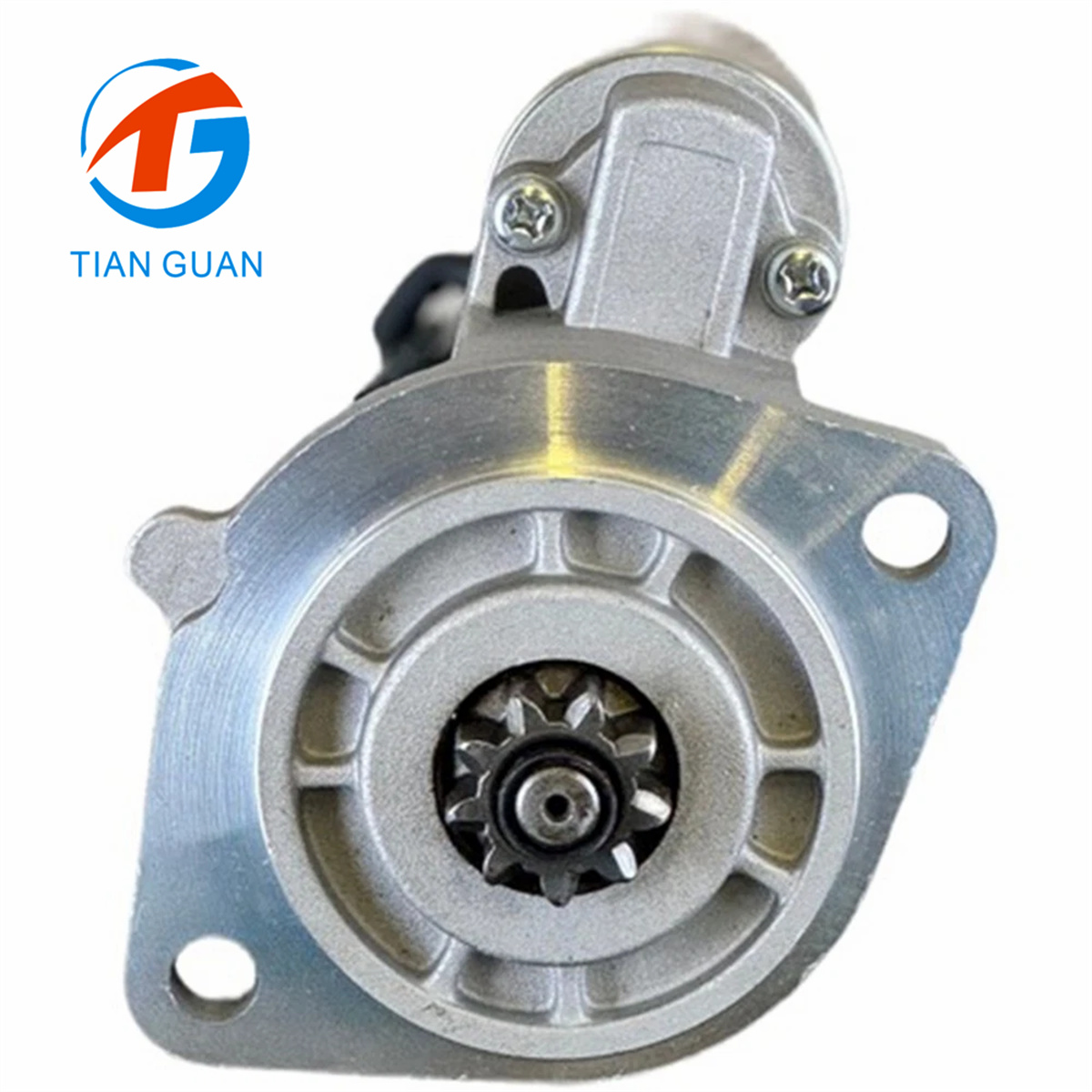

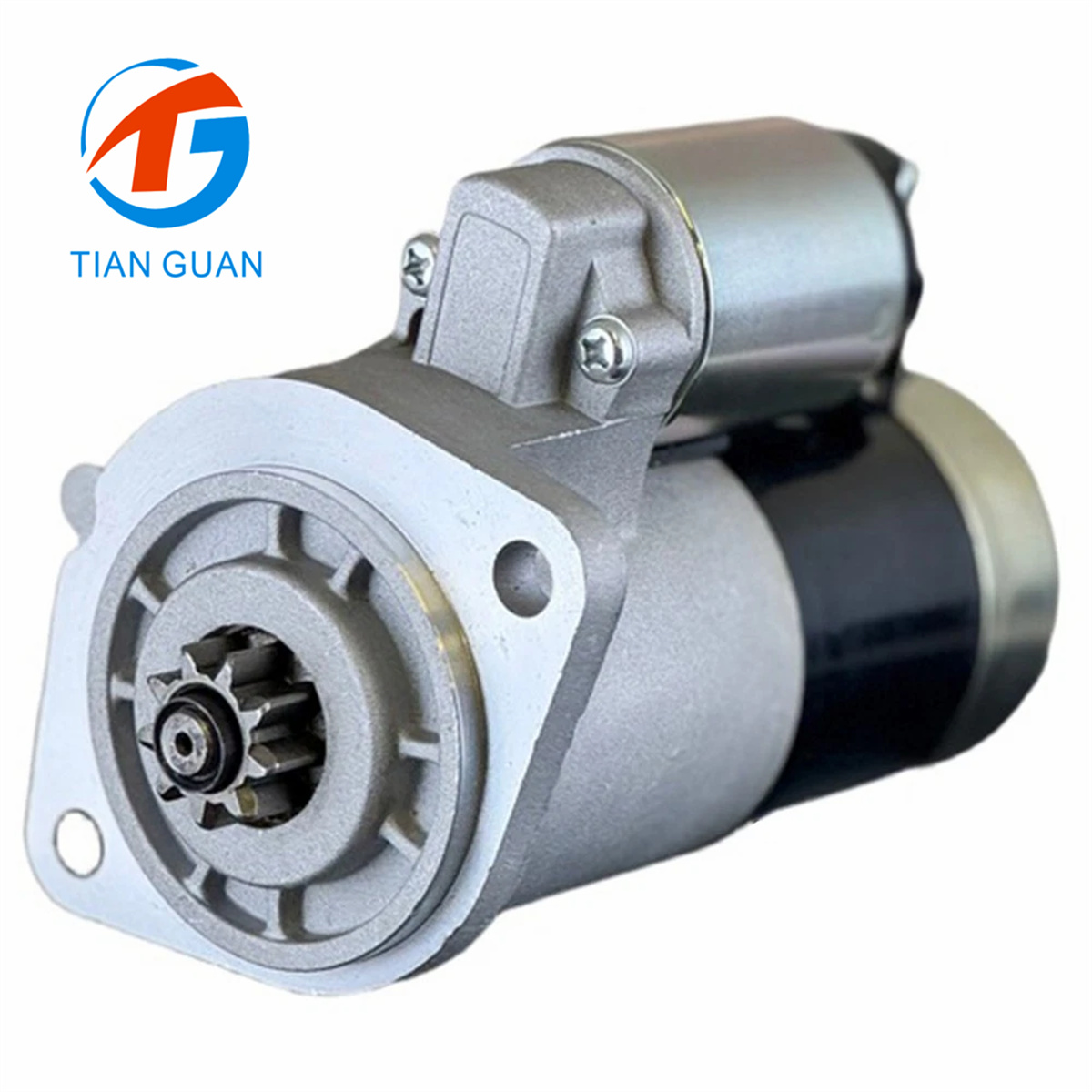

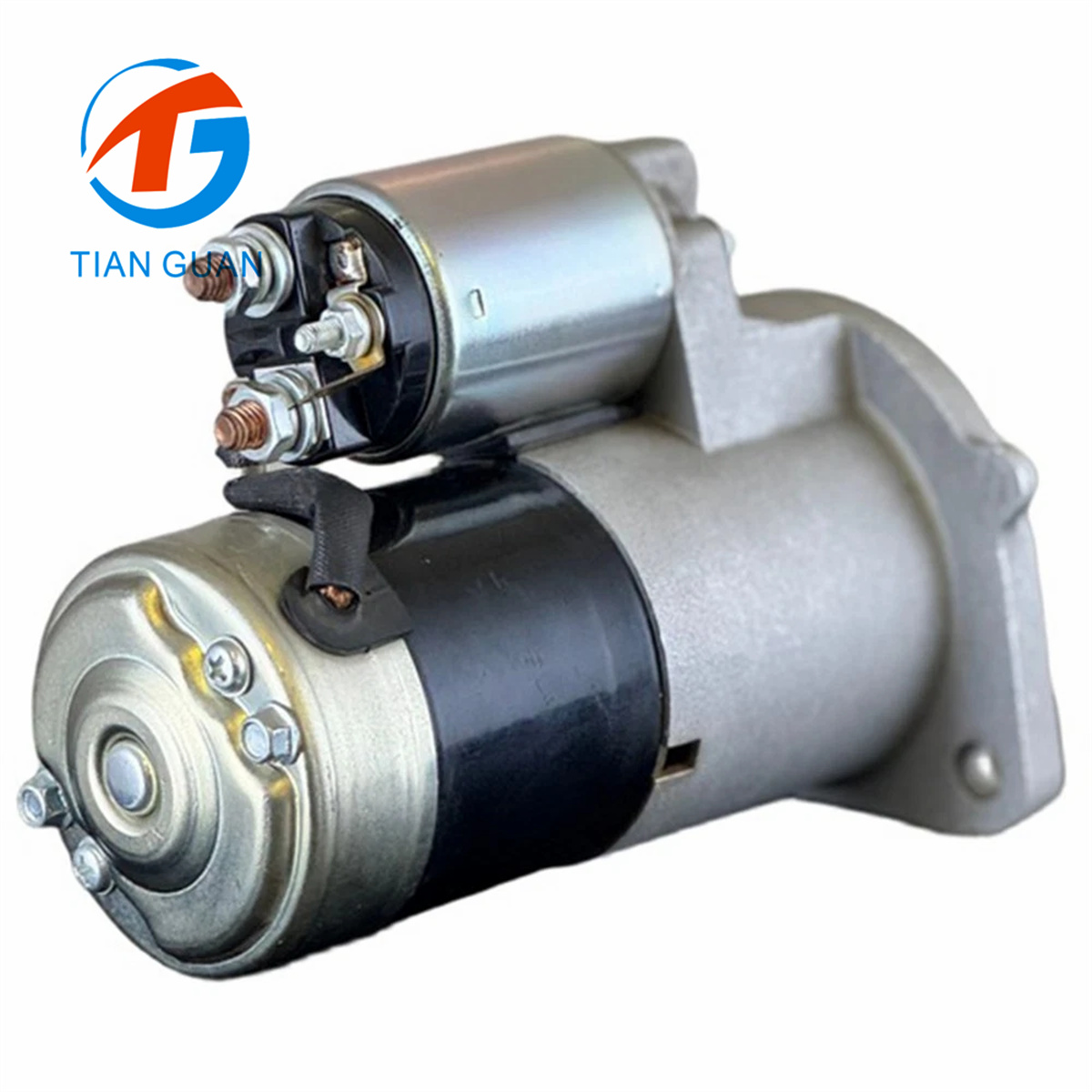

This 12V 1.4kW starter motor is designed for reliable starting performance on Isuzu industrial engines and compact construction equipment. It features a 9-tooth pinion, clockwise rotation, 80 mm spigot, two mounting holes and an M8 B+ terminal.

The starter is suitable for Isuzu 3KC1 and 3KR1 industrial engines, as well as Airman AX12, AX25 and Hitachi EX40UR, EX40UR-2 applications. It replaces a wide range of Isuzu, Hitachi, Lucas, Delco Remy, WAI, PSH and other aftermarket reference numbers.

Specifications

Fitment

Isuzu Industrial Engines: 3KC1, 3KR1

Airman: AX12, AX25

Hitachi: EX40UR, EX40UR-2

Key Features
