STG91778 Starter 11131199 31785N 36000100 11.131.199 72736073 AZE2641 IS1062 for Deutz Diter 906 Engines – 12V 2.0KW 9T CW

Part Numbers

LETRIKA (ISKRA): IS1062, 11.131.199, AZE2641, 72736073, MS445
DEUTZ: 36000100
MAHLE: 11131199, 72736073, AZE2641, IS1062, MS445
WAI: 31785N
VOLVO: 36000100
PSH: 510512092
WOOD AUTO: LETIS1062, MAHMS445, STR60611, WOOSTR60611
LUCAS: LRS03831, LRS3831

Product Description

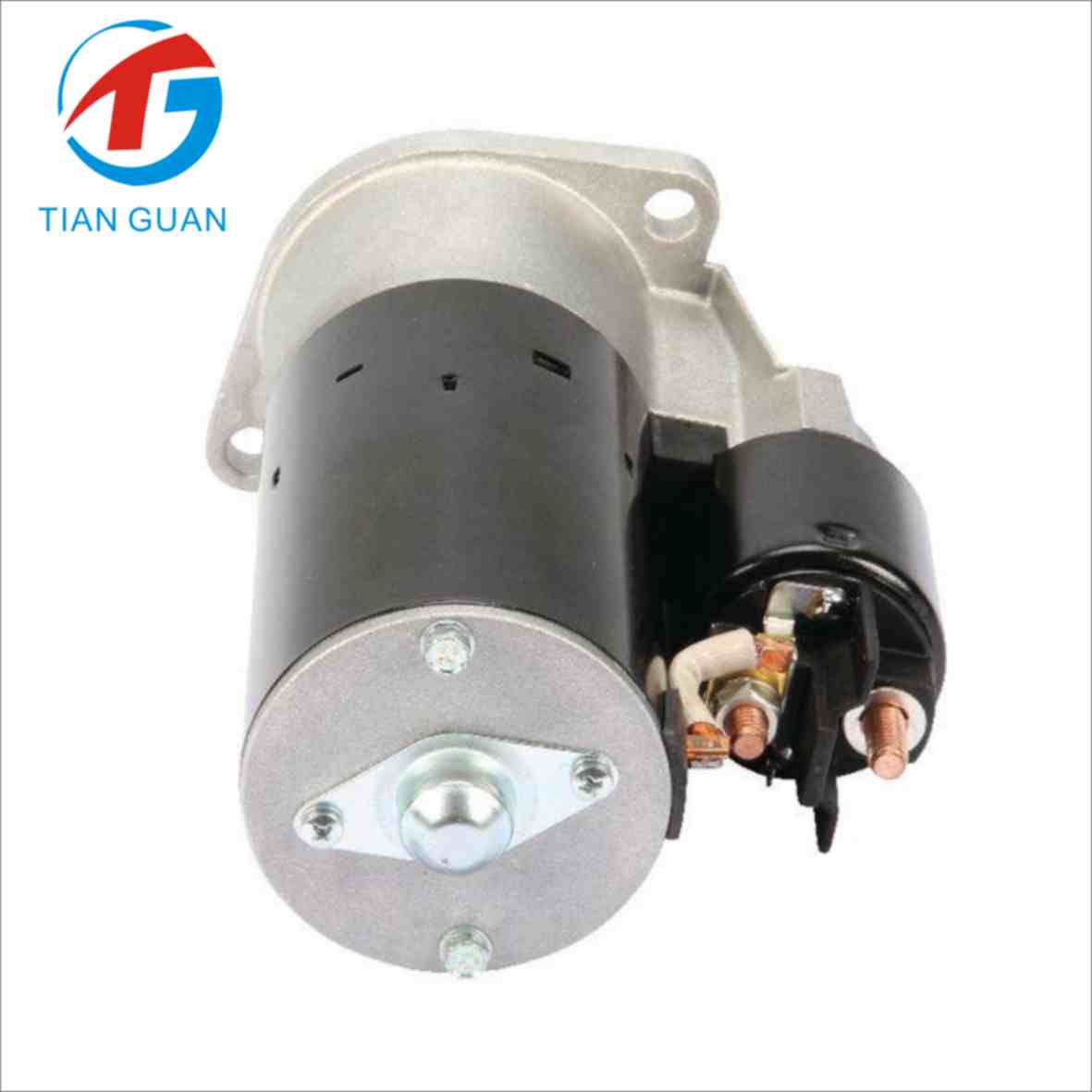

This premium aftermarket 12V 2.0KW Starter Motor is designed as a direct replacement for Deutz Diter 906 engines, as well as Deutz-Fahr and KHD applications. Built on the Letrika (Iskra) PMGR family with 9-tooth pinion gear and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding agricultural and industrial applications.

This starter replaces OE part numbers IS1062, 11.131.199, AZE2641, 72736073, MS445 (Letrika / Iskra), 36000100 (Deutz / Volvo), 11131199 (Mahle), 31785N (WAI), 510512092 (PSH), LETIS1062, MAHMS445, STR60611, WOOSTR60611 (Wood Auto), and LRS03831, LRS3831 (Lucas).

• 12V starter motor

• 2.0KW power output

• 9-tooth pinion gear

• Letrika (Iskra) PMGR design

• Clockwise (CW) rotation

• Spigot: 76mm

• Pinion home position: 27

• B+ terminal: M8

• No. mounting holes: 2

• PSH number: 510.512.092.090

• GTIN: 8720264471478

• Direct replacement for Deutz Diter 906 engines

• Fits Deutz-Fahr / KHD applications

• Aftermarket replacement part

• Approx. 4.8 kg

Specifications

Description: Starter Deutz-Fahr KHD 2.0KW
PSH Number: 510.512.092.090
GTIN: 8720264471478
Voltage: 12V
Power (kW): 2.0
Spigot (mm): 76
Teeth: 9
Pinion Home Position: 27
B+: M8
No. Mounting Holes: 2
Rotation: CW
Condition: Aftermarket Part
Weight: 4.8KG

Fitment

Deutz – Diter 906 Engines
Deutz-Fahr – Equipment Applications
KHD – Equipment Applications

Compatible with equipment using 11131199, 31785N, 36000100, 11.131.199, 72736073, AZE2641, IS1062, MS445, 510512092, LRS03831, or LRS3831 starter motor part numbers.
