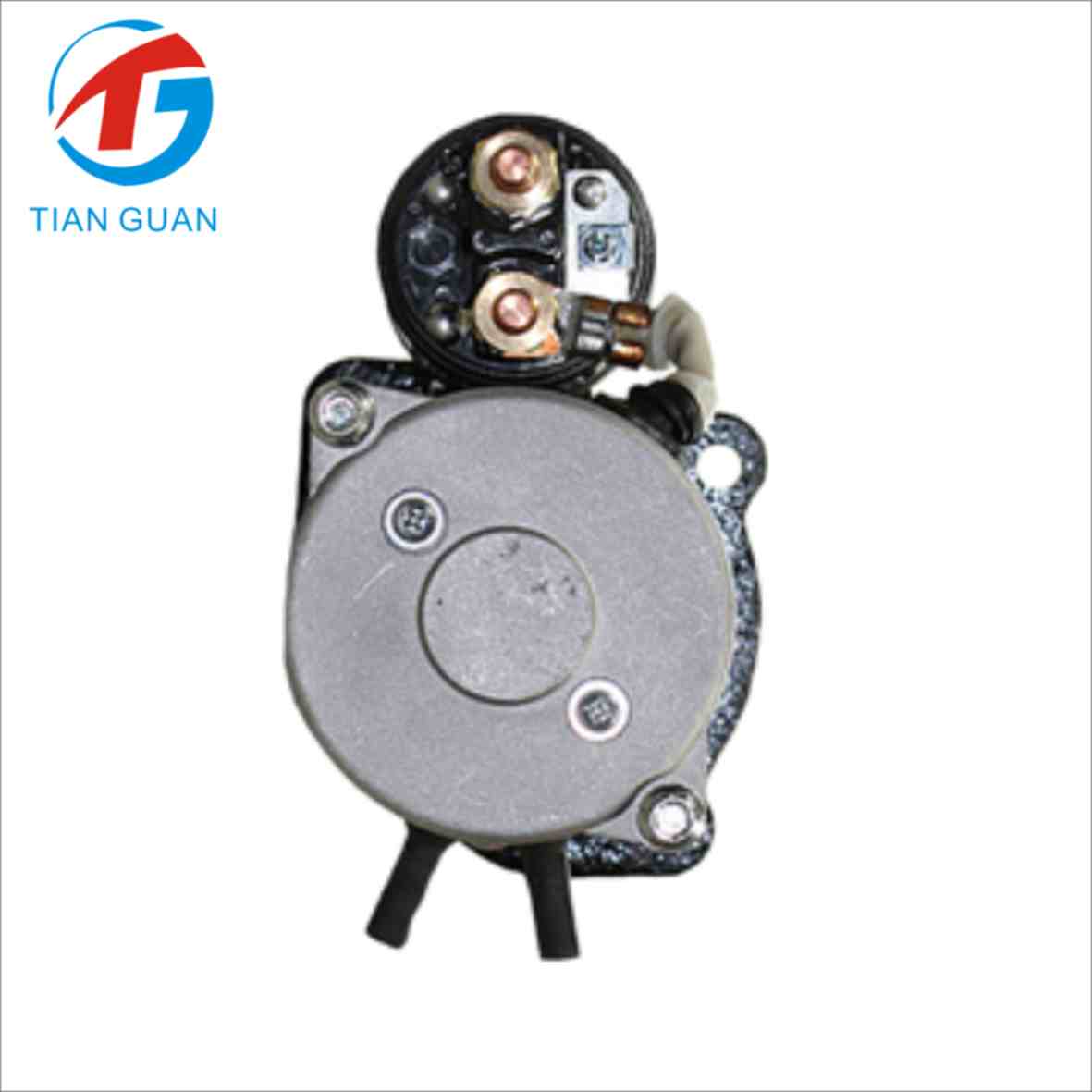

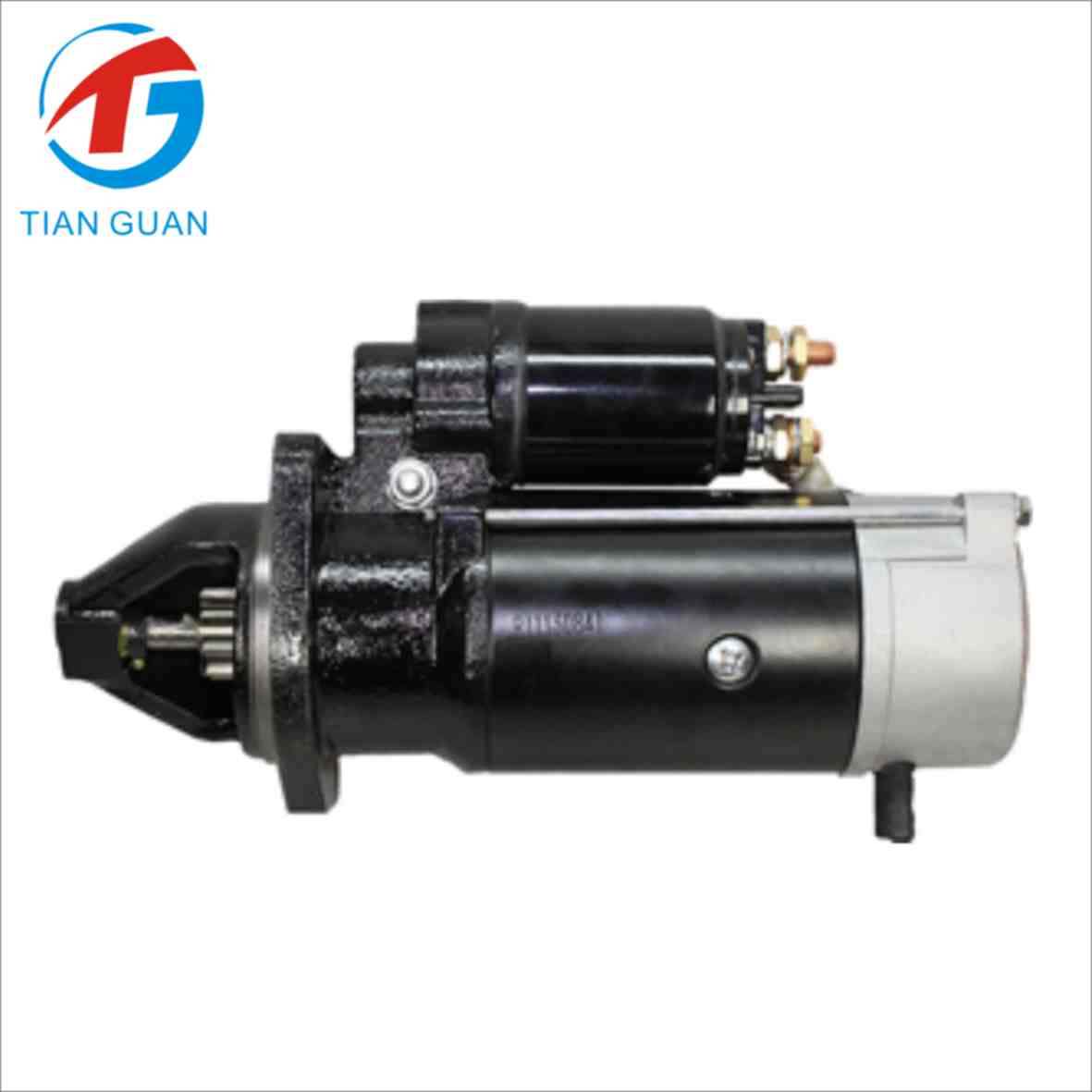

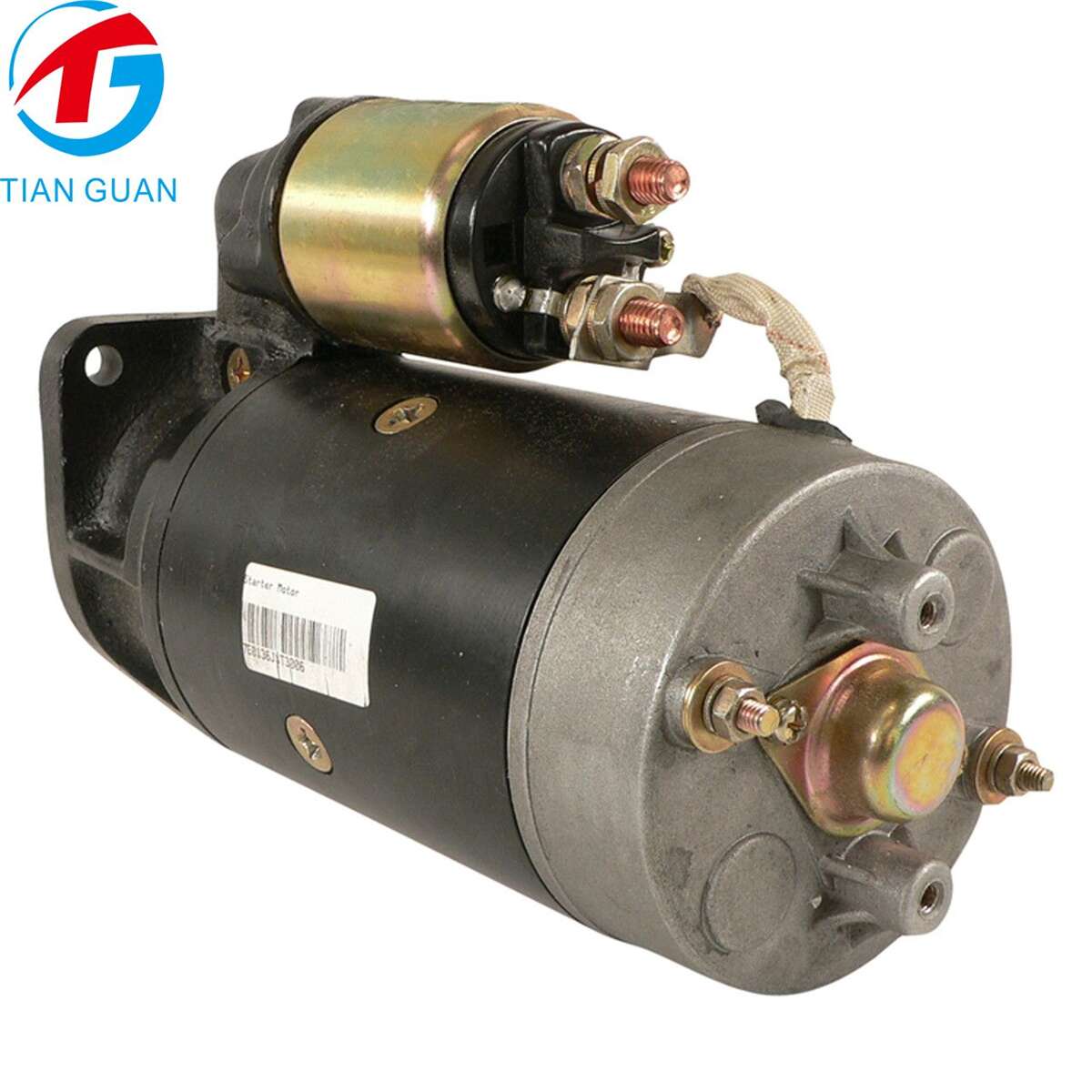

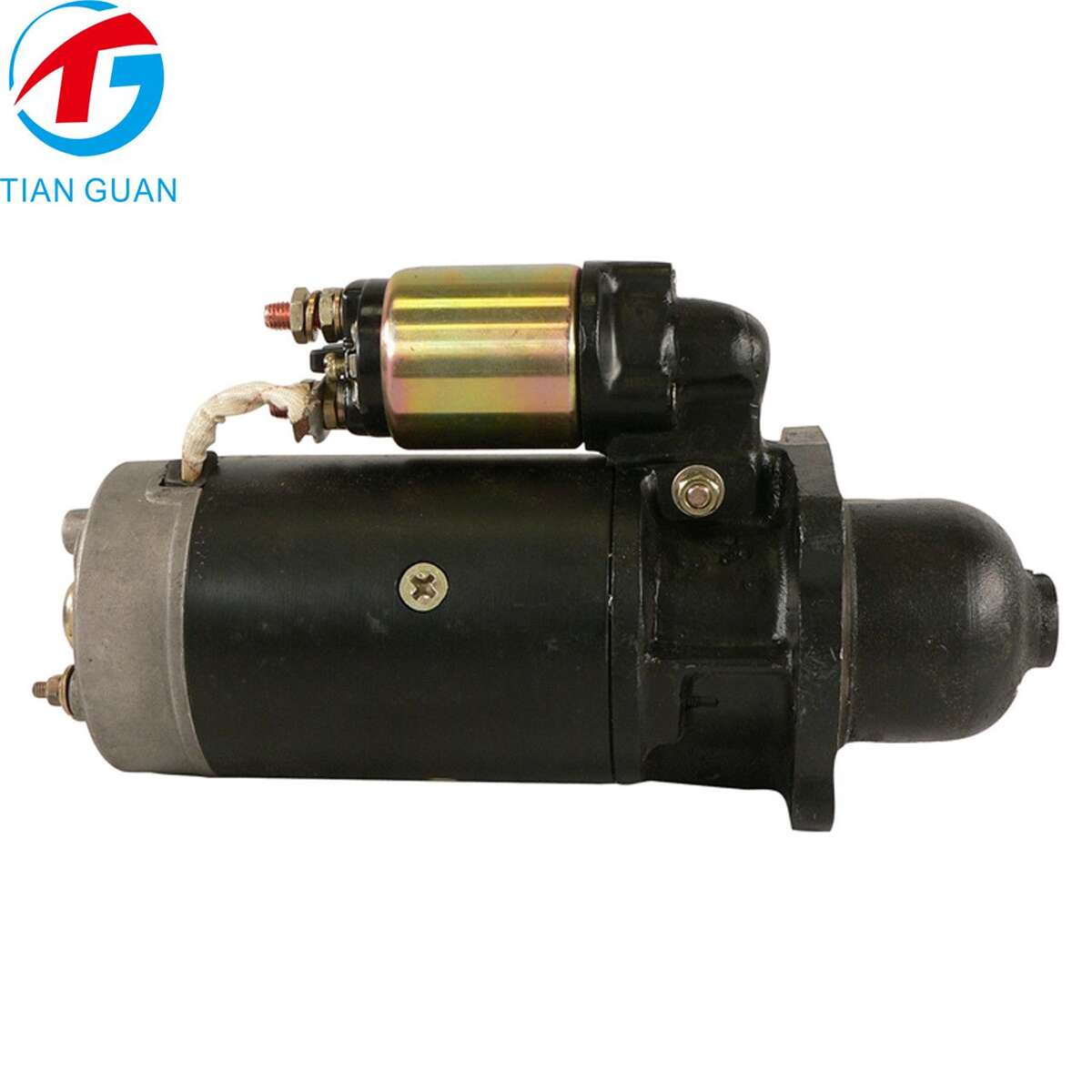

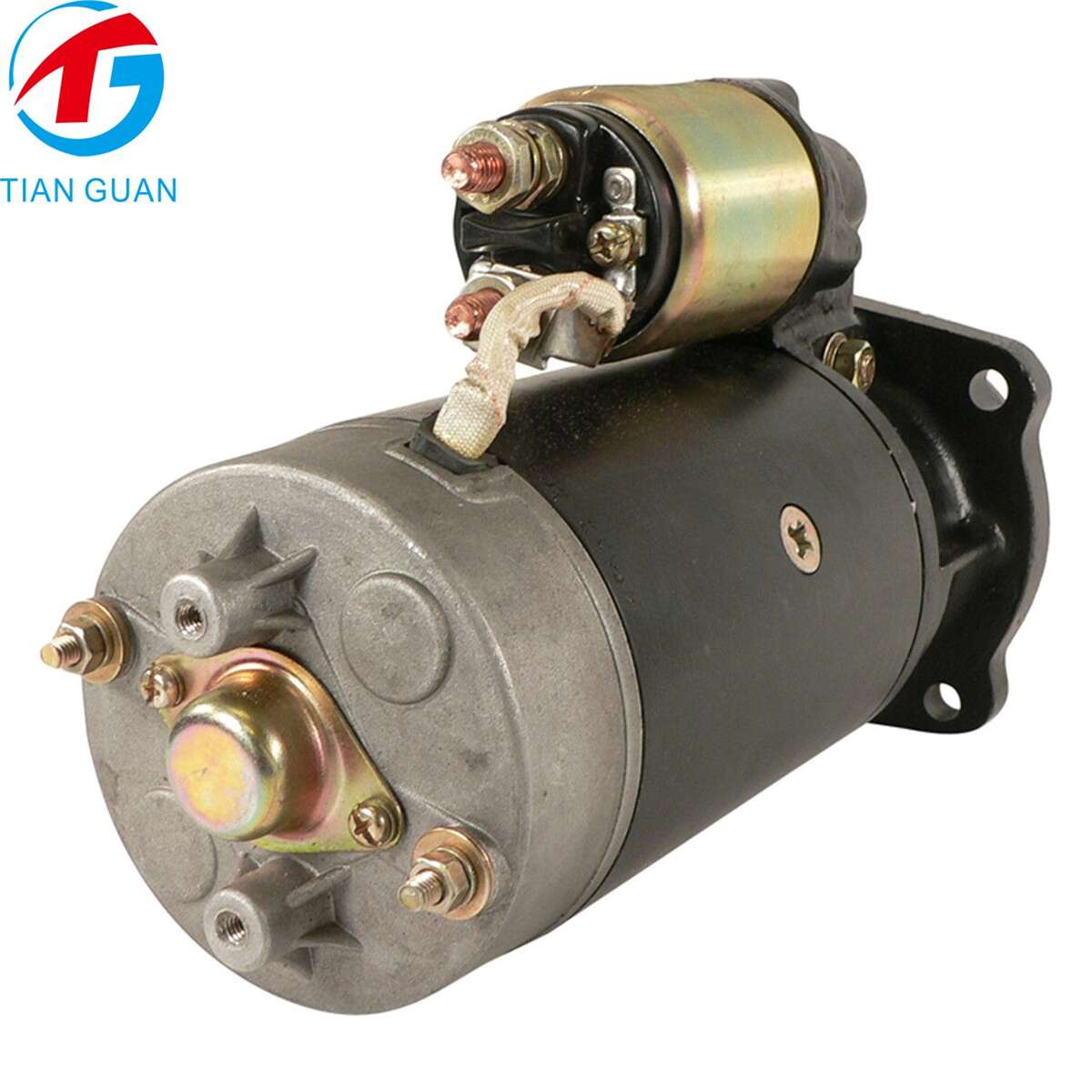

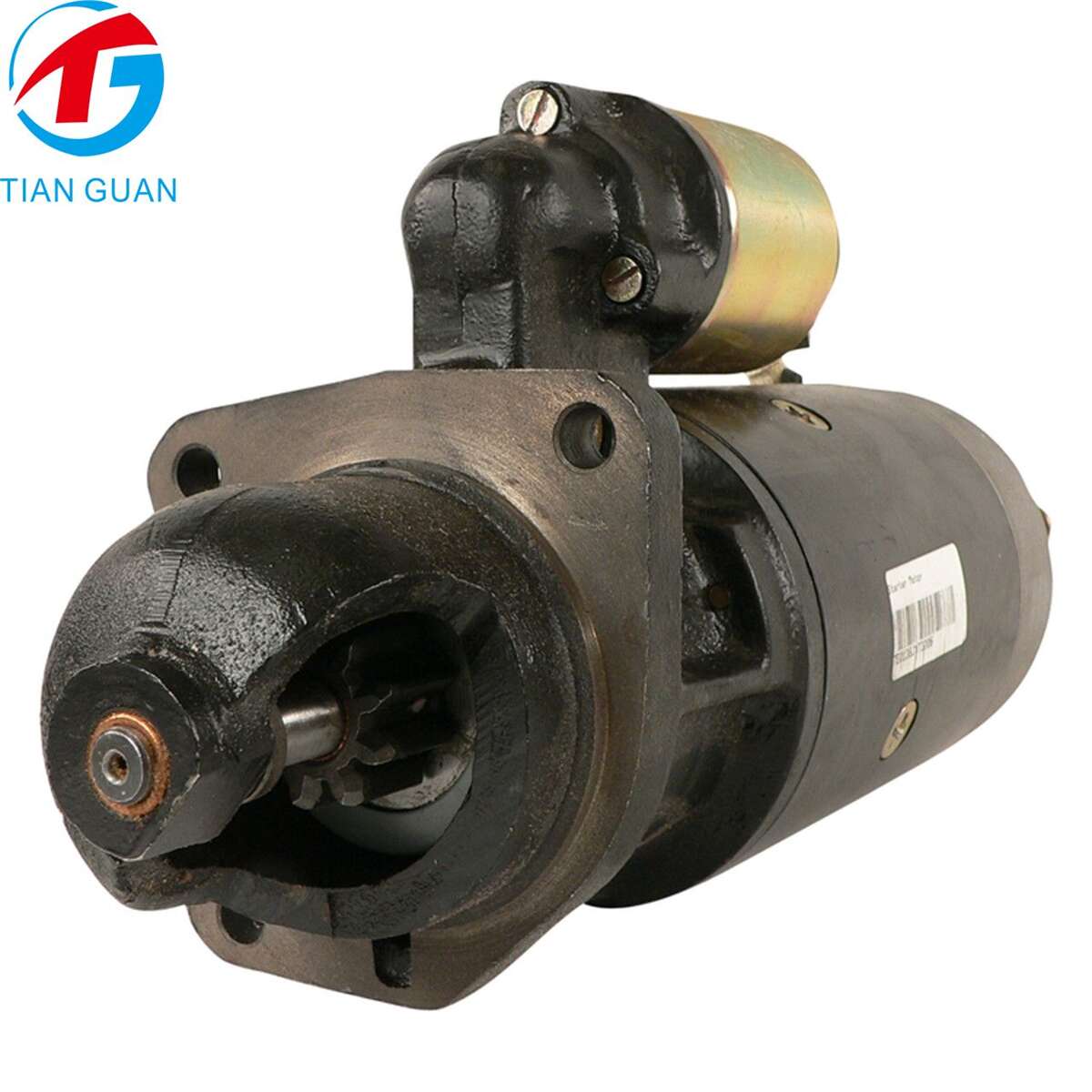

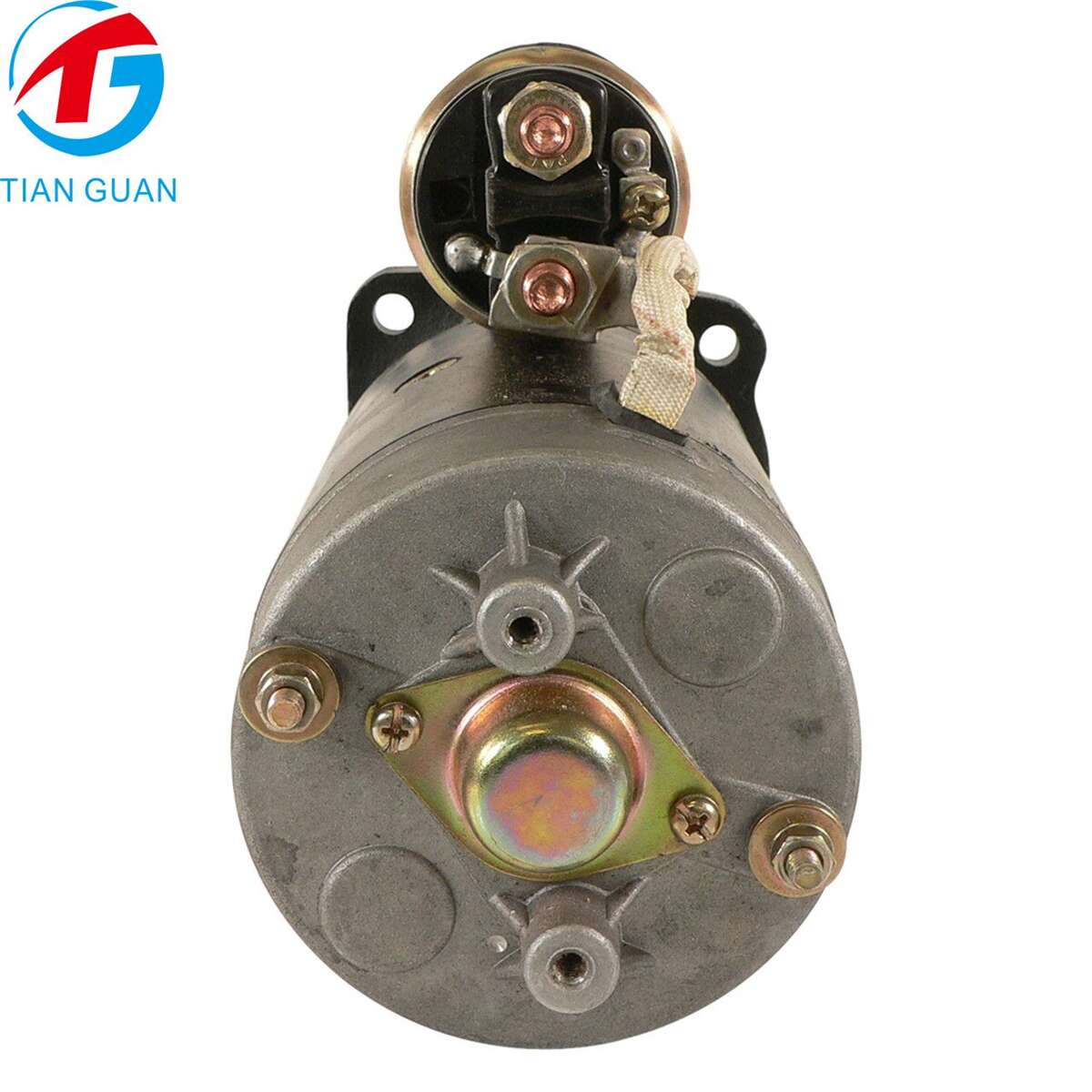

STG52545 Starter Motor 24V 4.0KW 9T CW for Deutz F3L911 F3L912 F4L911 F4L912 F5L912 F6L911 F6L912
Part Numbers
| Brand | Part Number |
|---|
| Lester | 17073 |
| Bomag | 05710903 |
| Butec | 859539, LNS4524/17 |
| Deutz | 01161422, 01164995, 1173241, 01173241, 1302023, B17R24X4 |
| Fiat | 943252205 |
| Hanomag | 114939702 |
| International Harvester | E41565 |
| Iveco | 42488477, 42522641, 42522653 |
| KHD | 1161422, 01161422, 1164995, 1172099, 01173241, 1173241, 1173820, 01180804, 1180804, 1183677, 42488477 |
| Liebherr | 6200662 |
| Volvo | 6209190 |
| Bosch | 0001360003, 0001360012, 0001360014, 0001360019, 0001360030, 0001360031, 0001360035, 0001368001, 0001368007, 0001368008, 0001368088, 0986011270, 0986011271, 0986011270090 |
| Delco | 19024226, 19024234, 19024813, DRS1270 |
| Elmot | 6090000, R10.08, R1008 |
| Iskra | 11.130.075, 11.130.141, 11.130.151, 11.130.172, 11.130.491, 11.130.673, 11130075, 11130141, 11130151, 11130172, 11130319, 11130491, AZJ3132, AZJ3222, AZJ3518, AZJ3522, IS0491 |
| Lucas | 26025117A, 61924051, LES0039, LRS00923, LRS923 |
| Magneti Marelli | 063523680, 63523680, 943252205, 063523680010, 943252205010, MSN2055 |
| Magneton | 9124310, 9174602, 443115174602 |
| Prestolite | 859539, 20500923 |
| Valeo | 455516 |
| AS | S0068, S0068R |
| Cargo | 110523 |
| HC-Parts | CS530 |
| Krauf | STB0530 |
| MJ | CBS530 |
| Messmer | 220009 |
| Motorherz | CS530CN, STB0530WA |
| Profit | 7110-0523 |
| WAI Global | 50-9106, 50-9110, 50-9110-1, 50-9110.1 |
| WPS | 17073N |
Product Overview
The STG52545 Starter Motor is a 24V, 4.0KW direct-drive starter designed as an aftermarket replacement for selected Deutz and KHD diesel engine applications.
This starter features a 9-tooth pinion, clockwise rotation and Bosch 368 Series DD design. It cross-references a wide range of OEM and aftermarket starter numbers from Bosch, Deutz, KHD, Iskra, Delco, Magneti Marelli, Prestolite, Lucas, Valeo and other brands.
The unit is suitable for selected Deutz F-Series engines, including F3L911, F3L912, F4L911, F4L912, F5L912, F6L911 and F6L912.
Specifications
| Item | Specification |
|---|
| Product Type | Starter Motor |
| Condition | 100% New Aftermarket Part |
| Voltage | 24V |
| Power | 4.0 KW |
| Rotation Direction | Clockwise (CW) |
| Pinion Teeth | 9T |
| Starter Type | Direct Drive (DD) |
| Starter Design | Bosch 368 Series DD |
| Gear OD | 34.1 mm / 1.343 in |
| Mounting Ear Holes | 11 mm, Unthreaded |
| Weight | 10.8 KG |
Fit for Deutz Engines
F3L911 – 2.5L / 2460cc
F3L912 – 2.8L / 2827cc
F4L911 – 3.3L / 3280cc
F4L912 – 3.8L / 3770cc
F5L912 – 4.7L / 4712cc
F6L911 – 4.9L / 4920cc
F6L912 – 5.6L / 5655cc
Applications
The starter is used on selected equipment and engine applications from manufacturers including:
| Brand | Selected Applications / References |
|---|
| Deutz | F-Series Diesel Engines |
| Bomag | Selected Equipment |
| Hanomag | Selected Equipment |
| Liebherr | Selected Equipment |
| Volvo | Selected Equipment |
| Case / International Harvester | Selected Applications |
| Iveco | Selected Applications |
| KHD | Industrial Diesel Engine Applications |
Product Highlights
| Feature | Benefit |
|---|
| 24V / 4.0KW Output | Provides suitable starting power for compatible diesel engines |
| 9-Tooth Pinion | Designed for the specified flywheel engagement |
| Direct Drive Design | Bosch 368 Series DD configuration for compatible applications |
| 100% New Unit | New aftermarket replacement rather than a remanufactured starter |
| Wide Cross-Reference Coverage | Replaces numerous Bosch, Deutz, KHD, Iskra, Delco and other reference numbers |
Installation Notes
Verify the original starter part number before ordering.
Confirm the system voltage is 24V.
Verify 9-tooth pinion, clockwise rotation and 4.0KW rating.
Compare mounting dimensions and gear configuration with the original starter.
Disconnect the battery before installation.
Make sure all electrical connections and mounting bolts are properly secured.
Fitment Notice
This is an aftermarket replacement starter motor. All OEM and manufacturer part numbers are provided for identification and cross-reference purposes only.
Please verify the original part number, engine model, voltage, tooth count, rotation direction and mounting dimensions before purchase to ensure compatibility.
