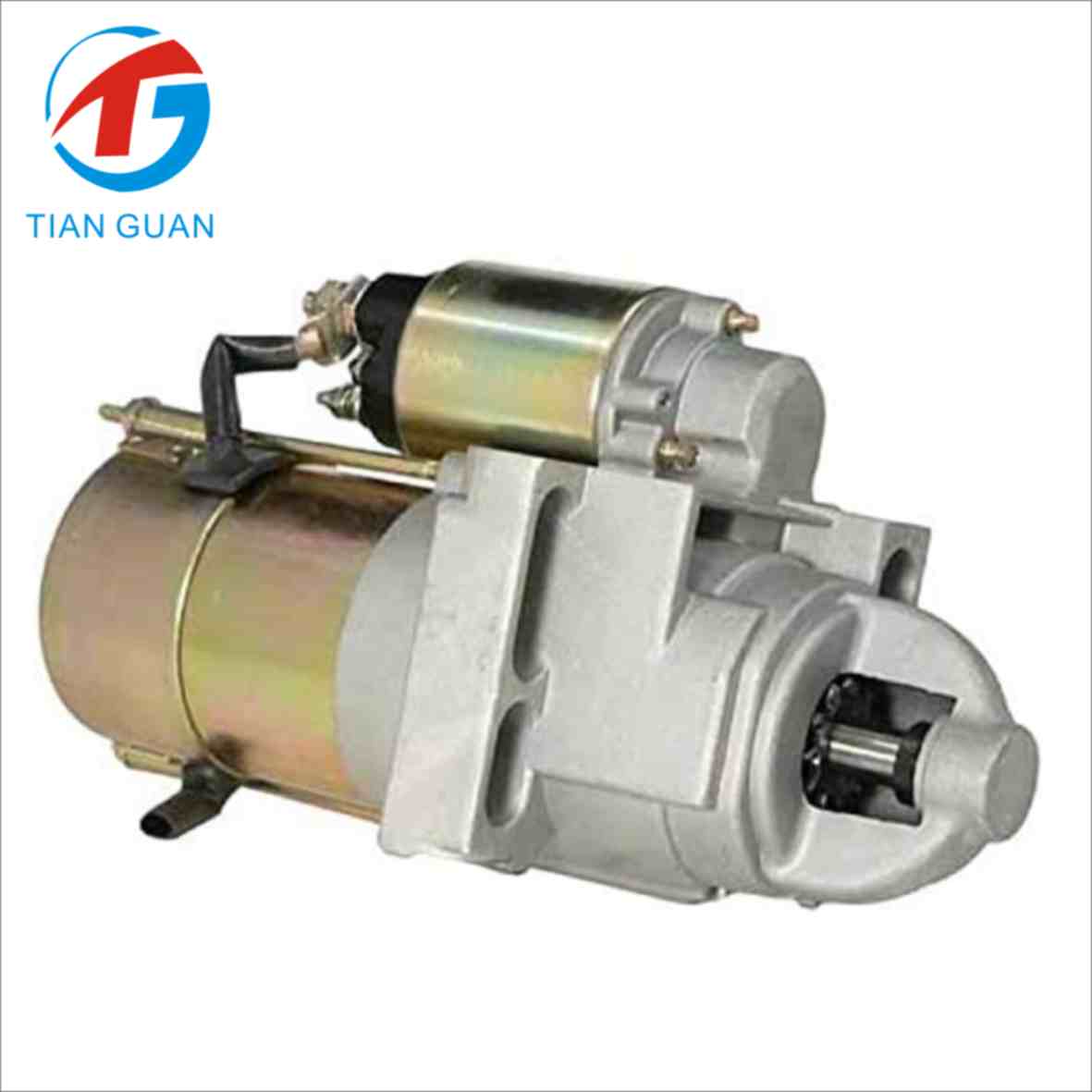

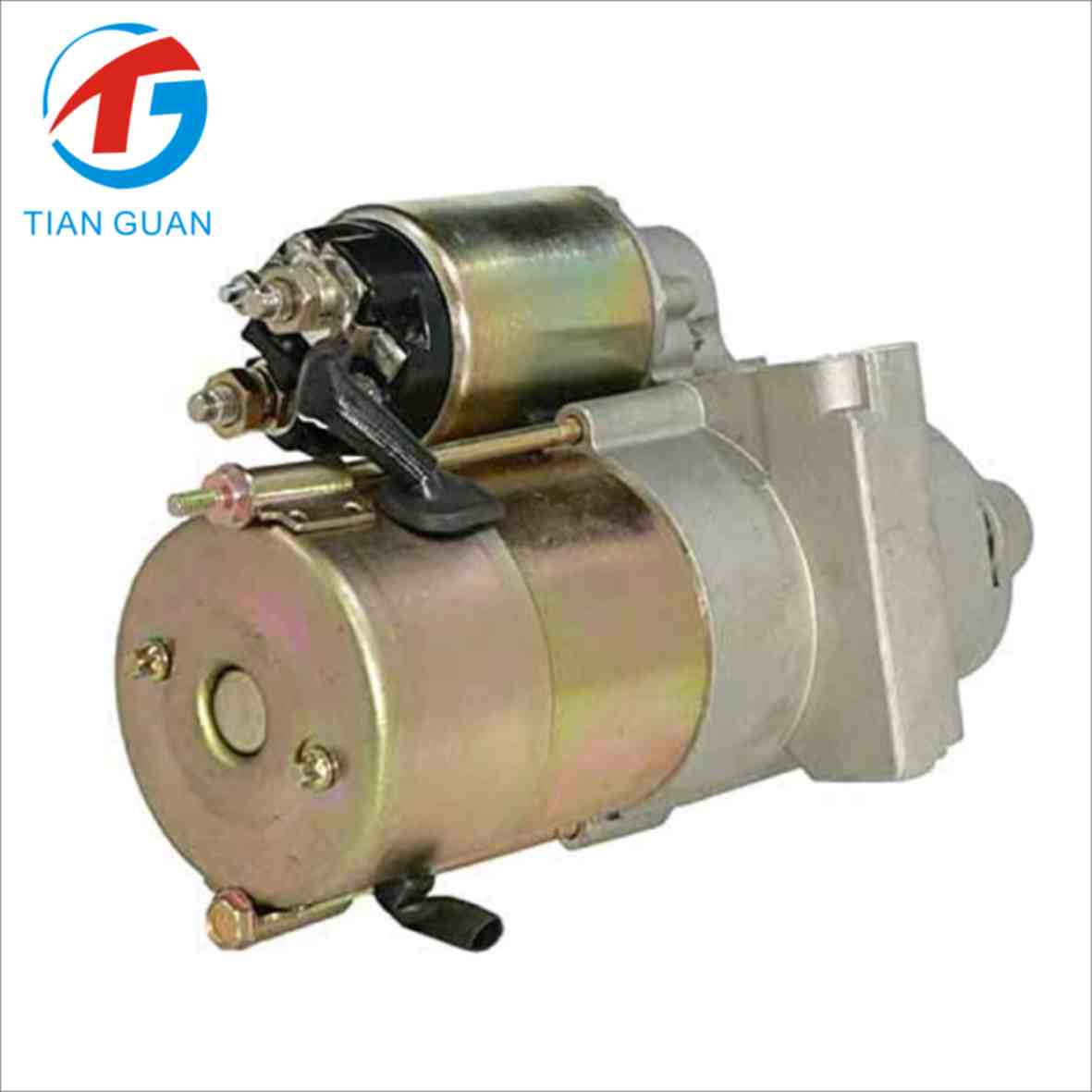

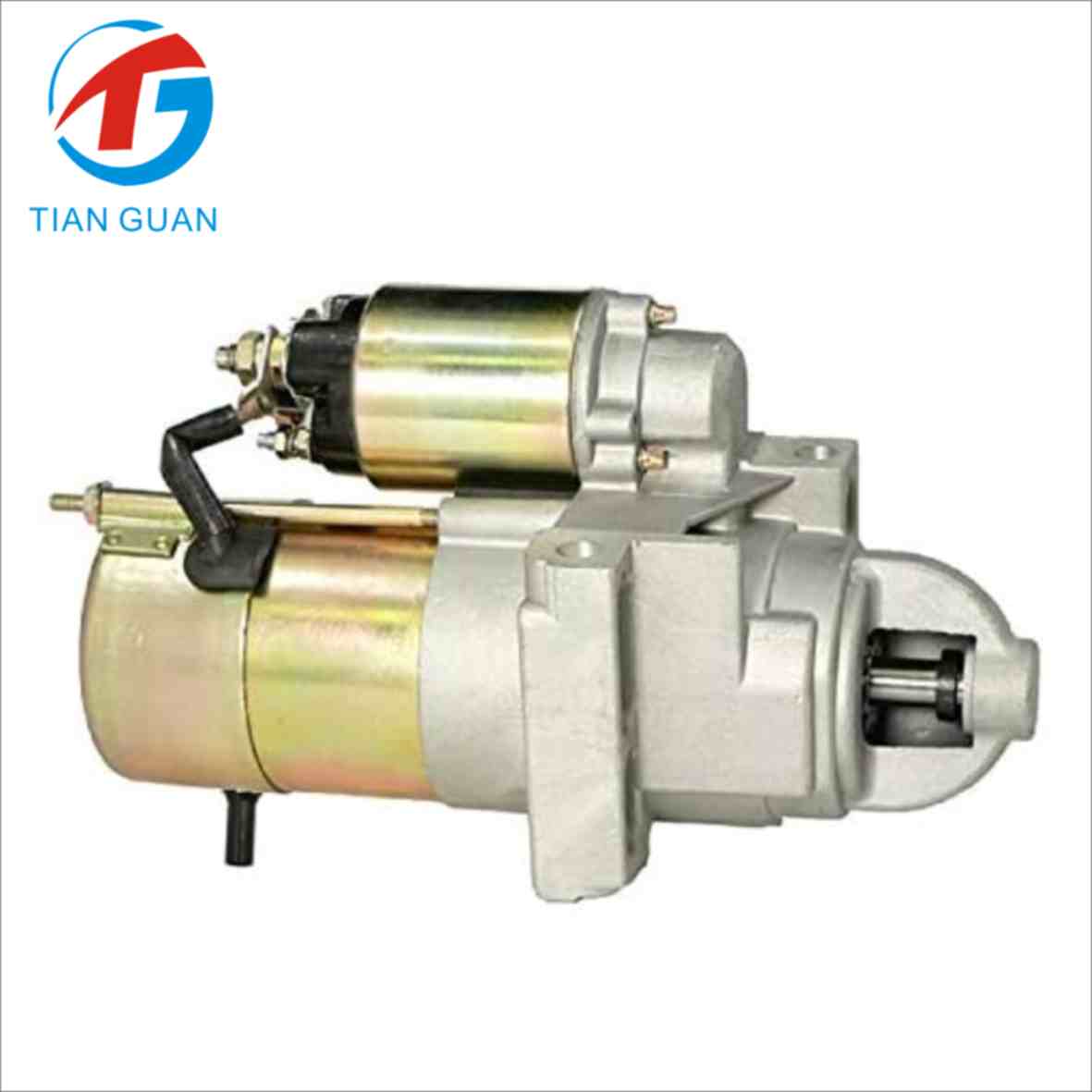

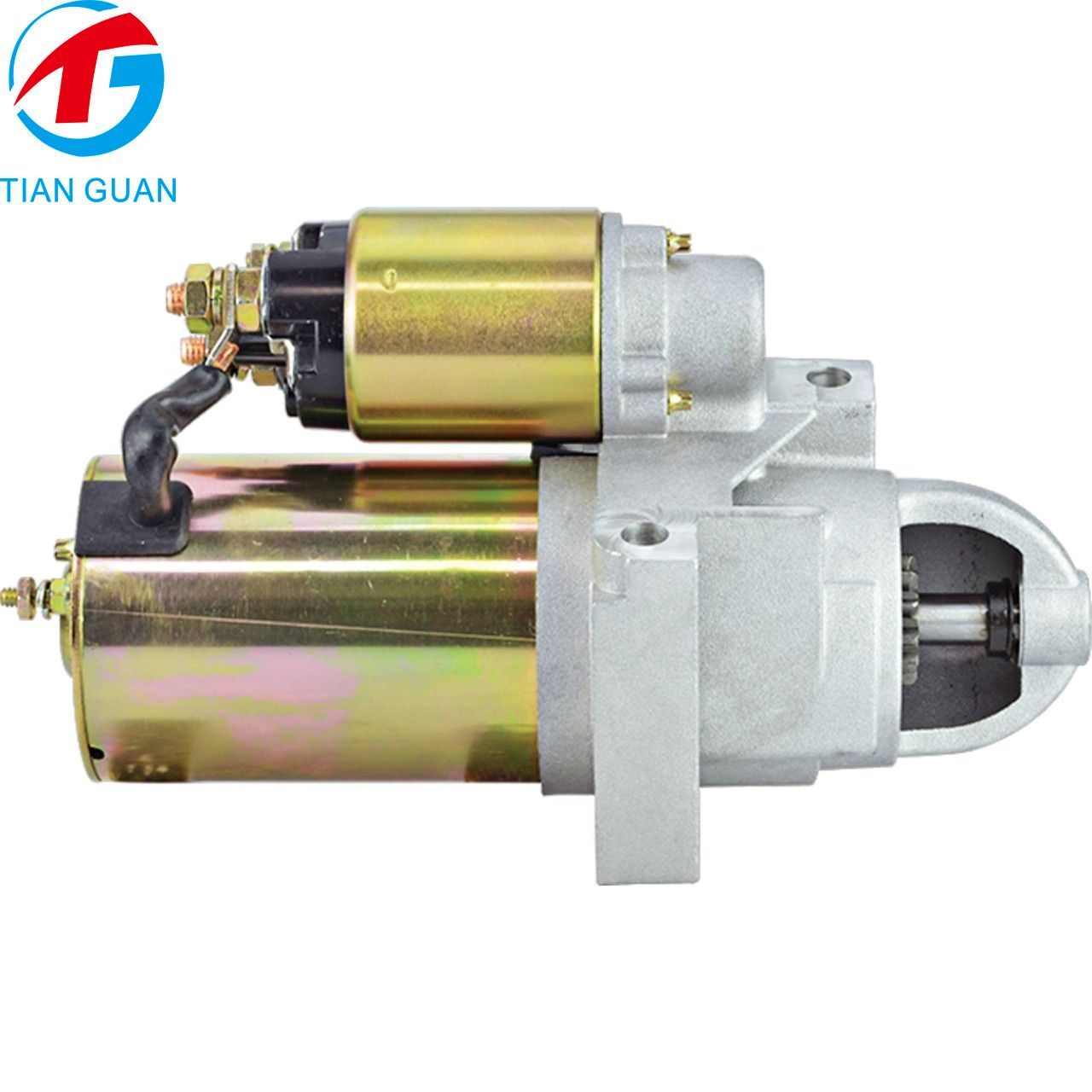

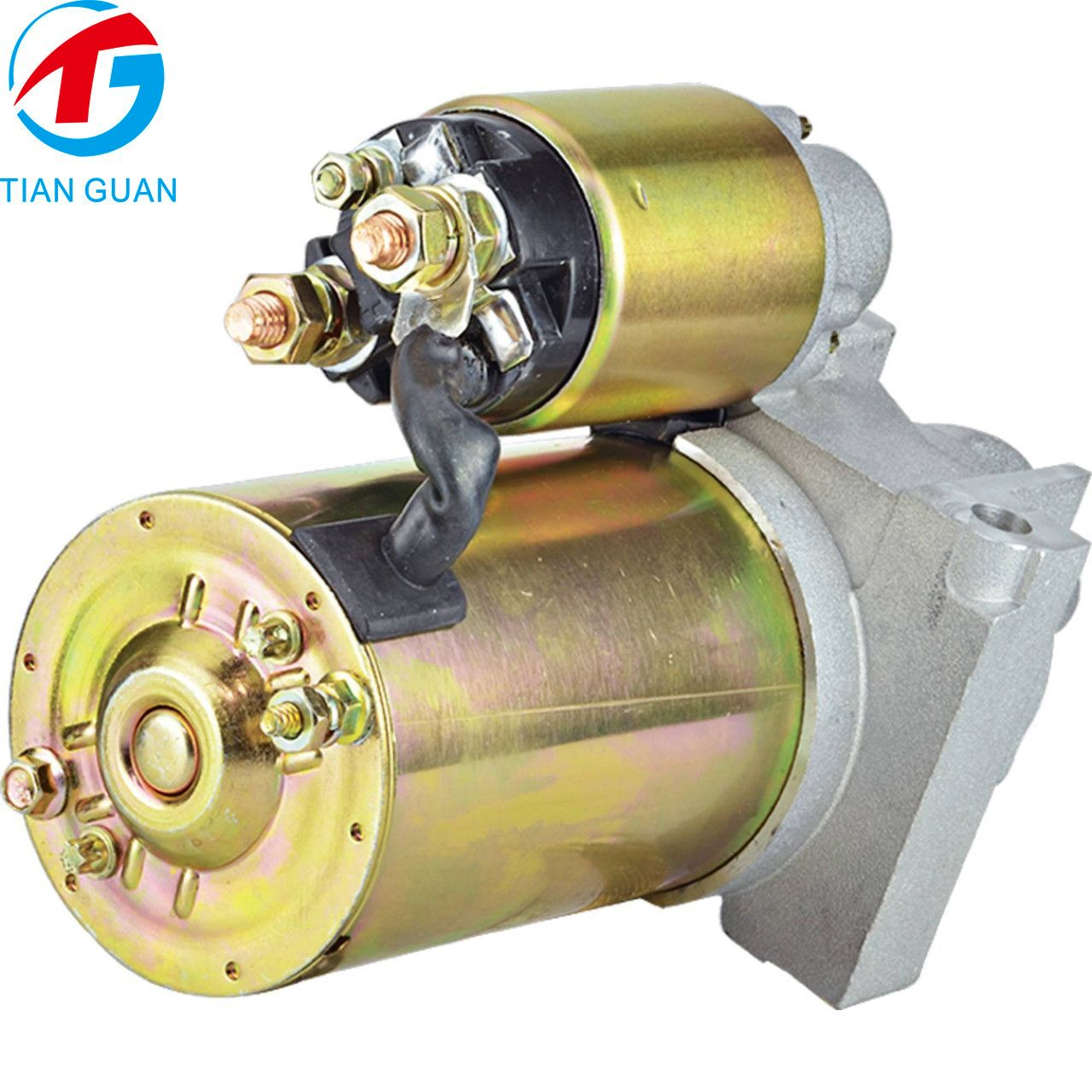

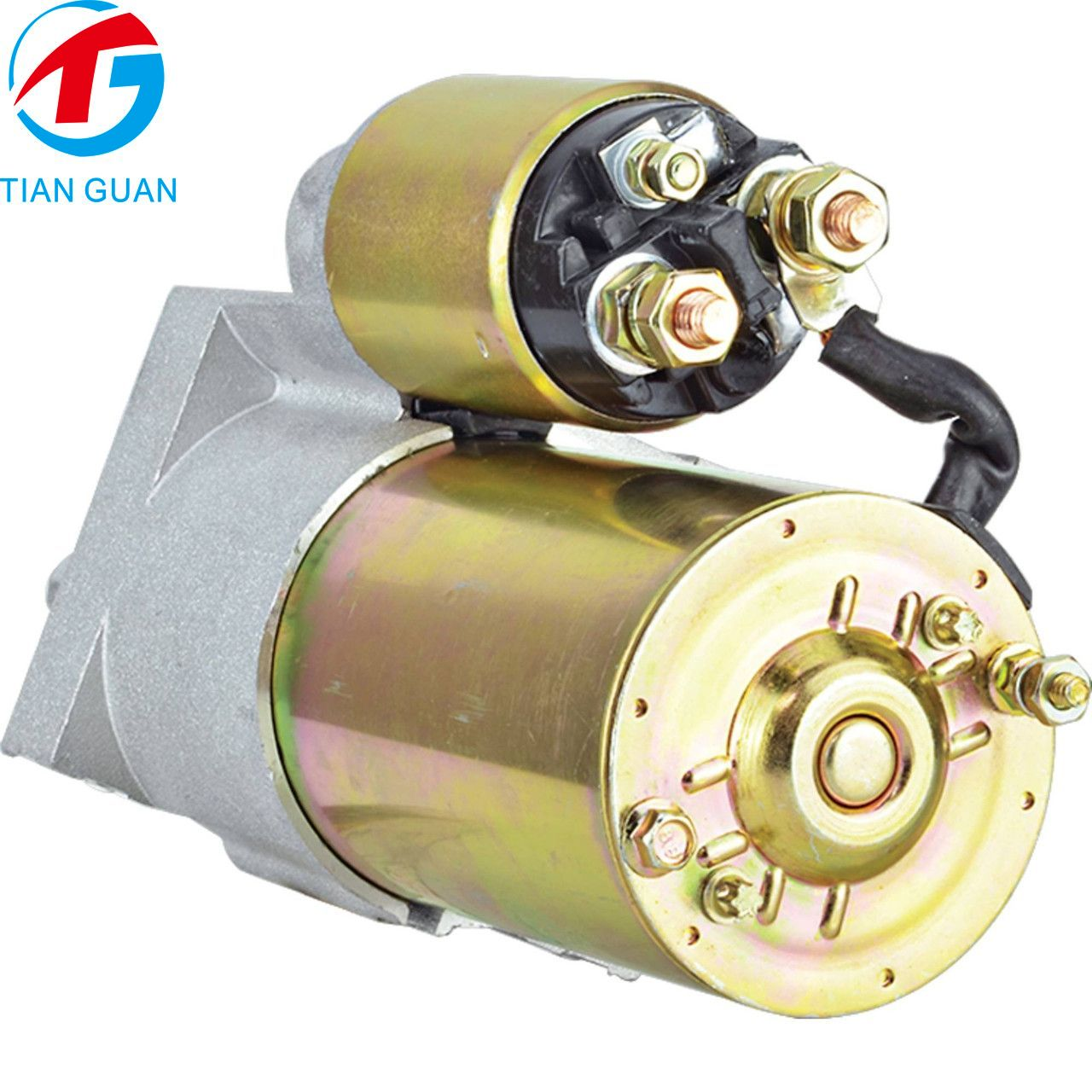

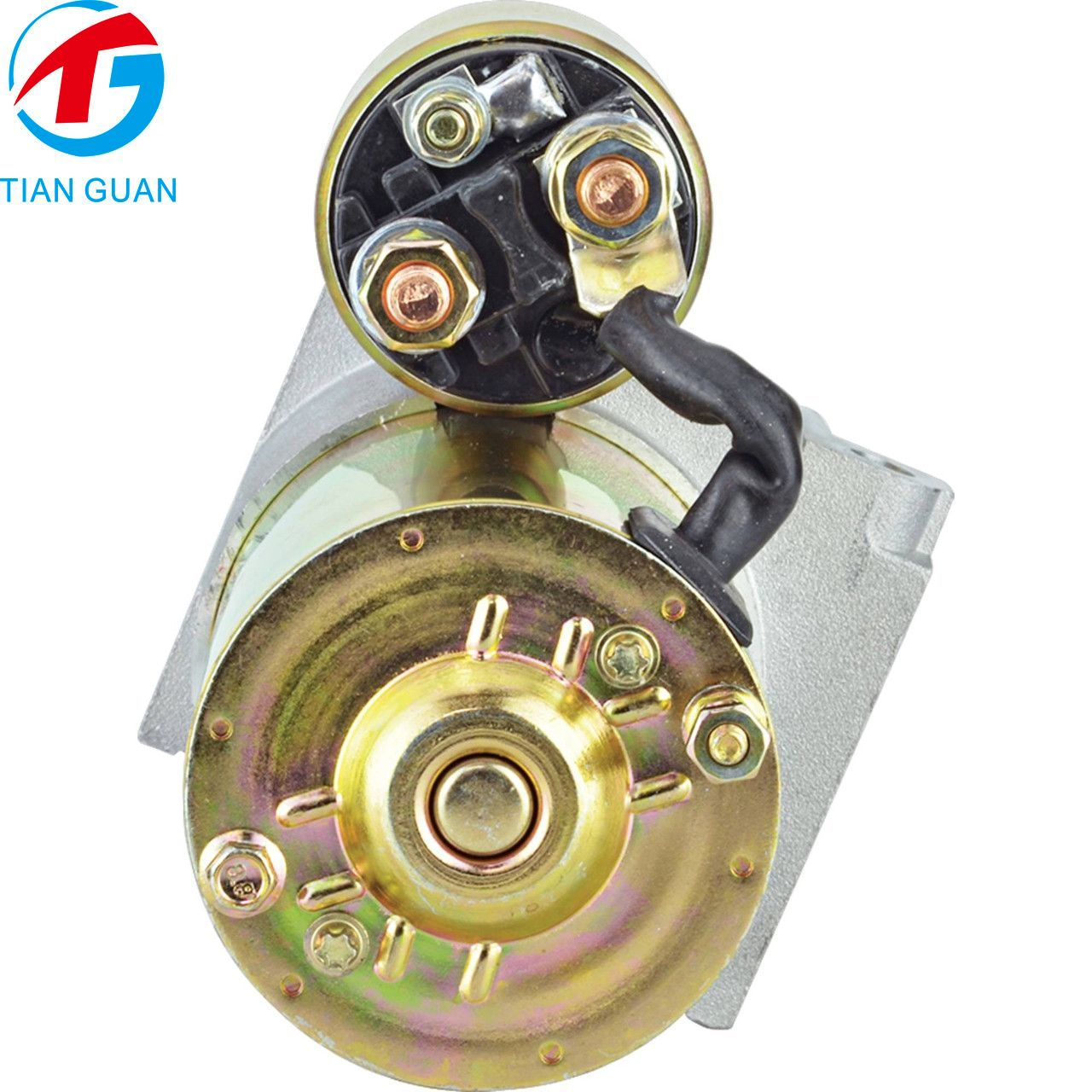

STG92258 Starter Motor 12560019 12563829 12570230 12570823 for Mercruiser Mercury Marine 3.0L 4.3L 5.0L 5.7L 7.4L V8 Engines
Part Numbers
AC Delco: 323-1459, 323-1471, 323-485, 336-1910
ACE: CM9786
AM General: 6007674
Arrowhead OEM: IMI228, ND281-8002
Arrowhead: SDR0019, SDR0019-L
Barsanco: 510-6449L, 510-6449M
Cargo: 112240
Delco: 10465167, 10465554, 10465578, 19136219, 9000786, 9000860, 9000879, 9000899
Denso First Time Fit: 280-5101, 281-8002
Dixie: S-1408, S-1460
Dixie New: S-1408N
Dubois: 681786
Family: PG260L, PG260M
General Motors: 12560019, 12563829, 12564108, 12570230, 12570823, 12572233
Isuzu: 8104651670
J & N: 410-12153, 410-12407
Lester: 6449
Lucas Electrical Europe: LRS01419
Minnpar: 57-2391
NAPA Power New: 4N-5110
NAPA Power Premium Plus: 246-5110, 246-5141
NAPA Power Supreme: 46-5110, 46-5141
NSA: STR-2603
PIC: 140-578, 140-6031
RCP: 21974A, ST-6449
Remy Light Duty Old: 25465
Remy Light Duty: 25485, 25906
Remy Light Duty New: 96206
Unipoint: STR-2602, STR-2603
USA Industries: 6449
WAI: 2-1690-DR, 2-2143-DR, 2-2143-DR-2, 6449N
WAI Sales: 50-186
Wilson: 91-01-4382, 91-01-4521, 91-01-4619
Wilson HD: 91-01-4382
Wilson New: 91-01-4382, 91-01-4382N
Wood Auto: STR2603
Worldwide Old: 25465
Product Description
The STG92258 Starter Motor is a reliable aftermarket replacement starter designed for a wide range of Mercury Marine, MerCruiser, Volvo Penta, GM industrial, forklift and construction equipment applications.
This starter uses a Delco PG260G configuration with a 12V electrical system, 1.4kW output, 11-tooth pinion and CW rotation. It is designed to provide dependable engine cranking performance for gasoline engines used in marine, industrial and material-handling equipment.
The starter cross-references multiple OEM and aftermarket numbers, including 12560019, 12563829, 12570230 and 12570823, making it suitable for a broad range of replacement applications.
Specifications
| Specification | Details |
|---|
| Part Number | STG92258 |
| Unit Type | Starter Motor |
| Condition | Aftermarket |
| Starter Type | Delco PG260G |
| Voltage | 12V |
| Power | 1.4kW |
| Rotation | CW |
| Teeth | 11T |
| Weight | 3.8 KG |
Fitment
Mercury Marine / MerCruiser
Mercury Marine: 3.0L, 4.3L, 5.0L, 5.7L, 6.2L, 7.4L, 8.1L, 8.2L, 8.9L, 377 Scorpion, 500 Bulldog, 500 EFI, 525 EFI, 575 SCI, 600 SCI, 662 SCI, 700 SCI Engines
Mercury Marine: 3.0L, 4.3L, 5.0L, 5.7L, 7.4L, 8.1L Engines
Volvo Penta
Volvo Penta: 3.0GS, 3.0GL, 5.70XI, 7.4GI, 7.4GSI, 8.1GI, 8.1GXI, 8.2GSI, DPX375, DPX385, DPX420, DPX500, DPX525, DPX600, IPS500G
Industrial & Forklift Applications
Caterpillar: FG35A, FG40A, FG45A, FG45K, FG50A, FG50C, FG50K, FGC35K, FGC40K, FGC45K, GC35K, GC40K, GC45K, GP35A, GP40A, GP45A, GP45K, GP50A, GP50K
Clark: CGC20, CGC25, CGC30, CGC40, CGC45, CGC50, CGC55, CGC60, CGC70, CGP20, CGP25, CGP30, CGP40, CGP45, CGP50, CGP55, CGP60, CGP70
Doosan: G35S, G40S, G45S
Hyster: H70XM, H80FT, H80XM, H90FT, H90XM, H90XMS, H100FT, H100XM, H110FT, H110XM, H120FT, H120XM, H135FT, H155FT, S80FT, S90FT, S100FT, S110FT, S120FT, S135FT, S135XL2, S155FT, S155XL2
Hyundai: 25G-7, 25GC-7, 25L-7, 25LC-7, 30G-7, 30GC-7, 30L-7, 30LC-7, 33G-7, 33L-7, 35L-7, 40L-7, 45L-7, 50L-7, 60L-7, 70L-7
JCB: TLT20G, TLT25G, TLT30G
JLG: 450A-II, 450AJ-II, 600S, 660SJ
Yale: GC080V, GC090V, GC100V, GC110V, GC120S, GC120V, GLC080V, GLC090V, GLC100V, GLC110V, GLC120V, GLP070L, GLP080L, GLP080V, GLP090L, GLP090V, GLP100V, GLP110V, GLP120V, GP070L, GP080L, GP080V, GP090L, GP090V, GP100V, GP110V, GP120V, GTC080V, GTC090V, GTC100V, GTC110V, GTC120S, GTC120V, GTP070L, GTP080L, GTP080V, GTP090L, GTP090V, GTP100V, GTP110V, GTP120V
Engine Applications
GM Industrial: 3.0L, 4.3L Engines
PSI: 3.0L, 4.3L Engines
Mitsubishi: FG35A, FG40A, FG45A, FG45K, FG50A, FG50C, FG50K, FGC35K, FGC40K, FGGC45K, GC35K, GC40K, GC45K, GP35A, GP40A, GP40K, GP45A, GP45K, GP50A, GP50K
Key Features
| Feature | Description |
|---|
| Delco PG260G | Proven gear-reduction starter configuration |
| 12V System | Designed for compatible 12V applications |
| 1.4kW Output | Provides reliable engine cranking power |
| 11-Tooth Pinion | Designed for compatible marine and industrial engines |
| CW Rotation | Clockwise rotation |
| Marine Application | Suitable for Mercury Marine, MerCruiser and Volvo Penta engines |
| Industrial Application | Suitable for forklifts, aerial lifts and construction equipment |
| Wide Compatibility | Covers GM, Mercury Marine, Volvo Penta, Caterpillar, Hyster, Yale, JLG and other applications |
| Aftermarket Replacement | Designed to replace multiple OEM and aftermarket references |
| Weight | 3.8 KG |
