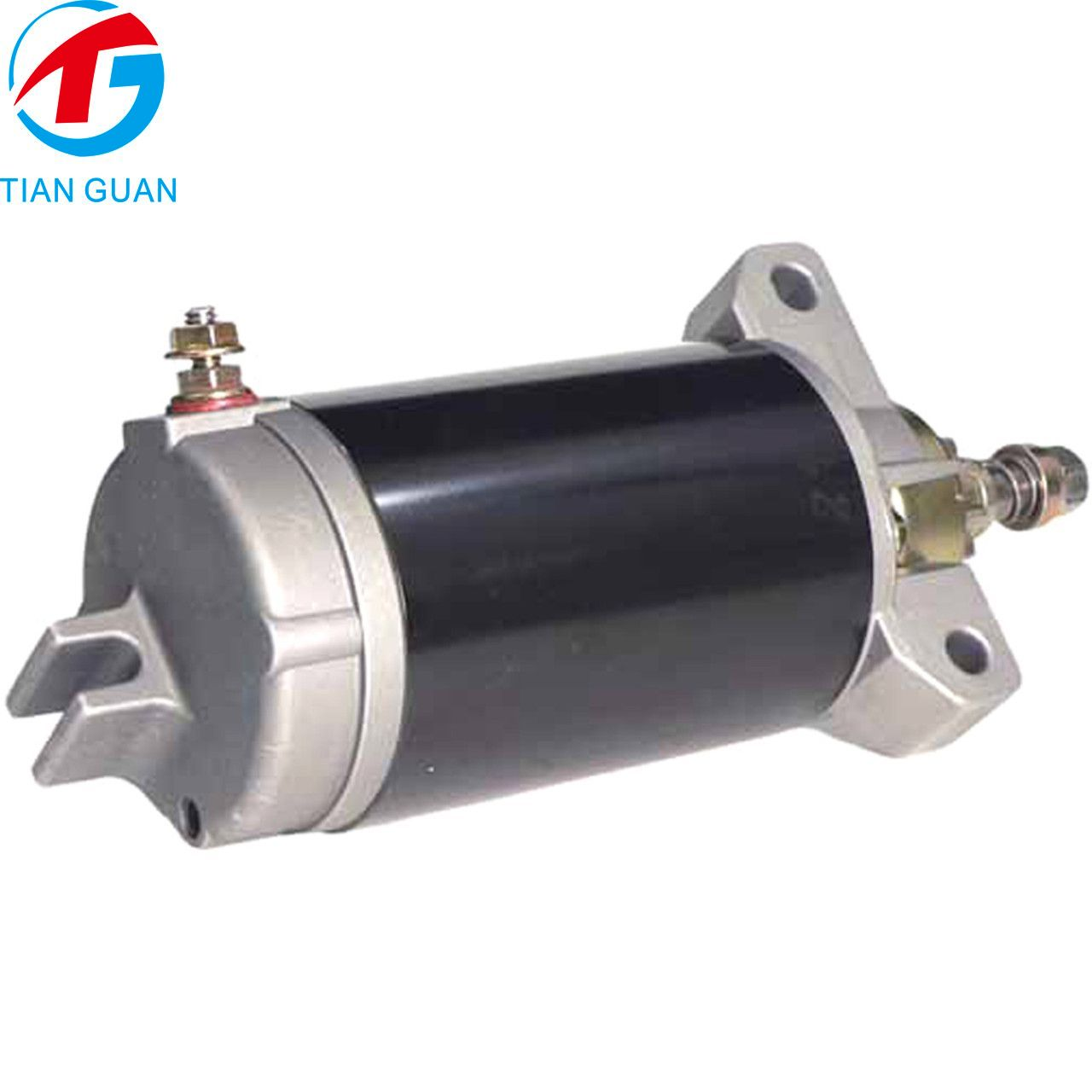

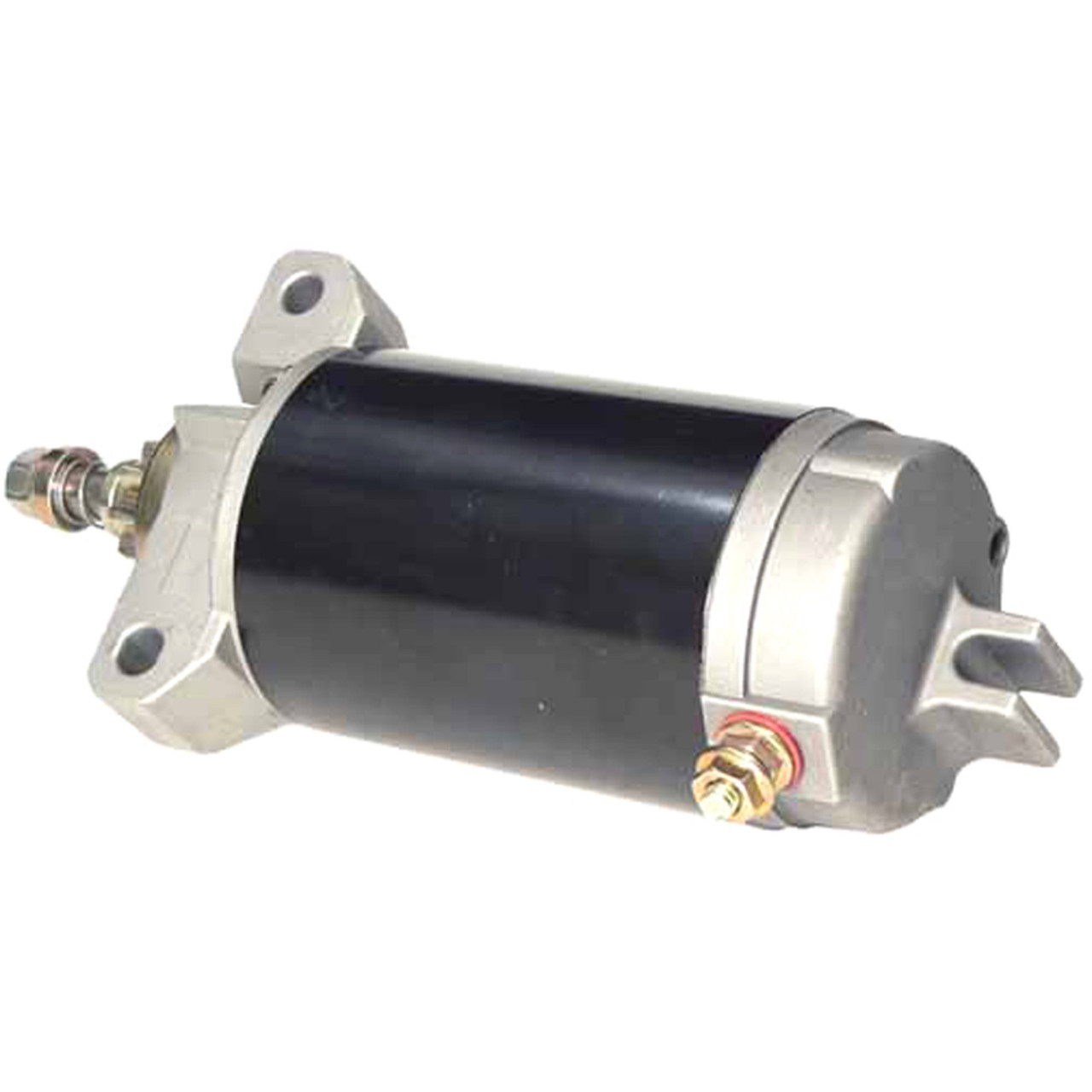

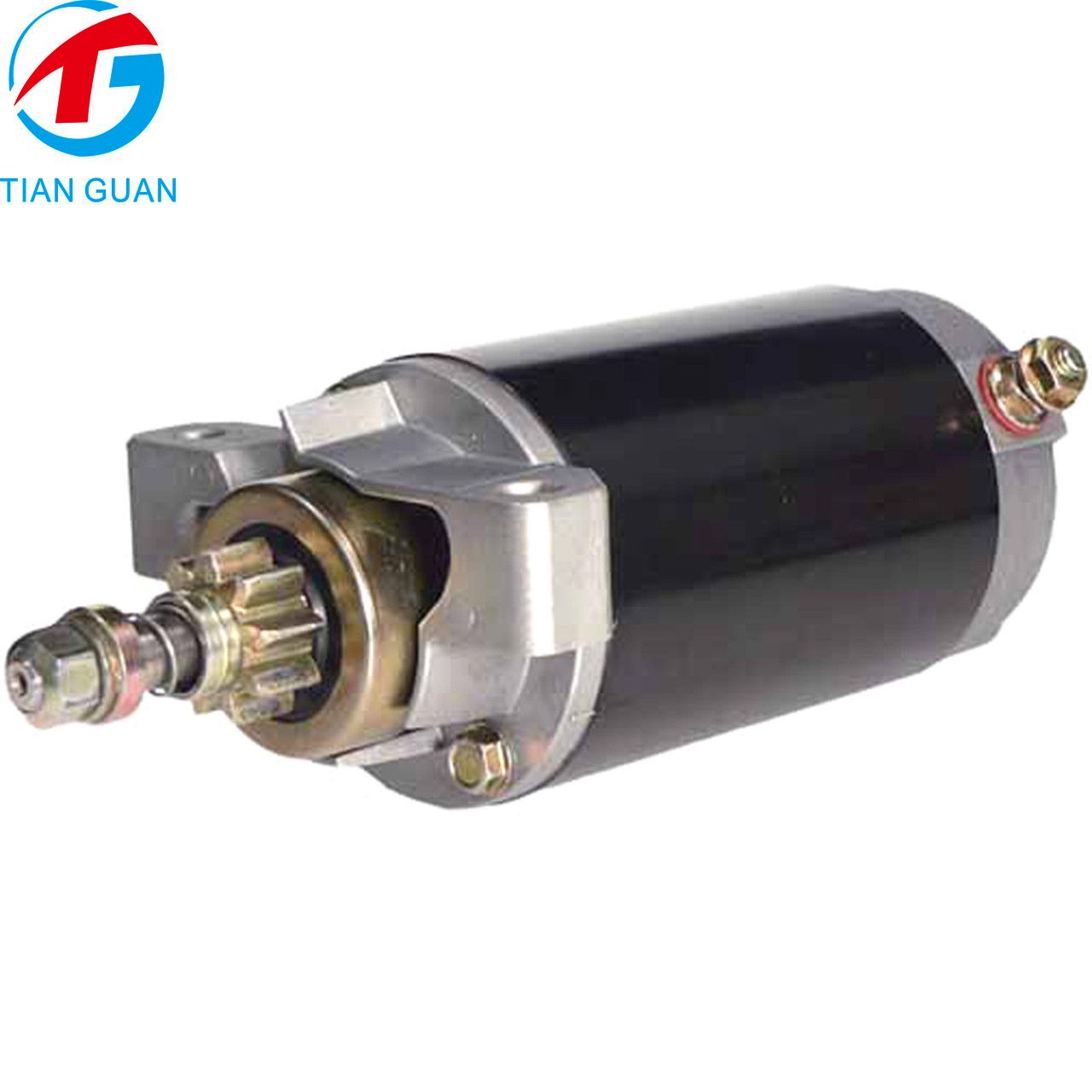

STG92324 Starter Motor 67C-81800-00-00 67C-81800-01-00 67C-81800-02-00 10153440 6743040 Replacement for Mercury Marine 30-60HP 3-Cyl 4-Stroke & Yamaha 40HP 4-Stroke Outboard

3 Reviews

Add Your Review

US$126.00

ITEMNO： STG92324

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

STG92324 Starter Motor 67C-81800-00-00 67C-81800-01-00 67C-81800-02-00 10153440 6743040 Replacement for Mercury Marine 30-40HP 4-Stroke Outboard

Part Numbers

Brand	Part Number
API Marine	MOT3015
ARCO Marine	5365
Arrowhead	SAB0114
Cargo	112830
EMP Parts	4-6438
J & N	410-21026
Johnson Electric	10153440, 6743040
Lester	5764
Mercury Marine	50-854636, 50-854636T, 50-859170T, 50-859170T1, 50-884045T, 50-888160T, 50-893887T, 854636T, 859170T, 859170T1, 884045T, 888160T, 893887T
Quicksilver	8M6007427
Sierra Marine	18-6438
United Tech	6743040-M030SM, SM67430
WAI	5764N
Yamaha	67C-81800-00-00, 67C-81800-01-00, 67C-81800-02-00

Specification

Item	Specification
Internal Part Number	STG92324
Item Condition	Aftermarket Part
Unit Type	Starter Motor
Voltage	12V
Rotation Direction	Counterclockwise (CCW)

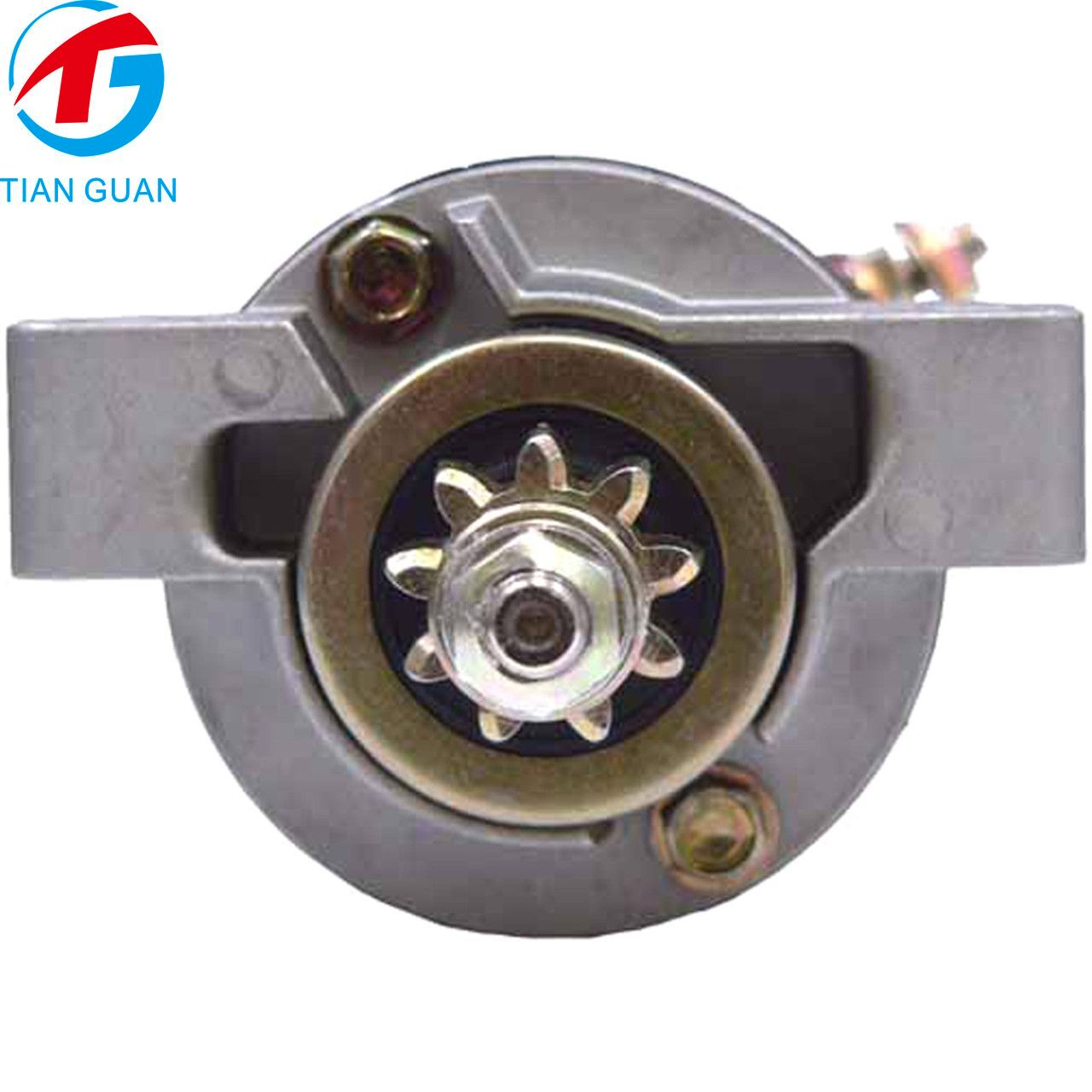

Number of Teeth	9 Teeth
Starter Type	PMDD

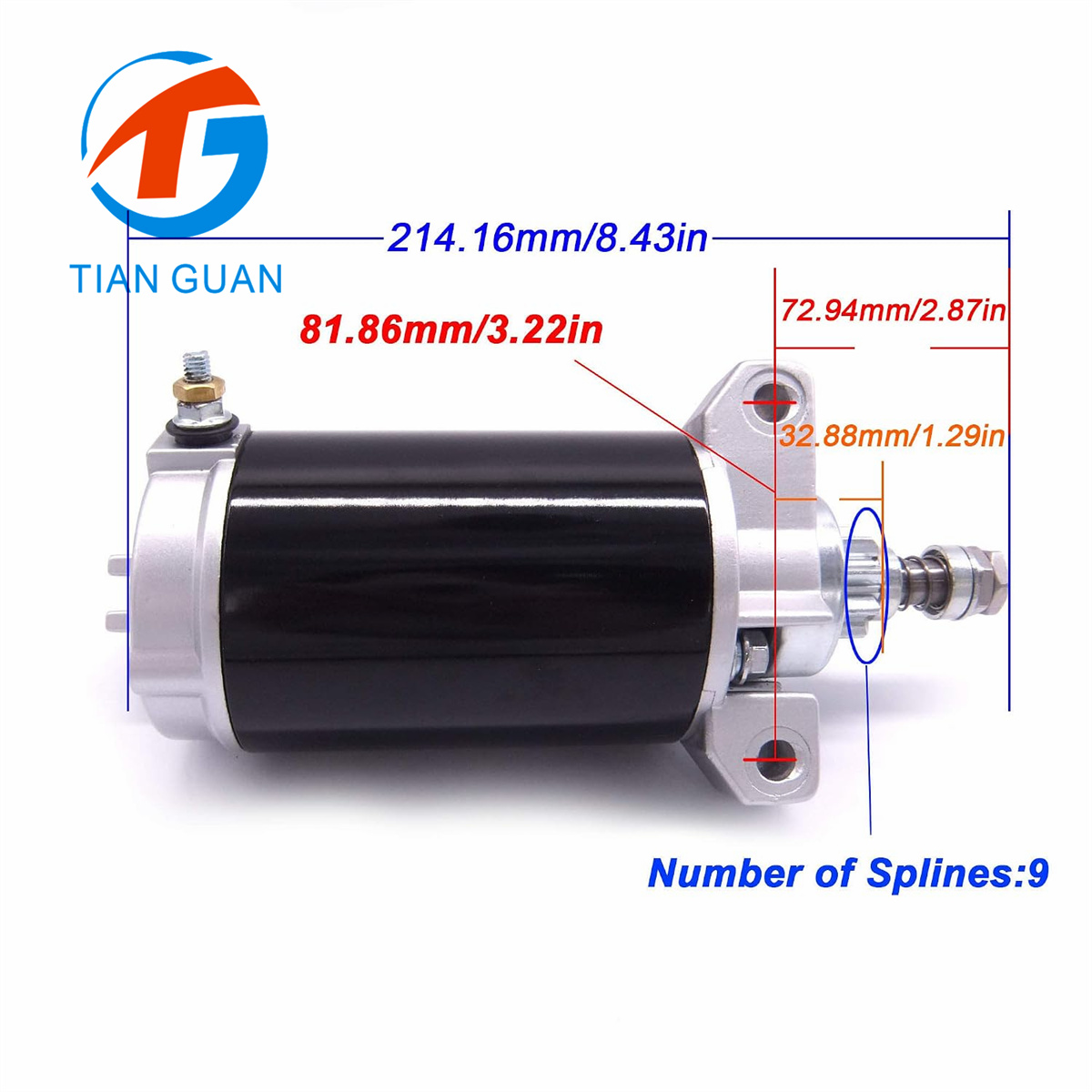

Gear OD	1.654 in / 42 mm
Mounting Ear Holes	8.1 mm, Unthreaded
Field Case Length	4 in / 101.6 mm
Net Weight	2.6 kg
Application Type	Marine Outboard

Fit for Engine

Mercury Marine 30HP 4-Stroke Outboard Engine
Mercury Marine 40HP 4-Stroke Outboard Engine

Applications

Brand	Application
Mercury Marine	30-40HP 4-Stroke Outboard Engines
Yamaha	Compatible applications using Yamaha 67C-81800-00-00, 67C-81800-01-00 or 67C-81800-02-00 starter references

Product Highlights

Feature	Description
Reliable Starting Performance	12V PMDD starter motor designed for dependable starting performance on compatible marine outboard engines.
Direct Replacement Design	9-tooth gear, 42 mm gear OD and 8.1 mm unthreaded mounting holes help match the specified original starter configuration.
Wide Cross-Reference Coverage	Cross-references Mercury Marine, Yamaha, Johnson Electric, Sierra Marine, Arrowhead, WAI, Lester and other aftermarket part numbers for easier identification.

Product Description

The STG92324 12V Starter Motor is an aftermarket replacement starter designed for compatible Mercury Marine 30HP and 40HP 4-Stroke Outboard Engines. It features a PMDD starter design, 9-tooth pinion gear, counterclockwise rotation, 12V operating voltage, and a compact 2.6 kg construction.

This starter is cross-referenced to a wide range of Mercury Marine, Yamaha, Johnson Electric, Quicksilver, Sierra Marine, Arrowhead, Lester, WAI and other aftermarket part numbers, making it suitable for replacement and repair applications where the original starter matches the listed specifications.

Before ordering, please compare your original starter's part number, voltage, rotation direction, tooth count, gear diameter, mounting-hole dimensions and field case length to ensure proper fitment.

Keywords

Mercury Marine 30HP 40HP 4 Stroke Starter Motor, 12V PMDD Marine Outboard Starter, Yamaha 67C-81800 Starter Replacement
