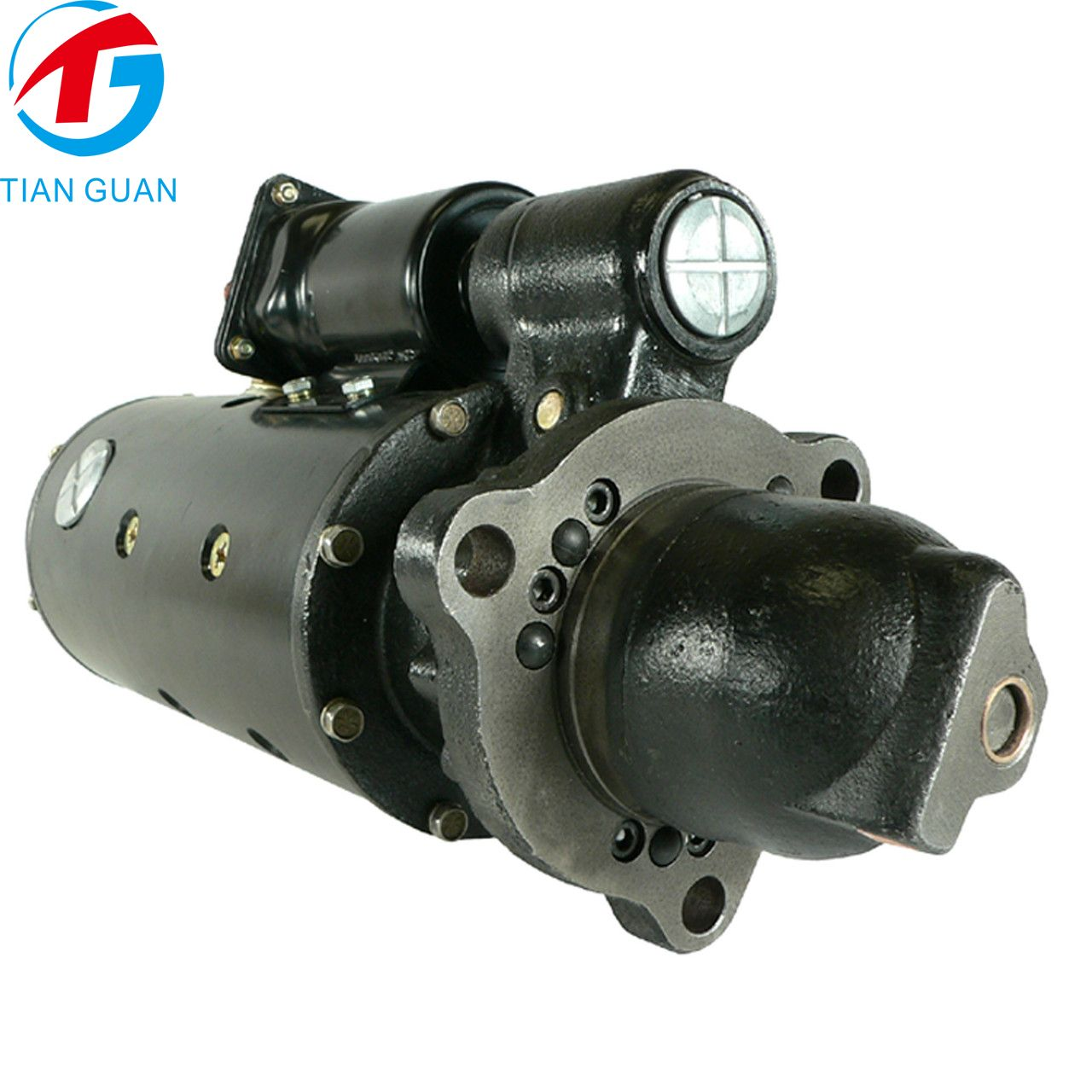

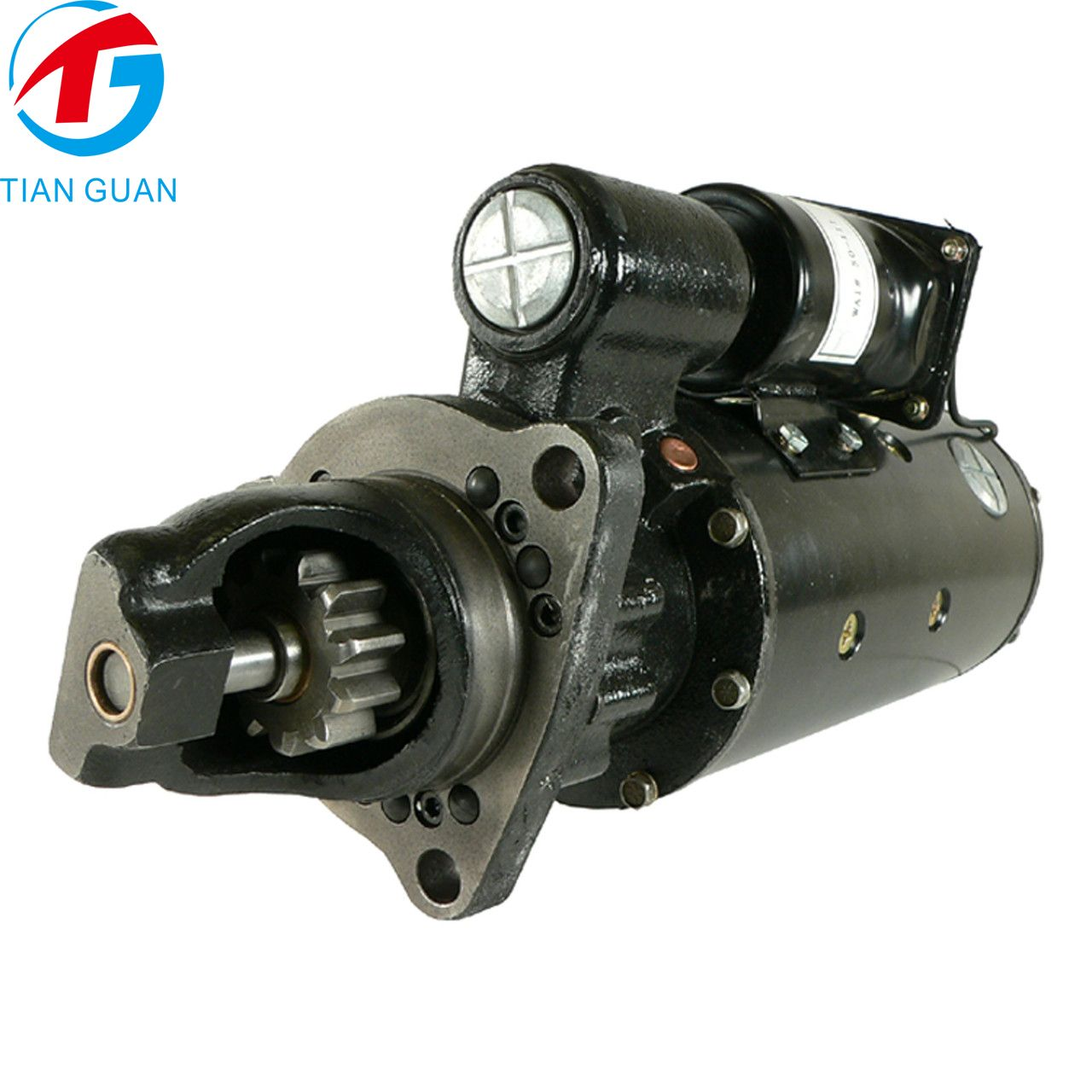

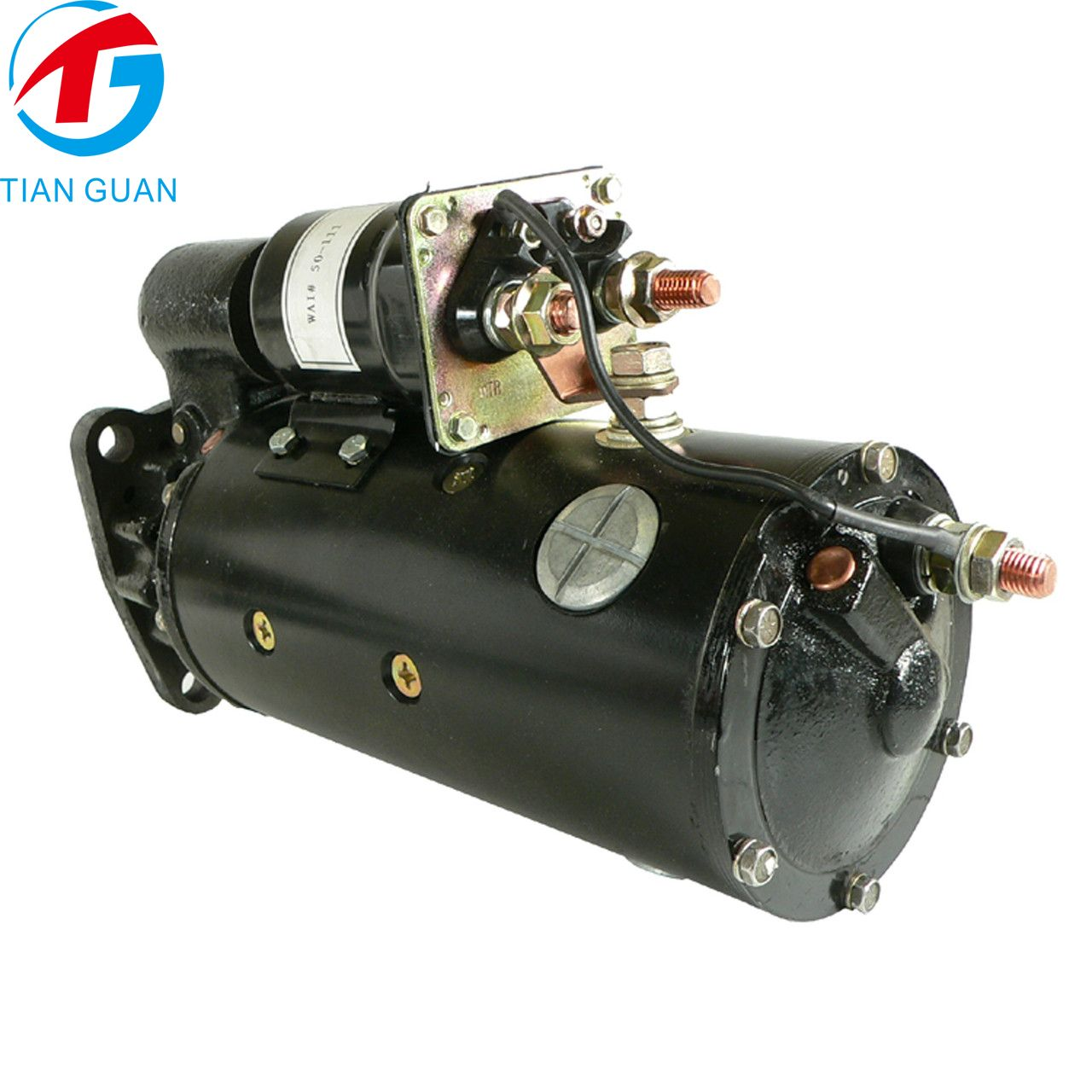

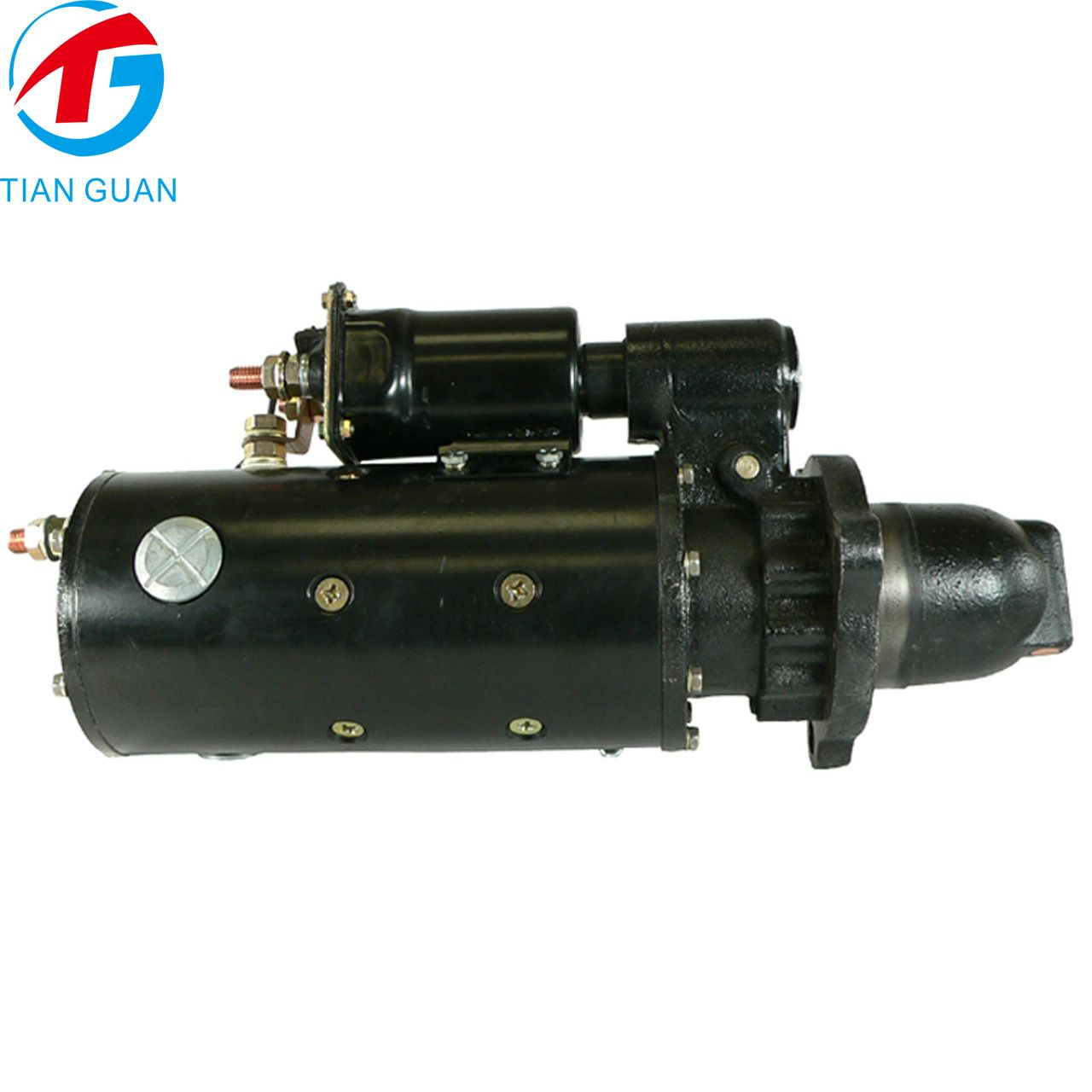

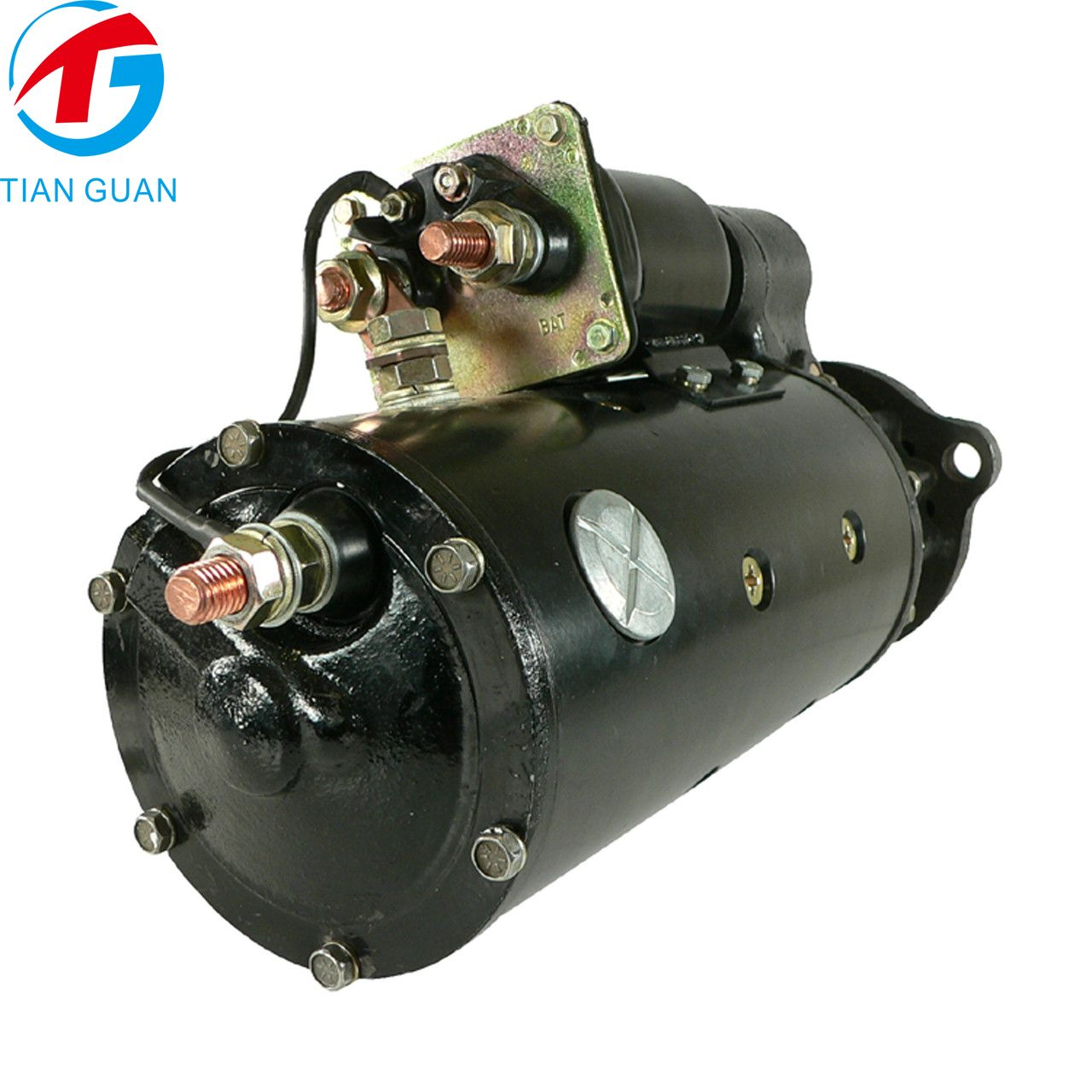

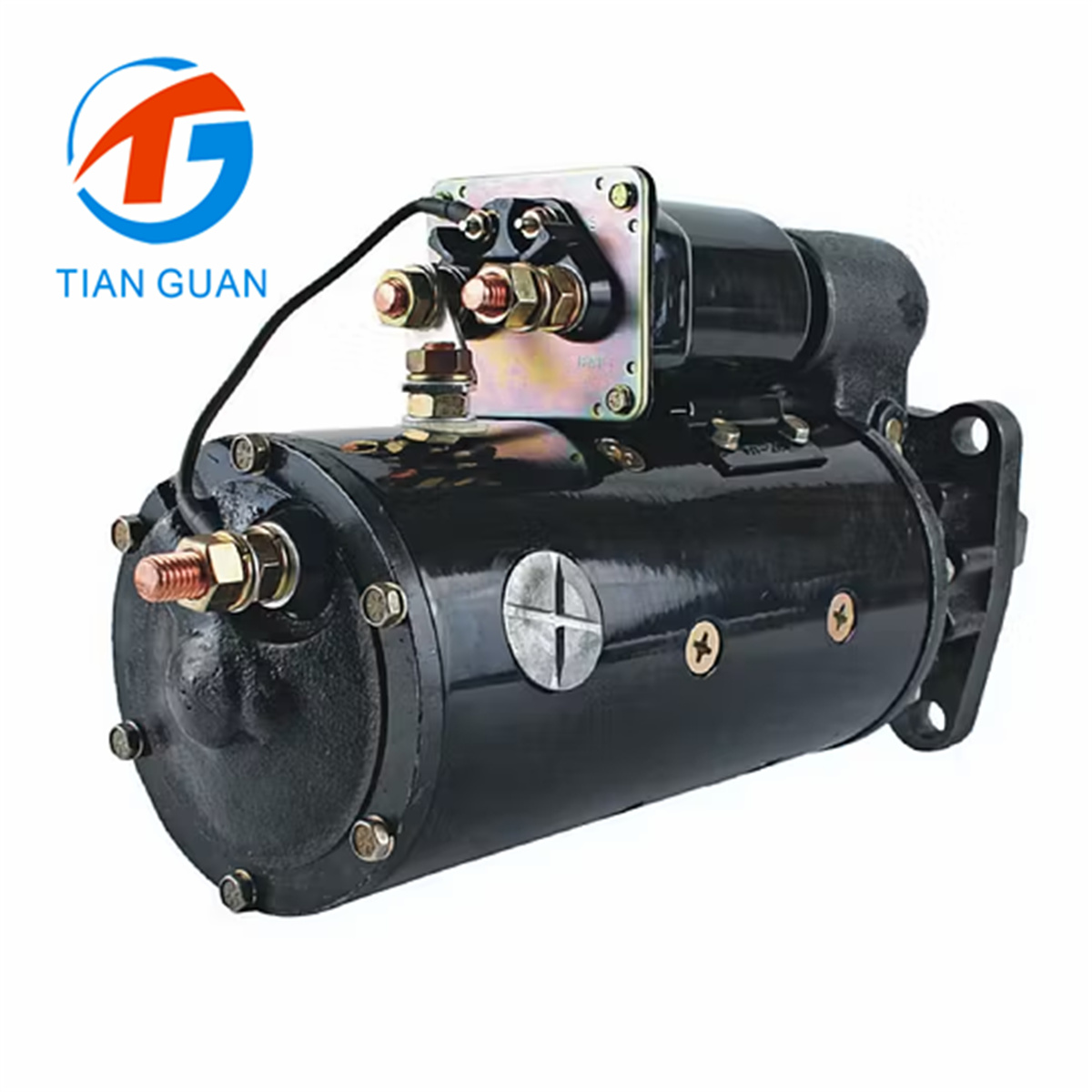

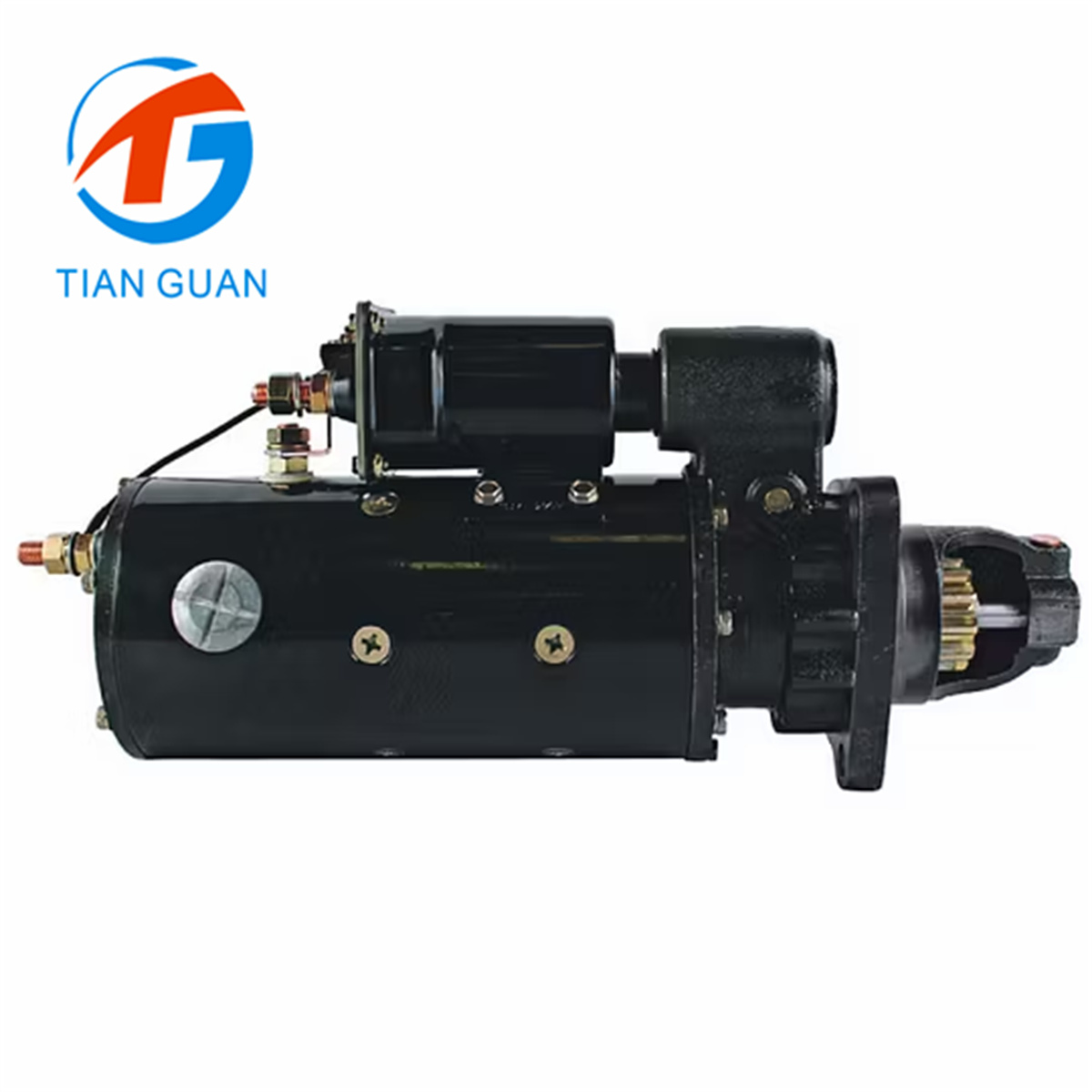

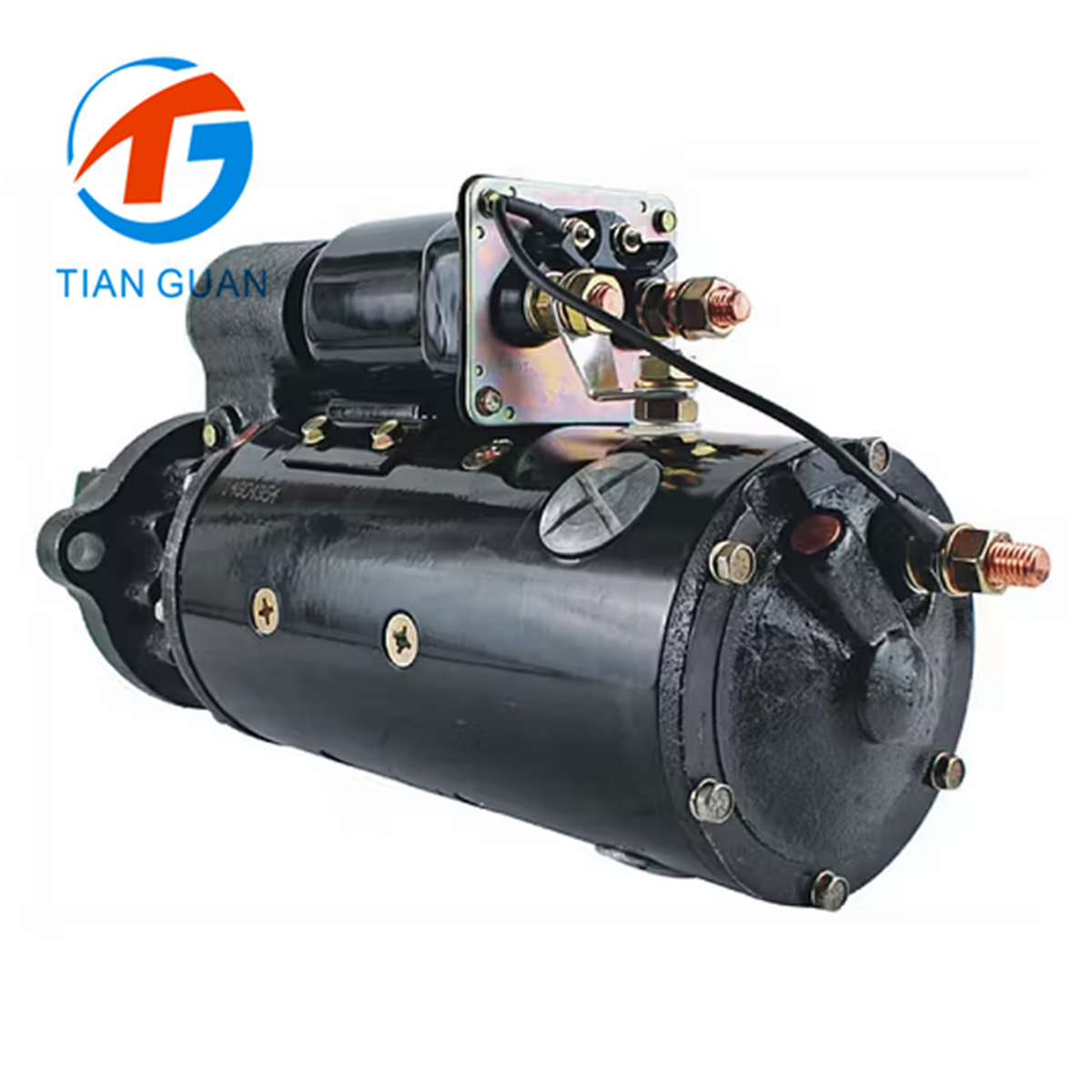

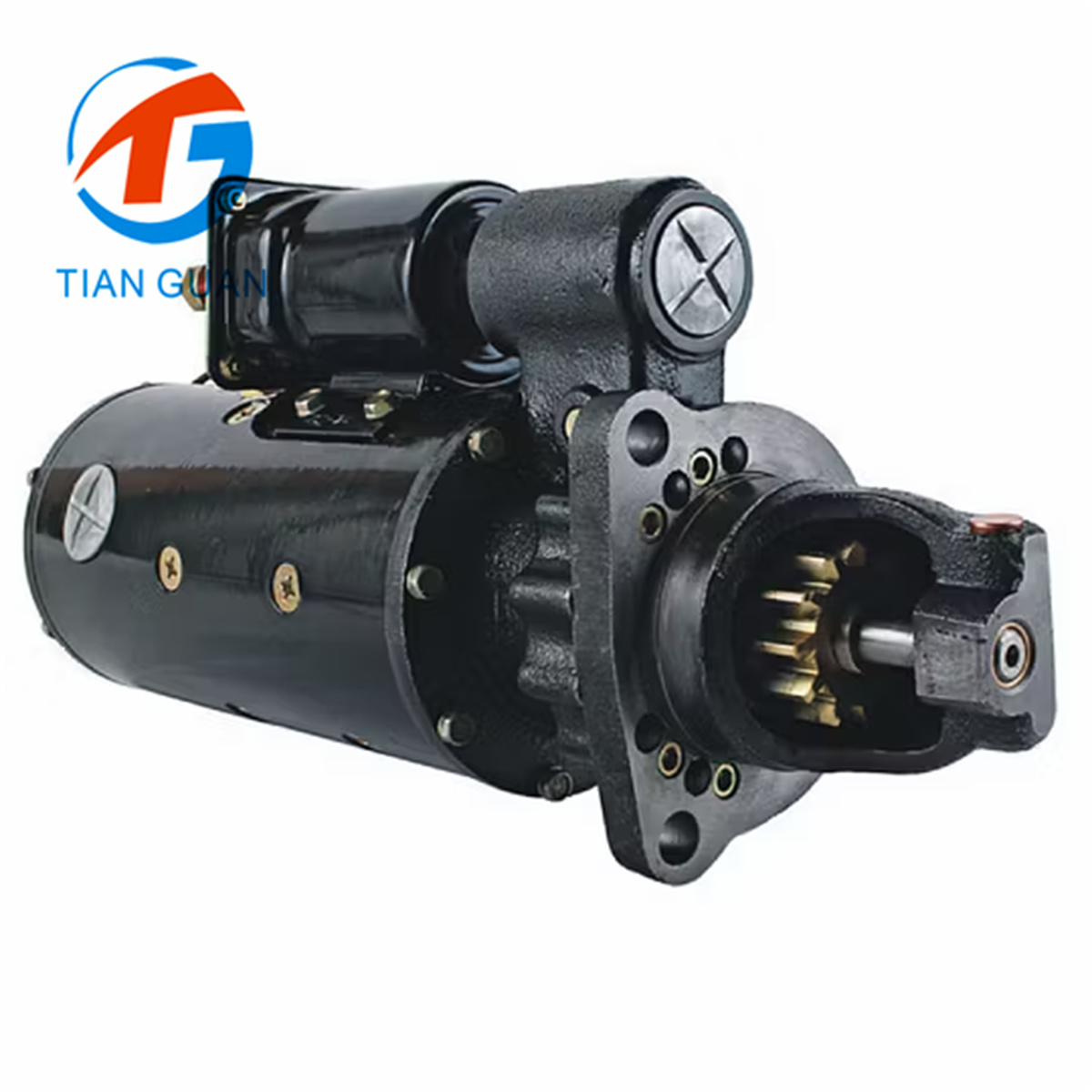

Starter 352-9766 3383454 – Fits CATERPILLAR 725 Articulated Truck, Cat 3176C & C11 Engines | 24V 11.0kW Delco Unit
Cross Reference Part Numbers
CASE: 20-1297T91, 462588C91, 489717C91, 739911C9, 739912C91
CATERPILLAR: 0R4272, 0R5213, 10R-9815, 237-1962, 269-2757, 3L8205, 3T2780, 3T2785, 3T2787, 3T3778, 3T8947, 3T8949, 3T8954, 3T8967, 4N0959, 4N3343, 4N3349, 5L3648, 5L4405, 5L5353, 5L648, 5L8205, 5LG48, 5N2685, 6N9667, 6N9677, 6T0640, 6T0647
CUMMINS: 173184, 3000576, 3004699, 3004700, 3010125, 3021038, 3063771, 3603868RX, 3603888RX, 3632274, 3632274RX
AC DELCO: 323-761
ACE: CM-5091
ANDRE NIERMANN: 0123516
ARROWHEAD: MS77, SDR0073, 410-12408
BARSANCO: 510-4930
BOWERS: BSO7189
CARGO: 110347
DELCO REMAN (EUROPE): DRZ5119
DELCO: 10461057, 10461125, 10479125, 10479126, 1109222, 1109285, 1109286, 1109287, 1109288, 1109289, 1109290, 1109291, 1109292, 1109296, 1109298, 1109494, 1109553, 1109631, 1109638, 1109642, 1109643, 1109647, 1109649, 1109755, 1109759
DETROIT DIESEL: R0461125
DIXIE NEW: 201-50202
DIXIE: TS-1061
EUCLID: E821132X
FAMILY: 50MT
FIAT ALLIS: 70620350, 70675686, 70697811, 73114229, 73130196, 73130197, 73130198, 73130627
FORD: D8HZ-11002-C, E2HT-11001-DA, E3HZ-11002-A, E3HZ-11002-B, E3HZ-11002-C
INTL HARVESTER: 462588C91, 489717C91, 729912C91, 739911C91
J&N Electrical Products: 410-12064, 410-12064R, 410-12408, 410-12584
JOHN DEERE: RE10464
LESTER: 4917, 4991, 4930
LETRIKA (ISKRA) AFTERMARKET: IS 1183
LUCAS ELECTRICAL EUROPE: LRS01829
MACK: 2132X10461057
MAHLE: MS77
MES MOTORCYCLE & MARINE: 6900M
MINNPAR: 57-1267
MOTORCRAFT: SA-721, SA-744, SA-745, SA-747
PIC: 142-180
RCP: 23516A
REMY LIGHT DUTY: 61500
USA INDUSTRIES: 4930
VERSATILE: V102746, V61094
WAI SALES / WAI: 50-111, 4930N
WESTERN STAR: 820013408, 820013409
WHITE: V1114238, V1114938
WILSON / WILSON HD: 91-01-3948
WOOD AUTO: STR20012, STR4302
Specifications
Item Type: Starter
Unit Type: Delco
Voltage: 24V
Power: 11.0kW
Rotation: CW (Clockwise)
Teeth: 11T
Weight: 37.36 kg
Applications
CATERPILLAR Wheel Loaders:
992 (1973) D-348 Diesel
992B (1973–1979) D-348 Diesel
992C (1977–1993) Cat. 3408
CATERPILLAR Wheel Tractor Dozers:
824C (1978–1983) Cat. 3406
CATERPILLAR Trucks:
725 Articulated Truck with Cat 3176C & C11 Engines
