STG92861 Starter 0001402008 F032110512 AZK5104 AZK5123 AZK5194 AZK5412 IS0075 for MAN D0834M D1246M Engine – 24V
Part Numbers
KHD: 1161473, 01174631, 1174631, 1178720, 01178720, 1327A600, 3040678, D3R24X6H7622
CASE / INTERNATIONAL HARV.: A941505
DAF: 298386
DEUTZ: 8123168
FIAT: 82224044
LIEBHERR: 6104021
MAN: 51.26201-7001, 51.26201-7074, 51.26201-7112, 51.26201-9001, 51.26201-9074, 51262017029, 51262017052, 51262017074, 51262017099, 51262017112, 51262017807, 51262019074, 51262019099, 81262019029, 90801105190, 512620178074
MERCEDES-BENZ: 0011510001, 0011513701, 0011513801, 0011514101, 0021511301, 0021518101, 0021518501, 0031515701, 0031515704, 031516001, 0031516001, 031519501, 0031519501, A0011513801, A0011514101, A0021518101, A0021518501, A0031515701, A0031516001, A0031519501
MWM: 605720100016, 605720520005
RENAULT: 0025841022, 5000080750, 5000241737, 5000592182, 5000789048, 5000808251, 5001000127, 5001014203, 5001014215, 5010217215, 7701007508
SCANIA: 349581, 359581, 1101616
STEYR: 614090004, 614090018, 614090022, 41000090002, 61500090022, 61500090030
VOLVO: 9000847330, 605720520005
BOSCH: 0001402001, 0001402008, 0001402023, 0001402037, 0001402041, 0001402043, 0001402054, 0001402055, 0001402059, 0001402061, 0001402064, 0001402068, 0001402075, 0001402081, 0001402083, 0001410012, 0001410021, 0001410029, 0001410046, 0001410050, 0001411014, 0001414003, 0001414010, 0001415002, 0001415010, 0001415021, 0001416013, 0001416022, 0001416024, 0001416039, 0001416047, 0001416053, 0001416054, 0986011410, 0986011420, 0986011421, 0986011550, 0986011560, 0986011561, 0986014780, 0986014781, 0986014790, 0986014791
DELCO: 19024024, 19024037, 19024149, 19024150, 19024170, 19024550, 19024554, 19024556, 19082012, DRS1410, DRS1420, DRS1550, DRS1560, DRS4780
EFEL: 03285, 04667, 6710, 6940, 06940, 22201, 22615, 22616, 22624, 22625, 22626, EF0022616
ELMOT: 6160000, 6250000, R20.17, R2017, R20Z, R23.16, R23.17, R23.25
ISKRA: 10.130.123, 11.130.115, 11.130.604, 11.139.035, 11.139.052, AZK5104, AZK5123, AZK5194, AZK5412, IS0075, IS0622, IS0652, IS9009, IS9036, IS9071
LUCAS: 22615, LRS00817, LRS00824, LRS00843, LRS01806, LRS01808, LRS01827, LRS817, LRS824
MAGNETI MARELLI: 943252012, 943252046, 943252129, 943252212, 943252012010, 943252129010, 943252188010, MSR680, MSR685
MAGNETON: 9125320, 9125340
MAHLE: MS577
PRESTOLITE: 860660, 860660GB
VALEO: 076571, 455504, 455505, 455615, 455926, D13E63, D13E63T, D13E69, D13E69T, D13E81, D13E81T
AS: S0151
CARGO: 110512
HC-PARTS: CS194
HELLA: 8EA726023-001
IKA: 6.1016.0
KRAUF: STB0194, STB0194UL
MESSMER: 220219, 220246, 220253, 220313, 220493
MOTORHERZ: CS194CN
WAIGLOBAL: 50-9113
Product Description

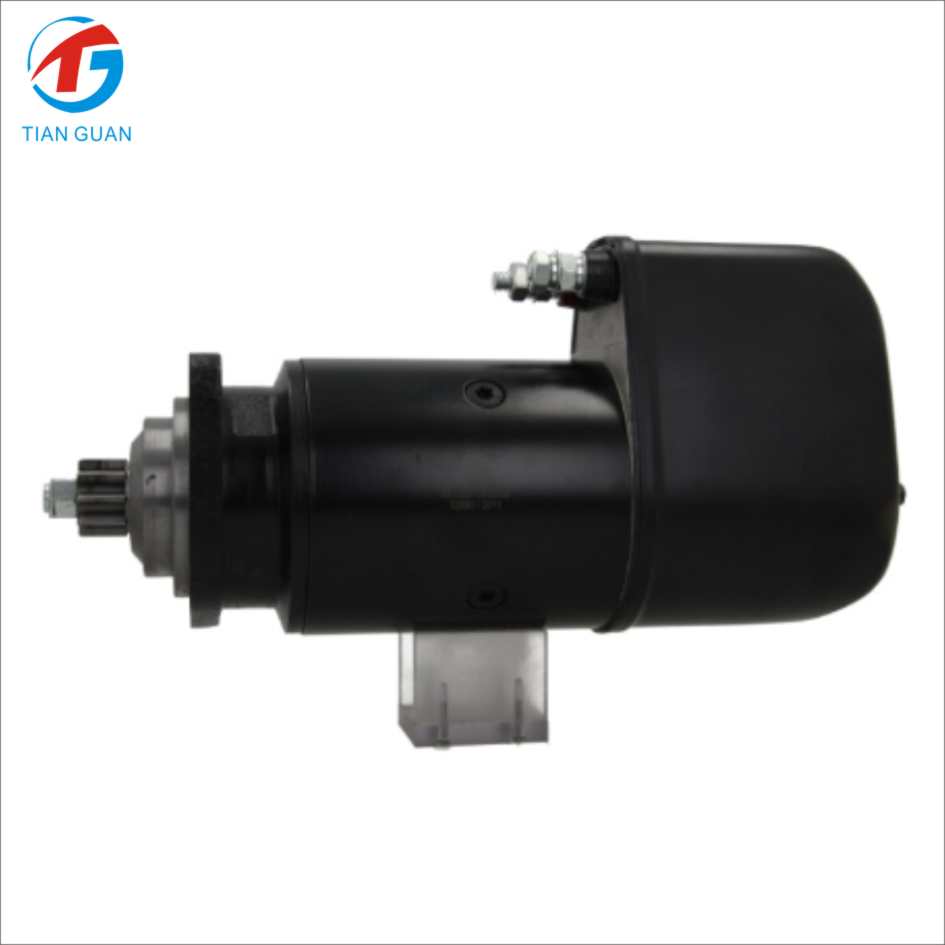

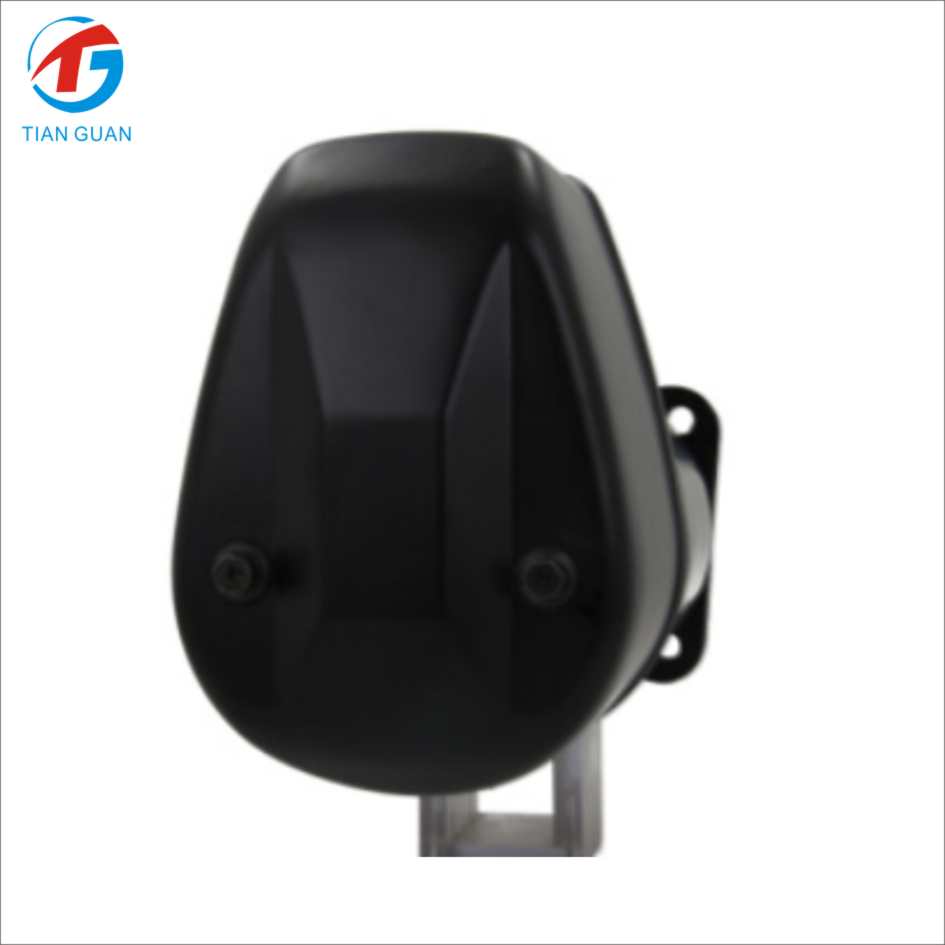

This premium aftermarket 24V 5.4KW Starter Motor is designed as a direct replacement for MAN D0834M and D1246M engine applications, as well as a wide range of heavy-duty trucks, buses, construction, and industrial equipment. Built on the Bosch unit type with 9-tooth pinion gear and clockwise (CW) rotation, it delivers fast, reliable engine starting and dependable performance in demanding applications.
This starter replaces OE part numbers 0001402008, F032110512 and cross-reference numbers AZK5104, AZK5123, AZK5194, AZK5412, IS0075 (Iskra / Bosch), plus extensive cross-reference coverage listed above for KHD, Case, DAF, Deutz, Fiat, Liebherr, MAN, Mercedes-Benz, MWM, Renault, Scania, Steyr, Volvo, Delco, Efel, Elmot, Lucas, Magneti Marelli, Magneton, Mahle, Prestolite, Valeo, and more.
24V starter motor
5.4KW power output
9-tooth pinion gear
Bosch unit type
Clockwise (CW) rotation
Direct replacement for MAN D0834M / D1246M
Ideal for construction machinery, agricultural vehicles, trucks, and industrial engines
Robust design with precise fit
100% new (not rebuilt)
Approx. 17.5 kg
Specifications
Item Condition: 100% New (Not Rebuilt)
Unit Type: Bosch
Voltage: 24V
Power: 5.4KW
Rotation: CW (Clockwise)
Teeth: 9T
Weight: 17.5KG
Fitment
MAN – D0834M Engine
MAN – D1246M Engine
Compatible with equipment using 0001402008, F032110512, AZK5104, AZK5123, AZK5194, AZK5412, or IS0075 starter motor part numbers.
