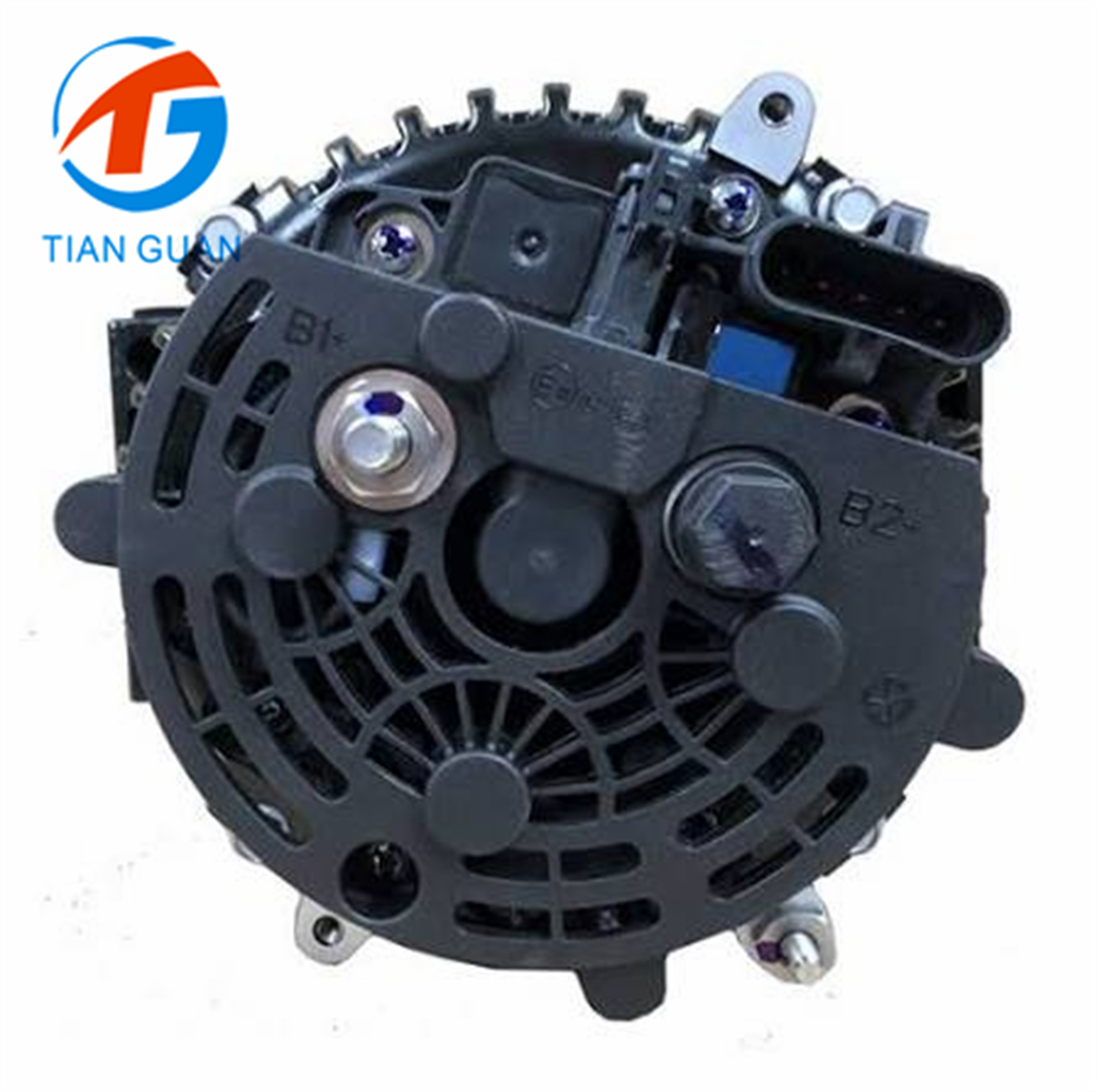

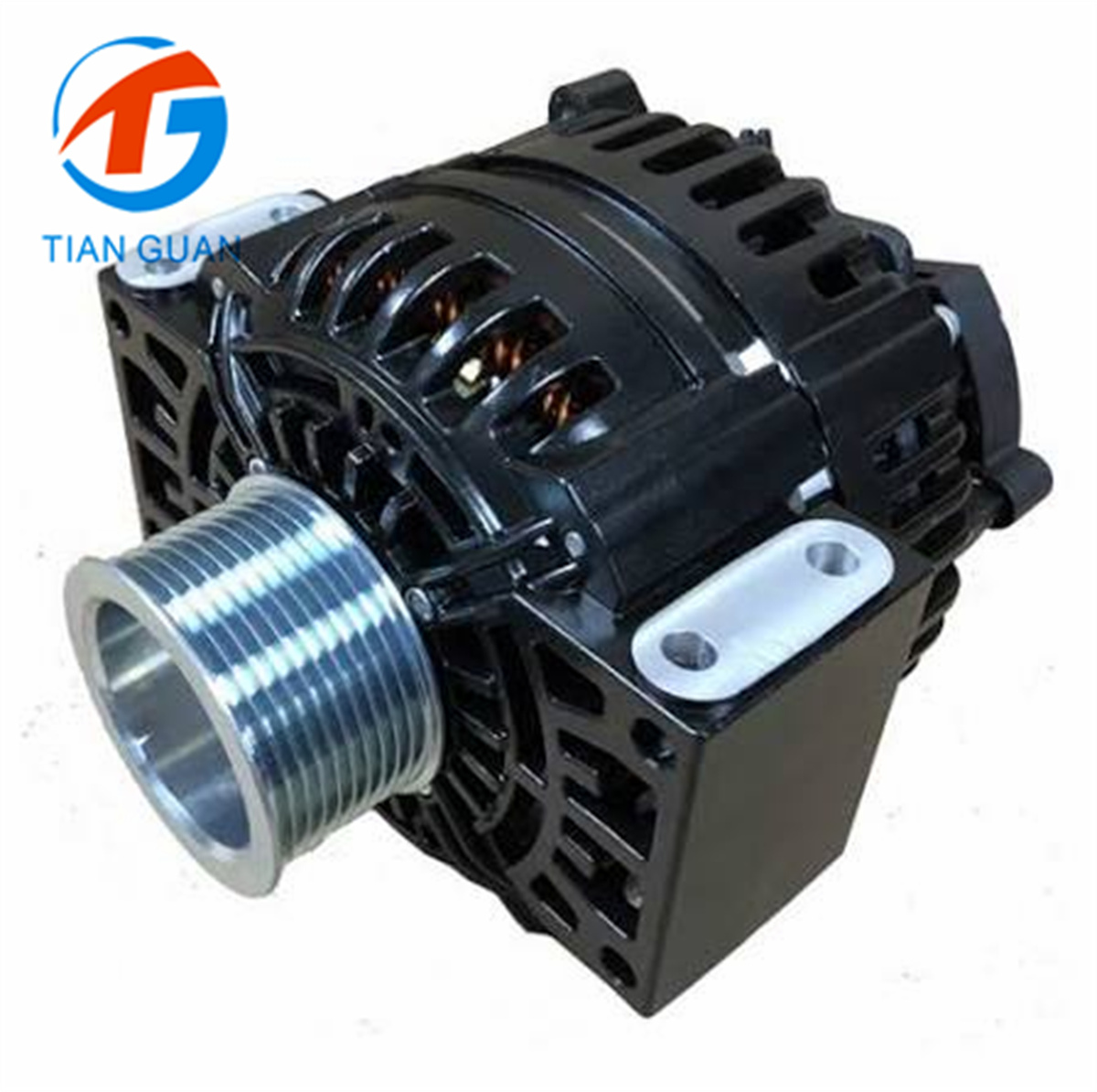

Alternator 2146186 573234 2201944 2939111 2907642 3138005 3143287 6530-994 AVI150P1171HP for Scania – 24V 180A Direct Replacement

Part Numbers

SCANIA: 2146186, 573234, 2201944, 2939111, 2907642, 3138005, 3143287, 73234
PRESTOLITE ELECTRIC: AVI150P1103HP, AVI150P1122HP, AVI150P1171HP, A150P122, 6530275, 6530815, 6530-275, 6530-815, 6530-994

Product Description

This premium aftermarket 24V 180A Alternator is designed as a direct replacement for Scania truck and heavy-duty applications. With 180A output, clockwise rotation, brush-type construction, and integrated regulator, it delivers reliable charging performance and dependable service in demanding commercial vehicle applications.

This alternator replaces OE part numbers 2146186, 573234, 2201944, 2939111, 2907642, 3138005, 3143287, 73234 (Scania), and AVI150P1103HP, AVI150P1122HP, AVI150P1171HP, A150P122, 6530275, 6530815, 6530-275, 6530-815, 6530-994 (Prestolite Electric).

• 24V alternator

• 180A output

• Brush type

• Clockwise rotation

• Grounded - Earth return polarity

• Pad mounting type

• Pulley fitted: 10pV, 71mm OD

• Overhang position: 20mm

• Product family: AVI150

• Ignition excite excitation type

• Integrated regulator

• Idle Pro brand

• Brand new

• Approx. 12.8 kg

Specifications

Brand Name: Idle Pro
Condition: New
Voltage (V): 24V
Brush or Brushless: Brush
Output (A): 180A
Ignition Terminal: Yes
Polarity: Grounded - Earth Return
Sense Terminal: Yes
Rotation: Clockwise
Lamp Terminal: Yes
Mounting Type: Pad
Pulley Fitted (Type, OD): 10pV | 71mm
Field Isolation Terminal: No
Overhang Position (mm): 20
Multipower Terminal: No
Product Family: AVI150
Excitation Type: Ignition Excite
EAN Code: 5052629098611
Regulator Included: Integrated
Weight: 12.8KG

Fitment

Scania – Truck and Heavy-Duty Applications

Compatible with equipment using 2146186, 573234, 2201944, 2939111, 2907642, 3138005, 3143287, 6530-994, or AVI150P1171HP alternator part numbers.
