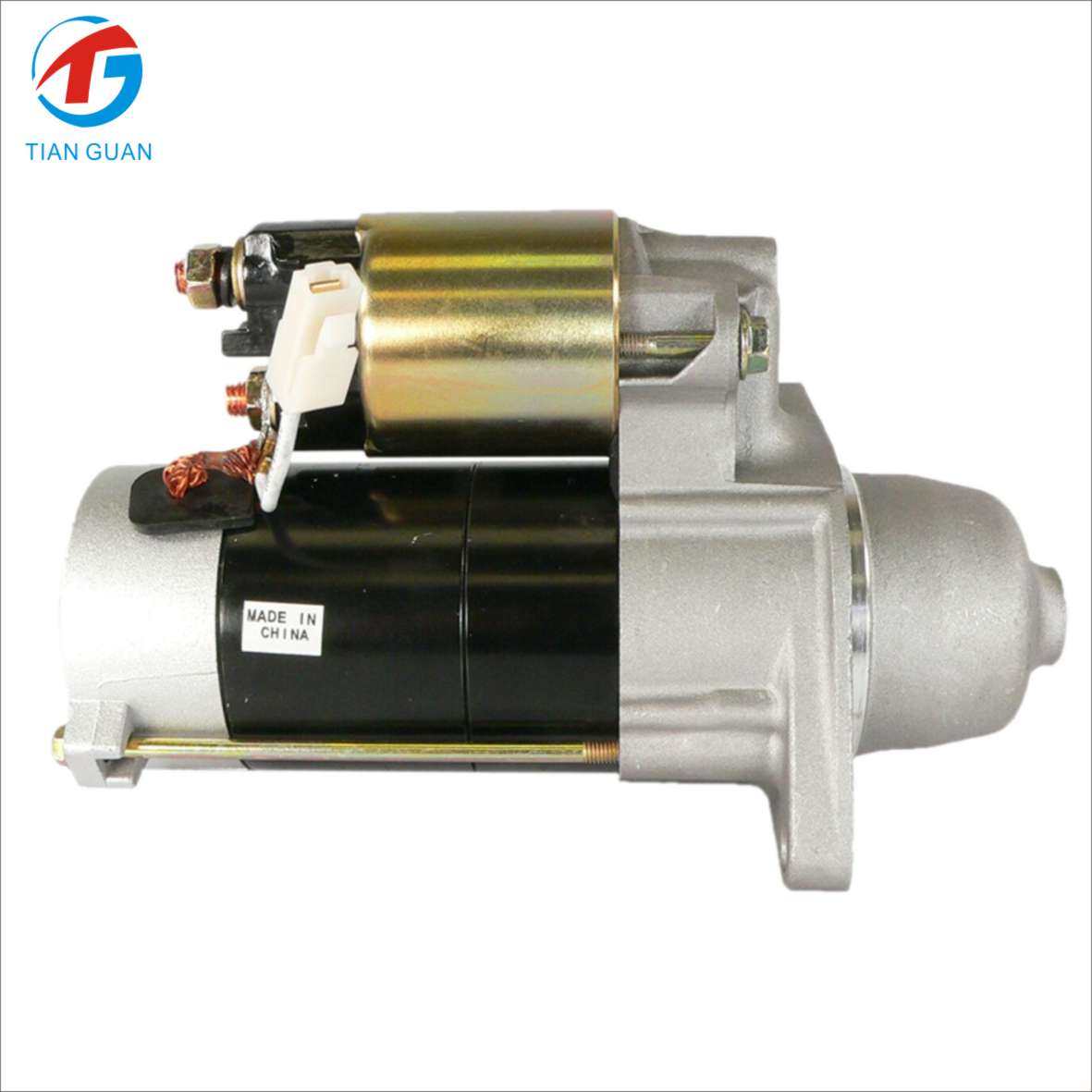

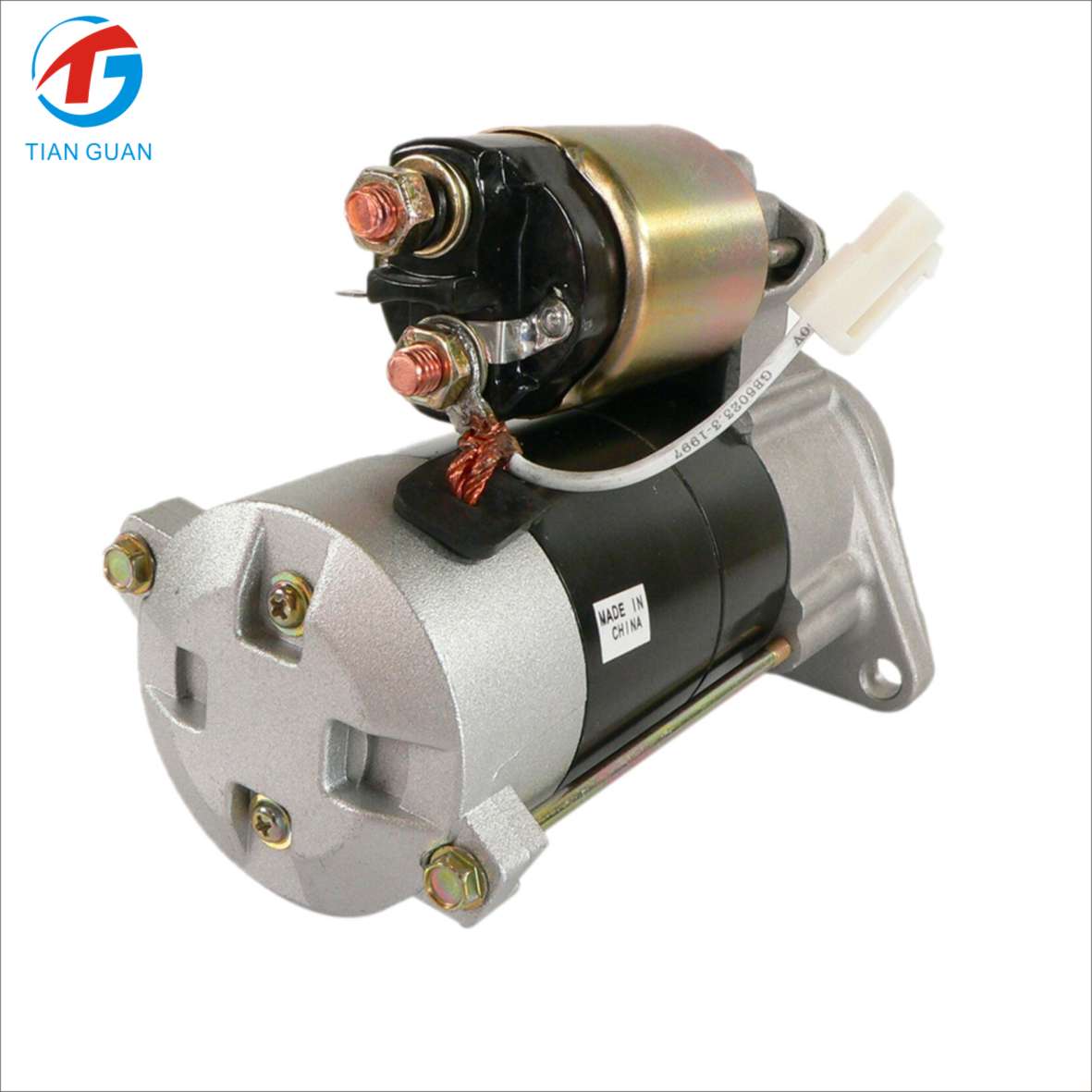

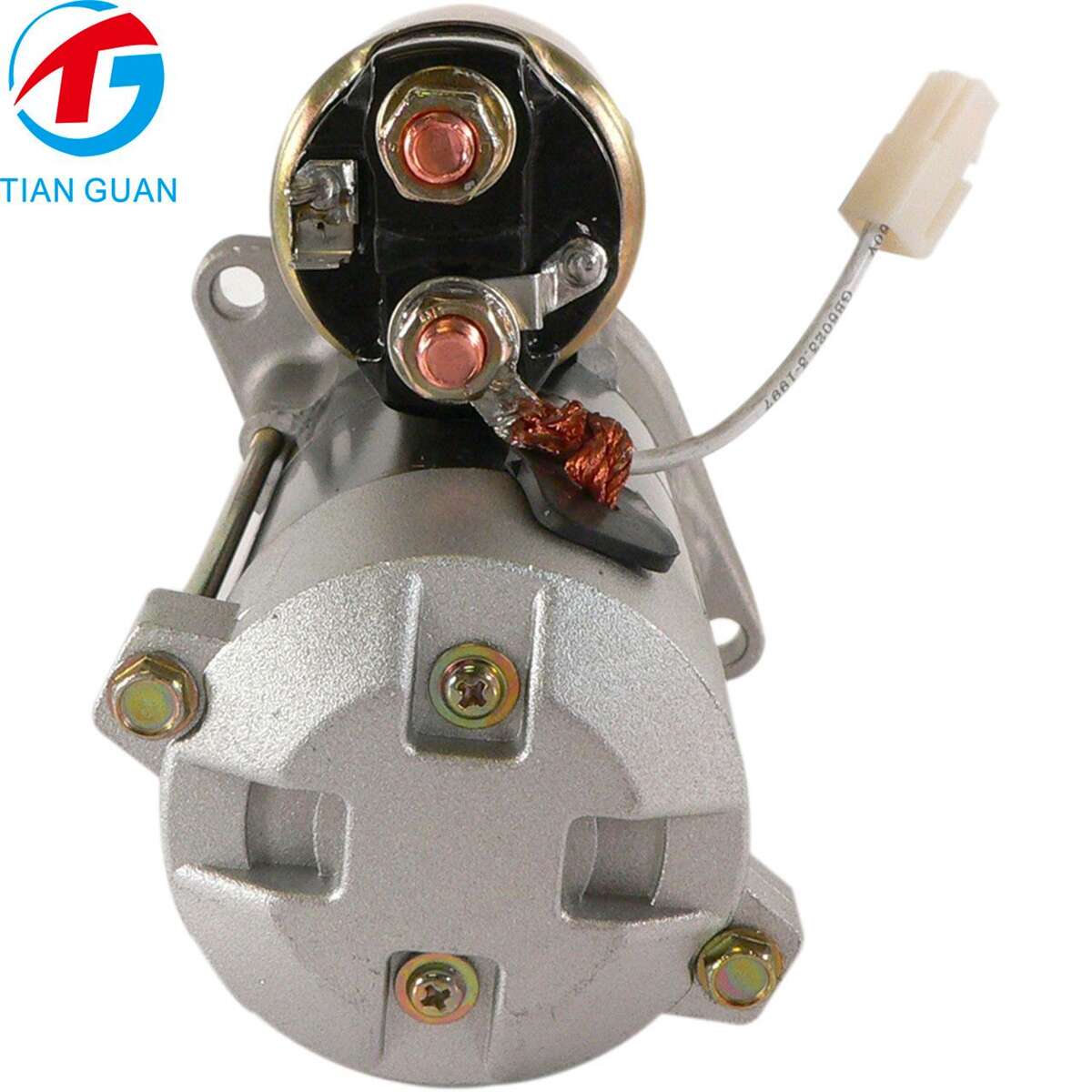

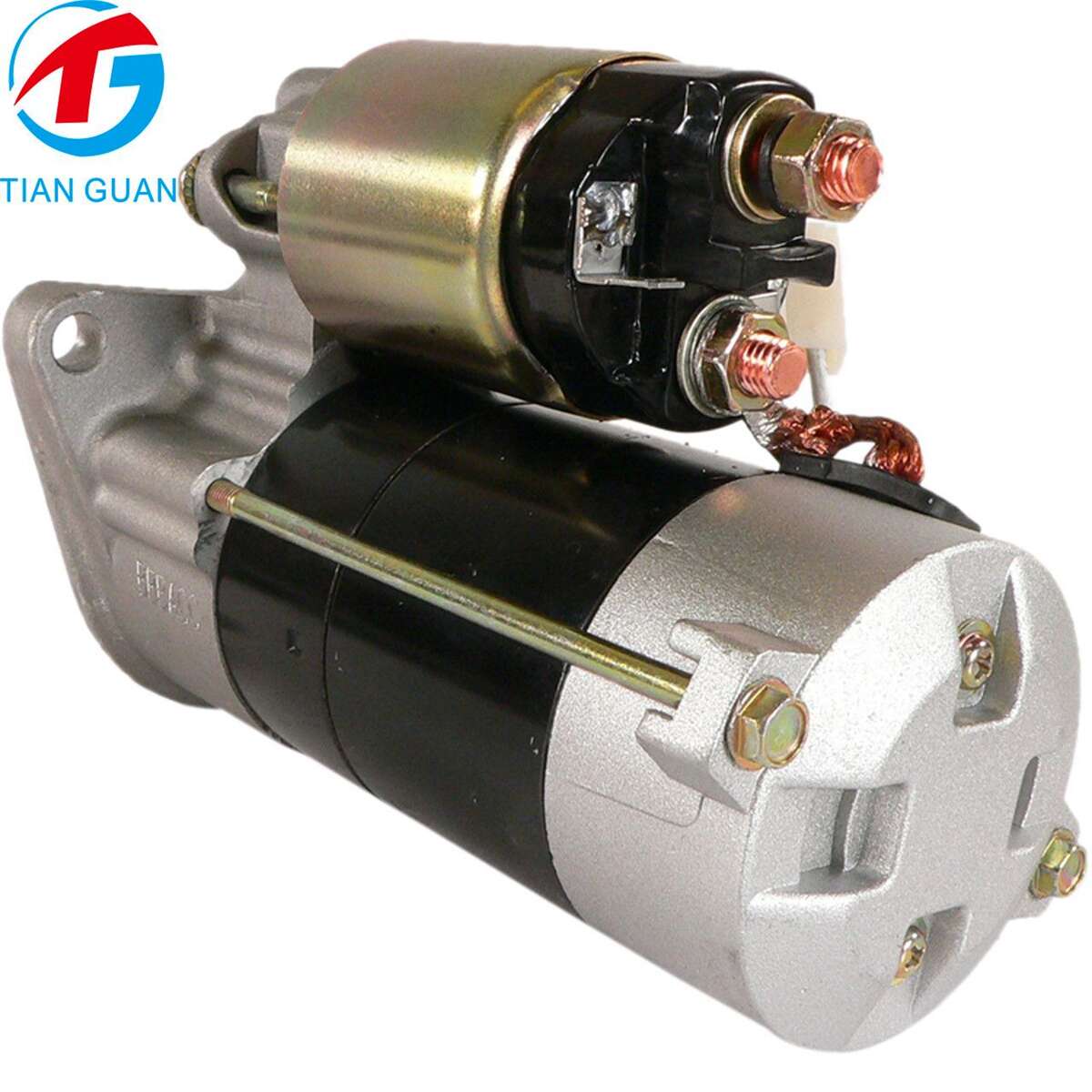

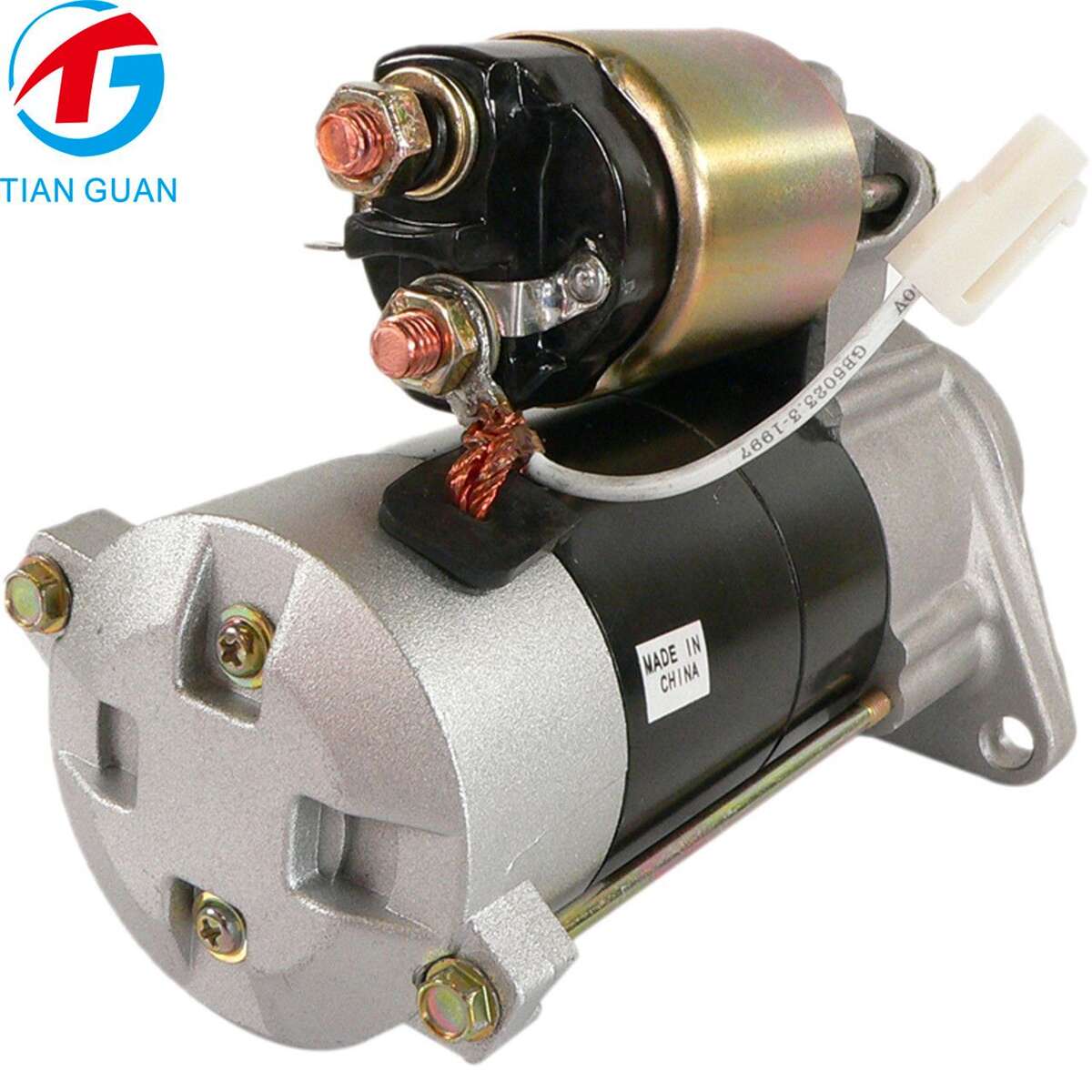

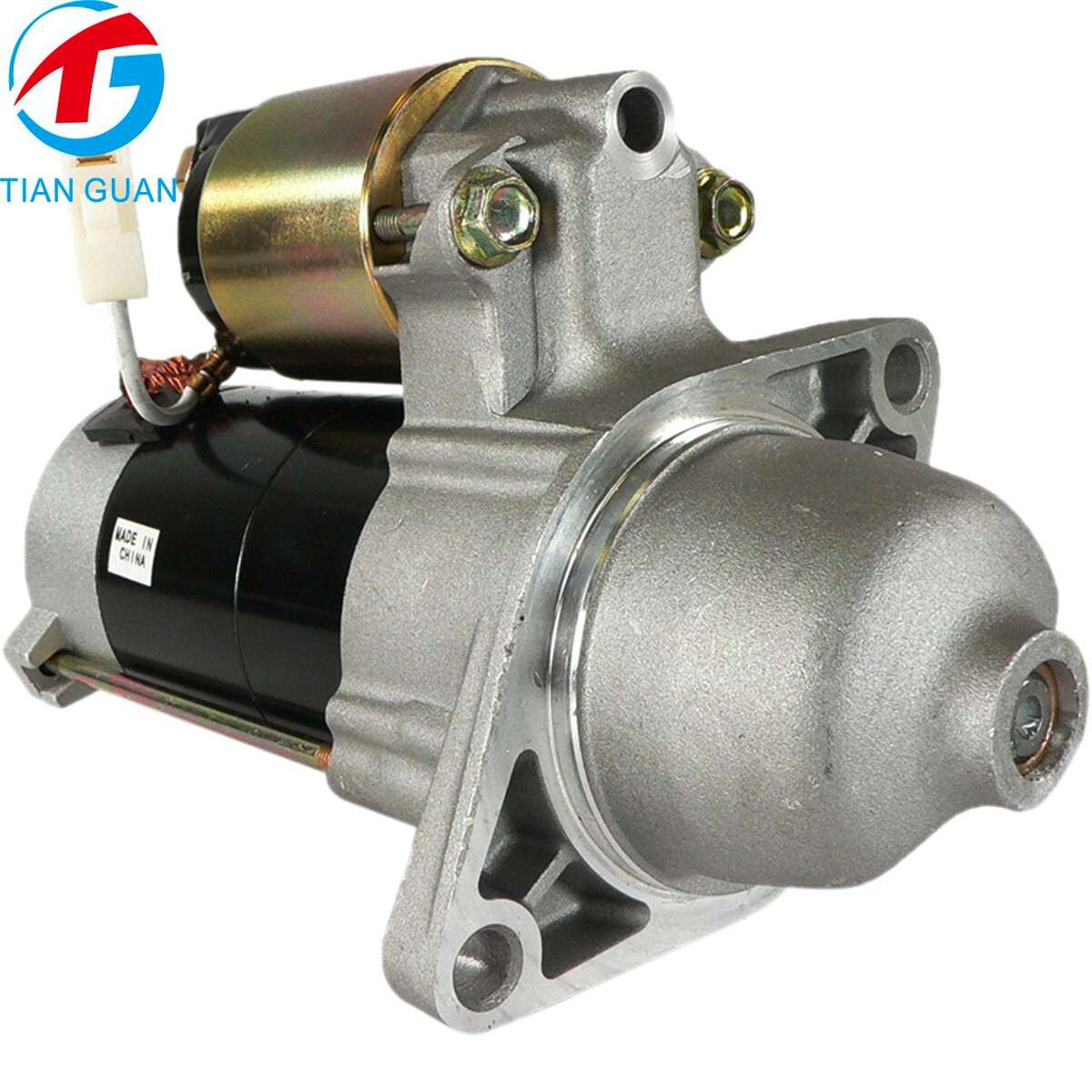

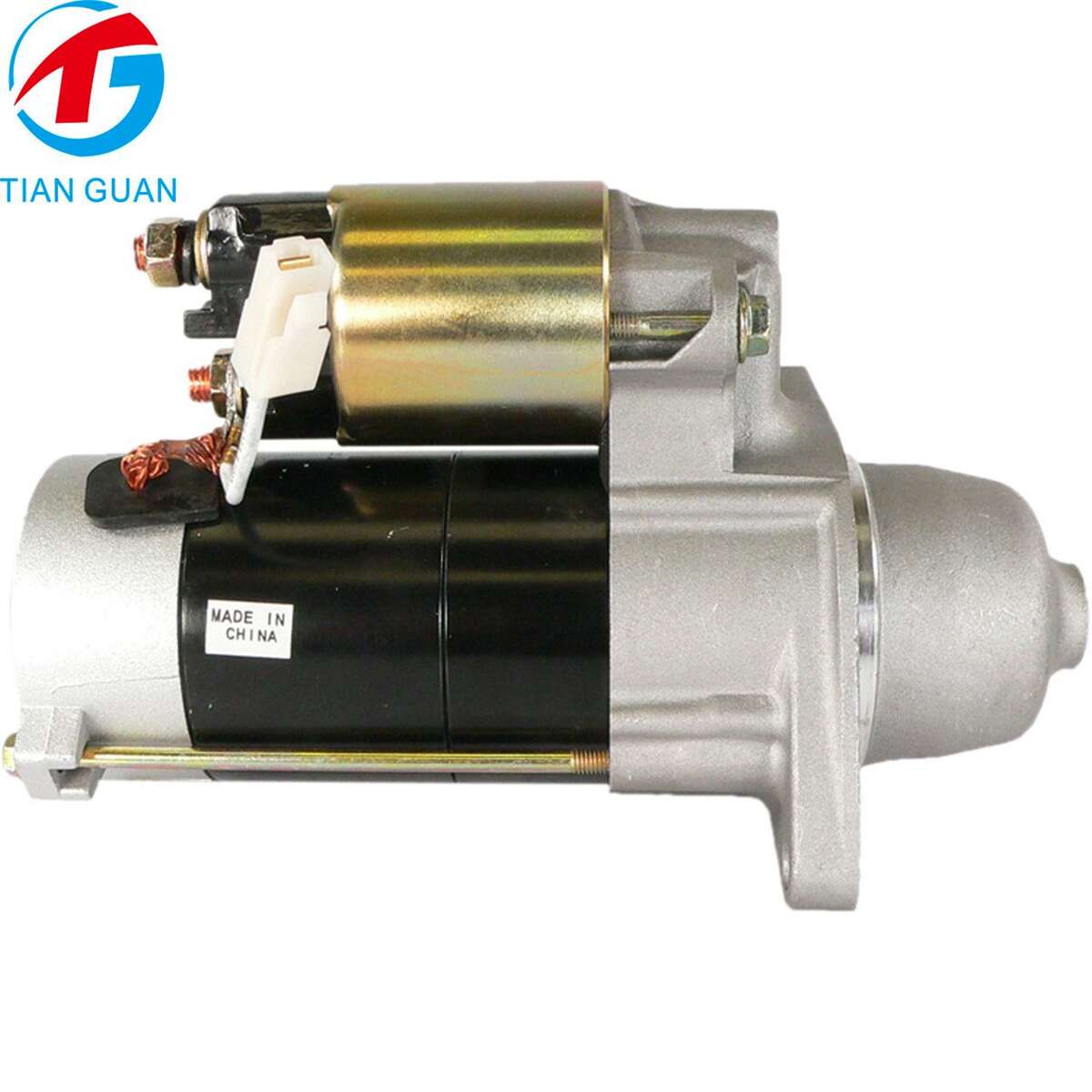

Starter Motor 67980-31150 6A320-59210 228000-5400 228000-5910 for Kubota D722 D782 D1005 D1105 V1305 Diesel Engines
Part Numbers
| Brand | Part Number |
|---|
| Denso | 228000-5400, 228000-5910, 228000-5911, 228000-7090, 228000-7091, 228000-7480, 228000-7481 |
| Denso | 9722809-540, 9722809-591, 9722809-709, 9722809-748 |
| Kubota | 1G023-63010, 1G023-63011, 1G023-63012 |
| Kubota | 67980-31150, 67980-31151 |
| Kubota | 6A320-59210, 6A320-59212 |
| Kubota | K3511-81410, K3511-81411 |
| Arrowhead | ND228000-5400, ND9722809-540, ND9722809-591, ND9722809-709, ND9722809-748 |
| Arrowhead | SND0280, SND0481, 0131151, 015400, SND0338, 410-52106 |
| Atlantic | 1700-0156, 1900-0112 |
| Cargo | 110447, 113211 |
| Case | CLC102648501, CLC103886501 |
| Dixie | S-8941, 243-12141 |
| J & N | 410-52106, 410-52106R, 410-52168, 410-52238, 410-52238R, 410-52396 |
| Lester | 18414, 18417, 19791 |
| Lucas | LRS02300 |
| Minnpar | 57-3225 |
| PIC | 190-482, 190-6126, 190-6126A, 190-6127 |
| Societa | 17.81122 |
| WAI | 18414N, 18417N |
| Wilson | HD91-29-5554, 91-29-5563, 91-29-5662, 71-29-18414 |
| Wood Auto | STR30014 |
Product Overview
This 12V 1.2KW Starter Motor is designed as a replacement starter for selected Kubota diesel engines used in commercial mowers, turf equipment and garden tractors.
Featuring a Denso-type design, 9-tooth pinion gear and clockwise rotation, this starter is compatible with selected Kubota D722, D782, D1005, D1105 and V1305 diesel engine applications when the original starter specifications and part numbers match.
It provides reliable engine cranking performance and is suitable for replacement, repair and maintenance applications.
Specifications
| Item | Specification |
|---|
| Product Type | Starter Motor |
| Unit Type | Denso |
| Voltage | 12V DC |
| Power | 1.2KW |
| Rotation Direction | Clockwise (CW) |
| Number of Teeth | 9T |
| Mounting | Direct Replacement |
| Condition | New Aftermarket |
| Product Weight | 3.8 KG |
Compatible Kubota Engines
Kubota D722 – 18 HP Diesel
Kubota D782 – 21 HP Diesel
Kubota D1005-EFM – 22 HP Diesel
Kubota D1105-EFM – 25 HP Diesel
Kubota V1305-FM – 30 HP Diesel
Compatible Applications
Kubota Front Mowers
F2260-R, 2005 – Kubota D1005-EFM 22 HP Diesel
F2560-E, 2005 – Kubota D1105-EFM 25 HP Diesel
F2560-R, 2005 – Kubota D1105-EFM 25 HP Diesel
F3060-R, 2005 – Kubota V1305-FM 30 HP Diesel
Kubota Turf Mowers
ZD18, 2005 – Kubota D722 18 HP Diesel
ZD21, 2005 – Kubota D782 21 HP Diesel
Kubota Garden Tractors
Product Highlights
| Feature | Description |
|---|
| 12V / 1.2KW Output | Provides dependable cranking power for compatible Kubota diesel engines. |
| 9-Tooth Pinion | Designed for proper flywheel engagement on compatible applications. |
| Clockwise Rotation | Suitable for Kubota applications requiring CW starter rotation. |
| Denso-Type Design | Replacement option for compatible Denso-style starter applications. |
| Wide Application Range | Fits selected Kubota mower, turf and garden tractor applications. |
| Heavy-Duty Construction | Built for demanding diesel engine starting conditions. |
| 3.8 KG Weight | Solid construction suitable for equipment and commercial mower applications. |
Installation Notes
Disconnect the battery before removing the original starter motor.
Compare the replacement starter with the original unit before installation.
Verify the 12V voltage, 1.2KW power, CW rotation and 9-tooth pinion.
Check the mounting pattern and electrical terminals.
Inspect the flywheel ring gear for damaged or excessively worn teeth.
Install the starter securely and ensure correct alignment.
Reconnect the battery and test the starting system.
Fitment Notice
Please verify the original starter part number, engine model, voltage, rotation direction, pinion teeth and mounting configuration before ordering.
The equipment model alone may not be sufficient to confirm compatibility. If you are unsure, please provide your original starter number and engine model for confirmation.
