ATG10005 Alternator 8600612 50-8M0095472 400-12299 8461N 90-01-4425 70-01-8461 020611 400-12166 for Mercruiser Marine 262 HP 320 HP

3 Reviews

Add Your Review

US$136.00

ITEMNO： ATG10005

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    ATG10005 Alternator 020611 19020611 19020612 8600612 50-8M0095472 8M0095472 for Mercruiser Marine Engines

    Part Numbers

    ANDRE NIERMANN: 020611
    ARCO MARINE: 20815
    ARROWHEAD (OEM): D19020612
    ARROWHEAD: ADR0316, 400-12299
    BARSANCO: 110-8461
    DELCO: 19020611, 19020612, 8600612
    DIXIE: A-1668
    EMP PARTS: 4-6298
    EMS: 8461N
    FAMILY: 7SI
    J & N: 400-12166, 400-12299
    LESTER: 8461
    LUCAS ELECTRICAL EUROPE: LRA03057
    MALLORY: 9-19111
    MERCEDES BENZ: 50-8M0095472
    MERCURY MARINE: 863077-1, 863077T, 8M0095472
    MES MOTORCYCLE & MARINE: 3205M
    MINNPAR: 47-1986
    MP PARTS: 4-6298
    PIC: 240-6320, 240-6321
    SIERRA MARINE: 18-6298
    WAI: 1-2837-01DR
    WILSON: 90-01-4425
    WILSON HD: 90-01-4425
    WILSON SMALL ENGINE: 70-01-8461

    Product Description

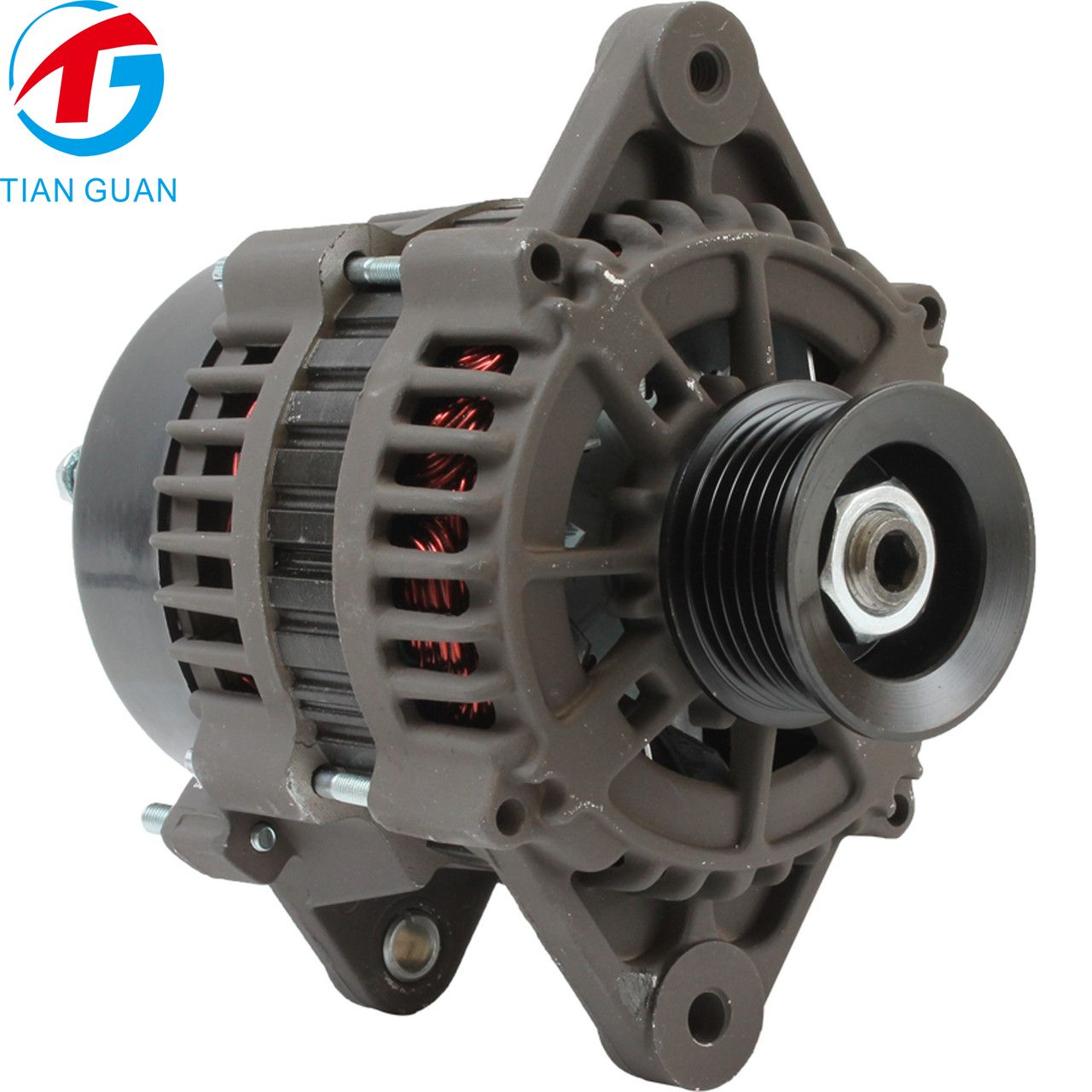

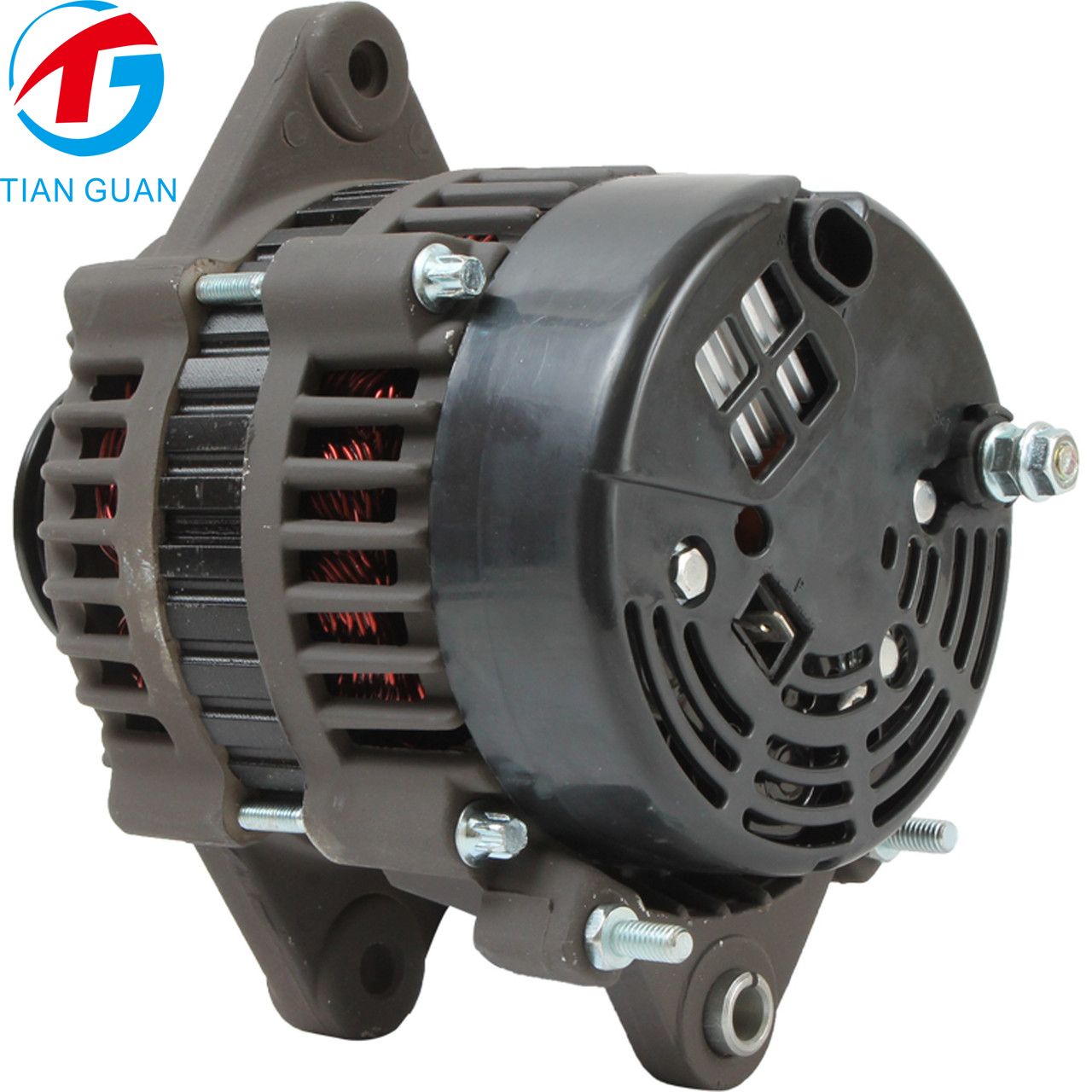

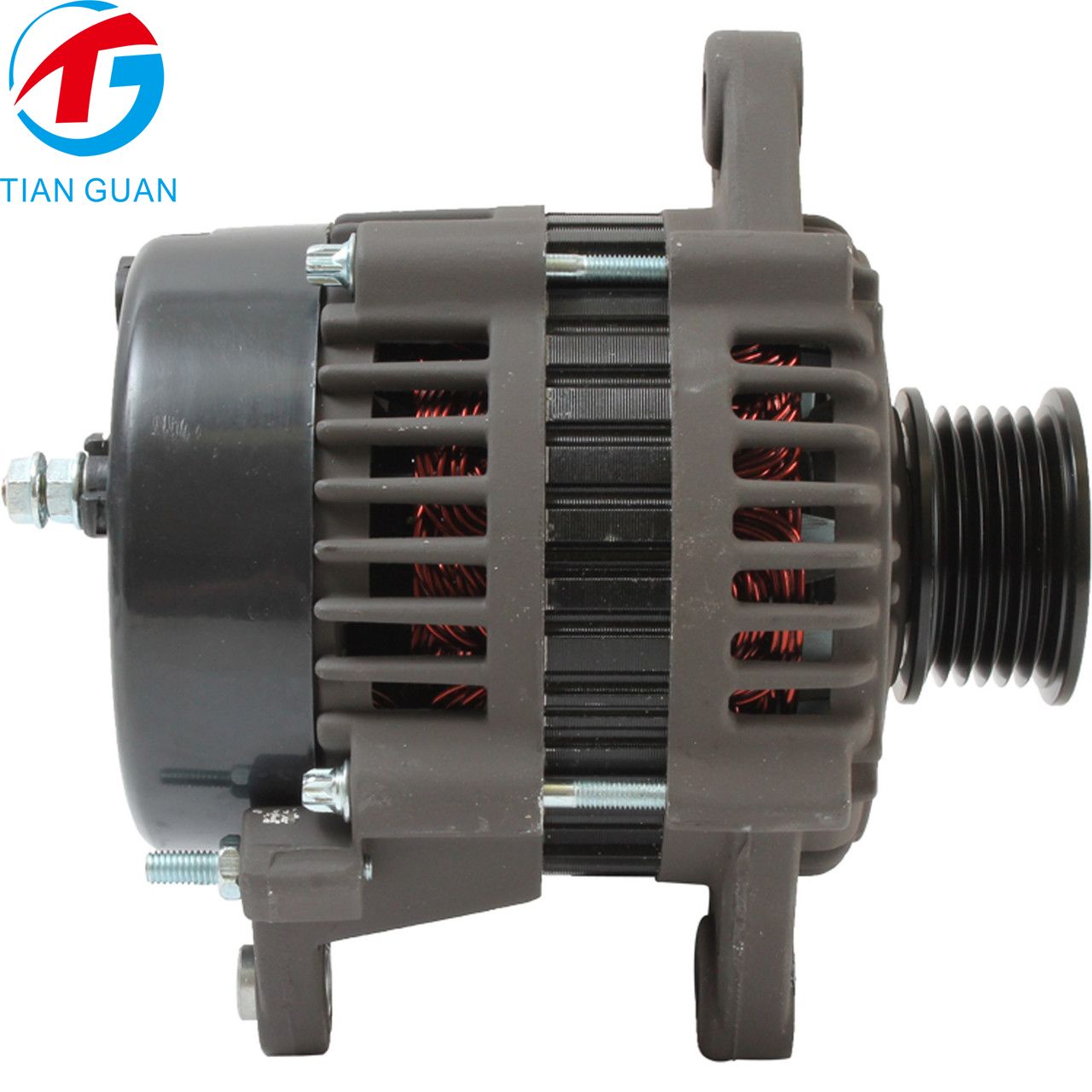

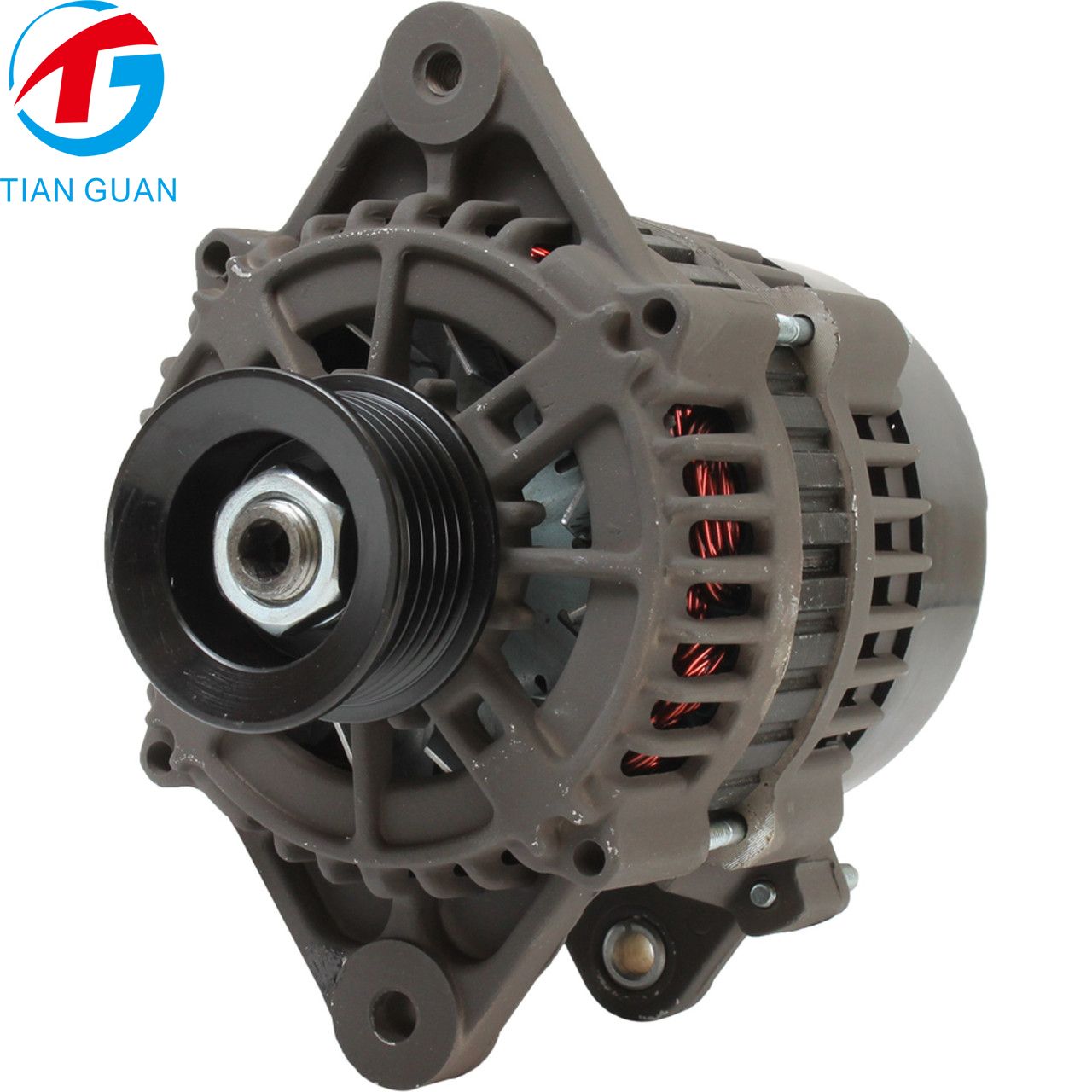

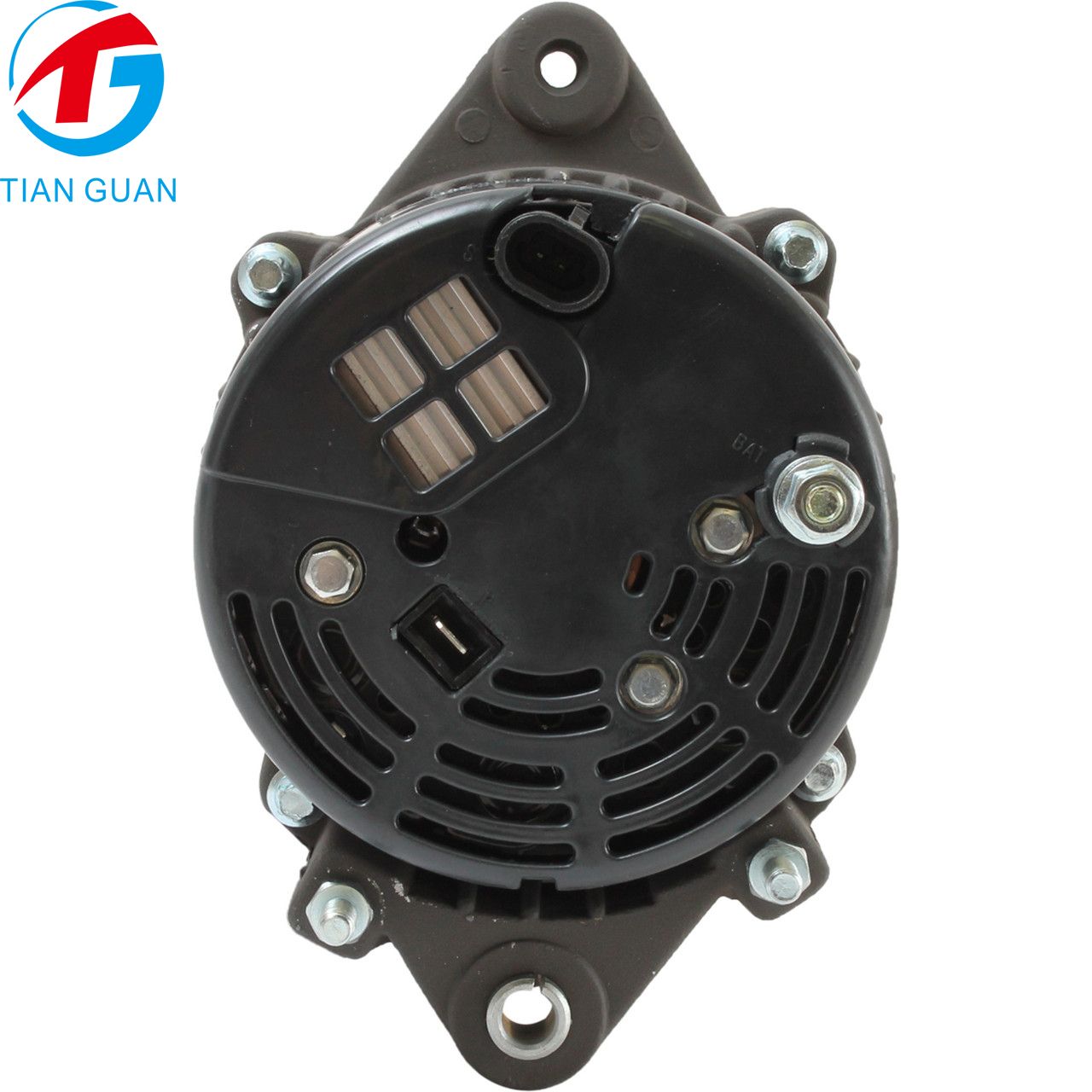

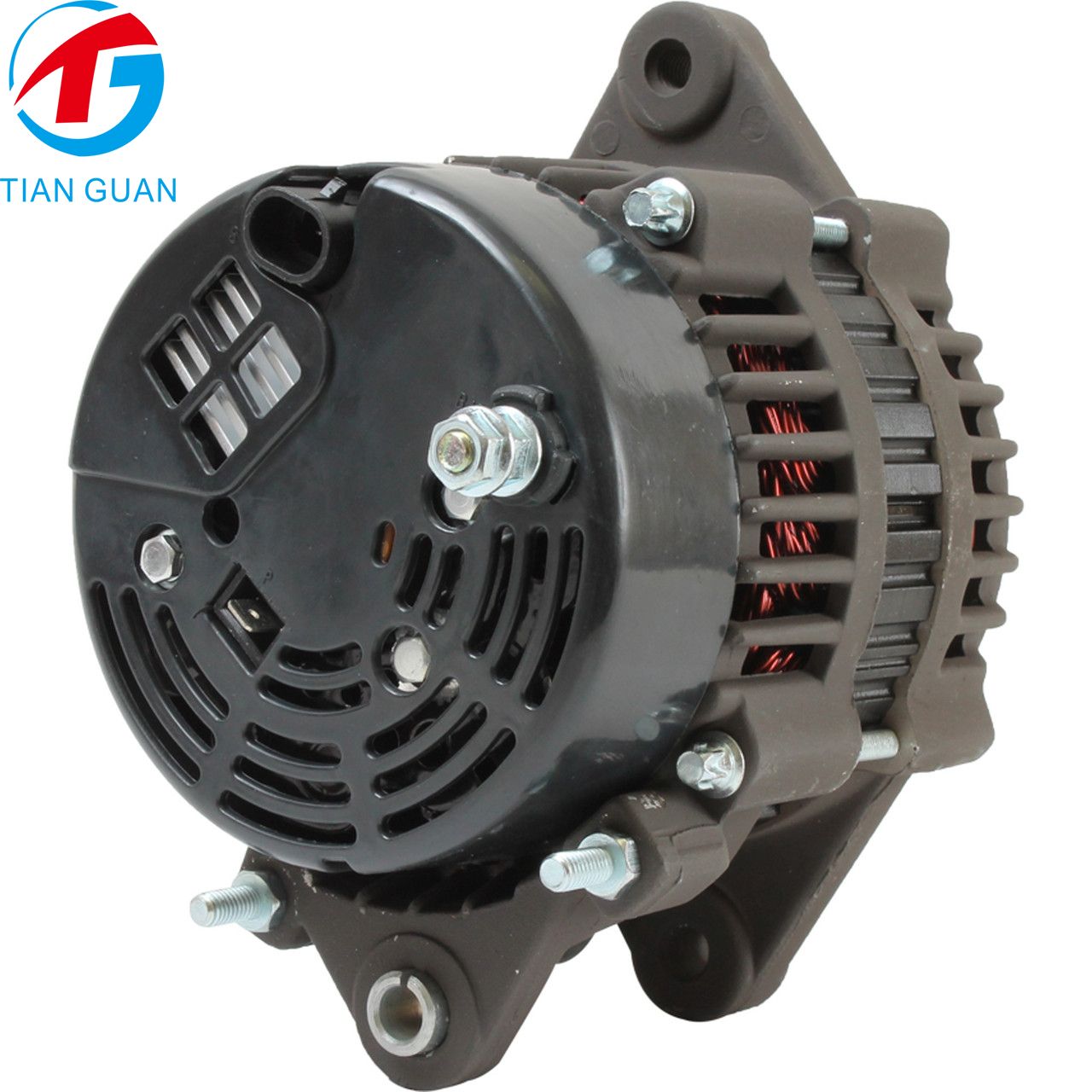

    The ATG10005 12V 70A alternator is a direct aftermarket replacement for Delco 7SI alternator applications on a wide range of Mercruiser Marine engines. It features an IR regulator, IF fan configuration, CW rotation, and a 6-groove pulley with 50mm outside diameter.

    This alternator is suitable for Mercruiser inboard, ski engine and stern drive applications, including 4.3L, 5.0L, 5.7L, 6.2L, 8.1L and 8.2L engine configurations listed below.

    Specifications

    ItemSpecification
    Product CodeATG10005
    Item ConditionAftermarket Part
    Unit TypeAlternator
    Voltage12V
    Amperage70A
    RotationCW
    RegulatorIR
    Fan TypeIF
    Pulley6-Groove
    Pulley Outside Diameter50mm
    Compatible UnitDELCO 7SI
    Weight5.3KG

    Fitment

    Mercruiser Engine: Model 377 Scorpion HO EC 2000-On, Model 377 Scorpion 1997-On, Model 500 EFI 2000-2002, Model 525 EFI 2000-2002, Model 600SCI 2002-On, Model 662SCI 2002-On, Model 700SCI 2002-On.

    Mercruiser Engine - Inboard: Model 350 Mag MPI (Gen +) 1999-On, Model 350 Mag MPI Horizon 1999-On, Model 5.7L EFI (Gen +) 1998-On, Model 5.7L MIE 1999-On, Model 8.1S HO 2001-On, Model 8.1S Horizon 2001-On, Model MX 6.2L MPI Horizon 2001-On, Model MX 6.2L MPI 2001-On.

    Mercruiser Ski Engines: Black Scorpion Ski (Gen +) 1997-On, Model 5.7L Ski (CARB) 1998-On, Model MX 6.2L BS MPI Ski 2001-On.

    Mercruiser Stern Drive: Model 350 Mag MPI Alpha & Bravo 2001-On, Model 350 Mag MPI Hor Alpha & Bravo 2001-On, Model 4.3L (Carb.) Alpha & Bravo 2002-On, Model 4.3L (MFI) Alpha & Bravo 2002-On, Model 4.3L MPI 2001-2002, Model 4.5L V6 (Mercruiser 4.5L) All, Model 496 Mag HO 2001-On, Model 496 Mag 2001-On, Model 5.0L (2-BBL) (Gen +) 1998-2002, Model 5.0L (Carb.) Alpha & Bravo 2002-On, Model 5.0L MPI Alpha & Bravo 2001-On, Model 5.7L (2-BBL) (Gen +) 1998-2002, Model 5.7L (Carb.) Alpha & Bravo 2002-On, Model MX 6.2L MPI Horizon 2000-On, Model MX 6.2L MPI 2000-On.

    Key Features

    FeatureDescription
    Output70A
    Electrical System12V
    RotationCW
    RegulatorIR
    Fan TypeIF
    Pulley6-Groove, 50mm OD
    Unit TypeDelco 7SI replacement
    ApplicationMercruiser Marine Engines
    ConditionAftermarket Replacement
    Weight5.3KG

    Keywords

    Mercruiser Alternator, 12V 70A Alternator, Delco 7SI Alternator
