ATG10147 Alternator 8310 400-14065 for Ford F-250 F-350 F-450 F-550 Excursion 5.4L 6.8L 2002-2005 | 12V 110A Replacement

3 Reviews

Add Your Review

US$138.00

ITEMNO： ATG10147

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG10147 Alternator 8310 400-14065 for Ford F-250 F-350 F-450 F-550 Excursion 5.4L 6.8L 2002-2005 | 12V 110A Replacement

OEM / Part Numbers

ARROWHEAD: AFD0100 / 400-14065
AC DELCO: 334-2251 / 334-2533
BARSANCO: 120-8310
DIXIE NEW: A-2057N

Product Description

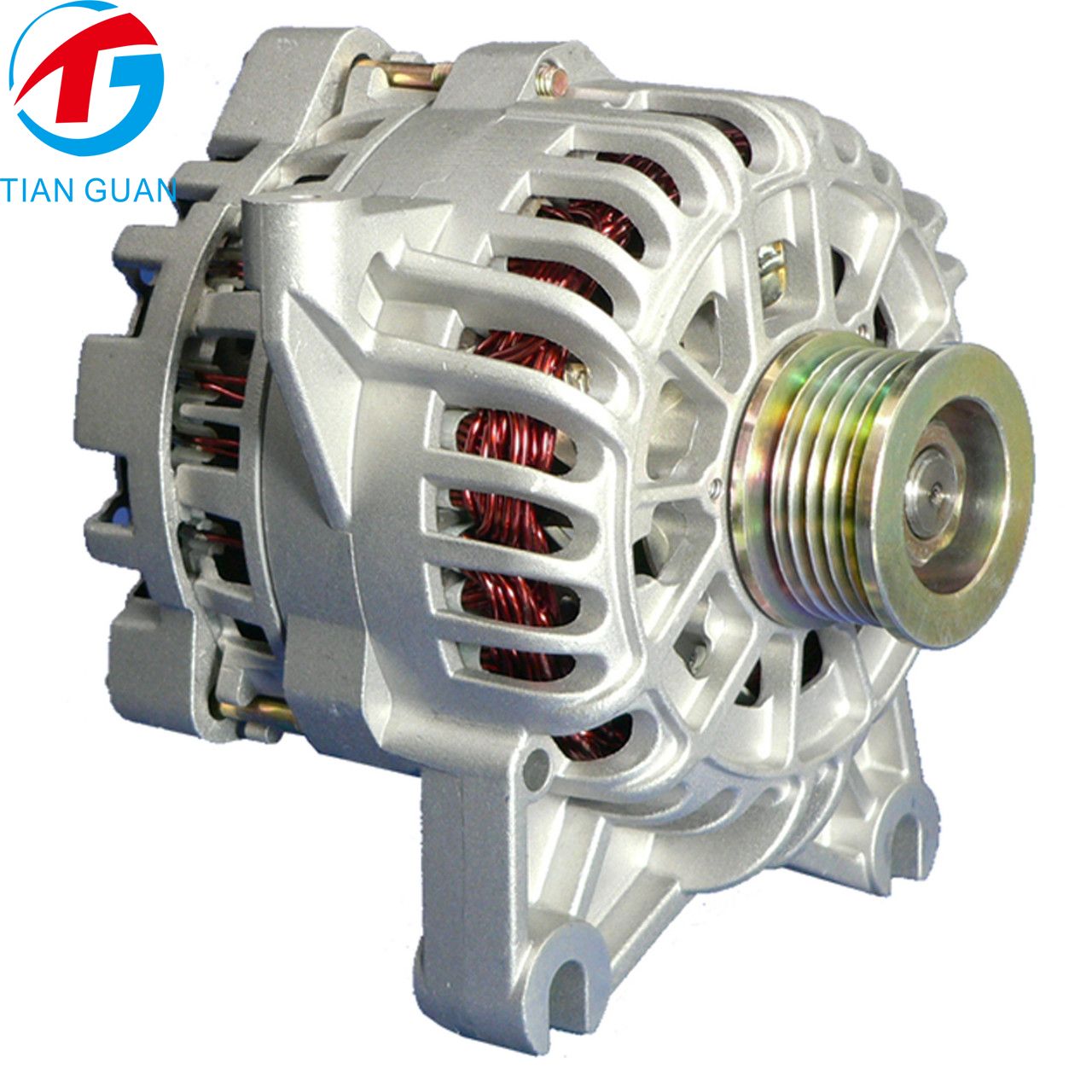

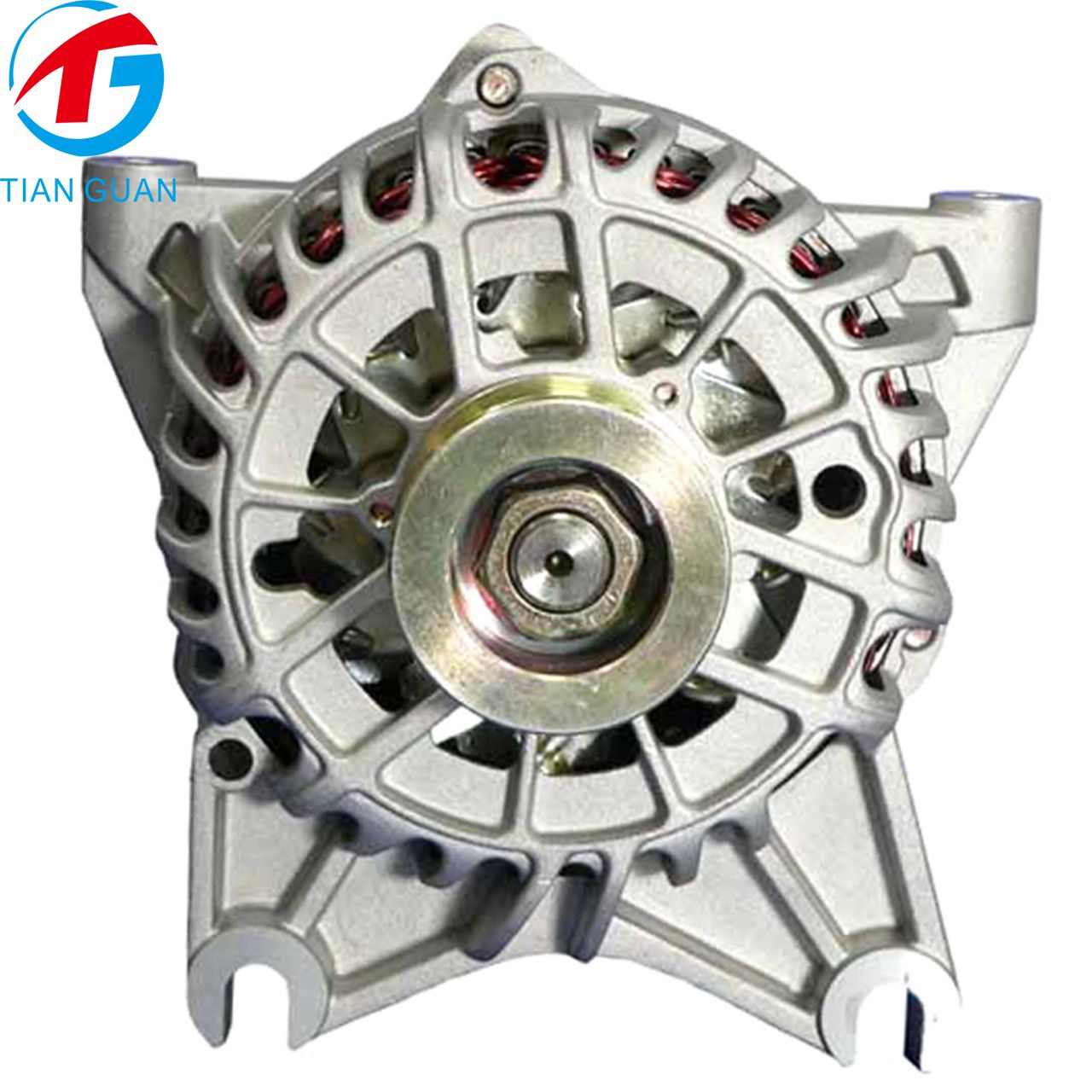

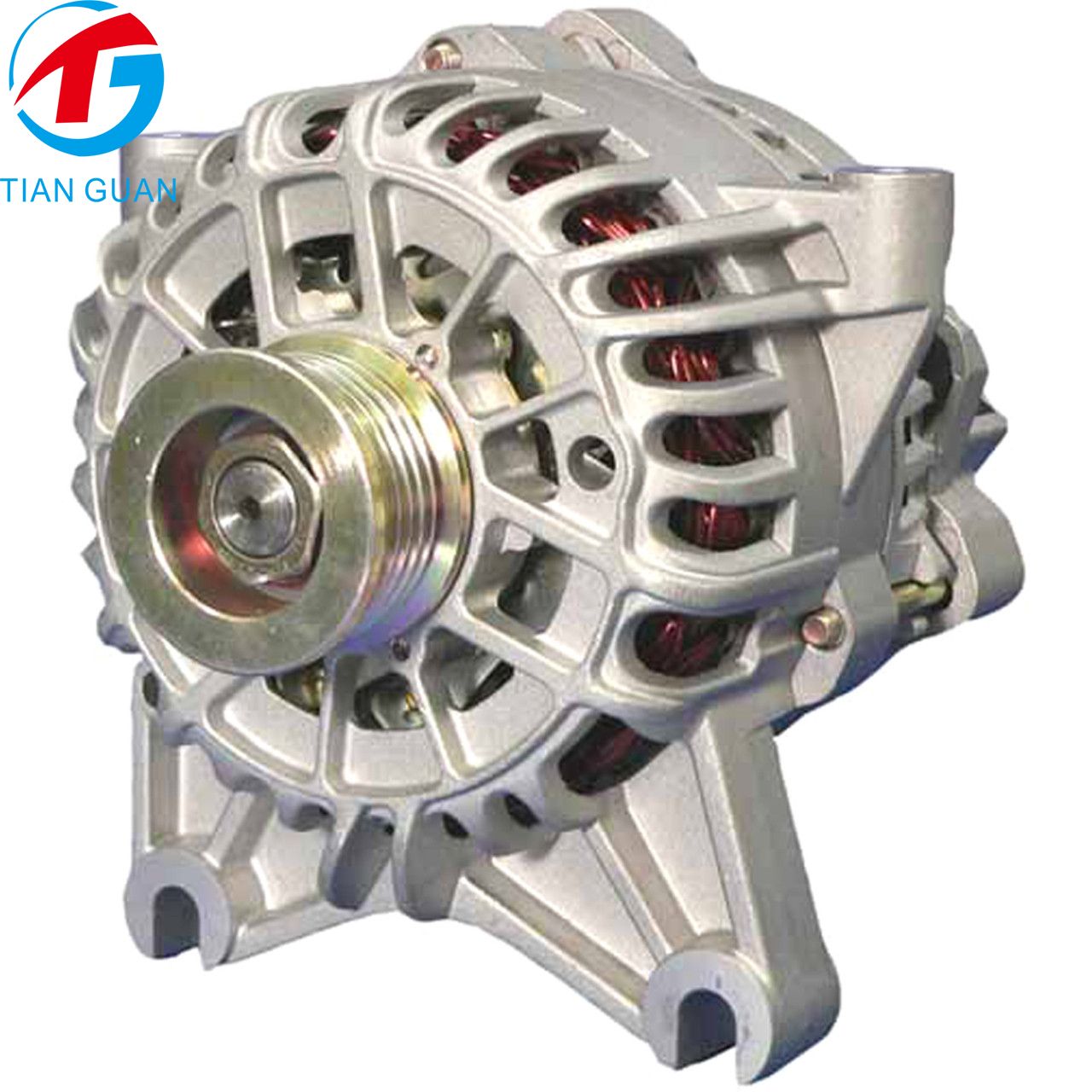

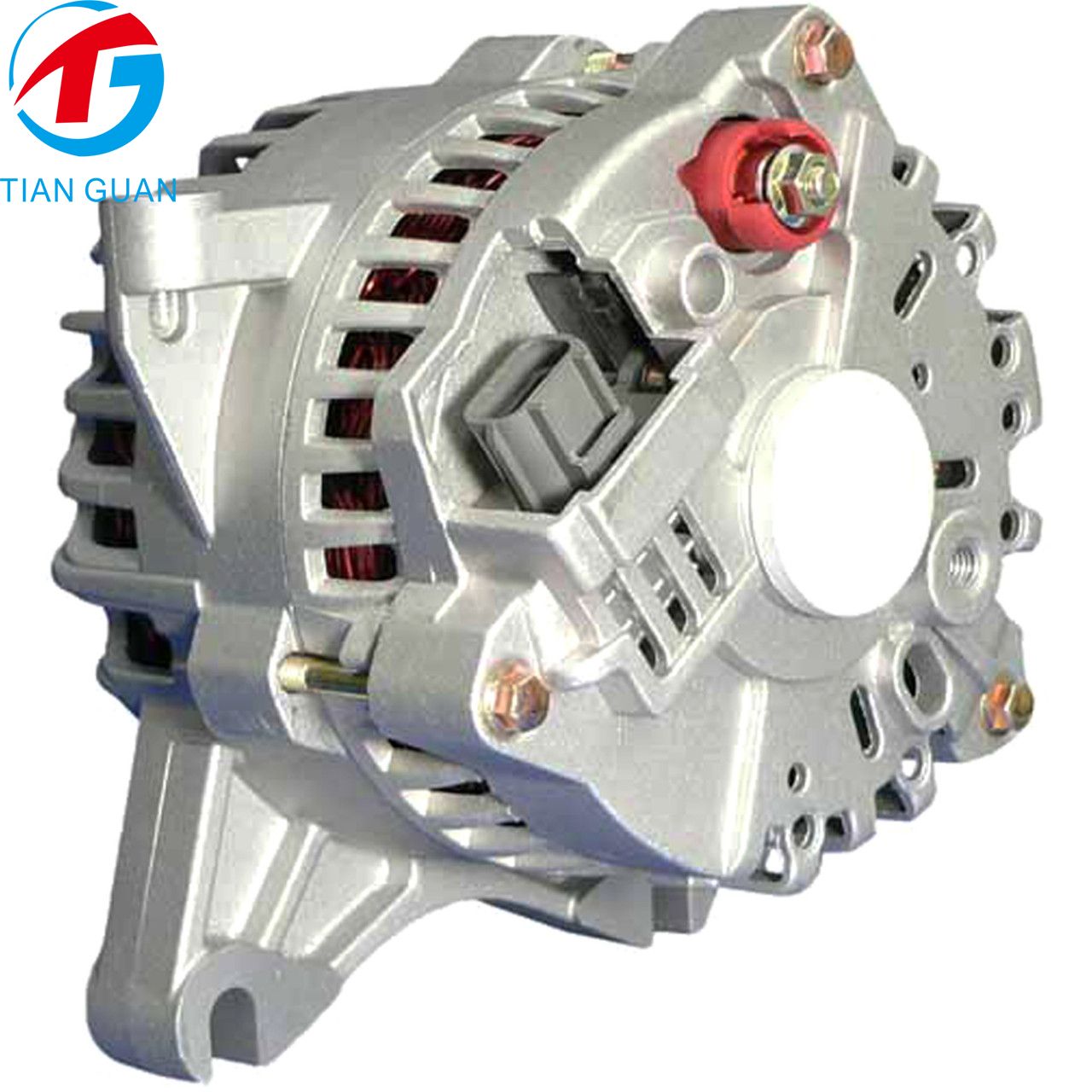

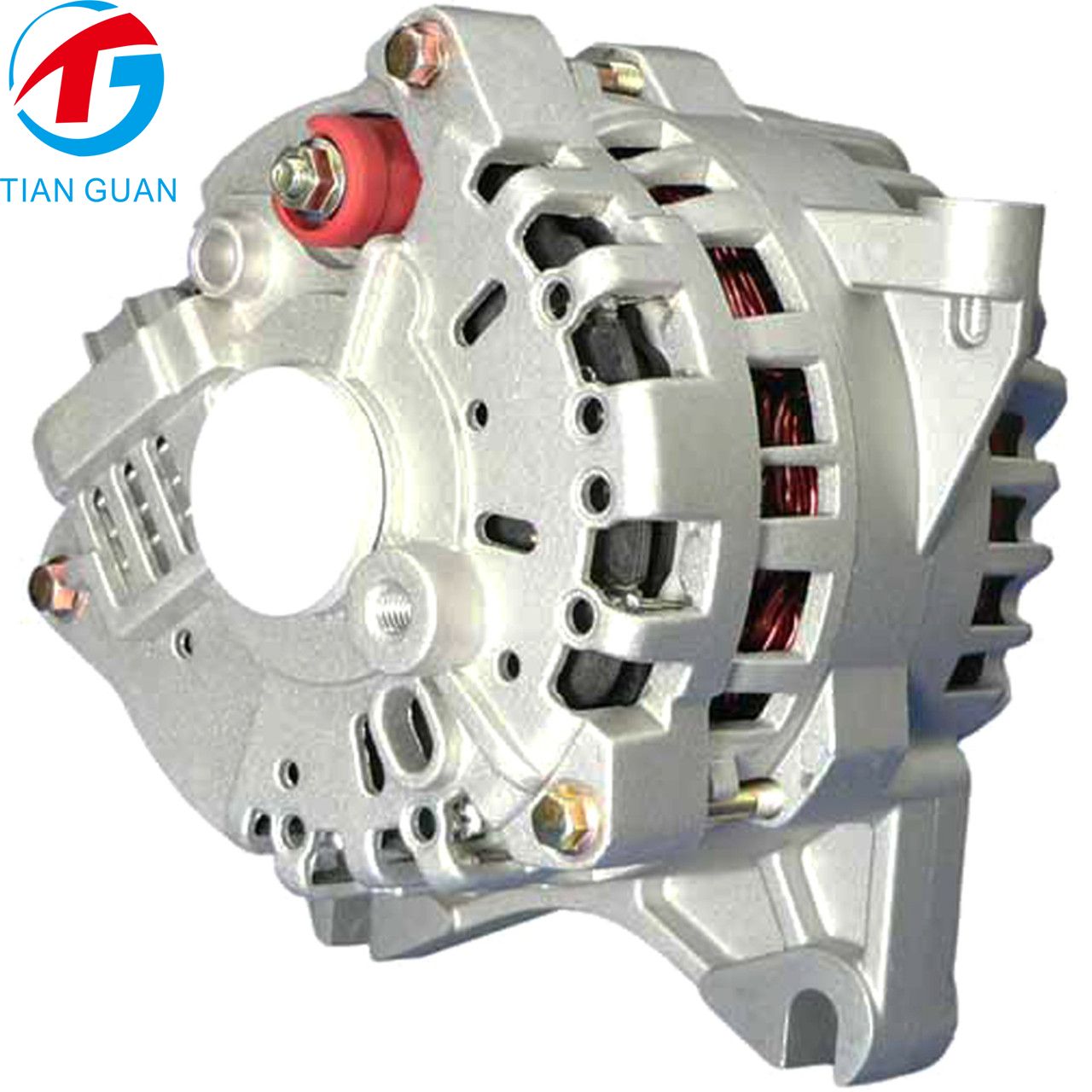

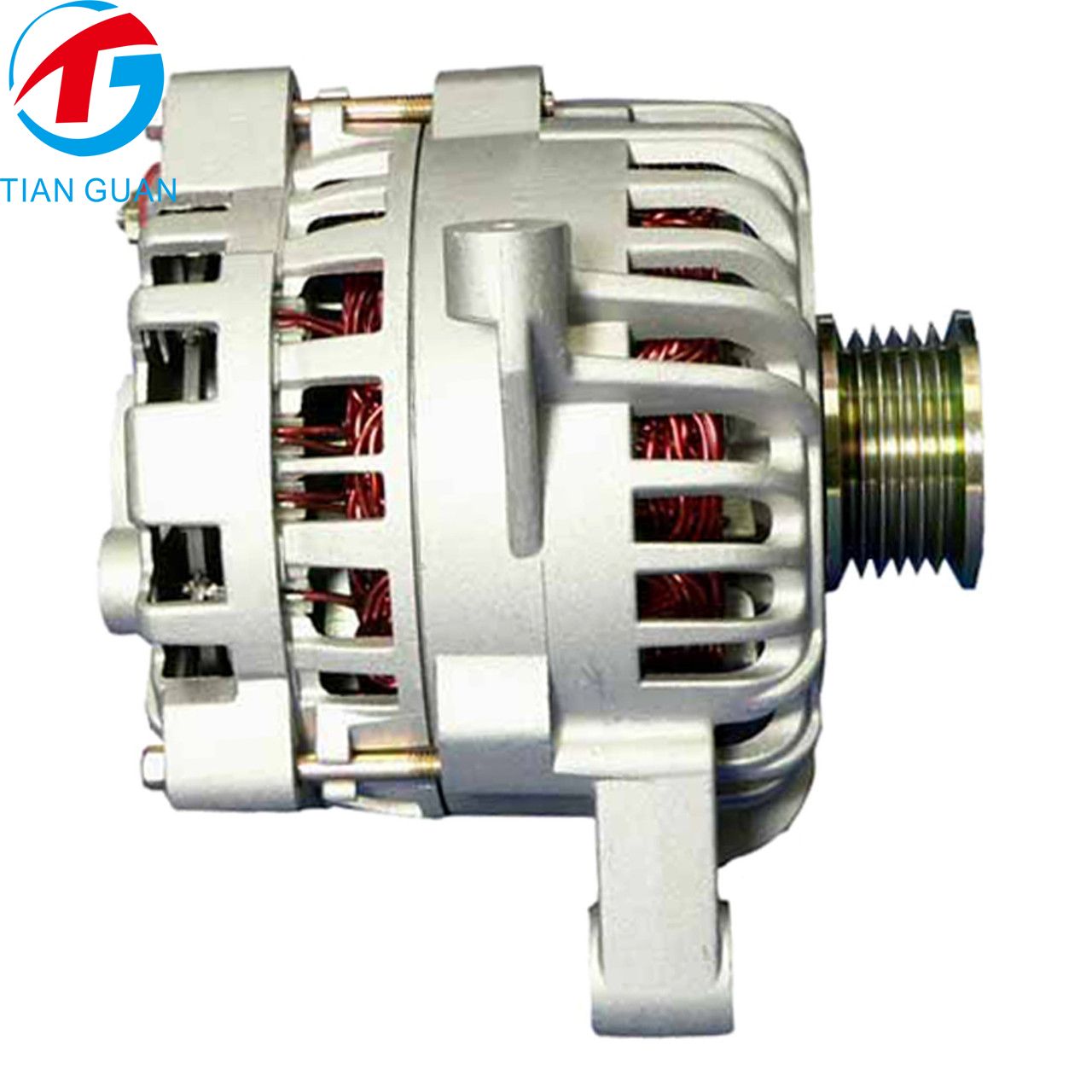

The ATG10147 Alternator is a new aftermarket replacement alternator designed for selected Ford Excursion, F-250, F-350, F-450, and F-550 Super Duty vehicles equipped with 5.4L V8 or 6.8L V10 engines.

This 12V, 110A alternator provides charging power for the vehicle battery and electrical systems. It features clockwise rotation, a six-groove serpentine pulley, an internal regulator, and an internal fan configuration. It cross-references Ford and Motorcraft numbers as well as numerous aftermarket replacement references.

Before ordering, verify the original alternator number, mounting configuration, pulley dimensions, and electrical connector to ensure correct fitment.

Product Specifications

Property	Value
Product Model	ATG10147
Unit Type	Alternator
Main Cross Reference	8310 / 400-14065
Voltage	12V
Amperage	110A
Rotation	CW (Clockwise)
Clock Position	10
Pulley Class	S6
Pulley Grooves	6-Groove
Pulley Outer Diameter	54 mm
Regulator	IR (Internal Regulator)
Fan Type	IF (Internal Fan)
Condition	New Aftermarket Part
Compatible Brand	Ford
Compatible Engines	5.4L V8 / 6.8L V10
Application	Pickup Truck / SUV / Medium- and Heavy-Duty Truck
Net Weight	6.0 kg

OEM / Cross Reference Table

Brand / Category	Part Number
ARROWHEAD	AFD0100 / 400-14065
AC DELCO	334-2251 / 334-2533
BARSANCO	120-8310
DIXIE NEW	A-2057N
DIXIE	A-2057
DUBOIS	908310
FAMILY	6GIF
FORD	2C3U-10300-AA / 2C3U-10300-AB / 2C3U-10300-AC / 2C3Z-10346-AA / 2C3Z-10346-AB / 3C3T-10300-DA / 3C3Z-10346-DA
J & N	400-14065
LESTER	8310
MINNPAR	47-1576
MOTORCRAFT VALUE SERIES	GLV-8556RM
MOTORCRAFT	GL-529 / GL-556 / GL-624
NAPA POWER PREMIUM PLUS	213-3152B / 213-3170
NAPA POWER SUPREME	13-3152B / 13-3170
PENNTEX	PX-220R-5
PIC	250-295A / 250-295B
REMY LIGHT DUTY	23733 / 23772
USA INDUSTRIES	8310
VISTEON	DY / FP
WAI	1-2504-31FD / 8310N
WILSON HD	90-02-5136
WILSON NEW	90-02-5136
WILSON	90-02-5136

Compatible Applications

Brand / Category	Compatible Applications
Ford Excursion	5.4L V8, 2002-2005
Ford Excursion	6.8L V10, 2002-2005
Ford F-250 Super Duty	5.4L V8 / 6.8L V10, 2002-2004
Ford F-350 Super Duty	5.4L V8 / 6.8L V10, 2002-2004
Ford F-450 Super Duty	6.8L V10, 2002-2004
Ford F-550 Super Duty	6.8L V10, 2002-2004

PRODUCT HIGHLIGHTS

Product Highlights

12V 110A Charging Output	Six-Groove Pulley Design	Wide Ford Super Duty Fitment
Supports battery charging and vehicle electrical systems	S6 pulley class with approx. 54 mm outer diameter	Fits selected Excursion and Super Duty applications
Internal regulator and internal fan	CW rotation with 10 o'clock clock position	Cross-references multiple Ford and aftermarket part numbers
