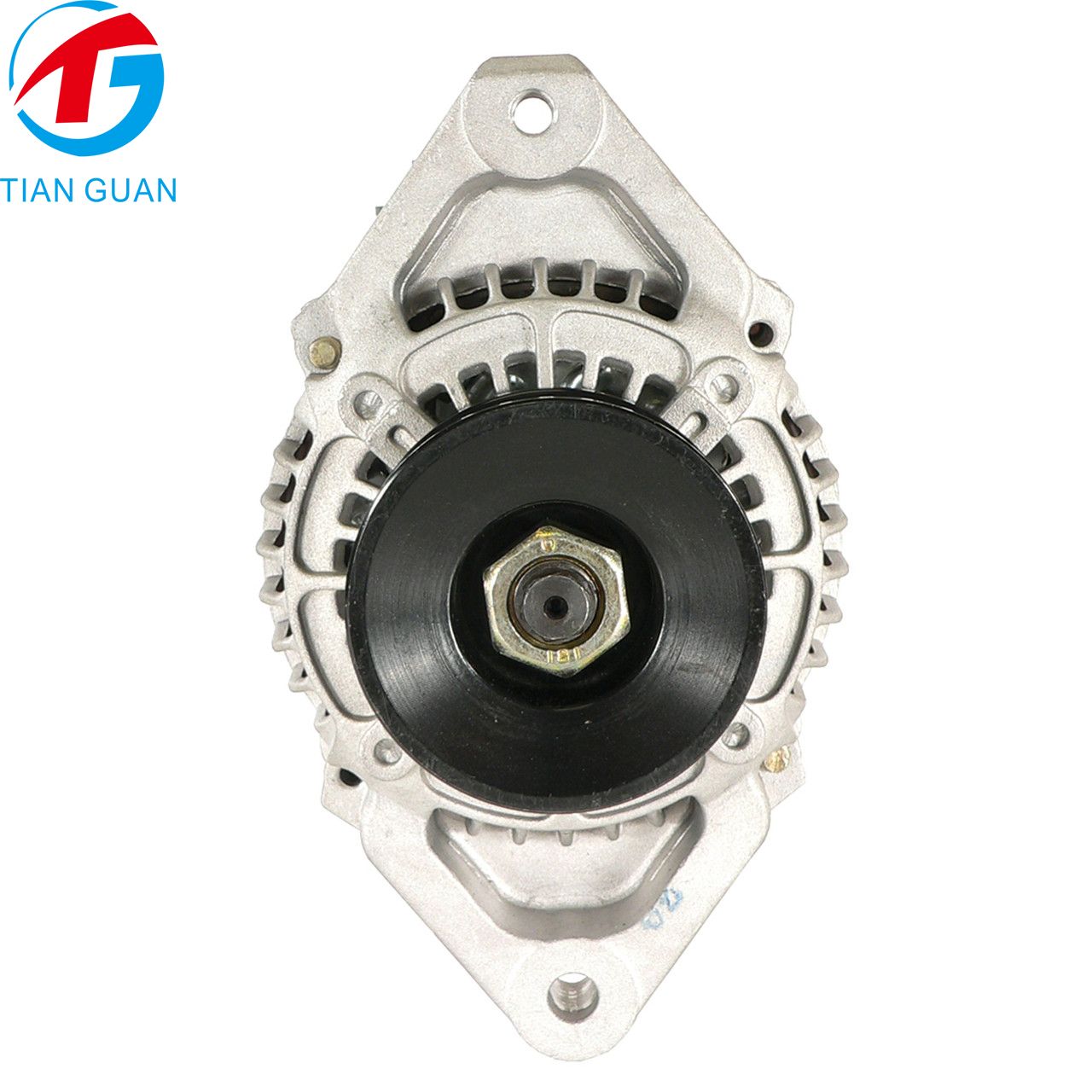

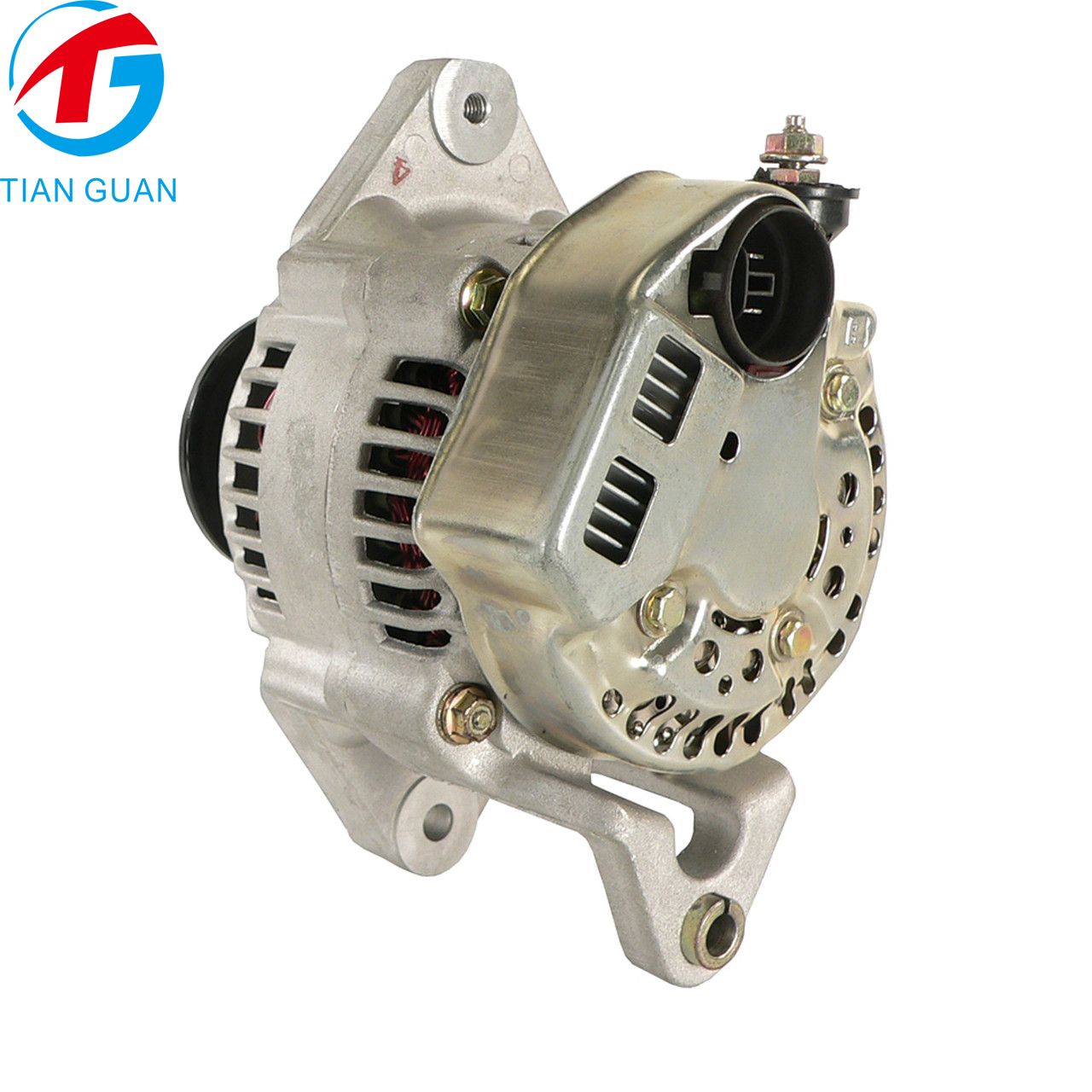

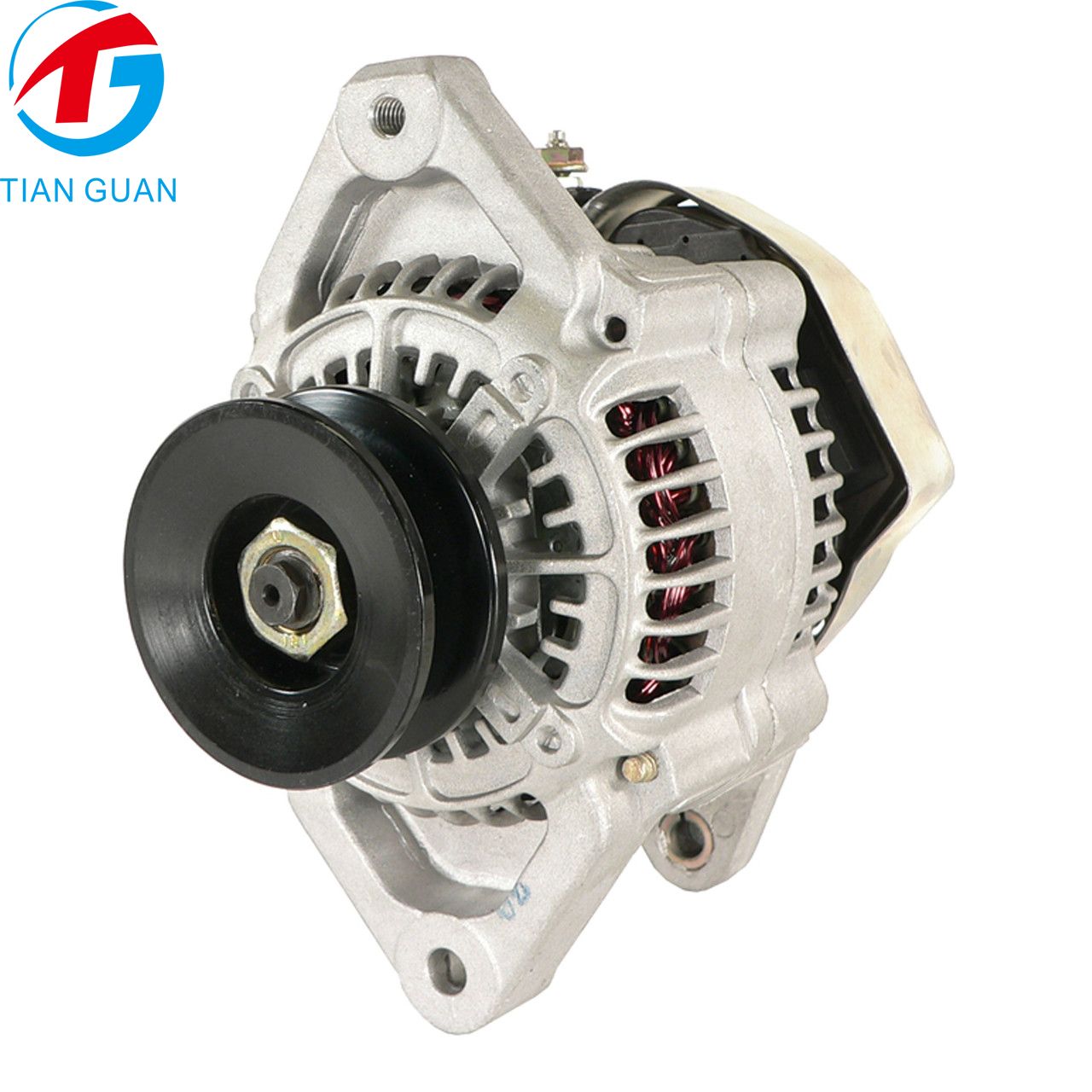

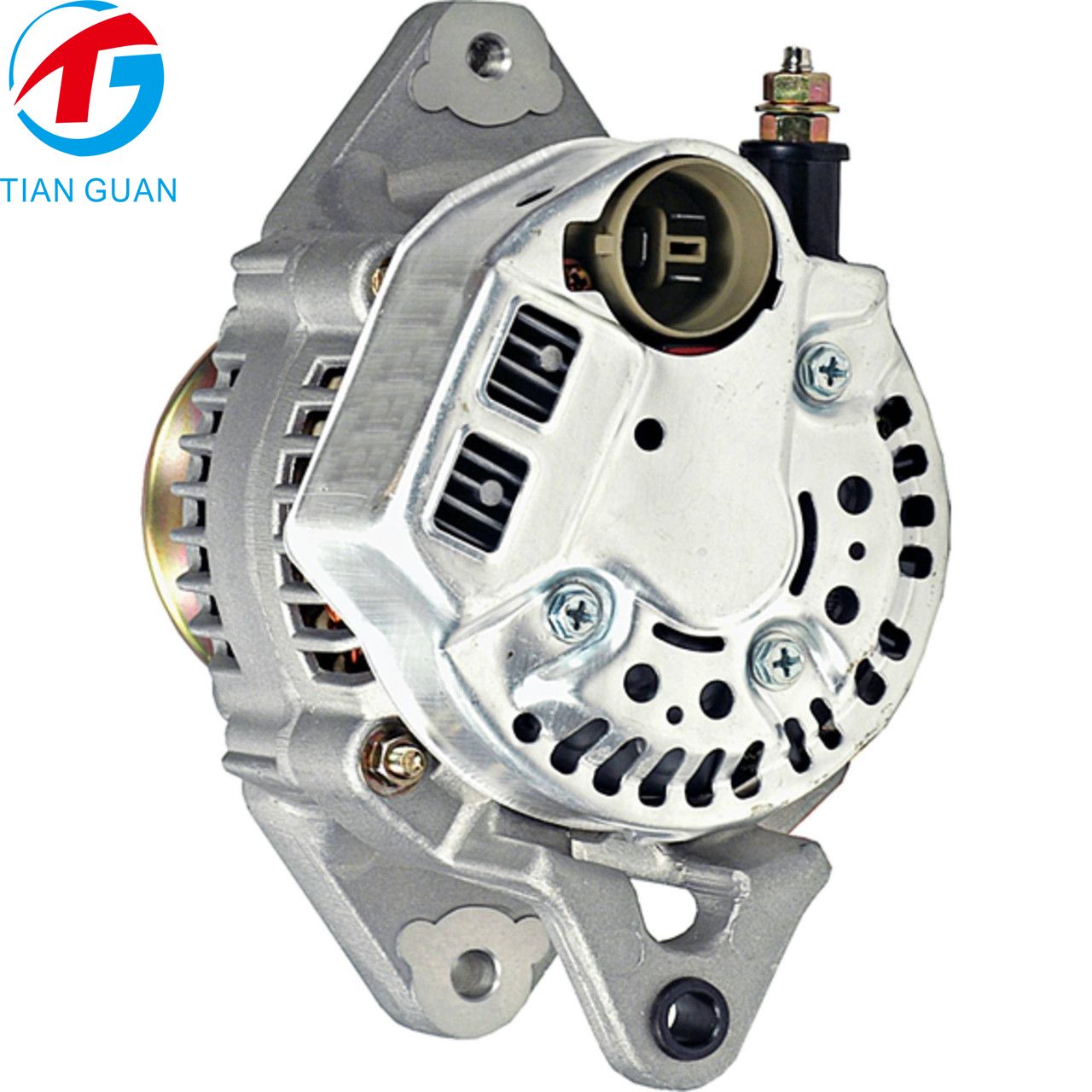

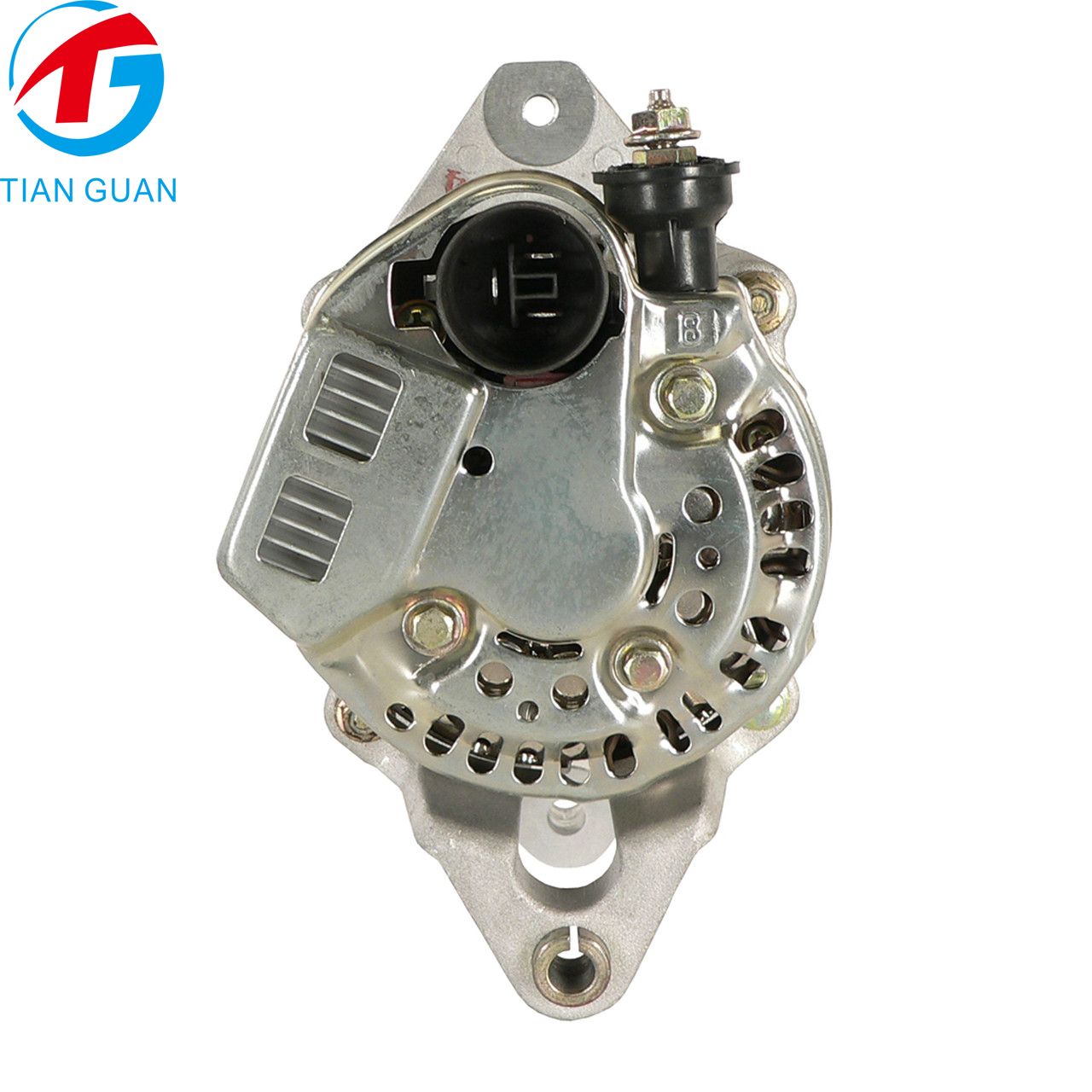

ATG10163 Alternator 27060-76305 27060-78305 100211-6930 for Toyota 5FD-10 Forklift 1DZ Engine | 12V 40A Replacement

3 Reviews

Add Your Review

US$108.00

ITEMNO： ATG10163

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG10163 Alternator 27060-76305 27060-78305 100211-6930 for Toyota 5FD-10 Forklift 1DZ Engine | 12V 40A Replacement

Part Numbers

Brand	Part Numbers
Arrowhead	AND0170, 400-52022
Cargo	111018
Denso	100211-6930, 100211-6931
J & N	400-52022
Lester	12184
NSA	ALT-5094
Toyota	27060-76305, 27060-78305, 27060-78305-71
Unipoint	ALT-5094
WAI	12184N, 1-2439-01ND

Product Description

The ATG10163 12V 40A alternator is an aftermarket replacement charging unit designed for compatible Toyota lift trucks and forklifts equipped with the 1DZ engine. It is intended to support battery charging and the electrical requirements of the forklift during normal operation.

This alternator features an internal regulator (IR), an internal fan (IF), and a V1 pulley configuration. The specified pulley dimensions are 76 mm outside diameter and 15 mm inside diameter. It cross-references Toyota part numbers 27060-76305 and 27060-78305, along with Denso 100211-6930 and 100211-6931.

Listed applications include Toyota 5FD-10 lift trucks from 1989 through 1993 with the 1DZ engine. Before ordering, compare the original part number, pulley dimensions, mounting points, electrical connections, and regulator configuration to ensure the unit matches your equipment.

Product Specifications

Specification	Details
Product SKU	ATG10163
Product Type	Alternator
Part Type	Unit
Condition	Aftermarket Part
Voltage	12V
Amperage	40A
Pulley Class	V1
Pulley Outside Diameter	76 mm
Pulley Inside Diameter	15 mm
Regulator Type	Internal Regulator (IR)
Fan Type	Internal Fan (IF)
Primary OEM Reference	Toyota 27060-76305
Additional OEM References	Toyota 27060-78305, 27060-78305-71
Cross-Reference Numbers	Denso 100211-6930, 100211-6931; Lester 12184
Compatible Equipment	Toyota Lift Truck / Forklift
Compatible Model	Toyota 5FD-10
Compatible Engine	1DZ
Estimated Net Weight	3.0 kg (3000 g)

Compatible Applications

Manufacturer	Equipment Type	Model	Year	Engine
Toyota	Lift Truck / Forklift	5FD-10	1989	1DZ
Toyota	Lift Truck / Forklift	5FD-10	1990	1DZ
Toyota	Lift Truck / Forklift	5FD-10	1991	1DZ
Toyota	Lift Truck / Forklift	5FD-10	1992	1DZ
Toyota	Lift Truck / Forklift	5FD-10	1993	1DZ

PRODUCT HIGHLIGHTS

Product Highlights

Feature	Description	Benefit
12V, 40A Output	Designed for compatible Toyota forklift charging systems	Supports battery charging and electrical operation
Internal Regulator and Fan	Features IR regulation and an IF cooling configuration	Provides an integrated charging-unit design
V1 Pulley Configuration	76 mm outside diameter and 15 mm inside diameter	Helps confirm pulley compatibility before installation
