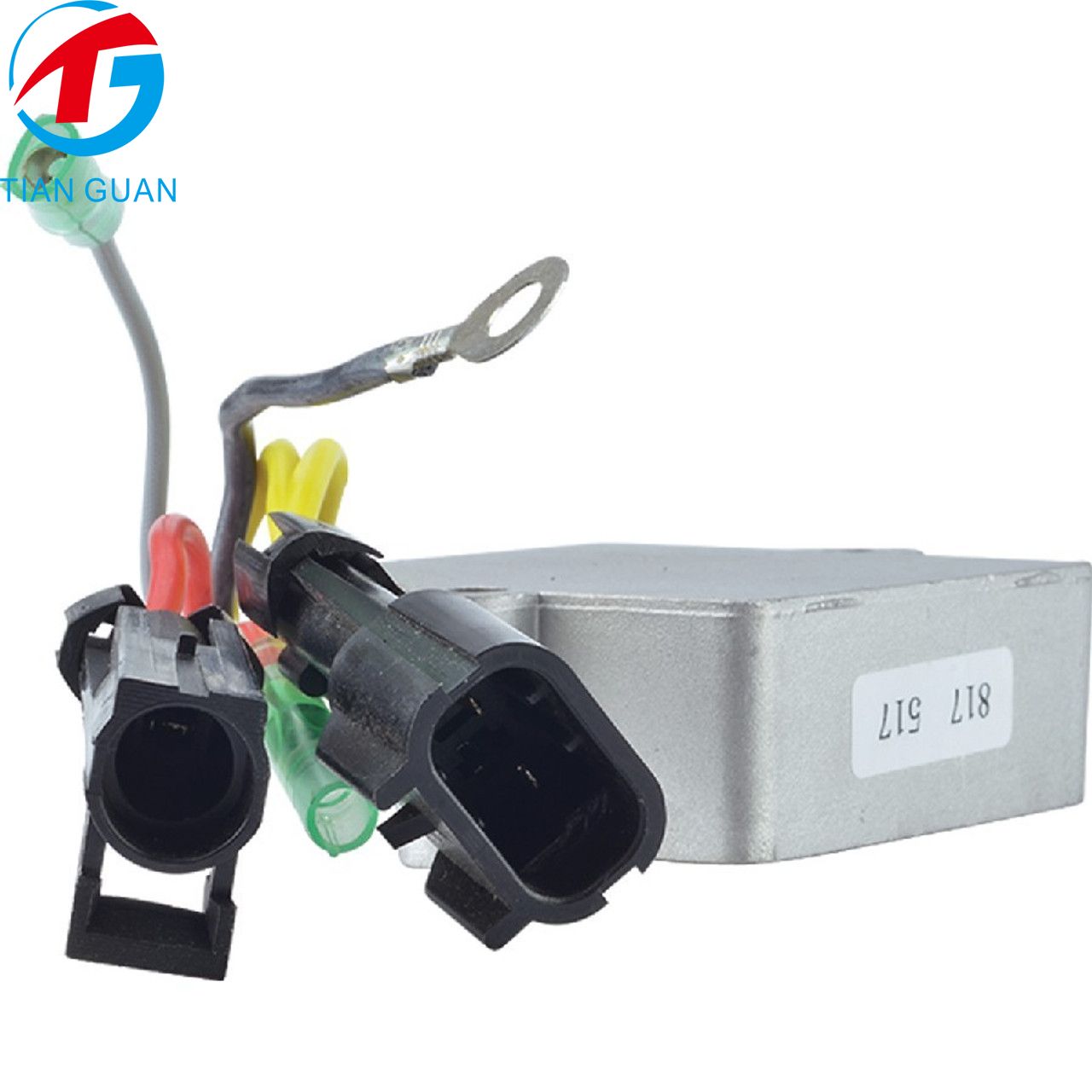

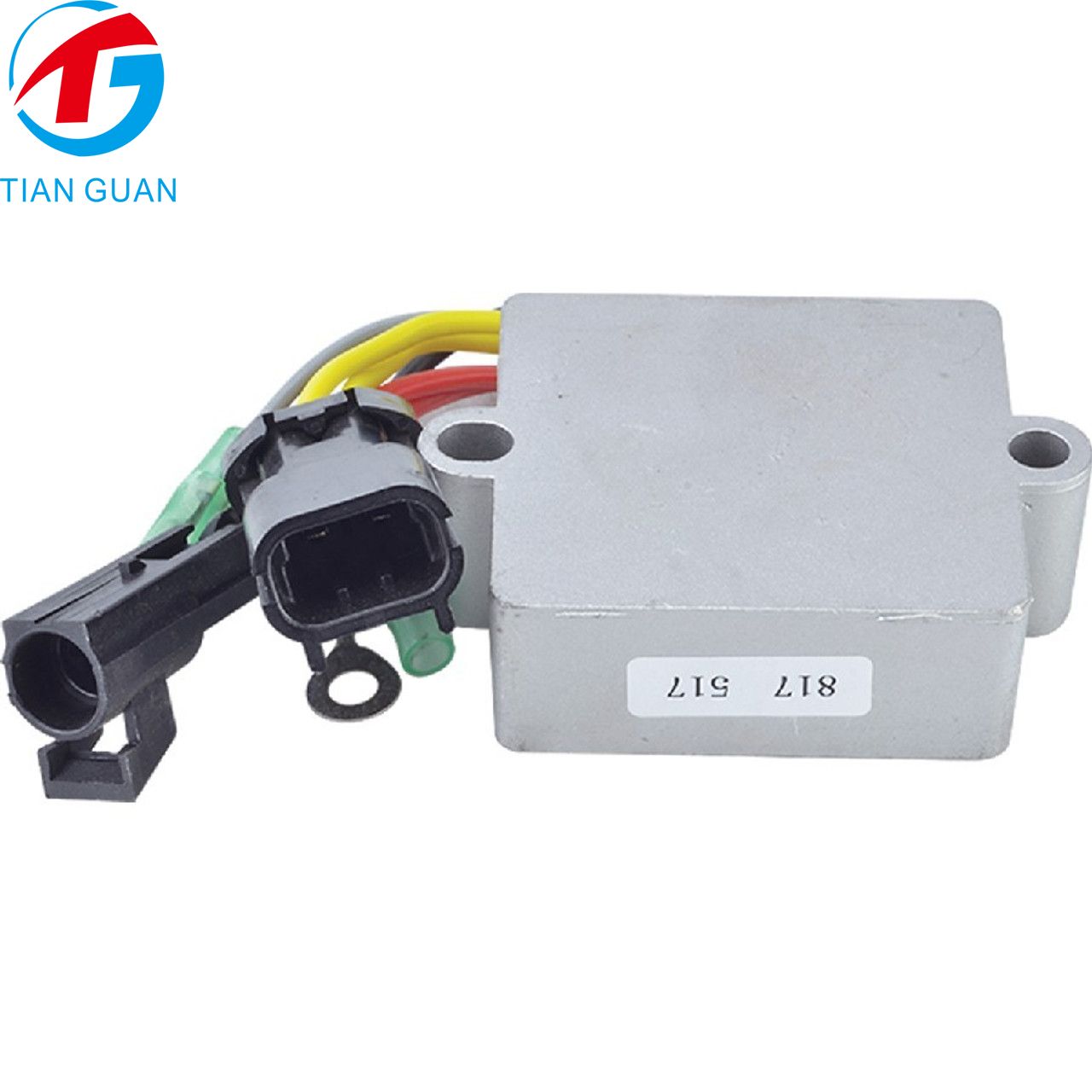

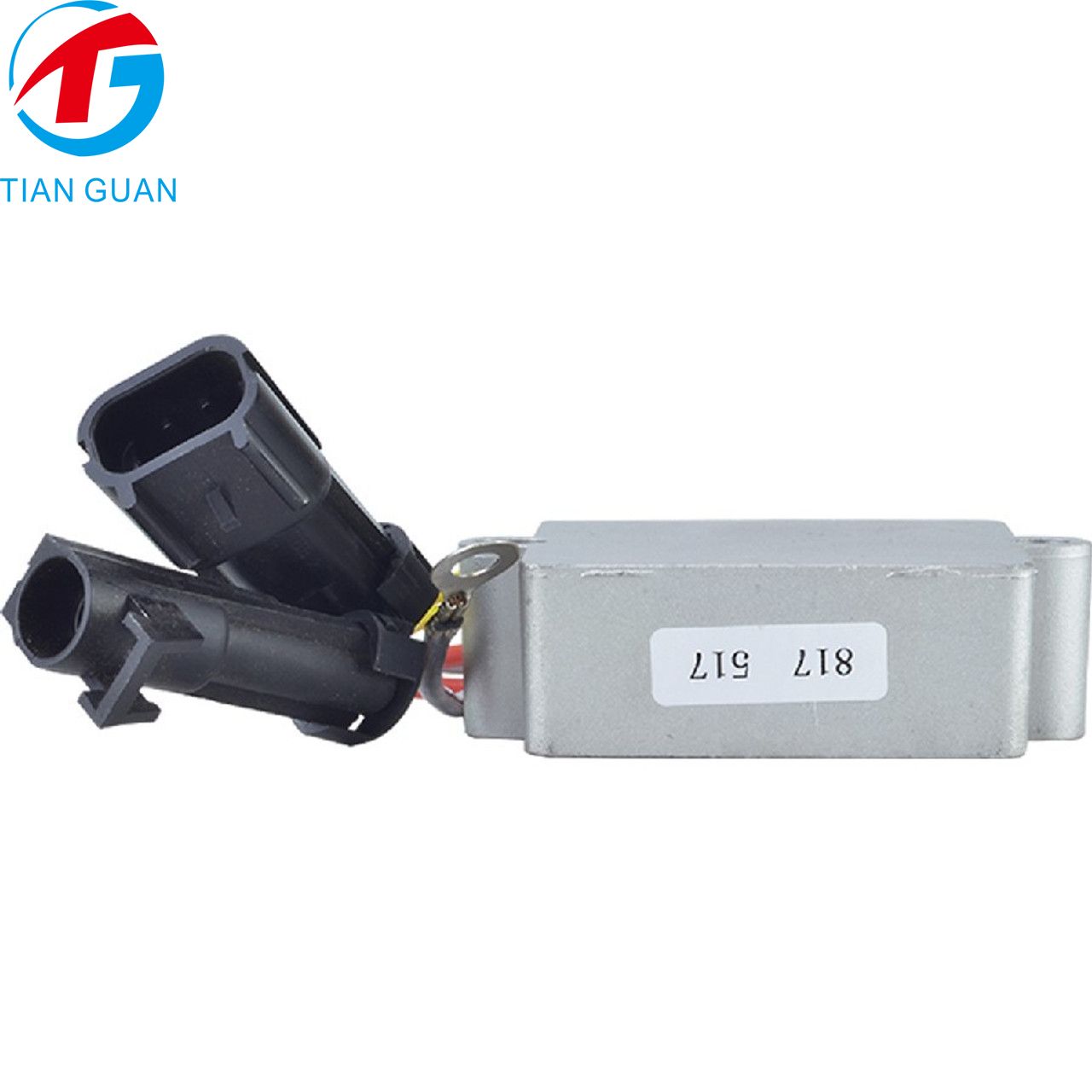

ATG10168 Voltage Regulator Rectifier 854515T2 883072T1 883072T2 for Mercury Marine Outboard 135HP 140HP 150HP 175HP 200HP 240HP | 12V Replacement

Part Numbers

Brand	OEM / Cross-Reference Part Numbers
Arrowhead	230-22185
J & N	230-22185
Mercury Marine	854515T2, 883072T1, 883072T2
Reference Number	194-2115K1

Product Description

The ATG10168 Voltage Regulator Rectifier is an aftermarket replacement charging system component designed for Mercury Marine and Mariner outboard engine applications. Operating at 12 volts, this rectifier regulator helps convert AC output from the alternator/stator into regulated DC power to maintain battery charging performance and protect the electrical system.

This unit is designed for specified Mercury/Mariner outboard engines including 25HP, 30HP, 40HP, 50HP, 60HP, 135HP, 140HP, 150HP, 175HP, 200HP, and 240HP applications. It replaces Mercury Marine references 854515T2, 883072T1, and 883072T2, as well as Arrowhead 230-22185 and J & N 230-22185.

The regulator rectifier features a compact mounting design with specified plug configurations, wire connections, and mounting hole dimensions to match the listed applications. Confirm the original part number, wire arrangement, connector style, and mounting dimensions before installation.

Key Features

12V Charging Control: Regulates charging voltage for compatible Mercury Marine outboard systems.
Direct Cross Reference Replacement: Replaces Mercury Marine 854515T2, 883072T1, and 883072T2 applications.
Complete Connector Configuration: Designed with matching wire leads and mounting dimensions for listed engines.

Product Specifications

Item	Specification
Product SKU	ATG10168
Product Name	Voltage Regulator Rectifier
Product Type	Rectifier / Regulator
Unit Type	Rectifier / Regulator
Condition	Aftermarket Part
Voltage	12V
Compatible Brand	Mercury Marine / Mariner
Application Type	Outboard Engine
Mounting Dimension	85mm L x 65mm W x 27mm T
Plug Configuration	Plug #1: 2 Yellow Wires; Plug #2: 1 Red Wire
Wire Configuration	1 Red Female Bullet, 1 Grey Female Bullet, 1 Black Wire with Eyelet
Mounting Holes	Oval LH / Round RH
Outer Mounting Hole Diameter	79.8mm
Inner Mounting Hole Diameter	63.2mm
Primary Reference	Mercury Marine 854515T2
Cross References	883072T1, 883072T2, Arrowhead 230-22185, J & N 230-22185, 194-2115K1
Estimated Net Weight	0.4 kg (Estimated)

Vehicle / Equipment Fitment

Make	Type	Model	Year	Engine
Mercury Marine	Engines - 2-Stroke Carb - By SN	135.0HP / V-135 - SN 0G960500 Thru 0T178499	All	135.0HP
Mercury Marine	Engines - 2-Stroke Carb - By SN	140.0HP / Jet - SN 0G960500 Thru 0T178499	All	140.0HP Jet

PRODUCT HIGHLIGHTS

Product Highlights

Feature	Description	Benefit
12V Voltage Regulation	Designed for Mercury Marine charging systems	Helps maintain stable electrical output
Wide Engine Coverage	Fits multiple Mercury and Mariner outboard engine ranges	Provides broad replacement compatibility
OEM Cross References	Replaces Mercury Marine 854515T2, 883072T1, and 883072T2	Makes part identification easier
