ATG10319 Alternator 0R3667 100-5045 100-5047 5S9088 6T7223 7T6173 400-52200 for Caterpillar 814B
Part Numbers
ARROWHEAD: AND0432, ND100211-0890
CARGO: 111261, 110416
CATERPILLAR: 0R3667, 0R3668, 0R3669, 0R5206, 100-5045, 100-5046, 1005045, 1005046, 1005047, 122469004, 3T1888, 3V8825, 5S9088, 6T7223, 9S6693, 7T6173
DENSO: 100211-0890, 101211-6100
DENSO REMAN: 9761219-610
J & N: 400-52200
LESTER: 12060
WAI: 20-121
VOLVO: 10039152, 11039152
CUMMINS: 200305, 2031179, 203176, 203177, 203179, 3078115, 3603848RX, 4060811
INTERNATIONAL HARV.: 383290091, 672901C91, 844319C91
FIAT: 70699268
CASE: 75263297
NEW HOLLAND: 75263297
JOHN DEERE: AT85458, TY6681
FORD: D4HF10300A, D4HF10300AA, D4HF10300C, D4HF10346C, D4HF10346CA, D4HZ10346A, D7HZ10346A, D7HZ10346D, E7HT10300CA, E7HZ10346A, F7HZ10346A
HC-PARTS: UA1114IR
BOSCH: 0122469002, 0122469004
DELCO: 10459006, 10459061, 10459064, 10459067, 10459072, 10459077, 10459137, 1117225, 1117226, 1117227, 1117228, 1117229, 1117230, 1117231, 1117234, 1117236, 1117239, 1117240, 1117241, 1117242, 1117243, 1117244, 1117248, 1117250, 1117251, 1117253, 1117255, 1117258, 1117259, 1117260, 1117261, 1117262, 1117263, 1117264, 1117267, 1117523, 19010001, 19010006, 19010020, 321-602, 321-698, DRA0331
WAIGLOBAL: 12166N, 20-119-1, 20-121, 20-121-1
WPS: 7254N, 7255N
HELLA: 8EL737231-001
KRAUF: ALD7244, ALP1114, ALP8114
MOTORHERZ: ALD7244WA, ALP1114WA
Product Description

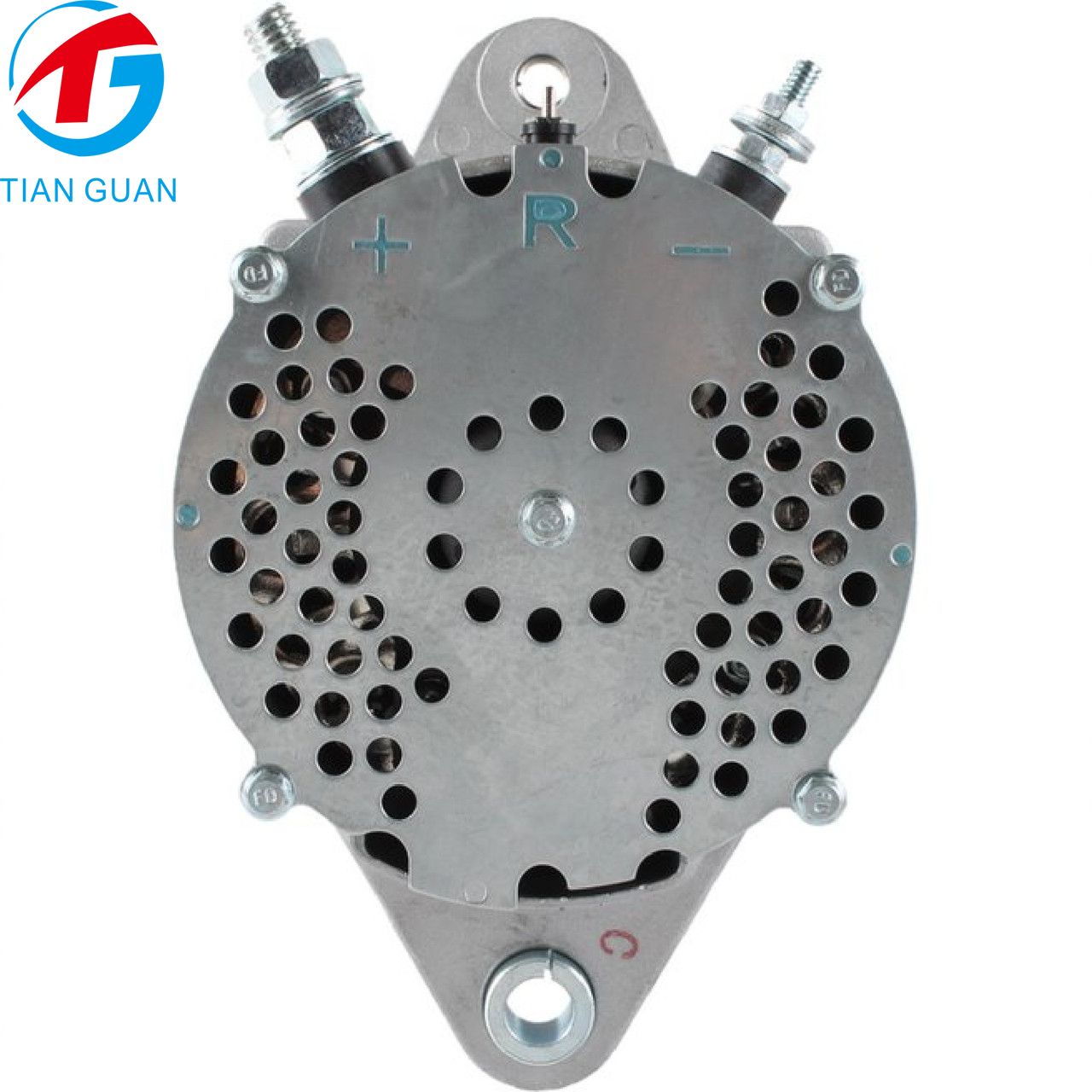

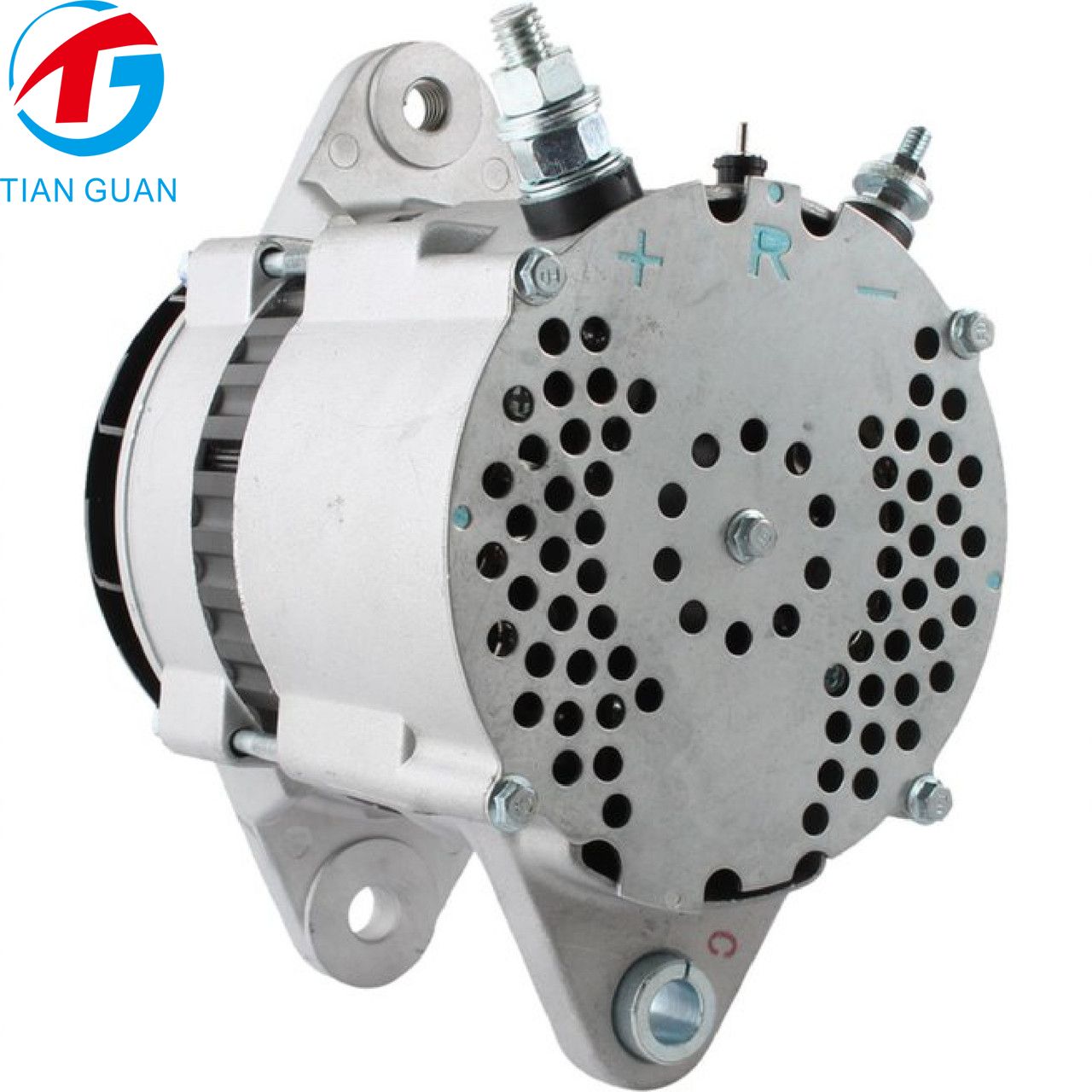

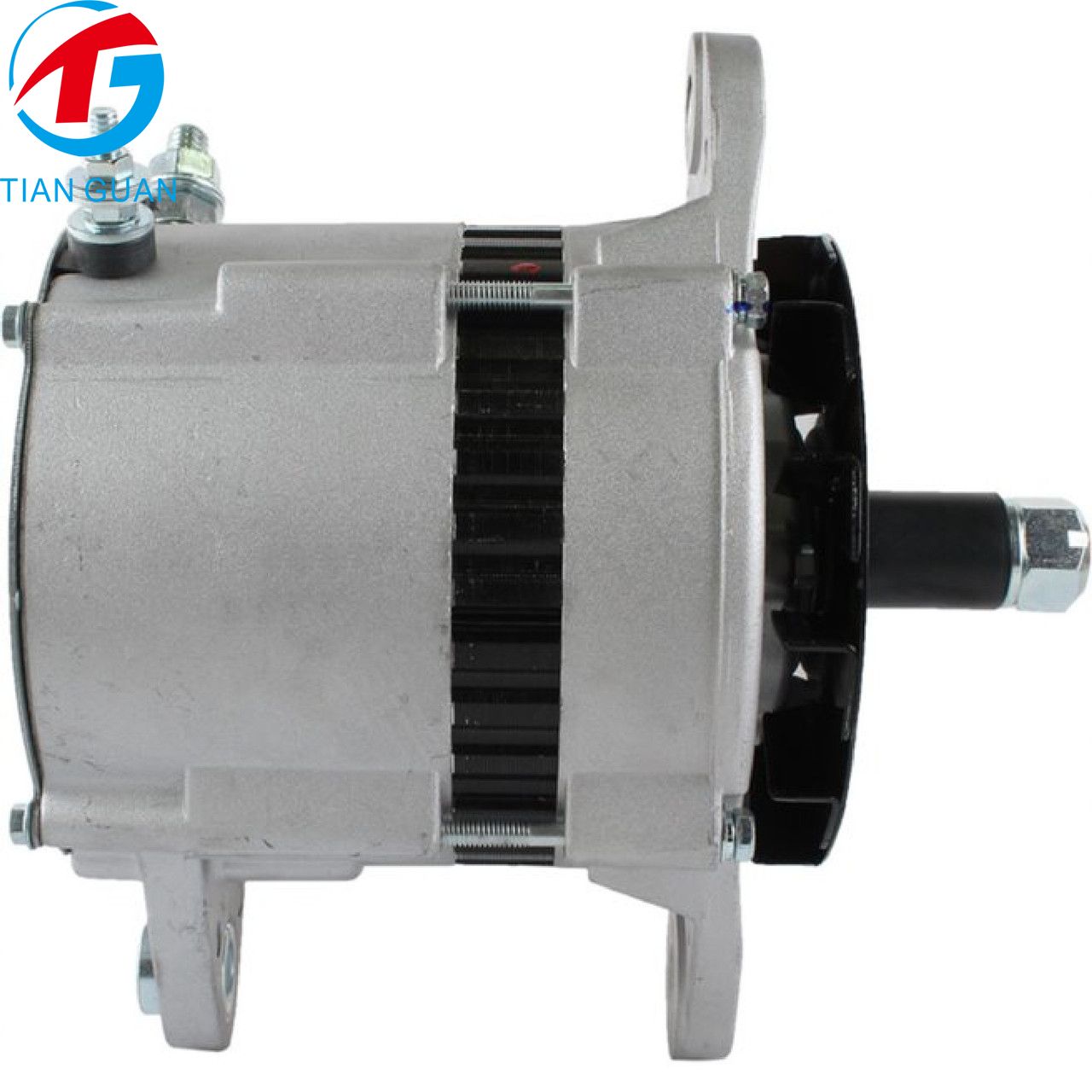

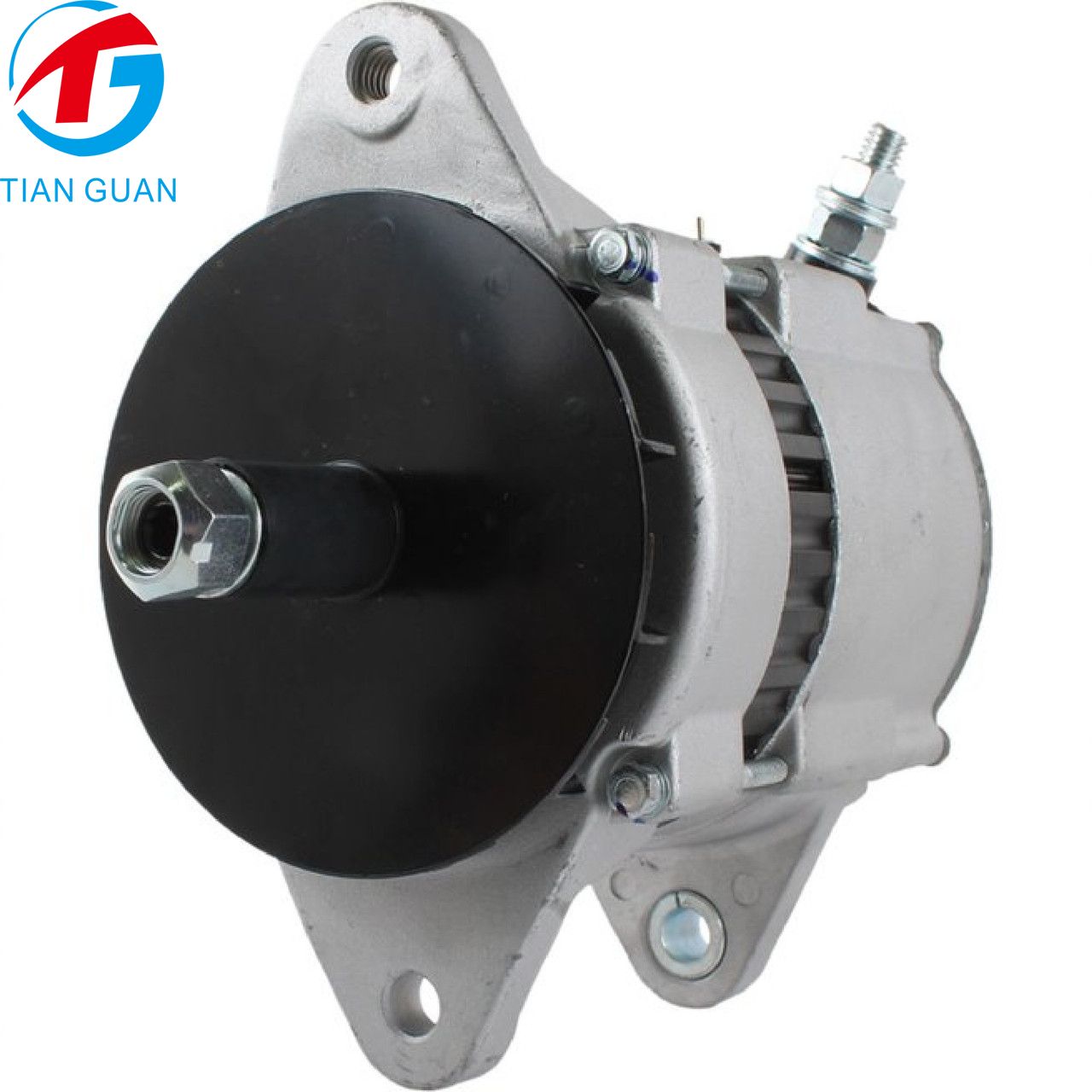

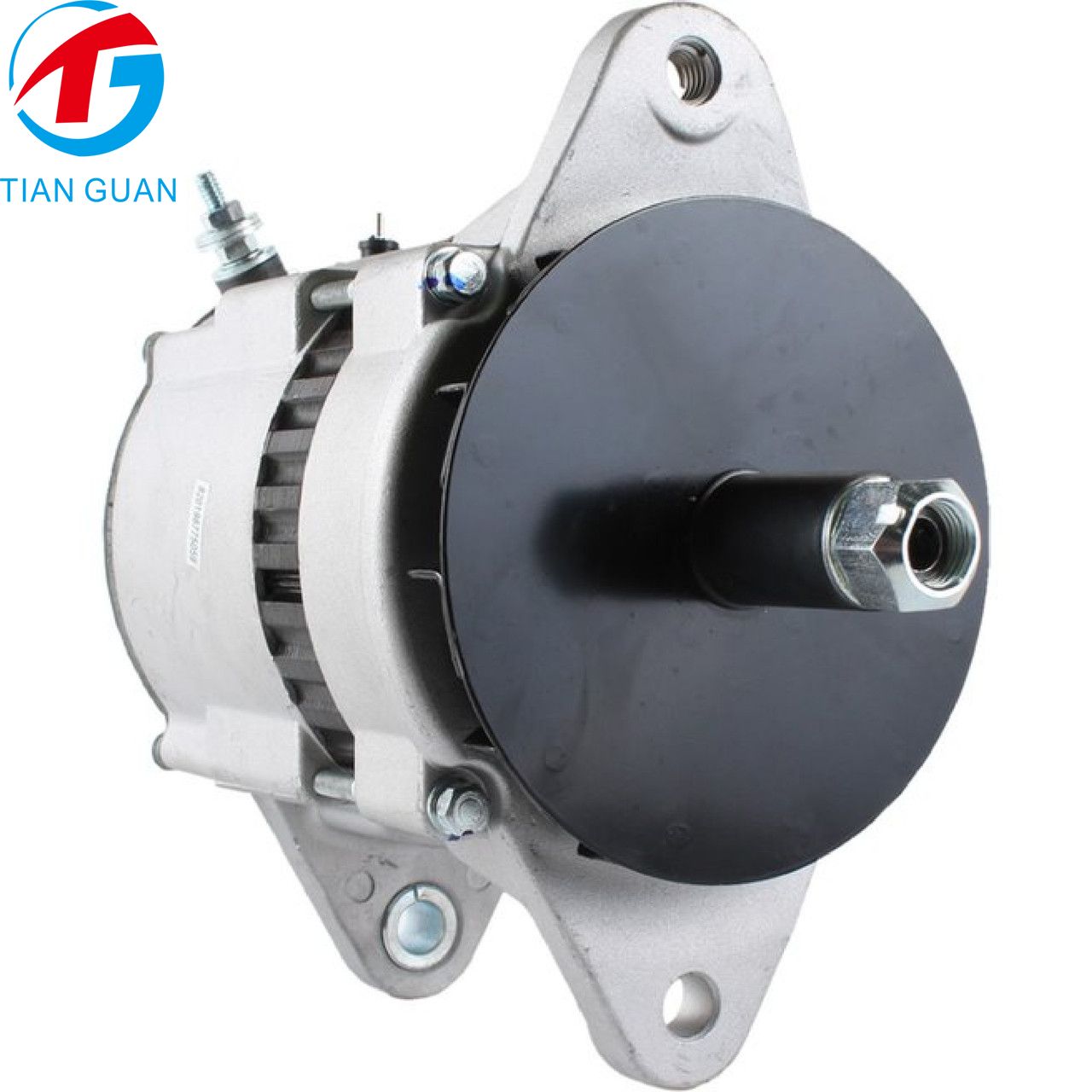

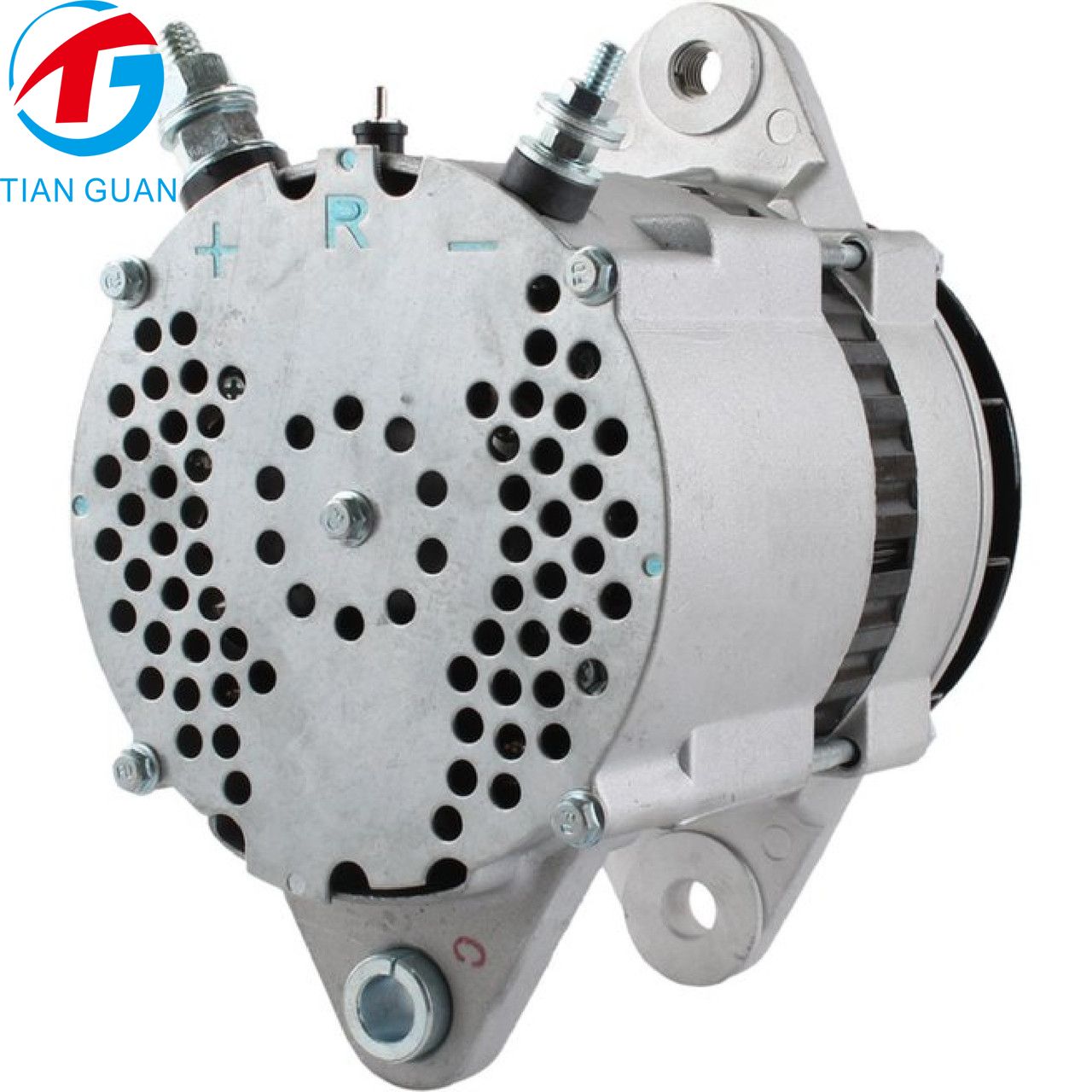

This premium aftermarket 24V 50A Alternator is designed as a direct replacement for Caterpillar industrial applications. With 50A output, internal regulator (IR), external fan (EF), and 2-V pulley (22mm ID), it delivers reliable charging performance and dependable service in demanding construction and industrial applications.
This alternator replaces OE part numbers 0R3667, 100-5045, 100-5047, 5S9088, 6T7223, 7T6173, 400-52200 (Caterpillar / J & N) and additional cross-reference numbers listed above.
24V alternator
50A amperage
Internal regulator (IR)
External fan (EF)
2-V pulley, 22mm ID
Fits Caterpillar industrial applications
Reliable charging performance
Durable construction
Aftermarket replacement part
Approx. 9.8 kg
Specifications
Item Condition: Aftermarket Part
Unit Type: Alternator
Part Type: UNIT
Voltage: 24V
Amperage: 50A
Regulator: IR
Fan Type: EF
Fits: Caterpillar Industrial
Pulley: 2-V, 22mm ID
Weight: 9.8KG
Fitment
Caterpillar – Articulated Truck D20D / D250B / D250D / D25D / D300B / D300D / D30C / D30D / D350C / D350D / D350E / D350E Series II / D35C / D400D / D400E / D400E Series II / D40D / D44B / D550B
Caterpillar – Compactor 815B Soil / 816B Landfill / 825C Soil / 825G Soil / 826C Landfill / 836 Landfill
Caterpillar – Excavators 215 / 215B / 215C / 215D / 219 / 219D / 225 / 225B / 225D / 229 / 229D / 231D / 235 / 235B / 235C / 235D / 245 / 245B / 245B Series II / 245D / 330 / 330 L / 330 LN / 330B / 330B L / 330B LN / 350 / 350 L / 350 L Track Type / 350 Track Type / 375 / 375 L / W330B
Caterpillar – Forestry Loaders FB227
Caterpillar – Front Shovel 235C / 5080
Caterpillar – Graders 120G / 12G / 130G / 140G / 140H / 14G / 16G
Caterpillar – Off-Road & Mining Trucks 768C / 769C / 769D / 771C / 771D / 772B / 773B / 773D / 776B / 776C / 776D / 777B / 777C / 777D / 784 / 784B / 785 / 785B / 789 / 789B
Caterpillar – Pipelayers 561D / 583K / 589 / 591
Caterpillar – Scrapers 613C / 615 / 615C / 621B / 621E / 621F / 623B / 623E / 623F / 627B / 627E / 627F / 631E / 633E / 637E / 651E / 657E
Caterpillar – Tool Carriers IT18B / IT24B / IT28B
Caterpillar – Track Loaders 943 / 953 / 963 / 963B / 973
Caterpillar – Track Tractors D10N / D11N / D4H / D5H / D6D / D6H / D7G / D7H / D8L / D8N / D9N
Caterpillar – Wheel Loaders 910 / 916 / 926 / 926E / 936 / 936E / 936F / 950E / 950F / 966D / 966E / 966F / 980C / 980F / 988B / 988F / 992C / 992D
Caterpillar – Wheel Skidders 508 / 518 / 528 / 530B
Caterpillar – Wheel Tractor Dozers 814B / 814F / 824C
Compatible with equipment using 0R3667, 100-5045, 100-5047, 5S9088, 6T7223, or 7T6173 alternator part numbers.
