ATG10423 High Output Alternator AFD0164-220 400-14186 for Ford F-250 F-Series Super Duty 6.4L Diesel | 12V 220A 4G Series Replacement

Part Numbers

Brand	OEM / Compatible Part Numbers
ARROWHEAD	AFD0164-220
FAMILY	4G
J & N	400-14186

Product Description

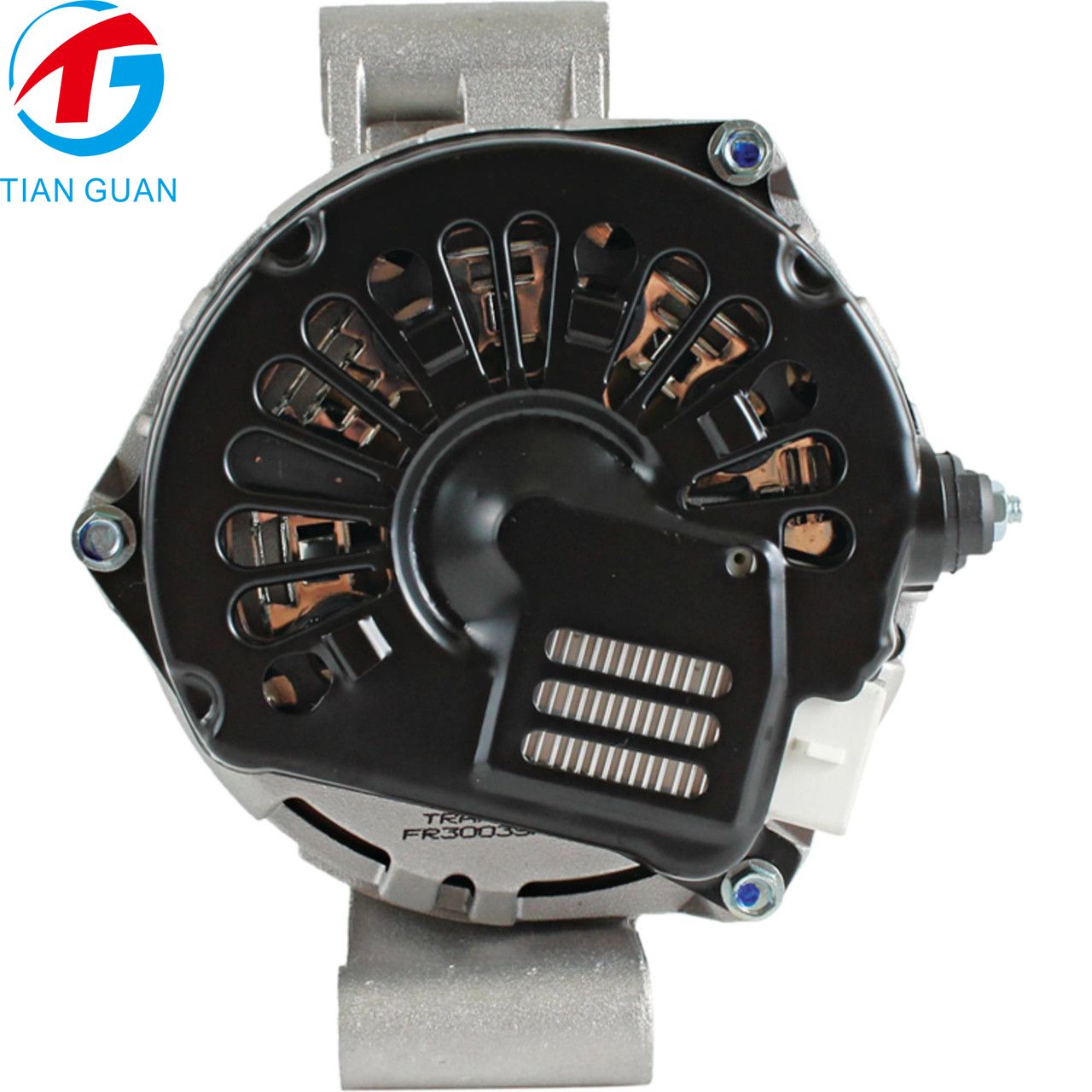

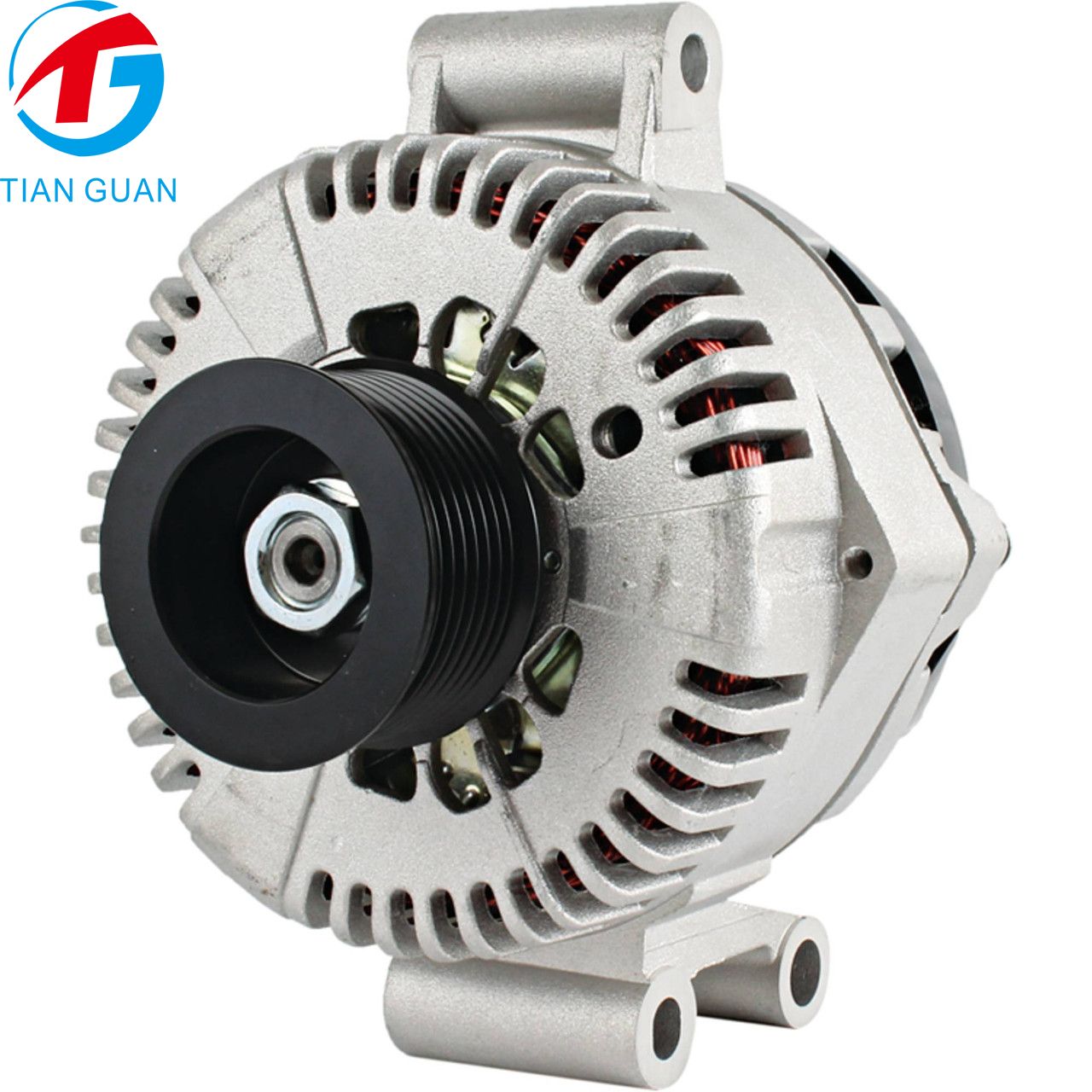

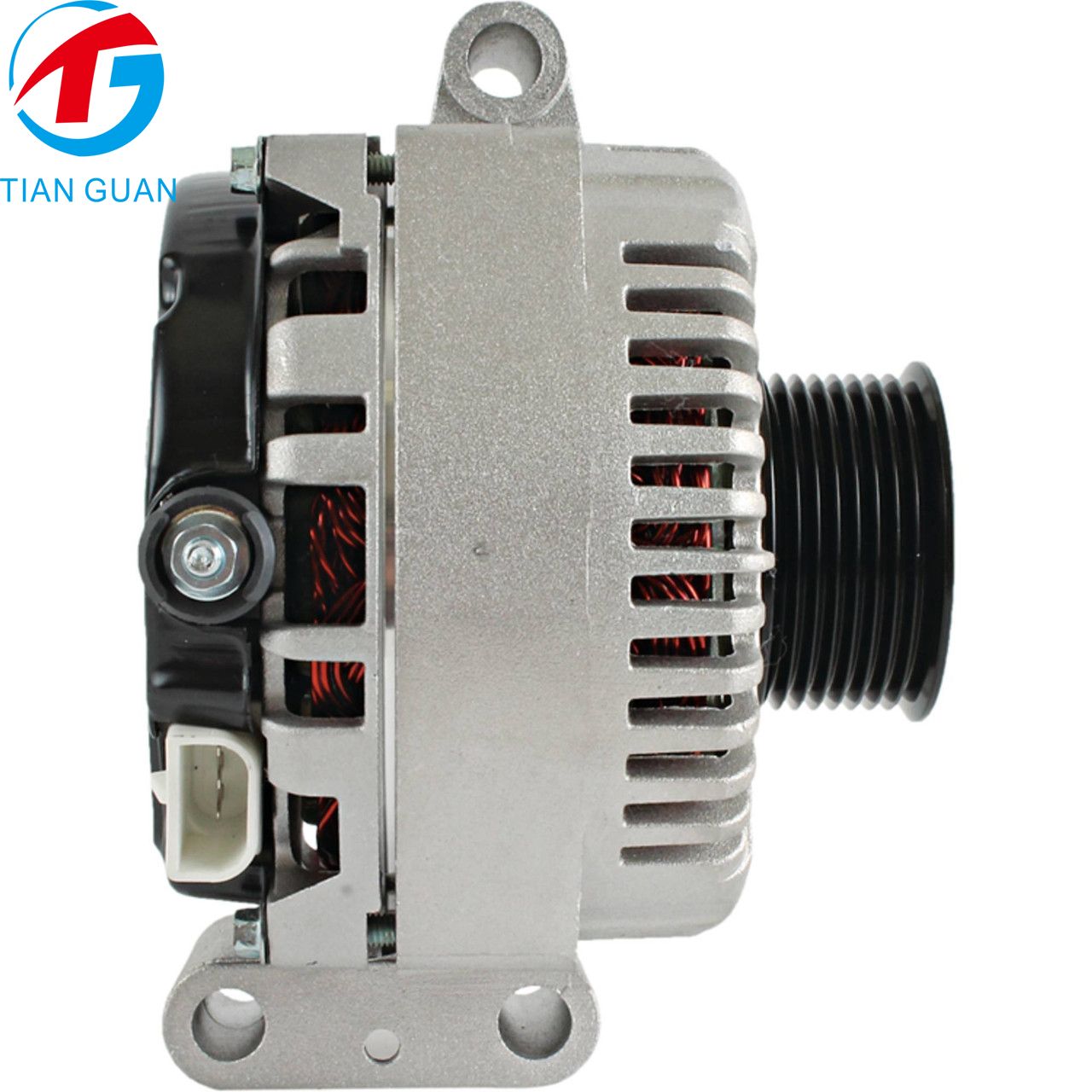

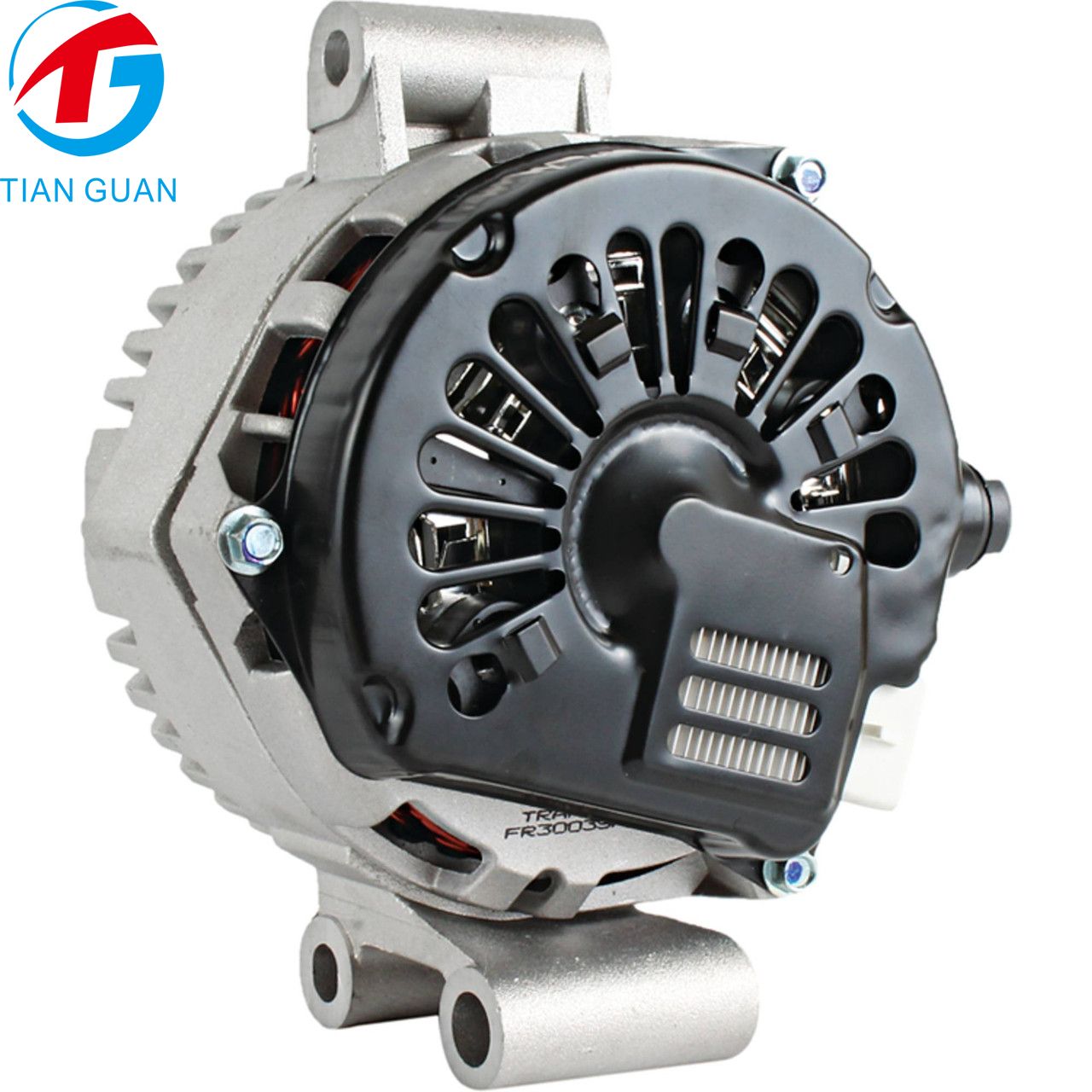

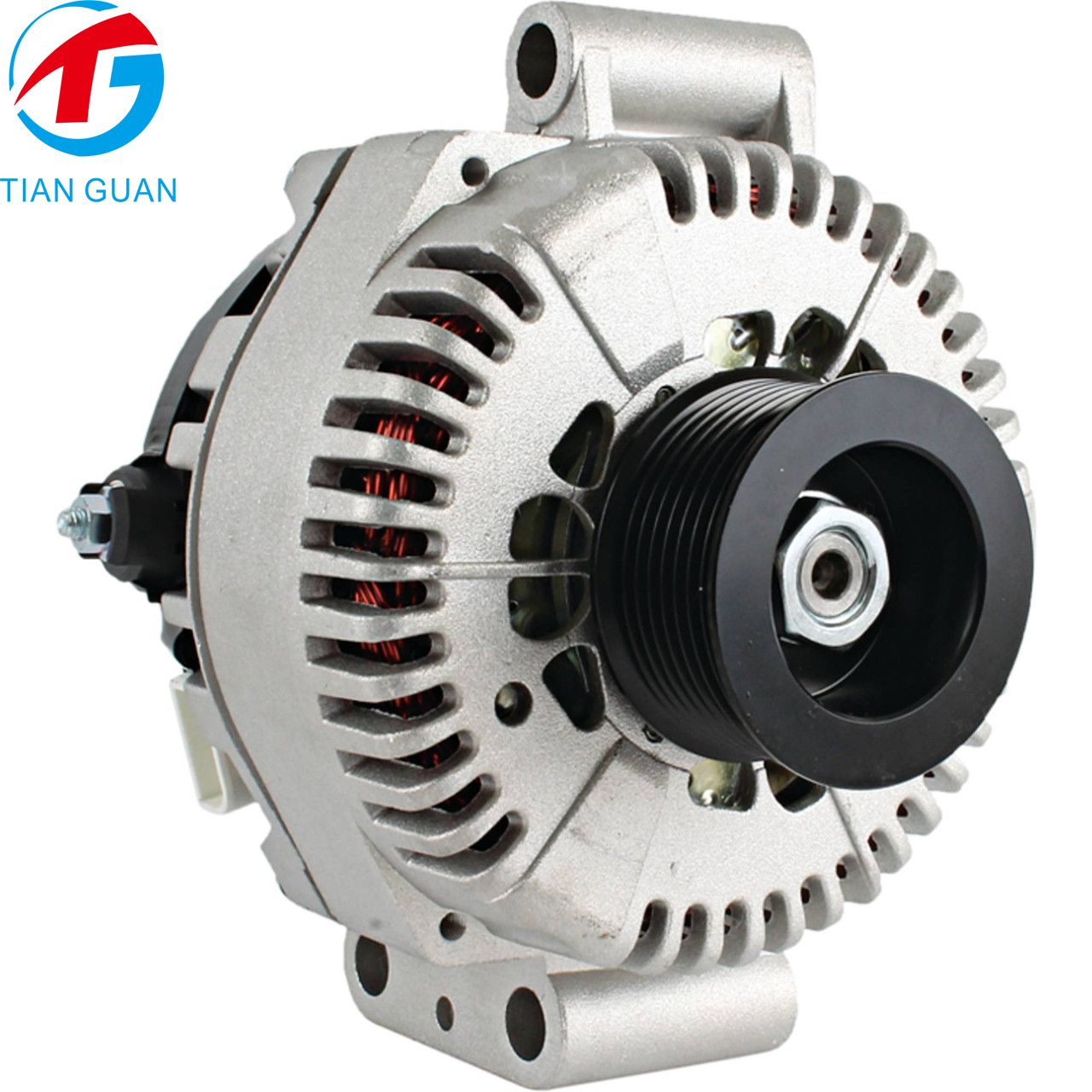

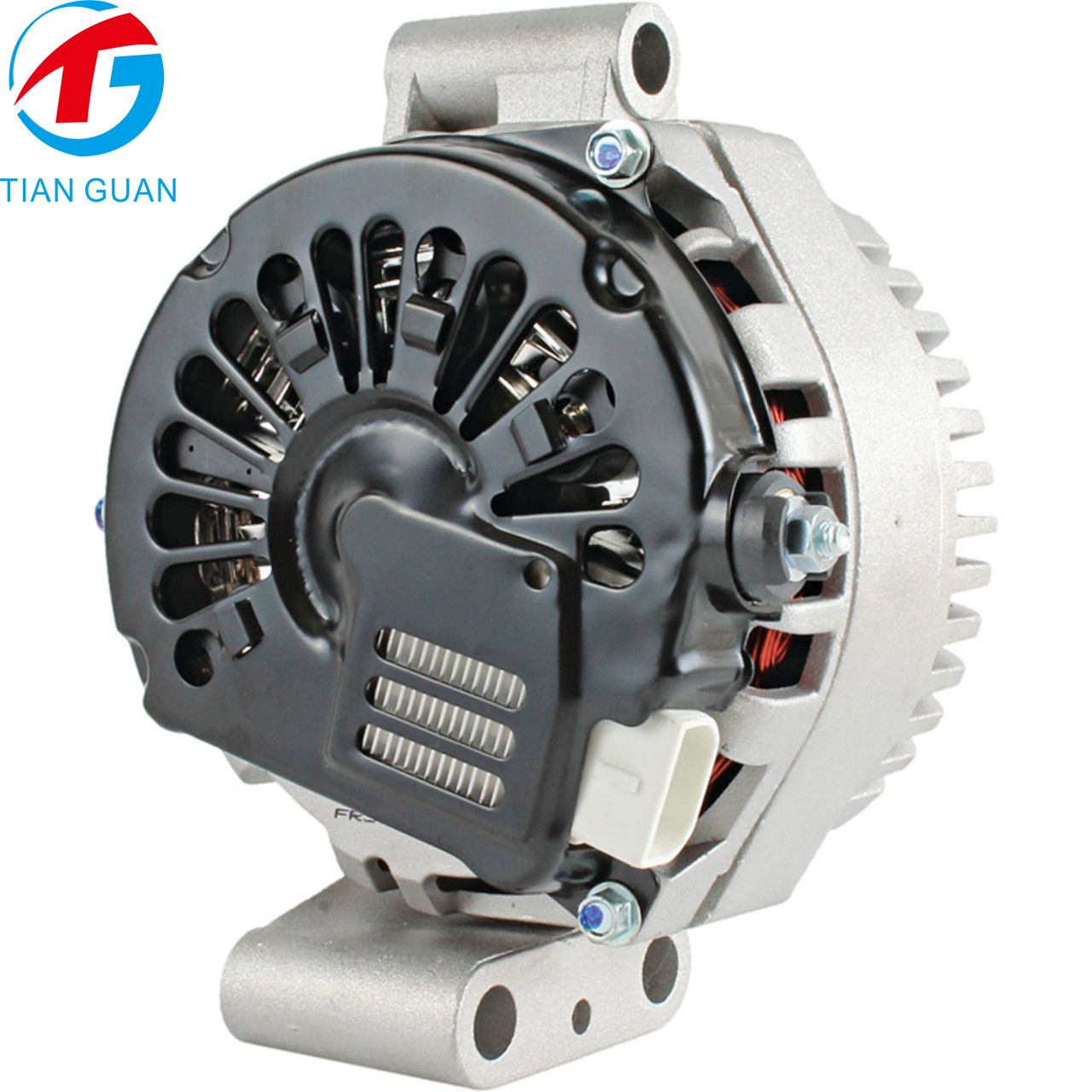

The ATG10423 High Output Alternator is an aftermarket replacement designed for selected Ford Super Duty trucks equipped with compatible charging systems. This 4G-series alternator delivers 220 amps at 12 volts and features clockwise (CW) rotation, an internal regulator (IR), and an internal fan (IF).

Designed for demanding electrical applications, this alternator features an S8 pulley class with an eight-groove pulley measuring approximately 65 mm in outside diameter. Its 4 o’clock clock position helps identify the correct mounting and terminal orientation when matching the replacement unit to the original alternator.

The ATG10423 cross-references Arrowhead AFD0164-220 and J & N 400-14186. It is listed for selected Ford F-Series and Super Duty applications from 2008 to 2010. Verify the engine, original alternator reference, pulley configuration, mounting dimensions, and electrical connections before ordering.

Product Specifications

Specification	Details
Product Name	High Output Alternator
SKU	ATG10423
Unit Type	Alternator
Brand Type	Aftermarket
Item Condition	Aftermarket Part
Alternator Series	4G
Voltage	12V
Amperage	220A
Rotation	Clockwise (CW)
Clock Position	4 o’clock
Pulley Class	S8
Pulley Groove Count	8-Groove
Pulley Outside Diameter	65 mm
Regulator Type	Internal Regulator (IR)
Fan Type	Internal Fan (IF)
Primary Reference Number	AFD0164-220
Cross Reference Number	J & N 400-14186
Compatible Engine	Ford 6.4L (391) V8 Diesel
Estimated Net Weight	7.0 kg (Estimated)

Compatible Applications

Make	Type	Model	Year	Engine
Ford	Auto and Light Truck	F-250 Super Duty	2008	6.4L (391) V8 Diesel
Ford	Auto and Light Truck	F-250 Super Duty	2009	6.4L (391) V8 Diesel
Ford	Auto and Light Truck	F-Series Pickups	2008–2010	6.4L Diesel — verify exact model
Ford	Auto and Light Truck	F-450 Super Duty	2008–2010	6.8L — verify engine and alternator fitment
Ford	Auto and Light Truck	F-550 Super Duty	2008–2010	6.8L — verify engine and alternator fitment

PRODUCT HIGHLIGHTS

Product Highlights

Feature	Description	Benefit
High-Output Charging	12V, 220A output	Supports high electrical power demands in compatible trucks
4G-Series Design	Internal regulator and internal fan	Provides the specified alternator configuration
Eight-Groove Pulley	S8 pulley class, approximately 65 mm OD	Helps match the original belt-drive system
