ATG10424 Alternator 10463098 10463110 7861-7 for Chevrolet GMC C10 C20 C30 Pickup Blazer 4.3L 5.0L 5.7L | 12V 100A CW Replacement

3 Reviews

Add Your Review

US$118.00

ITEMNO： ATG10424

IN STOCK

BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

PRODUCT DETAILS

ATG10424 Alternator 10463098 10463110 7861-7 for Chevrolet GMC C10 C20 C30 Pickup Blazer 4.3L 5.0L 5.7L | 12V 100A CW Replacement

Part Numbers

Brand	OEM / Cross-Reference Part Numbers
AC Delco	321-1035, 321-1044, 321-389, 321-401, 321-402, 321-456, 321-457, 321-555, 334-2360, 334-2365, 334-2406
Andre Niermann	0242915
Arrowhead (Old)	ADR0148
Arrowhead	ADR0121
Barsanco	110-7861
Cargo	110500, 110985, 112338, 112639
Delco	10463098, 10463110, 10463111, 10463164, 10463165, 10463245, 10463415, 10463424, 10479801, 10479802, 10479807, 10479808, 10479921, 10479922, 10480084, 10480094, 1101293, 1101317, 1101318, 1101620, 1101628, 1101629
Delphi	RM1004, RM1041, RM1131
Denso First Time Fit	210-5104, 210-5107, 210-5127, 210-5152
Dixie	A-1311, A-1408
Dixie New	A-1408N
Family	CS130
Hyster	1339174
J & N	400-12117, 400-12125
Lester (Old)	7855-7, 7931-7, 7950-7, 8120-7, 8164-7
Lester	7861-7, 7921-7, 7974-7, 7981-7, 8165-7
Lucas Electrical Europe	LRA01731, LRA01810, LRA01917
Minnpar	47-4936
NAPA Power New	1N-4528F, 1N-4534F, 1N-4577F
NAPA Power Premium Plus	213-4528F, 213-4534F, 213-4577F
NAPA Power Supreme	13-4528F, 13-4534F, 13-4577F
NSA	ALT-1301B, ALT-1334B
PIC	240-5032, 240-5032A, 240-5036, 240-5036A, 240-5040, 240-6036, 240-6040, 240-6041
RCP	AL-7931, AL-8165
Regitar-USA	A240-6036N
Remy Light Duty	20402, 20457, 21035, 21044
Remy Light Duty New	91324
Unipoint	ALT-1336B
USA Industries	7861-7
WAI	1-1621-21DR, 1-1622-21DR, 1-1628-21DR, 1-1629-21DR, 1-1766-22DR
WAI Sales	20-1132-20, 20-1132-22, 20-1132-22-1, 20-139-20, 20-139-21, 20-145-20, 20-145-21, 20-145-21-1
Wilson	90-01-4179, 90-01-4646, 90-01-4647, 90-01-4653, 90-01-4661
Wilson HD	90-01-4179
Wilson New	90-01-4179, 90-01-4646, 90-01-4646N, 90-01-4647, 90-01-4653, 90-01-4661

Product Description

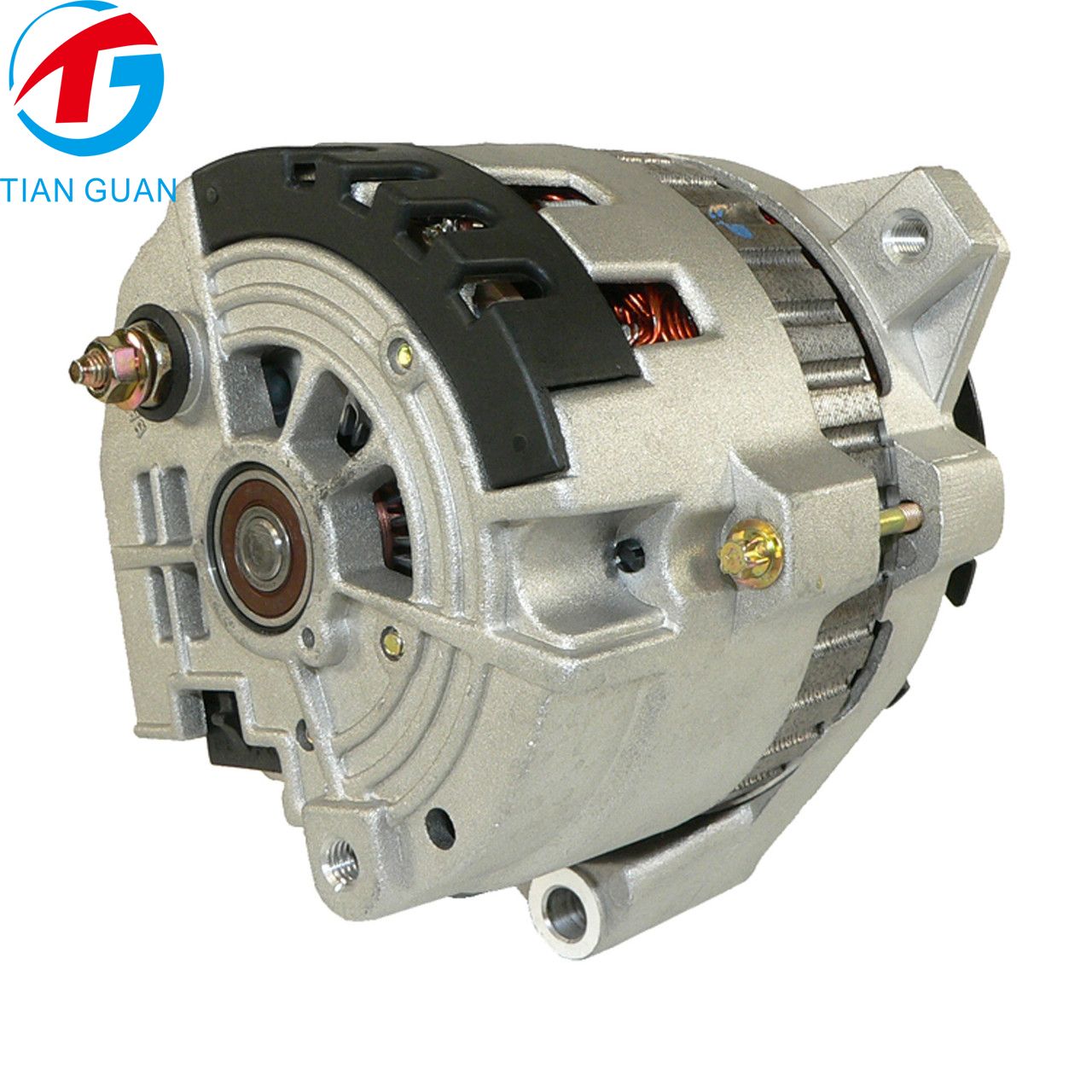

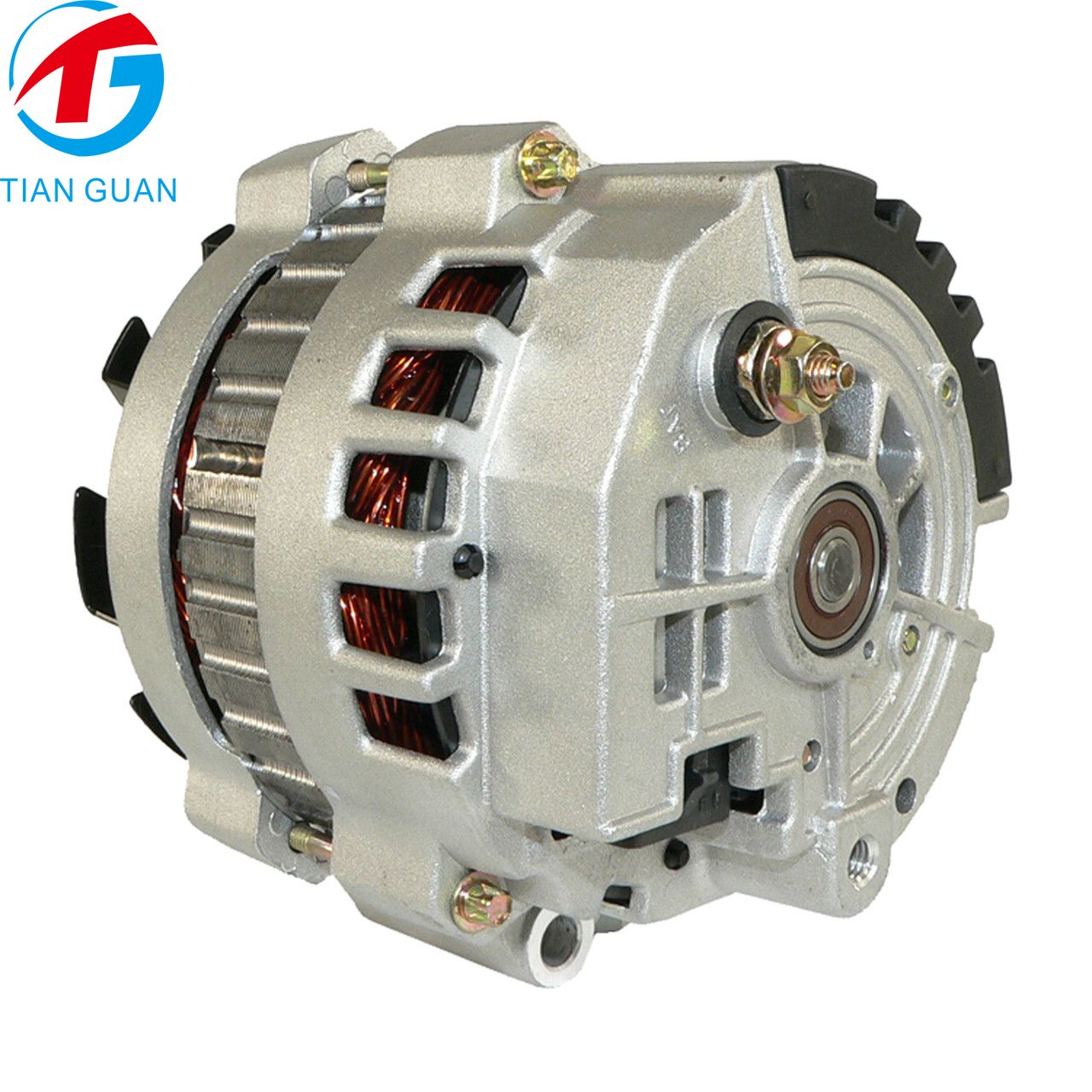

The ATG10424 Alternator is an aftermarket replacement alternator designed for compatible Chevrolet and GMC vehicles and light- to medium-duty truck applications. It operates at 12 volts and delivers a rated output of 100 amps to support the vehicle's electrical system and battery charging requirements.

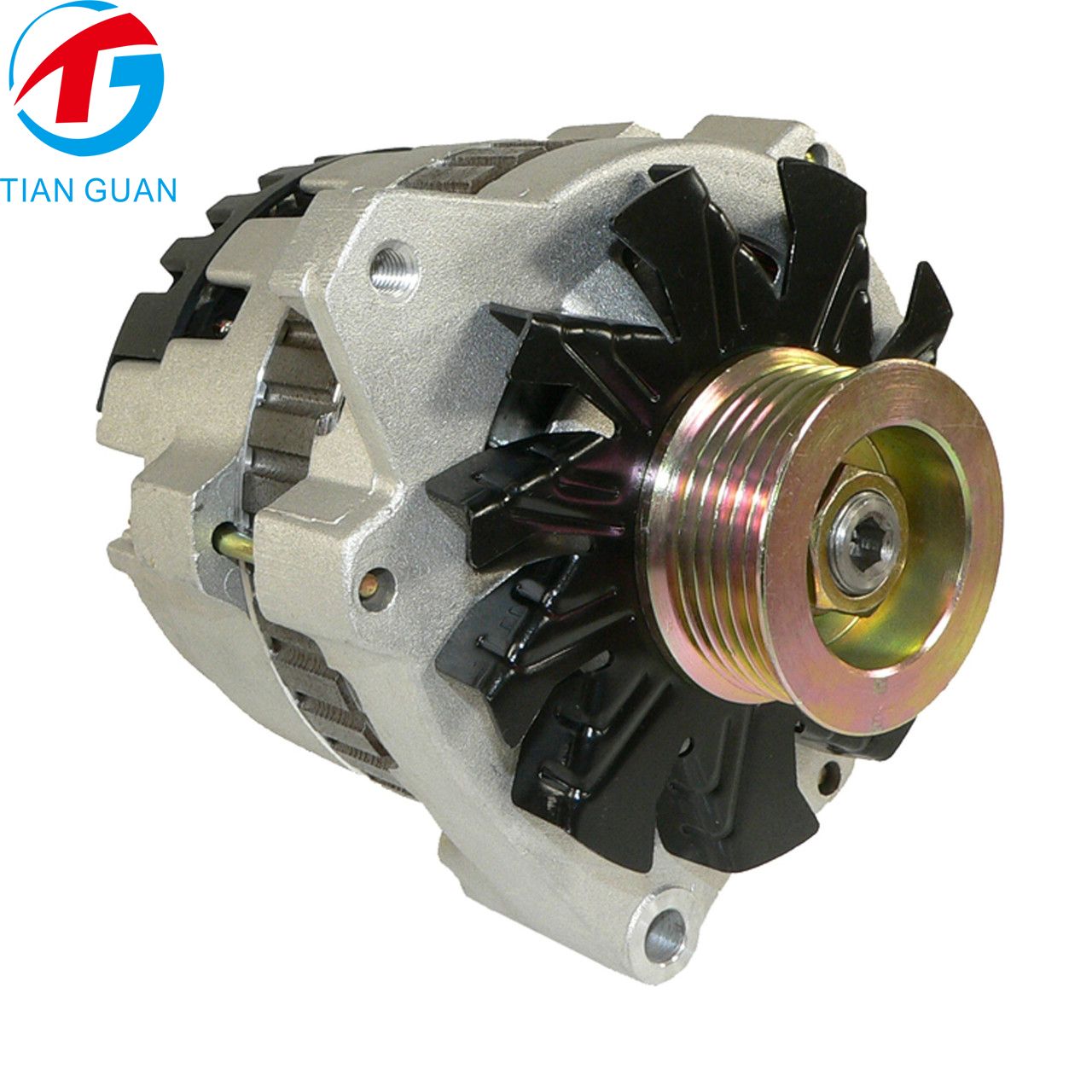

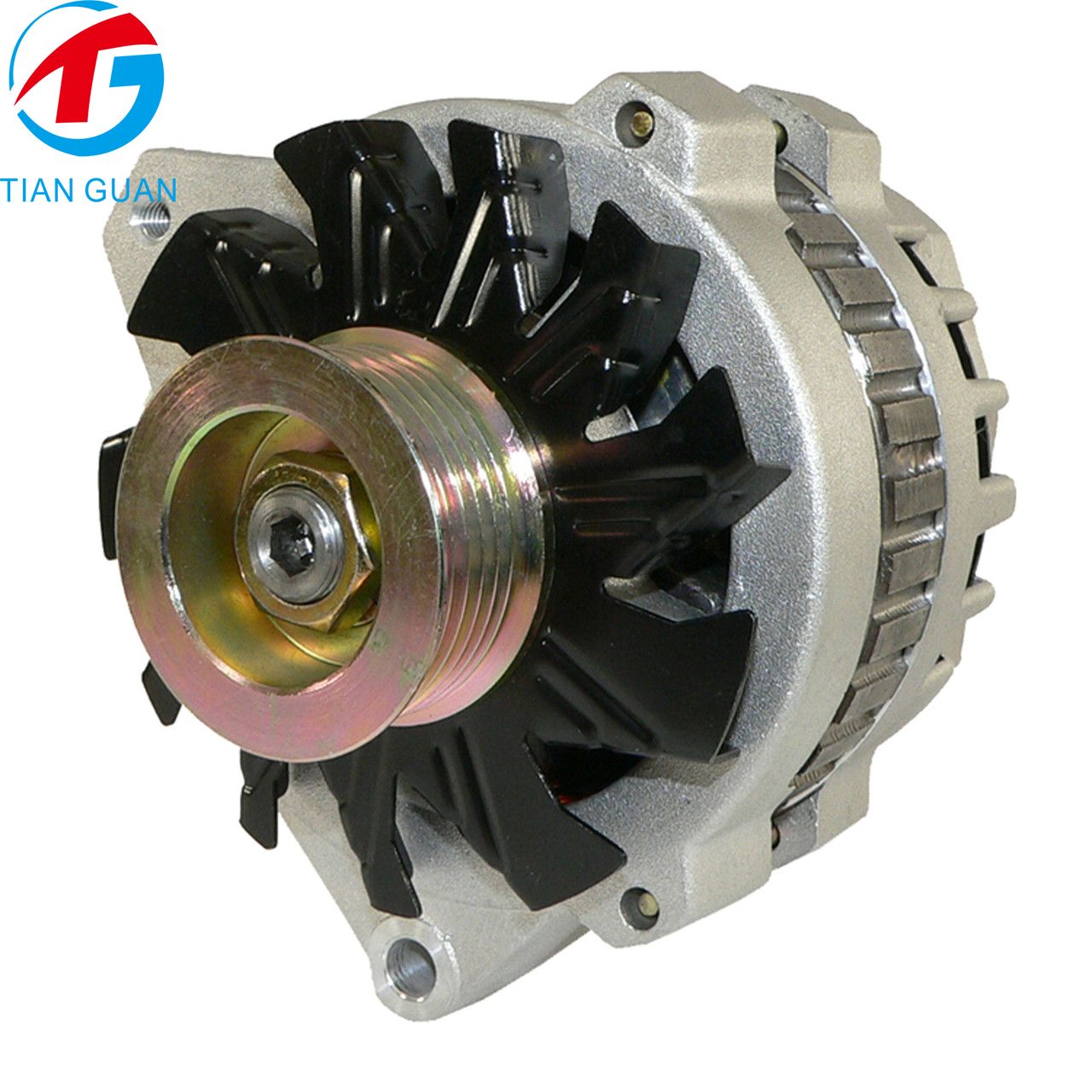

This alternator uses a Delco CS130 design with clockwise (CW) rotation, an internal regulator (IR), an external fan (EF), and a 6-groove pulley measuring approximately 57 mm in outside diameter. The specified configuration includes a 7:00 electrical plug position, a #429 regulator, and pulley class 1255. These details are important when matching the replacement unit to the original alternator.

The listed cross-references include Delco 10463098, 10463110, Lester 7861-7, Arrowhead ADR0121, and numerous other aftermarket and remanufactured part numbers. The supplied application information references Chevrolet and GMC C/K-series pickups, Blazer models, Lumina, P-Series trucks and vans, and Chevrolet C50 trucks. Because the supplied fitment records contain incomplete engine details and some year differences, verify the original alternator number and vehicle configuration before ordering.

Key Features

100A Charging Output: Rated at 100 amps and 12 volts for compatible charging systems.
Delco CS130 Configuration: Features an internal regulator, external fan, clockwise rotation, and 7:00 plug position.
6-Groove Pulley: Specified with a 57 mm outside diameter and pulley class 1255.

Product Specifications

Item	Specification
Product SKU	ATG10424
Product Name	Alternator
Product Type	Automotive Alternator
Unit Type	Alternator
Condition	Aftermarket Part
Voltage	12V
Amperage	100A
Alternator Family	Delco CS130
Rotation	Clockwise (CW)
Regulator Type	Internal (IR)
Fan Type	External (EF)
Pulley Class	1255
Pulley Type	6-Groove
Pulley Outside Diameter	57 mm
Electrical Plug Position	7:00
Regulator Reference	#429
Compatible Makes	Chevrolet, GMC
Primary Reference	Delco 10463098
Cross References	See Part Numbers table
Estimated Net Weight	5.0 kg (Estimated)

Vehicle / Equipment Fitment

Make	Vehicle Type	Model	Year	Engine
Chevrolet / GMC	Truck	P-Series Trucks and Vans	1994	Not specified
Chevrolet	Car	Lumina	1993	2.2L (134 cu. in.) L4
Chevrolet	Medium/Heavy Truck	C50	1989	5.7L (350 cu. in.) V8
Chevrolet	Medium/Heavy Truck	C50	1990	5.7L (350 cu. in.) V8 — verify
Chevrolet / GMC	Pickup Truck	C10, C20, C30	Refer to fitment note	4.3L, 5.0L, or 5.7L — verify exact year and engine
Chevrolet	SUV	Blazer	1988–1994, as stated in product title	Verify engine and configuration

PRODUCT HIGHLIGHTS

Product Highlights

Feature	Description	Benefit
100A Output	12V alternator rated at 100 amps	Supports charging and electrical power for compatible vehicles
CS130 Design	Internal regulator, external fan, and clockwise rotation	Helps match the original alternator's specified operating configuration
Multiple Cross-References	Includes Delco, AC Delco, Lester, Arrowhead, Bosch-related aftermarket references, and other supplier numbers	Makes replacement identification easier
