ATG10425 Alternator K7561-61910 K7561-61913 K7561-61914 for Kubota B3000 B3030 RTV1140 12V 55 Amp Replacement

Part Numbers

Product Description

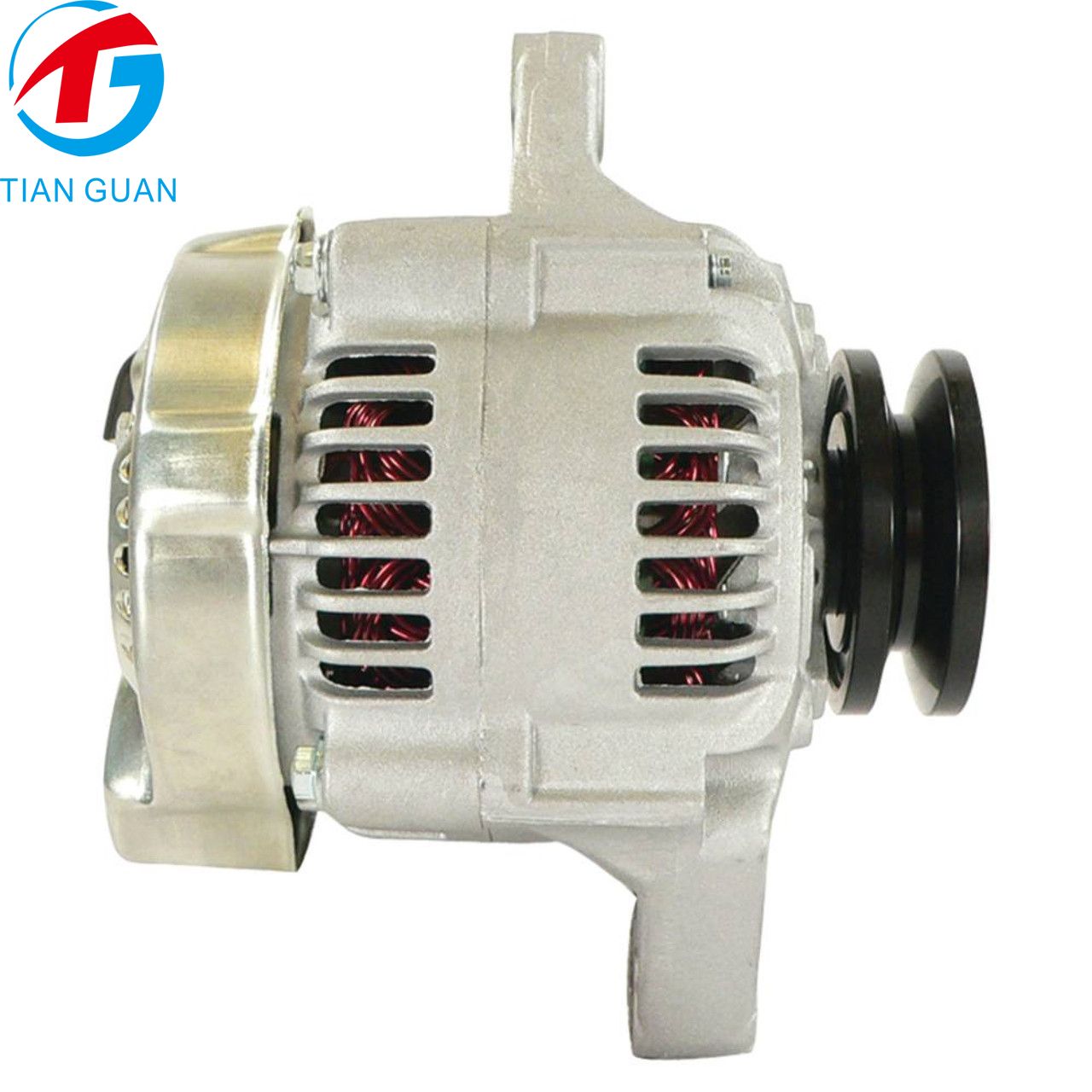

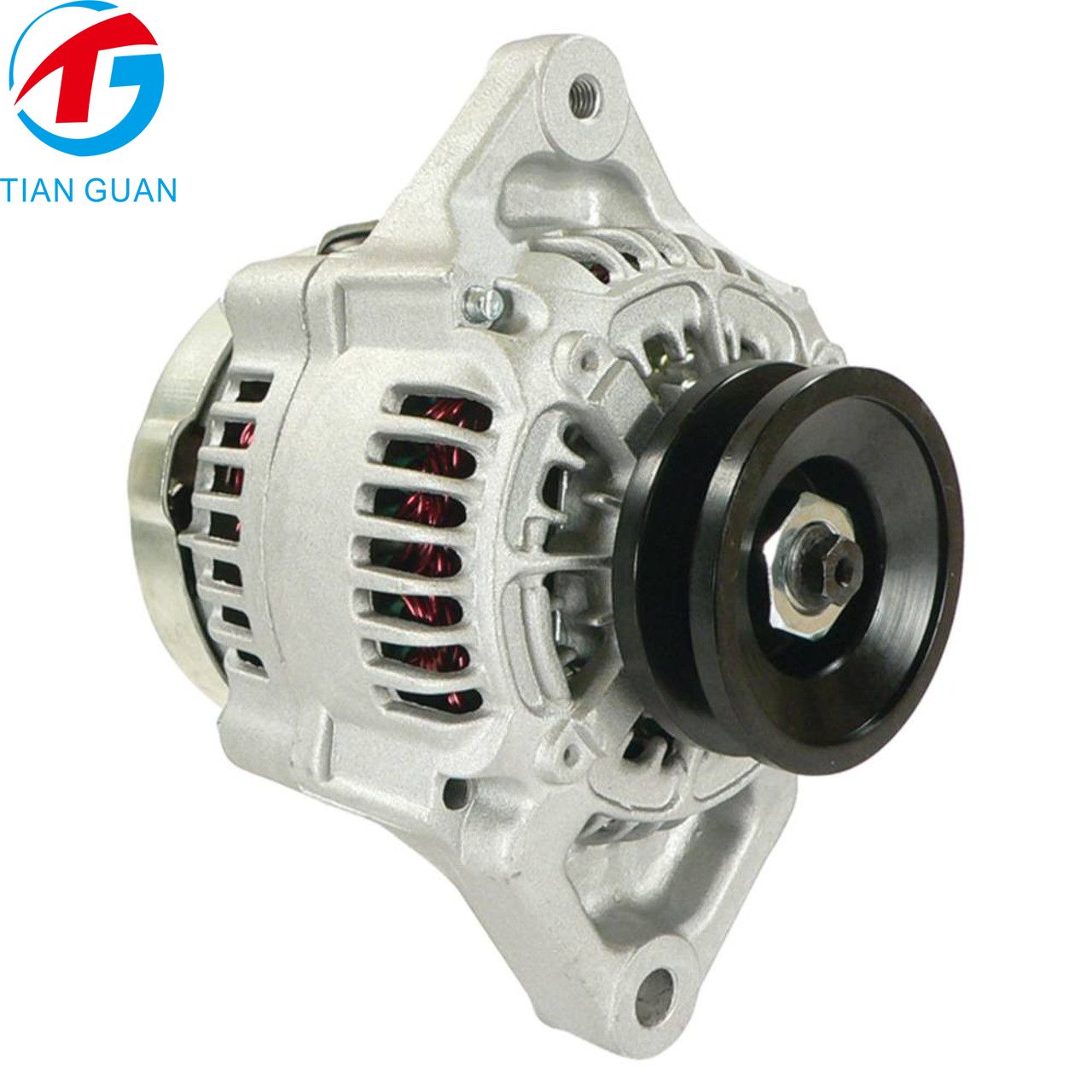

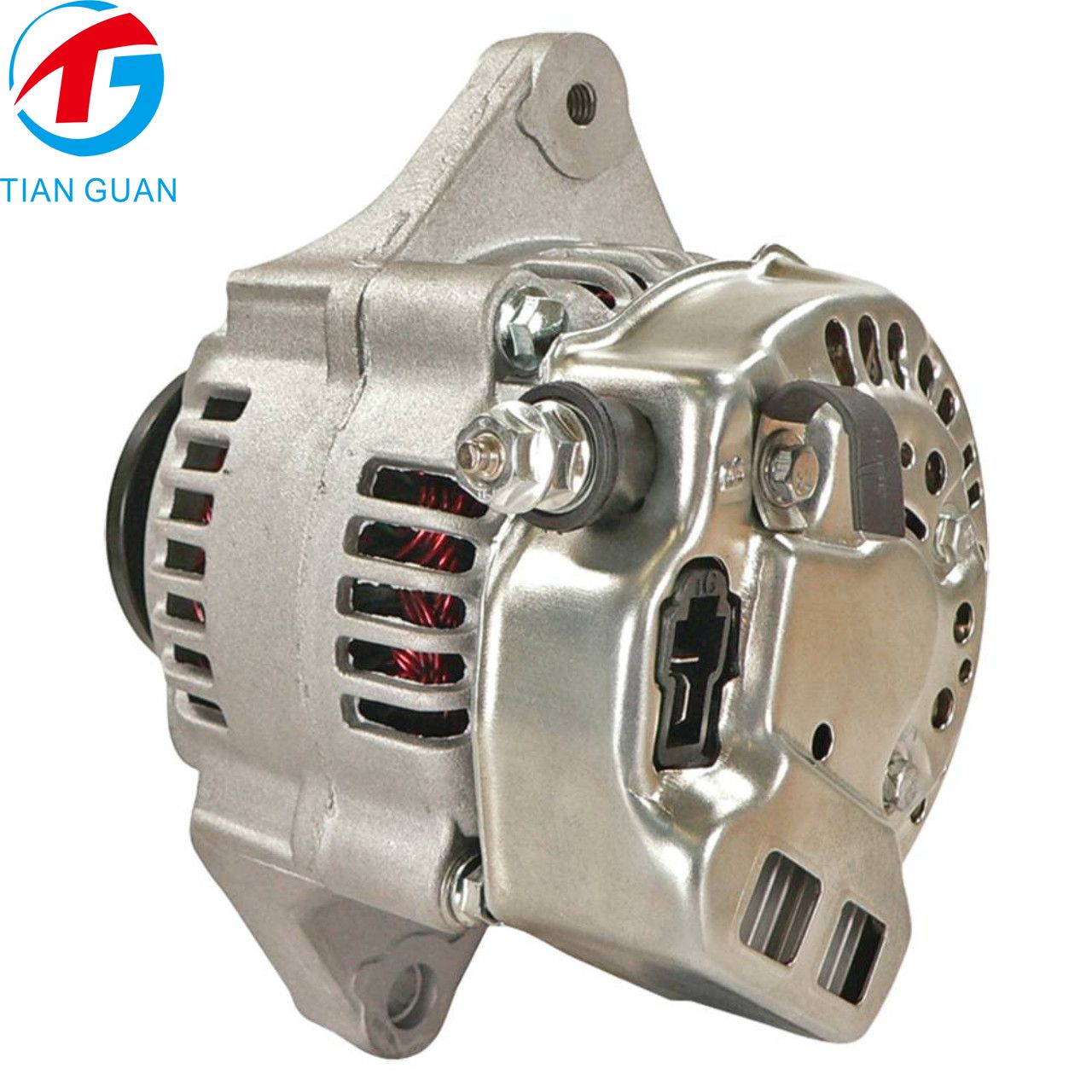

The ATG10425 Alternator is an aftermarket replacement designed for selected Kubota tractors and utility vehicles. Rated at 12 volts and 55 amps, it helps supply electrical power to the vehicle's electrical systems and maintain battery charge during normal operation.

This alternator features an internal regulator and internal fan, with a regulator position specified at 9 o’clock and negative polarity. The output stud uses an M6-1.0 thread, and the electrical connection is an IG and L T-shaped plug. These specifications are important when matching the replacement alternator to the original unit. Check the mounting configuration, connector shape, regulator position, and output terminal before installation.

The ATG10425 cross-references Kubota part numbers K7561-61910, K7561-61913, and K7561-61914. Listed applications include selected Kubota B3000HSDC, B3000HSDCC, B3030HSDC, B3030HSDCC tractors, and the RTV1140CPX utility vehicle. Model years and engine details were not provided, so confirm compatibility using the equipment model and original alternator part number before ordering.

Key Features

• Product SKU: ATG10425

• Product Type: Alternator

• Condition: Aftermarket Part

• Voltage: 12V

• Amperage: 55A

• Regulator: Internal

• Fan Type: Internal

• Regulator Position: 9 o’clock

• Polarity: Negative

• Output Stud Thread: M6-1.0

• Electrical Connector: IG and L T-shaped plug

• OEM References: K7561-61910, K7561-61913, K7561-61914

• Listed Applications: Selected Kubota B3000 and B3030 tractors and RTV1140CPX utility vehicle

Product Specifications
