ATG10512 Alternator 19010103 ADR0046 1117922 1117923 1117934 1117937 1117943 1117961 1117963 1117964 for Agco Challenger Farm Tractor MTC745 MTC755
Part Numbers
AC DELCO: 321-674, 321-682, 321-683, 321-685, 321-686, 321-687, 321-688
AGCO: 71370306
ARROWHEAD: ADR0046, BAL9960LH, MG490, IA1058
CARGO: 111232, 112995, 112996, 113432
CATERPILLAR: 0R9480, 117-1379, 121-4134, 121-4135, 3E8827, 9X9096
CUMMINS: 3604667RX, 3604668RX, 3675158RX, 3920615
DELCO: 10459013, 10459017, 10459037, 10459047, 10459050, 10459051, 10459336, 1117885, 1117886, 1117887, 1117890, 1117891, 1117892, 1117905, 1117909, 1117910, 1117918, 1117920, 1117922, 1117923, 1117934, 1117937, 1117943, 1117961, 1117963, 1117964, 1117965, 1117966, 19010101, 19010103, 19010104, 19010105, 19010114, 19010115, 19010126, 19010127, 19010129, 19010141, 19010145, 19010147, 19010168, 19010181, 19010192, 19010196
INTL HARVESTER: 1677975C91
J & N: 400-12072, 400-12072R, 400-12074R, 400-12082, 400-12082R, 400-12266
JOHN DEERE: AT142246, TY6753
LESTER: 7641, 7660, 7662, 7663, 7664, 7668, 7673, 7679, 7680, 7681, 7685, 7686, 8016, 8017, 8018, 8019, 8022, 8023, 8025, 8031
LESTER (OLD): M20149, M20154
LETRIKA (ISKRA): IA 1058
MAHLE: MG490
NEW HOLLAND: 9824834
REGITAR-USA: A240-848N, A240-859N, A240-861N
REMY LIGHT DUTY: 51211, 51215, 51217, 53103, 53104, 53169
WAI: 7681N, 7685N
Product Description

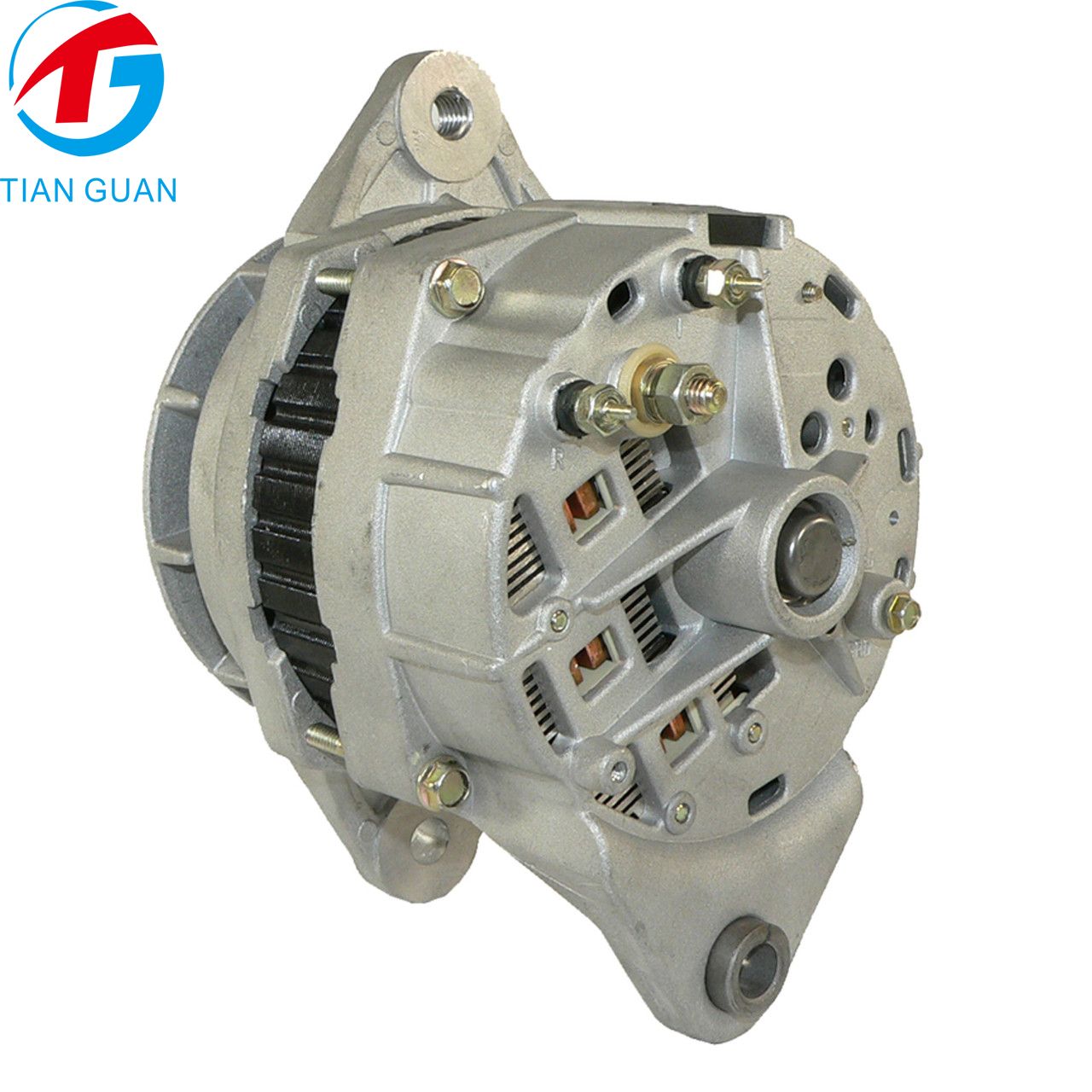

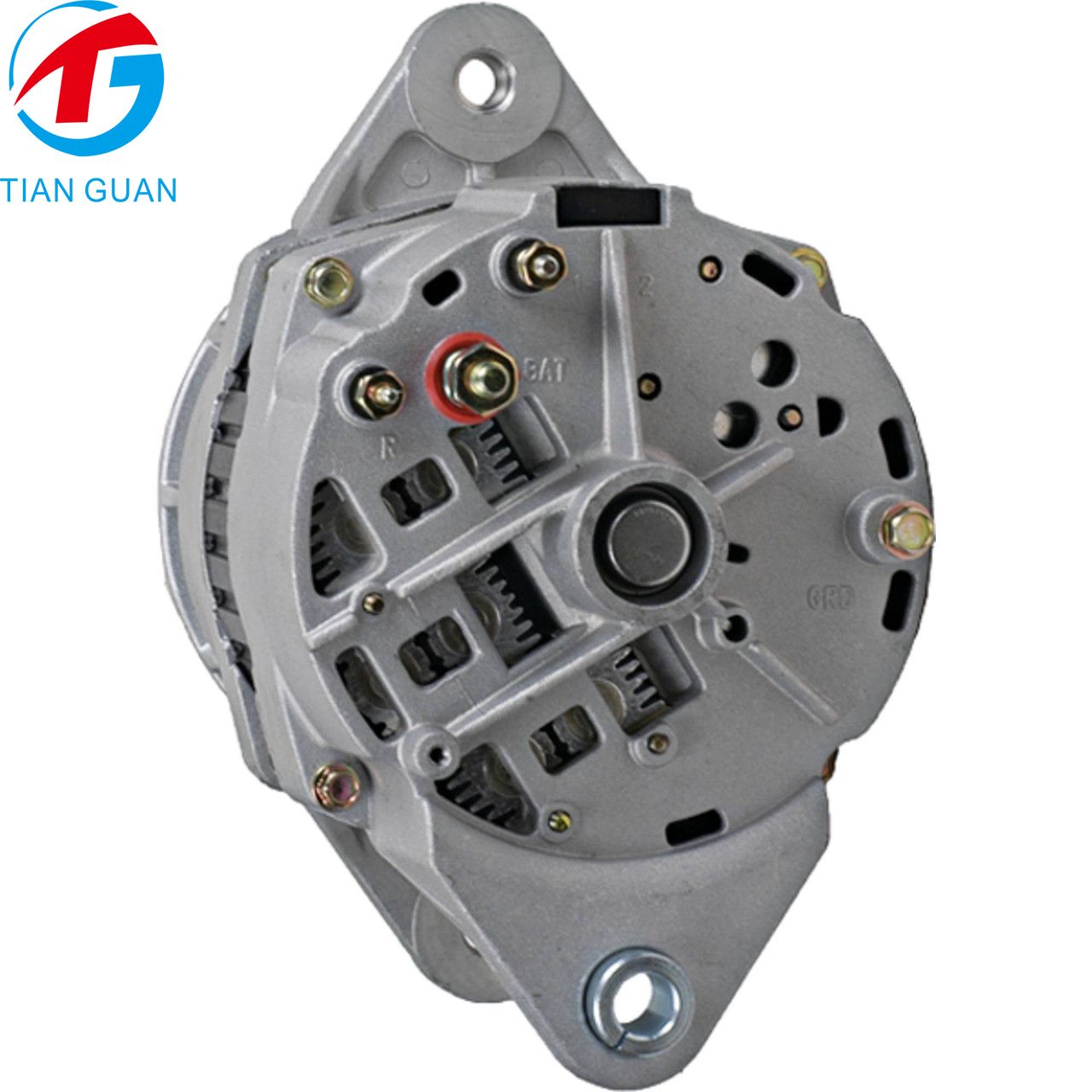

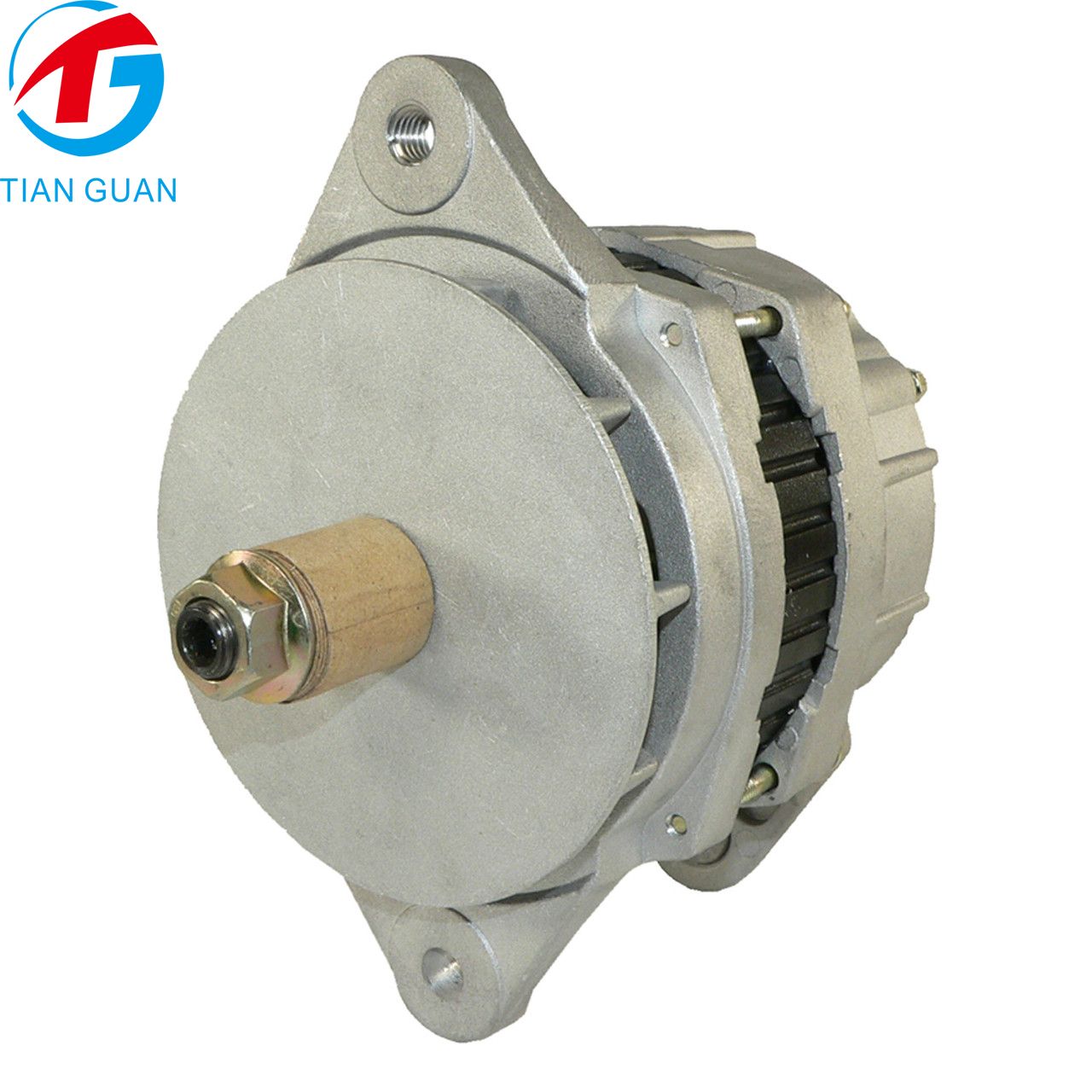

This premium aftermarket 12V 100A Alternator is designed as a direct replacement for AGCO Challenger, AGCO Allis, AGCO White, Caterpillar, Claas, Freightliner, Gleaner, John Deere, Kenworth, and Mack applications. With 100A output, bi-directional (BI) rotation, internal regulator (IR), external fan (EF), and Delco 21SI design, it delivers reliable charging performance and dependable service in demanding agricultural, industrial, marine, and heavy-duty truck applications.
This alternator replaces OE part numbers 321-674, 321-682, 321-683, 321-685, 321-686, 321-687, 321-688 (AC Delco), 71370306 (AGCO), ADR0046, BAL9960LH, MG490, IA1058 (Arrowhead), 111232, 112995, 112996, 113432 (Cargo), 0R9480, 117-1379, 121-4134, 121-4135, 3E8827, 9X9096 (Caterpillar), 3604667RX, 3604668RX, 3675158RX, 3920615 (Cummins), 10459013, 10459017, 10459037, 10459047, 10459050, 10459051, 10459336, 1117885, 1117886, 1117887, 1117890, 1117891, 1117892, 1117905, 1117909, 1117910, 1117918, 1117920, 1117922, 1117923, 1117934, 1117937, 1117943, 1117961, 1117963, 1117964, 1117965, 1117966, 19010101, 19010103, 19010104, 19010105, 19010114, 19010115, 19010126, 19010127, 19010129, 19010141, 19010145, 19010147, 19010168, 19010181, 19010192, 19010196 (Delco), and additional cross-reference numbers listed above.
12V alternator
100A amperage
Bi-Directional (BI) rotation
Internal regulator (IR)
External fan (EF)
Delco 21SI design
1-Wire System
Threaded I-Terminal
Combination Pin / Threaded R-Terminal
Direct replacement for AGCO Challenger MTC745 / MTC755
Fits agricultural, industrial, marine, and heavy-duty truck applications
Reliable charging performance
Durable construction
Aftermarket replacement part
Approx. 7.4 kg
Specifications
Item Condition: Aftermarket Part
Unit Type: Alternator
Voltage: 12V
Rotation: BI
Amperage: 100A
Regulator: IR
Fan Type: EF
Fits: Delco 21SI Alternator
Dimension: Replacement 100A Units Have: 1-Wire System, Threaded I-Terminal, Combination Pin / Threaded R-Terminal
Application: Agricultural, Industrial, Marine and HD Truck Applications
Weight: 7.4KG
Fitment
AGCO Challenger – Tractor MTC745 / MTC755
AGCO Allis – Tractor 8360 AGCOSTAR / 8425 AGCOSTAR
AGCO Star – Tractor 1000 McConell-Marc / 8425 / 900 McConell-Marc
AGCO White – Tractor 8310 / 8410 / 8510 PS / 8610 PS / 8710 PS / 8810 PS
Caterpillar – Tractor 35 / 45 / 55 / 65B / 65C / 75 / 75C / 85C Challenger, MT735 / MT745 / MT755 / MT765 / MTC735 / MTC745 / MTC755 / MTC765
Caterpillar – Asphalt Paver AP1000 / AP1050
Caterpillar – Combine Lexion 450 / 460 / 465 / 470
Claas – Combine Lexion 450 / 460 / 465 / 470
Freightliner – C112 / C120 Century Class, Classic, FL / FLC 112 / 120, FL 106, FL 50 / 60 / 70 / 80 / 90, FLD 112 / 120
Gleaner – Combines R42 / R52 / R62 / R72
John Deere – Loaders 544E / 624E / 644E, Skidders 540E / 548E / 640E / 648E / 740E / 748E, Tool Carriers 544E
Kenworth – C500 / K100 / K300 / T300 / T400 / T450 / T600 / T800 / W900
Mack – CH / CL / CM / CS / DM / DMM / F / FL / FS / FDM / MC / MH / MR / R / RB / RD / RL / RM / RS / RW Series
