ATG10676 Alternator F6LU-10300-CA F6LU-10300-CB 400-14029 for Ford Crown Victoria, Mustang and Lincoln Mark VIII 4.6L | 12V 130A CW 6-Groove Pulley Replacement

3 Reviews

Add Your Review

US$118.00

ITEMNO： ATG10676

IN STOCK
BUY NOW ADD TO CART

Good Packaging

Safe Payment

100k+ Customers Top Choice

1 Year Warranty

90-Day Return

24/7 Service

TAGS：

Product Details Product Highlights Shipping

  • PRODUCT DETAILS

    ATG10676 Alternator F6LU-10300-CA F6LU-10300-CB 400-14029 for Ford Crown Victoria, Mustang and Lincoln Mark VIII 4.6L | 12V 130A CW 6-Groove Pulley Replacement

    Part Numbers

    ACECA5454-1-58
    ARROWHEADAFD0048, 400-14029
    BARSANCO120-7781
    CARGO112943
    DIXIEA-2035, A-270
    FAMILY4G
    FORDF6LU-10300-CA, F6LU-10300-CB, F6LU-10300-CC, F6LU-10300-CD, F6LY-10346-A, F6ZU-10300-BB, F6ZU-10300-BC, F6ZU-10300-BE, F6ZU-10300-BG, F6ZZ-10346-B, YR3U-10300-AA, YR3U-10300-AB, YR3Z-10346-AA
    J & N (OLD)400-14030
    J & N400-14029
    LESTER (OLD)7782
    LESTER7781
    MINNPAR47-1846
    MOTORCRAFTGL-356, GL-357, GL-525
    NAPA POWER NEW1N-3116H
    NAPA POWER PREMIUM PLUS213-3116H, 213-3154H
    NAPA POWER SUPREME13-3116H, 13-3154H
    NSAALT-1904
    PIC250-272, 250-272A
    REGITAR-USAA250-272N
    REMY LIGHT DUTY NEW92401
    REMY LIGHT DUTY23654, 23728
    USA INDUSTRIES7781
    VISTEON4N, 9J, BQ
    WAI SALES20-242-10, 20-242-11
    WAI1-1988-10FD, 1-1988-11FD, 1-1988-13FD, 7781N
    WILSON NEW90-02-5079, 90-02-5079N
    WILSON90-02-5079
    WOOD AUTORTF39843

    Product Description

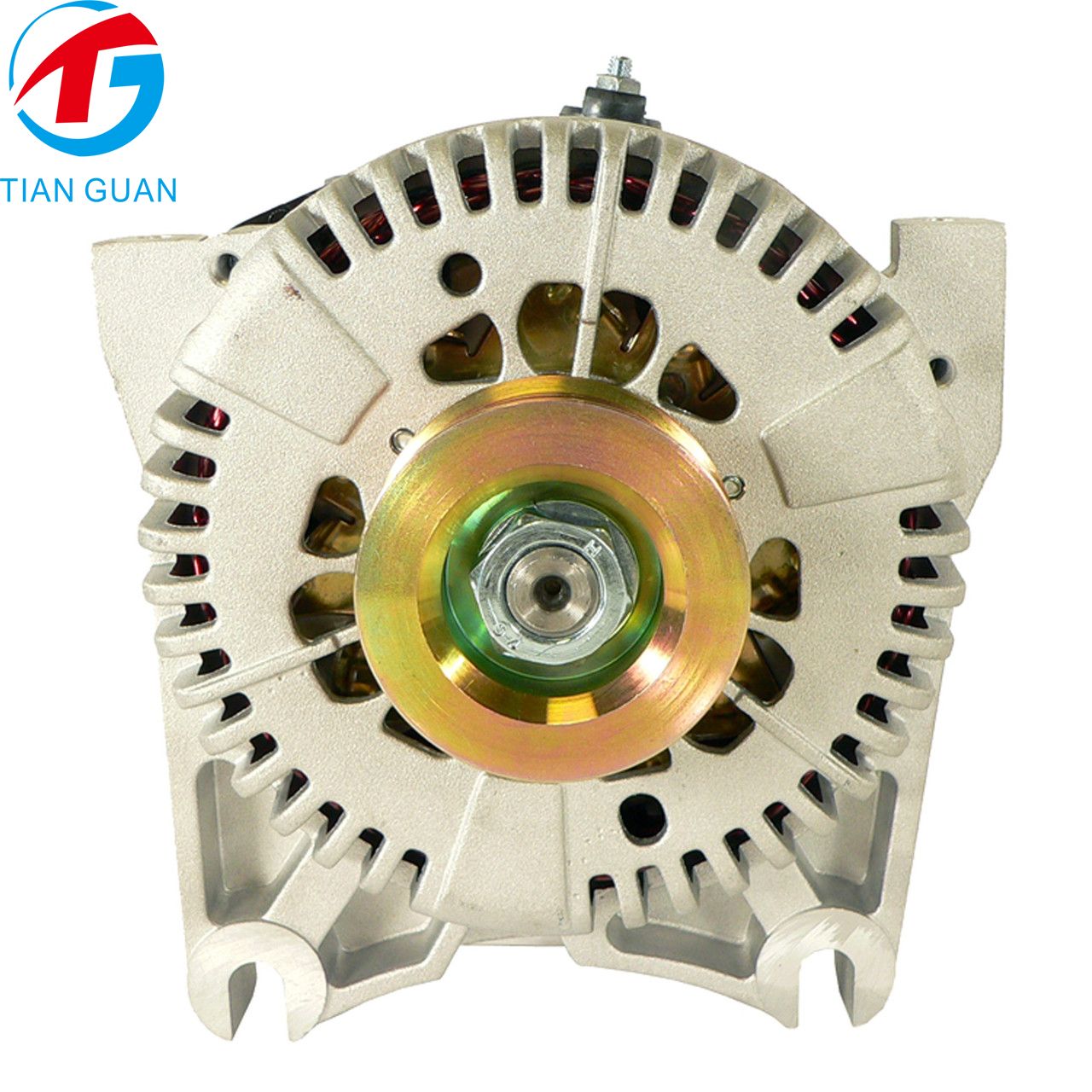

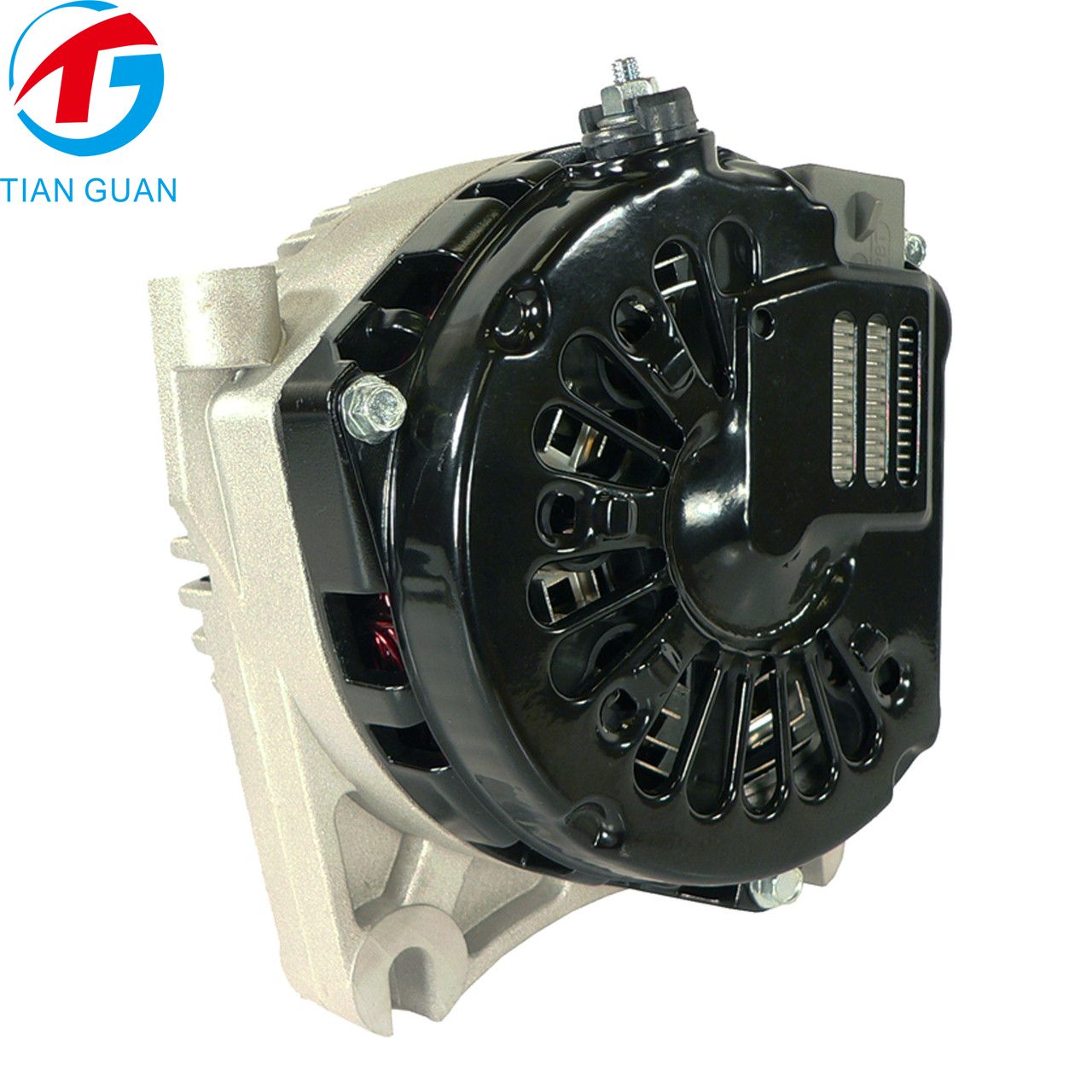

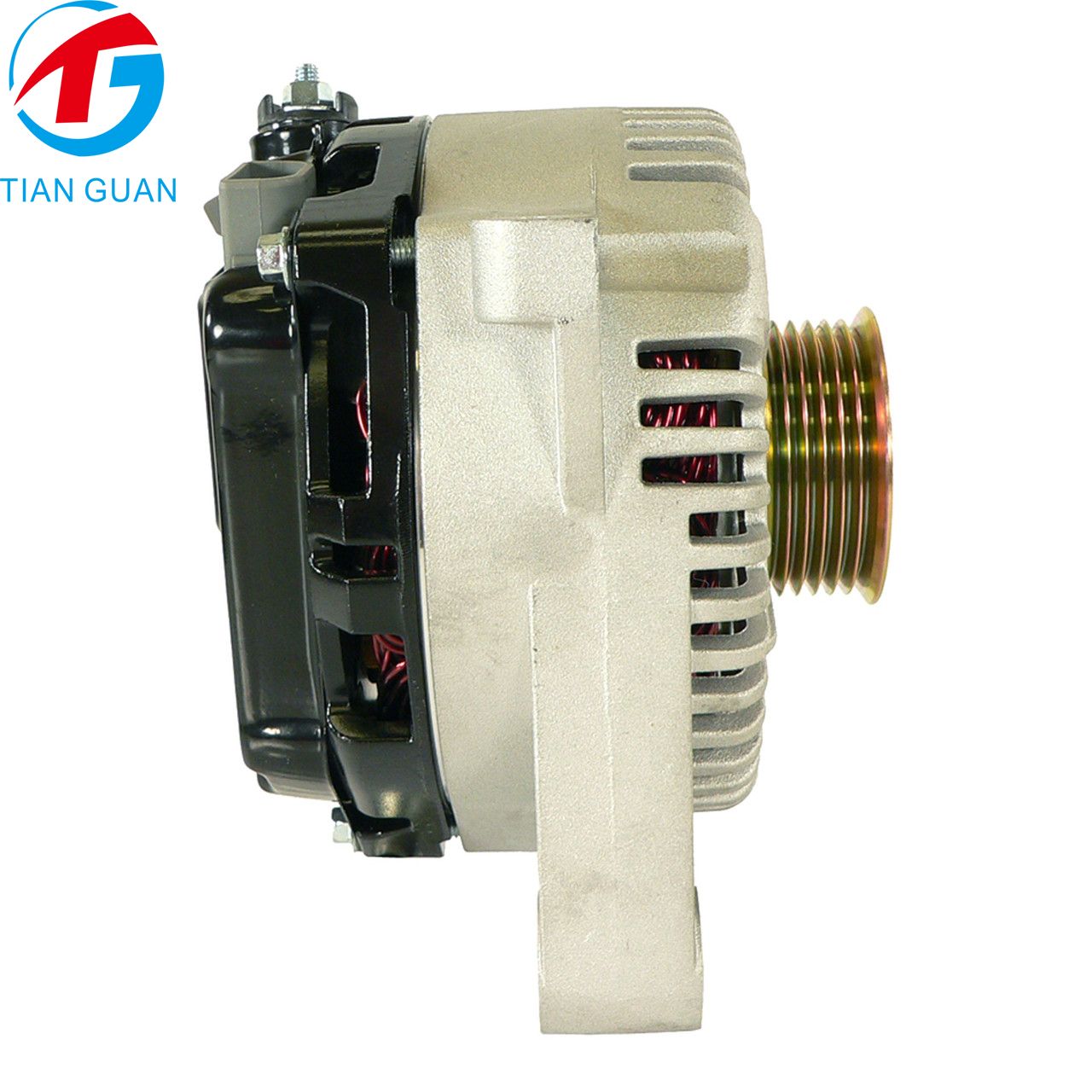

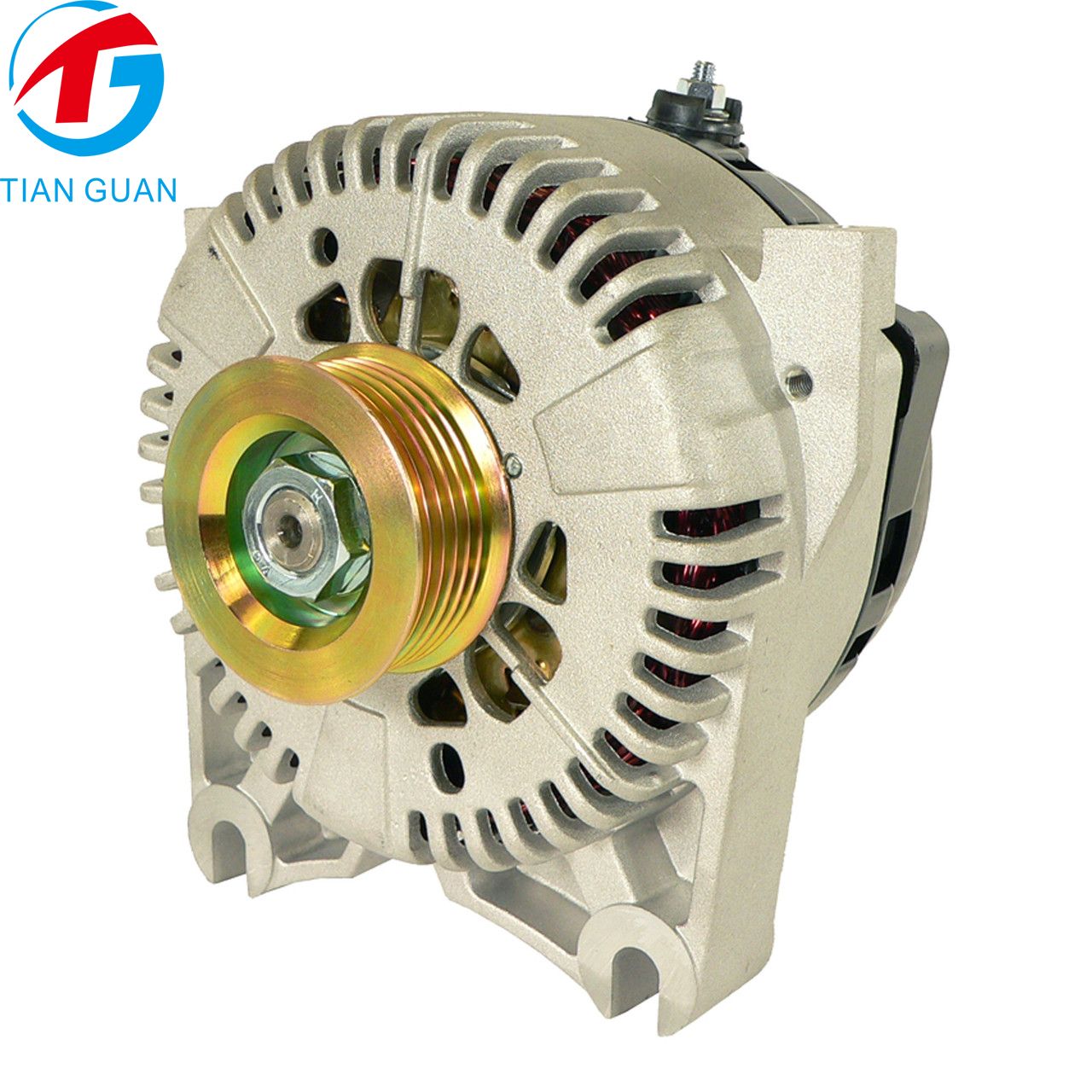

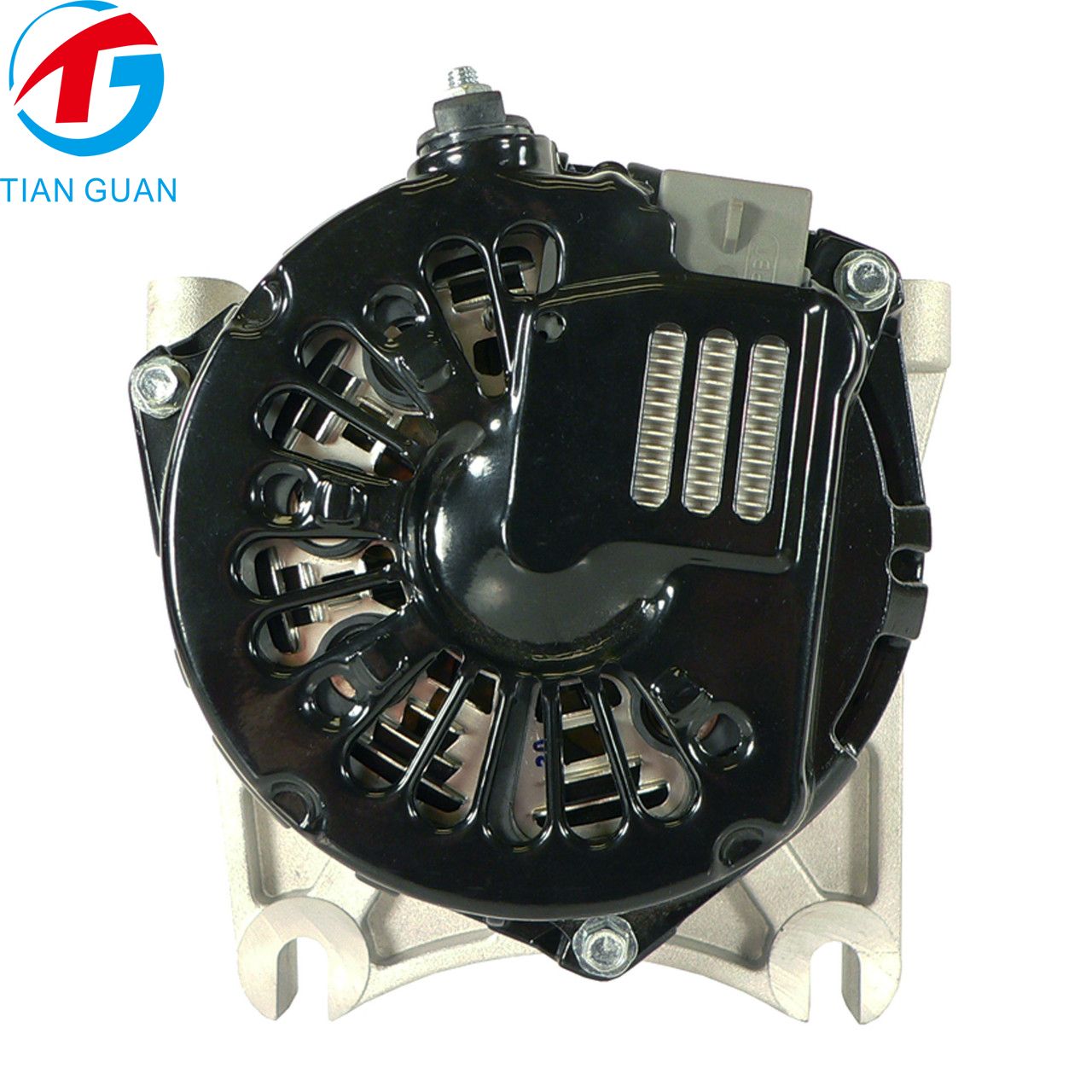

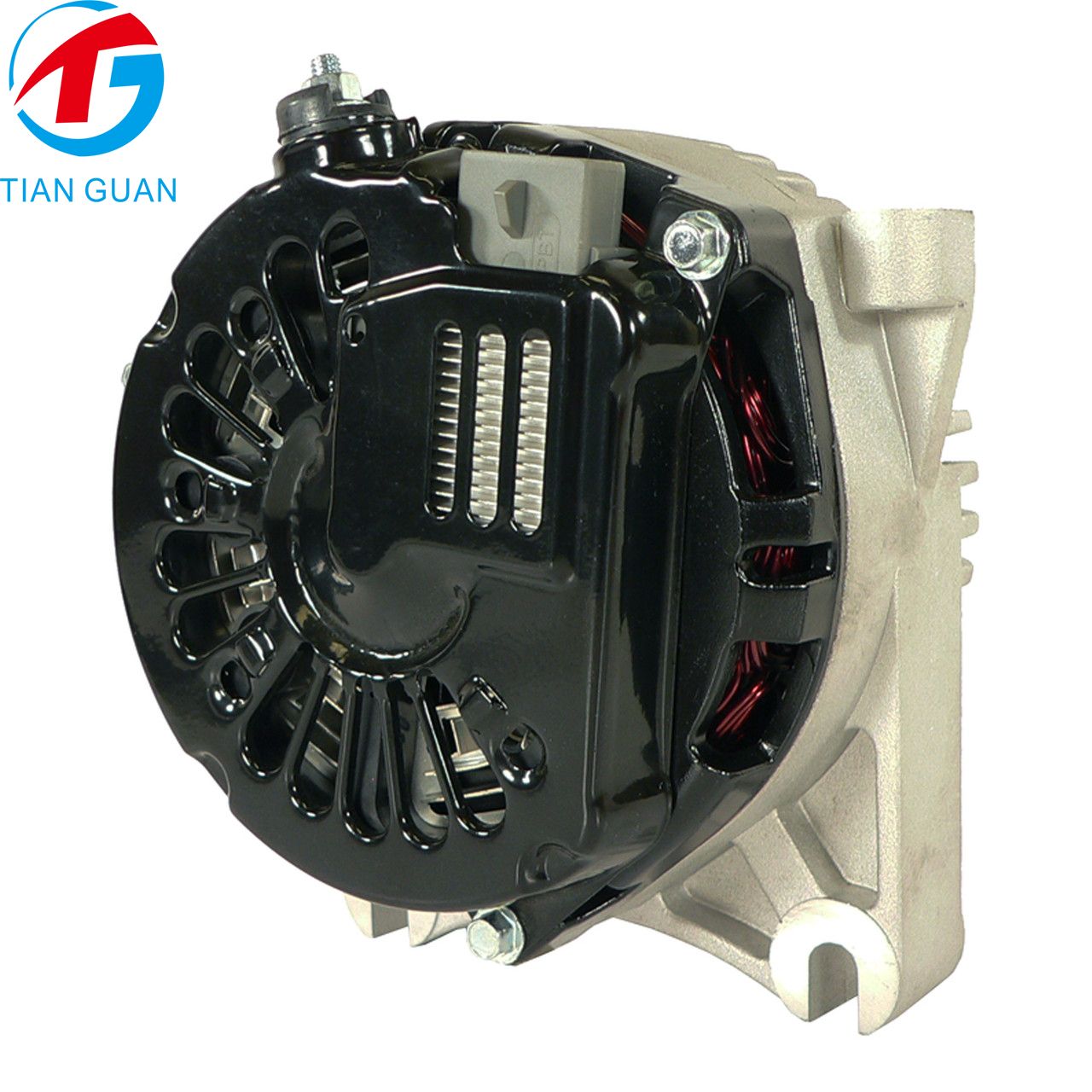

    The ATG10676 Alternator is an aftermarket replacement designed for compatible Ford and Lincoln vehicles equipped with 4.6L V8 engines. It operates on a 12V electrical system and delivers a rated output of 130A. This alternator features clockwise (CW) rotation, an internal regulator (IR), an internal fan (IF), and a six-groove pulley with a specified outside diameter of 59 mm.

    This unit cross-references Ford F6LU-series and YR3U-series part numbers, Arrowhead 400-14029, Lester 7781, Motorcraft GL-356, GL-357, and GL-525, and numerous additional references listed above. These cross-references help identify a suitable replacement for compatible original charging-system configurations.

    The supplied application information includes Ford Crown Victoria, Ford Mustang, and Lincoln Mark VIII models with 4.6L engines. The detailed fitment table confirms selected Crown Victoria applications from 1995 through 1999, while the broader product data lists additional model-year ranges for the Mustang and Mark VIII. Verify the exact vehicle year, engine, original alternator number, regulator position, and pulley configuration before ordering.

    Product Specs

    Item ConditionAftermarket Part
    Unit TypeAlternator
    Voltage12
    RotationCW
    Amperage130
    Clock1
    Pulley Class2264
    RegulatorIR
    Fan TypeIF
    FitsFORD CROWN VICTORIA 4.6L 1995-2000
    FORD MUSTANG 4.6L 1996-2000
    LINCOLN MARK VIII 4.6L 1996-1998
    6-GROOVE PULLEY 59mm OD

          Compatible Applications

    MAKETYPE MODEL YEAR ENGINE
    FORDAuto and Light TruckCROWN VICTORIA19954.6L(281) V8
    FORDAuto and Light TruckCROWN VICTORIA19964.6L(281) V8
    FORDAuto and Light TruckCROWN VICTORIA19974.6L(281) V8
    FORDAuto and Light TruckCROWN VICTORIA19984.6L(281) V8
    FORDAuto and Light TruckCROWN VICTORIA19994.6L(281) V8
    FORDAuto and Light TruckCROWN VICTORIA20004.6L(281) V8
    FORDAuto and Light TruckMUSTANG19964.6L(281) V8
    FORDAuto and Light TruckMUSTANG19974.6L(281) V8
    FORDAuto and Light TruckMUSTANG19984.6L(281) V8
    FORDAuto and Light TruckMUSTANG19994.6L(281) V8
    FORDAuto and Light TruckMUSTANG20004.6L(281) V8
    FORDAuto and Light TruckMUSTANG20014.6L(281) V8
    FORDAuto and Light TruckMUSTANG20024.6L(281) V8
    LINCOLNAuto and Light TruckMARK SERIES19964.6L(281) V8
    LINCOLNAuto and Light TruckMARK SERIES19974.6L(281) V8
    LINCOLNAuto and Light TruckMARK SERIES19984.6L(281) V8

    Packaging Information

    Item

    Details

    Estimated Net Weight

    5.5 kg (5500 g)

    Estimated Gross Weight

    6.0 kg (6000 g)

    Package Dimensions

    To be confirmed

    Packaging

    Protective packaging for shipment


  • PRODUCT HIGHLIGHTS

    Product Highlights

    Feature

    Description

    Benefit

    12V, 130A Output

    Designed for compatible 4.6L V8 charging systems

    Supports battery charging and vehicle electrical loads

    Six-Groove Pulley

    Features a 59 mm outside-diameter pulley

    Helps match the original belt-drive configuration

    Internal Regulator and Fan

    Uses IR/IF construction with a specified clock position of 1

    Supports compatibility with the intended alternator setup

  • SHIPPING

    Item Details
    Processing Time Orders are processed within 1-3 business days after payment confirmation
    Shipping Methods DHL/UPS/ FedEx/ TNT/ Air Freight/ Sea Freight
    Estimated Delivery Time Express shipping: 3-7 business days, depending on destination
    Packaging Export-standard cartons with protective inner packing
    Tracking Tracking number will be provided once the order is shipped
    Shipping Cost Calculated based on weight, dimensions, and destination
