ATG10933 Alternator 9L3Z-10346-B 104210-5960 11204 for Ford F-150 4.6L V8 2009–2010 and Lincoln Mark LT 5.4L | 12V 135A 6-Groove Pulley Replacement

Part Numbers

Product Description

The ATG10933 alternator is a 12V, 135A aftermarket replacement designed for compatible Ford F-150 pickup trucks equipped with the 4.6L V8 engine from 2009 to 2010. It cross-references Ford part number 9L3Z-10346-B and Denso part number 104210-5960, along with compatible references from Arrowhead, J & N, Lester, and Motorcraft.

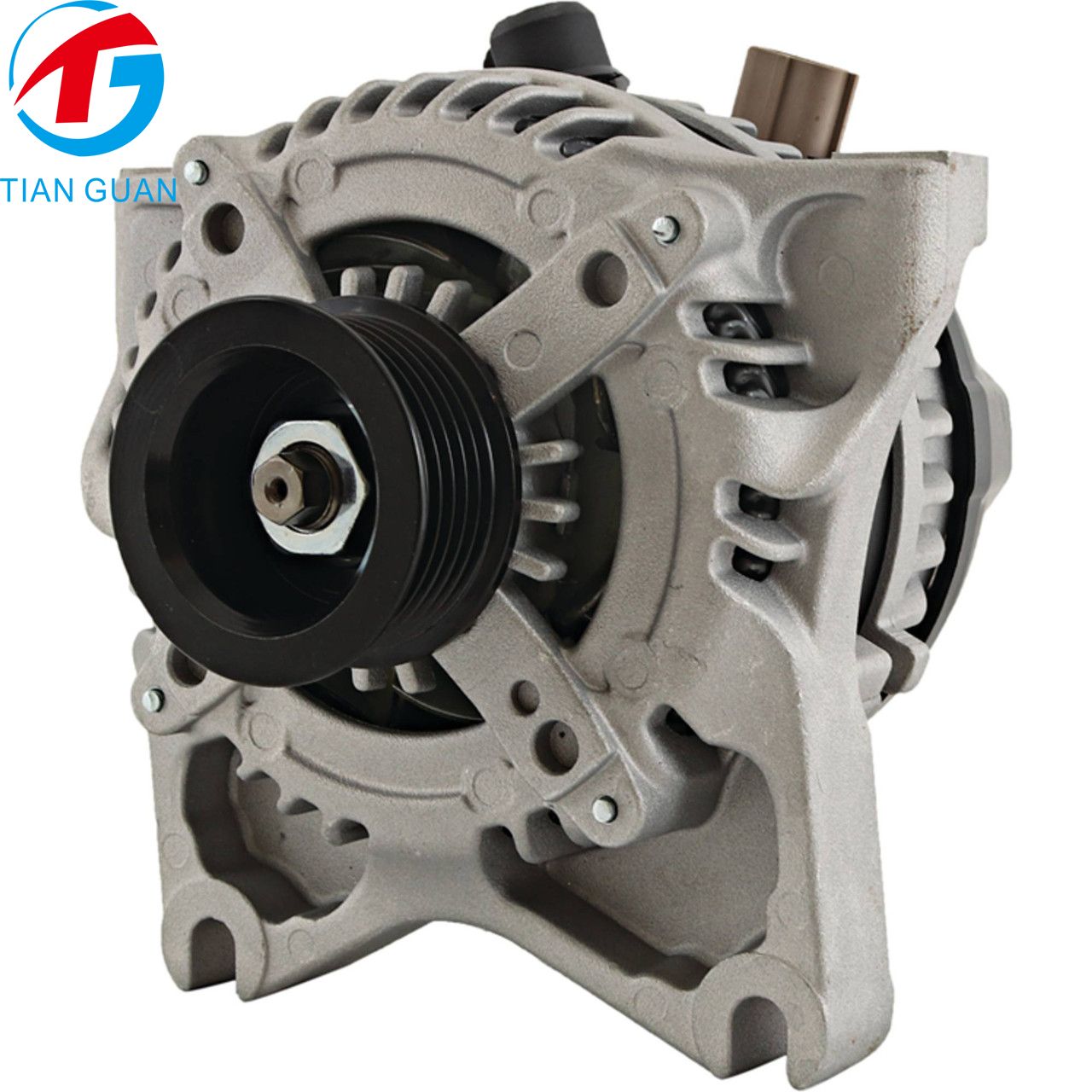

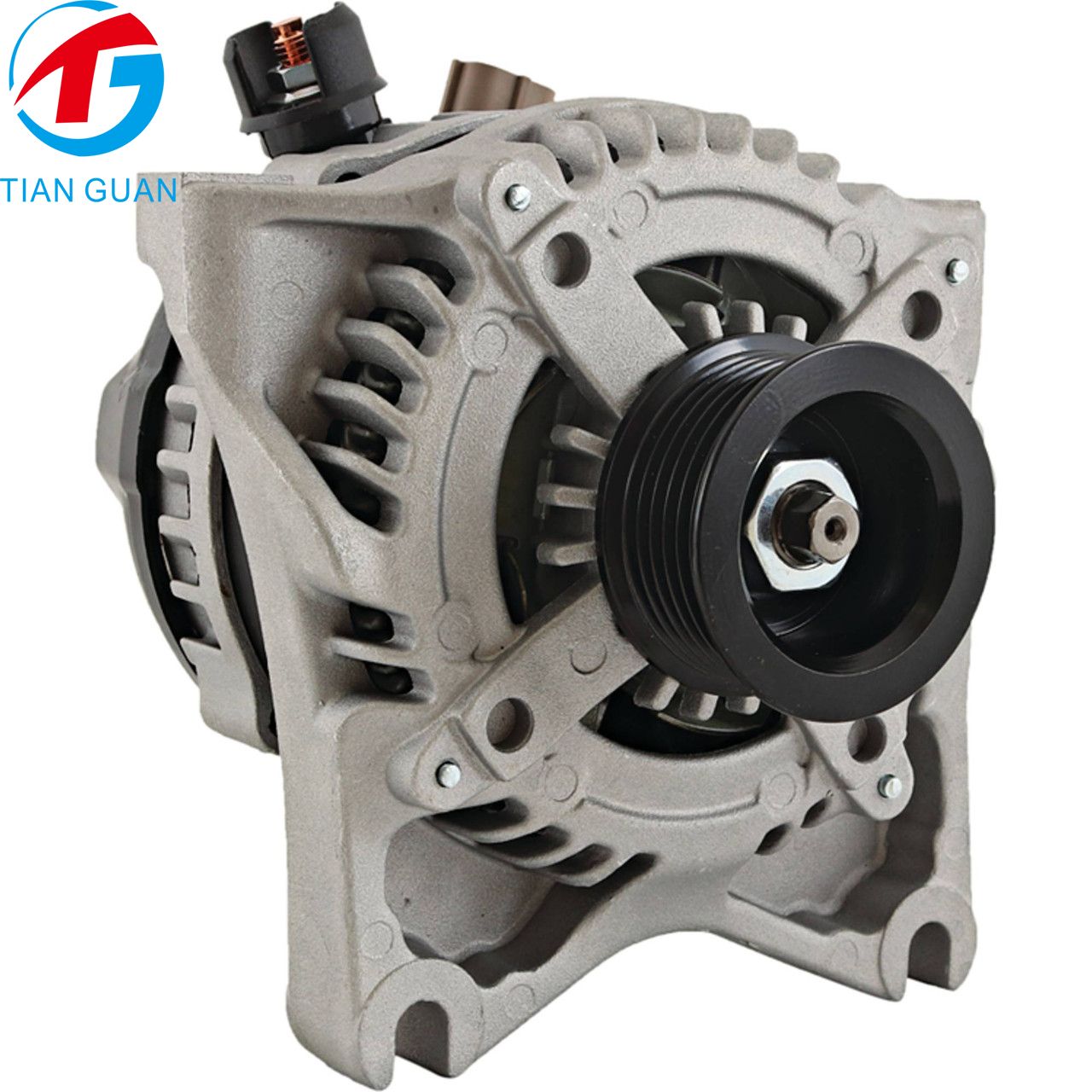

This alternator features clockwise (CW) rotation, an internal regulator (IR), an internal fan (IF), and an 11 o’clock clock position. It uses a six-groove pulley with an outside diameter of approximately 55 mm. These specifications should be matched against the original unit to ensure proper mounting, belt alignment, and electrical compatibility.

The ATG10933 is intended as an aftermarket replacement for compatible vehicle charging systems. The supplied application data also identifies the 2008 Lincoln Mark LT with a 5.4L engine. Confirm the original alternator part number, engine configuration, pulley dimensions, and mounting arrangement before ordering.

Product Specifications

Compatible Applications
